PEUGEOT 308 2017 Owners Manual

309
3008-2_en_Chap08_en cas-de-panne_ed01-2016

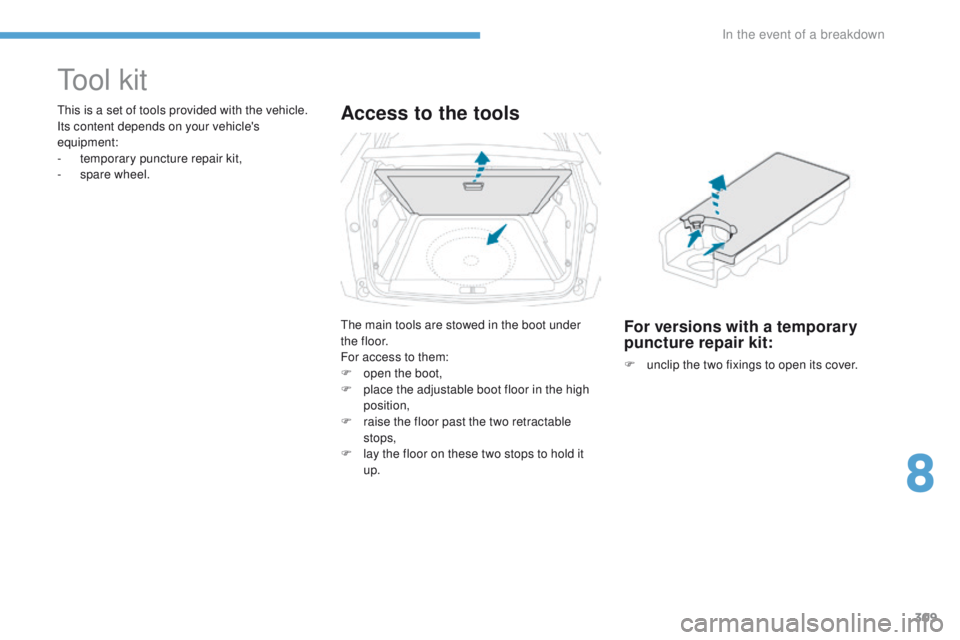

Tool kit
This is a set of tools provided with the vehicle.
Its content depends on your vehicle's
equipment:
-
t
emporary puncture repair kit,
-
spar

e wheel.Access to the tools
The main tools are stowed in the boot under
t h e f l o o r.
For access to them:
F
o
pen the boot,
F

p
lace the adjustable boot floor in the high
position,
F

r
aise the floor past the two retractable
stops,
F

l
ay the floor on these two stops to hold it
up.For versions with a temporary
puncture repair kit:
F unclip the two fixings to open its cover.
8
In the event of a breakdown

310
3008-2_en_Chap08_en cas-de-panne_ed01-2016

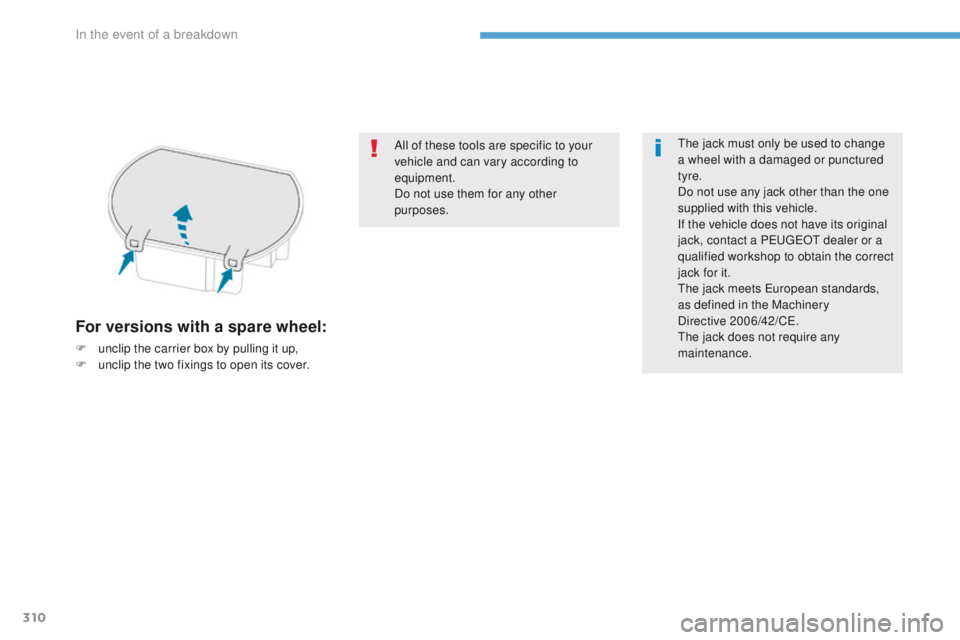

For versions with a spare wheel:
F unclip the carrier box by pulling it up,
F u nclip the two fixings to open its cover. All of these tools are specific to your
vehicle and can vary according to
equipment.
Do not use them for any other
purposes.
The jack must only be used to change
a wheel with a damaged or punctured
tyre.
Do not use any jack other than the one
supplied with this vehicle.
If the vehicle does not have its original
jack, contact a PEUGEOT dealer or a
qualified workshop to obtain the correct
jack for it.
The jack meets European standards,
as defined in the Machinery
Directive


2006/42/CE.
The jack does not require any
maintenance.
In the event of a breakdown

311
3008-2_en_Chap08_en cas-de-panne_ed01-2016

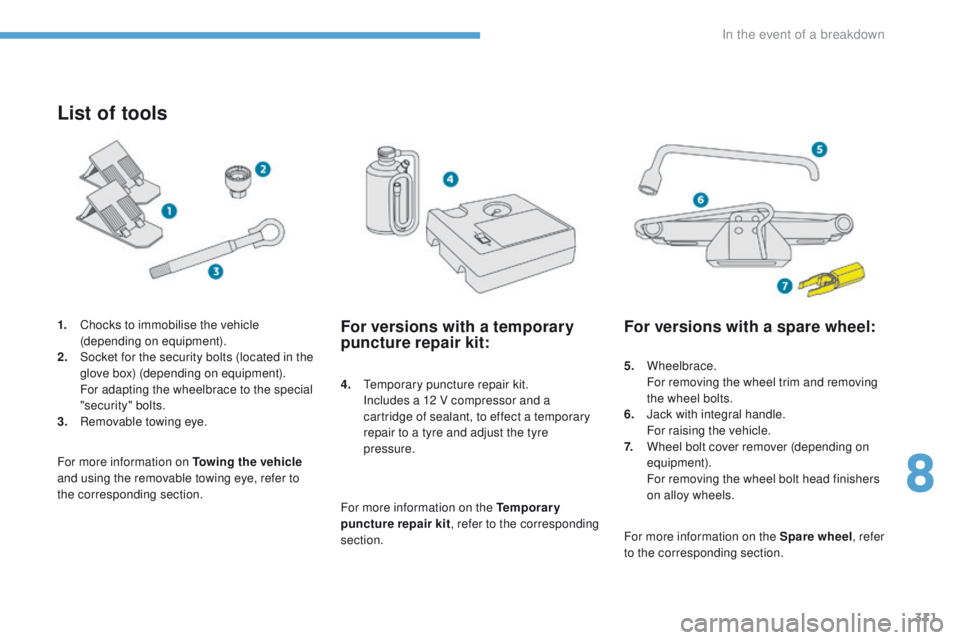

List of tools
4. Temporary puncture repair kit. Includes a 12 V compressor and a
cartridge of sealant, to effect a temporary
repair to a tyre and adjust the tyre
pressure.
For more information on Towing the vehicle
and using the removable towing eye, refer to
the corresponding section. 1.
C

hocks to immobilise the vehicle
(depending on equipment).
2.
S

ocket for the security bolts (located in the
glove box) (depending on equipment). F
or adapting the wheelbrace to the special
"security" bolts.
3.
R

emovable towing eye.
For versions with a temporary
puncture repair kit:
For more information on the Temporary
puncture repair kit , refer to the corresponding
section.
For versions with a spare wheel:
5. Wheelbrace. F
or removing the wheel trim and removing
the wheel bolts.
6.
J

ack with integral handle.
F

or raising the vehicle.
7.
W

heel bolt cover remover (depending on
equipment).
F

or removing the wheel bolt head finishers
on alloy wheels.
For more information on the Spare wheel , refer
to the corresponding section.
8
In the event of a breakdown

312
3008-2_en_Chap08_en cas-de-panne_ed01-2016

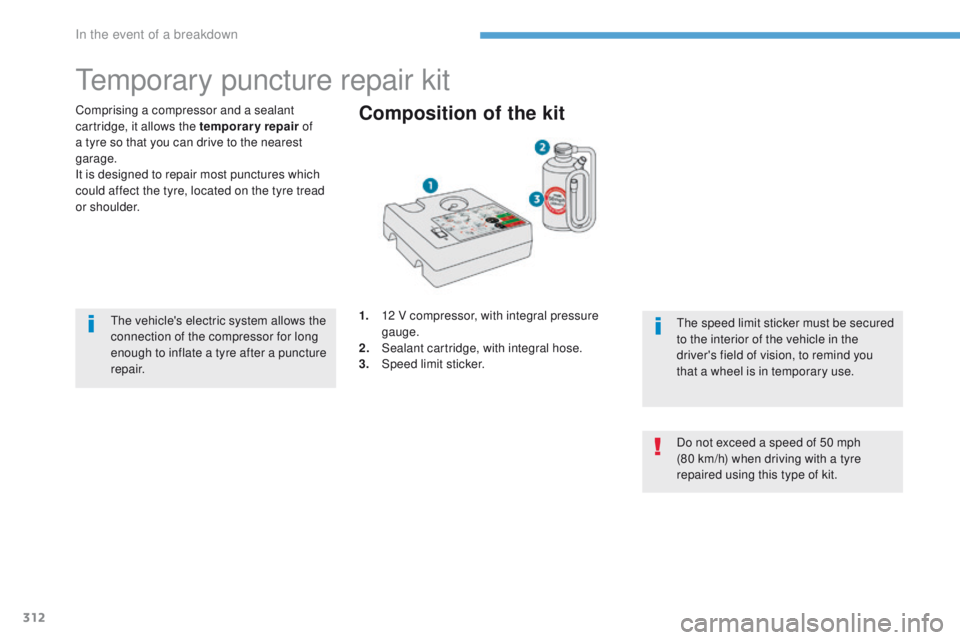

Temporary puncture repair kit
Comprising a compressor and a sealant
cartridge, it allows the temporary repair of
a tyre so that you can drive to the nearest
garage.
It is designed to repair most punctures which
could affect the tyre, located on the tyre tread
or shoulder.Composition of the kit
1. 12 V compressor, with integral pressure gauge.
2.
S

ealant cartridge, with integral hose.
3.
Spe

ed limit sticker. The speed limit sticker must be secured
to the interior of the vehicle in the
driver's field of vision, to remind you
that a wheel is in temporary use.
Do not exceed a speed of 50 mph
(80
km/h) when driving with a tyre
repaired using this type of kit.
The vehicle's electric system allows the
connection of the compressor for long
enough to inflate a tyre after a puncture
repair.
In the event of a breakdown

313
3008-2_en_Chap08_en cas-de-panne_ed01-2016

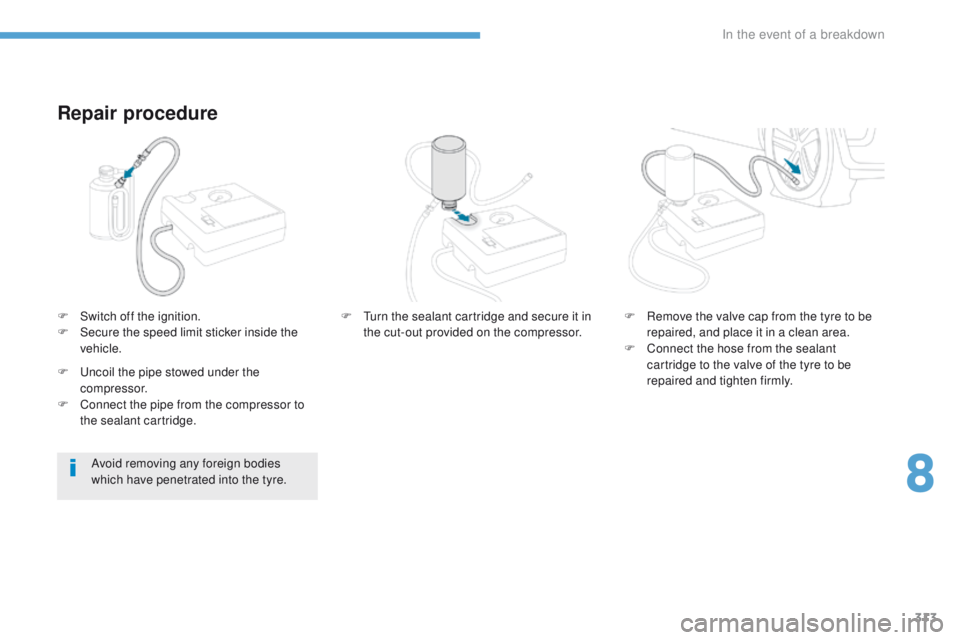

Repair procedure
F Switch off the ignition.
F S ecure the speed limit sticker inside the
vehicle.
Avoid removing any foreign bodies
which have penetrated into the tyre.
F

U
ncoil the pipe stowed under the
compressor.
F

C
onnect the pipe from the compressor to
the sealant cartridge. F
R emove the valve cap from the tyre to be
repaired, and place it in a clean area.
F

C
onnect the hose from the sealant
cartridge to the valve of the tyre to be
repaired and tighten firmly.
F
T urn the sealant cartridge and secure it in
the cut-out provided on the compressor.
8
In the event of a breakdown

314
3008-2_en_Chap08_en cas-de-panne_ed01-2016
If after around 5 to 7 minutes the
pressure is not attained, this indicates
that the tyre is not repairable; contact
a PEUGEOT dealer or a qualified
workshop for assistance.
Take care, the sealant product is
harmful if swallowed and causes
irritation to the eyes.
Keep this product out of the reach of
children.
The use-by date is marked on the
cartridge.
After use, do not discard the
cartridge by the roadside, take it to a
PEUGEOT dealer or an authorised
waste disposal site.
Don't forget to obtain a new sealant
cartridge, available from a PEUGEOT
dealer or a qualified workshop.

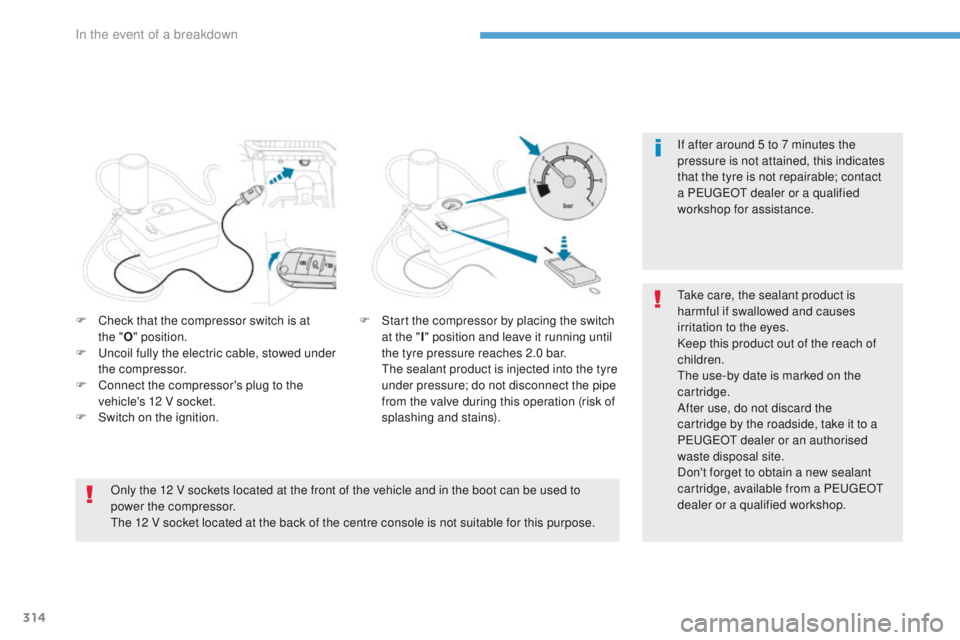

F

C

heck that the compressor switch is at
the

" O " position.
F

U

ncoil fully the electric cable, stowed under
the compressor.
F

C

onnect the compressor's plug to the
vehicle's 12 V socket.
F

S

witch on the ignition. F

S

tart the compressor by placing the switch
at the " I" position and leave it running until
the tyre pressure reaches 2.0 bar.
T

he sealant product is injected into the tyre
under pressure; do not disconnect the pipe
from the valve during this operation (risk of
splashing and stains).
Only the 12 V sockets located at the front of the vehicle and in the boot can be used to
power the compressor.
The 12 V socket located at the back of the centre console is not suitable for this purpose.
In the event of a breakdown

315
3008-2_en_Chap08_en cas-de-panne_ed01-2016

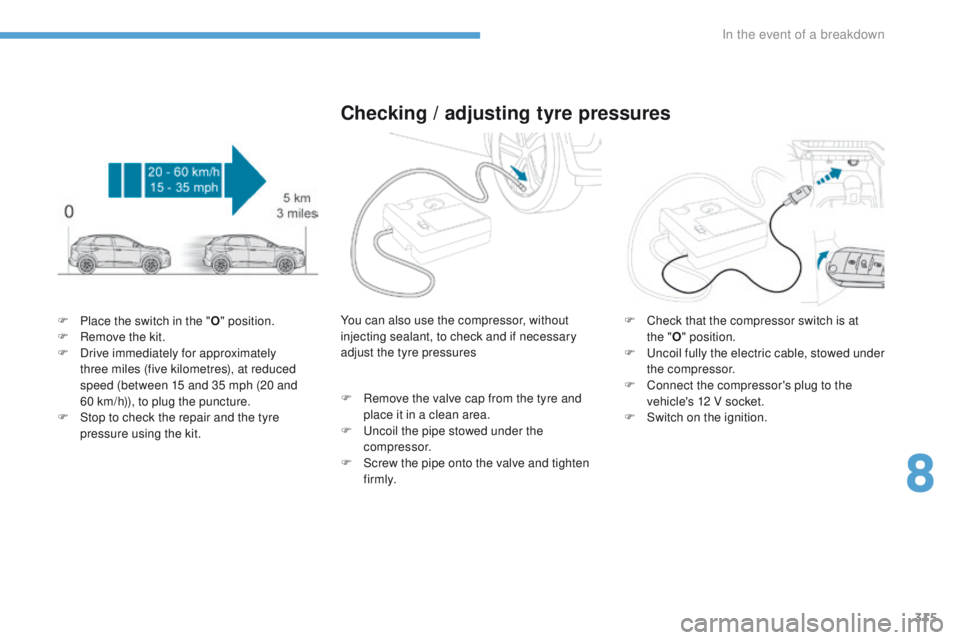

F Place the switch in the "O" position.
F R emove the kit.
F

D
rive immediately for approximately
three miles (five kilometres), at reduced
speed (between 15 and 35 mph (20 and
60
km/h)), to plug the puncture.
F

S
top to check the repair and the tyre
pressure using the kit.
Checking / adjusting tyre pressures
You can also use the compressor, without
injecting sealant, to check and if necessary
adjust the tyre pressures
F

R
emove the valve cap from the tyre and
place it in a clean area.
F

U
ncoil the pipe stowed under the
compressor.
F

S
crew the pipe onto the valve and tighten
f i r m l y. F
C heck that the compressor switch is at
the
"O " position.
F

U
ncoil fully the electric cable, stowed under
the compressor.
F

C
onnect the compressor's plug to the
vehicle's 12 V socket.
F

S
witch on the ignition.
8
In the event of a breakdown

316
3008-2_en_Chap08_en cas-de-panne_ed01-2016

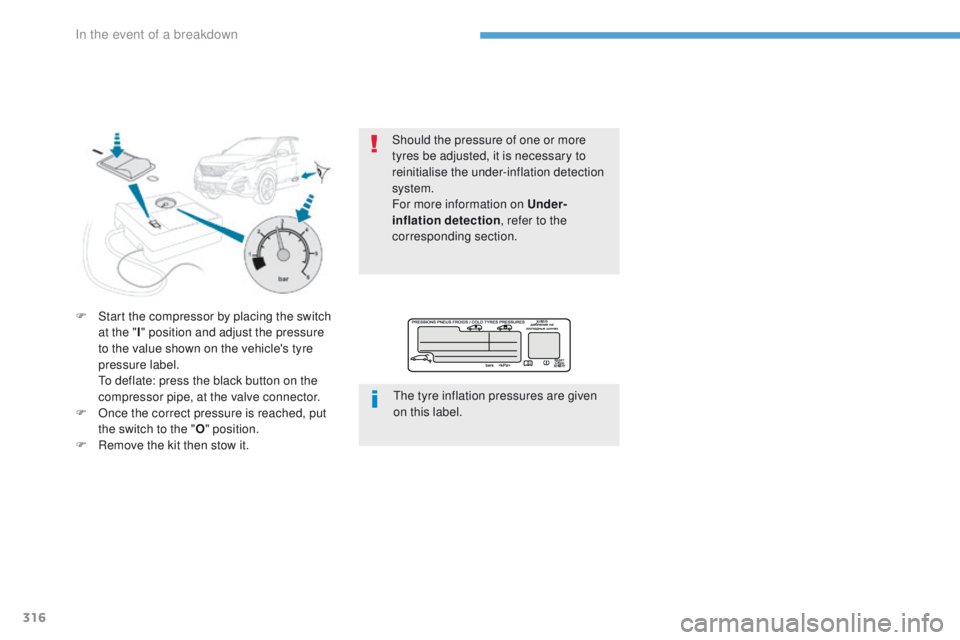

F Start the compressor by placing the switch at the " I" position and adjust the pressure
to the value shown on the vehicle's tyre
pressure label.
T

o deflate: press the black button on the
compressor pipe, at the valve connector.
F

O
nce the correct pressure is reached, put
the switch to the " O" position.
F

R
emove the kit then stow it. The tyre inflation pressures are given
on this label.
Should the pressure of one or more
tyres be adjusted, it is necessary to
reinitialise the under-inflation detection
system.
For more information on Under-
inflation detection
, refer to the
corresponding section.
In the event of a breakdown

317
3008-2_en_Chap08_en cas-de-panne_ed01-2016

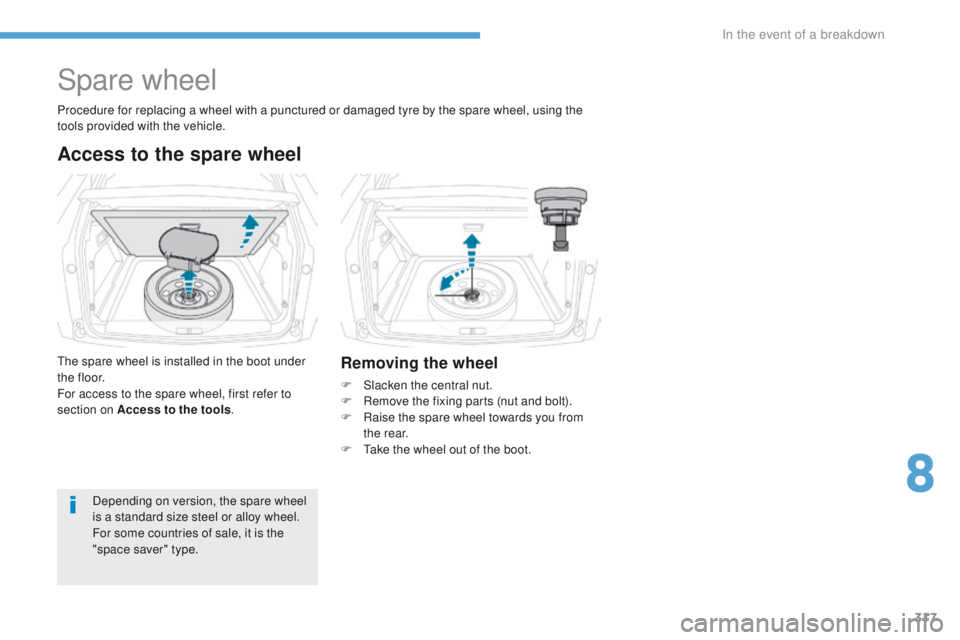

Spare wheel
Access to the spare wheel
The spare wheel is installed in the boot under
t h e f l o o r.
For access to the spare wheel, first refer to
section on Access to the tools.
Depending on version, the spare wheel
is a standard size steel or alloy wheel.
For some countries of sale, it is the
"space saver" type.
Procedure for replacing a wheel with a punctured or damaged tyre by the spare wheel, using the
tools provided with the vehicle.Removing the wheel
F Slacken the central nut.
F
R emove the fixing parts (nut and bolt).
F

R
aise the spare wheel towards you from
the rear.
F

T
ake the wheel out of the boot.
8
In the event of a breakdown

318
3008-2_en_Chap08_en cas-de-panne_ed01-2016
Putting the wheel back in place
F Put the wheel back in its housing.
F S lacken the nut on the bolt by a few turns.
F

P
osition the fixing parts (nut and bolt) in the
middle of the wheel.
Tyre under-inflation detection
The spare wheel is not fitted with a
sensor.
The punctured tyre must be repaired or
replaced by by a PEUGEOT dealer or a
qualified workshop.
F

T

ighten fully until the central nut clicks, to
retain the wheel correctly.
F

R

eturn the tool box to the middle of the
wheel and clip it in place.
In the event of a breakdown
