PEUGEOT 308 2017 Workshop Manual

49
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Air conditioning.
Allows control of the settings for
temperature, air flow...Connected navigation or Mirror
Scre en*.
See more information in "Audio
equipment and telematics".
Menus
i-Cockpit Amplify function.
Allows a vehicle ambience to be
personalised.
Radio Media.
See more information in "Audio
equipment and telematics".
Driving.
Allows the activation, deactivation and
adjustment of settings for certain functions.
Telephone.
See more in "Audio equipment and
telematics".
Applications.
Allows direct access to certain
i-Cockpit Amplify
functions
(scented air freshener...). Volume / mute.
See more in "Audio equipment and
telematics".
* Depending on equipment.
Upper bar
Certain information is always displayed in the
upper bar of the touch screen:
-
R
epeat of the air conditioning information,
and direct access to the corresponding
menu.
-

R
epeat of information from the Radio
Media , Telephone menus and navigation
instructions*.
-

A
ccess to Configuration of the touch
screen and the digital instrument panel.
For more information on the i-Cockpit Amplify

function , refer to the corresponding section.
For more information on Semi-automatic
mono-zone air conditioning and Automatic
dual-zone air conditioning , refer to the
corresponding sections. The functions accessible from this menu are
arranged under two tabs: "
Settings" and
" Driving assistance ".
For more information on the Scented air
freshener , refer to the corresponding section.
See more information in "Audio equipment and
telematics".
1
Instruments

50
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Driving menu
"Settings" tab
ButtonComments
" Lighting " -
"

Directional headlamps": activation/deactivation of cornering lighting.
-

"
LED daytime running lamps" (depending on the country of sale).
" Vehicle access "-
"

Driver plip action": activation/deactivation of selective unlocking of the driver's door.
-

"
Unlock boot only": activation/deactivation of selective unlocking at the tailgate.
-
"

Motorized tailgate": activation/deactivation of motorized operation of the tailgate.
-

"
Hands-Free Tailgate Access": activation/deactivation of the hands-free tailgate access system.
" Comfort " -
"

Rear wiper in reverse": activation/deactivation of the rear wiper coupled with reverse gear.
-
"

Guide-me-home lighting": activation/deactivation of automatic guide-me-home lighting.
-
"

Welcome lighting": activation/deactivation of exterior welcome lighting.
-
"

Mood lighting": activation/deactivation of mood lighting and adjustment of brightness.
-

"
Auto mirror dipping in reverse": activation/deactivation of automatic dipping of door mirrors in reverse gear.
" Safety " -
"

Collision risk alert and automatic braking": activation/deactivation of collision risk alert and automatic emergency
braking.
-
"

Recommended speed display": activation/deactivation of speed limit recognition.
-
"

Fatigue Detection System": activation/deactivation of the driver fatigue detection system.
For more information on one of these functions, refer to the corresponding section.
Instruments

51
3008-2_en_Chap01_instruments-de-bord_ed01-2016
"Driving assistance" tab
Corresponding function"Comments"
"Speed settings" Memorisation of speed settings for the speed limiter or cruise control.
"Under-inflation initialization "Reinitialization of the under-inflation detection system.
"Lane departure detection assistance. "Activation/deactivation of the function.
"Help staying in lane" Activation/deactivation of the function.
Parking sensors Activation/deactivation of the function.
"Park Assist" Activation/deactivation of the function.
"Automatic headlamp dip "Activation/deactivation of the function.
"Stop & Star t" Activation/deactivation of the function.
" Blind spot monitoring " Activation/deactivation of the function.
"Panoramic visual aid" Activation of the Visiopark 2 function.
"Wheel anti-slip regulation" Activation/deactivation of the function
For more information on one of these functions, refer to the corresponding section.
1
Instruments

52
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Configuration
The functions available through this menu are detailed in the table below.
Button Comments
Turn off the screen (black screen).
To return to the current screen, press the black screen or one of the menu buttons.
Adjustment of the brightness of the instrument panel mood lighting.
Choice and settings for three user profiles.
Settings for the touch screen and the digital instrument panel...
Activation and adjustment of Wi-Fi settings.
Instruments

53
3008-2_en_Chap01_instruments-de-bord_ed01-2016
ButtonCorresponding function Comments
Screen configuration Adjustment of the display settings (scrolling of text, animations...) and brightness.
Instrument panel perso Select the type of information displayed in the digital instrument panel.
System configuration Choice of units:
-
t

emperature (°Celsius or °Fahrenheit)
-

d
istance and fuel consumption (l/100 km, mpg or km/l).
Languages Choice of language used for the touch screen and the digital instrument panel.
Time / Date Setting the time, date and format.
Option of synchronisation with GPS.
Settings
The settings possible for the touch screen and the digital instrument panel are presented in the table below.
1
Instruments

54
3008-2_en_Chap02_ouvertures_ed01-2016
Remote control
The remote control can be used for the
following functions, depending on version:
-
u
nlocking / locking / deadlocking the
vehicle,
-

u
nlocking and opening the boot,
-

s
witch on the lighting from a distance,
-

f
olding / unfolding the door mirrors,
-

a
ctivation / deactivation of the alarm,
-
o

pening the windows,
-
c

losing the windows and the opening roof,
-

l
ocating the vehicle,
-
v

ehicle immobiliser.
In normal operating conditions, it is preferable
to use the remote control.
General points
The key, integral with the remote control, can
be used for the following functions, depending
on version:
-

u
nlocking / locking / deadlocking the
vehicle,
-

t
urning the child lock on or off,
-
a

ctivation / deactivation of the passenger's
front airbag,
-

b
ack-up door locking,
-

s
witching on the ignition and starting /
stopping the engine.
Ejecting the key
Version with Keyless Entr y and Star ting
F P ull on this button to remove the key from
the housing.
To return it to the housing, first pull on this
button. Version without Keyless Entr y and Star ting
F
P
ress this button; the key is ejected from its
housing.
To avoid damaging the mechanism, first press
this button to fold it.
Back-up procedures allow the vehicle to be
locked or unlocked in the event of a failure
of the remote control, the central locking,
the


batter y...
For more information on the Back-up
procedures , refer to the corresponding
section.
Access

55
3008-2_en_Chap02_ouvertures_ed01-2016
F Press this button.
Total unlocking
Unlocking the vehicle
Selective unlocking of the
driver's door
Setting is via the vehicle configuration menu in
the screen.F

T
o unlock just the driver's door,
make a first press on this button.
F

T
o unlock the other doors and
the boot, press this button again.
On the first press of the locking button, flashing
of the direction indicators for a few seconds
signals:
-

t
otal or selective unlocking of the vehicle
for versions without alarm,
-

d
eactivation of the alarm for other versions.
Depending on version, the door mirrors unfold. Opening the windows
Locking the vehicle
Normal locking
F Press this button.
On pressing the locking button, illumination
of the direction indicators for a few seconds
signals:
-

l

ocking of the vehicle for versions without
alarm,
-

a

ctivation of the alarm for other versions.
Depending on version, the door mirrors fold.
If one of the doors or the boot is not
fully closed, the locking does not take
place. However, if your vehicle has an
alarm, this will be totally activated after
about 45 seconds.
If the vehicle is unlocked inadvertently
and there is then no action on the doors
or boot, the vehicle will automatically
lock itself again after about 30 seconds.
If the alarm had been previously
activated, it will be reactivated
automatically.
The folding and unfolding of the door
mirrors with the remote control can be
deactivated by a PEUGEOT dealer or a
qualified workshop. Depending on version, pressing and
holding the unlocking buttons opens
the windows to the desired position.
The windows stop when you release the button.
2
Access

56
3008-2_en_Chap02_ouvertures_ed01-2016

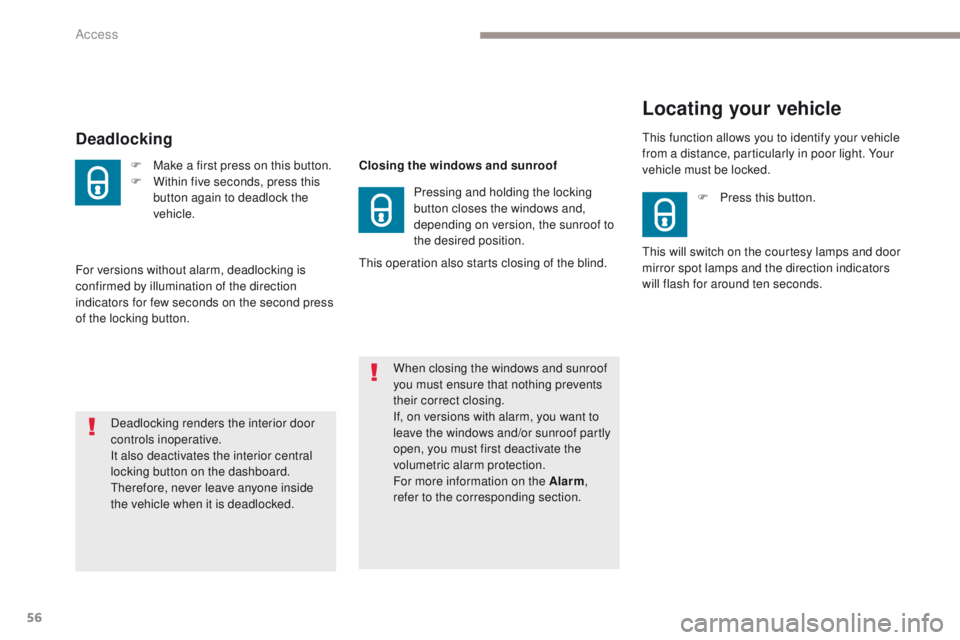

Deadlocking
F Make a first press on this button.
F W ithin five seconds, press this
button again to deadlock the
vehicle.
Deadlocking renders the interior door
controls inoperative.
It also deactivates the interior central
locking button on the dashboard.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
Locating your vehicle
F Press this button.
This will switch on the courtesy lamps and door
mirror spot lamps and the direction indicators
will flash for around ten seconds. This function allows you to identify your vehicle
from a distance, particularly in poor light. Your
vehicle must be locked.
For versions without alarm, deadlocking is
confirmed by illumination of the direction
indicators for few seconds on the second press
of the locking button. Closing the windows and sunroof
Pressing and holding the locking
button closes the windows and,
depending on version, the sunroof to
the desired position.
When closing the windows and sunroof
you must ensure that nothing prevents
their correct closing.
If, on versions with alarm, you want to
leave the windows and/or sunroof partly
open, you must first deactivate the
volumetric alarm protection.
For more information on the Alarm ,
refer to the corresponding section.
This operation also starts closing of the blind.
Access

57
3008-2_en_Chap02_ouvertures_ed01-2016
If selective unlocking of the boot is
deactivated, pressing the unlocking
button unlocks the whole vehicle.
Remote operation of
exterior lighting
Availability of this function depends on version.F
M
ake a short press on this
remote control button.
Pressing again before the end of the timed
period switches off the lighting immediately.
Unlocking and opening the
boot
Selective unlocking of the boot
F Make a long press on this button to unlock the boot and start the
motorised opening of the tailgate.
The doors and fuel filler flap remain locked.
The sidelamps, dipped beam headlamps,
number plate lamps and door mirror spotlamps
come on for 30 seconds.
The setting for selective unlocking of the boot
is done in the vehicle configuration menu in the
screen.
By default, selective unlocking of the boot is
activated.
If motorised operation of the tailgate
is deactivated, pressing the unlocking
button releases the tailgate.
To lock the vehicle, it is necessary to
close the tailgate manually.
On pressing the boot unlocking button, flashing
of the direction indicators for a few seconds
signals:
-

t
otal or selective unlocking of the vehicle
for versions without alarm,
-

d
eactivation of the alarm for other versions.
Depending on version, the door mirrors unfold.
The setting for motorised operation
of the tailgate is done in the
Driving


menu of the touch screen.
By default, motorised operation is deactivated.
2
Access

58
3008-2_en_Chap02_ouvertures_ed01-2016
Keyless Entry and Starting
System that allows the unlocking, locking
and starting of the vehicle, while keeping the
electronic key on your person.
Unlocking the vehicle
Complete unlocking
The electronic key can also be used as
a remote control.
For more information on the operation
of the Remote control, refer to the
corresponding section. F

W
ith the electronic key on your person and
in the recognition zone A , pass your hand
behind one of the front door handles or
press the tailgate opening control (located
in the middle).
If motorised operation of the tailgate is
activated, this action triggers its automatic
opening.
Opening the windows
Depending on version, keeping your hand
behind the door handle or pressing the tailgate
control allows the windows to be opened to the
desired position.
Flashing of the direction indicators for a few
seconds signals:
-

t
he unlocking of the vehicle for versions
without alarm,
-

t
he deactivation of the alarm for other
versions.
Depending on version, the door mirrors unfold.
Access
