Peugeot 308 2018 Owner's Manual

219

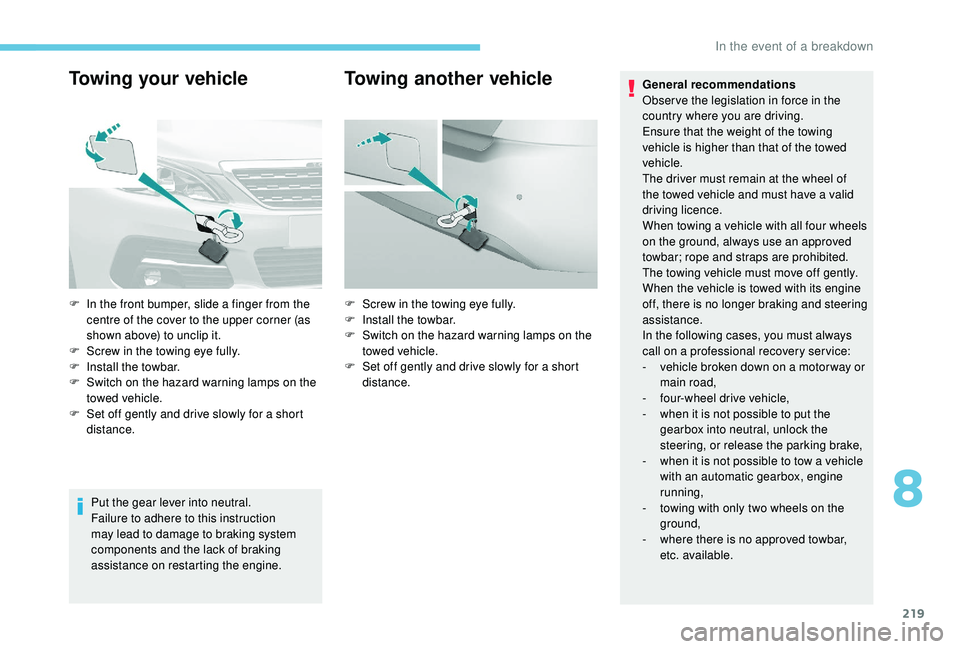

Towing your vehicle
Put the gear lever into neutral.
Failure to adhere to this instruction
may lead to damage to braking system
components and the lack of braking
assistance on restarting the engine.
Towing another vehicleGeneral recommendations
Obser ve the legislation in force in the
country where you are driving.
Ensure that the weight of the towing
vehicle is higher than that of the towed
vehicle.
The driver must remain at the wheel of
the towed vehicle and must have a valid
driving licence.
When towing a vehicle with all four wheels
on the ground, always use an approved
towbar; rope and straps are prohibited.
The towing vehicle must move off gently.
When the vehicle is towed with its engine
off, there is no longer braking and steering
assistance.
In the following cases, you must always
call on a professional recovery ser vice:
-
v
ehicle broken down on a motor way or
main road,
-
f

our-wheel drive vehicle,
-

w
hen it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking brake,
-

w
hen it is not possible to tow a vehicle
with an automatic gearbox, engine
running,
-

t
owing with only two wheels on the
ground,
-

w
here there is no approved towbar,
etc. available.
F

I

n the front bumper, slide a finger from the
centre of the cover to the upper corner (as
shown above) to unclip it.
F

S

crew in the towing eye fully.
F

I

nstall the towbar.
F

S

witch on the hazard warning lamps on the
towed vehicle.
F

S

et off gently and drive slowly for a short
distance. F

S

crew in the towing eye fully.
F

I

nstall the towbar.
F

S

witch on the hazard warning lamps on the
towed vehicle.
F

S

et off gently and drive slowly for a short
distance.
8

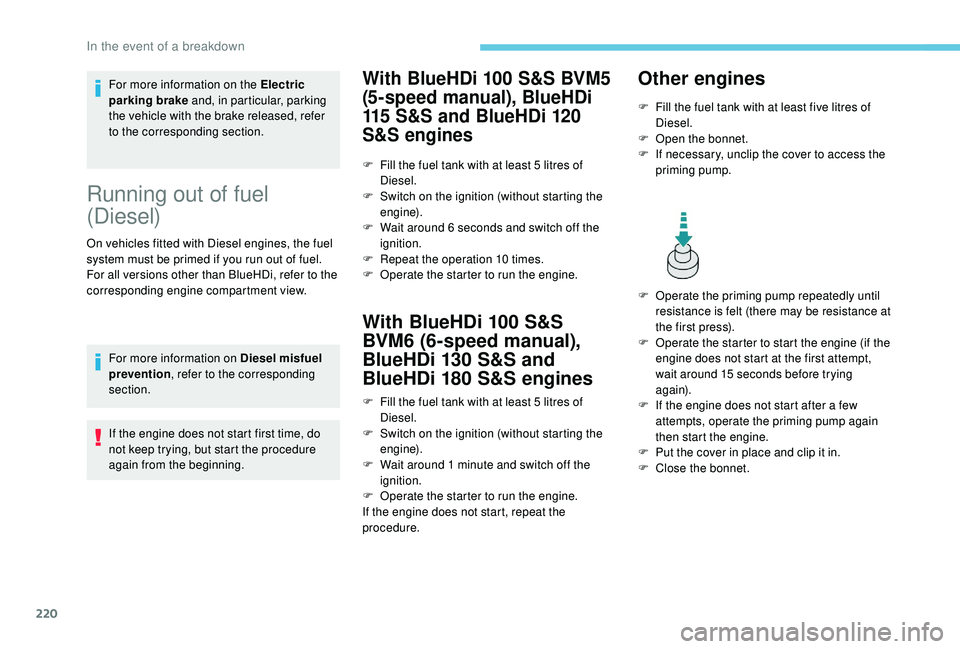

In the event of a breakdown

220
For more information on the Electric
parking brake and, in particular, parking
the vehicle with the brake released, refer
to the corresponding section.
Running out of fuel
(Diesel)
On vehicles fitted with Diesel engines, the fuel
system must be primed if you run out of fuel.
For all versions other than BlueHDi, refer to the
corresponding engine compartment view.
For more information on Diesel misfuel
prevention , refer to the corresponding
section.
If the engine does not start first time, do
not keep trying, but start the procedure
again from the beginning.
With BlueHDi 100 S&S BVM5
(5-speed manual), BlueHDi
115 S&S and BlueHDi 120
S&S engines
With BlueHDi 100 S&S
BVM6 (6-speed manual),
BlueHDi 130 S&S and
BlueHDi 180 S&S engines
F Fill the fuel tank with at least 5 litres of
Diesel.
F

S
witch on the ignition (without starting the
engine).
F

W
ait around 1 minute and switch off the
ignition.
F

O
perate the starter to run the engine.
If the engine does not start, repeat the
procedure.
Other engines
F Fill the fuel tank with at least five litres of Diesel.
F

O
pen the bonnet.
F

I
f necessary, unclip the cover to access the
priming pump.
F

O
perate the priming pump repeatedly until
resistance is felt (there may be resistance at
the first press).
F

O
perate the starter to start the engine (if the
engine does not start at the first attempt,
wait around 15
seconds before trying
again).
F

I
f the engine does not start after a few
attempts, operate the priming pump again
then start the engine.
F

P
ut the cover in place and clip it in.
F

C
lose the bonnet.
F

F

ill the fuel tank with at least 5

litres of
Diesel.
F

S

witch on the ignition (without starting the
engine).
F

W

ait around 6

seconds and switch off the
ignition.
F

R

epeat the operation 10 times.
F

O

perate the starter to run the engine.
In the event of a breakdown

221

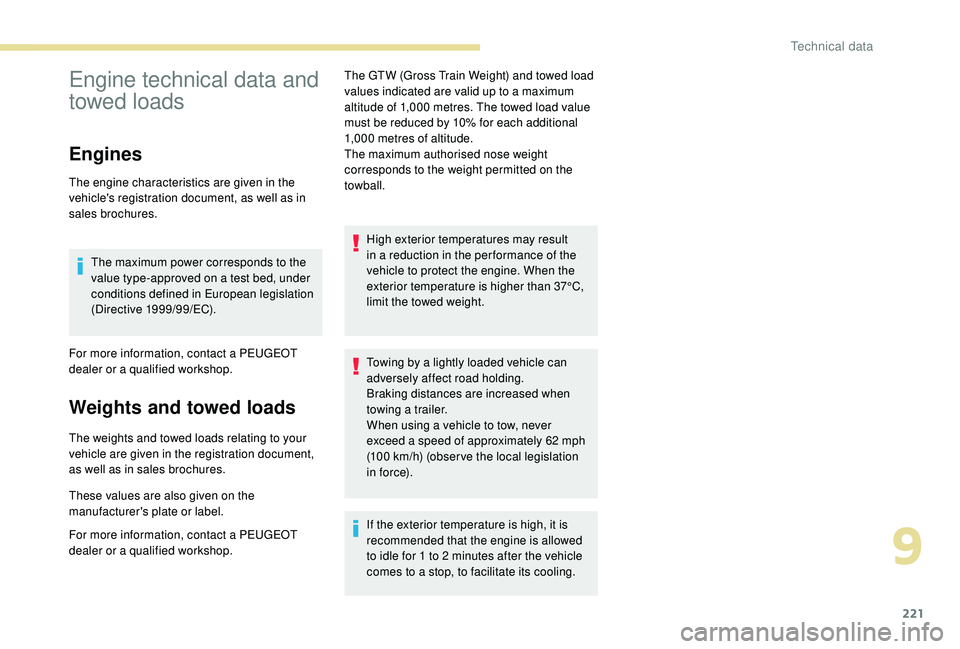

Engine technical data and
towed loads
Engines
The engine characteristics are given in the
vehicle's registration document, as well as in
sales brochures.The maximum power corresponds to the
value type-approved on a test bed, under
conditions defined in European legislation
(Directive 1999/99/EC).
For more information, contact a PEUGEOT
dealer or a qualified workshop.
Weights and towed loads
The weights and towed loads relating to your
vehicle are given in the registration document,
as well as in sales brochures.
These values are also given on the
manufacturer's plate or label.
For more information, contact a PEUGEOT
dealer or a qualified workshop. The GTW (Gross Train Weight) and towed load
values indicated are valid up to a maximum
altitude of 1,000
metres. The towed load value
must be reduced by 10% for each additional
1,000 metres of altitude.
The maximum authorised nose weight
corresponds to the weight permitted on the
towball.
High exterior temperatures may result
in a reduction in the per formance of the
vehicle to protect the engine. When the
exterior temperature is higher than 37°C,
limit the towed weight.
Towing by a lightly loaded vehicle can
adversely affect road holding.
Braking distances are increased when
towing a trailer.
When using a vehicle to tow, never
exceed a speed of approximately 62 mph
(100
km/h) (obser ve the local legislation
in force).
If the exterior temperature is high, it is
recommended that the engine is allowed
to idle for 1 to 2
minutes after the vehicle
comes to a stop, to facilitate its cooling.
9
Technical data

222

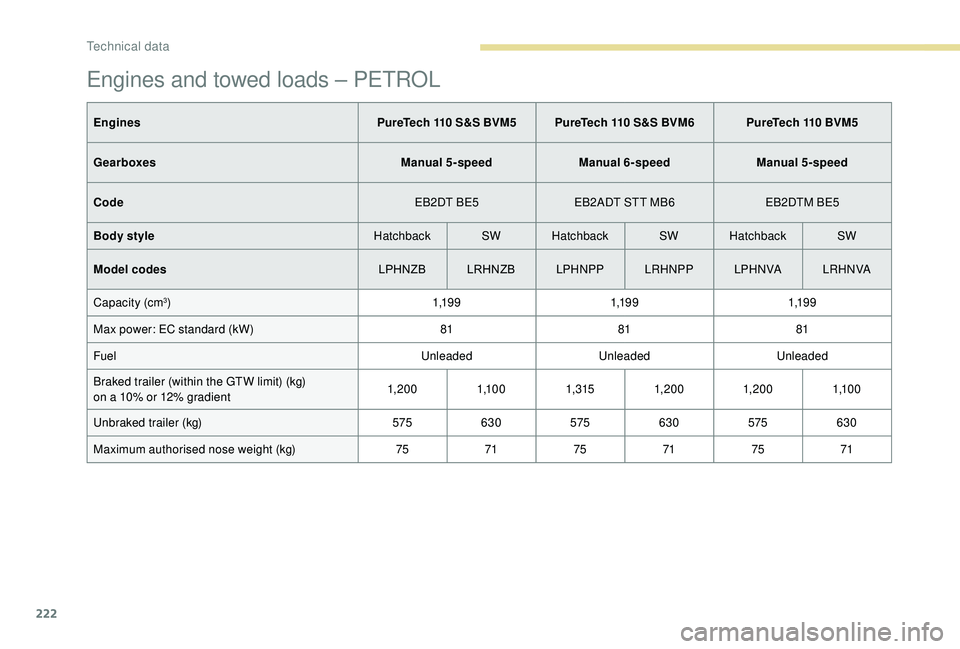

Engines and towed loads – PETROL
EnginesPureTech 110 S&S BVM5 PureTech 110 S&S BVM6 PureTech 110 BVM5
Gearboxes Manual 5-speedManual 6-speedManual 5-speed
Code EB2DT BE5EB2ADT STT MB6 EB2DTM BE5
Body style HatchbackSWHatchback SWHatchback SW
Model codes LPHNZBLRHNZB LPHNPPLRHNPP LPH N VA LR H N VA
Capacity (cm
3) 1,1 9 91,1 9 91,1 9 9
Max power: EC standard (kW) 818181
Fuel UnleadedUnleadedUnleaded
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 1, 20 0
1,1 0 01,3151, 20 0 1, 20 0 1,1 0 0
Unbraked trailer (kg) 575630 575630 575630
Maximum authorised nose weight (kg) 757175 7175 71
Technical data

223

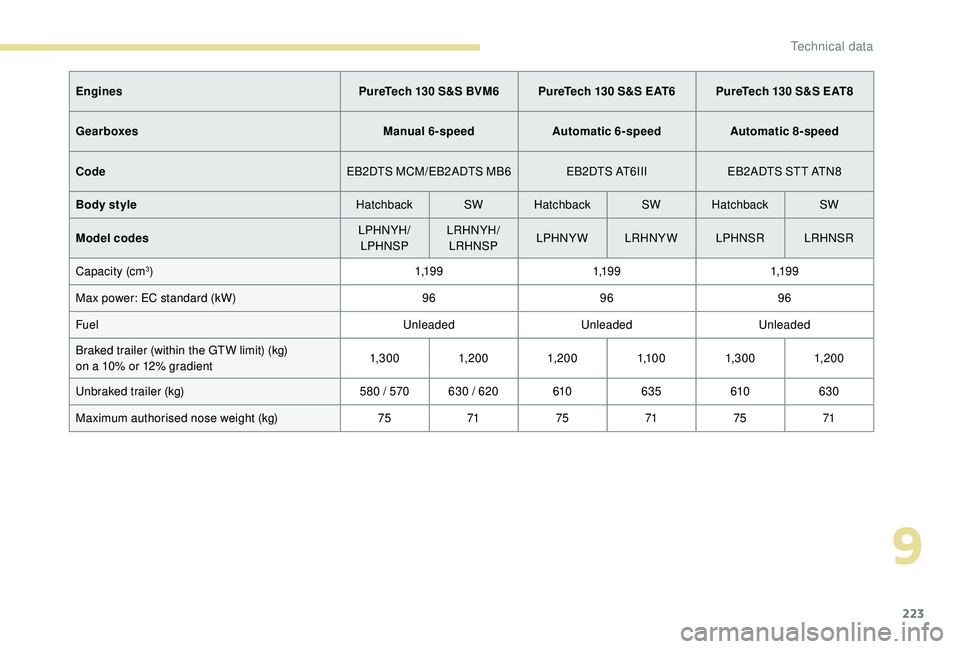

EnginesPureTech 130 S&S BVM6 PureTech 130 S&S EAT6 PureTech 130 S&S EAT8
Gearboxes Manual 6-speedAutomatic 6-speed Automatic 8-speed
Code EB2DTS MCM/EB2ADTS MB6 EB2DTS AT6III EB2ADTS STT ATN8
Body style HatchbackSWHatchback SWHatchback SW
Model codes LPHNYH/
LPHNSP LRHNYH/
LRHNSP LPHNYW LRHNYW
LPHNSRLRHNSR
Capacity (cm
3) 1,1 9 91,1 9 91,1 9 9
Max power: EC standard (kW) 969696
Fuel UnleadedUnleadedUnleaded
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 1,3 0 0
1, 20 01, 20 0 1,1 0 01,3 0 0 1, 20 0
Unbraked trailer (kg) 580 / 570 630 / 620 610635 610630
Maximum authorised nose weight (kg) 757175 7175 71
9
Technical data

224

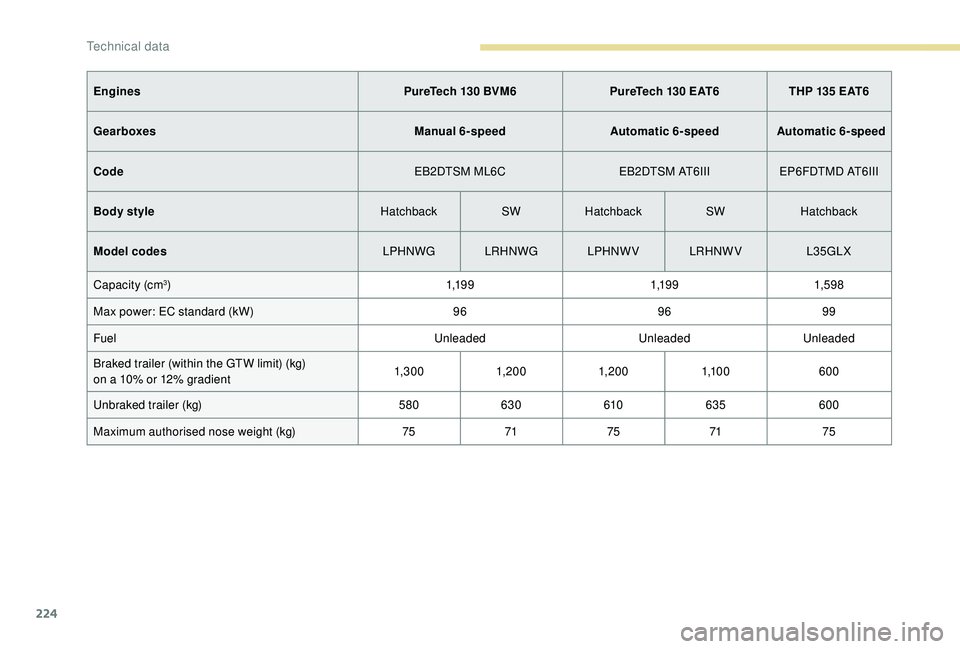

EnginesPureTech 130 BVM6PureTech 130 EAT6THP 135 EAT6
Gearboxes Manual 6-speedAutomatic 6-speed Automatic 6-speed
Code EB2DTSM ML6CEB2DTSM AT6IIIEP6FDTMD AT6III
Body style HatchbackSWHatchback SWHatchback
Model codes LPHNWG LRHNWGLPHNWVLRHNWV L35GLX
Capacity (cm
3) 1,1 9 91,1 9 91,59 8
Max power: EC standard (kW) 969699
Fuel UnleadedUnleadedUnleaded
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 1,3 0 0
1, 20 0 1, 20 0 1,1 0 0 600
Unbraked trailer (kg) 580630 610635 600
Maximum authorised nose weight (kg) 757175 71 75
Technical data

225

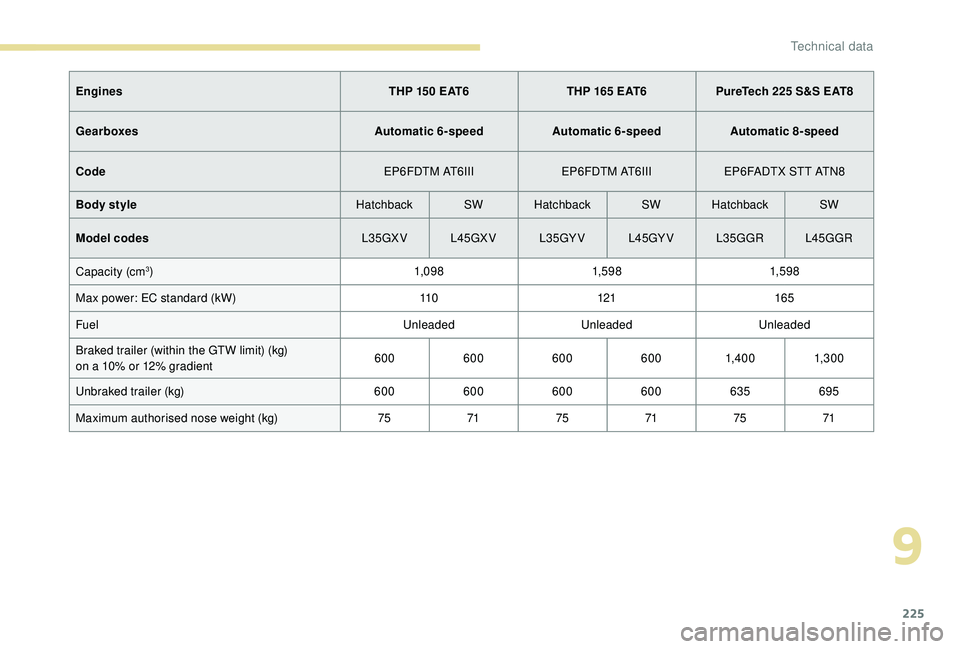

EnginesTHP 150 EAT6THP 165 EAT6PureTech 225 S&S EAT8
Gearboxes Automatic 6-speedAutomatic 6-speed Automatic 8-speed
Code EP6FDTM AT6IIIEP6FDTM AT6IIIEP6FADTX STT ATN8
Body style HatchbackSWHatchback SWHatchback SW
Model codes L35GXV L45GXVL35GY V L45GY VL35GGRL45GGR
Capacity (cm
3) 1,0981,59 81,59 8
Max power: EC standard (kW) 11 0121165
Fuel UnleadedUnleadedUnleaded
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 600
6006006001,4 0 0 1,3 0 0
Unbraked trailer (kg) 600600600600 635695
Maximum authorised nose weight (kg) 757175 7175 71
9
Technical data

226

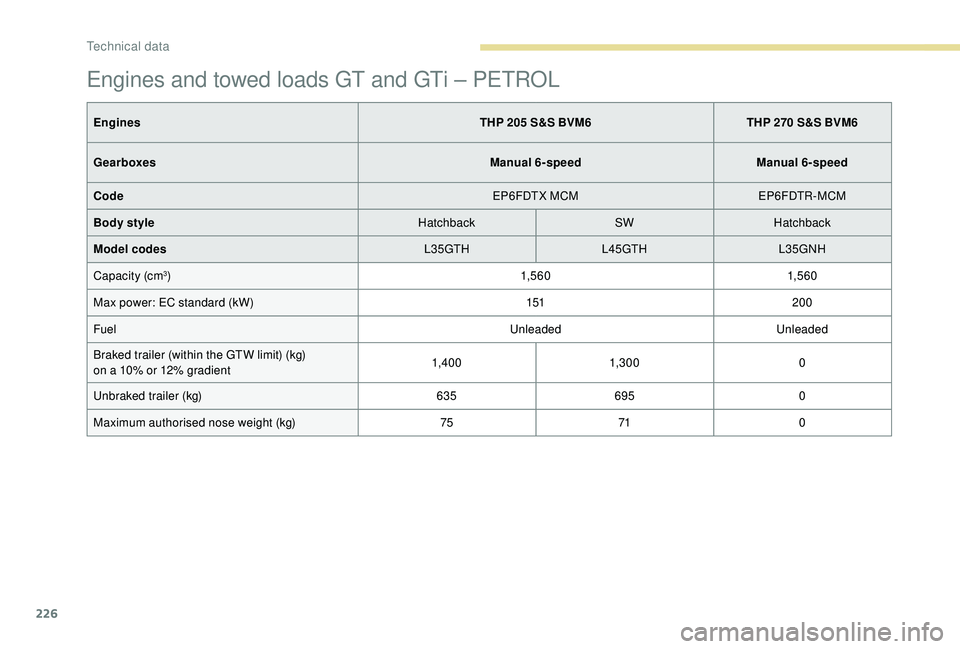

Engines and towed loads GT and GTi – PETROL
EnginesTHP 205 S&S BVM6THP 270 S&S BVM6
Gearboxes Manual 6-speedManual 6-speed
Code EP6FDTX MCMEP6FDTR-MCM
Body style HatchbackSWHatchback
Model codes L35GTHL45GTHL35GNH
Capacity (cm
3) 1,5 6 01,5 6 0
Max power: EC standard (kW) 151200
Fuel UnleadedUnleaded
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 1,4 0 0
1,3 0 0 0
Unbraked trailer (kg) 635695 0
Maximum authorised nose weight (kg) 7571 0

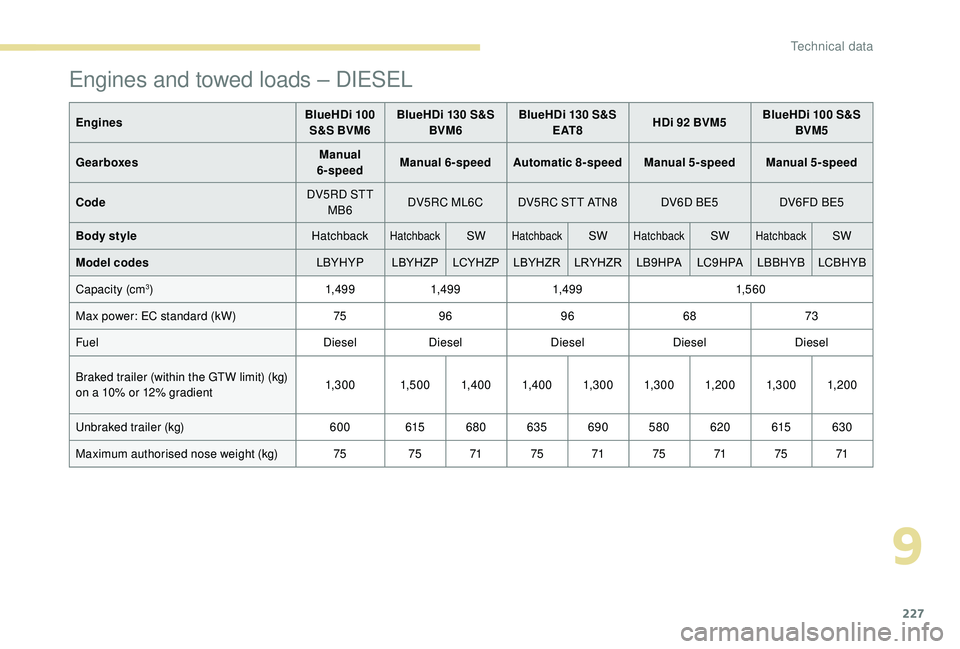

Technical data

227
EnginesBlueHDi 100
S&S BVM6 BlueHDi 130 S&S
BVM6 BlueHDi 130 S&S
E AT 8 HDi 92 BVM5 BlueHDi 100 S&S
BVM5
Gearboxes Manual
6-speed Manual 6-speed
Automatic 8-speed Manual 5-speed Manual 5-speed
Code DV5RD STT
MB6 DV5RC ML6C
DV5RC STT ATN8 DV6D BE5DV6FD BE5
Body style Hatchback
HatchbackSWHatchbackSWHatchbackSWHatchbackSW
Model codes LBYHYPLBYHZP LCYHZP LBYHZR LRYHZRLB 9 H PA LC 9 H PA LBBHYBLCBHYB
Capacity (cm
3) 1,49 91,49 9 1,49 9 1,5 6 0
Max power: EC standard (kW) 7596 96 68 73
Fuel DieselDiesel DieselDieselDiesel
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 1,3 0 0 1,5 0 0 1,4 0 0 1,4 0 0 1,3 0 0 1,3 0 0 1, 20 0 1,3 0 0 1, 20 0
Unbraked trailer (kg) 600615680 635690 580 620 615630
Maximum authorised nose weight (kg) 75757175 7175 7175 71
Engines and towed loads – DIESEL
9
Technical data

228

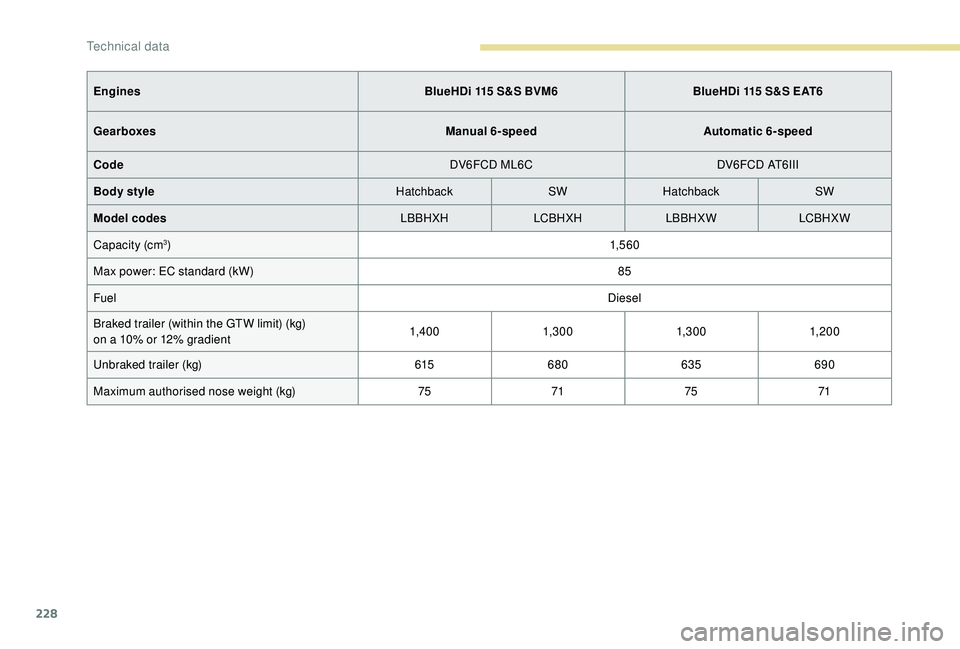

EnginesBlueHDi 115 S&S BVM6BlueHDi 115 S&S EAT6
Gearboxes Manual 6-speedAutomatic 6-speed
Code DV6FCD ML6CDV6FCD AT6III
Body style HatchbackSWHatchback SW
Model codes LBBHXHLCBHXHLBBHXW LCBHX W
Capacity (cm
3) 1,5 6 0
Max power: EC standard (kW) 85
Fuel Diesel
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 1,4 0 0
1,3 0 0 1,3 0 01, 20 0
Unbraked trailer (kg) 615680 635690
Maximum authorised nose weight (kg) 757175 71
