PEUGEOT 308 2018 Owners Manual

99

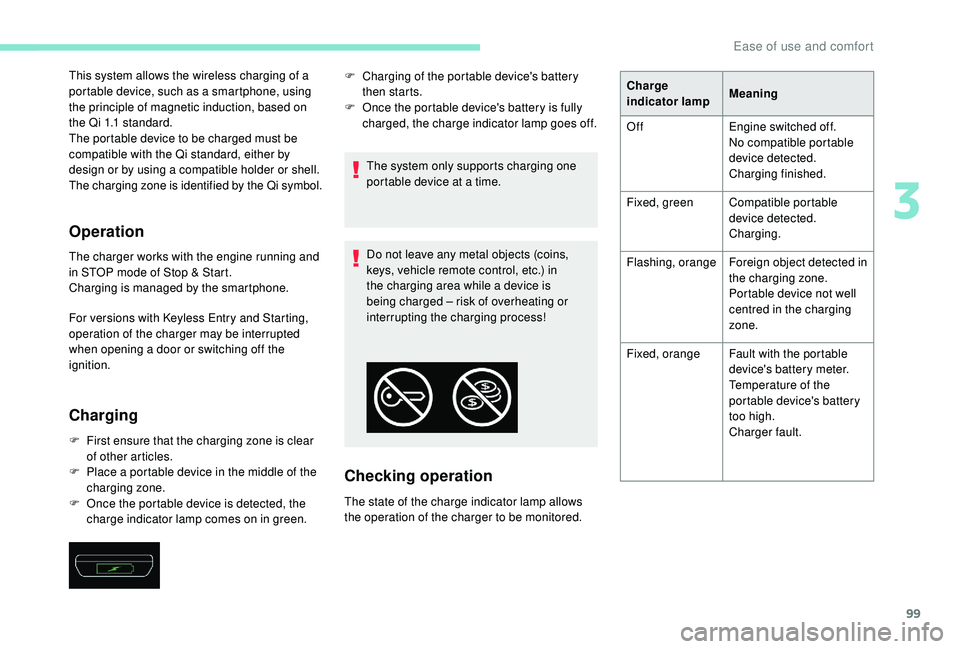

This system allows the wireless charging of a
portable device, such as a smartphone, using
the principle of magnetic induction, based on
the Qi 1.1 standard.
The portable device to be charged must be
compatible with the Qi standard, either by
design or by using a compatible holder or shell.
The charging zone is identified by the Qi symbol.
Operation
The charger works with the engine running and
in STOP mode of Stop & Start.
Charging is managed by the smartphone.
For versions with
K
eyless Entry and Starting,
operation of the charger may be interrupted
when opening a door or switching off the
ignition.
Charging
F First ensure that the charging zone is clear of other articles.
F

P
lace a portable device in the middle of the
charging zone.
F

O
nce the portable device is detected, the
charge indicator lamp comes on in green. The system only supports charging one
portable device at a time.
Do not leave any metal objects (coins,
keys, vehicle remote control, etc.) in
the charging area while a device is
being charged – risk of overheating or
interrupting the charging process!
Checking operation
The state of the charge indicator lamp allows
the operation of the charger to be monitored. F
C
harging of the portable device's battery
then starts.
F
O
nce the portable device's battery is fully
charged, the charge indicator lamp goes off. Charge
indicator lamp
Meaning
Off Engine switched off.
No compatible portable
device detected.
Charging finished.
Fixed, green Compatible portable
device detected.
Charging.
Flashing, orange Foreign object detected in
the charging zone.
Portable device not well
centred in the charging
zone.
Fixed, orange Fault with the portable
device's battery meter.
Temperature of the
portable device's battery
too high.
Charger fault.
3
Ease of use and comfort

100

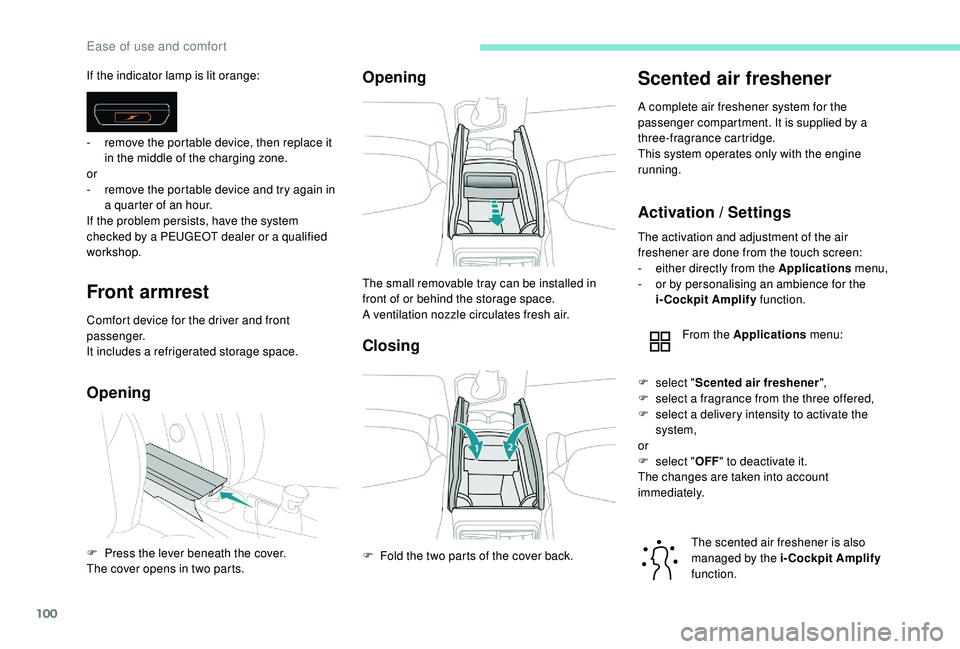

Front armrest
Comfort device for the driver and front
passenger.
It includes a refrigerated storage space.
OpeningOpening
Closing
Scented air freshener
A complete air freshener system for the
passenger compartment. It is supplied by a
three-fragrance cartridge.
This system operates only with the engine
running.
Activation / Settings
If the indicator lamp is lit orange:
-

r
emove the portable device, then replace it
in the middle of the charging zone.
or
-

r
emove the portable device and try again in
a quarter of an hour.
If the problem persists, have the system
checked by a PEUGEOT dealer or a qualified
workshop.
F

P
ress the lever beneath the cover.
The cover opens in two parts. The small removable tray can be installed in
front of or behind the storage space.
A ventilation nozzle circulates fresh air.
F

F
old the two parts of the cover back.The activation and adjustment of the air
freshener are done from the touch screen:
-

e
ither directly from the Applications menu,
-

o
r by personalising an ambience for the
i-Cockpit Amplify function.
From the Applications menu:
The scented air freshener is also
managed by the i-Cockpit Amplify
function.
F

s
elect "Scented air freshener ",
F

s
elect a fragrance from the three offered,
F

s
elect a delivery intensity to activate the
system,
or
F

s
elect "OFF" to deactivate it.
The changes are taken into account
immediately.
Ease of use and comfort

101
Changing the cartridge
Access to the cartridge is in the glove box.
F
I
gnition on, pull the tab 1 in the direction of
the arrow to release the used cartridge.
F

R
emove the used cartridge 2 from its
housing.
The air freshener stops working with the
cartridge removed. F

R
emove the two seals from the new
cartridge.
F

I
nsert the new cartridge into its housing
observing the direction of fitment.
The air freshener is ready to operate again.
Recommendations
For more information on the i-Cockpit Amplify
function, refer to the corresponding section.
Do not discard the original cartridge, which
ser ves as a blanking plug if the air freshener is
not used.
Retain the cartridge sealing caps which ser ve
as packaging if the cartridge is not used.
Replacement cartridges are available from
PEUGEOT dealers or from the brand's internet
website. As a safety measure:
-

u
se only the cartridges designed for
the system,
-

d
o not try to fit or remove a cartridge
when driving,
-

d
o not try to refill or dismantle the
cartridges.
Keep cartridges out of the reach of
children or pets.
Do not allow the fluid in the cartridge to
come into contact with the skin or eyes.
In the event of ingestion of the fluid in the
cartridge, consult a doctor, showing them
the product packaging or label.
Mats
Fitting
3
Ease of use and comfort

102
Refitting
To refit the mat on the driver's side:
F p osition the mat correctly,
F

r
eattach the fixings by pressing,
F

c
heck that the mat is secured correctly.
To avoid any risk of jamming of the pedals:
-

o
nly use mats which are suited to the
fixings already present in the vehicle;
these fixings must be used,
-

n
ever place one mat on top of another.
The use of mats not approved by
PEUGEOT may inter fere with access to
the pedals and hinder the operation of the
cruise control / speed limiter.
The mats approved by PEUGEOT have
two fixings located below the seat.

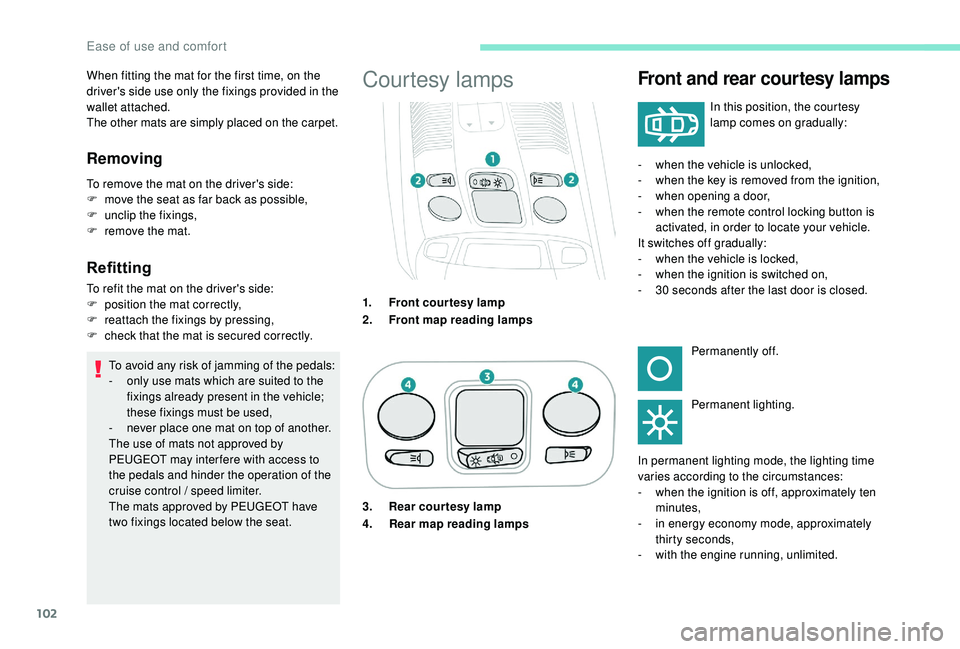

Courtesy lampsFront and rear courtesy lamps
In this position, the courtesy
lamp comes on gradually:
When fitting the mat for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
The other mats are simply placed on the carpet.
Removing
To remove the mat on the driver's side:
F
m ove the seat as far back as possible,
F

un
clip the fixings,
F

r
emove the mat.
1.Front courtesy lamp
2. Front map reading lamps -

w
hen the vehicle is unlocked,
- w hen the key is removed from the ignition,
- w hen opening a door,
-

w
hen the remote control locking button is
activated, in order to locate your vehicle.
It switches off gradually:
-

w
hen the vehicle is locked,
-

w
hen the ignition is switched on,
-

3
0 seconds after the last door is closed.Permanently off.
Permanent lighting.
In permanent lighting mode, the lighting time
varies according to the circumstances:
-

w
hen the ignition is off, approximately ten
minutes,
-

i
n energy economy mode, approximately
thirty seconds,
-
w

ith the engine running, unlimited.
3. Rear courtesy lamp
4.
Rear map reading lamps
Ease of use and comfort

103

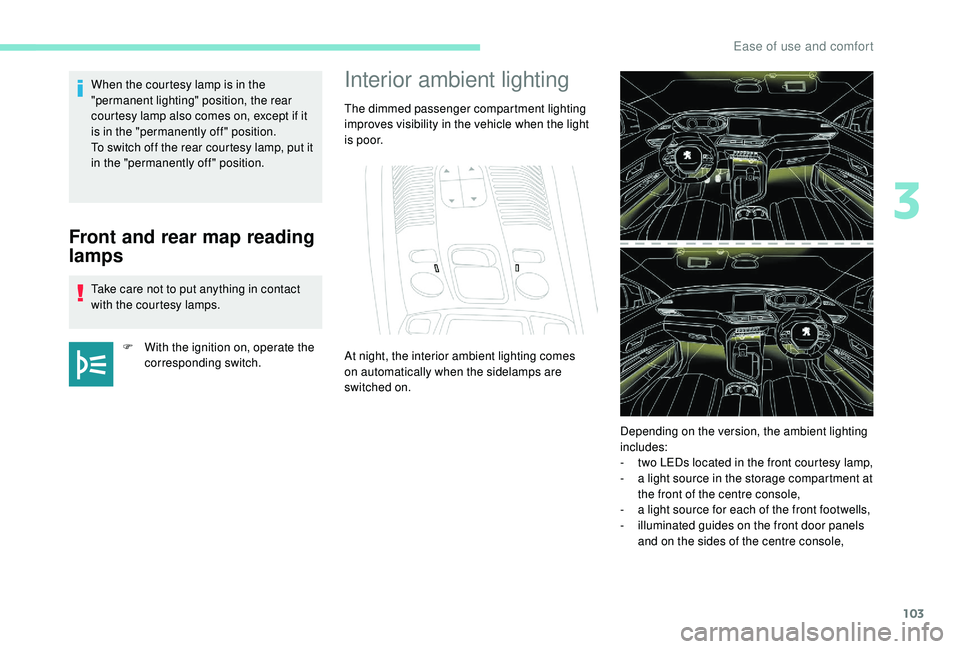

Front and rear map reading
lamps
Take care not to put anything in contact
with the courtesy lamps.F

W
ith the ignition on, operate the
corresponding switch.
When the courtesy lamp is in the
"permanent lighting" position, the rear
courtesy lamp also comes on, except if it
is in the "permanently off " position.
To switch off the rear courtesy lamp, put it
in the "permanently off " position.
Interior ambient lighting
The dimmed passenger compartment lighting
improves visibility in the vehicle when the light
i s p o o r.
At night, the interior ambient lighting comes
on automatically when the sidelamps are
switched on.
Depending on the version, the ambient lighting
includes:
-

t
wo LEDs located in the front courtesy lamp,
-

a l
ight source in the storage compartment at
the front of the centre console,
-

a l
ight source for each of the front footwells,
-

i
lluminated guides on the front door panels
and on the sides of the centre console,
3
Ease of use and comfort

104
- illuminated bezels for the front cup holders,
- a l ight source for each of the front door
pockets,
-
i

lluminated rails along the panoramic
sunroof blind.
The ambient lighting switches off automatically
when the sidelamps are switched off. The interior ambient lighting can
be activated or deactivated and its
brightness adjusted in the Vehicle /
Driving menu of the touch screen.
The interior ambient lighting is also
managed by the i- Cockpit Amplify
function.
For more information on the
i-Cockpit Amplify function , refer

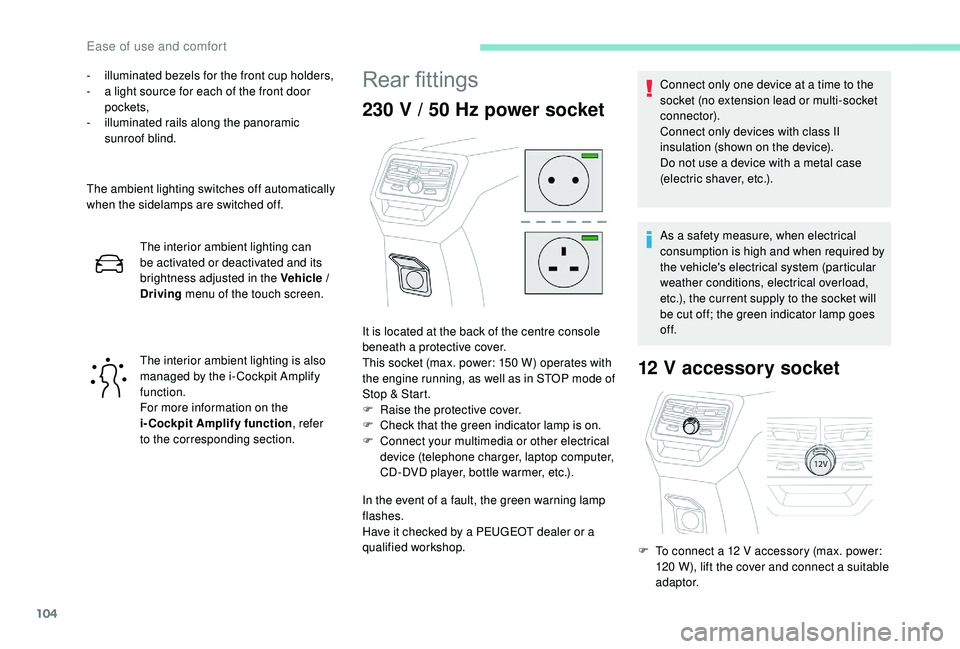

to the corresponding section.Rear fittings
230 V / 50 Hz power socket
In the event of a fault, the green warning lamp
flashes.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
12 V accessory socket
It is located at the back of the centre console
beneath a protective cover.
This socket (max. power: 150
W) operates with
the engine running, as well as in STOP mode of
Stop & Start.
F

Ra
ise the protective cover.
F

C
heck that the green indicator lamp is on.
F

C
onnect your multimedia or other electrical
device (telephone charger, laptop computer,
CD-DVD player, bottle warmer, etc.). Connect only one device at a time to the
socket (no extension lead or multi-socket
connector).
Connect only devices with class II
insulation (shown on the device).
Do not use a device with a metal case
(electric shaver, etc.).
As a safety measure, when electrical
consumption is high and when required by
the vehicle's electrical system (particular
weather conditions, electrical overload,
etc.), the current supply to the socket will
be cut off; the green indicator lamp goes
of f.
F
T
o connect a 12 V accessory (max. power:
120
W), lift the cover and connect a suitable
adaptor.
Ease of use and comfort

105
The connection of an electrical device
not approved by PEUGEOT, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor radio
reception or inter ference with displays
in the screens.

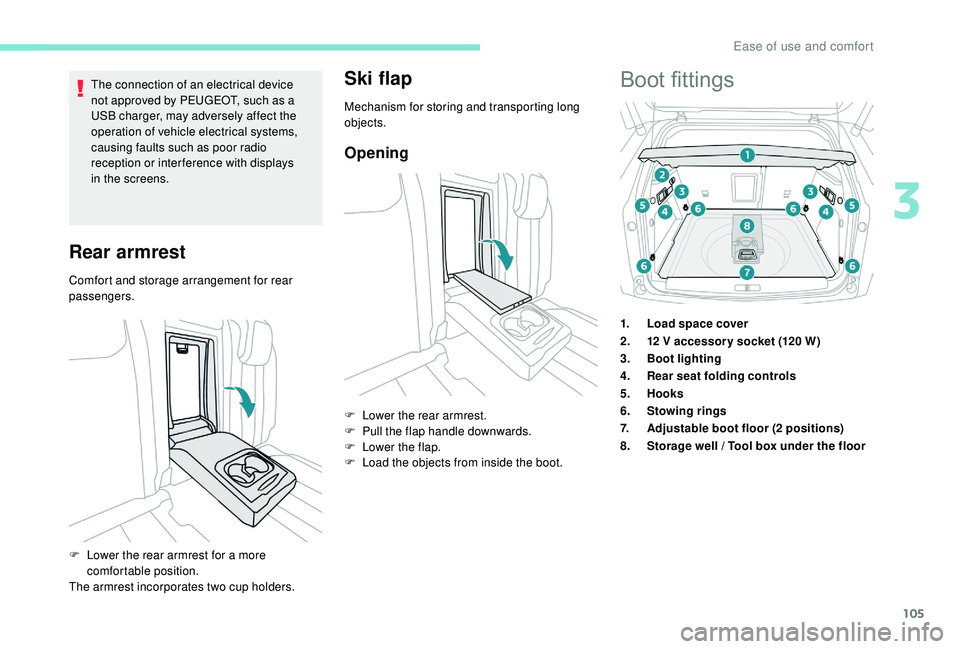

Rear armrest
Comfort and storage arrangement for rear
passengers.
Ski flap
Mechanism for storing and transporting long
objects.
Opening
F Lower the rear armrest for a more comfortable position.
The armrest incorporates two cup holders. F

L
ower the rear armrest.
F
P
ull the flap handle downwards.
F
L
ower the flap.
F
L
oad the objects from inside the boot.
Boot fittings
1.
Load space cover
2. 12
V accessor y socket (120 W)
3. Boot lighting
4. Rear seat folding controls
5. Hooks
6. Stowing rings
7. Adjustable boot floor (2


positions)
8. Storage well / Tool box under the floor
3
Ease of use and comfort

106
The stowing rings are designed to
secure luggage using different types of
retaining nets.
Such nets are available as an option or
as an accessory.
For more information, contact a
PEUGEOT dealer.
For the installation of a high load
retaining net, refer to the corresponding
section.

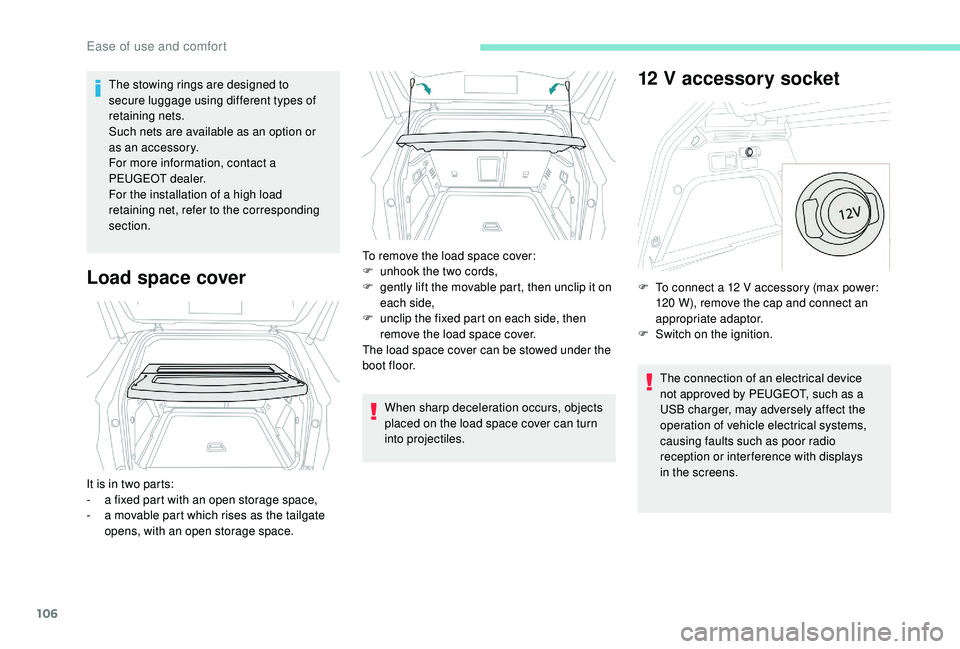

Load space cover
When sharp deceleration occurs, objects
placed on the load space cover can turn
into projectiles.
12 V accessory socket
The connection of an electrical device
not approved by PEUGEOT, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor radio
reception or inter ference with displays
in the screens.
It is in two parts:
-

a f

ixed part with an open storage space,
-

a m

ovable part which rises as the tailgate
opens, with an open storage space. To remove the load space cover:
F

u

nhook the two cords,
F

g

ently lift the movable part, then unclip it on
each side,
F

u

nclip the fixed part on each side, then
remove the load space cover.
The load space cover can be stowed under the
boot floor. F

T
o connect a 12 V accessory (max power:
120 W), remove the cap and connect an
appropriate adaptor.
F

S
witch on the ignition.
Ease of use and comfort

107
High load retaining net
It offers protection to the occupants when
very sharp braking occurs.
Behind the front seats
Once fitted, the net does not prevent
tipping of the backrests.
This removable net allows the entire load
volume to be used up to the roof:
-

b

ehind the front seats (1
st row) when the
rear seats are folded down,
-
b

ehind the rear seats (2
nd row) when the
load space cover is removed. F

F
old down the rear seats.
F
R
emove the cover trims on each side,
located on the upper part of the roof.
F
P
osition the net's upper hooks in the roof.
F
A
ttach the net's straps to the lower
anchoring points, located directly below the
fixings of the rear bench seat cushion.
F
P
ull on the straps to stretch the net.
Behind the rear seats
Boot floor
(2
positions)
This two-position floor allows the boot space
to be optimised using the lateral stops at the
edges:
-
Hig

h position ( 100
kg max): to obtain a flat
floor up to the front seats, when the rear
seats are folded down.
-

L
ow position ( 150
kg max): maximum boot
volume.
F

R
emove the load space cover.
F
R
emove the cover trims on each side,
located on the upper part of the roof.
F
P
osition the net's upper hooks in the roof.
F
A
ttach the straps of the net to the lower
rings, located on each side trim of the boot.
F
P
ull on the straps to stretch the net.
3
Ease of use and comfort

108

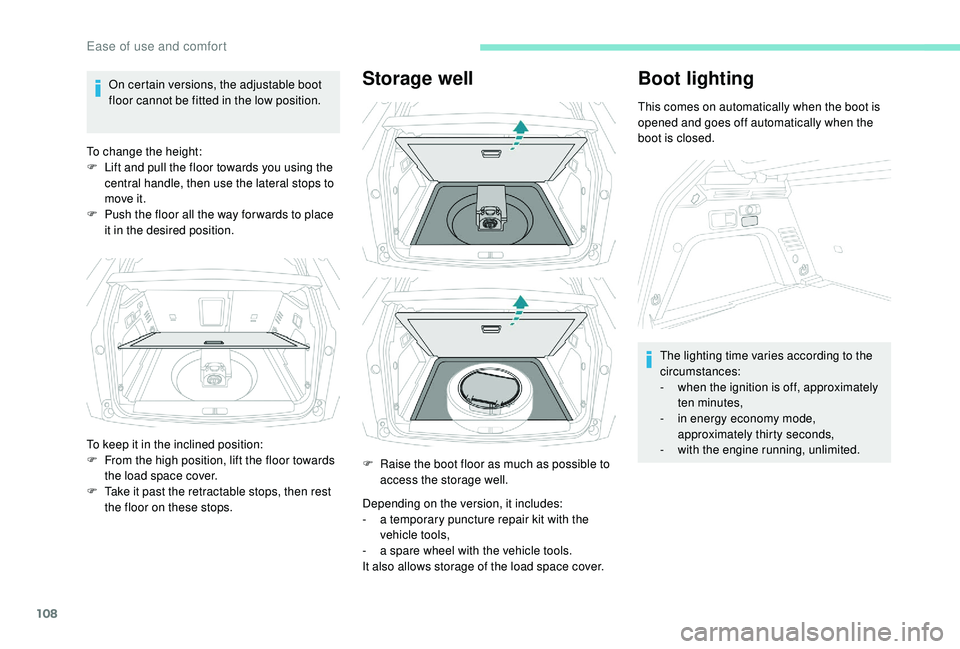

On certain versions, the adjustable boot
floor cannot be fitted in the low position.
To change the height:
F

L
ift and pull the floor towards you using the
central handle, then use the lateral stops to
move it.
F

P
ush the floor all the way for wards to place
it in the desired position.Storage well
Depending on the version, it includes:
- a t emporary puncture repair kit with the
vehicle tools,
-

a s
pare wheel with the vehicle tools.
It also allows storage of the load space cover.
Boot lighting
This comes on automatically when the boot is
opened and goes off automatically when the
boot is closed.
The lighting time varies according to the
circumstances:
-

w
hen the ignition is off, approximately
ten minutes,
-

i
n energy economy mode,
approximately thirty seconds,
-
w

ith the engine running, unlimited.
To keep it in the inclined position:
F

F

rom the high position, lift the floor towards
the load space cover.
F

T

ake it past the retractable stops, then rest
the floor on these stops. F

R

aise the boot floor as much as possible to
access the storage well.
Ease of use and comfort
