PEUGEOT 308 CC 2008 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2008, Model line: 308 CC, Model: PEUGEOT 308 CC 2008Pages: 221, PDF Size: 8.69 MB
Page 91 of 221
5
i
i
84
VISIBILITY

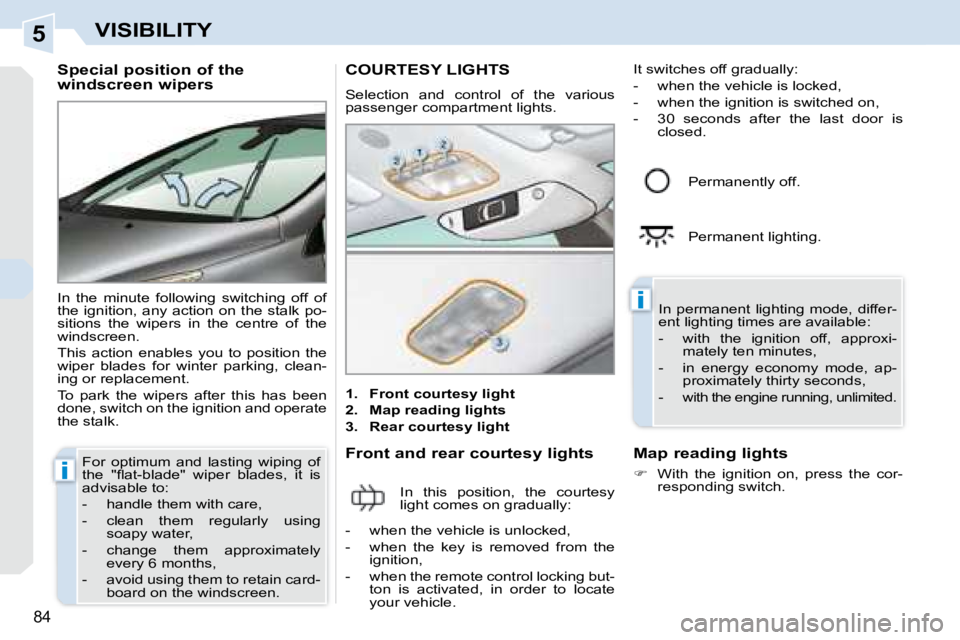

Special position of the
windscreen wipers
In the minute following switching off of
the ignition, any action on the stalk po-
sitions the wipers in the centre of the
windscreen.
This action enables you to position the
wiper blades for winter parking, clean-
ing or replacement.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk. For optimum and lasting wiping of
t h e " fl a t - b l a d e " w i p e r b l a d e s , i t i s
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- change them approximately every 6 months,
- avoid using them to retain card- board on the windscreen. COURTESY LIGHTS
Selection and control of the various
passenger compartment lights.
1. Front courtesy light
2. Map reading lights
3. Rear courtesy light
Front and rear courtesy lights
In this position, the courtesy
light comes on gradually: In permanent lighting mode, differ-
ent lighting times are available:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
-
with the engine running, unlimited.
- when the vehicle is unlocked,
- when the key is removed from the ignition,
- when the remote control locking but- ton is activated, in order to locate
your vehicle. Permanently off.
Permanent lighting.
Map reading lights
With the ignition on, press the cor-
responding switch.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Page 92 of 221
5
!
i
83
VISIBILITY

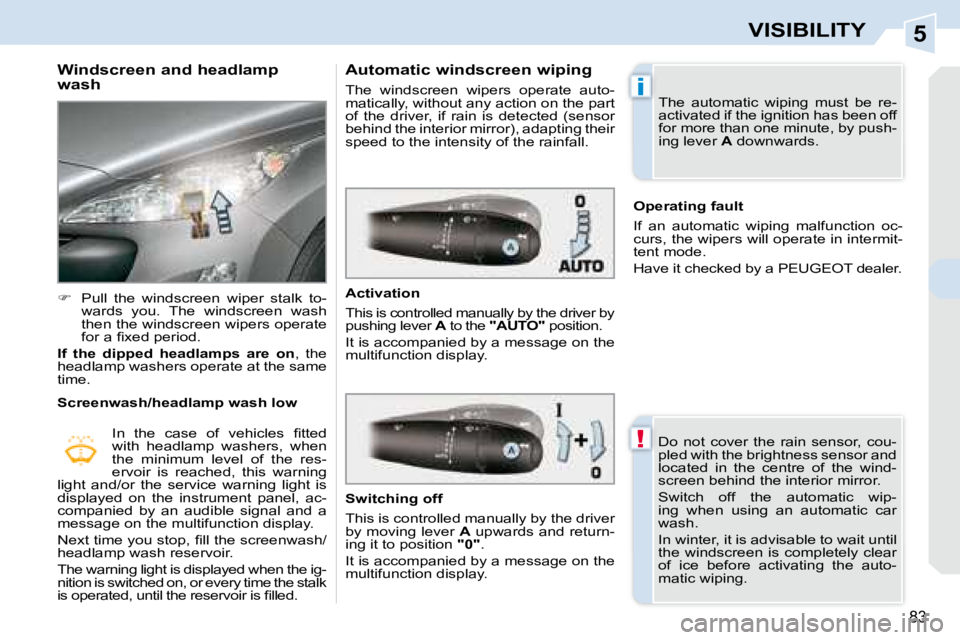

Windscreen and headlamp
wash
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
f o r a fi x e d p e r i o d .
If the dipped headlamps are on , the
headlamp washers operate at the same
time.
Screenwash/headlamp wash low
I n t h e c a s e o f v e h i c l e s fi t t e d
with headlamp washers, when
the minimum level of the res-
ervoir is reached, this warning
light and/or the service warning light is
displayed on the instrument panel, ac-
companied by an audible signal and a
message on the multifunction display.
N e x t t i m e y o u s t o p , fi l l t h e s c r e e n w a s h /
headlamp wash reservoir.
The warning light is displayed when the ig-
nition is switched on, or every time the stalk
i s o p e r a t e d , u n t i l t h e r e s e r v o i r i s fi l l e d . Automatic windscreen wiping
The windscreen wipers operate auto-
matically, without any action on the part
of the driver, if rain is detected (sensor
b e h i n d t h e i n t e r i o r m i r r o r ) , a d a p t i n g t h e i r
speed to the intensity of the rainfall.
Activation
This is controlled manually by the driver by
pushing lever
A to the "AUTO" position.
It is accompanied by a message on the
multifunction display.
Do not cover the rain sensor, cou-
pled with the brightness sensor and
located in the centre of the wind-
screen behind the interior mirror.
Switch off the automatic wip-
ing when using an automatic car
wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping. The automatic wiping must be re-
activated if the ignition has been off
for more than one minute, by push-
ing lever
A downwards.
Switching off
This is controlled manually by the driver
by moving lever A upwards and return-
ing it to position "0" .
It is accompanied by a message on the
multifunction display. Operating fault
If an automatic wiping malfunction oc-
curs, the wipers will operate in intermit-
tent mode.
Have it checked by a PEUGEOT dealer.
Page 93 of 221
5
i
i
84
VISIBILITY
Special position of the
windscreen wipers
In the minute following switching off of
the ignition, any action on the stalk po-
sitions the wipers in the centre of the
windscreen.
This action enables you to position the
wiper blades for winter parking, clean-
ing or replacement.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk. For optimum and lasting wiping of
t h e " fl a t - b l a d e " w i p e r b l a d e s , i t i s
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- change them approximately every 6 months,
- avoid using them to retain card- board on the windscreen. COURTESY LIGHTS
Selection and control of the various
passenger compartment lights.
1. Front courtesy light
2. Map reading lights
3. Rear courtesy light
Front and rear courtesy lights
In this position, the courtesy
light comes on gradually: In permanent lighting mode, differ-
ent lighting times are available:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
-
with the engine running, unlimited.
- when the vehicle is unlocked,
- when the key is removed from the ignition,
- when the remote control locking but- ton is activated, in order to locate
your vehicle. Permanently off.
Permanent lighting.
Map reading lights
With the ignition on, press the cor-
responding switch.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Page 94 of 221
5
i
i
85
VISIBILITY

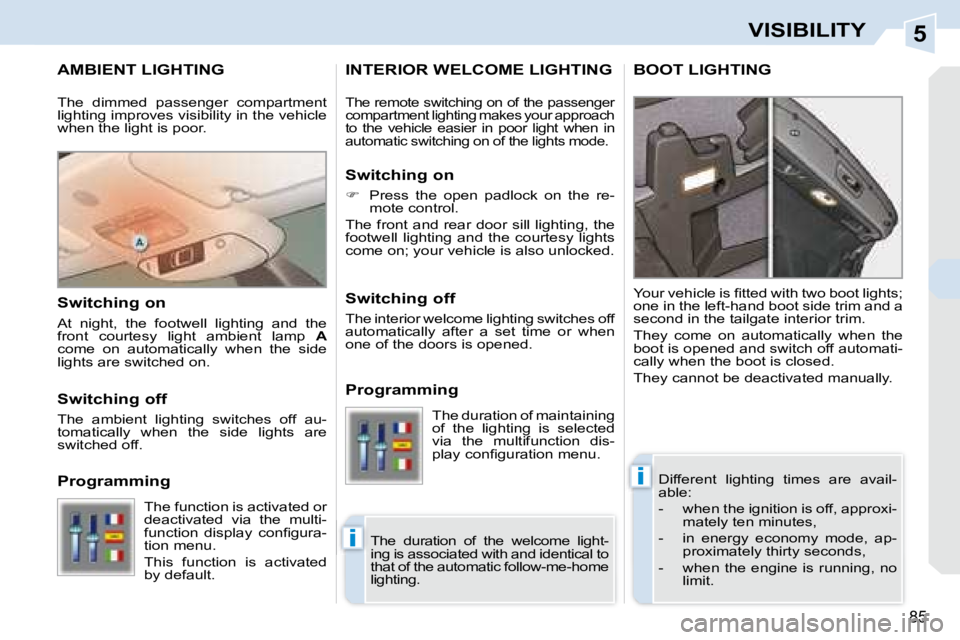

AMBIENT LIGHTING
Different lighting times are avail-
able:
- when the ignition is off, approxi-mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- when the engine is running, no limit.
Y o u r v e h i c l e i s fi t t e d w i t h t w o b o o t l i g h t s ;
one in the left-hand boot side trim and a
second in the tailgate interior trim.
They come on automatically when the
boot is opened and switch off automati-
cally when the boot is closed.
They cannot be deactivated manually.
INTERIOR WELCOME LIGHTING BOOT LIGHTING
The remote switching on of the passenger
compartment lighting makes your approach
to the vehicle easier in poor light when in
automatic switching on of the lights mode.
Switching on
Press the open padlock on the re-
mote control.
The front and rear door sill lighting, the
footwell lighting and the courtesy lights
come on; your vehicle is also unlocked.
Switching off
The interior welcome lighting switches off
automatically after a set time or when
one of the doors is opened.
Programming
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.
Switching on
At night, the footwell lighting and the
front courtesy light ambient lamp
A
come on automatically when the side
lights are switched on.
Switching off
The ambient lighting switches off au-
tomatically when the side lights are
switched off.
Programming
The duration of the welcome light-
ing is associated with and identical to
that of the automatic follow-me-home
lighting.
The function is activated or
deactivated via the multi-
f u n c t i o n d i s p l a y c o n fi g u r a -
tion menu.
This function is activated
by default. The duration of maintaining
of the lighting is selected
via the multifunction dis-
p l a y c o n fi g u r a t i o n m e n u .
Page 95 of 221
6
86
LAYOUT

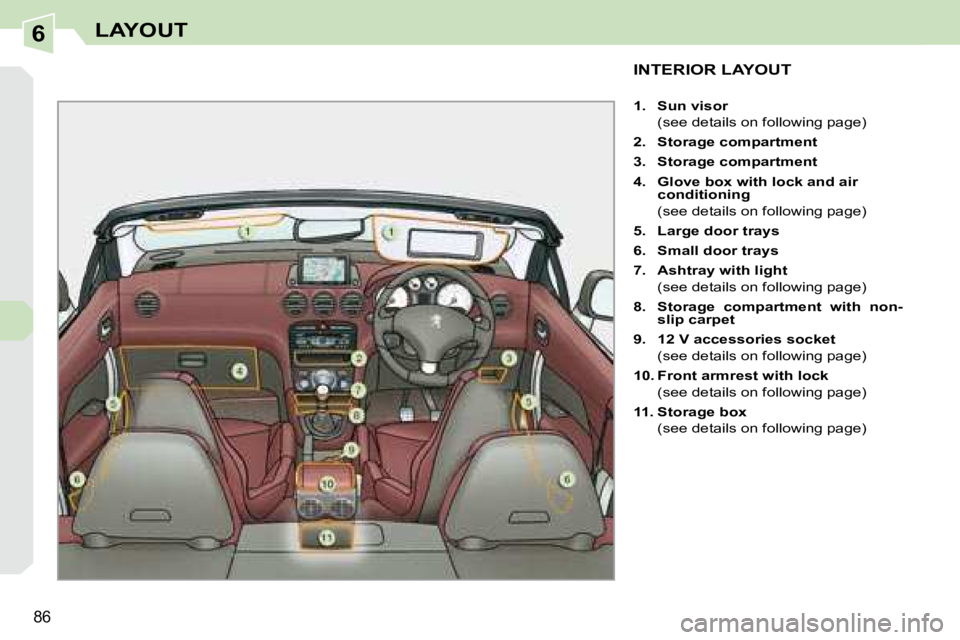

INTERIOR LAYOUT
1. Sun visor
(see details on following page)
2. Storage compartment
3. Storage compartment
4. Glove box with lock and air
conditioning
(see details on following page)
5. Large door trays
6. Small door trays
7. Ashtray with light
(see details on following page)
8. Storage compartment with non-
slip carpet
9. 12 V accessories socket
(see details on following page)
10. Front armrest with lock
(see details on following page)
11. Storage box
(see details on following page)
Page 96 of 221
6
87
LAYOUT

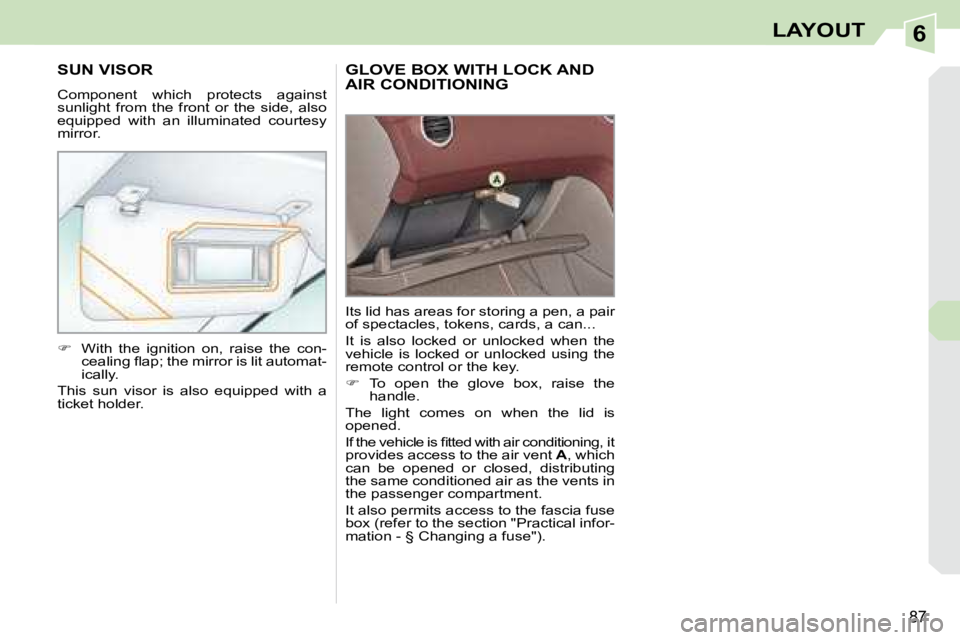

GLOVE BOX WITH LOCK AND AIR CONDITIONING
Its lid has areas for storing a pen, a pair
of spectacles, tokens, cards, a can...
It is also locked or unlocked when the
vehicle is locked or unlocked using the
remote control or the key.
To open the glove box, raise the
handle.
The light comes on when the lid is
opened.
I f t h e v e h i c l e i s fi t t e d w i t h a i r c o n d i t i o n i n g , i t
provides access to the air vent A , which
can be opened or closed, distributing
the same conditioned air as the vents in
the passenger compartment.
It also permits access to the fascia fuse
box (refer to the section "Practical infor-
mation - § Changing a fuse").
SUN VISOR
Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.
With the ignition on, raise the con-
c e a l i n g fl a p ; t h e m i r r o r i s l i t a u t o m a t -
ically.
This sun visor is also equipped with a
ticket holder.
Page 97 of 221
6
88
LAYOUT

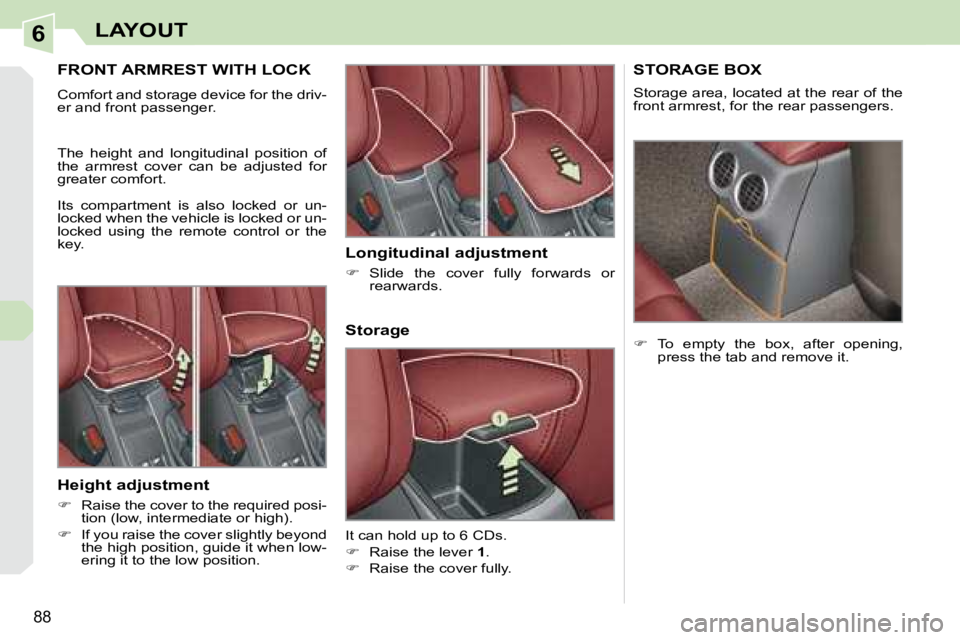

FRONT ARMREST WITH LOCK
Comfort and storage device for the driv-
er and front passenger.
The height and longitudinal position of
the armrest cover can be adjusted for
greater comfort.
Its compartment is also locked or un-
locked when the vehicle is locked or un-
locked using the remote control or the
key.
STORAGE BOX
Storage area, located at the rear of the
front armrest, for the rear passengers.
Storage
It can hold up to 6 CDs.
Raise the lever 1 .
Raise the cover fully.
Longitudinal adjustment
Slide the cover fully forwards or
rearwards.
Height adjustment
Raise the cover to the required posi-
tion (low, intermediate or high).
If you raise the cover slightly beyond
the high position, guide it when low-
ering it to the low position.
To empty the box, after opening,
press the tab and remove it.
Page 98 of 221
6
!
89
LAYOUT

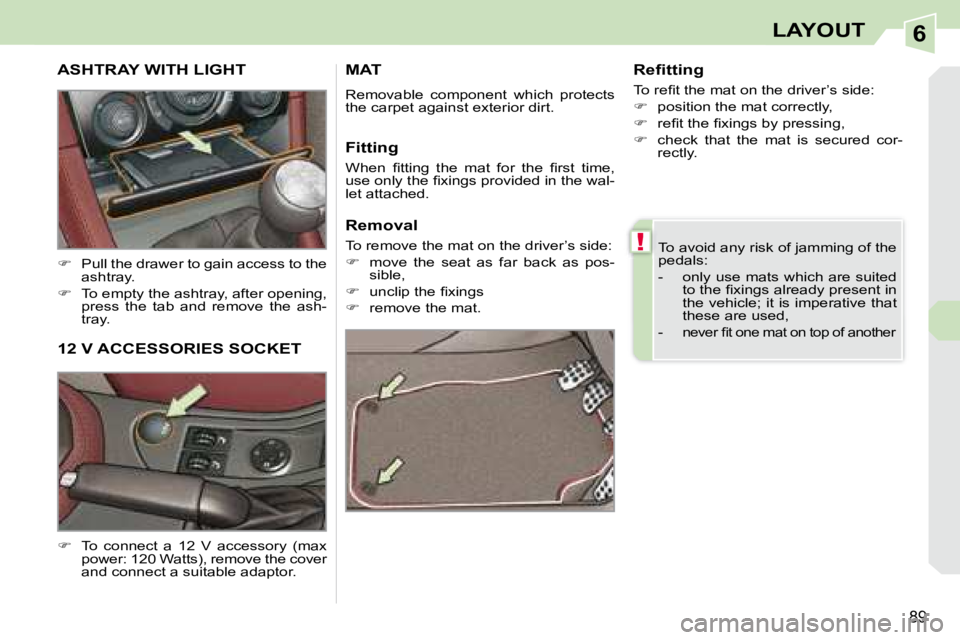

To avoid any risk of jamming of the
pedals:
- only use mats which are suited t o t h e fi x i n g s a l r e a d y p r e s e n t i n
t h e v e h i c l e ; i t i s i m p e r a t i v e t h a t
these are used,
-
n e v e r fi t o n e m a t o n t o p o f a n o t h e r
MAT
Removable component which protects
the carpet against exterior dirt. Refitting
T o r e fi t t h e m a t o n t h e d r i v e r ’ s s i d e :
position the mat correctly,
r e fi t t h e fi x i n g s b y p r e s s i n g ,
check that the mat is secured cor-
rectly.
Fitting
W h e n fi t t i n g t h e m a t f o r t h e fi r s t t i m e ,
u s e o n l y t h e fi x i n g s p r o v i d e d i n t h e w a l -
let attached.
Removal
T o r e m o v e t h e m a t o n t h e d r i v e r ’ s s i d e :
move the seat as far back as pos-
sible,
u n c l i p t h e fi x i n g s
remove the mat.
12 V ACCESSORIES SOCKET
To connect a 12 V accessory (max
power: 120 Watts), remove the cover
and connect a suitable adaptor.
ASHTRAY WITH LIGHT
Pull the drawer to gain access to the
ashtray.
To empty the ashtray, after opening,
press the tab and remove the ash-
tray.
Page 99 of 221
6
87
LAYOUT
GLOVE BOX WITH LOCK AND AIR CONDITIONING
Its lid has areas for storing a pen, a pair
of spectacles, tokens, cards, a can...
It is also locked or unlocked when the
vehicle is locked or unlocked using the
remote control or the key.
To open the glove box, raise the
handle.
The light comes on when the lid is
opened.
I f t h e v e h i c l e i s fi t t e d w i t h a i r c o n d i t i o n i n g , i t
provides access to the air vent A , which
can be opened or closed, distributing
the same conditioned air as the vents in
the passenger compartment.
It also permits access to the fascia fuse
box (refer to the section "Practical infor-
mation - § Changing a fuse").
SUN VISOR
Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.
With the ignition on, raise the con-
c e a l i n g fl a p ; t h e m i r r o r i s l i t a u t o m a t -
ically.
This sun visor is also equipped with a
ticket holder.
Page 100 of 221
6
88
LAYOUT
FRONT ARMREST WITH LOCK
Comfort and storage device for the driv-
er and front passenger.
The height and longitudinal position of
the armrest cover can be adjusted for
greater comfort.
Its compartment is also locked or un-
locked when the vehicle is locked or un-
locked using the remote control or the
key.
STORAGE BOX
Storage area, located at the rear of the
front armrest, for the rear passengers.
Storage
It can hold up to 6 CDs.
Raise the lever 1 .
Raise the cover fully.
Longitudinal adjustment
Slide the cover fully forwards or
rearwards.
Height adjustment
Raise the cover to the required posi-
tion (low, intermediate or high).
If you raise the cover slightly beyond
the high position, guide it when low-
ering it to the low position.
To empty the box, after opening,
press the tab and remove it.
