PEUGEOT 308 CC 2008 Workshop Manual
Manufacturer: PEUGEOT, Model Year: 2008, Model line: 308 CC, Model: PEUGEOT 308 CC 2008Pages: 221, PDF Size: 8.69 MB

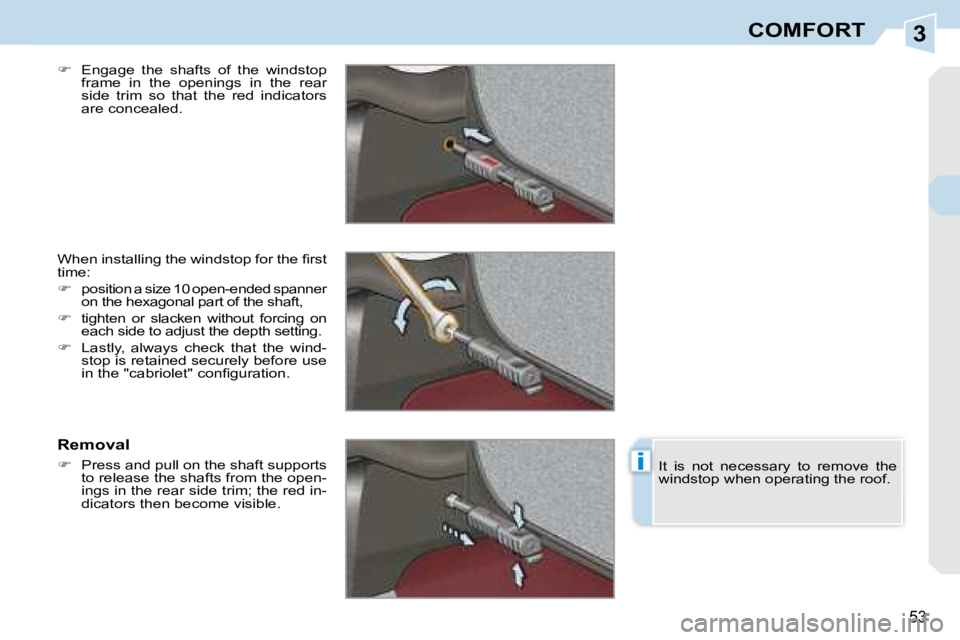

Page 51 of 221
3
i
53
COMFORT
Engage the shafts of the windstop
frame in the openings in the rear
side trim so that the red indicators
are concealed.
W h e n i n s t a l l i n g t h e w i n d s t o p f o r t h e fi r s t
time:
position a size 10 open-ended spanner
on the hexagonal part of the shaft,
tighten or slacken without forcing on
each side to adjust the depth setting.
Lastly, always check that the wind-
stop is retained securely before use
i n t h e " c a b r i o l e t " c o n fi g u r a t i o n .
Removal
Press and pull on the shaft supports
to release the shafts from the open-
ings in the rear side trim; the red in-
dicators then become visible. It is not necessary to remove the
windstop when operating the roof.

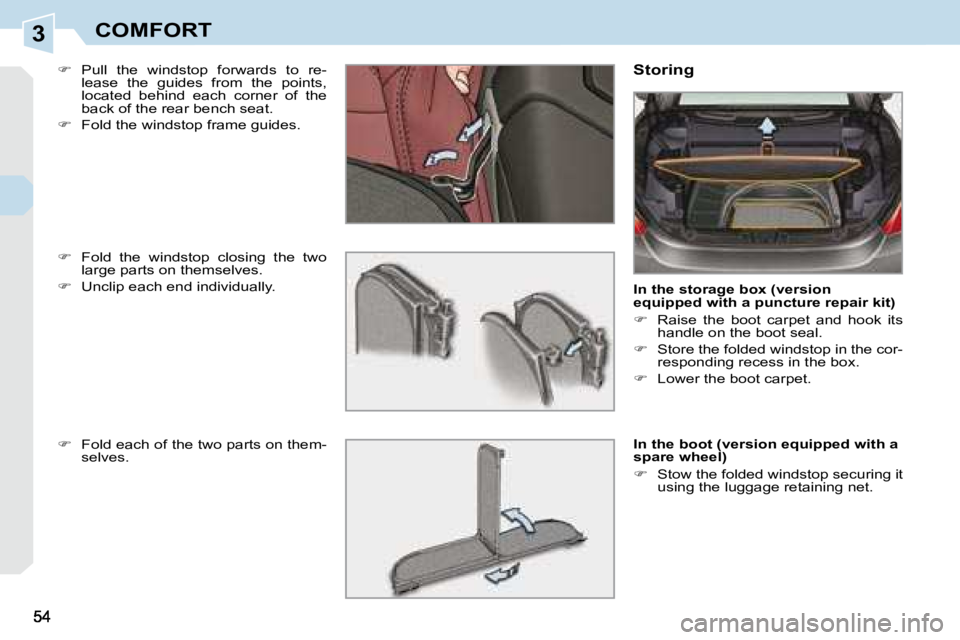

Page 52 of 221
3COMFORT
Pull the windstop forwards to re-
lease the guides from the points,
located behind each corner of the
back of the rear bench seat.
Fold the windstop frame guides. Storing
I n t h e s t o r a g e b o x ( v e r s i o n
e q u i p p e d w i t h a p u n c t u r e r e p a i r k i t )
Raise the boot carpet and hook its
handle on the boot seal.
Store the folded windstop in the cor-
responding recess in the box.
Lower the boot carpet.
I n t h e b o o t ( v e r s i o n e q u i p p e d w i t h a
s p a r e w h e e l )
Stow the folded windstop securing it
using the luggage retaining net.
Fold the windstop closing the two
large parts on themselves.
Unclip each end individually.
Fold each of the two parts on them-
selves.

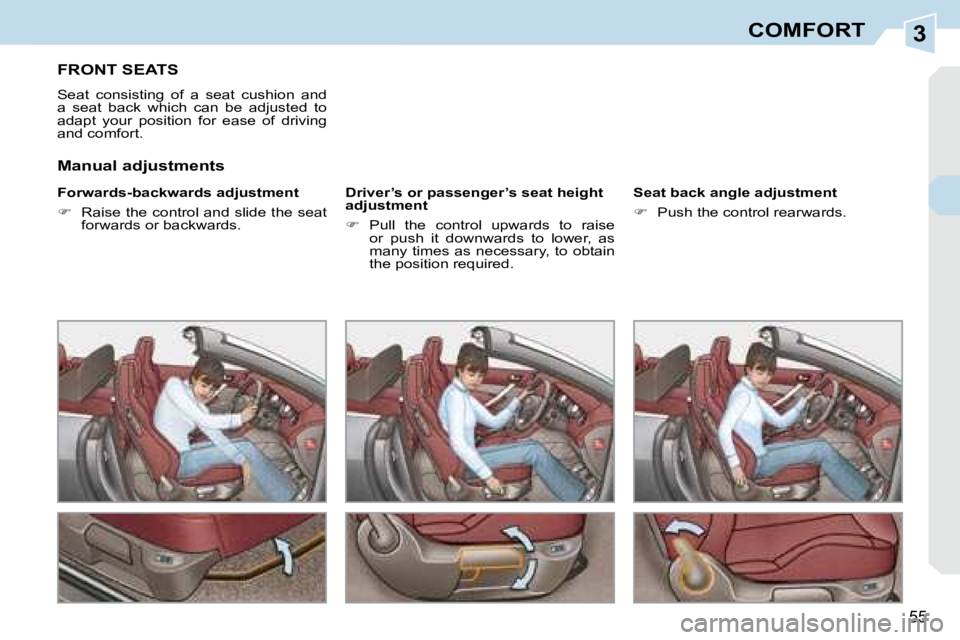

Page 53 of 221
3
55
COMFORT
FRONT SEATS
Seat consisting of a seat cushion and
a seat back which can be adjusted to
adapt your position for ease of driving
and comfort.
F o r w a r d s - b a c k w a r d s a d j u s t m e n t
Raise the control and slide the seat
forwards or backwards. D r i v e r ’ s o r p a s s e n g e r ’ s s e a t h e i g h t
a d j u s t m e n t
Pull the control upwards to raise
or push it downwards to lower, as
many times as necessary, to obtain
the position required. S e a t b a c k a n g l e a d j u s t m e n t
Push the control rearwards.
M a n u a l a d j u s t m e n t s

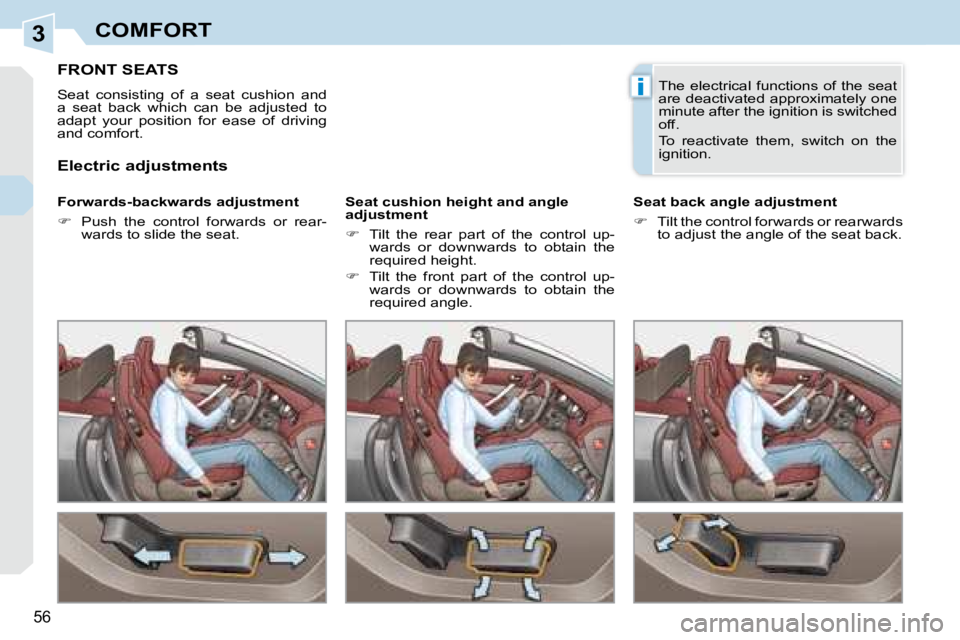

Page 54 of 221
3
i
56
COMFORT
FRONT SEATS
Seat consisting of a seat cushion and
a seat back which can be adjusted to
adapt your position for ease of driving
and comfort.
F o r w a r d s - b a c k w a r d s a d j u s t m e n t
Push the control forwards or rear-
wards to slide the seat. S e a t c u s h i o n h e i g h t a n d a n g l e
a d j u s t m e n t
Tilt the rear part of the control up-
wards or downwards to obtain the
required height.
Tilt the front part of the control up-
wards or downwards to obtain the
required angle. S e a t b a c k a n g l e a d j u s t m e n t
Tilt the control forwards or rearwards
to adjust the angle of the seat back.
E l e c t r i c a d j u s t m e n t s The electrical functions of the seat
are deactivated approximately one
minute after the ignition is switched
off.
To reactivate them, switch on the
ignition.

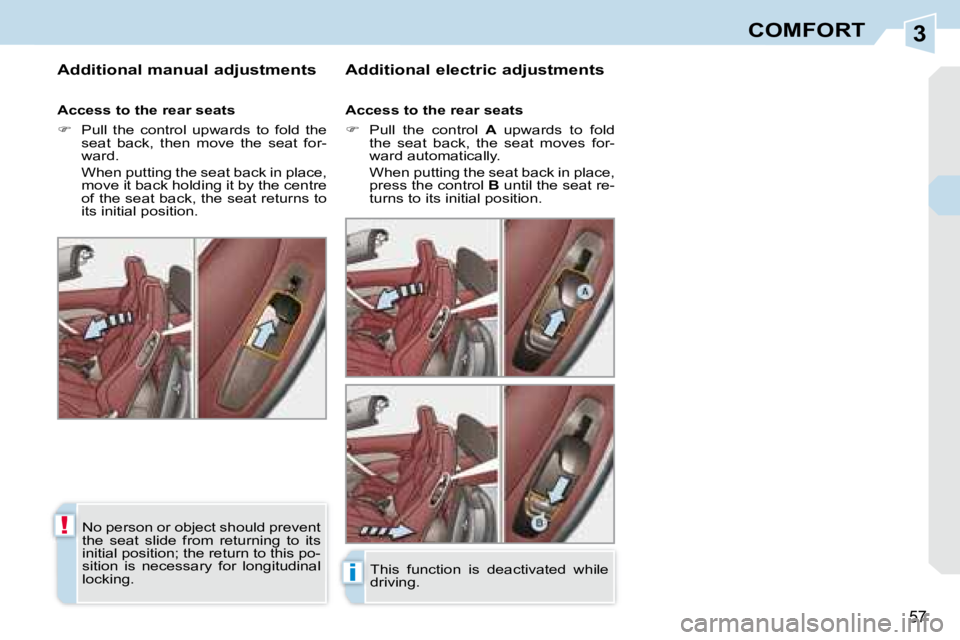

Page 55 of 221
3
!
i
57
COMFORT
A d d i t i o n a l m a n u a l a d j u s t m e n t s A d d i t i o n a l e l e c t r i c a d j u s t m e n t s
A c c e s s t o t h e r e a r s e a t s
Pull the control A upwards to fold
the seat back, the seat moves for-
ward automatically.
When putting the seat back in place, press the control B until the seat re-
turns to its initial position.
A c c e s s t o t h e r e a r s e a t s
Pull the control upwards to fold the
seat back, then move the seat for-
ward.
When putting the seat back in place, move it back holding it by the centre
of the seat back, the seat returns to
its initial position.
No person or object should prevent
the seat slide from returning to its
initial position; the return to this po-
sition is necessary for longitudinal
locking.
This function is deactivated while
driving.

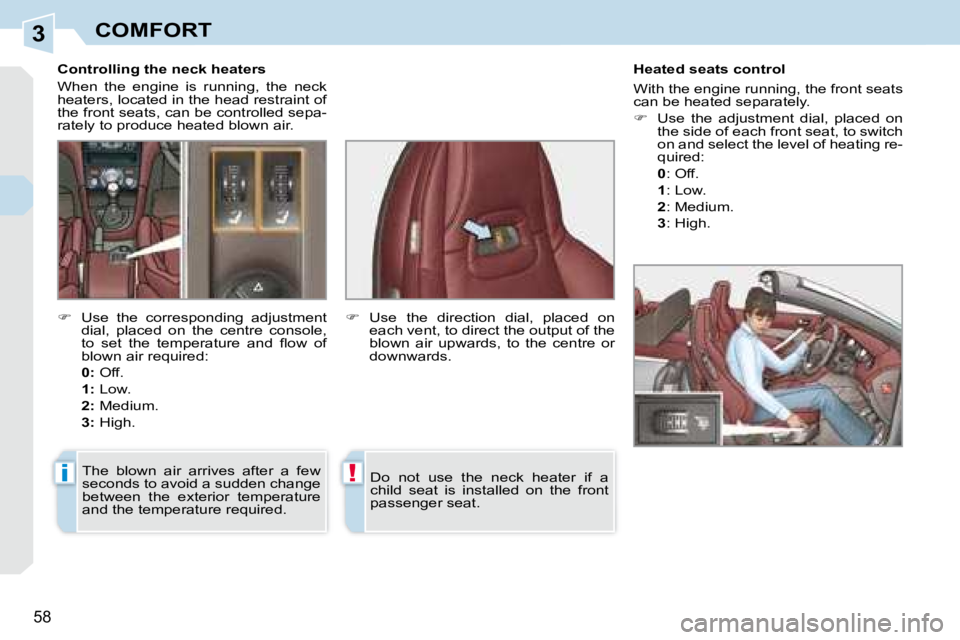

Page 56 of 221
3
i!
58
COMFORT
C o n t r o l l i n g t h e n e c k h e a t e r s
When the engine is running, the neck
heaters, located in the head restraint of
the front seats, can be controlled sepa-
rately to produce heated blown air. Heated seats control
With the engine running, the front seats
can be heated separately.
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:
0 : Off.
1 : Low.
2 : Medium.
3 : High.
Use the corresponding adjustment
dial, placed on the centre console,
t o s e t t h e t e m p e r a t u r e a n d fl o w o f
blown air required:
0: Off.
1: Low.
2: Medium.
3: High.
Use the direction dial, placed on
each vent, to direct the output of the
blown air upwards, to the centre or
downwards.
The blown air arrives after a few
seconds to avoid a sudden change
between the exterior temperature
and the temperature required. Do not use the neck heater if a
child seat is installed on the front
passenger seat.

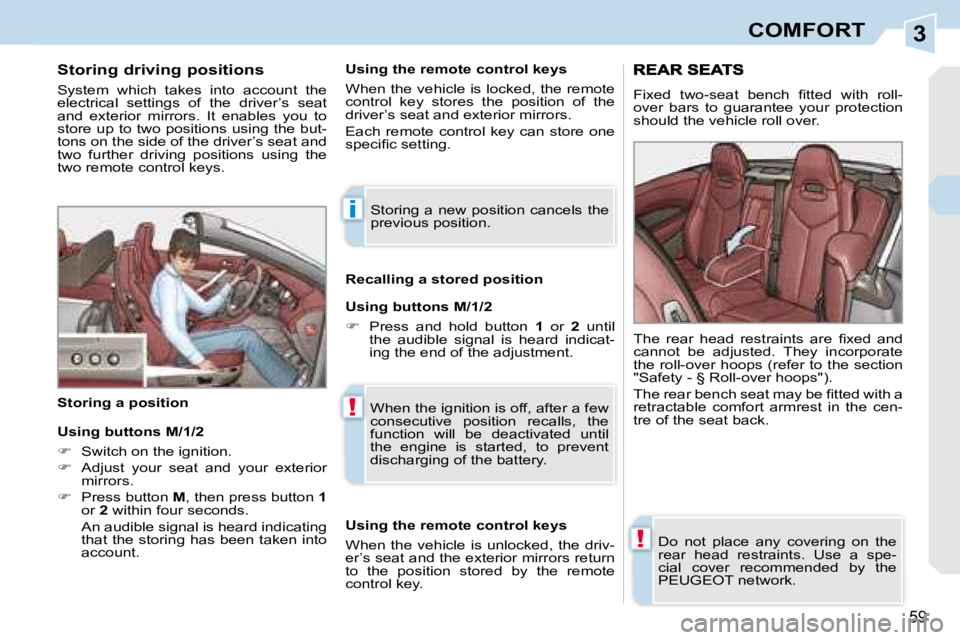

Page 57 of 221
3
i
!
!
59
COMFORT
Storing driving positions
System which takes into account the
electrical settings of the driver’s seat
and exterior mirrors. It enables you to
store up to two positions using the but-
tons on the side of the driver’s seat and
two further driving positions using the
two remote control keys. Recalling a stored position
Storing a position Storing a new position cancels the
previous position.
When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.
U s i n g t h e r e m o t e c o n t r o l k e y s
When the vehicle is locked, the remote
control key stores the position of the
driver’s seat and exterior mirrors.
Each remote control key can store one
s p e c i fi c s e t t i n g .
Using buttons M/1/2
Press and hold button 1 or 2 until
the audible signal is heard indicat-
ing the end of the adjustment.
U s i n g t h e r e m o t e c o n t r o l k e y s
When the vehicle is unlocked, the driv-
er’s seat and the exterior mirrors return
to the position stored by the remote
control key.
Using buttons M/1/2
Switch on the ignition.
Adjust your seat and your exterior
mirrors.
Press button M , then press button 1
or 2 within four seconds.
An audible signal is heard indicating that the storing has been taken into
account.
F i x e d t w o - s e a t b e n c h fi t t e d w i t h r o l l -
over bars to guarantee your protection
should the vehicle roll over.
Do not place any covering on the
rear head restraints. Use a spe-
cial cover recommended by the
PEUGEOT network.
T h e r e a r h e a d r e s t r a i n t s a r e fi x e d a n d
cannot be adjusted. They incorporate
the roll-over hoops (refer to the section
" S a f e t y - § R o l l - o v e r h o o p s " ) .
T h e r e a r b e n c h s e a t m a y b e fi t t e d w i t h a
retractable comfort armrest in the cen-
tre of the seat back.
Page 58 of 221
3
i
!
!
59
COMFORT
Storing driving positions
System which takes into account the
electrical settings of the driver’s seat
and exterior mirrors. It enables you to
store up to two positions using the but-
tons on the side of the driver’s seat and
two further driving positions using the
two remote control keys. Recalling a stored position
Storing a position Storing a new position cancels the
previous position.
When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.
U s i n g t h e r e m o t e c o n t r o l k e y s
When the vehicle is locked, the remote
control key stores the position of the
driver’s seat and exterior mirrors.
Each remote control key can store one
s p e c i fi c s e t t i n g .
Using buttons M/1/2
Press and hold button 1 or 2 until
the audible signal is heard indicat-
ing the end of the adjustment.
U s i n g t h e r e m o t e c o n t r o l k e y s
When the vehicle is unlocked, the driv-
er’s seat and the exterior mirrors return
to the position stored by the remote
control key.
Using buttons M/1/2
Switch on the ignition.
Adjust your seat and your exterior
mirrors.
Press button M , then press button 1
or 2 within four seconds.
An audible signal is heard indicating that the storing has been taken into
account.
F i x e d t w o - s e a t b e n c h fi t t e d w i t h r o l l -
over bars to guarantee your protection
should the vehicle roll over.
Do not place any covering on the
rear head restraints. Use a spe-
cial cover recommended by the
PEUGEOT network.
T h e r e a r h e a d r e s t r a i n t s a r e fi x e d a n d
cannot be adjusted. They incorporate
the roll-over hoops (refer to the section
" S a f e t y - § R o l l - o v e r h o o p s " ) .
T h e r e a r b e n c h s e a t m a y b e fi t t e d w i t h a
retractable comfort armrest in the cen-
tre of the seat back.
Page 59 of 221
3
!
i
i
60
COMFORT

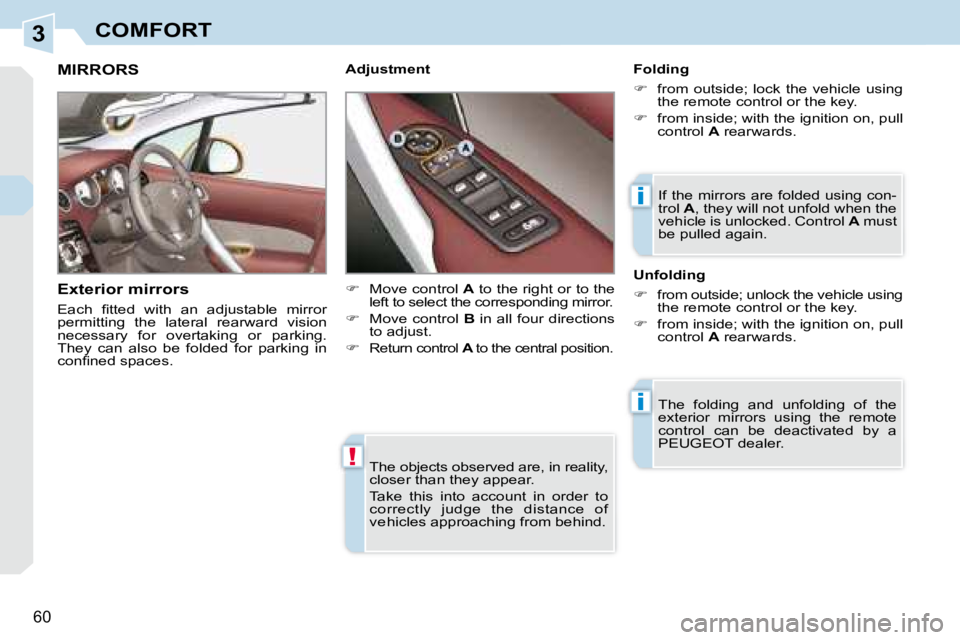

The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of
vehicles approaching from behind.
MIRRORS
E x t e r i o r m i r r o r s
E a c h fi t t e d w i t h a n a d j u s t a b l e m i r r o r
permitting the lateral rearward vision
necessary for overtaking or parking.
They can also be folded for parking in
c o n fi n e d s p a c e s . Folding
from outside; lock the vehicle using
the remote control or the key.
from inside; with the ignition on, pull
control A rearwards.
The folding and unfolding of the
exterior mirrors using the remote
control can be deactivated by a
PEUGEOT dealer.
A d j u s t m e n t
Unfolding
from outside; unlock the vehicle using
the remote control or the key.
from inside; with the ignition on, pull
control A rearwards.
If the mirrors are folded using con-
trol
A , they will not unfold when the
vehicle is unlocked. Control A must
be pulled again.
Move control A to the right or to the
left to select the corresponding mirror.
Move control B in all four directions
to adjust.
Return control A to the central position.
Page 60 of 221

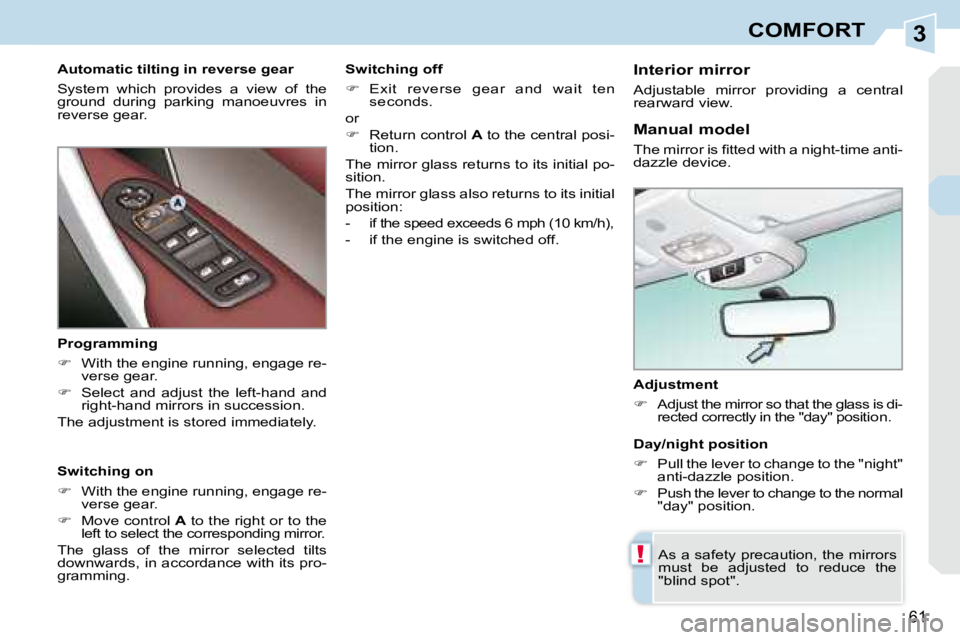

3
!
61
COMFORT
A d j u s t m e n t
Adjust the mirror so that the glass is di-
r e c t e d c o r r e c t l y i n t h e " d a y " p o s i t i o n .
As a safety precaution, the mirrors
must be adjusted to reduce the
" b l i n d s p o t " .
Manual model
T h e m i r r o r i s fi t t e d w i t h a n i g h t - t i m e a n t i -
dazzle device.
D a y / n i g h t p o s i t i o n
P u l l t h e l e v e r t o c h a n g e t o t h e " n i g h t "
anti-dazzle position.
Push the lever to change to the normal
" d a y " p o s i t i o n .
Automatic tilting in reverse gear
System which provides a view of the
ground during parking manoeuvres in
reverse gear.
S w i t c h i n g o n
With the engine running, engage re-
verse gear.
Move control A to the right or to the
left to select the corresponding mirror.
The glass of the mirror selected tilts
downwards, in accordance with its pro-
gramming.
Programming
With the engine running, engage re-
verse gear.
Select and adjust the left-hand and
right-hand mirrors in succession.
The adjustment is stored immediately. S w i t c h i n g o f f
Exit reverse gear and wait ten
seconds.
or
Return control A to the central posi-
tion.
The mirror glass returns to its initial po-
sition.
The mirror glass also returns to its initial
position:
-
if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off. Interior mirror
Adjustable mirror providing a central
rearward view.
