PEUGEOT 308 CC 2008 Service Manual
Manufacturer: PEUGEOT, Model Year: 2008, Model line: 308 CC, Model: PEUGEOT 308 CC 2008Pages: 221, PDF Size: 8.69 MB
Page 41 of 221
2
i
44

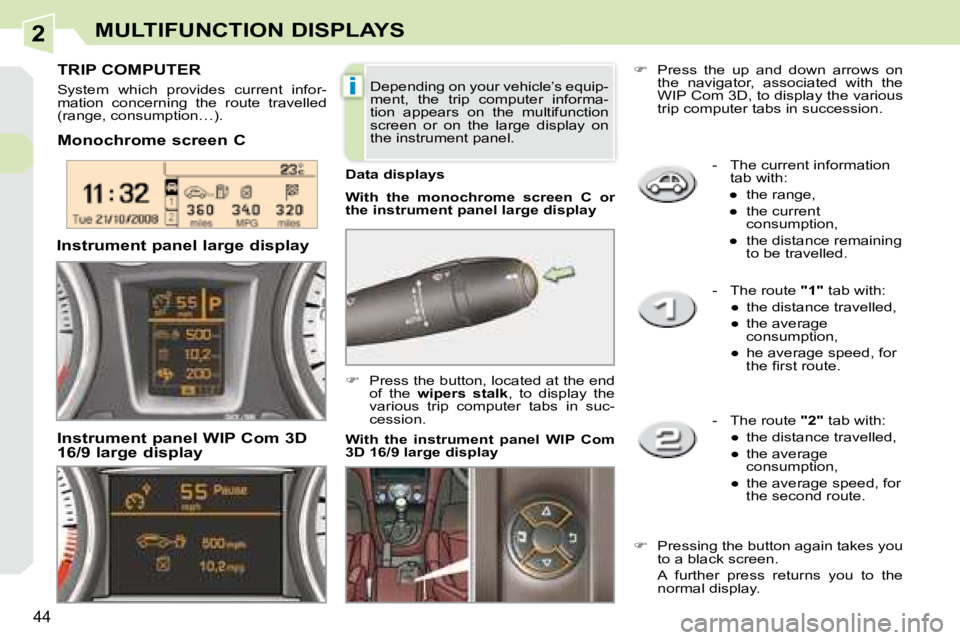

MULTIFUNCTION DISPLAYS
- The current information tab with:
Page 42 of 221
2
!
i
i
45

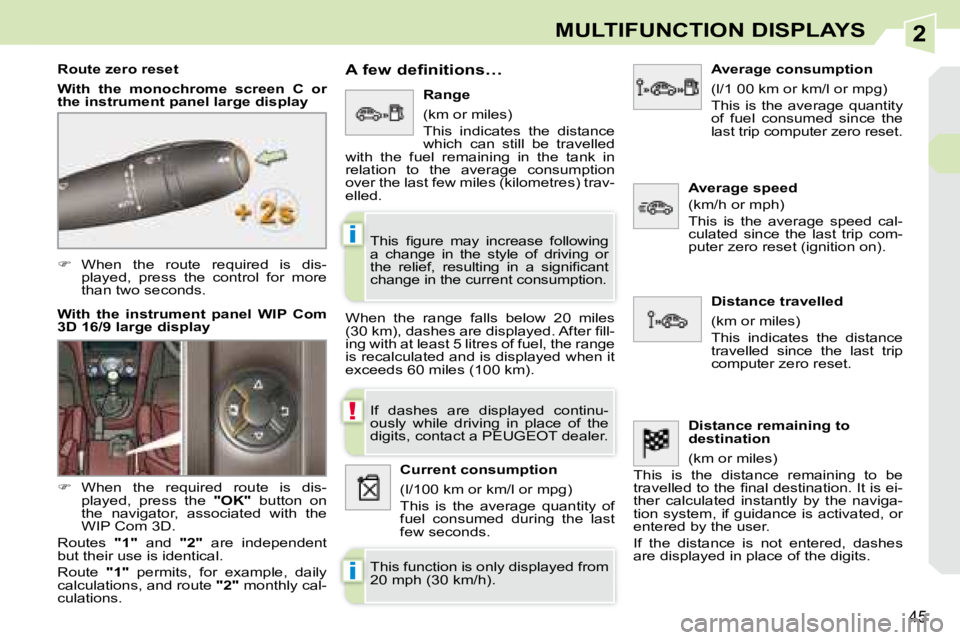

MULTIFUNCTION DISPLAYS
When the route required is dis-
played, press the control for more
than two seconds.
Route zero reset
With the monochrome screen C or
the instrument panel large display A few definitions…
When the range falls below 20 miles
( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l -
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).
If dashes are displayed continu-
ously while driving in place of the
digits, contact a PEUGEOT dealer.
This function is only displayed from
20 mph (30 km/h).
T h i s fi g u r e m a y i n c r e a s e f o l l o w i n g
a change in the style of driving or
t h e r e l i e f , r e s u l t i n g i n a s i g n i fi c a n t
change in the current consumption.
Range
(km or miles)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average consumption
over the last few miles (kilometres) trav-
elled.
Current consumption
(l/100 km or km/l or mpg)
This is the average quantity of
fuel consumed during the last
few seconds. A v e r a g e c o n s u m p t i o n
(l/1 00 km or km/l or mpg)
This is the average quantity
of fuel consumed since the
last trip computer zero reset.
D i s t a n c e t r a v e l l e d
(km or miles)
This indicates the distance travelled since the last trip computer zero reset. uter
A v e r a g e s p e e d
(km/h or mph)
This is the average speed cal-culated since the last trip com-puter zero reset (ignition on).
Distance remaining to
destination
(km or miles)
This is the distance remaining to be
t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n . I t i s e i -
ther calculated instantly by the naviga-
tion system, if guidance is activated, or
entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
With the instrument panel WIP Com
3D 16/9 large display
When the required route is dis-
played, press the "OK" button on
the navigator, associated with the
WIP Com 3D.
Routes "1" and "2" are independent
but their use is identical.
Route "1" permits, for example, daily
calculations, and route "2" monthly cal-
culations.
Page 43 of 221
3
46
COMFORT
VENTILATION
System which creates and maintains
comfortable conditions in the vehicle’s
passenger compartment. Air treatment
The incoming air follows various routes
depending on the controls selected by
the driver:
- direct arrival in the passenger com-
partment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning).
The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits. The air distribution control enables you
to diffuse the air in the passenger com-
partment combining several air vents.
T h e a i r fl o w c o n t r o l e n a b l e s y o u t o i n -
crease or reduce the speed of the ven-
tilation blower.
Air intake
The air circulating in the passenger com-
p a r t m e n t i s fi l t e r e d a n d o r i g i n a t e s e i t h e r
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode. Control panel
The controls of this system are grouped
together on control panel
A on the cen-
tre console. Depending on the model,
the functions offered are:
- the level of comfort required,
- t h e a i r fl o w ,
- the air distribution,
- the de-icing and demisting,
- the manual or automatic air condi- tioning controls.
Air diffusion
1. Windscreen de-icing or demisting
vents.
2. Front side window de-icing or de-
misting vents.
3. Side adjustable and closing vents.
4. Central adjustable and closing
vents.
5. Air outlets to the front footwells.
6. Adjustable and closing vents for the
rear passengers.
7. Air outlets to the rear footwells.
Page 44 of 221
3
i
47
COMFORT

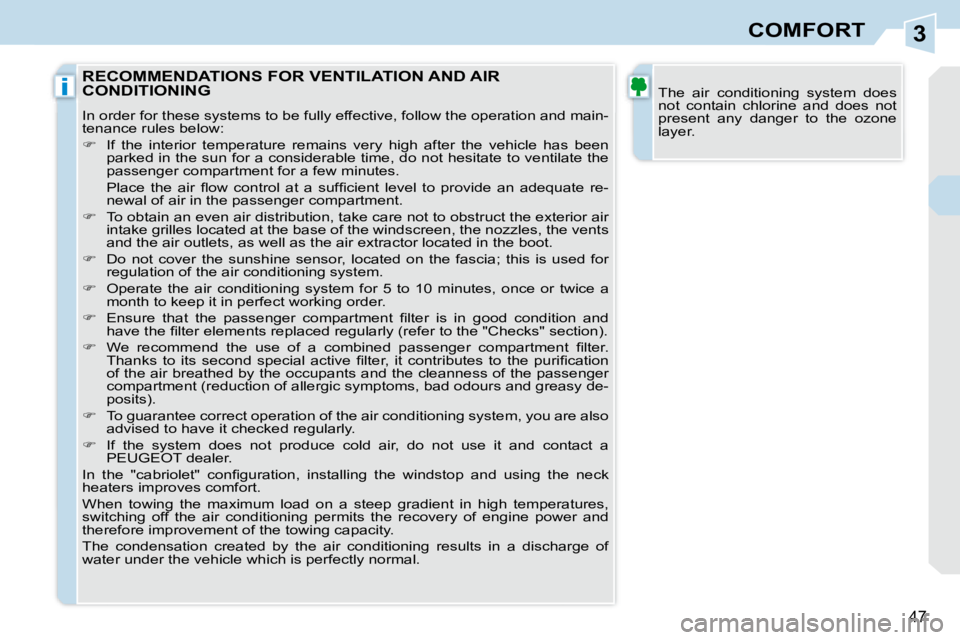

The air conditioning system does
not contain chlorine and does not
present any danger to the ozone
layer. RECOMMENDATIONS FOR VENTILATION AND AIR CONDITIONING
In order for these systems to be fully effective, follow the operation and main-
tenance rules below:
If the interior temperature remains very high after the vehicle has been
parked in the sun for a considerable time, do not hesitate t o ventilate the
passenger compartment for a few minutes.
P l a c e t h e a i r fl o w c o n t r o l a t a s u f fi c i e n t l e v e l t o p r o v i d e a n a d e q u a t e r e -
newal of air in the passenger compartment.
To obtain an even air distribution, take care not to obst ruct the exterior air
intake grilles located at the base of the windscreen, the n ozzles, the vents
and the air outlets, as well as the air extractor located in the boot.
Do not cover the sunshine sensor, located on the fascia; th is is used for
regulation of the air conditioning system.
Operate the air conditioning system for 5 to 10 minutes, on ce or twice a
month to keep it in perfect working order.
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t m e n t fi l t e r i s i n g o o d c o n d i t i o n a n d
h a v e t h e fi l t e r e l e m e n t s r e p l a c e d r e g u l a r l y ( r e f e r t o t h e " C h e c k s " s e c t i o n ) .
W e r e c o m m e n d t h e u s e o f a c o m b i n e d p a s s e n g e r c o m p a r t m e n t fi l t e r .
T h a n k s t o i t s s e c o n d s p e c i a l a c t i v e fi l t e r , i t c o n t r i b u t e s t o t h e p u r i fi c a t i o n
of the air breathed by the occupants and the cleanness of th e passenger
compartment (reduction of allergic symptoms, bad odours and greasy de-
posits).
To guarantee correct operation of the air conditioning syste m, you are also
advised to have it checked regularly.
If the system does not produce cold air, do not use it and contact a
PEUGEOT dealer.
I n t h e " c a b r i o l e t " c o n fi g u r a t i o n , i n s t a l l i n g t h e w i n d s t o p a n d u s i n g t h e n e c k
heaters improves comfort.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning permits the recovery of engi ne power and
therefore improvement of the towing capacity.
The condensation created by the air conditioning results in a discharge of
water under the vehicle which is perfectly normal.
Page 45 of 221
3
i
48

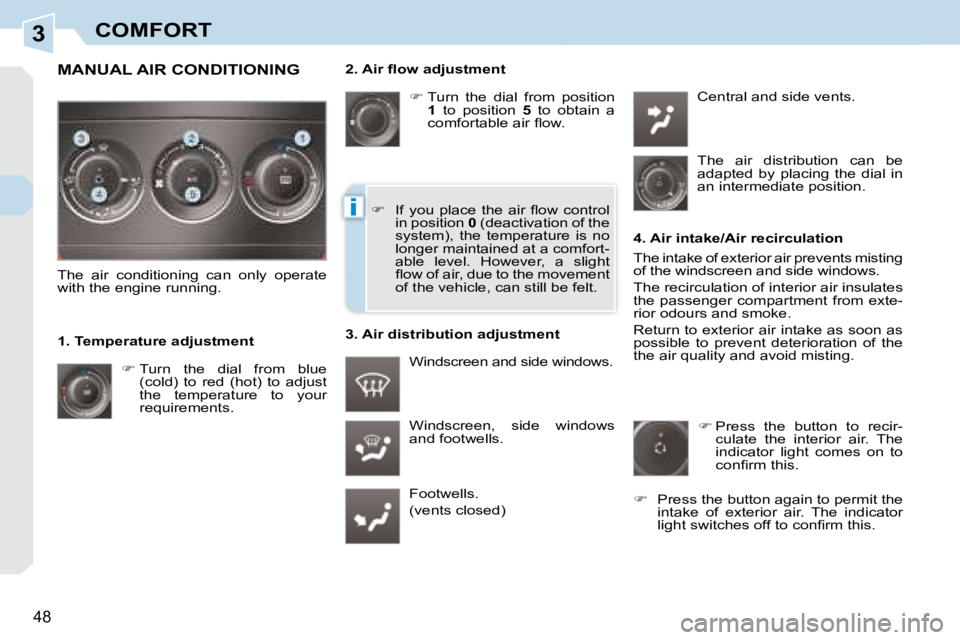

COMFORT
2 . A i r fl o w a d j u s t m e n t
Turn the dial from position
1 to position 5 to obtain a
c o m f o r t a b l e a i r fl o w .
Windscreen, side windows
and footwells.
Footwells.
(vents closed) Central and side vents.
Turn the dial from blue
(cold) to red (hot) to adjust
the temperature to your
requirements. Windscreen and side windows.
1 . T e m p e r a t u r e a d j u s t m e n t The air distribution can be
adapted by placing the dial in
an intermediate position.
The air conditioning can only operate
with the engine running. 4. Air intake/Air recirculation
The intake of exterior air prevents misting
of the windscreen and side windows.
The recirculation of interior air insulates
the passenger compartment from exte-
rior odours and smoke.
Return to exterior air intake as soon as
possible to prevent deterioration of the
the air quality and avoid misting.
I f y o u p l a c e t h e a i r fl o w c o n t r o l
in position 0 (deactivation of the
system), the temperature is no
longer maintained at a comfort-
able level. However, a slight
fl o w o f a i r , d u e t o t h e m o v e m e n t
of the vehicle, can still be felt.
3 . A i r d i s t r i b u t i o n a d j u s t m e n t
Press the button to recir-
culate the interior air. The
indicator light comes on to
c o n fi r m t h i s .
Press the button again to permit the
intake of exterior air. The indicator
l i g h t s w i t c h e s o f f t o c o n fi r m t h i s . MANUAL AIR CONDITIONING
Page 46 of 221
3
i
49
COMFORT

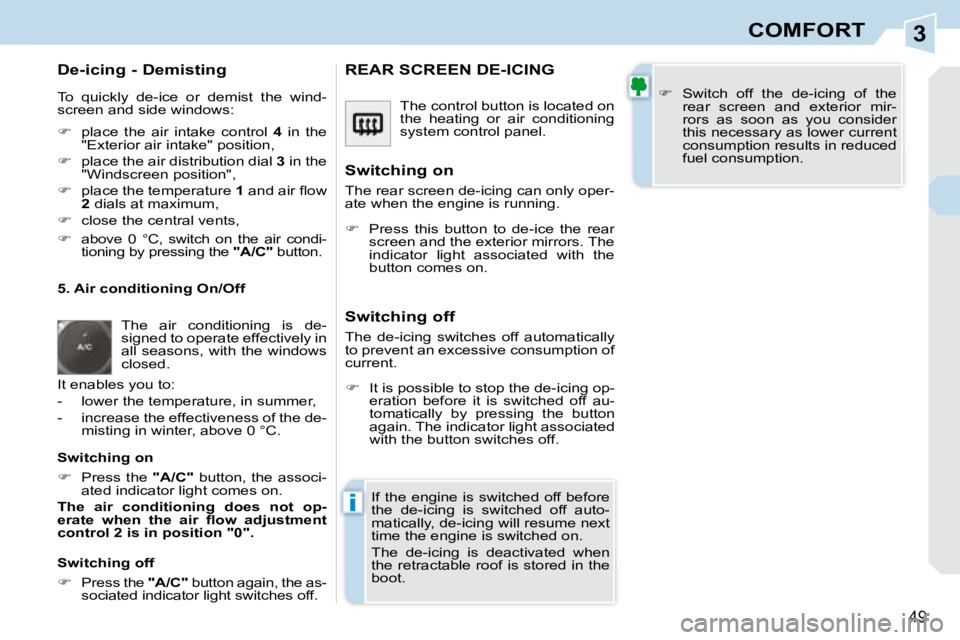

De-icing - Demisting
To quickly de-ice or demist the wind-
screen and side windows:
place the air intake control 4 in the
" E x t e r i o r a i r i n t a k e " p o s i t i o n ,
place the air distribution dial 3 in the
" W i n d s c r e e n p o s i t i o n " ,
place the temperature 1 a n d a i r fl o w
2 dials at maximum,
close the central vents, The control button is located on
the heating or air conditioning
system control panel. REAR SCREEN DE-ICING
Switch off the de-icing of the
rear screen and exterior mir-
rors as soon as you consider
this necessary as lower current
consumption results in reduced
fuel consumption.
If the engine is switched off before
the de-icing is switched off auto-
matically, de-icing will resume next
time the engine is switched on.
The de-icing is deactivated when
the retractable roof is stored in the
boot.
S w i t c h i n g o n
The rear screen de-icing can only oper-
ate when the engine is running.
S w i t c h i n g o f f
The de-icing switches off automatically
to prevent an excessive consumption of
current.
5. Air conditioning On/Off
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the de- misting in winter, above 0 °C.
S w i t c h i n g o n
Press the "A/C" button, the associ-
ated indicator light comes on.
T h e a i r c o n d i t i o n i n g d o e s n o t o p -
e r a t e w h e n t h e a i r fl o w a d j u s t m e n t
control 2 is in position "0".
S w i t c h i n g o f f
Press the "A/C" button again, the as-
sociated indicator light switches off.
above 0 °C, switch on the air condi-
tioning by pressing the "A/C" button.
Press this button to de-ice the rear
screen and the exterior mirrors. The
indicator light associated with the
button comes on.
It is possible to stop the de-icing op-
eration before it is switched off au-
tomatically by pressing the button
again. The indicator light associated
with the button switches off.
Page 47 of 221
3
i
49
COMFORT
De-icing - Demisting
To quickly de-ice or demist the wind-
screen and side windows:
place the air intake control 4 in the
" E x t e r i o r a i r i n t a k e " p o s i t i o n ,
place the air distribution dial 3 in the
" W i n d s c r e e n p o s i t i o n " ,
place the temperature 1 a n d a i r fl o w
2 dials at maximum,
close the central vents, The control button is located on
the heating or air conditioning
system control panel. REAR SCREEN DE-ICING
Switch off the de-icing of the
rear screen and exterior mir-
rors as soon as you consider
this necessary as lower current
consumption results in reduced
fuel consumption.
If the engine is switched off before
the de-icing is switched off auto-
matically, de-icing will resume next
time the engine is switched on.
The de-icing is deactivated when
the retractable roof is stored in the
boot.
S w i t c h i n g o n
The rear screen de-icing can only oper-
ate when the engine is running.
S w i t c h i n g o f f
The de-icing switches off automatically
to prevent an excessive consumption of
current.
5. Air conditioning On/Off
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the de- misting in winter, above 0 °C.
S w i t c h i n g o n
Press the "A/C" button, the associ-
ated indicator light comes on.
T h e a i r c o n d i t i o n i n g d o e s n o t o p -
e r a t e w h e n t h e a i r fl o w a d j u s t m e n t
control 2 is in position "0".
S w i t c h i n g o f f
Press the "A/C" button again, the as-
sociated indicator light switches off.
above 0 °C, switch on the air condi-
tioning by pressing the "A/C" button.
Press this button to de-ice the rear
screen and the exterior mirrors. The
indicator light associated with the
button comes on.
It is possible to stop the de-icing op-
eration before it is switched off au-
tomatically by pressing the button
again. The indicator light associated
with the button switches off.
Page 48 of 221
3
ii
50
COMFORT
When the engine is cold, to prevent
too great a distribution of cold air,
t h e a i r fl o w w i l l r e a c h i t s o p t i m u m
level gradually.
In cold weather, it favours the dis-
tribution of warm air to the wind-
screen, side windows and footwells
only. On entering the vehicle, if the in-
terior temperature is much colder
or warmer than the comfort value,
there is no need to change the val-
ue displayed in order to obtain the
comfort required. The system cor-
rects the difference in temperature
automatically and as quickly as
possible.
The air conditioning only operates when
the engine is running. The driver and his front pas-
senger can each adjust the
temperature to their require-
ments.
Turn control 2 or 3 to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depend-
ing on your requirements, a setting be-
tween 18 and 24 is normal.
You are advised to avoid a left/right set-
ting difference of more than 3. 4. Automatic visibility programme
The automatic comfort pro-
g r a m m e m a y n o t b e s u f fi c i e n t
to quickly demist or de-ice the
windscreen and side windows
(humidity, several passengers,
ice, etc.).
In this case, select the automatic
visibility programme.
The system automatically controls the
a i r c o n d i t i o n i n g , t h e a i r fl o w a n d t h e a i r
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.
Automatic operation
Press the "AUTO" button.
The indicator light on the
button comes on. 2 . D r i v e r ’ s s i d e a d j u s t m e n t

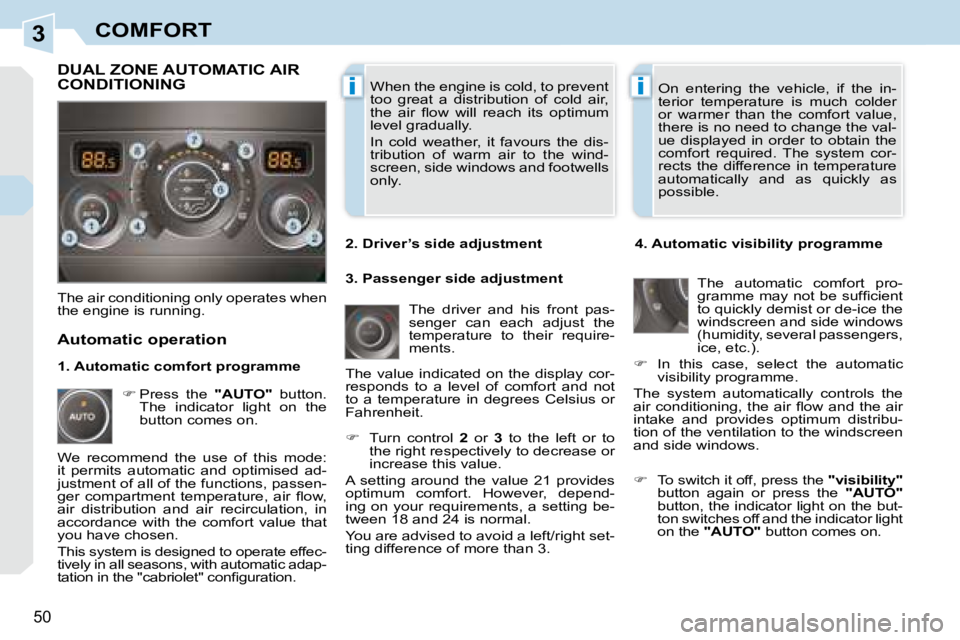

DUAL ZONE AUTOMATIC AIR CONDITIONING
We recommend the use of this mode:
it permits automatic and optimised ad-
justment of all of the functions, passen-
g e r c o m p a r t m e n t t e m p e r a t u r e , a i r fl o w ,
air distribution and air recirculation, in
accordance with the comfort value that
you have chosen.
This system is designed to operate effec-
tively in all seasons, with automatic adap-
t a t i o n i n t h e " c a b r i o l e t " c o n fi g u r a t i o n . The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
To switch it off, press the "visibility"
button again or press the "AUTO"
button, the indicator light on the but-
ton switches off and the indicator light
on the "AUTO" button comes on.
1. Automatic comfort programme
3 . P a s s e n g e r s i d e a d j u s t m e n t
Page 49 of 221
3
!
!
i
51
COMFORT

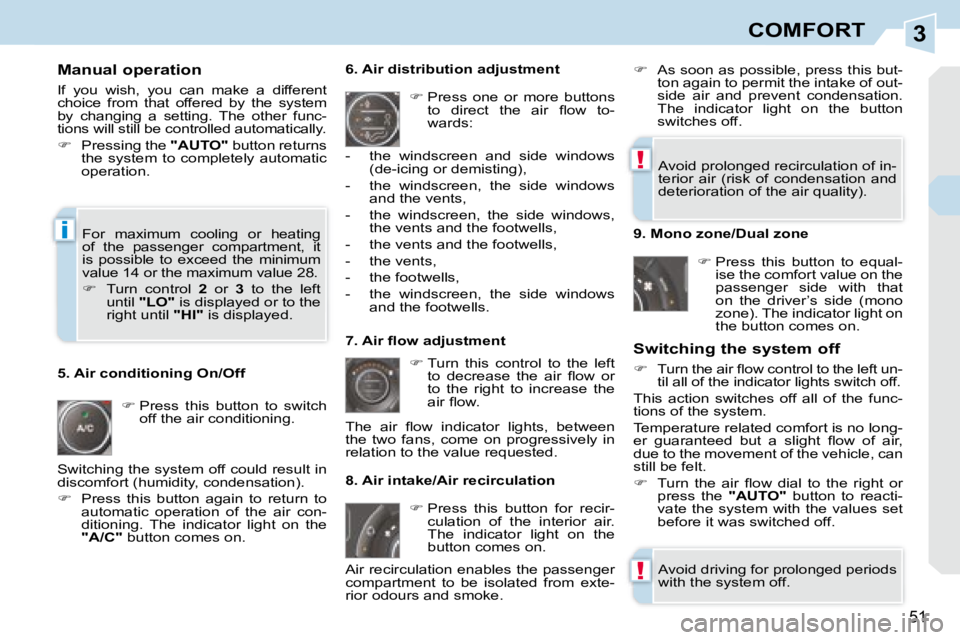

Manual operation
If you wish, you can make a different
choice from that offered by the system
by changing a setting. The other func-
tions will still be controlled automatically.
Pressing the "AUTO" button returns
the system to completely automatic
operation.
Press this button to switch
off the air conditioning. 6 . A i r d i s t r i b u t i o n a d j u s t m e n t
Press one or more buttons
t o d i r e c t t h e a i r fl o w t o -
wards:
7 . A i r fl o w a d j u s t m e n t
Turn this control to the left
t o d e c r e a s e t h e a i r fl o w o r
to the right to increase the
a i r fl o w .
8. Air intake/Air recirculation S w i t c h i n g t h e s y s t e m o f f
T u r n t h e a i r fl o w c o n t r o l t o t h e l e f t u n -
til all of the indicator lights switch off.
This action switches off all of the func-
tions of the system.
Temperature related comfort is no long-
e r g u a r a n t e e d b u t a s l i g h t fl o w o f a i r ,
due to the movement of the vehicle, can
still be felt.
T u r n t h e a i r fl o w d i a l t o t h e r i g h t o r
press the "AUTO" button to reacti-
vate the system with the values set
before it was switched off.
Press this button for recir-
culation of the interior air.
The indicator light on the
button comes on.
5. Air conditioning On/Off
Avoid driving for prolonged periods
with the system off.
Avoid prolonged recirculation of in-
terior air (risk of condensation and
deterioration of the air quality).
- the windscreen and side windows
(de-icing or demisting),
- the windscreen, the side windows and the vents,
- the windscreen, the side windows, the vents and the footwells,
- the vents and the footwells,
- the vents,
- the footwells,
- the windscreen, the side windows and the footwells.
T h e a i r fl o w i n d i c a t o r l i g h t s , b e t w e e n
the two fans, come on progressively in
relation to the value requested.
As soon as possible, press this but-
ton again to permit the intake of out-
side air and prevent condensation.
The indicator light on the button
switches off.
For maximum cooling or heating
of the passenger compartment, it
is possible to exceed the minimum
value 14 or the maximum value 28.
Turn control 2 or 3 to the left
until "LO" is displayed or to the
right until "HI" is displayed. 9. Mono zone/Dual zone
Press this button to equal-
ise the comfort value on the
passenger side with that
on the driver’s side (mono
zone). The indicator light on
the button comes on.
Air recirculation enables the passenger
compartment to be isolated from exte-
rior odours and smoke.
Switching the system off could result in
discomfort (humidity, condensation).
Press this button again to return to
automatic operation of the air con-
ditioning. The indicator light on the
"A/C" button comes on.
Page 50 of 221
3
52
COMFORT
Windstop folded

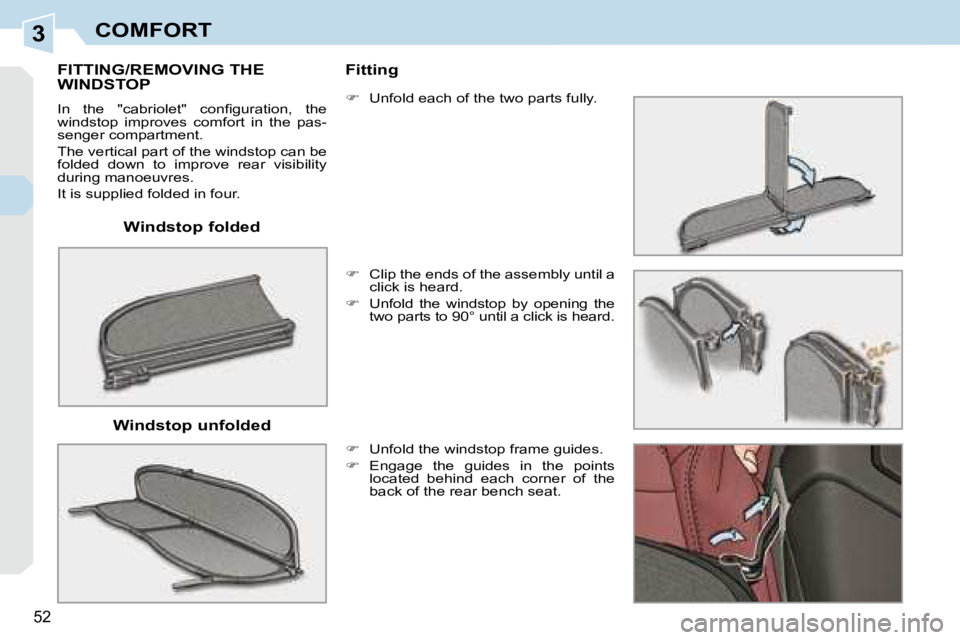

FITTING/REMOVING THE WINDSTOP
I n t h e " c a b r i o l e t " c o n fi g u r a t i o n , t h e
windstop improves comfort in the pas-
senger compartment.
The vertical part of the windstop can be
folded down to improve rear visibility
during manoeuvres.
It is supplied folded in four. Windstop unfolded Fitting
Clip the ends of the assembly until a
click is heard.
Unfold the windstop by opening the
two parts to 90° until a click is heard.
Unfold the windstop frame guides.
Engage the guides in the points
located behind each corner of the
back of the rear bench seat.
Unfold each of the two parts fully.
