fuel type Peugeot 308 CC 2009 Owner's Manual

4
i
76
ACCESS
The key cannot be removed from
the lock until the cap is put back on
the tank.
FUEL TANK

Capacity of the tank: approximately
60 litres.
To fi ll the tank safely:

 it is essential that the engine is
switched off,

 open the fuel fi ller fl ap,

 insert the key in the cap, then turn it
to the left,
When fi lling is complete:

 put the cap back in place,

 turn the key to the right, then remove
it from the cap,

 close the fl ap.

 remove the cap and secure it on the
hook, located on the inside of the
fl ap,

 fi ll the tank, but do not continue
after the 3rd cut-off of the nozzle ;
this could cause malfunctions.
Low fuel level
Filling
A label affi xed to the inside of the fl ap
reminds you of the type of fuel to be
used according to your engine.
Operating fault
A fuel gauge malfunction is indicated by
the return of the fuel level indicator nee-
dle to zero.
Consult a PEUGEOT dealer. When the fuel tank minimum
level is reached, this warning
light comes on on the instru-
ment panel, accompanied by
an audible signal and a message on the
multifunction display.

You have enough fuel left to drive
approximately 30 miles (50 km).
If you run out of fuel, refer to the
"Checks - § Running out of fuel" section
also.

11
155

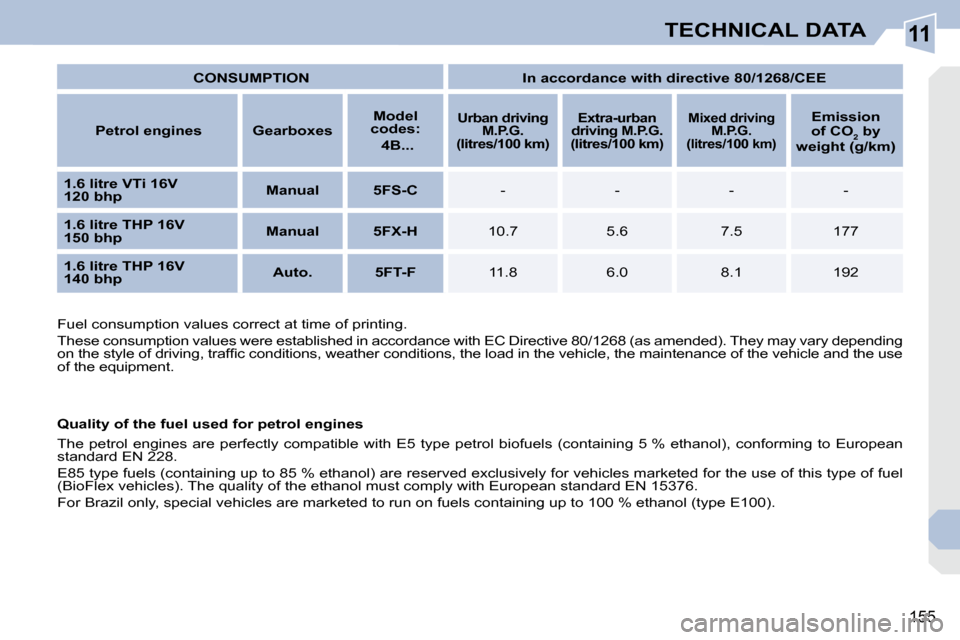

TECHNICAL DATA

CONSUMPTION In accordance with directive 80/1268/CEE

Petrol engines Gearboxes
Model
codes:
4B...
Urban driving
M.P.G.
(litres/100 km)


Extra-urban
driving M.P.G.

(litres/100 km)

Mixed driving
M.P.G.
(litres/100 km)

Emission
of CO 2 by
weight (g/km)

1.6 litre VTi 16V
120 bhp
Manual 5FS-C - - - -

1.6 litre THP 16V
150 bhp
Manual 5FX-H 10.7 5.6 7.5 177

1.6 litre THP 16V
140 bhp
Auto. 5FT-F 11.8 6.0 8.1 192
Quality of the fuel used for petrol engines
The petrol engines are perfectly compatible with E5 type pet rol biofuels (containing 5 % ethanol), conforming to European standard EN 228.
E85 type fuels (containing up to 85 % ethanol) are reserved exclusively for vehicles marketed for the use of this type of fuel (BioFlex vehicles). The quality of the ethanol must comply with European standard EN 15376.
For Brazil only, special vehicles are marketed to run on fuels co ntaining up to 100 % ethanol (type E100).
Fuel consumption values correct at time of printing.
These consumption values were established in accordance with EC Directive 80/1268 (as amended). They may vary depending
on the style of driving, traffi c conditions, weathe r conditions, the load in the vehicle, the maintena nce of the vehicle and the use
of the equipment.

11
158

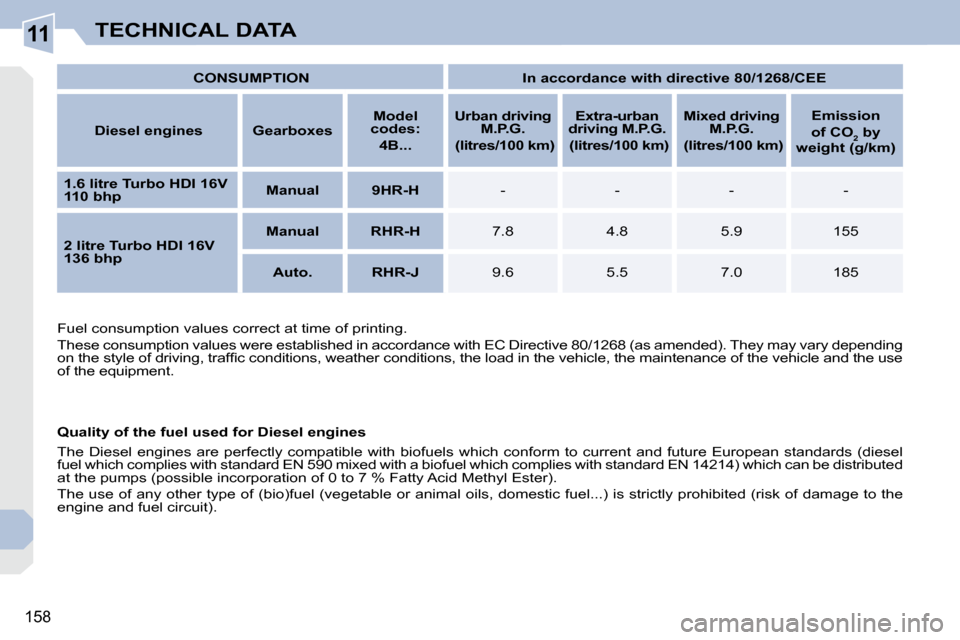

TECHNICAL DATA

CONSUMPTION In accordance with directive 80/1268/CEE
Diesel engine s
Gearboxes
Model
codes:

4B...
Urban driving
M.P.G.
(litres/100 km)
Extra-urban
driving M.P.G.
(litres/100 km)
Mixed driving
M.P.G.
(litres/100 km)
Emission
of CO 2 by
weight (g/km)

1.6 litre Turbo HDI 16V
110 bhp
Manual 9HR-H - - - -

2 litre Turbo HDI 16V
136 bhp
Manual RHR-H 7.8 4.8 5.9 155

Auto. RHR-J 9.6 5.5 7.0 185
Fuel consumption values correct at time of printing.
These consumption values were established in accor dance with EC Directive 80/1268 (as amended). They may vary depending
on the style of driving, traffi c conditions, weathe r conditions, the load in the vehicle, the maintena nce of the vehicle and the use
of the equipment.
Quality of the fuel used for Diesel engines
The Diesel engines are perfectly compatible with biofuels w hich conform to current and future European standards (diesel fuel which complies with standard EN 590 mixed with a biofuel which complies with standard EN 14214) which can be distributed at the pumps (possible incorporation of 0 to 7 % Fatty Acid Met hyl Ester).
The use of any other type of (bio)fuel (vegetable or animal oils, domestic fuel...) is strictly prohibited (risk of damage to t he engine and fuel circuit).
