Page 13 of 294
FAMILIARISATION
MONITOR THOROUGHLY
Instrument panel Controls bar
A. With the ignition on, the needle should
indicate the level of fuel remaining.
B. With the engine running, its associ-
ated low level warning light should
switch off.
C. With the ignition on, the oil level in-
dicator should display "OIL OK" for
a few seconds.
If the levels are not correct, top up the
levels which are low. Lighting of the indicator light indicates
the status of the corresponding function.
A. Emergency call in progress.
188
B. Disarming of the interior protection
alarm.
68
C. Central locking.
73
D. Deactivation of the ESP/ASR system.
95
E. Deactivation of the visual and audible
parking assistance.
119
F. Access to the PEUGEOT services.
188
1. With the ignition on, the orange and
red warning lights come on.
2. With the engine running, these
warning lights should switch off.
If warning lights remain on, refer to the
page concerned.
Warning lights
19
23
Page 49 of 294
3
!
!
i
51
COMFORT
Manual operation
If you wish, you can make a different
choice from that offered by the system
by changing a setting. The other func-
tions will still be controlled automati-
cally.
Pressing the "AUTO" button returns
the system to completely automatic
operation.
Press this button to switch
off the air conditioning. 6 . A i r d i s t r i b u t i o n a d j u s t m e n t
Press one or more buttons to
d i r e c t t h e a i r fl o w t o w a r d s :
7 . A i r fl o w a d j u s t m e n t
Turn this control to the left
t o d e c r e a s e t h e a i r fl o w o r
to the right to increase the
a i r fl o w .
8. Air intake/Air recirculation S w i t c h i n g t h e s y s t e m o f f T u r n t h e a i r fl o w c o n t r o l t o t h e l e f t u n t i l
all of the indicator lights switch off.
This action switches off all of the func-
tions of the system.
Temperature related comfort is no longer
g u a r a n t e e d b u t a s l i g h t fl o w o f a i r , d u e
to the movement of the vehicle, can still
be felt.
T u r n t h e a i r fl o w d i a l t o t h e r i g h t o r
press the "AUTO" button to reacti-
vate the system with the values set
before it was switched off.
Press this button for recir-
culation of the interior air.
The indicator light on the
button comes on.
5. Air conditioning On/Off
Avoid driving for prolonged periods
with the system off.
Avoid prolonged recirculation of
interior air (risk of condensation and
deterioration of the air quality).
- the windscreen and side windows
(de-icing or demisting),
- the windscreen, the side windows and the vents,
- the windscreen, the side windows, the vents and the footwells,
- the vents and the footwells,
- the vents,
- the footwells,
- the windscreen, the side windows and the footwells.
T h e a i r fl o w i n d i c a t o r l i g h t s , b e t w e e n
the two fans, come on progressively in
relation to the value requested.
As soon as possible, press this but-
ton again to permit the intake of out-
side air and prevent condensation.
The indicator light on the button
switches off.
For maximum cooling or heating
of the passenger compartment, it
is possible to exceed the minimum
value 14 or the maximum value 28.
Turn control 2 or 3 to the left
until "LO" is displayed or to the
right until "HI" is displayed. 9. Mono zone/Dual zone
Press this button to equa-
lise the comfort value on
the passenger side with that
on the driver's side (mono
zone). The indicator light on
the button comes on.
Air recirculation enables the passenger
compartment to be isolated from exte-
rior odours and smoke.
Switching the system off could result in
discomfort (humidity, condensation).
Press this button again to return to
automatic operation of the air con-
ditioning. The indicator light on the
"A/C" button comes on.
Page 82 of 294
5
!
AUTO
79
VISIBILITY
Manual follow-me-home lighting
The temporary maintaining of the
dipped headlamps lighting after the ve-
hicle’s ignition has been switched off
makes the driver’s exit easier when the
light is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lights stalk B .
A s e c o n d " h e a d l a m p fl a s h " s w i t c h e s
the function off again.
Switching off
The manual follow-me-home lighting
switches off automatically after a set
time. Automatic lighting
The side lights and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
when a low level of external light is
detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lights are
switched off automatically.
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sensor,
coupled with the rain sensor and
located in the centre of the wind-
screen behind the interior mirror;
the associated functions would no
longer be controlled.
Coupling with the automatic
"Follow-me-home" lighting
Association with the automatic lighting
provides the "follow-me-home" lighting
with the following additional options:
- selection of the duration of main-
taining of the lighting for 15, 30 or
60 seconds in the vehicle parameters
o n t h e m u l t i f u n c t i o n d i s p l a y c o n fi g u -
ration menu,
- automatic activation of "follow-me- home" lighting when automatic
lighting is in operation.
Activation
Turn ring A to the "AUTO" position.
The automatic lighting is accompa-
nied by a message on the multifunc-
tion display.
Deactivation
Turn ring A to a position other than
"AUTO" . Deactivation is accompa-
nied by a message on the multifunc-
tion display. Operating fault
In the event of a malfunction of the
brightness sensor, the lights come
on, this warning light is displayed
on the instrument panel and/or a
message appears on the multifunction dis-
play, accompanied by an audible signal.
Consult a PEUGEOT dealer.
Page 84 of 294
5
!
AUTO
79
VISIBILITY

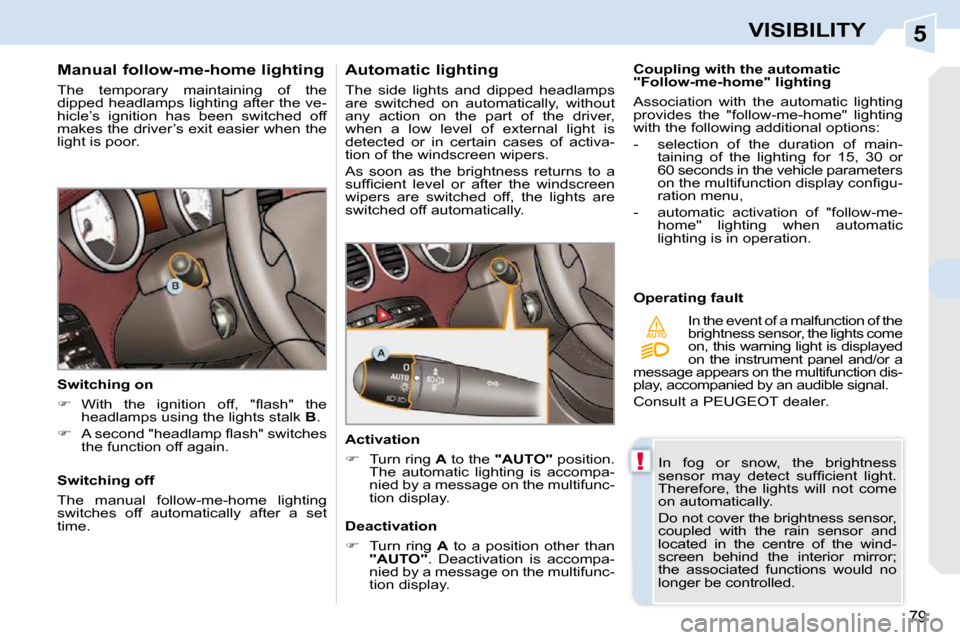

Manual follow-me-home lighting
The temporary maintaining of the
dipped headlamps lighting after the ve-
hicle’s ignition has been switched off
makes the driver’s exit easier when the
light is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lights stalk B .
A s e c o n d " h e a d l a m p fl a s h " s w i t c h e s
the function off again.
Switching off
The manual follow-me-home lighting
switches off automatically after a set
time. Automatic lighting
The side lights and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
when a low level of external light is
detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lights are
switched off automatically.
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sensor,
coupled with the rain sensor and
located in the centre of the wind-
screen behind the interior mirror;
the associated functions would no
longer be controlled.
Coupling with the automatic
"Follow-me-home" lighting
Association with the automatic lighting
provides the "follow-me-home" lighting
with the following additional options:
- selection of the duration of main-
taining of the lighting for 15, 30 or
60 seconds in the vehicle parameters
o n t h e m u l t i f u n c t i o n d i s p l a y c o n fi g u -
ration menu,
- automatic activation of "follow-me- home" lighting when automatic
lighting is in operation.
Activation
Turn ring A to the "AUTO" position.
The automatic lighting is accompa-
nied by a message on the multifunc-
tion display.
Deactivation
Turn ring A to a position other than
"AUTO" . Deactivation is accompa-
nied by a message on the multifunc-
tion display. Operating fault
In the event of a malfunction of the
brightness sensor, the lights come
on, this warning light is displayed
on the instrument panel and/or a
message appears on the multifunction dis-
play, accompanied by an audible signal.
Consult a PEUGEOT dealer.
Page 94 of 294
5
i
i
85
VISIBILITY

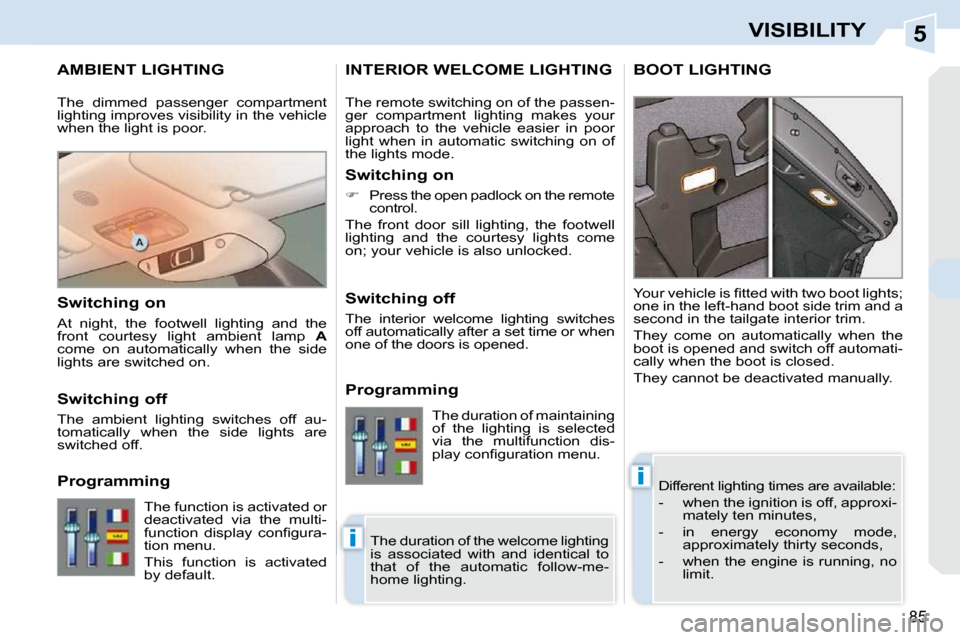

AMBIENT LIGHTING
Different lighting times are available:
- when the ignition is off, approxi-mately ten minutes,
- in energy economy mode, approximately thirty seconds,
- when the engine is running, no limit.
Y o u r v e h i c l e i s fi t t e d w i t h t w o b o o t l i g h t s ;
one in the left-hand boot side trim and a
second in the tailgate interior trim.
They come on automatically when the
boot is opened and switch off automati-
cally when the boot is closed.
They cannot be deactivated manually.
INTERIOR WELCOME LIGHTING BOOT LIGHTING
The remote switching on of the passen-
ger compartment lighting makes your
approach to the vehicle easier in poor
light when in automatic switching on of
the lights mode.
Switching on
Press the open padlock on the remote
control.
The front door sill lighting, the footwell
lighting and the courtesy lights come
on; your vehicle is also unlocked.
Switching off
The interior welcome lighting switches
off automatically after a set time or when
one of the doors is opened.
Programming
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.
Switching on
At night, the footwell lighting and the
front courtesy light ambient lamp
A
come on automatically when the side
lights are switched on.
Switching off
The ambient lighting switches off au-
tomatically when the side lights are
switched off.
Programming
The duration of the welcome lighting
is associated with and identical to
that of the automatic follow-me-
home lighting.
The function is activated or
deactivated via the multi-
f u n c t i o n d i s p l a y c o n fi g u r a -
tion menu.
This function is activated
by default. The duration of maintaining
of the lighting is selected
via the multifunction dis-
p l a y c o n fi g u r a t i o n m e n u .
