FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Steering wheel adjustment control.
2. Cruise control/speed limiter
switches.
3. Lights and direction indicators
controls.
4. Central adjustable and closing
vents.
5. Multifunction display.
6. Sunshine sensor.
7. Passenger air bag.
8. Glove box/Audio/video sockets/
Fuse box.
9. Bonnet release.
10. Retractable roof control.
Control for all four windows.
11. Storage compartment or instrument
panel navigator associated with the
PC Com 3D.
12. "AIRWAVE" system controls.
13. Front armrest.
14. Front ashtray.
15. Heating/air conditioning controls.
16. Audio and telematics system.
17. Emergency call button.
Alarm button.
Central locking button.
Hazard warning lights button.
Dynamic stability control (ESP/ASR) button.
Parking assistance button.
PEUGEOT services button.
Page 13 of 294
FAMILIARISATION
MONITOR THOROUGHLY
Instrument panel Controls bar
A. With the ignition on, the needle should
indicate the level of fuel remaining.
B. With the engine running, its associ-
ated low level warning light should
switch off.
C. With the ignition on, the oil level in-
dicator should display "OIL OK" for
a few seconds.
If the levels are not correct, top up the
levels which are low. Lighting of the indicator light indicates
the status of the corresponding function.
A. Emergency call in progress.
188
B. Disarming of the interior protection
alarm.
68
C. Central locking.
73
D. Deactivation of the ESP/ASR system.
95
E. Deactivation of the visual and audible
parking assistance.
119
F. Access to the PEUGEOT services.
188
1. With the ignition on, the orange and
red warning lights come on.
2. With the engine running, these
warning lights should switch off.
If warning lights remain on, refer to the
page concerned.
Warning lights
19
23
Page 16 of 294
1
i
19
INSTRUMENTS and CONTROLS
PETROL - DIESEL MANUAL GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lights.
5. Display.
6. Display zero reset button.
Resets the selected function to zero (trip distance recorder or service
indicator).
7. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.
Dials
1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).
2. Coolant temperature.
Indicates the temperature of the engine coolant (°Celsius).
3. Fuel level.
Indicates the quantity of fuel remaining in the tank.
4. Vehicle speed.
Indicates the current speed of the moving vehicle (km/h or mph).
A. Speed limiter
or
Cruise control.
(km/h or mph)
B. Trip distance recorder.
(km or miles)
The following three functions are displayed in succession when the
ignition is switched on.
C. Service indicator.
(km or miles) then,
Engine oil level indicator.
then
distance recorder.
(km or miles)
Display
For further information, refer to the
paragraph relating to the button or
function and its associated display.
Page 17 of 294
1
i
20
INSTRUMENTS and CONTROLS
PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lights.
5. Small display.
6. Large display.
7. CHECK/display zero reset button.
Starts a manual CHECK.
Resets the function selected to zero (trip distance recorder or service
indicator).
8. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.
Dials
1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).
2. Coolant temperature.
Indicates the temperature of the engine coolant (°Celsius).
3. Fuel level.
Indicates the quantity of fuel remain- ing in the tank.
4. Vehicle speed.
Indicates the current speed of the moving vehicle (km/h or mph).
A. Trip distance recorder.
(km or miles)
B. Distance recorder.
(km or miles)
The following two functions are displayed in succession when the
ignition is switched on.
C. Service indicator.
(km or miles) then,
Engine oil level indicator.
Displays
For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.
-
Warning lights/CHECK.
-
T y r e u n d e r - i n fl a t i o n d e t e c t i o n .
- Speed limiter/Cruise control.
-
Automatic gearbox.
-
Navigation - Guidance/Trip computer
information.
Page 18 of 294
1
i
21
INSTRUMENTS and CONTROLS
PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX PC COM 3D INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lights.
5. Small display.
6. PC Com 3D 16/9 large display.
7. CHECK/display zero reset button.
Starts a manual CHECK.
Resets the function selected to zero (trip distance recorder or service
indicator).
8. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.
Dials
1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).
2. Coolant temperature.
Indicates the temperature of the engine coolant (°Celsius).
3. Fuel level.
Indicates the quantity of fuel remaining in the tank.
4. Vehicle speed.
Indicates the current speed of the moving vehicle (km/h or mph).
A. Trip distance recorder.
(km or miles)
B. Distance recorder.
(km or miles)
The following two functions are displayed in succession when the
ignition is switched on.
C. Service indicator.
(km or miles) then,
Engine oil level indicator.
Displays
For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.
-
Warning lights/CHECK.
- T y r e u n d e r - i n fl a t i o n d e t e c t i o n .
- Speed limiter/Cruise control.
- Automatic gearbox.
- Navigation - Guidance/Trip computer.
- Vehicle parameters.
Page 22 of 294
1
25
INSTRUMENTS and CONTROLS
Deactivation warning lights
If one of the following warning lights
c o m e s o n , t h i s c o n fi r m s t h a t t h e c o r r e s -
ponding system has been switched off
intentionally. Passenger's air bag system
deactivation.
The passenger's air bag system
is put into service automatically
when the vehicle is started.
A s p e c i fi c c o n t r o l , l o c a t e d o n t h e p a s -
senger's side of the fascia, permits
deactivation of the system. This is con-
fi r m e d b y c o n t i n u o u s l i g h t i n g o f t h i s
warning light on the instrument panel or
on the seat belt and passenger's front
air bag warning lights display. Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically when
the vehicle is started.
A s p e c i fi c b u t t o n , l o c a t e d i n t h e c e n t r e
of the dashboard, permits deactivation
o f t h e s y s t e m . T h i s i s c o n fi r m e d b y c o n -
tinuous lighting of this warning lamp and
of the indicator lamp on the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically.
Common deactivation
warning lights S p e c i fi c d e a c t i v a t i o n w a r n i n g
lights Automatic locking.
If this is displayed, it indicates
that you have deactivated the
automatic locking of the doors
and boot while driving.
Automatic wiping.
If this is displayed, it indicates
that you have deactivated the
automatic windscreen wiping.
The other warning lights appear on the
large display, located in the centre of
the instrument panel.
Speed limiter.
If this is displayed, it indicates
that you have deactivated the
speed limiter.
Cruise control.
If this is displayed, it indicates
that you have deactivated the
cruise control.
Automatic lighting.
If this is displayed, it indicates
that you have deactivated the
automatic switching on of the
headlamps.
Page 24 of 294
1
27
INSTRUMENTS and CONTROLS
Engine autodiagnostics
system.
If this comes on, it indicates
the occurrence of a fault in the
engine management system.
I f i t fl a s h e s , i t i n d i c a t e s t h e o c c u r r e n c e o f
a fault in the emission control system.
Low fuel level.
If this comes on, it indicates that
you only have enough fuel left
to drive approximately 30 miles
(50 km).
The capacity of the tank is approximately
60 litres.
Maximum coolant
temperature.
If this comes on, it indicates
that the temperature in the coo-
ling system is too high. Stop the vehicle
immediately and as safely as possible. Air bags.
If this comes on, it indicates the
occurrence of a fault in one of
the air bag, roll-over hoop or
seat belt pretensioner systems.
Seat belt not fastened/
unfastened.
If this comes on, it indicates
that the driver and/or the front
passenger has not fastened or has un-
fastened his seat belt.
It also indicates that one or more rear
passengers have unfastened their seat
belt.
Water in diesel ** .
If this comes on, it indicates the
presence of water in the diesel
fi l t e r .
There is a risk of damage to the injection
system on Diesel engines.
Door open.
A door, the boot or the bonnet *
is open:
Battery charge.
If this comes on, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or
loose terminals, slack or cut al-
ternator belt...).
Engine oil pressure.
If this comes on, it indicates
the occurrence of a fault in the
engine lubrication circuit. Stop
the vehicle immediately and as
safely as possible.
S p e c i fi c w a r n i n g l i g h t s
* Only with alarm.
Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deactiva-
ted, if this warning light and the indicator
light on the button come on continuously,
this indicates the occurrence of a fault in
the ESP/ASR system.
** According to country.
- i
f the speed is below 6 mph (10 km/h), this
warning light comes on continuously,
- if the speed is higher than 6 mph (10 km/h),
this warning light comes on continuously,
accompanied by an audible signal.
Page 29 of 294
1
32
INSTRUMENTS and CONTROLS

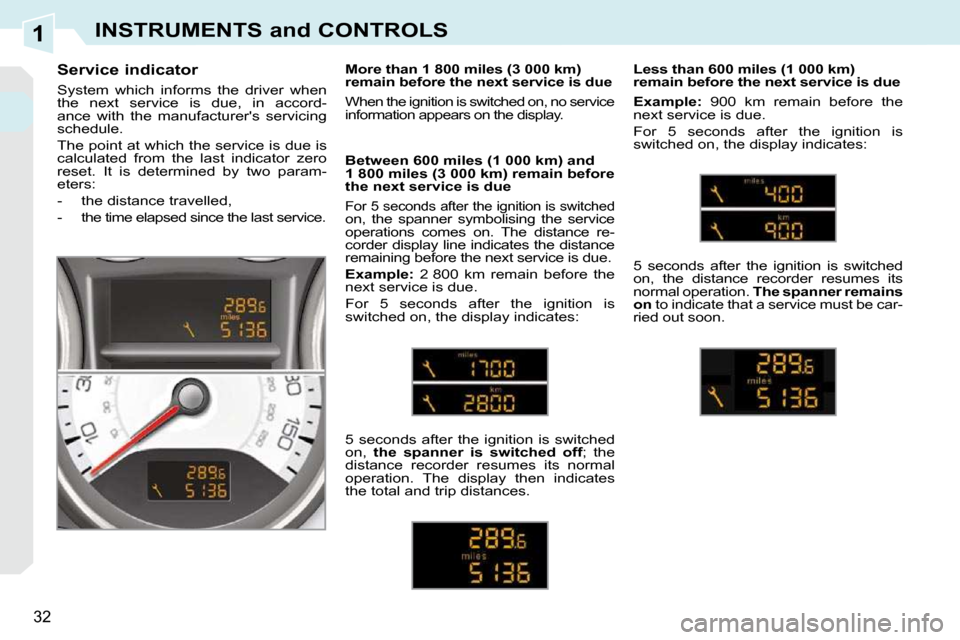

Service indicator
System which informs the driver when the next service is due, in accord-ance with the manufacturer's servicing schedule.
The point at which the service is due is calculated from the last indicator zero reset. It is determined by two param-eters:
- the distance travelled,
-the time elapsed since the last service.
Between 600 miles (1 000 km) and 1 800 miles (3 000 km) remain before the next service is due
For 5 seconds after the ignition is switched on, the spanner symbolising the service operations comes on. The distance re-corder display line indicates the distance remaining before the next service is due.
Example: 2 800 km remain before the next service is due.
For 5 seconds after the ignition is switched on, the display indicates:
5 seconds after the ignition is switched on, the spanner is switched off ; the switched offdistance recorder resumes its normal operation. The display then indicates the total and trip distances.
Less than 600 miles (1 000 km) remain before the next service is due
Example: 900 km remain before the next service is due.
For 5 seconds after the ignition is switched on, the display indicates:
5 seconds after the ignition is switched on, the distance recorder resumes its normal operation. The spanner remains on to indicate that a service must be car-ried out soon.
More than 1 800 miles (3 000 km) remain before the next service is due
When the ignition is switched on, no service information appears on the display.
Page 30 of 294
1
i
i
33
INSTRUMENTS and CONTROLS
Following this operation, if you wish
to disconnect the battery, lock the
v e h i c l e a n d w a i t a t l e a s t fi v e m i n u t e s
for the zero reset to be taken into
account.

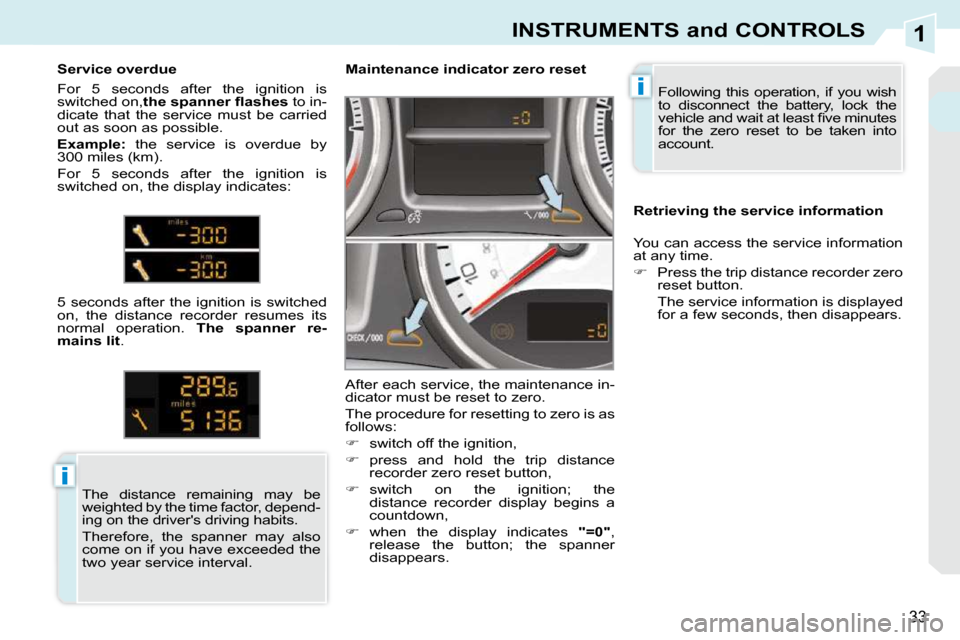

Maintenance indicator zero reset
After each service, the maintenance in-
dicator must be reset to zero.
The procedure for resetting to zero is as
follows:
switch off the ignition,
press and hold the trip distance
recorder zero reset button,
switch on the ignition; the
distance recorder display begins a
countdown,
when the display indicates "=0" ,
release the button; the spanner
disappears.
The distance remaining may be weighted by the time factor, depend-ing on the driver's driving habits.
Therefore, the spanner may also come on if you have exceeded the two year service interval.
Service overdue
For 5 seconds after the ignition is switched on, t h e s p a n n e r fl a s h e s to in-dicate that the service must be carried out as soon as possible.
Example: the service is overdue by 300 miles (km).
For 5 seconds after the ignition is switched on, the display indicates:
5 seconds after the ignition is switched on, the distance recorder resumes its normal operation. The spanner re-mains lit .
Retrieving the service information
You can access the service information
at any time.
Press the trip distance recorder zero
reset button.
The service information is displayed for a few seconds, then disappears.
Page 31 of 294
1
i
34
INSTRUMENTS and CONTROLS
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.
Engine oil level indicator
System which informs the driver of the
validity or invalidity of the engine oil
level.
This information is indicated for a few
seconds when the ignition is switched
on, after the service information.
Oil level correct
Lack of oil Oil level gauge fault
Dipstick
T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f "OIL" ,
linked with the service warning light,
accompanied by an audible signal and a
message on the multifunction display.
I f t h e l a c k o f o i l i s c o n fi r m e d b y a c h e c k
using the dipstick, it is essential that the
level is topped up to prevent damage to
the engine. T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f "OIL--" .
Consult a PEUGEOT dealer.
Refer to the "Checks" section to locate
t h e d i p s t i c k a n d t h e o i l fi l l e r c a p o n y o u r
engine.
There are 2 marks on the
dipstick:
- A = max; never exceed
this level (risk of
damage to the engine),
- B = min; top up the
l e v e l v i a t h e o i l fi l l e r
cap, using the type
of oil suited to your
engine.
