169
PRACTICAL INFORMATION

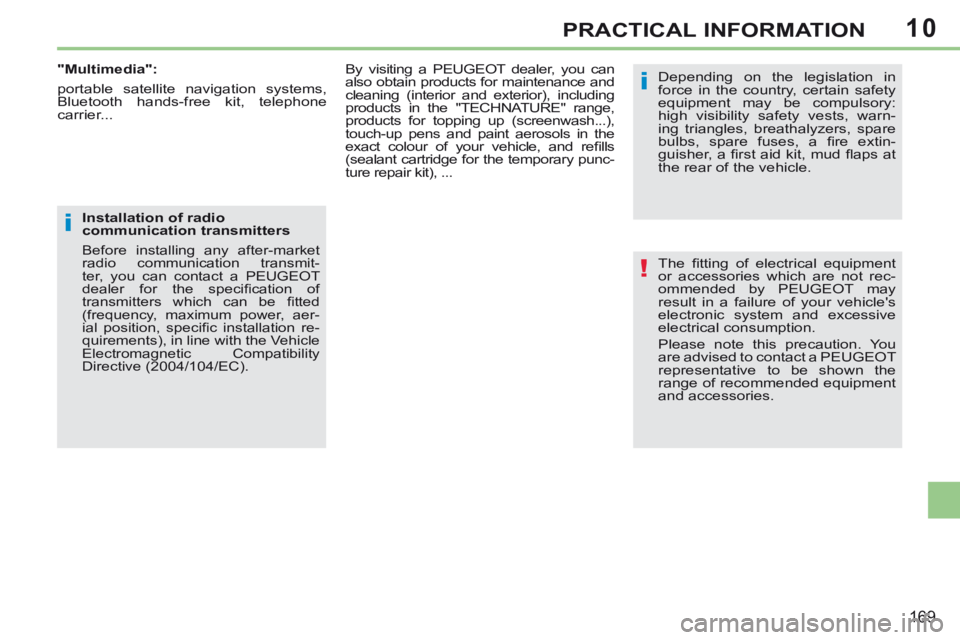

The fi tting of electrical equipment
or accessories which are not rec-
ommended by PEUGEOT may
result in a failure of your vehicle's
electronic system and excessive
electrical consumption.
Please note this precaution. You
are advised to contact a PEUGEOT
representative to be shown the
range of recommended equipment
and accessories.
Depending on the legislation in
force in the country, certain safety
equipment may be compulsory:
high visibility safety vests, warn-
ing triangles, breathalyzers, spare
bulbs, spare fuses, a fi re extin-
guisher, a fi rst aid kit, mud fl aps at
the rear of the vehicle.
By visiting a PEUGEOT dealer, you can
also obtain products for maintenance and
cleaning (interior and exterior), including
products in the "TECHNATURE" range,
products for topping up (screenwash...),
touch-up pens and paint aerosols in the
exact colour of your vehicle, and refi lls
(sealant cartridge for the temporary punc-
ture repair kit), ...
Installation of radio
communication transmitters Before installing any after-market
radio communication transmit-
ter, you can contact a PEUGEOT
dealer for the specifi cation of
transmitters which can be fi tted
(frequency, maximum power, aer-
ial position, specifi c installation re-
quirements), in line with the Vehicle
Electromagnetic Compatibility
Directive (2004/104/EC).
"Multimedia":
portable satellite navigation systems,
Bluetooth hands-free kit, telephone
carrier...

11
170
TECHNICAL DATA
* The maximum power corresponds to the value type-approved on a test bed, under conditions defi ned in European legislation (Directive 1999/99/EC).

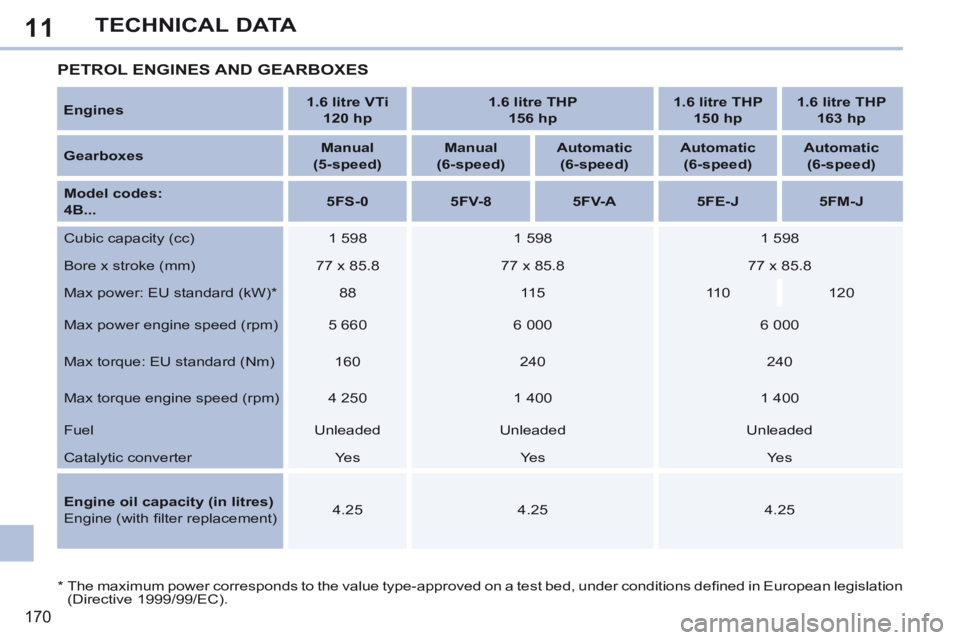

PETROL ENGINES AND GEARBOXES
Engines 1.6 litre VTi
120 hp 1.6 litre THP
156 hp 1.6 litre THP
150 hp 1.6 litre THP
163 hp
Gearboxes Manual
(5-speed) Manual
(6-speed) Automatic
(6-speed) Automatic
(6-speed) Automatic
(6-speed)
Model codes:
4B... 5FS-0
5FV-8 5FV-A 5FE-J 5FM-J
Cubic capacity (cc) 1 598 1 598 1 598
Bore x stroke (mm) 77 x 85.8 77 x 85.8 77 x 85.8
Max power: EU standard (kW) * 88 115 110 120
Max power engine speed (rpm) 5 660 6 000 6 000
Max torque: EU standard (Nm) 160 240 240
Max torque engine speed (rpm) 4 250 1 400 1 400
Fuel Unleaded Unleaded Unleaded
Catalytic converter Yes Yes Yes
Engine oil capacity (in litres)
Engine (with fi lter replacement) 4.25
4.25 4.25

11
171
TECHNICAL DATA

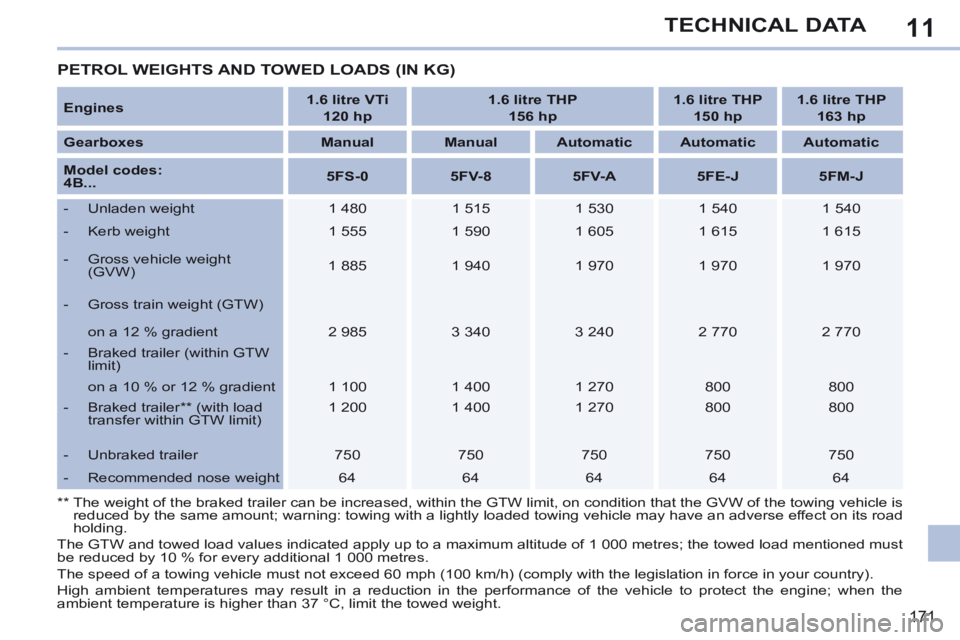

PETROL WEIGHTS AND TOWED LOADS (IN KG)
Engines 1.6 litre VTi

120 hp 1.6 litre THP

156 hp 1.6 litre THP

150 hp 1.6 litre THP
163 hp
Gearboxes Manual Manual Automatic Automatic Automatic
Model codes:
4B... 5FS-0
5FV-8 5FV-A 5FE-J 5FM-J
- Unladen weight 1 480 1 515 1 530 1 540 1 540
- Kerb weight 1 555 1 590 1 605 1 615 1 615
- Gross vehicle weight (GVW) 1 885
1 940 1 970 1 970 1 970
- Gross train weight (GTW)

on a 12 % gradient 2 985 3 340 3 240 2 770 2 770
- Braked trailer (within GTW limit)

on a 10 % or 12 % gradient 1 100 1 400 1 270 800 800
- Braked trailer ** (with load transfer within GTW limit) 1 200
1 400 1 270 800 800
- Unbraked trailer 750 750 750 750 750
- Recommended nose weight 64 64 64 64 64
** The weight of the braked trailer can be increased, within the GTW limit,\
on condition that the GVW of the towing vehicle is reduced by the same amount; warning: towing with a lightly loaded towing\
vehicle may have an adverse effect on its road
holding.
The GTW and towed load values indicated apply up to a maximum altitude o\
f 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comp\
ly with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; when the
a mbient temperature is higher than 37 °C, limit the towed weight.

11
172
TECHNICAL DATA

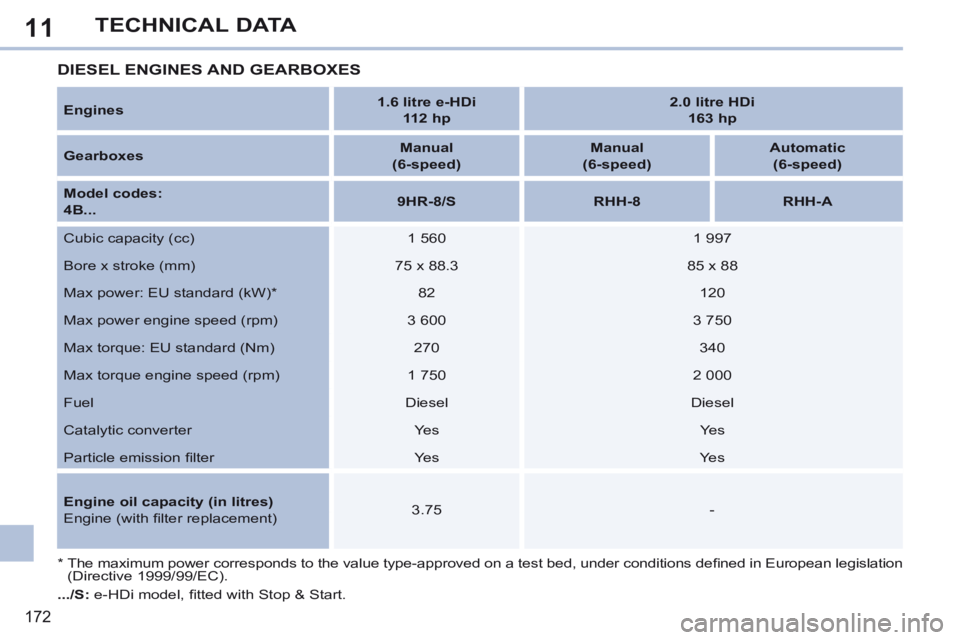

Engines 1.6 litre e-HDi
112 hp 2.0 litre HDi
163 hp
Gearboxes Manual
(6-speed) Manual
(6-speed) Automatic
(6-speed)
Model codes:
4B... 9HR-8/S
RHH-8 RHH-A
Cubic capacity (cc) 1 560 1 997
Bore x stroke (mm) 75 x 88.3 85 x 88
Max power: EU standard (kW) * 82 120
Max power engine speed (rpm) 3 600 3 750
Max torque: EU standard (Nm) 270 340
Max torque engine speed (rpm) 1 750 2 000
Fuel Diesel Diesel
Catalytic converter Yes Yes
Particle emission fi lter Yes Yes
Engine oil capacity (in litres)
Engine (with fi lter replacement) 3.75
-
* The maximum power corresponds to the value type-approved on a test bed, under conditions defi ned in European legislation (Directive 1999/99/EC).
DIESEL ENGINES AND GEARBOXES
.../S: e-HDi model, fi tted with Stop & Start.

11
173
TECHNICAL DATA
Engines 1.6 litre e-HDi

112 hp 2.0 litre HDi
163 hp
Gearboxes Manual Manual Automatic
Model codes: 4B... 9HR-8/S RHH-8 RHH-A
- Unladen weight 1 535 1 577 1 625
- Kerb weight 1 610 1 652 1 700
- Gross vehicle weight (GVW) 1 950 2 025 2 050
- Gross train weight (GTW)

on a 12 % gradient 3 050 3 525 3 550
- Braked trailer (within GTW limit)

on a 10 % or 12 % gradient 1 100 1 500 1 500
- Braked trailer ** (with load transfer within GTW limit) 1 200
1 500 1 500
- Unbraked trailer 750 750 750
- Recommended nose weight 64 64 64
The GTW and towed load values indicated apply up to a maximum altitude o\
f 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comp\
ly with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; when the
ambient temperature is higher than 37 °C, limit the towed weight.

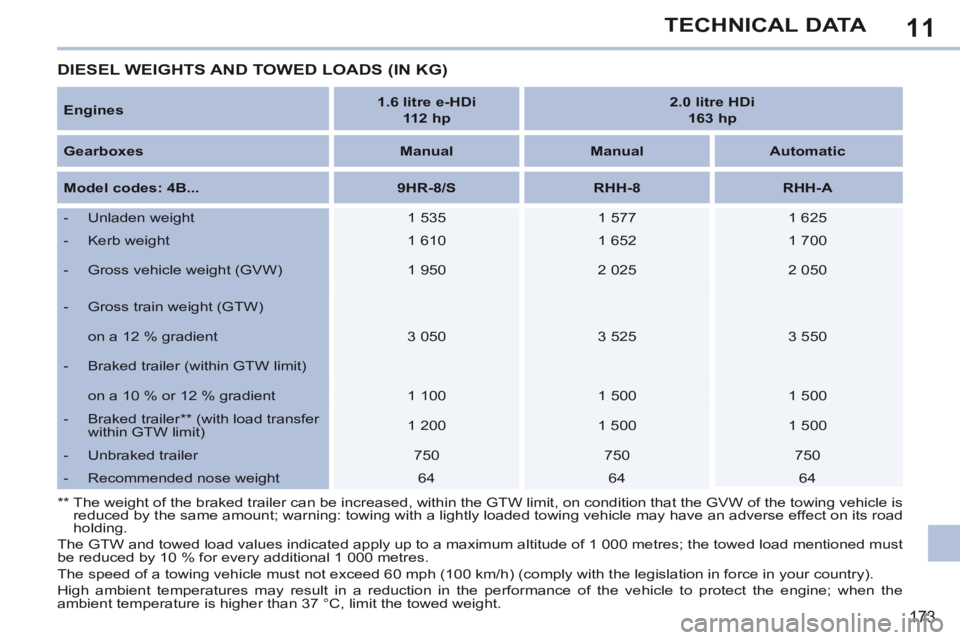

DIESEL WEIGHTS AND TOWED LOADS (IN KG)
** The weight of the braked trailer can be increased, within the GTW limit,\
on condition that the GVW of the towing vehicle is reduced by the same amount; warning: towing with a lightly loaded towing\
vehicle may have an adverse effect on its road
holding.

11
174
TECHNICAL DATA

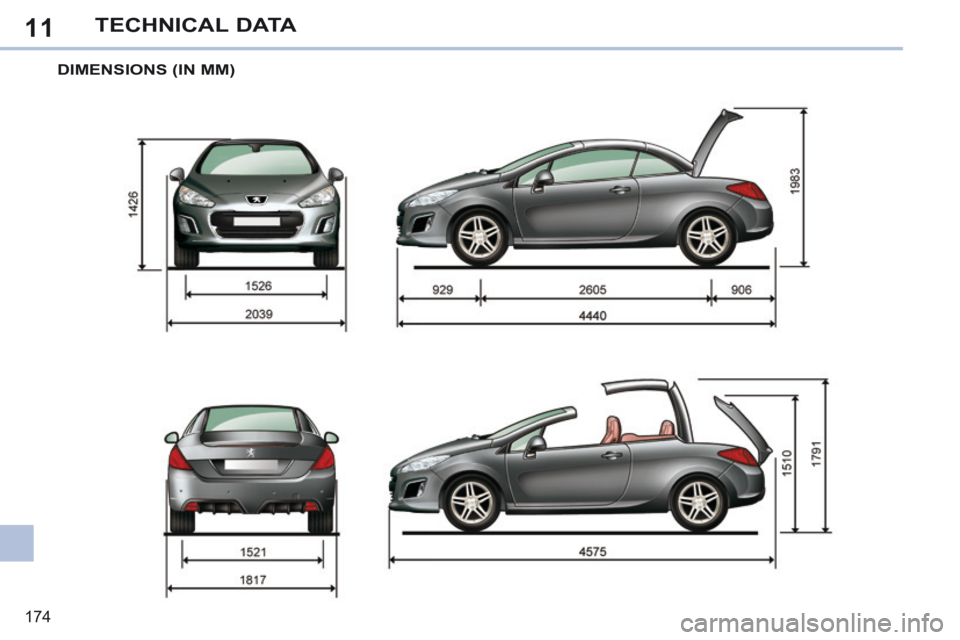

DIMENSIONS (IN MM)

11
i
175
TECHNICAL DATA
IDENTIFICATION MARKINGS

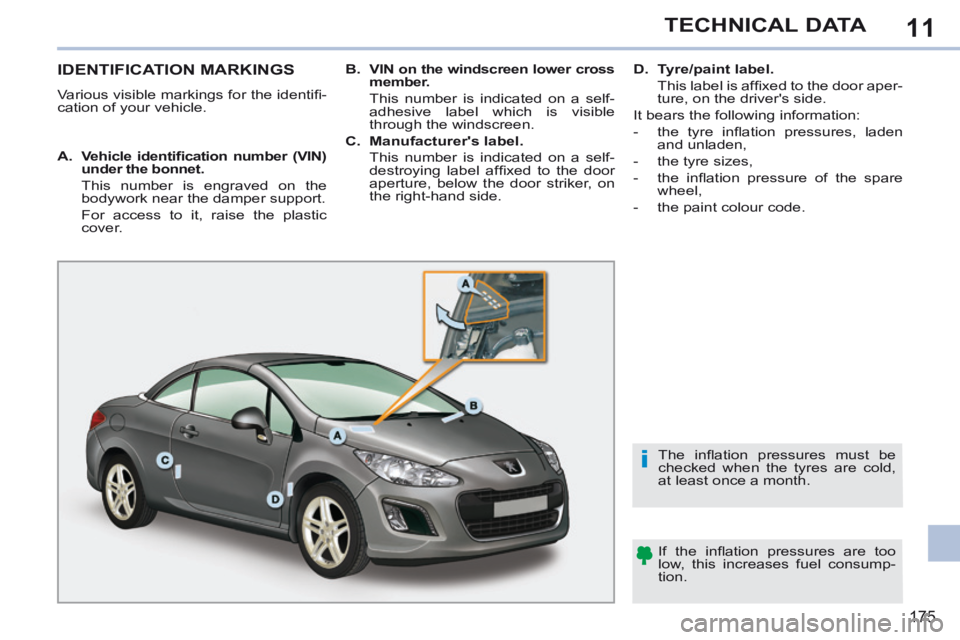

Various visible markings for the identifi -
cation of your vehicle. If the infl ation pressures are too
low, this increases fuel consump-
tion. The infl ation pressures must be
checked when the tyres are cold,
at least once a month.
A. Vehicle identifi cation number (VIN)
under the bonnet.
This number is engraved on the bodywork near the damper support.
For access to it, raise the plastic cover. B. VIN on the windscreen lower cross
member.
This number is indicated on a self- adhesive label which is visible
through the windscreen.
C. Manufacturer's label.
This number is indicated on a self- destroying label affi xed to the door
aperture, below the door striker, on
the right-hand side. D. Tyre/paint label.
This label is affi xed to the door aper-
ture, on the driver's side.
It bears the following information:
- the tyre infl ation pressures, laden and unladen,
- the tyre sizes,
- the infl ation pressure of the spare wheel,
- the paint colour code.

11
176
TECHNICAL DATA

177

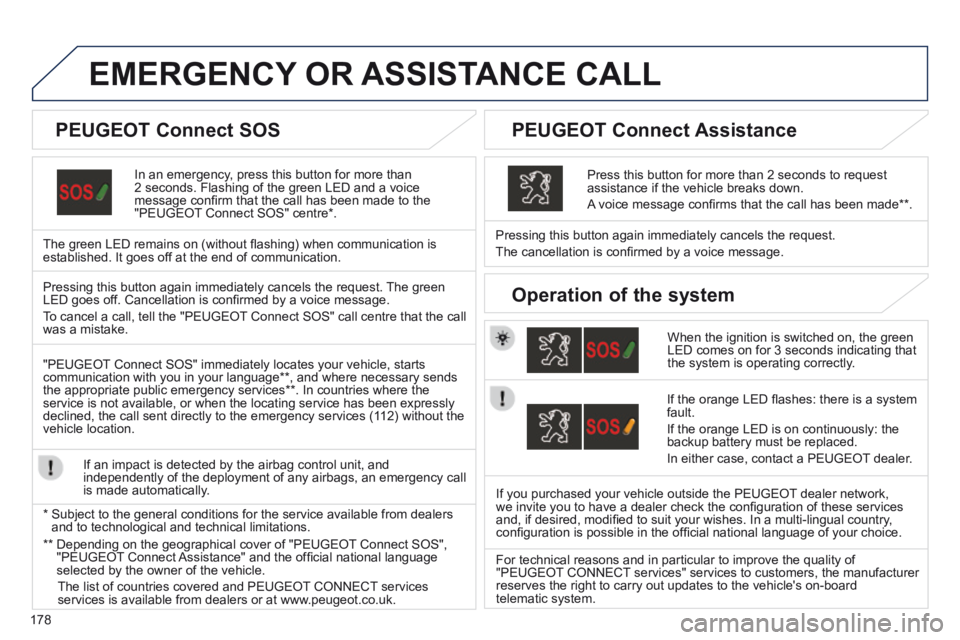

EMERGENCY OR ASSISTANCE CALL

178
EMERGENCY OR ASSISTANCE CALL
In an emergency, press this button for more than 2 seconds. Flashing of the green LED and a voice message confi rm that the call has been made to the "PEUGEOT Connect SOS" centre * .
The green LED remains on (without fl ashing) when communication is established. It goes off at the end of communication.
When the ignition is switched on, the green LED comes on for 3 seconds indicating that the system is operating correctly.
Pressing this button again immediately cancels the request.
The cancellation is confi rmed by a voice message.
Press this button for more than 2 seconds to request assistance if the vehicle breaks down.
A voice message confi rms that the call has been made ** .
Pressing this button again immediately cancels the request. The green LED goes off. Cancellation is confi rmed by a voice message .
To cancel a call, tell the "PEUGEOT Connect SOS" call centre that the call was a mistake.
"PEUGEOT Connect SOS" immediately locates your vehicle, starts communication with you in your language ** , and where necessary sends the appropriate public emergency services ** . In countries where the service is not available, or when the locating service has been expressl\
y declined, the call sent directly to the emergency services (112) without the vehicle location.
If an impact is detected by the airbag control unit, and independently of the deployment of any airbags, an emergency call is made automatically.
* Subject to the general conditions for the service available from dealers\
and to technological and technical limitations.
If the orange LED fl ashes: there is a system fault.
If the orange LED is on continuously: the backup battery must be replaced.
In either case, contact a PEUGEOT dealer.
If you purchased your vehicle outside the PEUGEOT dealer network, we invite you to have a dealer check the confi guration of these services and, if desired, modifi ed to suit your wishes. In a multi-lingual country, confi guration is possible in the offi cial national language of your choice.
For technical reasons and in particular to improve the quality of "PEUGEOT CONNECT services" services to customers, the manufacturer reserves the right to carry out updates to the vehicle's on-board telematic system.
PEUGEOT Connect SOS PEUGEOT Connect Assistance
Operation of the system
** Depending on the geographical cover of "PEUGEOT Connect SOS", "PEUGEOT Connect Assistance" and the offi cial national language selected by the owner of the vehicle.
The list of countries covered and PEUGEOT CONNECT services services is available from dealers or at www.peugeot.co.uk.
