PEUGEOT 308 CC DAG 2008 Owners Manual

5
i
i
84
VISIBILITY

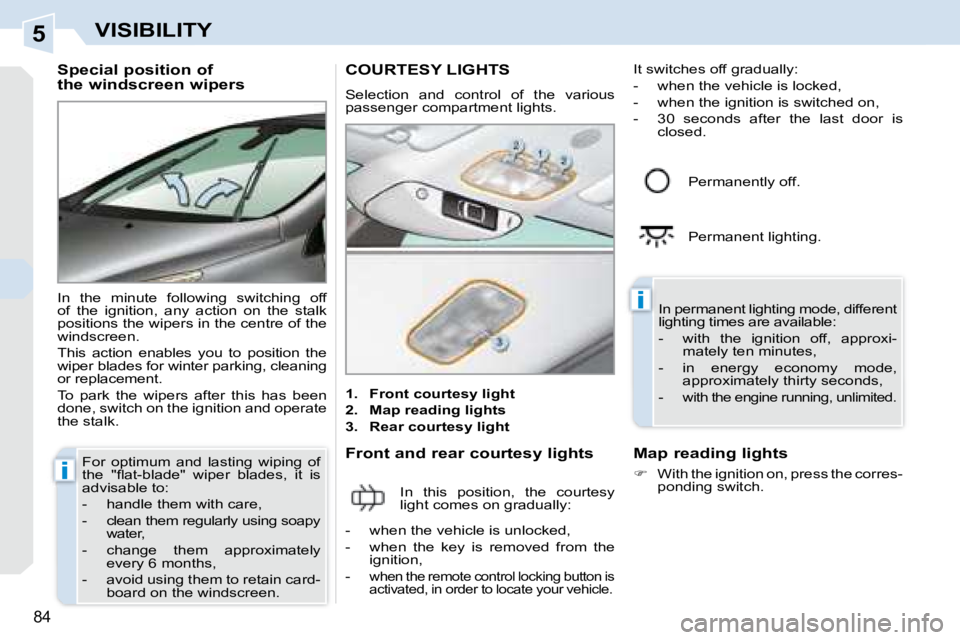

Special position of
the windscreen wipers
In the minute following switching off
of the ignition, any action on the stalk
positions the wipers in the centre of the
windscreen.
This action enables you to position the
wiper blades for winter parking, cleaning
or replacement.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk. For optimum and lasting wiping of
the "fl at-blade" wiper blades, it is
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- change them approximately every 6 months,
- avoid using them to retain card- board on the windscreen. COURTESY LIGHTS
Selection and control of the various
passenger compartment lights.

1. Front courtesy light

2. Map reading lights

3. Rear courtesy light
Front and rear courtesy lights
In this position, the courtesy
light comes on gradually: In permanent lighting mode, different
lighting times are available:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, approximately thirty seconds,
-
with the engine running, unlimited.
- when the vehicle is unlocked,
- when the key is removed from the ignition,
-
when the remote control locking button is
activated, in order to locate your vehicle.
Permanently off.
Permanent lighting.
Map reading lights

 With the ignition on, press the corres-
ponding switch.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed.

5
!
i
83
VISIBILITY

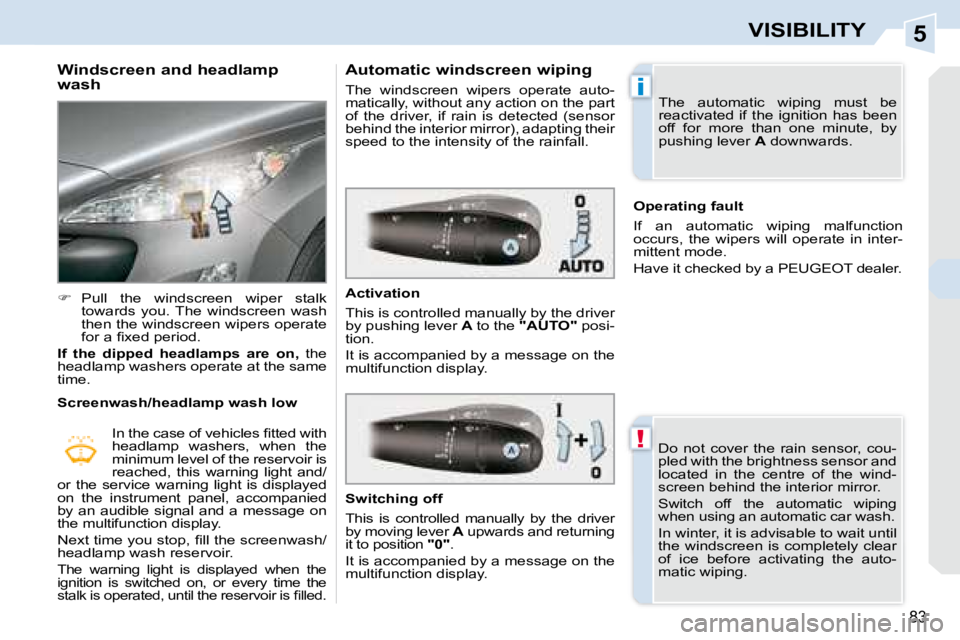

Windscreen and headlamp
wash

 Pull the windscreen wiper stalk
towards you. The windscreen wash
then the windscreen wipers operate
for a fi xed period.

If the dipped headlamps are on, the
headlamp washers operate at the same
time.
Screenwash/headlamp wash low

In the case of vehicles fi tted with
headlamp washers, when the
minimum level of the reservoir is
reached, this warning light and/
or the service warning light is displayed
on the instrument panel, accompanied
by an audible signal and a message on
the multifunction display.
Next time you stop, fi ll the screenwash/
headlamp wash reservoir.
The warning light is displayed when the
ignition is switched on, or every time the
stalk is operated, until the reservoir is fi lled.
Automatic windscreen wiping
The windscreen wipers operate auto-
matically, without any action on the part
of the driver, if rain is detected (sensor
behind the interior mirror), adapting their
speed to the intensity of the rainfall.
Activation
This is controlled manually by the driver
by pushing lever A to the "AUTO" posi-
tion.
It is accompanied by a message on the
multifunction display.
Do not cover the rain sensor, cou-
pled with the brightness sensor and
located in the centre of the wind-
screen behind the interior mirror.
Switch off the automatic wiping
when using an automatic car wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping. The automatic wiping must be
reactivated if the ignition has been
off for more than one minute, by
pushing lever
A downwards.
Switching off
This is controlled manually by the driver
by moving lever A upwards and returning
it to position "0" .
It is accompanied by a message on the
multifunction display. Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in inter-
mittent mode.
Have it checked by a PEUGEOT dealer.

5
i
i
84
VISIBILITY
Special position of
the windscreen wipers
In the minute following switching off
of the ignition, any action on the stalk
positions the wipers in the centre of the
windscreen.
This action enables you to position the
wiper blades for winter parking, cleaning
or replacement.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk. For optimum and lasting wiping of
the "fl at-blade" wiper blades, it is
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- change them approximately every 6 months,
- avoid using them to retain card- board on the windscreen. COURTESY LIGHTS
Selection and control of the various
passenger compartment lights.

1. Front courtesy light

2. Map reading lights

3. Rear courtesy light
Front and rear courtesy lights
In this position, the courtesy
light comes on gradually: In permanent lighting mode, different
lighting times are available:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, approximately thirty seconds,
-
with the engine running, unlimited.
- when the vehicle is unlocked,
- when the key is removed from the ignition,
-
when the remote control locking button is
activated, in order to locate your vehicle.
Permanently off.
Permanent lighting.
Map reading lights

 With the ignition on, press the corres-
ponding switch.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed.

5
i
i
85
VISIBILITY

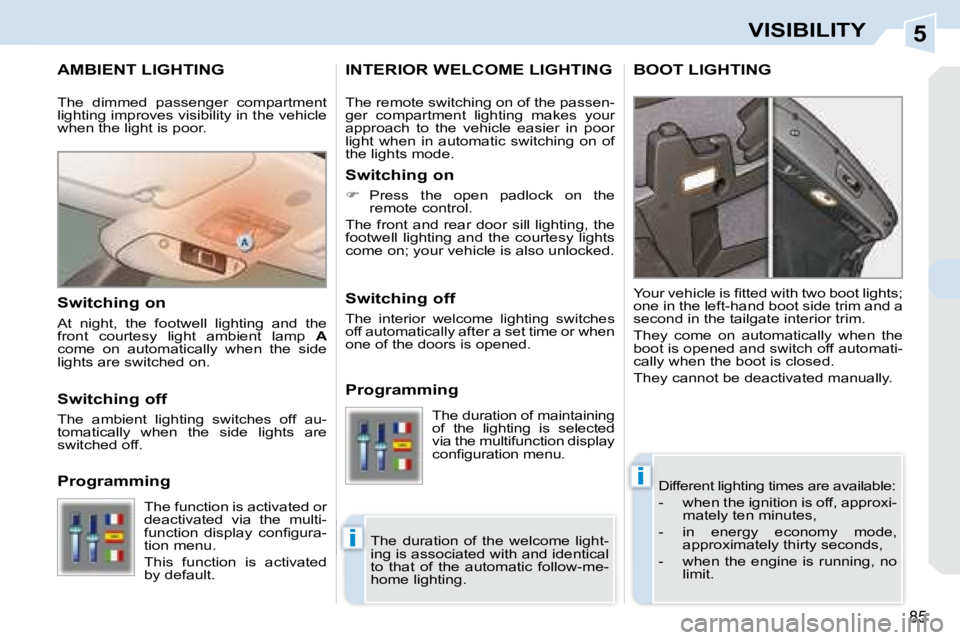

AMBIENT LIGHTING
Different lighting times are available:
- when the ignition is off, approxi-mately ten minutes,
- in energy economy mode, approximately thirty seconds,
- when the engine is running, no limit.
Your vehicle is fi tted with two boot lights;
one in the left-hand boot side trim and a
second in the tailgate interior trim.
They come on automatically when the
boot is opened and switch off automati-
cally when the boot is closed.
They cannot be deactivated manually.
INTERIOR WELCOME LIGHTING BOOT LIGHTING
The remote switching on of the passen-
ger compartment lighting makes your
approach to the vehicle easier in poor
light when in automatic switching on of
the lights mode.
Switching on

 Press the open padlock on the
remote control.
The front and rear door sill lighting, the
footwell lighting and the courtesy lights
come on; your vehicle is also unlocked.
Switching off
The interior welcome lighting switches
off automatically after a set time or when
one of the doors is opened.
Programming
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.
Switching on
At night, the footwell lighting and the
front courtesy light ambient lamp
A
come on automatically when the side
lights are switched on.
Switching off
The ambient lighting switches off au-
tomatically when the side lights are
switched off.
Programming
The duration of the welcome light-
ing is associated with and identical
to that of the automatic follow-me-
home lighting.
The function is activated or
deactivated via the multi-
function display confi gura-
tion menu.
This function is activated
by default. The duration of maintaining
of the lighting is selected
via the multifunction display
confi guration menu.

6
86
LAYOUT

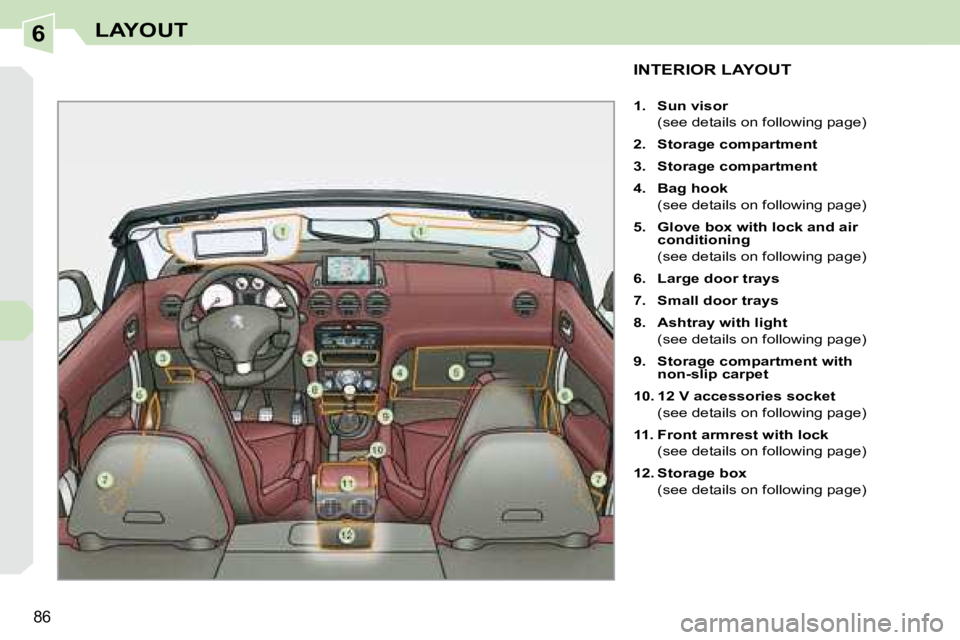

INTERIOR LAYOUT

1. Sun visor
(see details on following page)

2. Storage compartment

3. Storage compartment

4. Bag hook
(see details on following page)

5. Glove box with lock and air
conditioning
(see details on following page)

6. Large door trays

7. Small door trays

8. Ashtray with light
(see details on following page)

9. Storage compartment with
non-slip carpet

10. 12 V accessories socket
(see details on following page)

11. Front armrest with lock
(see details on following page)

12. Storage box
(see details on following page)

6
87
LAYOUT

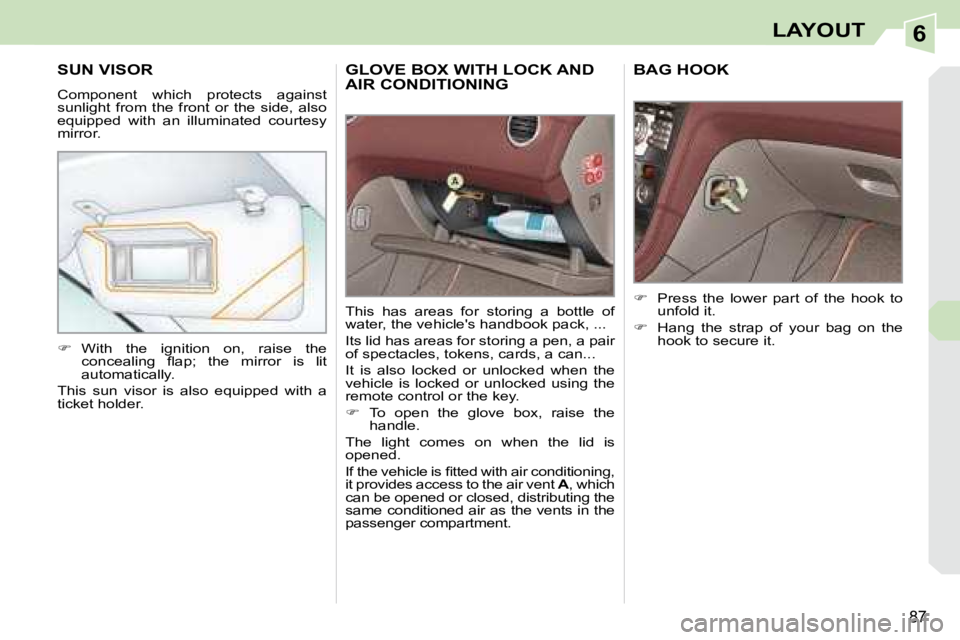

GLOVE BOX WITH LOCK AND AIR CONDITIONING
This has areas for storing a bottle of
water, the vehicle's handbook pack, ...
Its lid has areas for storing a pen, a pair
of spectacles, tokens, cards, a can...
It is also locked or unlocked when the
vehicle is locked or unlocked using the
remote control or the key.

 To open the glove box, raise the
handle.
The light comes on when the lid is
opened.
If the vehicle is fi tted with air conditioning,
it provides access to the air vent A , which
can be opened or closed, distributing the
same conditioned air as the vents in the
passenger compartment.
SUN VISOR
Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.
 With the ignition on, raise the
concealing fl ap; the mirror is lit
automatically.
This sun visor is also equipped with a
ticket holder.
BAG HOOK

 Press the lower part of the hook to
unfold it.

 Hang the strap of your bag on the
hook to secure it.

6
88
LAYOUT

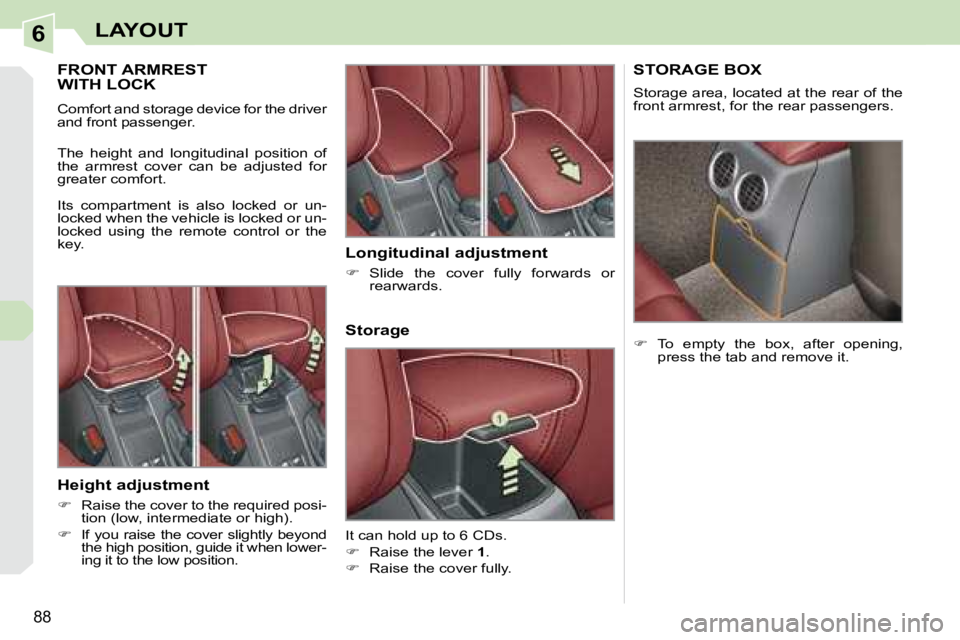

FRONT ARMREST WITH LOCK
Comfort and storage device for the driver
and front passenger.
The height and longitudinal position of
the armrest cover can be adjusted for
greater comfort.
Its compartment is also locked or un-
locked when the vehicle is locked or un-
locked using the remote control or the
key.
STORAGE BOX
Storage area, located at the rear of the
front armrest, for the rear passengers.
Storage
It can hold up to 6 CDs.

 Raise the lever 1 .

 Raise the cover fully.
Longitudinal adjustment

 Slide the cover fully forwards or
rearwards.
Height adjustment

 Raise the cover to the required posi-
tion (low, intermediate or high).

 If you raise the cover slightly beyond
the high position, guide it when lower-
ing it to the low position.
 To empty the box, after opening,
press the tab and remove it.

6
!
89
LAYOUT

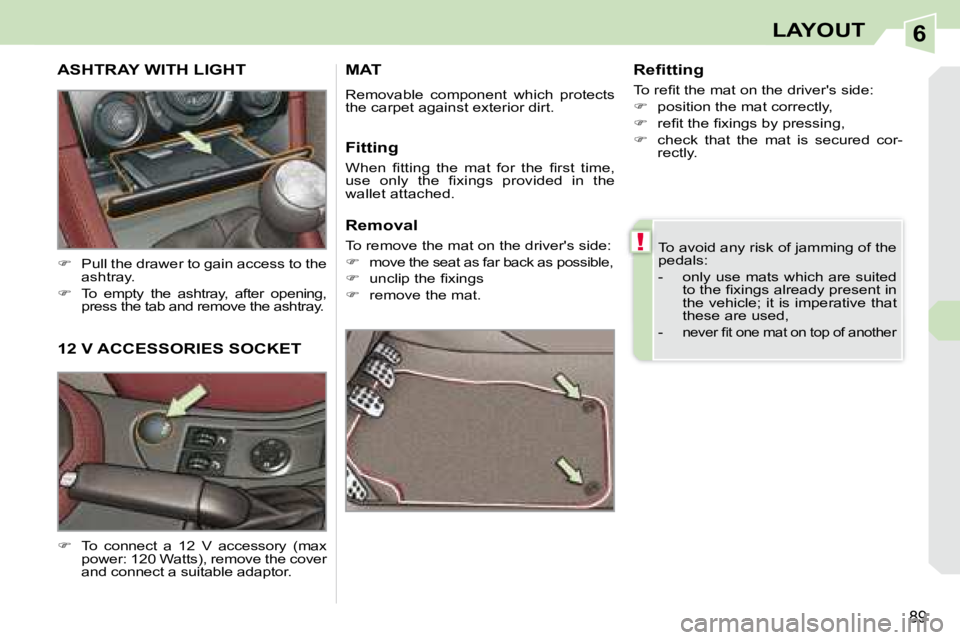

To avoid any risk of jamming of the
pedals:
- only use mats which are suited to the fi xings already present in
the vehicle; it is imperative that
these are used,
-
never fi t one mat on top of another
MAT
Removable component which protects
the carpet against exterior dirt. Refitting
To refi t the mat on the driver's side:

 position the mat correctly,

 refi t the fi xings by pressing,

 check that the mat is secured cor-
rectly.
Fitting
When fi tting the mat for the fi rst time,
use only the fi xings provided in the
wallet attached.
Removal
To remove the mat on the driver's side:


move the seat as far back as possible,

 unclip the fi xings

 remove the mat.
12 V ACCESSORIES SOCKET

 To connect a 12 V accessory (max
power: 120 Watts), remove the cover
and connect a suitable adaptor.
ASHTRAY WITH LIGHT

 Pull the drawer to gain access to the
ashtray.

 To empty the ashtray, after opening,
press the tab and remove the ashtray.

6
87
LAYOUT
GLOVE BOX WITH LOCK AND AIR CONDITIONING
This has areas for storing a bottle of
water, the vehicle's handbook pack, ...
Its lid has areas for storing a pen, a pair
of spectacles, tokens, cards, a can...
It is also locked or unlocked when the
vehicle is locked or unlocked using the
remote control or the key.

 To open the glove box, raise the
handle.
The light comes on when the lid is
opened.
If the vehicle is fi tted with air conditioning,
it provides access to the air vent A , which
can be opened or closed, distributing the
same conditioned air as the vents in the
passenger compartment.
SUN VISOR
Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.
 With the ignition on, raise the
concealing fl ap; the mirror is lit
automatically.
This sun visor is also equipped with a
ticket holder.
BAG HOOK

 Press the lower part of the hook to
unfold it.

 Hang the strap of your bag on the
hook to secure it.

6
88
LAYOUT
FRONT ARMREST WITH LOCK
Comfort and storage device for the driver
and front passenger.
The height and longitudinal position of
the armrest cover can be adjusted for
greater comfort.
Its compartment is also locked or un-
locked when the vehicle is locked or un-
locked using the remote control or the
key.
STORAGE BOX
Storage area, located at the rear of the
front armrest, for the rear passengers.
Storage
It can hold up to 6 CDs.

 Raise the lever 1 .

 Raise the cover fully.
Longitudinal adjustment

 Slide the cover fully forwards or
rearwards.
Height adjustment

 Raise the cover to the required posi-
tion (low, intermediate or high).

 If you raise the cover slightly beyond
the high position, guide it when lower-
ing it to the low position.
 To empty the box, after opening,
press the tab and remove it.
