PEUGEOT 308 CC DAG 2008 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2008, Model line: 308 CC DAG, Model: PEUGEOT 308 CC DAG 2008Pages: 221, PDF Size: 8.7 MB
Page 1 of 221
FAMILIARISATION Welcome lighting
This additional exterior and interior ligh-
ting, controlled remotely, makes your
approach to the vehicle easier when the
light is poor.
80, 85
Directional lighting
This lighting automatically provides addi-
tional visibility when cornering.
81 Retractable roof
This equipment changes from the
" c o u p é " c o n fi g u r a t i o n t o t h e " c a b r i o l e t "
c o n fi g u r a t i o n a n d v i c e v e r s a w i t h a s i n g l e
action.
6
Windstop
I n t h e " c a b r i o l e t " c o n fi g u r a t i o n , t h i s
comfort equipment reduces air swirl at
the front seats.
52
Page 2 of 221
FAMILIARISATION

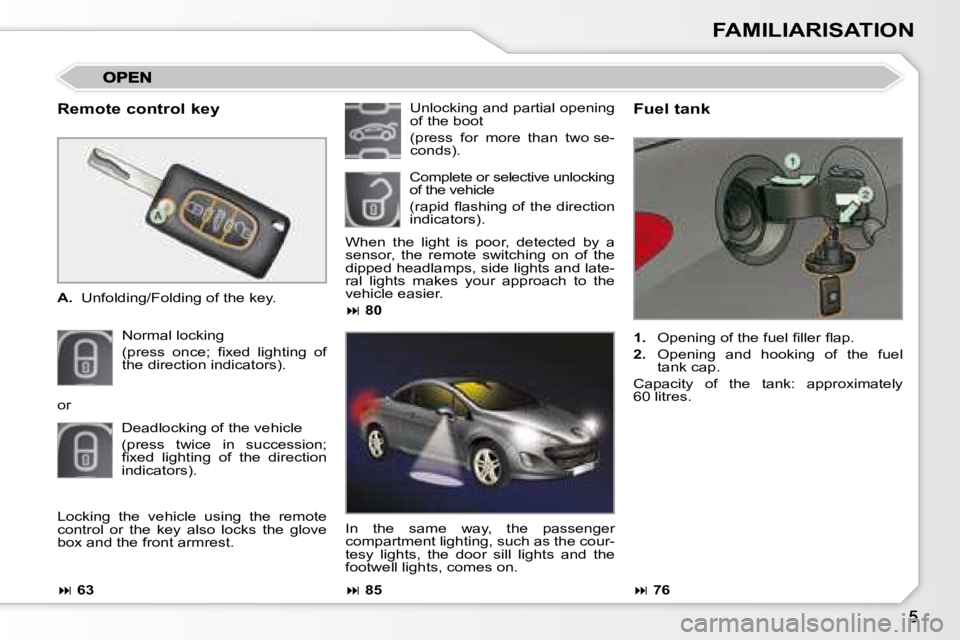

Remote control key
A. Unfolding/Folding of the key.
Normal locking
( p r e s s o n c e ; fi x e d l i g h t i n g o f
the direction indicators). Fuel tank
1. O p e n i n g o f t h e f u e l fi l l e r fl a p .
2. Opening and hooking of the fuel
tank cap.
Capacity of the tank: approximately
60 litres.
Unlocking and partial opening
of the boot
(press for more than two se-
conds).
When the light is poor, detected by a
sensor, the remote switching on of the
dipped headlamps, side lights and late-
ral lights makes your approach to the
vehicle easier.
80
In the same way, the passenger
compa rtment lighting, such as the cour-
tesy lights, the door sill lights and the
footwell lights, comes on.
or
Deadlocking of the vehicle
(press twice in succession;
fi x e d l i g h t i n g o f t h e d i r e c t i o n
indicators).
63
85
76
Complete or selective unlo cking
of the vehicle
( r a p i d fl a s h i n g o f t h e d i r e c t i o n
indicators).
Locking the vehicle using the remote
control or the key also locks the glove
box and the front armrest.
Page 3 of 221
!
!
i
FAMILIARISATION
OPEN

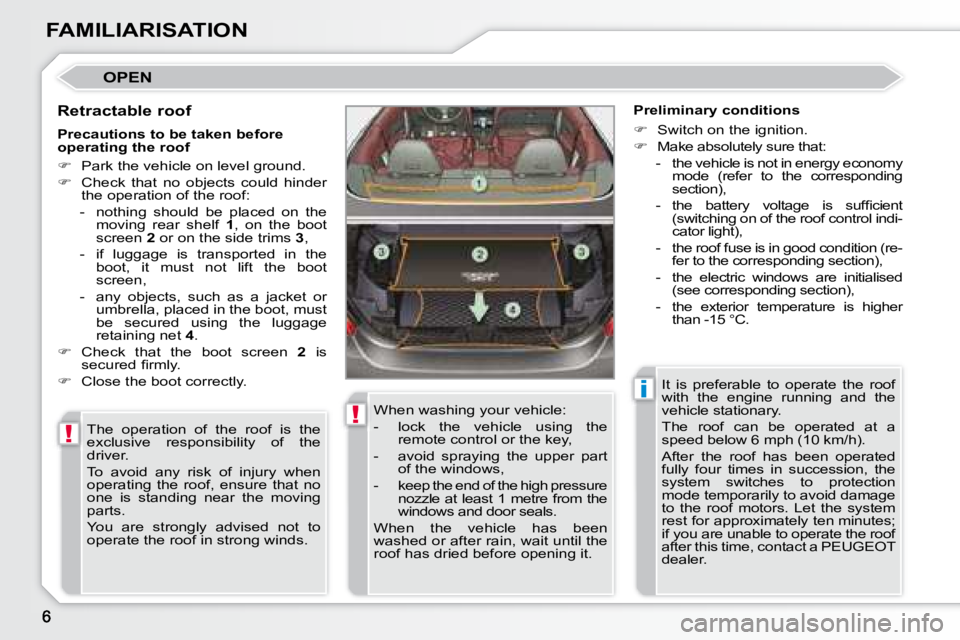

Retractable roof The operation of the roof is the
exclusive responsibility of the
driver.
To avoid any risk of injury when
operating the roof, ensure that no
one is standing near the moving
parts.
You are strongly advised not to
operate the roof in strong winds. When washing your vehicle:
- lock the vehicle using the
remote control or the key,
- avoid spraying the upper part of the windows,
- keep the end of the high pre ssure nozzle at least 1 metre from the
windows and door seals.
When the vehicle has been
washed or after rain, wait until the
roof has dried before opening it. It is preferable to operate the roof
with the engine running and the
vehicle stationary.
The roof can be operated at a
speed below 6 mph (10 km/h).
After the roof has been operated
fully four times in succession, the
system switches to prote ction
mode temporarily to avoid dama ge
to the roof motors. Let the system
rest for approximately ten minutes;
if you are unable to ope rate the roof
after this time, contact a PEUGEOT
dealer.
Preliminary conditions
Switch on the ignition.
Make absolutely sure that:
- the vehicle is not in energy economy mode (refer to the corresponding
section),
- t h e b a t t e r y v o l t a g e i s s u f fi c i e n t (switching on of the roof control indi-
cator light),
- the roof fuse is in good condition (re- fer to the corresponding section),
- the electric windows are initialised (see corresponding section),
- the exterior temperature is higher than -15 °C.
Precautions to be taken before
operating the roof
Park the vehicle on level ground.
Check that no objects could hinder
the operation of the roof:
- nothing should be placed on the moving rear shelf 1 , on the boot
screen 2 or on the side trims 3 ,
- if luggage is transported in the boot, it must not lift the boot
screen,
- any objects, such as a jacket or umbrella, placed in the boot, must
be secured using the luggage
retaining net 4 .
Check that the boot screen 2 is
s e c u r e d fi r m l y .
Close the boot correctly.
Page 4 of 221
!
!i
i
FAMILIARISATION
OPEN

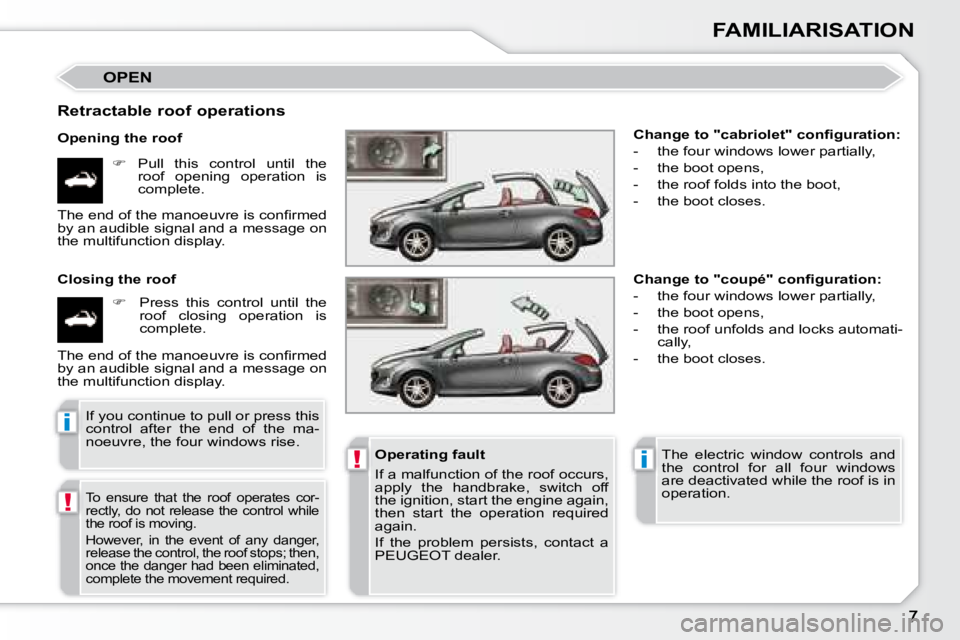

Retractable roof operations
Opening the roof
Pull this control until the
roof opening operation is
complete.
Closing the roof
Press this control until the
roof closing operation is
complete.
C h a n g e t o " c a b r i o l e t " c o n fi g u r a t i o n :
- the four windows lower partially,
- the boot opens,
- the roof folds into the boot,
- the boot closes.
C h a n g e t o " c o u p é " c o n fi g u r a t i o n :
- the four windows lower partially,
- the boot opens,
- the roof unfolds and locks automati- cally,
- the boot closes.
To ensure that the roof operates cor-
rectly, do not release the control while
the roof is moving.
However, in the event of any danger,
release the control, the roof stops; then,
once the danger had been eliminated,
complete the movement required.
Operating fault
If a malfunction of the roof occurs,
apply the handbrake, switch off
the ignition, start the engine again,
then start the operation required
again.
If the problem persists, contact a
PEUGEOT dealer. The electric window controls and
the control for all four windows
are deactivated while the roof is in
operation.
T h e e n d o f t h e m a n o e u v r e i s c o n fi r m e d
by an audible signal and a message on
the multifunction display.
T h e e n d o f t h e m a n o e u v r e i s c o n fi r m e d
by an audible signal and a message on
the multifunction display.
If you continue to pull or press this
control after the end of the ma-
noeuvre, the four windows rise.
Page 5 of 221

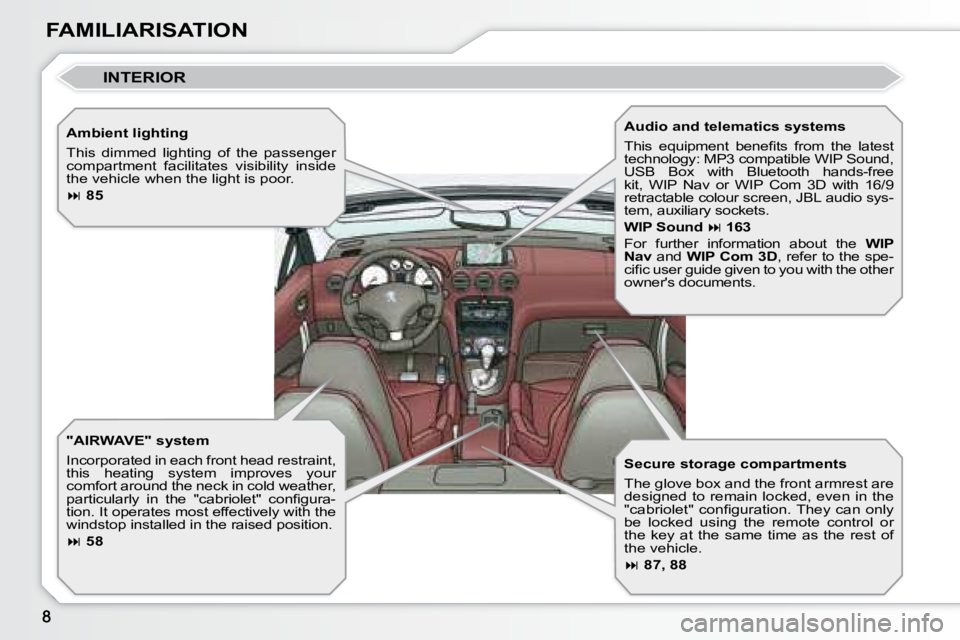

FAMILIARISATION Ambient lighting
This dimmed lighting of the passenger
compartment facilitates visibility inside
the vehicle when the light is poor.
85
"AIRWAVE" system
Incorporated in each front head restraint,
this heating system improves your
comfort around the neck in cold weather,
p a r t i c u l a r l y i n t h e " c a b r i o l e t " c o n fi g u r a -
tion. It operates most effe ctively with the
windstop installed in the raised position.
58 Audio and telematics systems
T h i s e q u i p m e n t b e n e fi t s f r o m t h e l a t e s t
technology: MP3 compatible WIP Sound,
USB Box with Bluetooth hands-free
kit, WIP Nav or WIP Com 3D with 16/9
retractable colour screen, JBL audio sys-
tem, auxiliary sockets.
WIP Sound
163
For further information about the WIP
Nav and WIP Com 3D , refer to the spe-
c i fi c u s e r g u i d e g i v e n t o y o u w i t h t h e o t h e r
owner's documents.
Secure storage compartments
The glove box and the front armrest are
designed to remain locked, even in the
" c a b r i o l e t " c o n fi g u r a t i o n . T h e y c a n o n l y
be locked using the remote control or
the key at the same time as the rest of
the vehicle.
87, 88
INTERIOR
Page 6 of 221
FAMILIARISATION

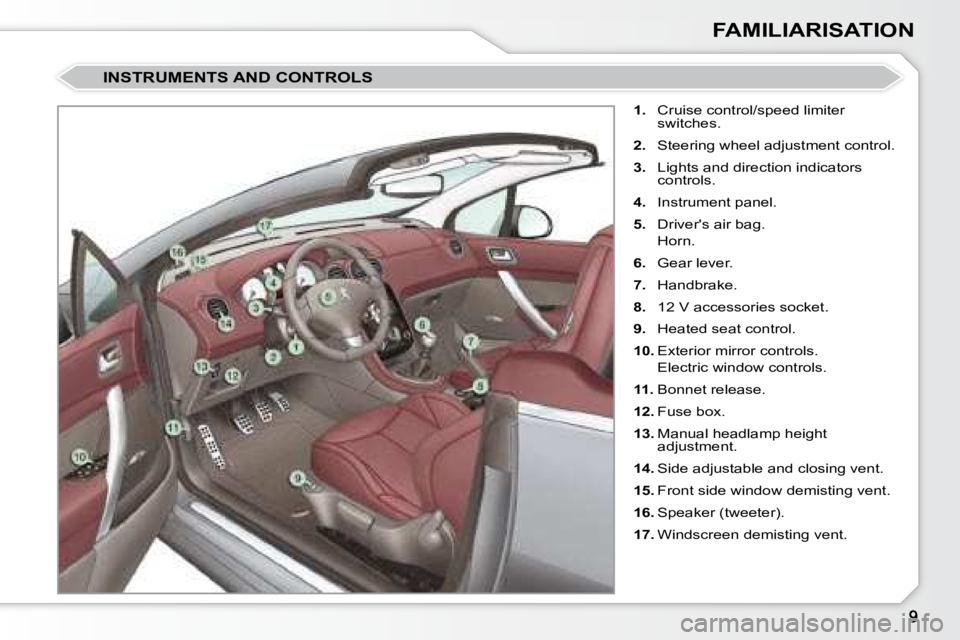

1. Cruise control/speed limiter
switches.
2. Steering wheel adjustment control.
3. Lights and direction indicators
controls.
4. Instrument panel.
5. Driver's air bag.
Horn.
6. Gear lever.
7. Handbrake.
8. 12 V accessories socket.
9. Heated seat control.
10. Exterior mirror controls.
Electric window controls.
11. Bonnet release.
12. Fuse box.
13. Manual headlamp height
adjustment.
14. Side adjustable and closing vent.
15. Front side window demisting vent.
16. Speaker (tweeter).
17. Windscreen demisting vent.
INSTRUMENTS AND CONTROLS
Page 7 of 221
FAMILIARISATION

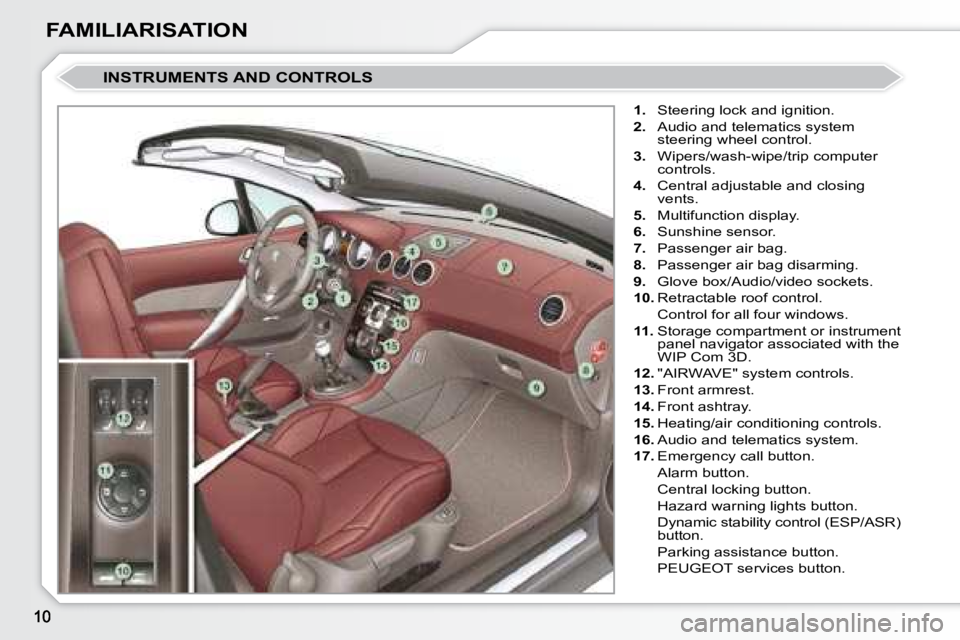

INSTRUMENTS AND CONTROLS
1. Steering lock and ignition.
2. Audio and telematics system
steering wheel control.
3. Wipers/wash-wipe/trip computer
controls.
4. Central adjustable and closing
vents.
5. Multifunction display.
6. Sunshine sensor.
7. Passenger air bag.
8. Passenger air bag disarming.
9. Glove box/Audio/video sockets.
10. Retractable roof control.
Control for all four windows.
11. Storage compartment or instrument
panel navigator associated with the
WIP Com 3D.
12. "AIRWAVE" system controls.
13. Front armrest.
14. Front ashtray.
15. Heating/air conditioning controls.
16. Audio and telematics system.
17. Emergency call button.
Alarm button.
Central locking button.
Hazard warning lights button.
Dynamic stability control (ESP/ASR) button.
Parking assistance button.
PEUGEOT services button.
Page 8 of 221

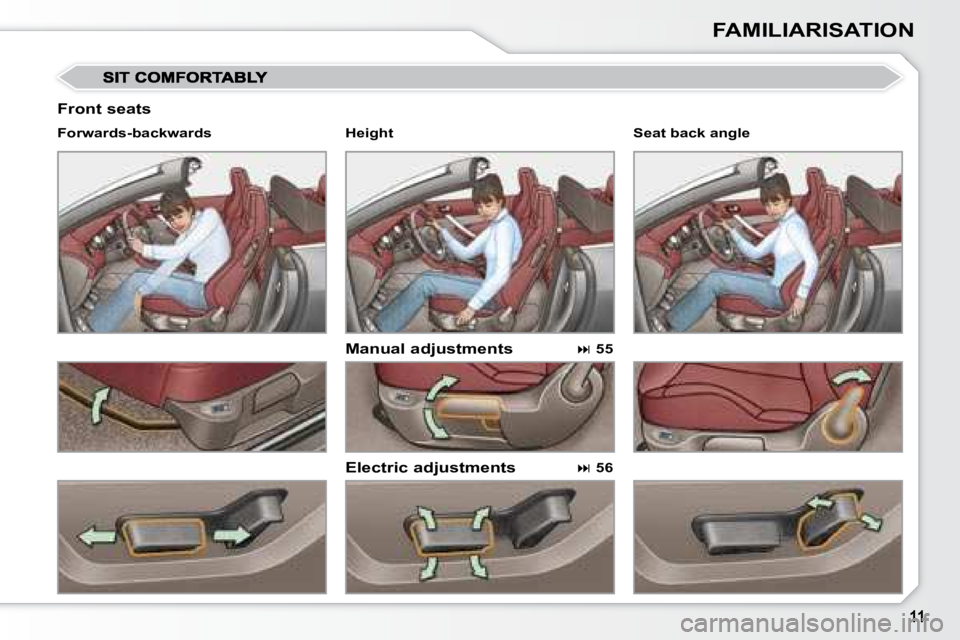

FAMILIARISATION
Front seats
Manual adjustments
Electric adjustments
Forwards-backwards
55
56 Seat back angle
Height
Page 9 of 221
i!
FAMILIARISATION
SIT COMFORTABLY

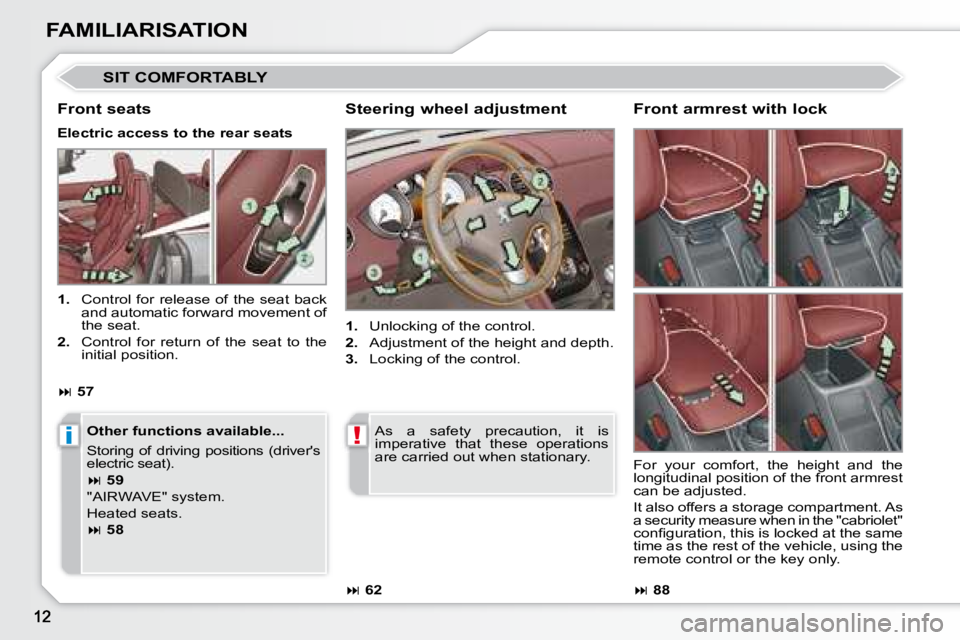

Steering wheel adjustment
1. Unlocking of the control.
2. Adjustment of the height and depth.
3. Locking of the control.
Front seats
Other functions available...
Storing of driving positions (driver's
electric seat).
59
"AIRWAVE" system.
Heated seats.
58
Electric access to the rear seats
Front armrest with lock
88
62 For your comfort, the height and the
longitudinal position of the front armrest
can be adjusted.
It also offers a storage compartment. As
a security measure when in the "cabriolet"
c o n fi g u r a t i o n , t h i s i s l o c k e d a t t h e s a m e
time as the rest of the vehicle, using the
remote control or the key only.
As a safety precaution, it is
imperative that these operations
are carried out when stationary.
1. Control for release of the seat back
and automatic forward movement of
the seat.
2. Control for return of the seat to the
initial position.
57
Page 10 of 221
i
FAMILIARISATION
SIT COMFORTABLY

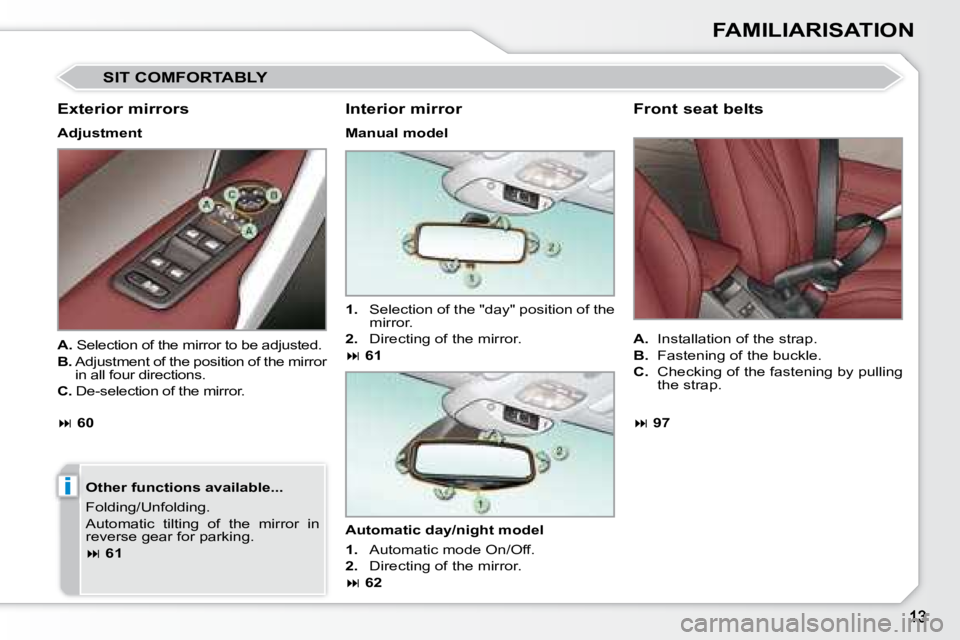

Exterior mirrors
Adjustment Other functions available...
Folding/Unfolding.
Automatic tilting of the mirror in
reverse gear for parking.
61 Interior mirror
1. Selection of the "day" position of the
mirror.
2. Directing of the mirror.
61 Front seat belts
A. Installation of the strap.
B. Fastening of the buckle.
C. Checking of the fastening by pulling
the strap.
A. Selection of the mirror to be adjusted.
B. Adjustment of the position of the mirror
in all four directions.
C. De-selection of the mirror.
97
Manual model
Automatic day/night model
1. Automatic mode On/Off.
2. Directing of the mirror.
62
60
