Page 31 of 221
1
i
34
INSTRUMENTS and CONTROLS
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.

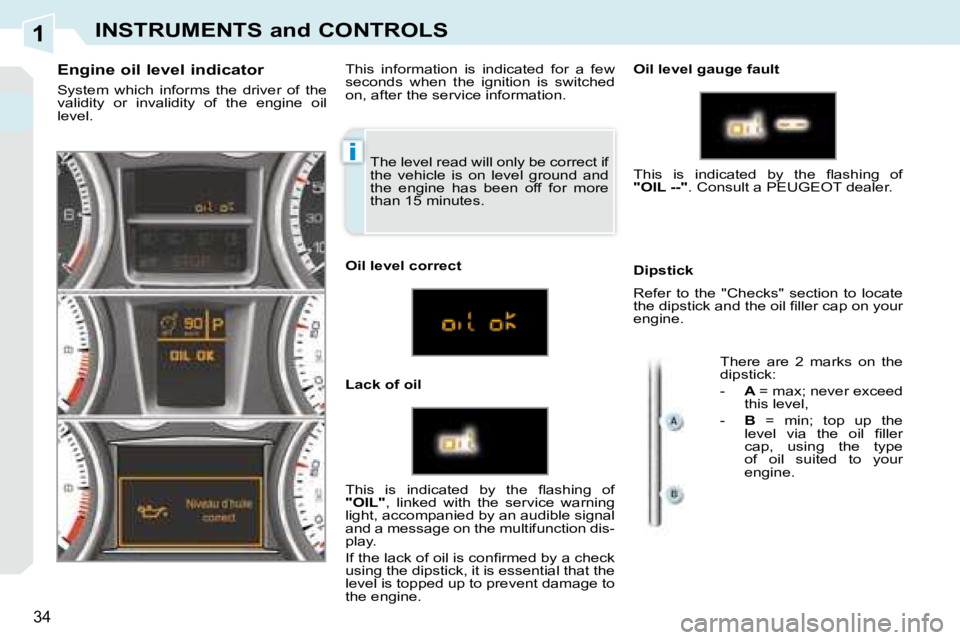

Engine oil level indicator
System which informs the driver of the
validity or invalidity of the engine oil
level.
This information is indicated for a few
seconds when the ignition is switched
on, after the service information.
Oil level correct
Lack of oil Oil level gauge fault
Dipstick
T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL" , linked with the service warning
light, accompanied by an audible signal
and a message on the multifunction dis-
play.
I f t h e l a c k o f o i l i s c o n fi r m e d b y a c h e c k
using the dipstick, it is essential that the
level is topped up to prevent damage to
the engine. T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL --"
. Consult a PEUGEOT dealer.
Refer to the "Checks" section to locate
t h e d i p s t i c k a n d t h e o i l fi l l e r c a p o n y o u r
engine. There are 2 marks on the
dipstick:
- A = max; never exceed
this level,
- B = min; top up the
l e v e l v i a t h e o i l fi l l e r
cap, using the type
of oil suited to your
engine.
Page 32 of 221
1
35
INSTRUMENTS and CONTROLS

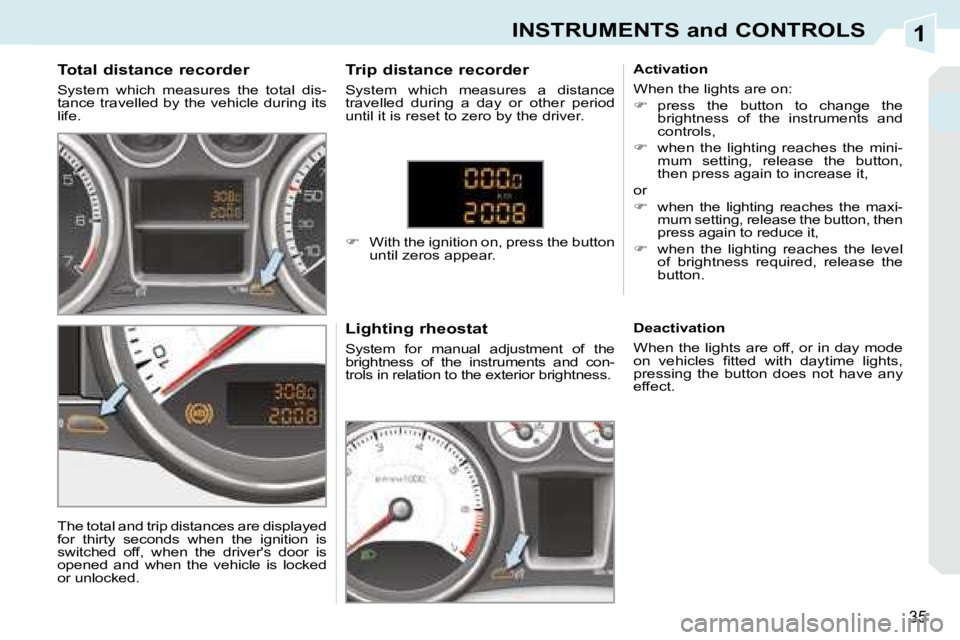

Total distance recorder
System which measures the total dis-
tance travelled by the vehicle during its
life. Lighting rheostat
System for manual adjustment of the
brightness of the instruments and con-
trols in relation to the exterior brightness.
The total and trip distances are displayed
for thirty seconds when the ignition is
switched off, when the driver's door is
opened and when the vehicle is locked
or unlocked. Trip distance recorder
System which measures a distance
travelled during a day or other period
until it is reset to zero by the driver.
With the ignition on, press the button
until zeros appear. Activation
When the lights are on:
press the button to change the
brightness of the instruments and
controls,
when the lighting reaches the mini- mum setting, release the button,
then press again to increase it,
or
when the lighting reaches the maxi-
mum setting, release the button, then
press again to reduce it,
when the lighting reaches the level
of brightness required, release the
button.
Deactivation
When the lights are off, or in day mode
o n v e h i c l e s fi t t e d w i t h d a y t i m e l i g h t s ,
pressing the button does not have any
effect.
Page 33 of 221
2
36
MULTIFUNCTION DISPLAYS
General menu "Audio functions" menu
Press the "MENU" button to gain
access to the general menu :
- audio functions,
- vehicle diagnostics,
- p e r s o n a l i s a t i o n - c o n fi g u r a t i o n ,
- telephone (hands-free kit).
Press the " " or " " buttons to select
t h e m e n u r e q u i r e d , t h e n c o n fi r m b y
pressing the "OK" button.
With the WIP Sound switched on, once
t h i s m e n u h a s b e e n s e l e c t e d y o u c a n
activate or deactivate the functions
linked with use of the radio (RDS, REG,
RadioText), the CD or the CD changer
( i n t r o s c a n , s h u f fl e , C D r e p e a t ) .
For further details concerning the
"Audio functions" application, refer to
the WIP Sound part of the "Audio and
Telematics" section.
MONOCHROME SCREEN C (WITH WIP SOUND)
Displays on the screen
T h i s d i s p l a y s t h e f o l l o w i n g i n f o r m a t i o n :
- the time,
- the date,
- t h e o u t s i d e t e m p e r a t u r e ( t h i s fl a s h e s if there is a risk of ice),
- the status of the accesses (doors, boot...),
- the audio sources (radio, CD...),
- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
c o n t r o l s y s t e m f a u l t y " ) o r i n f o r m a t i o n
messages (e.g.: "Automatic switching
o n o f t h e h e a d l a m p s a c t i v a t e d " ) m a y
a p p e a r t e m p o r a r i l y . T h e s e c a n b e
c l e a r e d b y p r e s s i n g t h e "ESC" button. Controls
F r o m t h e W I P S o u n d c o n t r o l p a n e l , y o u
can:
press the "MENU" button to gain
access to the general menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (trip
computer, audio source...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress.
Page 34 of 221
2MULTIFUNCTION DISPLAYS

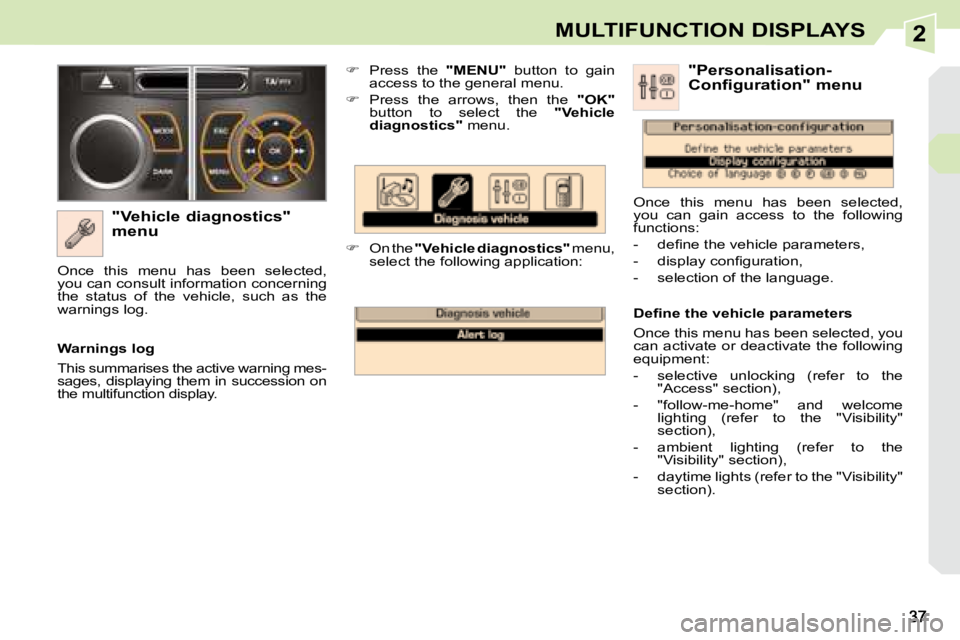

"Vehicle diagnostics"
menu
Press the "MENU" button to gain
access to the general menu.
Press the arrows, then the "OK"
button to select the " Vehicle
diagnostics " menu.
On the " Vehicle diagnostics
" menu,
select the following application:
Warnings log
This summarises the active warning mes-
s a g e s , d i s p l a y i n g t h e m i n s u c c e s s i o n o n
t h e m u l t i f u n c t i o n d i s p l a y .
Once this menu has been selected,
y o u c a n c o n s u l t i n f o r m a t i o n c o n c e r n i n g
the status of the vehicle, such as the
warnings log.
D e fi n e t h e v e h i c l e p a r a m e t e r s
O n c e t h i s m e n u h a s b e e n s e l e c t e d , y o u
can activate or deactivate the following
equipment:
- selective unlocking (refer to the
"Access" section),
- "follow-me-home" and welcome l i g h t i n g ( r e f e r t o t h e " V i s i b i l i t y "
section),
- ambient lighting (refer to the " V i s i b i l i t y " s e c t i o n ) ,
- d a y t i m e l i g h t s ( r e f e r t o t h e " V i s i b i l i t y " section). "Personalisation-
Configuration" menu
Once this menu has been selected,
y o u c a n g a i n a c c e s s t o t h e f o l l o w i n g
functions:
- d e fi n e t h e v e h i c l e p a r a m e t e r s ,
- d i s p l a y c o n fi g u r a t i o n ,
- selection of the language.
Page 35 of 221
2
!
38
MULTIFUNCTION DISPLAYS

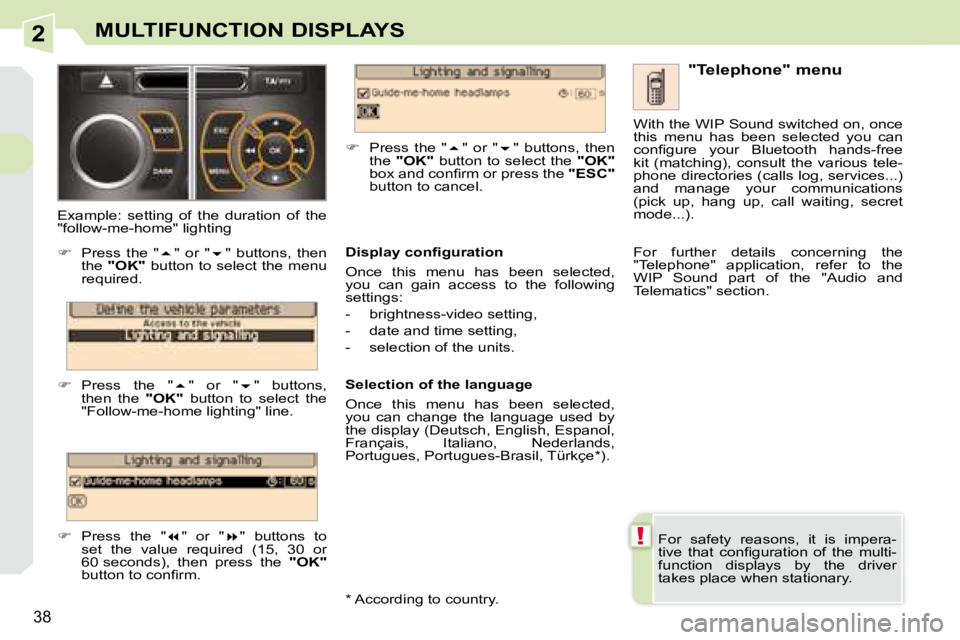

F o r s a f e t y r e a s o n s , i t i s i m p e r a -
t i v e t h a t c o n fi g u r a t i o n o f t h e m u l t i -
f u n c t i o n d i s p l a y s b y t h e d r i v e r
t a k e s p l a c e w h e n s t a t i o n a r y . "Telephone" menu
D i s p l a y c o n fi g u r a t i o n
Once this menu has been selected,
y o u c a n g a i n a c c e s s t o t h e f o l l o w i n g
settings:
- brightness-video setting,
- date and time setting,
- selection of the units.
Selection of the language
Once this menu has been selected,
y o u c a n c h a n g e t h e l a n g u a g e u s e d b y
t h e d i s p l a y ( D e u t s c h , E n g l i s h , E s p a n o l ,
Français, Italiano, Nederlands,
Portugues, Portugues-Brasil, Türkçe * ).
Example: setting of the duration of the
"follow-me-home" lighting
Press the " " or " " buttons, then
the "OK" button to select the menu
required.
Press the " " or " " buttons,
then the "OK" button to select the
"Follow-me-home lighting" line.
Press the " " or " " buttons to
set the value required (15, 30 or
60 seconds), then press the "OK"
b u t t o n t o c o n fi r m .
Press the " " or " " buttons, then
the "OK" button to select the "OK"
b o x a n d c o n fi r m o r p r e s s t h e "ESC"
button to cancel. With the WIP Sound switched on, once
t h i s m e n u h a s b e e n s e l e c t e d y o u c a n
c o n fi g u r e y o u r B l u e t o o t h h a n d s - f r e e
kit (matching), consult the various tele-
phone directories (calls log, services...)
a n d m a n a g e y o u r c o m m u n i c a t i o n s
(pick up, hang up, call waiting, secret
mode...).
For further details concerning the
"Telephone" application, refer to the
WIP Sound part of the "Audio and
Telematics" section.
* A c c o r d i n g t o c o u n t r y .
Page 36 of 221
2
i
39
MULTIFUNCTION DISPLAYS

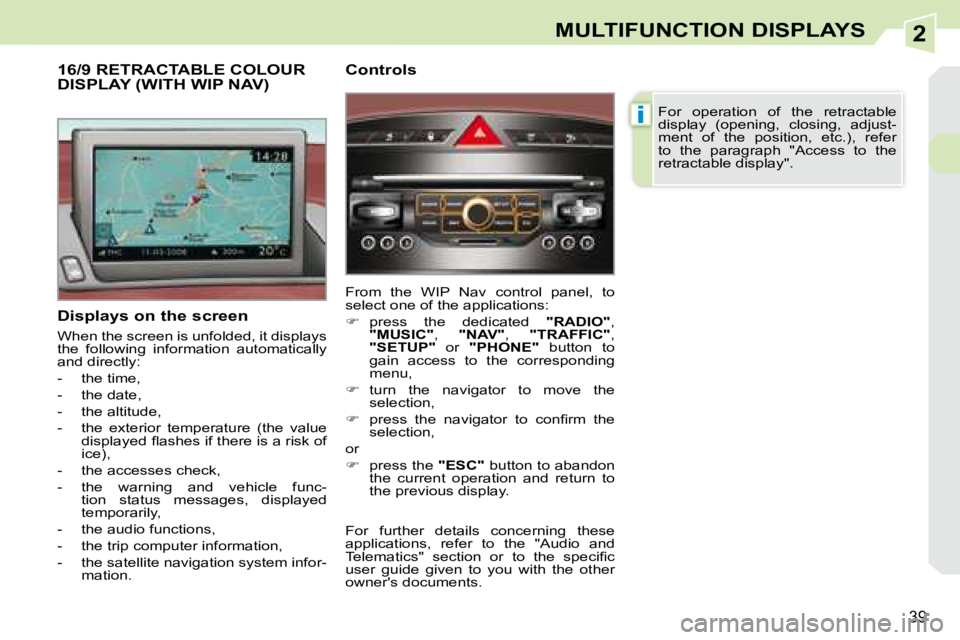

Displays on the screen
W h e n t h e s c r e e n i s u n f o l d e d , i t d i s p l a y s
t h e f o l l o w i n g i n f o r m a t i o n a u t o m a t i c a l l y
a n d d i r e c t l y :
- the time,
- the date,
- the altitude,
- the exterior temperature (the value d i s p l a y e d fl a s h e s i f t h e r e i s a r i s k o f
ice),
- the accesses check,
- the warning and vehicle func- t i o n s t a t u s m e s s a g e s , d i s p l a y e d
t e m p o r a r i l y ,
- the audio functions,
- the trip computer information,
- t h e s a t e l l i t e n a v i g a t i o n s y s t e m i n f o r - mation.
16/9 RETRACTABLE COLOUR DISPLAY (WITH WIP NAV) Controls
From the WIP Nav control panel, to
select one of the applications:
press the dedicated "RADIO" ,
"MUSIC" , "NAV" , "TRAFFIC" ,
"SETUP" or "PHONE" button to
gain access to the corresponding
menu,
turn the navigator to move the
selection,
p r e s s t h e n a v i g a t o r t o c o n fi r m t h e
selection,
or
press the "ESC" button to abandon
the current operation and return to
t h e p r e v i o u s d i s p l a y . For operation of the retractable
d i s p l a y ( o p e n i n g , c l o s i n g , a d j u s t -
ment of the position, etc.), refer
to the paragraph "Access to the
r e t r a c t a b l e d i s p l a y " .
For further details concerning these
applications, refer to the "Audio and
T e l e m a t i c s " s e c t i o n o r t o t h e s p e c i fi c
u s e r g u i d e g i v e n t o y o u w i t h t h e o t h e r
owner's documents.
Page 37 of 221
2
!
40
MULTIFUNCTION DISPLAYS

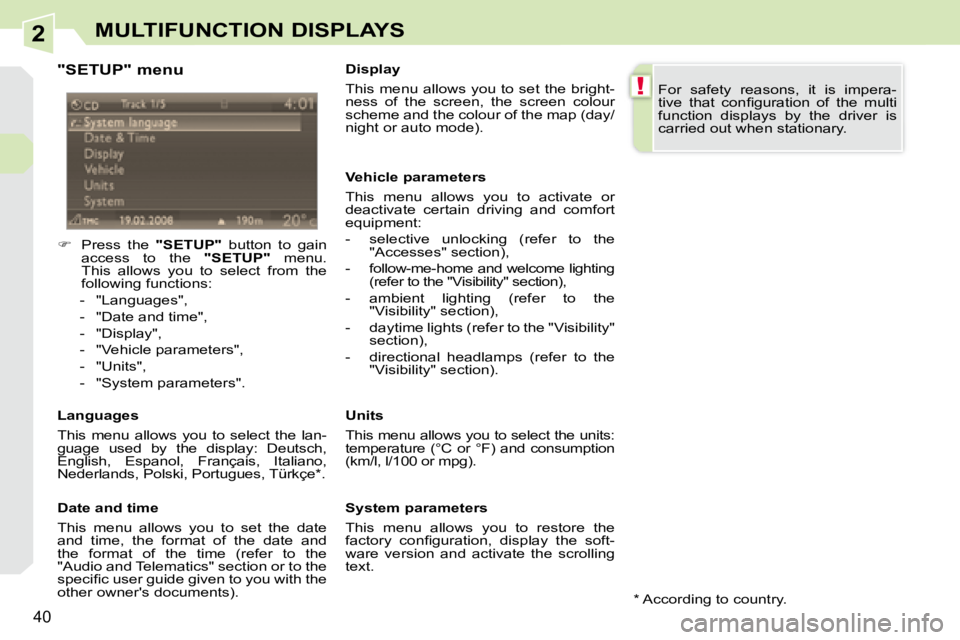

"SETUP" menu
Press the "SETUP" button to gain
access to the "SETUP" menu.
T h i s a l l o w s y o u t o s e l e c t f r o m t h e
following functions:
- "Languages",
- "Date and time",
- " D i s p l a y " ,
- "Vehicle parameters",
- "Units",
- " S y s t e m p a r a m e t e r s " .
Languages
T h i s m e n u a l l o w s y o u t o s e l e c t t h e l a n -
g u a g e u s e d b y t h e d i s p l a y : D e u t s c h ,
English, Espanol, Français, Italiano,
Nederlands, Polski, Portugues, Türkçe * .
Date and time
T h i s m e n u a l l o w s y o u t o s e t t h e d a t e
and time, the format of the date and
the format of the time (refer to the
"Audio and Telematics" section or to the
s p e c i fi c u s e r g u i d e g i v e n t o y o u w i t h t h e
other owner's documents). Display
T h i s m e n u a l l o w s y o u t o s e t t h e b r i g h t -
ness of the screen, the screen colour
s c h e m e a n d t h e c o l o u r o f t h e m a p ( d a y /
night or auto mode).
Vehicle parameters
T h i s m e n u a l l o w s y o u t o a c t i v a t e o r
deactivate certain driving and comfort
equipment:
- selective unlocking (refer to the
"Accesses" section),
- follow-me-home and welcome lighting ( r e f e r t o t h e " V i s i b i l i t y " s e c t i o n ) ,
- ambient lighting (refer to the " V i s i b i l i t y " s e c t i o n ) ,
- d a y t i m e l i g h t s ( r e f e r t o t h e " V i s i b i l i t y " section),
- directional headlamps (refer to the " V i s i b i l i t y " s e c t i o n ) .
Units
T h i s m e n u a l l o w s y o u t o s e l e c t t h e u n i t s :
temperature (°C or °F) and consumption
( k m / l , l / 1 0 0 o r m p g ) .
System parameters
T h i s m e n u a l l o w s y o u t o r e s t o r e t h e
f a c t o r y c o n fi g u r a t i o n , d i s p l a y t h e s o f t -
ware version and activate the scrolling
text. F o r s a f e t y r e a s o n s , i t i s i m p e r a -
t i v e t h a t c o n fi g u r a t i o n o f t h e m u l t i
f u n c t i o n d i s p l a y s b y t h e d r i v e r i s
c a r r i e d o u t w h e n s t a t i o n a r y .
* A c c o r d i n g t o c o u n t r y .
Page 38 of 221
2
i
41

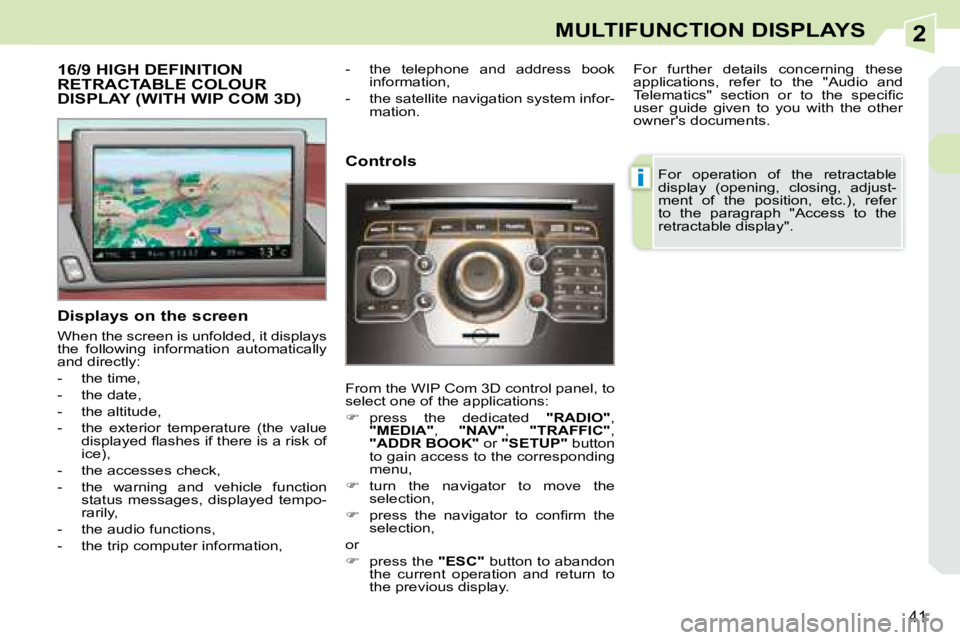

MULTIFUNCTION DISPLAYS
16/9 HIGH DEFINITION RETRACTABLE COLOUR DISPLAY (WITH WIP COM 3D)
Displays on the screen
W h e n t h e s c r e e n i s u n f o l d e d , i t d i s p l a y s
t h e f o l l o w i n g i n f o r m a t i o n a u t o m a t i c a l l y
a n d d i r e c t l y :
- the time,
- the date,
- the altitude,
- the exterior temperature (the value d i s p l a y e d fl a s h e s i f t h e r e i s a r i s k o f
ice),
- the accesses check,
- the warning and vehicle function s t a t u s m e s s a g e s , d i s p l a y e d t e m p o -
r a r i l y ,
- the audio functions,
- the trip computer information, Controls
From the WIP Com 3D control panel, to
select one of the applications:
press the dedicated "RADIO" ,
"MEDIA" , "NAV" , "TRAFFIC" ,
"ADDR BOOK" or "SETUP" button
to gain access to the corresponding
menu,
turn the navigator to move the
selection,
p r e s s t h e n a v i g a t o r t o c o n fi r m t h e
selection,
or
press the "ESC" button to abandon
the current operation and return to
t h e p r e v i o u s d i s p l a y . For operation of the retractable
d i s p l a y ( o p e n i n g , c l o s i n g , a d j u s t -
ment of the position, etc.), refer
to the paragraph "Access to the
r e t r a c t a b l e d i s p l a y " .
For further details concerning these
applications, refer to the "Audio and
T e l e m a t i c s " s e c t i o n o r t o t h e s p e c i fi c
u s e r g u i d e g i v e n t o y o u w i t h t h e o t h e r
owner's documents.
- the telephone and address book
information,
- t h e s a t e l l i t e n a v i g a t i o n s y s t e m i n f o r - mation.
Page 39 of 221
2
!
42

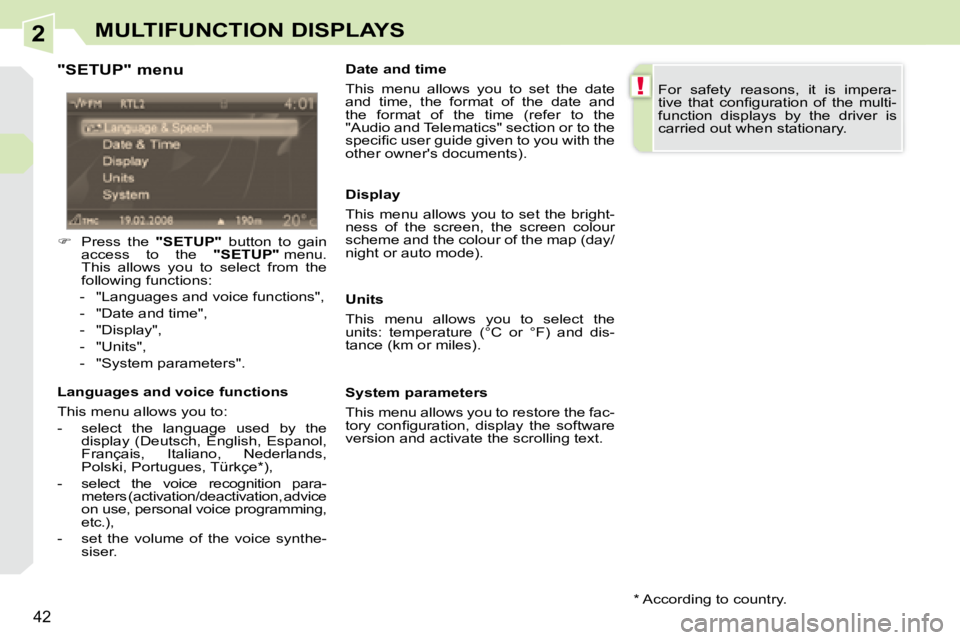

MULTIFUNCTION DISPLAYS
"SETUP" menu
Press the "SETUP" button to gain
access to the "SETUP" menu.
T h i s a l l o w s y o u t o s e l e c t f r o m t h e
following functions:
- "Languages and voice functions",
- "Date and time",
- " D i s p l a y " ,
- "Units",
- " S y s t e m p a r a m e t e r s " .
L a n g u a g e s a n d v o i c e f u n c t i o n s
T h i s m e n u a l l o w s y o u t o :
- s e l e c t t h e l a n g u a g e u s e d b y t h e d i s p l a y ( D e u t s c h , E n g l i s h , E s p a n o l ,
Français, Italiano, Nederlands,
Polski, Portugues, Türkçe * ),
- select the voice recognition para- m e t e r s ( a c t i v a t i o n / d e a c t i v a t i o n , a d v i c e
on use, personal voice programming,
etc.),
- s e t t h e v o l u m e o f t h e v o i c e s y n t h e - siser. Date and time
T h i s m e n u a l l o w s y o u t o s e t t h e d a t e
and time, the format of the date and
the format of the time (refer to the
"Audio and Telematics" section or to the
s p e c i fi c u s e r g u i d e g i v e n t o y o u w i t h t h e
other owner's documents).
Units
T h i s m e n u a l l o w s y o u t o s e l e c t t h e
units: temperature (°C or °F) and dis-
tance (km or miles).
System parameters
T h i s m e n u a l l o w s y o u t o r e s t o r e t h e f a c -
t o r y c o n fi g u r a t i o n , d i s p l a y t h e s o f t w a r e
version and activate the scrolling text. F o r s a f e t y r e a s o n s , i t i s i m p e r a -
t i v e t h a t c o n fi g u r a t i o n o f t h e m u l t i -
f u n c t i o n d i s p l a y s b y t h e d r i v e r i s
c a r r i e d o u t w h e n s t a t i o n a r y .
Display
T h i s m e n u a l l o w s y o u t o s e t t h e b r i g h t -
ness of the screen, the screen colour
s c h e m e a n d t h e c o l o u r o f t h e m a p ( d a y /
night or auto mode).
* A c c o r d i n g t o c o u n t r y .
Page 40 of 221
2
i
i
43

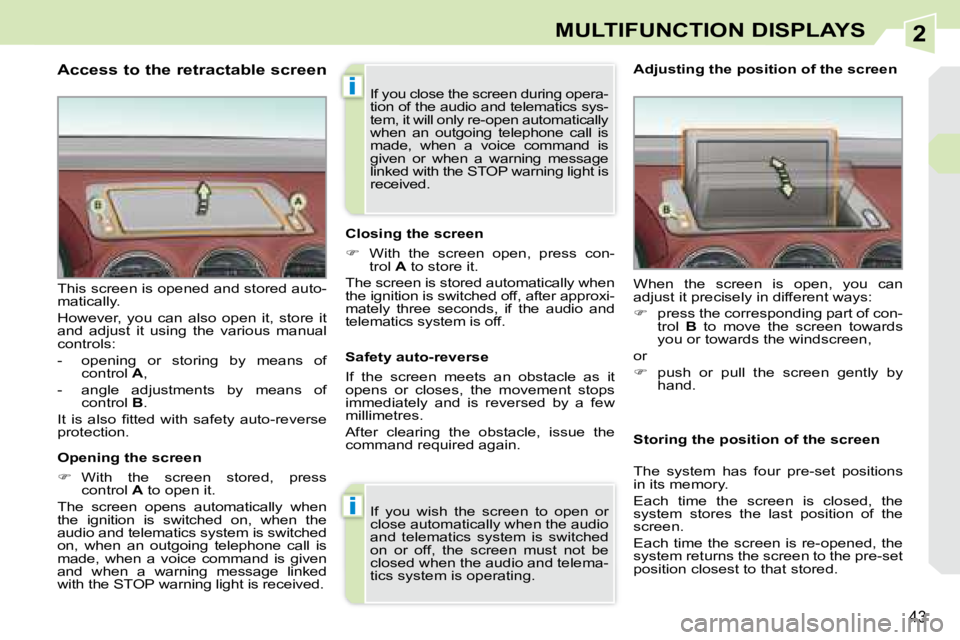

MULTIFUNCTION DISPLAYS
Access to the retractable screen
Opening the screen
With the screen stored, press
control A to open it.
T h e s c r e e n o p e n s a u t o m a t i c a l l y w h e n
the ignition is switched on, when the
a u d i o a n d t e l e m a t i c s s y s t e m i s s w i t c h e d
on, when an outgoing telephone call is
made, when a voice command is given
and when a warning message linked
with the STOP warning light is received.
This screen is opened and stored auto-
m a t i c a l l y .
H o w e v e r , y o u c a n a l s o o p e n i t , s t o r e i t
a n d a d j u s t i t u s i n g t h e v a r i o u s m a n u a l
controls:
- o p e n i n g o r s t o r i n g b y m e a n s o f
control A ,
- a n g l e a d j u s t m e n t s b y m e a n s o f control B .
I t i s a l s o fi t t e d w i t h s a f e t y a u t o - r e v e r s e
protection. Closing the screen
With the screen open, press con-
trol A to store it.
T h e s c r e e n i s s t o r e d a u t o m a t i c a l l y w h e n
the ignition is switched off, after approxi-
m a t e l y t h r e e s e c o n d s , i f t h e a u d i o a n d
t e l e m a t i c s s y s t e m i s o f f .
I f y o u w i s h t h e s c r e e n t o o p e n o r
c l o s e a u t o m a t i c a l l y w h e n t h e a u d i o
a n d t e l e m a t i c s s y s t e m i s s w i t c h e d
on or off, the screen must not be
closed when the audio and telema-
t i c s s y s t e m i s o p e r a t i n g . W h e n t h e s c r e e n i s o p e n , y o u c a n
a d j u s t i t p r e c i s e l y i n d i f f e r e n t w a y s :
press the corresponding part of con-
trol B to move the screen towards
y o u o r t o w a r d s t h e w i n d s c r e e n ,
or
p u s h o r p u l l t h e s c r e e n g e n t l y b y
hand.
Adjusting the position of the screen
S a f e t y a u t o - r e v e r s e
If the screen meets an obstacle as it
opens or closes, the movement stops
i m m e d i a t e l y a n d i s r e v e r s e d b y a f e w
millimetres.
After clearing the obstacle, issue the
command required again. Storing the position of the screen
T h e s y s t e m h a s f o u r p r e - s e t p o s i t i o n s
i n i t s m e m o r y .
Each time the screen is closed, the
s y s t e m s t o r e s t h e l a s t p o s i t i o n o f t h e
screen.
Each time the screen is re-opened, the
s y s t e m r e t u r n s t h e s c r e e n t o t h e p r e - s e t
position closest to that stored.
I f y o u c l o s e t h e s c r e e n d u r i n g o p e r a -
t i o n o f t h e a u d i o a n d t e l e m a t i c s s y s -
t e m , i t w i l l o n l y r e - o p e n a u t o m a t i c a l l y
when an outgoing telephone call is
made, when a voice command is
given or when a warning message
linked with the STOP warning light is
received.
