Peugeot 308 CC Dag 2009.5 Owner's Manual

242
22
33
44
11
22
44
33
11
03AUDIO
Press the SOURCE button several times in succession and select the radio.
Press the BAND AST button to select a waveband: FM1, FM2, FMast, AM.
Briefl y press one of the buttons to carry out an automatic search of the radio stations.
Press one of the buttons to carry out a manual search of the radio stations.
Press the LIST REFRESH button to display the list of stations received locally (30 stations maximum). To update this list, press for more than two seconds.
Select ACTIVATE FREQUENCY FOLLOWING (RDS) then press OK. RDS appears on the display.
Select the FM WAVEBAND PREFERENCES function then press OK.
Select AUDIO FUNCTIONS then press OK.
Press the MENU button.
The external environment (hills, buildings, tunnels, basement car parks) may block reception, includi ng in RDS mode. This is a normal effect of the way in which radio waves are transmitted and does not indicate any failure of the audio equipment.
RDS
The RDS, if displayed, enables you to continue listening to the same station by automatic retuning to alternative freque ncies. However, in certain conditions, coverage of an RDS station may not be assured throughout the country as radio stations do not cover 100 % of the territory. This explains the loss of reception of the station during a journey.
RADIO
SELECTING A STATION

243
11
22
11
22

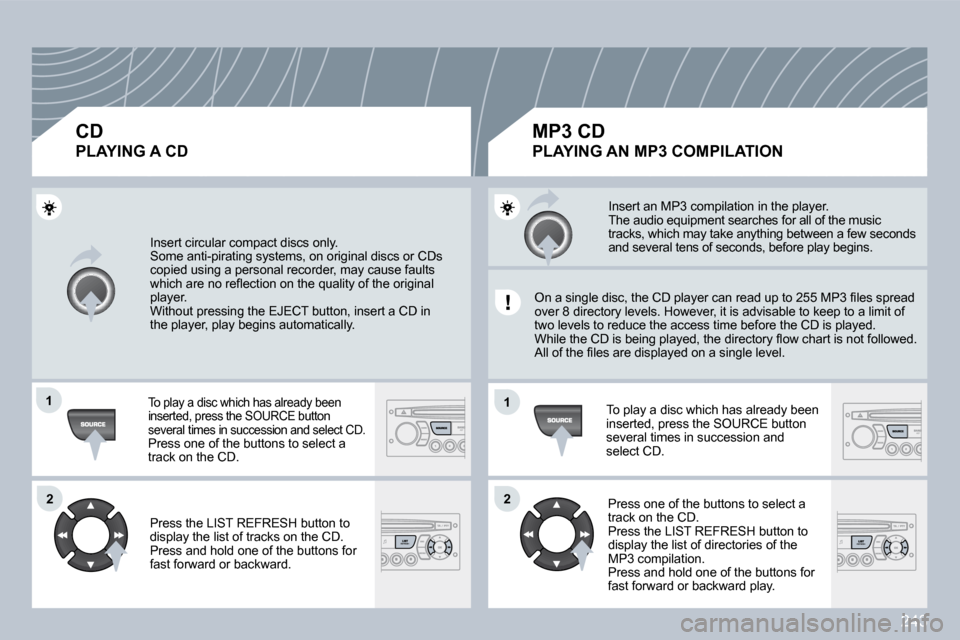

Insert circular compact discs only. Some anti-pirating systems, on original discs or CDs copied using a personal recorder, may cause faults which are no refl ection on the quality of the original player. Without pressing the EJECT button, insert a CD inthe player, play begins automatically.
To play a disc which has already been inserted, press the SOURCE button several times in succession and select CD. Press one of the buttons to select a track on the CD.
Press the LIST REFRESH button to display the list of tracks on the CD. Press and hold one of the buttons for fast forward or backward.
Insert an MP3 compilation in the player. The audio equipment searches for all of the music tracks, which may take anything between a few secon ds and several tens of seconds, before play begins.
On a single disc, the CD player can read up to 255 MP3 fi les spread over 8 directory levels. However, it is advisable to keep to a limit of two levels to reduce the access time before the CD is played. While the CD is being played, the directory fl ow chart is not followed. All of the fi les are displayed on a single level.
To play a disc which has already been inserted, press the SOURCE button several times in succession and select CD.
Press one of the buttons to select a track on the CD. Press the LIST REFRESH button to display the list of directories of the MP3 compilation. Press and hold one of the buttons for fast forward or backward play.
CD
PLAYING A CD
MP3 CD
PLAYING AN MP3 COMPILATION

244
03

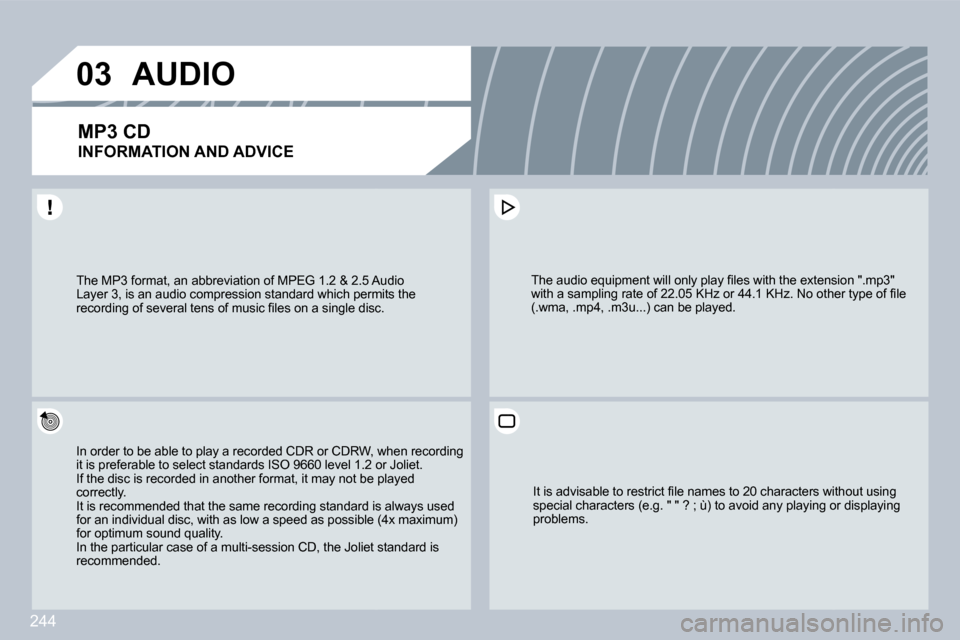

The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Au2.5 AudioLayer 3, is an audio compression standard which permi permits the recording of several tens of music fi les on a single disc. recording of several tens of music fi les on a single disc.
In order to be able to play a recorded CDR or CDRW , when recording In order to be able to play a recorded CDR or CDRW, when recording it is preferable to select standards ISO 9660 level 1.2 or Joliet. it is preferable to select standards ISO 9660 level 1.2 or Joliet. If the disc is recorded in another format, it may not be pt be played correctly. It is recommended that the same recording standard is always used It is recommended that the same recording standard is always used for an individual disc, with as low a speed as possible (4x maximum) for an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality. In the particular case of a multi-session CD, the Joliet standard is In the particular case of a multi-session CD, the Joliet standard is recommended.
The audio equipment will only play fi les with the extension ".mp3" The audio equipment will only play fi les with the extension ".mp3" with a sampling rate of 22.05 KHz or 44.1 KHz. No o ther type of fi le with a sampling rate of 22.05 KHz or 44.1 KHz. No other type of fi le (.wma, .mp4, .m3u...) can be played.
It is advisable to restrict fi le names to 20 characters without using It is advisable to restrict fi le names to 20 characters without using special characters (e.g. " " ? ; ù) to avoid any pl aying or displaying special characters (e.g. " " ? ; ù) to avoid any playing or displaying problems.
MP3 CD
INFORMATION AND ADVICE
AUDIO

245
1
04
11
22
33

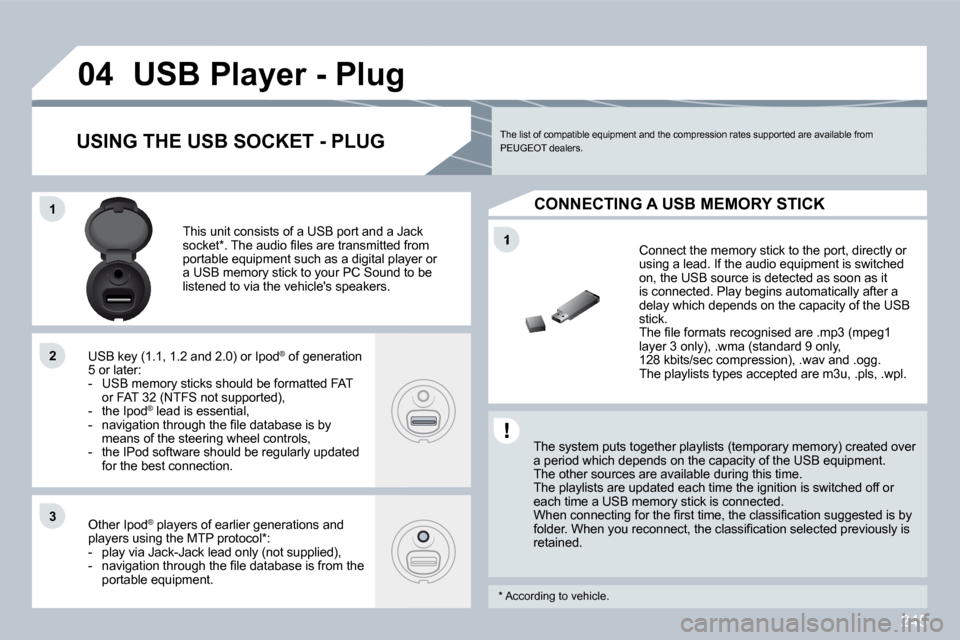

USB Player - Plug
The system puts together playlists (temporary memory) created over a period which depends on the capacity of the USB e quipment. The other sources are available during this time. The playlists are updated each time the ignition is switched off or each time a USB memory stick is connected. When connecting for the fi rst time, the classifi cation suggested is by folder. When you reconnect, the classifi cation sele cted previously is retained.
Connect the memory stick to the port, directly or using a lead. If the audio equipment is switched on, the USB source is detected as soon as it is connected. Play begins automatically after a delay which depends on the capacity of the USB stick. The fi le formats recognised are .mp3 (mpeg1 layer 3 only), .wma (standard 9 only,128 kbits/sec compression), .wav and .ogg. The playlists types accepted are m3u, .pls, .wpl.
This unit consists of a USB port and a Jack socket * . The audio fi les are transmitted from portable equipment such as a digital player or a USB memory stick to your PC Sound to be listened to via the vehicle's speakers.
USB key (1.1, 1.2 and 2.0) or Ipod ® of generation ®
5 or later: - USB memory sticks should be formatted FAT or FAT 32 (NTFS not supported), - the Ipod ® lead is essential, ®
- navigation through the fi le database is by means of the steering wheel controls, - the IPod software should be regularly updated for the best connection.
Other Ipod ® players of earlier generations and ®
players using the MTP protocol * : - play via Jack-Jack lead only (not supplied), - navigation through the fi le database is from the portable equipment.
The list of compatible equipment and the compression rates supported are available from PEUGEOT dealers. USING THE USB SOCKET - PLUG
CONNECTING A USB MEMORY STICK
* According to vehicle.

246
33
04
44
11
55
22

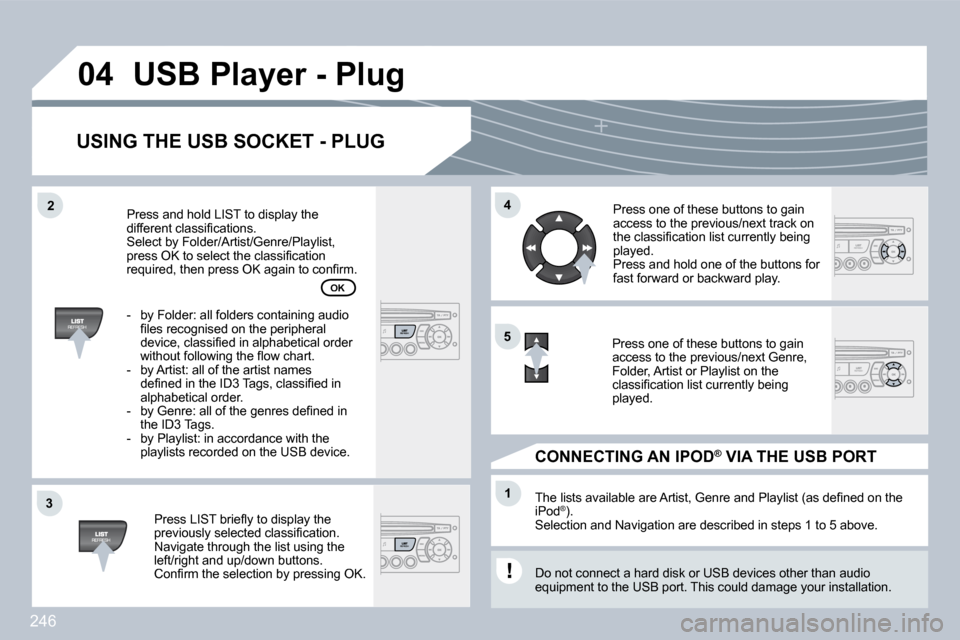

USB Player - Plug
USING THE USB SOCKET - PLUG
Press LIST briefl y to display the previously selected classifi cation. Navigate through the list using the left/right and up/down buttons. Confi rm the selection by pressing OK.
The lists available are Artist, Genre and Playlist (as defi ned on the iPod ® ). ®
Selection and Navigation are described in steps 1 to 5 above.
Do not connect a hard disk or USB devices other than audio equipment to the USB port. This could damage your i nstallation.
CONNECTING AN IPOD ® CONNECTING AN IPOD CONNECTING AN IPOD VIA THE USB PORT ®
Press one of these buttons to gain access to the previous/next track on the classifi cation list currently being played. Press and hold one of the buttons for fast forward or backward play.
Press one of these buttons to gain access to the previous/next Genre, Folder, Artist or Playlist on the classifi cation list currently being played.
Press and hold LIST to display the different classifi cations. Select by Folder/Artist/Genre/Playlist, press OK to select the classifi cation required, then press OK again to confi rm.
- by Folder: all folders containing audio fi les recognised on the peripheral device, classifi ed in alphabetical order without following the fl ow chart. - by Artist: all of the artist names defi ned in the ID3 Tags, classifi ed in alphabetical order. - by Genre: all of the genres defi ned in the ID3 Tags. - by Playlist: in accordance with the playlists recorded on the USB device.
OK

247
11
22
22
11

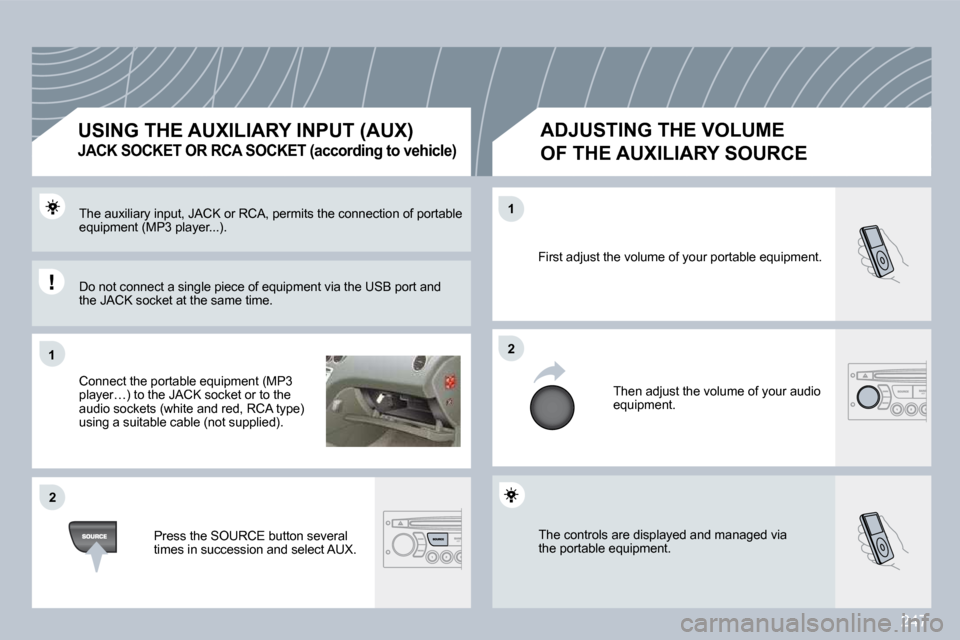

The controls are displayed and managed viathe portable equipment.
First adjust the volume of your portable equipment.
Then adjust the volume of your audio equipment.
The auxiliary input, JACK or RCA, permits the conn ection of portable equipment (MP3 player...).
Connect the portable equipment (MP3 player…) to the JACK socket or to the audio sockets (white and red, RCA type) using a suitable cable (not supplied).
Press the SOURCE button several times in succession and select AUX.
USING THE AUXILIARY INPUT (AUX)
JACK SOCKET OR RCA SOCKET (according to vehicle)
ADJUSTING THE VOLUME
OF THE AUXILIARY SOURCE
Do not connect a single piece of equipment via the USB port andthe JACK socket at the same time.

248
11
66
22
77
44
99
55
1010
33
88
05
Saisir code authentiication01OKDel23456789_

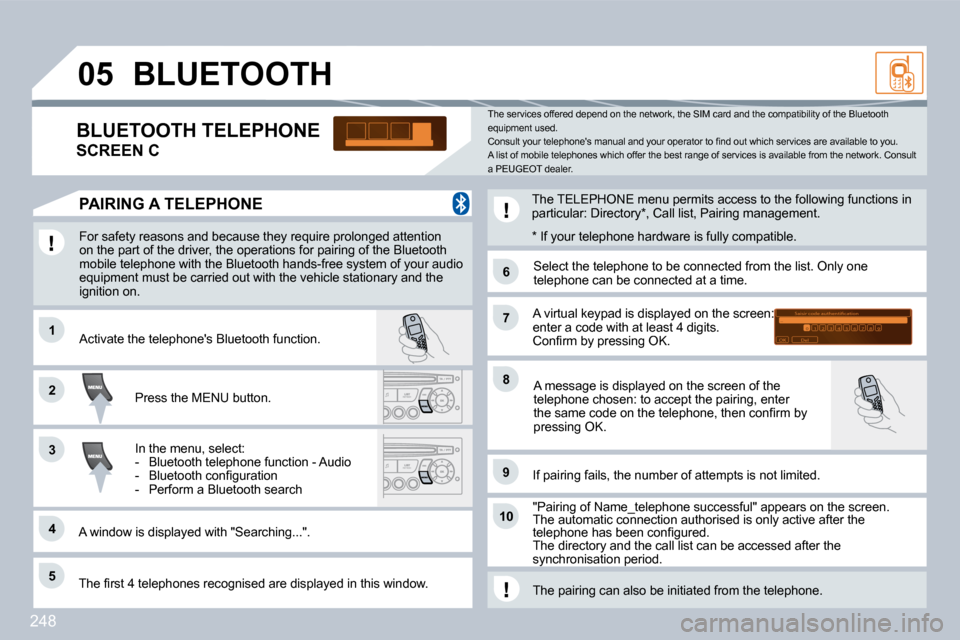

BLUETOOTH
For safety reasons and because they require prolonged attention on the part of the driver, the operations for pairing of the Bluetooth mobile telephone with the Bluetooth hands-free syst em of your audio equipment must be carried out with the vehicle stationary and the ignition on.
Press the MENU button.
A window is displayed with "Searching...".
Activate the telephone's Bluetooth function.
In the menu, select: - Bluetooth telephone function - Audio - Bluetooth confi guration - Perform a Bluetooth search
The services offered depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Consult your telephone's manual and your operator to fi nd out which services are available to you. A list of mobile telephones which offer the best range of services is available from the network. Cons ult a PEUGEOT dealer.
BLUETOOTH TELEPHONE
SCREEN C
The TELEPHONE menu permits access to the following functions in particular: Directory * , Call list, Pairing management.
The fi rst 4 telephones recognised are displayed in this window.
A virtual keypad is displayed on the screen: een: een: enter a code with at least 4 digits. Confi rm by pressing OK.
If pairing fails, the number of attempts is not limited.
Select the telephone to be connected from the list . Only one telephone can be connected at a time.
A message is displayed on the screen of the telephone chosen: to accept the pairing, enter the same code on the telephone, then confi rm by pressing OK.
"Pairing of Name_telephone successful" appears on the screen. The automatic connection authorised is only active after the telephone has been confi gured. The directory and the call list can be accessed after the synchronisation period.
PAIRING A TELEPHONE
* If your telephone hardware is fully compatible.
The pairing can also be initiated from the telepho ne.

249
11
22
11
11
22
33
22

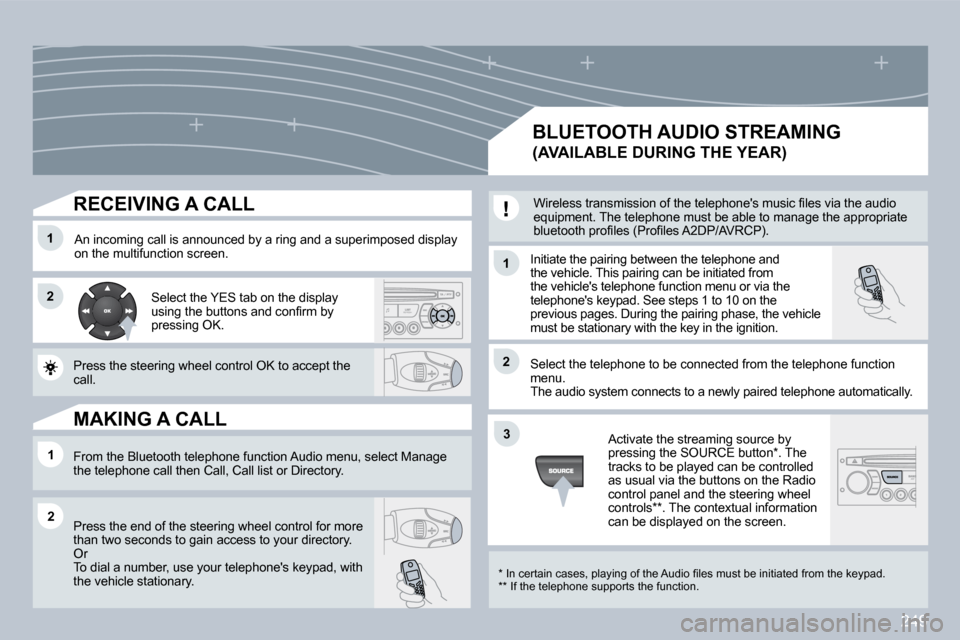

RECEIVING A CALL
An incoming call is announced by a ring and a superimposed display on the multifunction screen. Initiate the pairing between the telephone and the vehicle. This pairing can be initiated from the vehicle's telephone function menu or via the telephone's keypad. See steps 1 to 10 on the previous pages. During the pairing phase, the vehicle must be stationary with the key in the ignition.
Select the telephone to be connected from the tele phone function menu. The audio system connects to a newly paired teleph one automatically.
Select the YES tab on the display using the buttons and confi rm by pressing OK.
Press the steering wheel control OK to accept the call.
From the Bluetooth telephone function Audio menu, select Manage the telephone call then Call, Call list or Directory.
Press the end of the steering wheel control for mo re than two seconds to gain access to your directory. Or To dial a number, use your telephone's keypad, wit h the vehicle stationary.
MAKING A CALL
BLUETOOTH AUDIO STREAMING
(AVAILABLE DURING THE YEAR)
Wireless transmission of the telephone's music fi les via the audio equipment. The telephone must be able to manage the appropriate bluetooth profi les (Profi les A2DP/AVRCP).
* In certain cases, playing of the Audio fi les must be initiated from the keypad. ** If the telephone supports the function.
Activate the streaming source by pressing the SOURCE button * . The tracks to be played can be controlled as usual via the buttons on the Radio control panel and the steering wheel controls ** . The contextual information can be displayed on the screen.

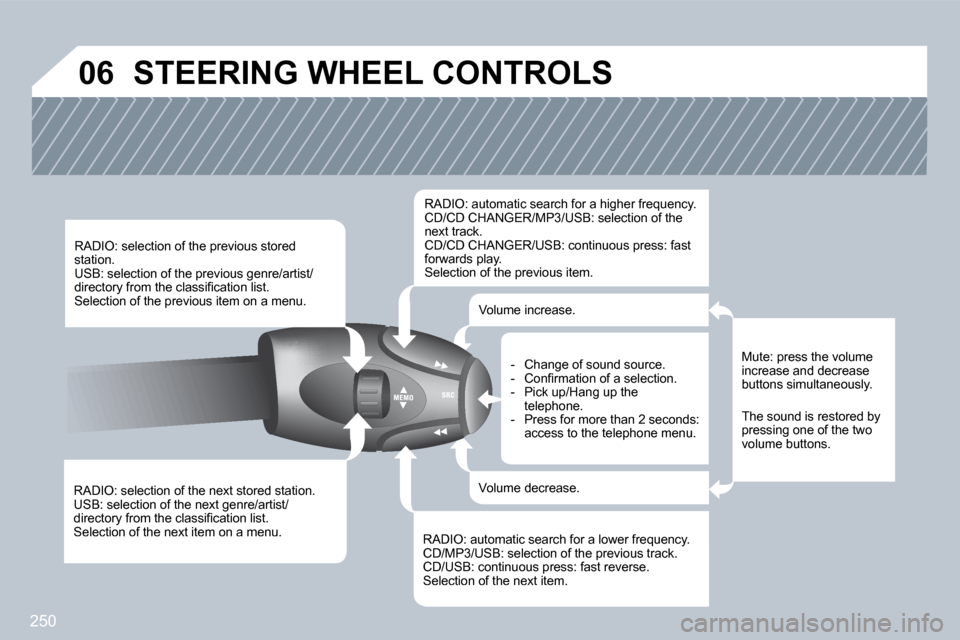

250
06
RADIO: selection of the next stored station. USB: selection of the next genre/artist/directory from the classifi cation list. Selection of the next item on a menu.
RADIO: selection of the previous stored station. USB: selection of the previous genre/artist/directory from the classifi cation list. Selection of the previous item on a menu.
RADIO: automatic search for a higher frequency. CD/CD CHANGER/MP3/USB: selection of the next track. CD/CD CHANGER/USB: continuous press: fast forwards play. Selection of the previous item.
RADIO: automatic search for a lower frequency. CD/MP3/USB: selection of the previous track. CD/USB: continuous press: fast reverse. Selection of the next item.
Volume increase.
Volume decrease.
STEERING WHEEL CONTROLS
Mute: press the volume increase and decrease buttons simultaneously.
The sound is restored by pressing one of the two volume buttons.
- Change of sound source. - Confi rmation of a selection. - Pick up/Hang up the telephone. - Press for more than 2 seconds: access to the telephone menu.

251
11
22
33
44
55
66
77
88

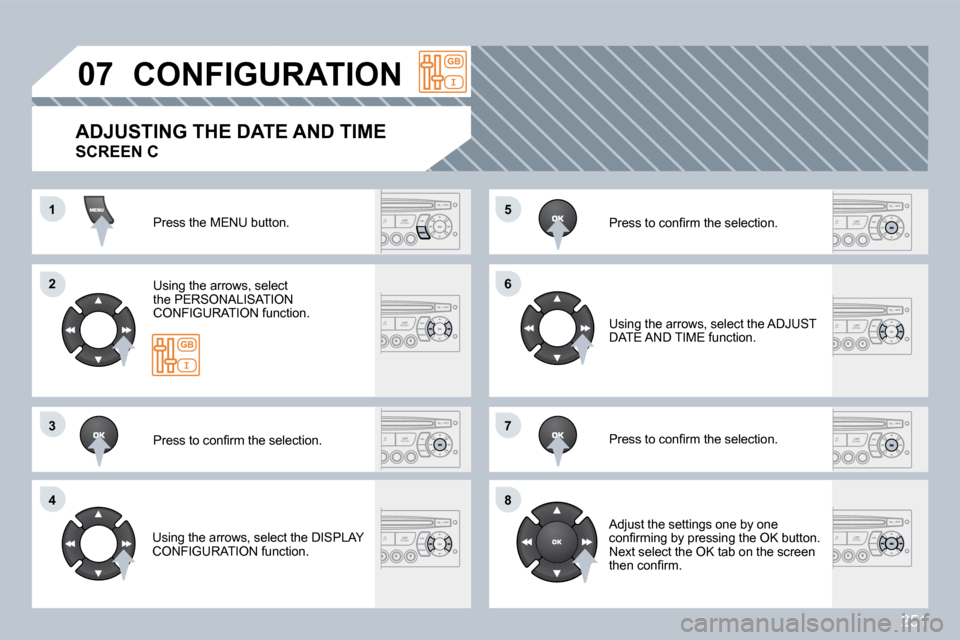

07CONFIGURATION
Press the MENU button.
Using the arrows, select the PERSONALISATION CONFIGURATION function.
Press to confi rm the selection.
Using the arrows, select the DISPLAY CONFIGURATION function.
Press to confi rm the selection.
Press to confi rm the selection.
Using the arrows, select the ADJUST DATE AND TIME function.
Adjust the settings one by one confi rming by pressing the OK button. Next select the OK tab on the screen then confi rm.
ADJUSTING THE DATE AND TIME
SCREEN C
