INSTRUMENTS and CONTROLS

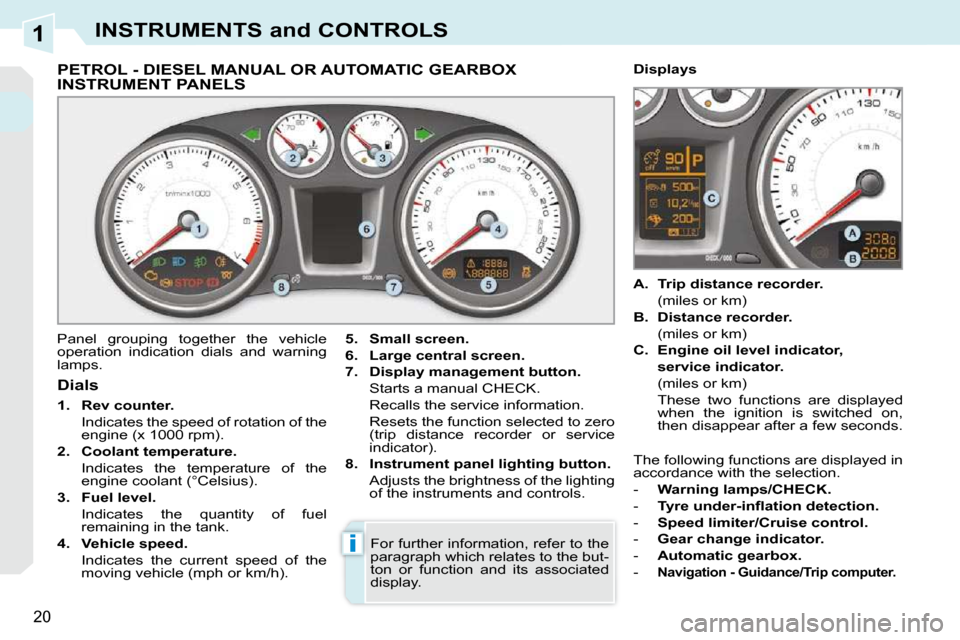

PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5. Screen
.
6. Display management button.
Recalls the service information.
Resets the selected function to zero (trip distance recorder or service
indicator).
7. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.
Dials
1. Rev counter.
Indicates the speed of rotation of the engine (x 1000 rpm).
2. Coolant temperature.
Indicates the temperature of the engine coolant (°Celsius).
3. Fuel level.
Indicates the quantity of fuel remaining in the tank.
4. Vehicle speed.
Indicates the current speed of the moving vehicle (mph or km/h).
A. Speed limiter
(mph or km/h) or
Cruise control.
B. Gear change indicator.
C. Automatic gearbox.
D. Trip distance recorder.
(miles or km)
E. Service indicator.
(miles or km) then,
engine oil level indicator
then
distance recorder.
(miles or km)
These three functions are displayed in succession when the ignition is
switched on.
Display
For further information, refer to the
paragraph relating to the button or
function and its associated display.
Page 2 of 256
1
i
20
INSTRUMENTS and CONTROLS
PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5. Small
screen
.
6. Large central
screen
.
7. Display management button.
Starts a manual CHECK.
Recalls the service information.
Resets the function selected to zero (trip distance recorder or service
indicator).
8. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.
Dials
1. Rev counter.
Indicates the speed of rotation of the engine (x 1000 rpm).
2. Coolant temperature.
Indicates the temperature of the engine coolant (°Celsius).
3. Fuel level.
Indicates the quantity of fuel remaining in the tank.
4. Vehicle speed.
Indicates the current speed of the moving vehicle (mph or km/h).
A. Trip distance recorder.
(miles or km)
B. Distance recorder.
(miles or km)
C. Engine oil level indicator,
service indicator.
(miles or km)
These two functions are displayed when the ignition is switched on,
then disappear after a few seconds.
Displays
For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.
-
Warning
lamps/CHECK.
- T y r e u n d e r - i n fl a t i o n d e t e c t i o n .
- Speed limiter/Cruise control.
- Gear change indicator.
- Automatic gearbox.
-
Navigation - Guidance/Trip computer.
Page 3 of 256
1
i
21
INSTRUMENTS and CONTROLS

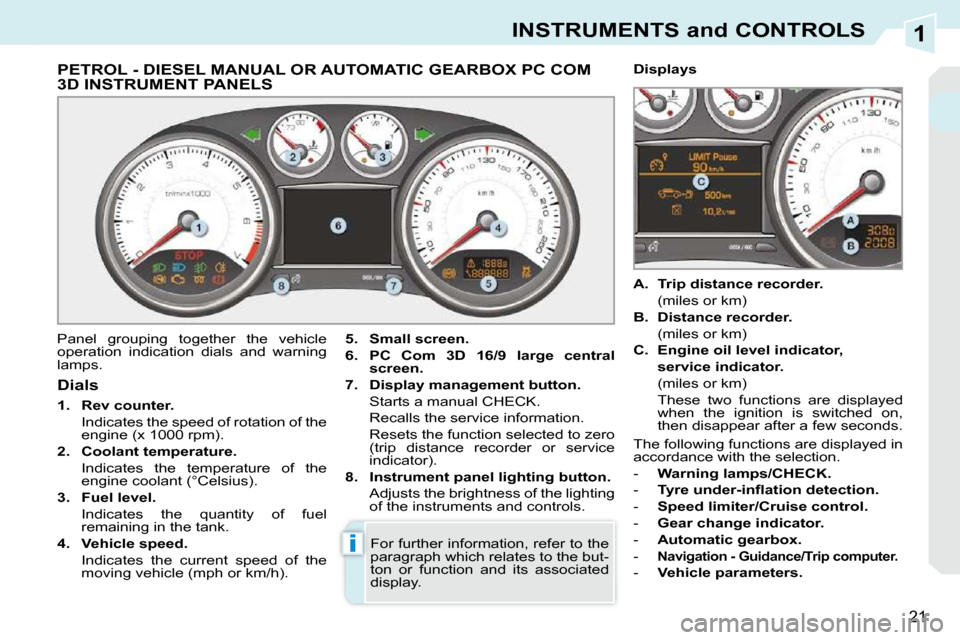

PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX PC COM 3D INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5. Small
screen
.
6. PC Com 3D 16/9 large central
screen
.
7. Display management button.
Starts a manual CHECK.
Recalls the service information.
Resets the function selected to zero (trip distance recorder or service
indicator).
8. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.
Dials
1. Rev counter.
Indicates the speed of rotation of the engine (x 1000 rpm).
2. Coolant temperature.
Indicates the temperature of the engine coolant (°Celsius).
3. Fuel level.
Indicates the quantity of fuel remaining in the tank.
4. Vehicle speed.
Indicates the current speed of the moving vehicle (mph or km/h).
A. Trip distance recorder.
(miles or km)
B. Distance recorder.
(miles or km)
C. Engine oil level indicator,
s
ervice indicator.
(miles or km)
These two functions are displayed when the ignition is switched on,
then disappear after a few seconds.
Displays
For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.
-
Warning lamps/CHECK.
- T y r e u n d e r - i n fl a t i o n d e t e c t i o n .
- Speed limiter/Cruise control.
- Gear change indicator.
- Automatic gearbox.
-
Navigation - Guidance/Trip computer.
- Vehicle parameters.
