MULTIFUNCTION SCREENS

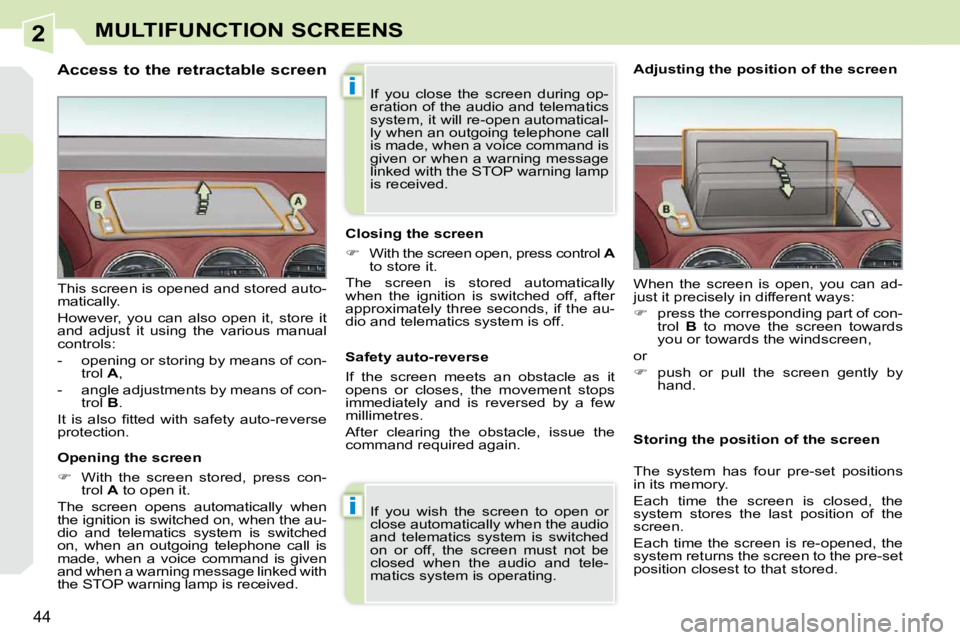

Access to the retractable screen
Opening the screen
With the screen stored, press con-
trol A to open it.
The screen opens automatically when
the ignition is switched on, when the au-
dio and telematics system is switched
on, when an outgoing telephone call is
made, when a voice command is given
and when a warning message linked with
the STOP warning lamp is received.
This screen is opened and stored auto-
matically.
However, you can also open it, store it
and adjust it using the various manual
controls:
- opening or storing by means of con-
trol A ,
- angle adjustments by means of con- trol B .
I t i s a l s o fi t t e d w i t h s a f e t y a u t o - r e v e r s e
protection. Closing the screen
With the screen open, press control A
to store it.
The screen is stored automatically
when the ignition is switched off, after
approximately three seconds, if the au-
dio and telematics system is off.
If you wish the screen to open or
close automatically when the audio
and telematics system is switched
on or off, the screen must not be
closed when the audio and tele-
matics system is operating. When the screen is open, you can ad-
just it precisely in different ways:
press the corresponding part of con-
trol B to move the screen towards
you or towards the windscreen,
or
push or pull the screen gently by
hand.
Adjusting the position of the screen
Safety auto-reverse
If the screen meets an obstacle as it
opens or closes, the movement stops
immediately and is reversed by a few
millimetres.
After clearing the obstacle, issue the
command required again. Storing the position of the screen
The system has four pre-set positions
in its memory.
Each time the screen is closed, the
system stores the last position of the
screen.
Each time the screen is re-opened, the
system returns the screen to the pre-set
position closest to that stored.
If you close the screen during op-
eration of the audio and telematics
system, it will re-open automatical-
ly when an outgoing telephone call
is made, when a voice command is
given or when a warning message
linked with the STOP warning lamp
is received.
Page 42 of 280
2
i
45
MULTIFUNCTION SCREENS
Monochrome screen C
With the monochrome screen C or
the instrument panel small screen
Information displays

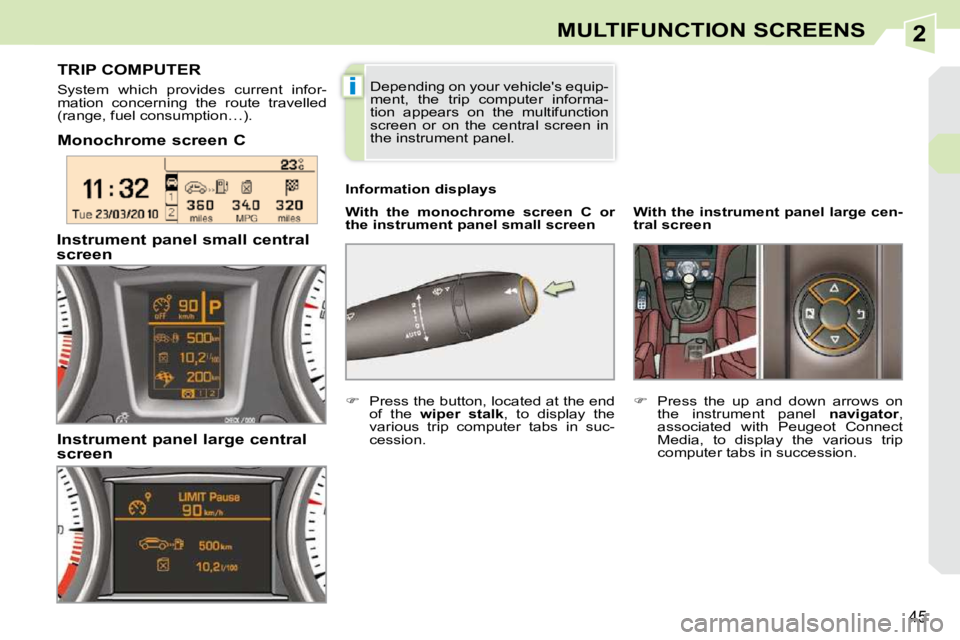

TRIP COMPUTER
System which provides current infor-
mation concerning the route travelled
(range, fuel consumption…).
Instrument panel small central
screen
Instrument panel large central
screen Depending on your vehicle's equip-
ment, the trip computer informa-
tion appears on the multifunction
screen or on the central screen in
the instrument panel.
With the instrument panel
large cen-
tral screen
Press the up and down arrows on
the instrument panel navigator ,
associated with Peugeot Connect
Media, to display the various trip
computer tabs in succession.
Press the button, located at the end
of the wiper stalk , to display the
various trip computer tabs in suc-
cession.
Page 43 of 280
2
46
MULTIFUNCTION SCREENS
When the trip required is displayed,
press the button on the end of the
wiper stalk for more than two sec-
onds.

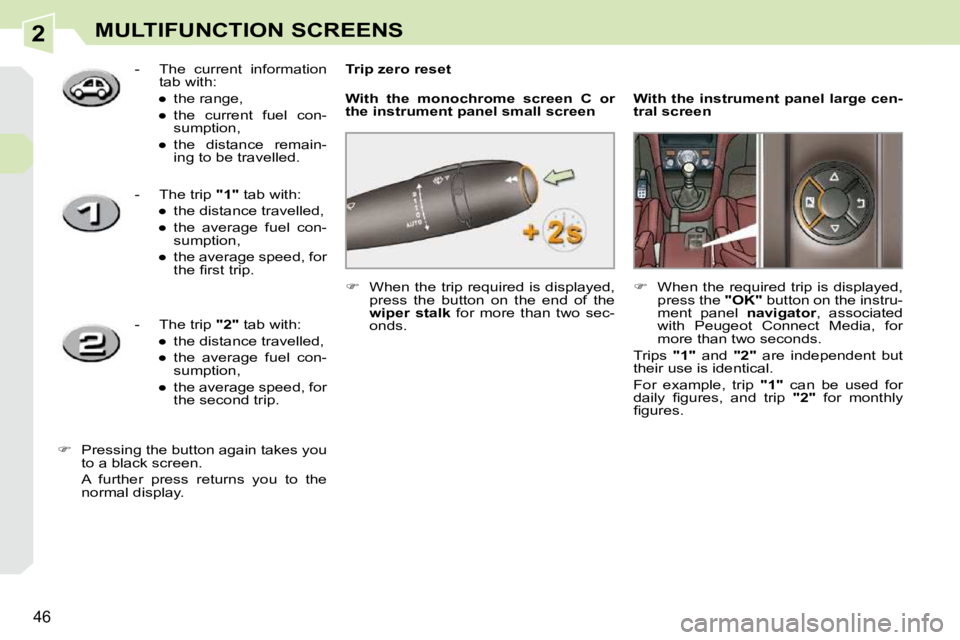

Trip zero reset
With the instrument panel
large cen-
tral screen
When the required trip is displayed,
press the "OK" button on the instru-
ment panel navigator , associated
with Peugeot Connect Media, for
more than two seconds.
Trips "1" and "2" are independent but
their use is identical.
For example, trip "1" can be used for
d a i l y fi g u r e s , a n d t r i p "2" for monthly
fi g u r e s .
With the monochrome screen C or
the instrument panel small screen
- The current information
tab with:
Page 44 of 280
2
!
i
i
47
MULTIFUNCTION SCREENS

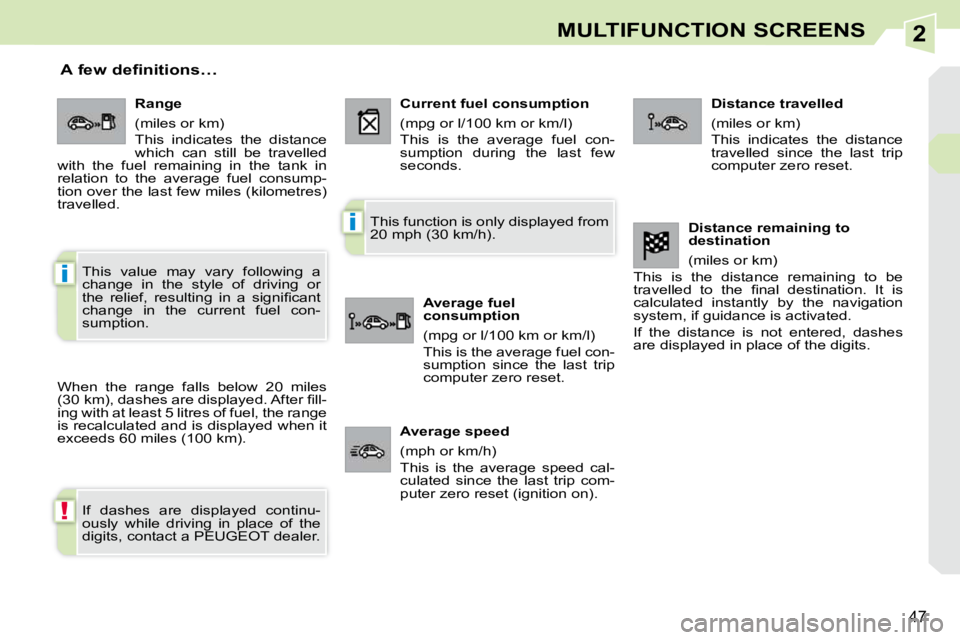

A few definitions…
When the range falls below 20 miles
( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l -
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km). If dashes are displayed continu-
ously while driving in place of the
digits, contact a PEUGEOT dealer. This function is only displayed from
20 mph (30 km/h).
This value may vary following a
change in the style of driving or
t h e r e l i e f , r e s u l t i n g i n a s i g n i fi c a n t
change in the current fuel con-
sumption. Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled. Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption during the last few
seconds.
Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset. Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.
Average speed
(mph or km/h)
This is the average speed cal-
culated since the last trip com-
puter zero reset (ignition on). Distance remaining to
destination
(miles or km)
This is the distance remaining to be
t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n . I t i s
calculated instantly by the navigation
system, if guidance is activated.
If the distance is not entered, dashes
are displayed in place of the digits.
Page 45 of 280
3
48
COMFORT

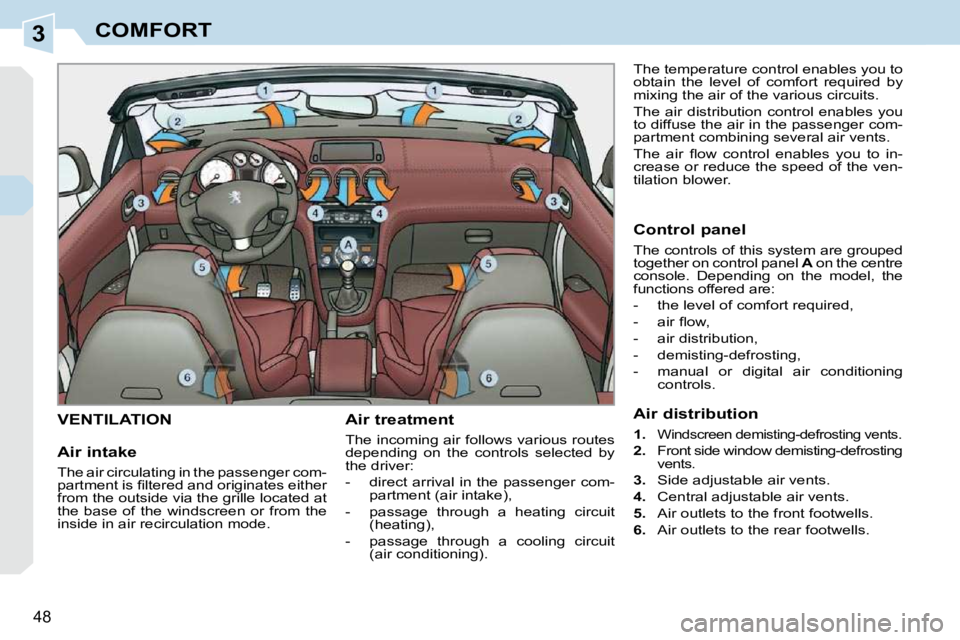

VENTILATION Air treatment
The incoming air follows various routes
depending on the controls selected by
the driver:
- direct arrival in the passenger com-partment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning). The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits.
The air distribution control enables you
to diffuse the air in the passenger com-
partment combining several air vents.
T h e a i r fl o w c o n t r o l e n a b l e s y o u t o i n -
crease or reduce the speed of the ven-
tilation blower.
Air intake
The air circulating in the passenger com-
p a r t m e n t i s fi l t e r e d a n d o r i g i n a t e s e i t h e r
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode. Control panel
The controls of this system are grouped
together on control panel
A on the centre
console. Depending on the model, the
functions offered are:
- the level of comfort required,
- a i r fl o w ,
- air distribution,
- demisting-defrosting,
- manual or digital air conditioning controls.
Air distribution
1. Windscreen demisting-defrosting vents.
2. Front side window demisting-defrosting
vents.
3. Side adjustable air vents.
4. Central adjustable air vents.
5. Air outlets to the front footwells.
6. Air outlets to the rear footwells.
Page 46 of 280
3
i
i
49
COMFORT
The condensation created by the
air conditioning results in a dis-
charge of water under the vehicle
which is perfectly normal.

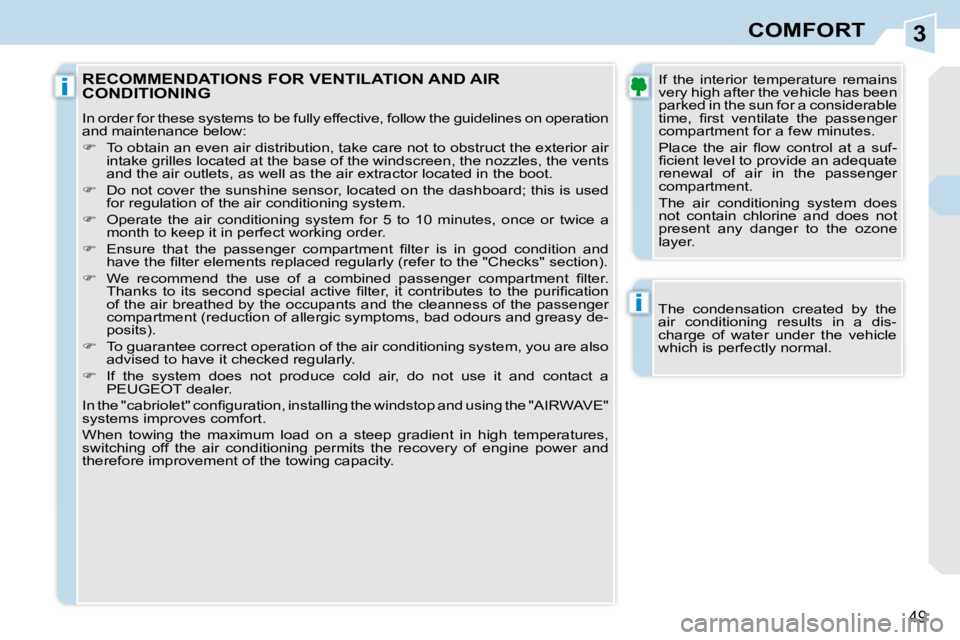

RECOMMENDATIONS FOR VENTILATION AND AIR CONDITIONING
In order for these systems to be fully effective, follow the guidelines on operation
and maintenance below:
To obtain an even air distribution, take care not to obst ruct the exterior air
intake grilles located at the base of the windscreen, the n ozzles, the vents
and the air outlets, as well as the air extractor located in the boot.
Do not cover the sunshine sensor, located on the dashboard ; this is used
for regulation of the air conditioning system.
Operate the air conditioning system for 5 to 10 minutes, on ce or twice a
month to keep it in perfect working order.
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t m e n t fi l t e r i s i n g o o d c o n d i t i o n a n d
h a v e t h e fi l t e r e l e m e n t s r e p l a c e d r e g u l a r l y ( r e f e r t o t h e " C h e c k s " s e c t i o n ) .
W e r e c o m m e n d t h e u s e o f a c o m b i n e d p a s s e n g e r c o m p a r t m e n t fi l t e r .
T h a n k s t o i t s s e c o n d s p e c i a l a c t i v e fi l t e r , i t c o n t r i b u t e s t o t h e p u r i fi c a t i o n
of the air breathed by the occupants and the cleanness of th e passenger
compartment (reduction of allergic symptoms, bad odours and greasy de-
posits).
To guarantee correct operation of the air conditioning syste m, you are also
advised to have it checked regularly.
If the system does not produce cold air, do not use it and contact a
PEUGEOT dealer.
I n t h e " c a b r i o l e t " c o n fi g u r a t i o n , i n s t a l l i n g t h e w i n d s t o p a n d u s i n g t h e " A I R W A V E "
systems improves comfort.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning permits the recovery of engi ne power and
therefore improvement of the towing capacity. If the interior temperature remains
very high after the vehicle has been
parked in the sun for a considerable
t i m e , fi r s t v e n t i l a t e t h e p a s s e n g e r
compartment for a few minutes.
P l a c e t h e a i r fl o w c o n t r o l a t a s u f -
fi c i e n t l e v e l t o p r o v i d e a n a d e q u a t e
renewal of air in the passenger
compartment.
The air conditioning system does
not contain chlorine and does not
present any danger to the ozone
layer.
Page 47 of 280
3
i
50
COMFORT
2 . A i r fl o w a d j u s t m e n t
Turn the dial from posi-
tion 1 to position 5 to obtain
a c o m f o r t a b l e a i r fl o w .
Windscreen, side windows and
footwells.
Footwells.
(vents closed) Central and side vents.
Turn the dial from blue
(cold) to red (hot) to adjust
the temperature to your re-
quirements. Windscreen and side windows.
1 . T e m p e r a t u r e a d j u s t m e n t The air distribution can be
adapted by placing the dial in
an intermediate position.
The air conditioning can only operate
with the engine running. 4. Air intake/Air recirculation
The intake of exterior air prevents the
formation of condensation on the wind-
screen and side windows.
The recirculation of interior air insulates
the passenger compartment from exte-
rior odours and smoke.
R e t u r n t o e x t e r i o r a i r i n t a k e a s s o o n a s
possible to prevent deterioration of the air
quality and the formation of condensation.
I f y o u p l a c e t h e a i r fl o w c o n t r o l
in position 0 (deactivation of the
system), the temperature is no
longer maintained at a comfort-
able level. However, a slight
fl o w o f a i r , d u e t o t h e m o v e m e n t
of the vehicle, can still be felt.
3 . A i r d i s t r i b u t i o n a d j u s t m e n t
Press the button to recir-
culate the interior air. The
indicator lamp comes on to
c o n fi r m t h i s .
Press the button again to permit the
intake of exterior air. The indicator

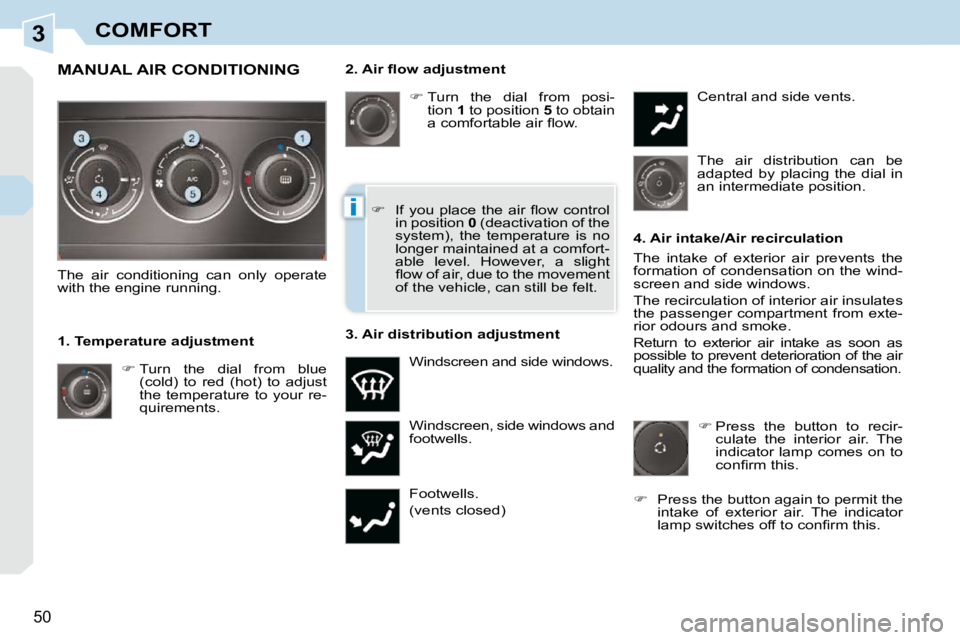

l a m p s w i t c h e s o f f t o c o n fi r m t h i s . MANUAL AIR CONDITIONING
Page 48 of 280
3
i
i
51
COMFORT
The control button is located
on the heating or air condition-
ing system control panel.

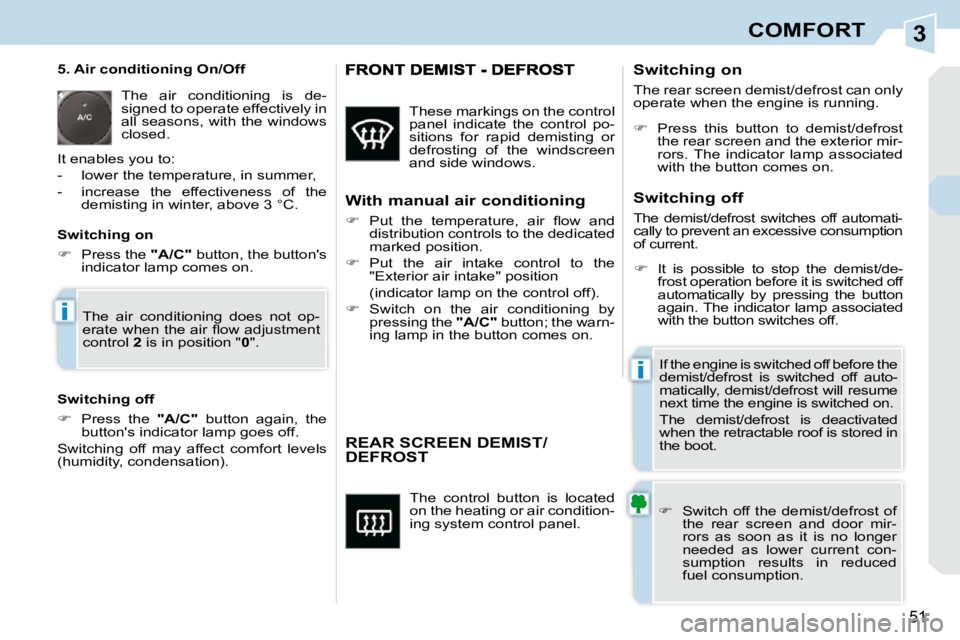

REAR SCREEN DEMIST/DEFROST
Switch off the demist/defrost of
the rear screen and door mir-
rors as soon as it is no longer
needed as lower current con-
sumption results in reduced
fuel consumption.
If the engine is switched off before the
demist/defrost is switched off auto-
matically, demist/defrost will resume
next time the engine is switched on.
The demist/defrost is deactivated
when the retractable roof is stored in
the boot.
S w i t c h i n g o n
The rear screen demist/defrost can only
operate when the engine is running.
S w i t c h i n g o f f
The demist/defrost switches off automati-
cally to prevent an excessive consumption
of current.
5 . A i r c o n d i t i o n i n g O n / O f f
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the demisting in winter, above 3 °C.
S w i t c h i n g o f f
Press the "A/C" button again, the
button's indicator lamp goes off.
Switching off may affect comfort levels
(humidity, condensation).
Press this button to demist/defrost
the rear screen and the exterior mir-
rors. The indicator lamp associated
with the button comes on.
It is possible to stop the demist/de-
frost operation before it is switched off
automatically by pressing the button
again. The indicator lamp associated
with the button switches off.
S w i t c h i n g o n
Press the "A/C" button, the button's
indicator lamp comes on.
These markings on the control
panel indicate the control po-
sitions for rapid demisting or
defrosting of the windscreen
and side windows.
W i t h m a n u a l a i r c o n d i t i o n i n g
P u t t h e t e m p e r a t u r e , a i r fl o w a n d
distribution controls to the dedicated
marked position.
Put the air intake control to the
" E x t e r i o r a i r i n t a k e " p o s i t i o n
(indicator lamp on the control off).
Switch on the air conditioning by
pressing the "A/C" button; the warn-
ing lamp in the button comes on.
The air conditioning does not op-
e r a t e w h e n t h e a i r fl o w a d j u s t m e n t
control
2 i s i n p o s i t i o n " 0 " .
Page 49 of 280
3
i
i
51
COMFORT
The control button is located
on the heating or air condition-
ing system control panel.
REAR SCREEN DEMIST/DEFROST
Switch off the demist/defrost of
the rear screen and door mir-
rors as soon as it is no longer
needed as lower current con-
sumption results in reduced
fuel consumption.
If the engine is switched off before the
demist/defrost is switched off auto-
matically, demist/defrost will resume
next time the engine is switched on.
The demist/defrost is deactivated
when the retractable roof is stored in
the boot.
S w i t c h i n g o n
The rear screen demist/defrost can only
operate when the engine is running.
S w i t c h i n g o f f
The demist/defrost switches off automati-
cally to prevent an excessive consumption
of current.
5 . A i r c o n d i t i o n i n g O n / O f f
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the demisting in winter, above 3 °C.
S w i t c h i n g o f f
Press the "A/C" button again, the
button's indicator lamp goes off.
Switching off may affect comfort levels
(humidity, condensation).
Press this button to demist/defrost
the rear screen and the exterior mir-
rors. The indicator lamp associated
with the button comes on.
It is possible to stop the demist/de-
frost operation before it is switched off
automatically by pressing the button
again. The indicator lamp associated
with the button switches off.
S w i t c h i n g o n
Press the "A/C" button, the button's
indicator lamp comes on.
These markings on the control
panel indicate the control po-
sitions for rapid demisting or
defrosting of the windscreen
and side windows.
W i t h m a n u a l a i r c o n d i t i o n i n g
P u t t h e t e m p e r a t u r e , a i r fl o w a n d
distribution controls to the dedicated
marked position.
Put the air intake control to the
" E x t e r i o r a i r i n t a k e " p o s i t i o n
(indicator lamp on the control off).
Switch on the air conditioning by
pressing the "A/C" button; the warn-
ing lamp in the button comes on.
The air conditioning does not op-
e r a t e w h e n t h e a i r fl o w a d j u s t m e n t
control
2 i s i n p o s i t i o n " 0 " .
Page 50 of 280
3
ii
52

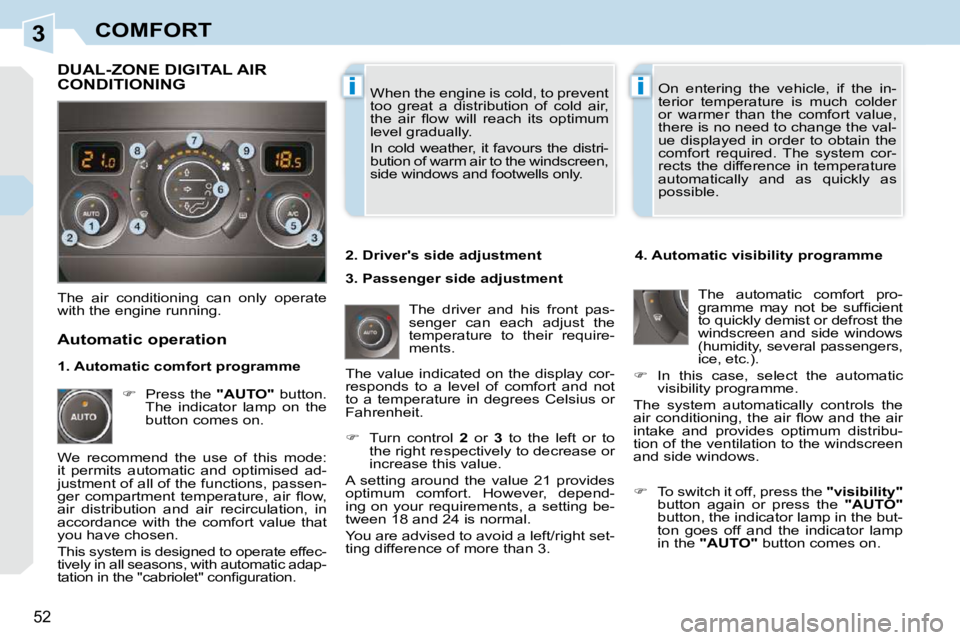

COMFORT
When the engine is cold, to prevent
too great a distribution of cold air,
t h e a i r fl o w w i l l r e a c h i t s o p t i m u m
level gradually.
In cold weather, it favours the distri-
bution of warm air to the windscreen,
side windows and footwells only. On entering the vehicle, if the in-
terior temperature is much colder
or warmer than the comfort value,
there is no need to change the val-
ue displayed in order to obtain the
comfort required. The system cor-
rects the difference in temperature
automatically and as quickly as
possible.
The air conditioning can only operate
with the engine running. The driver and his front pas-
senger can each adjust the
temperature to their require-
ments.
Turn control 2 or 3 to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depend-
ing on your requirements, a setting be-
tween 18 and 24 is normal.
You are advised to avoid a left/right set-
ting difference of more than 3. 4 . A u t o m a t i c v i s i b i l i t y p r o g r a m m e
The automatic comfort pro-
g r a m m e m a y n o t b e s u f fi c i e n t
to quickly demist or defrost the
windscreen and side windows
(humidity, several passengers,
ice, etc.).
In this case, select the automatic
visibility programme.
The system automatically controls the
a i r c o n d i t i o n i n g , t h e a i r fl o w a n d t h e a i r
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.
Automatic operation
Press the "AUTO" button.
The indicator lamp on the
button comes on. 2 . D r i v e r ' s s i d e a d j u s t m e n t
DUAL-ZONE DIGITAL AIR CONDITIONING
We recommend the use of this mode:
it permits automatic and optimised ad-
justment of all of the functions, passen-
g e r c o m p a r t m e n t t e m p e r a t u r e , a i r fl o w ,
air distribution and air recirculation, in
accordance with the comfort value that
you have chosen.
This system is designed to operate effec-
tively in all seasons, with automatic adap-
t a t i o n i n t h e " c a b r i o l e t " c o n fi g u r a t i o n . The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
To switch it off, press the "visibility"
button again or press the "AUTO"
button, the indicator lamp in the but-
ton goes off and the indicator lamp
in the "AUTO" button comes on.
1 . A u t o m a t i c c o m f o r t p r o g r a m m e
3 . P a s s e n g e r s i d e a d j u s t m e n t
