FAMILIARISATION Welcome lighting
This additional exterior and interior lighting,
controlled remotely, makes your approach
to the vehicle easier when the light is poor.
83, 88
Directional lighting
This lighting automatically provides ad-
ditional visibility when cornering.
84 Retractable roof
This system changes from the "coupé"
c o n fi g u r a t i o n t o t h e " c a b r i o l e t " c o n fi g u r a -
tion and vice versa with a single action.
6
Windstop
I n t h e " c a b r i o l e t " c o n fi g u r a t i o n , t h i s
comfort system reduces air swirl at the
front seats.
54
EXTERIOR
Temporary tyre repair kit
This kit is a complete system,
consisting of a compressor
and a sealant cartridge, for the
temporary repair of a tyre.
134
Page 2 of 280
FAMILIARISATION
Remote control key
A. Unfolding/Folding the key
( fi r s t p r e s s t h i s b u t t o n ) .
Normal locking
( p r e s s o n c e ; fi x e d l i g h t i n g o f
t h e d i r e c t i o n i n d i c a t o r s ) . Fuel tank
1. O p e n i n g t h e f u e l fi l l e r fl a p .
2. O p e n i n g a n d h o o k i n g t h e f u e l fi l l e r
cap.
Capacity of the tank: approximately
60 litres.
Unlocking and partial opening
of the boot
( p r e s s f o r m o r e t h a n t w o s e c o n d s ) .
When the light is poor, detected by a
sensor, the remote switching on of the
dipped beam headlamps, sidelamps
and side spotlamps makes your ap-
proach to the vehicle easier.
83
In the same way, the passenger com-
partment lighting, such as the courtesy
lamps, the door sill lamps and the foot-
well lamps, comes on.
or
Deadlocking of the vehicle
(press twice in succession;
fi x e d l i g h t i n g o f t h e d i r e c t i o n
i n d i c a t o r s ) .
65
88
78
OPENING
Complete or selective unlock-
ing of the vehicle
( r a p i d fl a s h i n g o f t h e d i r e c t i o n
i n d i c a t o r s ) .
Locking the vehicle using the remote
control or the key also locks the glove
box and the front armrest.
Page 3 of 280
!
!
!
FAMILIARISATION
OPENING

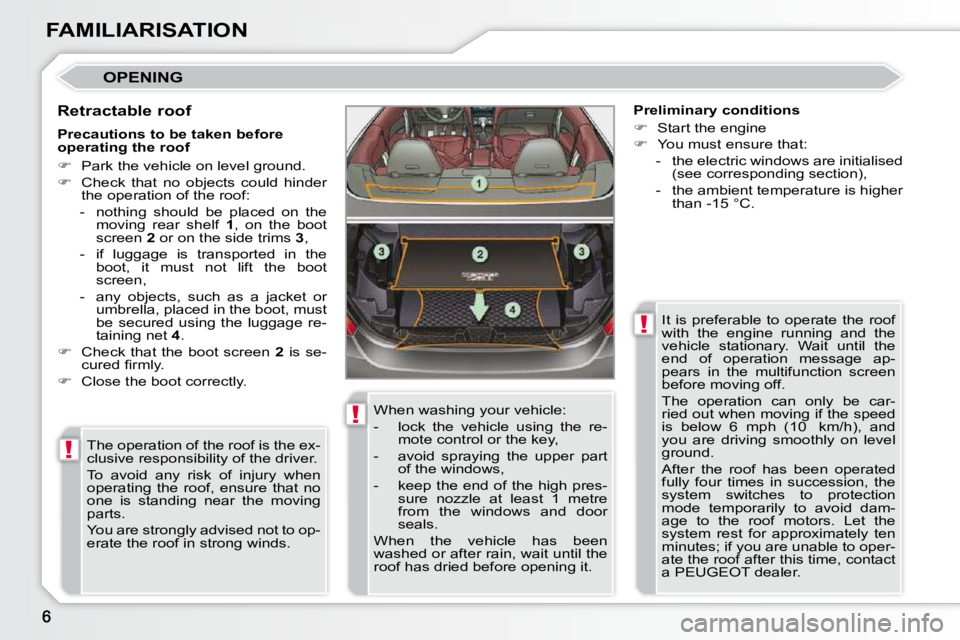

Retractable roof The operation of the roof is the ex-
clusive responsibility of the driver.
To avoid any risk of injury when
operating the roof, ensure that no
one is standing near the moving
parts.
You are strongly advised not to op-
erate the roof in strong winds. When washing your vehicle:
- lock the vehicle using the re-
mote control or the key,
- avoid spraying the upper part of the windows,
- keep the end of the high pres- sure nozzle at least 1 metre
from the windows and door
seals.
When the vehicle has been
washed or after rain, wait until the
roof has dried before opening it. It is preferable to operate the roof
with the engine running and the
vehicle stationary. Wait until the
end of operation message ap-
pears in the multifunction screen
before moving off.
The operation can only be car-
ried out when moving if the speed
i s b e l o w 6 m p h ( 1 0 k m / h ) , a n d
you are driving smoothly on level
ground.
After the roof has been operated
fully four times in succession, the
system switches to protection
mode temporarily to avoid dam-
age to the roof motors. Let the
system rest for approximately ten
minutes; if you are unable to oper-
ate the roof after this time, contact
a PEUGEOT dealer.
Preliminary conditions
Start the engine
You must ensure that:
- the electric windows are initialised ( s e e c o r r e s p o n d i n g s e c t i o n ) ,
- the ambient temperature is higher than -15 °C.
Precautions to be taken before
operating the roof
Park the vehicle on level ground.
Check that no objects could hinder
the operation of the roof:
- nothing should be placed on the moving rear shelf 1 , on the boot
screen 2 or on the side trims 3 ,
- if luggage is transported in the boot, it must not lift the boot
screen,
- any objects, such as a jacket or umbrella, placed in the boot, must
be secured using the luggage re-
taining net 4 .
Check that the boot screen 2 is se-
c u r e d fi r m l y .
Close the boot correctly.
Page 4 of 280
!
!
ii
!
FAMILIARISATION
OPENING
Retractable roof operations
Opening the roof
Pull this control until the roof
opening operation is com-
plete.
Closing the roof
Press this control until the
roof closing operation is
complete.
C h a n g e t o " c a b r i o l e t " c o n fi g u r a t i o n :
- the four windows lower partially,
- the boot opens,
- the roof folds into the boot,
- the boot closes.
C h a n g e t o " c o u p é " c o n fi g u r a t i o n :
- the four windows lower partially,
- the boot opens,
- the roof unfolds and locks automati- cally,
- the boot closes.
To ensure that the roof operates
correctly, do not release the con-
trol while the roof is moving.
However, in the event of any danger,
release the control, the roof stops; then,
once the danger had been eliminated,
complete the movement required.
Operating fault
If a malfunction of the roof occurs,
apply the parking brake, switch off
the ignition, start the engine again,
then start the operation required
again.
If the problem persists, contact a
PEUGEOT dealer. The electric window controls and
the control for all four windows are
deactivated while the roof is in op-
eration.
T h e e n d o f t h e o p e r a t i o n i s c o n fi r m e d
by an audible signal and a message in
the multifunction screen.
T h e e n d o f t h e o p e r a t i o n i s c o n fi r m e d
by an audible signal and a message on
the multifunction screen.
If you continue to pull or press this
control after the end of the opera-
tion, the four windows rise.
The roof's electronic control unit
may interrupt the operation in
progress as a precaution (ex-
ample: door movement and roof
o p e r a t i o n i n q u i c k s u c c e s s i o n ) . I n
this case, release the control, then
activate it again to complete the
operation required.
Page 5 of 280
FAMILIARISATION Interior mood lighting
This subdued lighting of the passenger
compartment improves visibility inside
the vehicle when the light is poor.
88
"AIRWAVE" system
Incorporated in each front head re-
straint, this heating system improves
your comfort around the neck in cold
weather, particularly in the "cabriolet"
c o n fi g u r a t i o n . I t o p e r a t e s m o s t e f f e c -
tively with the Windstop installed in the
raised position.
60 Audio and telematics systems
T h e s e s y s t e m s b e n e fi t f r o m t h e l a t e s t
technology: MP3 compatible Peugeot
Connect Sound, Peugeot Connect
Bluetooth, Peugeot Connect Navigation
or Peugeot Connect Media with 16/9 re-
tractable colour screen, JBL audio sys-
tem, auxiliary sockets.
Peugeot Connect Sound
249
Peugeot Connect Navigation
217
Peugeot Connect Media
173
Secure storage compartments
The glove box and the front armrest are
designed to remain locked, even in the
" c a b r i o l e t " c o n fi g u r a t i o n . T h e y c a n o n l y
be locked using the remote control or
the key at the same time as the rest of
the vehicle.
90, 91
INTERIOR
Page 6 of 280
FAMILIARISATION
1. Cruise control/speed limiter switches.
2. Steering wheel adjustment control.
3. Lighting and direction indicator
control stalk.
4. Instrument panel.
5. Driver's airbag.
Horn.
6. Gear lever.
7. Parking brake.
8. 12 V accessory socket.
9. Heated seat control.
10. Door mirror controls.
Electric window controls.
11. Bonnet release.
12. Fusebox.
13. Manual headlamp height
adjustment.
14. Side adjustable air vent.
15. Front side window demisting vent.
16. S p e a k e r ( t w e e t e r ) .
17. Windscreen demisting vent.
INSTRUMENTS AND CONTROLS
Page 7 of 280
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Steering lock and ignition.
2. Audio and telematics system
steering mounted control stalk.
3. Wipers/screenwash/trip computer
control stalk.
4. Central adjustable air vents.
5. Multifunction screen.
6. Sunshine sensor.
7. Passenger's airbag.
8. Passenger's airbag deactivation
switch.
9. Glove box/Audio/video sockets.
10. Retractable roof control.
Control for all four windows.
11. Storage compartment or instrument
panel navigator associated with the
Peugeot Connect Media.
12. "AIRWAVE" system controls.
13. Front armrest.
14. Front ashtray.
15. Heating/air conditioning controls.
16. Audio and telematics system.
17. Emergency call button.
Alarm button.
Central locking button.
Hazard warning lamps button.
D y n a m i c s t a b i l i t y c o n t r o l ( E S P / A S R ) button.
Parking sensors button.
PEUGEOT services button.
Page 8 of 280
FAMILIARISATION
Front seats
Manual adjustments
Electric adjustments
Forwards-backwards
57
58 Seat back angle
Height
Page 9 of 280
i!
FAMILIARISATION
SITTING COMFORTABLY
Steering wheel adjustment
1. Release the adjustment mechanism.
2. Adjust for height and reach.
3. Lock the adjustment mechanism.
Front seats
Other functions available...
Storing driving positions (driver's
e l e c t r i c s e a t ) .
61
"AIRWAVE" system.
Heated seats.
60
Electric access to the rear seats
Lockable front armrest
91
64 For your comfort, the height and the
longitudinal position of the front armrest
can be adjusted.
It also offers a storage compartment. As
a security measure when in the "cabrio-
l e t " c o n fi g u r a t i o n , t h i s i s l o c k e d a t t h e
same time as the rest of the vehicle,
only when using the remote control or
the key.
As a safety precaution, these op-
erations must only be carried out
when stationary.
1. Control for release of the seat back
and automatic forward movement of
the seat.
2. Control for returning the seat to the
initial position.
59
Page 10 of 280
i
FAMILIARISATION
SITTING COMFORTABLY
Door mirrors
Adjustment Other functions available...
Folding/Unfolding.
Automatic tilting of the mirror in re-
verse gear for parking.
63 Rear view mirror
1. Selection of the "day" position of the
mirror.
2. Mirror adjustment.
63 Front seat belts
1. Position the strap.
2. Fasten the buckle.
3. Check the fastening by pulling the
strap.
A. Selection of the mirror to be adjusted.
B. Adjustment of the position of the mir-
ror in all four directions.
C. De-selection of the mirror.
101
Manual day/night model
Automatic day/night model
A. Light level detection of the automat-
ic day/night mode.
B. Mirror adjustment.
64
