Page 17 of 260
!

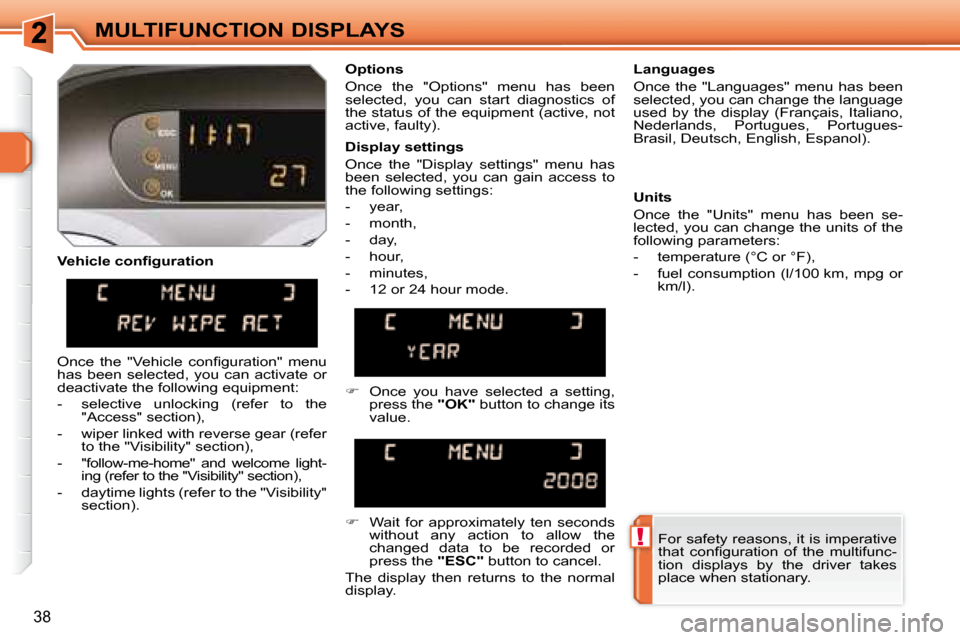

38
MULTIFUNCTION DISPLAYS
V e h i c l e c o n fi g u r a t i o n Options
Once the "Options" menu has been
selected, you can start diagnostics of
the status of the equipment (active, not
active, faulty).
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode. Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).
Once you have selected a setting,
press the "OK" button to change its
value.
W a i t f o r a p p r o x i m a t e l y t e n s e c o n d s
without any action to allow the
changed data to be recorded or
press the "ESC" button to cancel.
The display then returns to the normal
display.
O n c e t h e " V e h i c l e c o n fi g u r a t i o n " m e n u
has been selected, you can activate or
deactivate the following equipment:
- selective unlocking (refer to the "Access" section),
- wiper linked with reverse gear (refer to the "Visibility" section),
- "follow-me-home" and welcome light- ing (refer to the "Visibility" section),
- daytime lights (refer to the "Visibility" section).
For safety reasons, it is imperative
t h a t c o n fi g u r a t i o n o f t h e m u l t i f u n c -
tion displays by the driver takes
place when stationary.
Page 18 of 260
39
MULTIFUNCTION DISPLAYS
MONOCHROME SCREEN A Controls
Displays on the screen
This displays the following information:
- the time,
- the date,
- t h e o u t s i d e t e m p e r a t u r e * ( t h i s fl a s h e s if there is a risk of ice),
- the status of the accesses (doors, boot, ...),
- the audio sources (radio, CD, ...),
- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. These can be cleared
by pressing the "ESC" button. General menu
Press the "MENU" button to gain
access to the general menu , then
press the " " or " " buttons to
scroll through the various menus:
- radio-CD,
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- display settings,
- languages,
- units.
Press the "OK" button to select the
menu required.
From the RD4 audio equipment control
panel, you can:
press the "MENU" button to gain
access to the general menu ,
press the " " or " " buttons to
scroll through the items on the
screen,
press the "MODE" button to change
the permanent application (trip
computer, audio source, ...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress. Radio-CD
With the RD4 audio equipment switched
on, once the "Radio-CD" menu has been
selected you can activate or deactivate
the functions linked with use of the radio
(RDS, REG), the CD or the CD changer
( i n t r o s c a n , s h u f fl e , C D r e p e a t ) .
For further details concerning the
"Radio-CD" application, refer to the
RD4 part of the "Audio and Telematics"
section.
* With air conditioning only.
Page 19 of 260
!

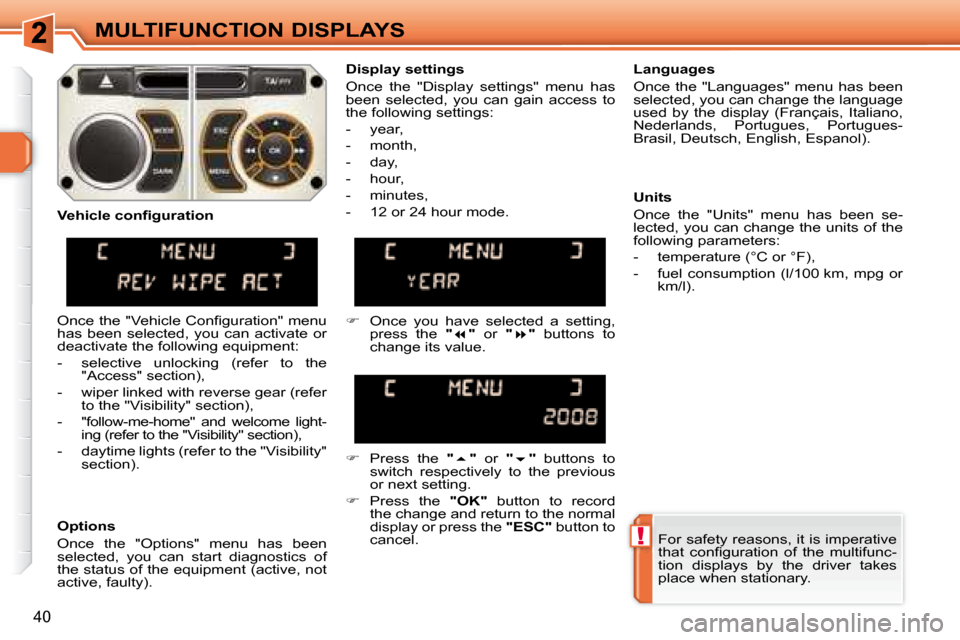

40
MULTIFUNCTION DISPLAYS For safety reasons, it is imperative
t h a t c o n fi g u r a t i o n o f t h e m u l t i f u n c -
tion displays by the driver takes
place when stationary.
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).
Once you have selected a setting,
press the " " or " " buttons to
change its value.
Press the " " or " " buttons to
switch respectively to the previous
o r n e x t s e t t i n g .
Press the "OK" button to record
the change and return to the normal
display or press the "ESC" button to
cancel.
V e h i c l e c o n fi g u r a t i o n
Options
Once the "Options" menu has been
selected, you can start diagnostics of
the status of the equipment (active, not
active, faulty).
O n c e t h e " V e h i c l e C o n fi g u r a t i o n " m e n u
has been selected, you can activate or
deactivate the following equipment:
- selective unlocking (refer to the
"Access" section),
- wiper linked with reverse gear (refer to the "Visibility" section),
- "follow-me-home" and welcome light- ing (refer to the "Visibility" section),
- daytime lights (refer to the "Visibility" section).
Page 22 of 260
!

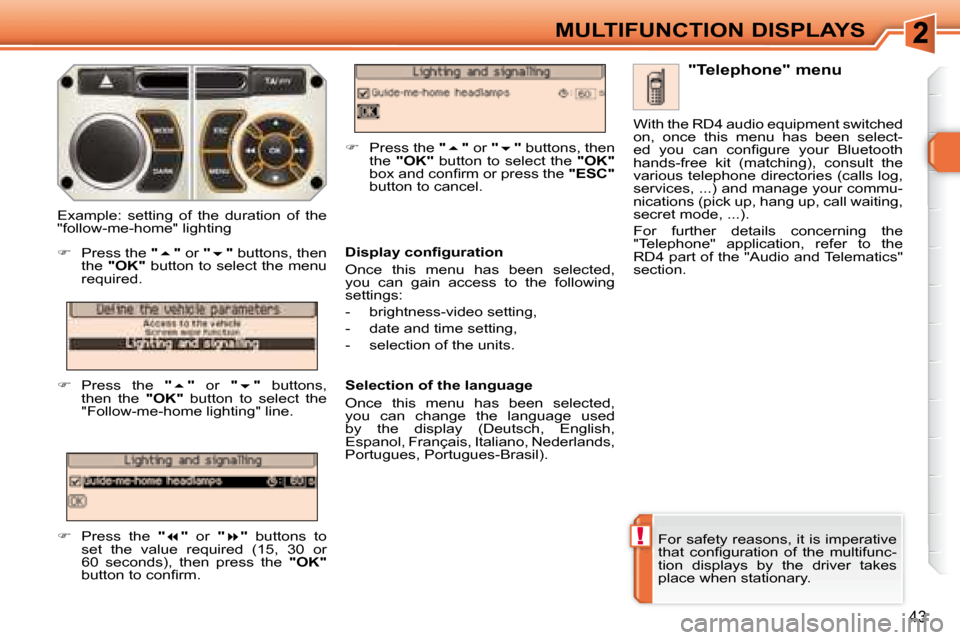

43
MULTIFUNCTION DISPLAYS
For safety reasons, it is imperative
t h a t c o n fi g u r a t i o n o f t h e m u l t i f u n c -
tion displays by the driver takes
place when stationary. "Telephone" menu
D i s p l a y c o n fi g u r a t i o n
Once this menu has been selected,
you can gain access to the following
settings:
- brightness-video setting,
- date and time setting,
- selection of the units.
Selection of the language
Once this menu has been selected,
you can change the language used
by the display (Deutsch, English,
Espanol, Français, Italiano, Nederlands,
Portugues, Portugues-Brasil).
E x a m p l e : s e t t i n g o f t h e d u r a t i o n o f t h e
"follow-me-home" lighting
Press the " " or " " buttons, then
the "OK" button to select the menu
required.
Press the " " or " " buttons,
then the "OK" button to select the
"Follow-me-home lighting" line.
Press the " " or " " buttons to
set the value required (15, 30 or
60 seconds), then press the "OK"
b u t t o n t o c o n fi r m .
Press the " " or " " buttons, then
the "OK" button to select the "OK"
b o x a n d c o n fi r m o r p r e s s t h e "ESC"
button to cancel. With the RD4 audio equipment switched
on, once this menu has been select-
e d y o u c a n c o n fi g u r e y o u r B l u e t o o t h
hands-free kit (matching), consult the
various telephone directories (calls log,
services, ...) and manage your commu-
nications (pick up, hang up, call waiting,
secret mode, ...).
For further details concerning the
"Telephone" application, refer to the
RD4 part of the "Audio and Telematics"
section.
Page 253 of 260
253
11
2
3
4
3
4
3
4
2
3
4
3
4
2
3
4
2
4
4
3
4
4
4
3
4
4
1
2
3
2
1
2
3
3
3
4
4
4
2
3
4
3
4
3
4
2
3
3
3
4
07
PERSONALISATION-CONFIGURATION AUDIO FUNCTIONS

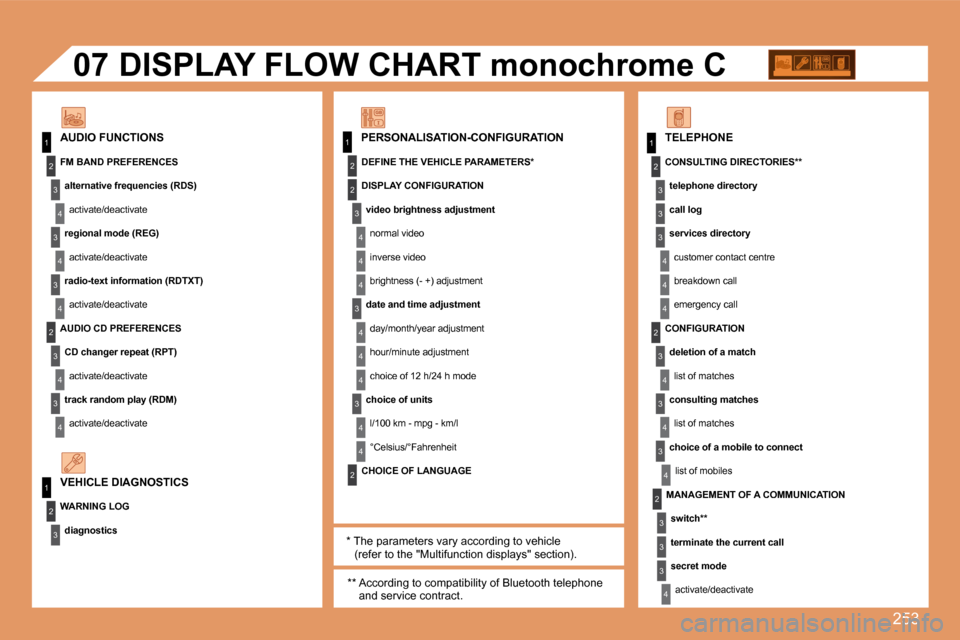

DISPLAY FLOW CHART monochrome C
* The parameters vary according to vehicle (refer to the "Multifunction displays" section).
** According to compatibility of Bluetooth telephone and service contract.
TELEPHONE
VEHICLE DIAGNOSTICS
FM BAND PREFERENCES
alternative frequencies (RDS)
activate/deactivate
regional mode (REG)
activate/deactivate
radio-text information (RDTXT)
activate/deactivate
AUDIO CD PREFERENCES
CD changer repeat (RPT)
activate/deactivate
track random play (RDM)
activate/deactivate
WARNING LOG
diagnostics
DEFINE THE VEHICLE PARAMETERS *
CHOICE OF LANGUAGE
DISPLAY CONFIGURATION
video brightness adjustment
normal video
inverse video
brightness (- +) adjustment
date and time adjustment
day/month/year adjustment
hour/minute adjustment
choice of 12 h/24 h mode
choice of units
l/100 km - mpg - km/l
°Celsius/°Fahrenheit
CONSULTING DIRECTORIES **
telephone directory
call log
services directory
customer contact centre
breakdown call
emergency call
MANAGEMENT OF A COMMUNICATION
switch **
terminate the current call
secret mode
activate/deactivate
CONFIGURATION
deletion of a match
list of matches
consulting matches
list of matches
choice of a mobile to connect
list of mobiles
