Page 3 of 260
!

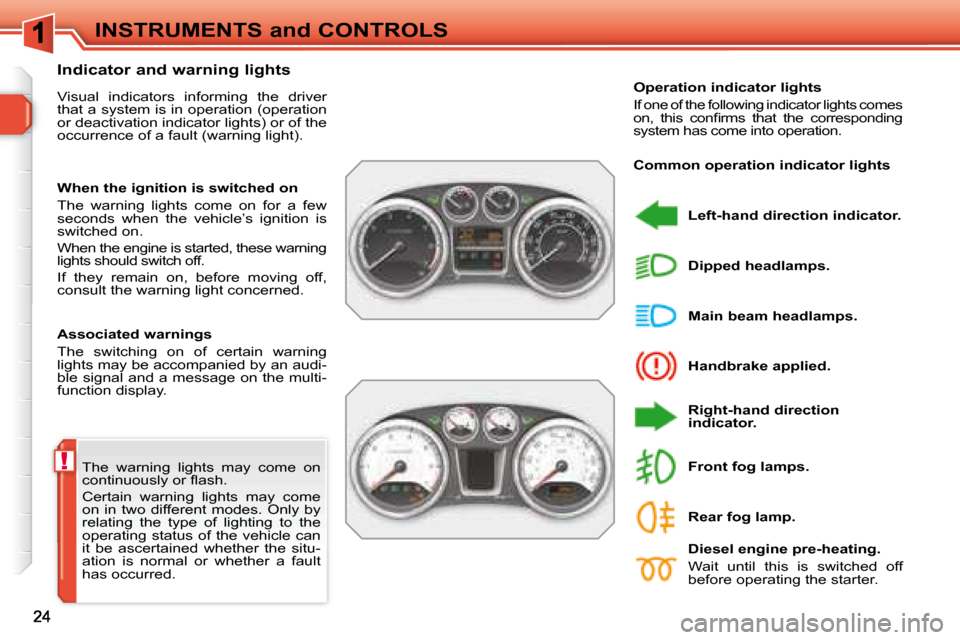

INSTRUMENTS and CONTROLS
The warning lights may come on
c o n t i n u o u s l y o r fl a s h .
Certain warning lights may come
on in two different modes. Only by
relating the type of lighting to the
operating status of the vehicle can
it be ascertained whether the situ-
ation is normal or whether a fault
has occurred.
Indicator and warning lights
Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lights) or of the
occurrence of a fault (warning light).
Associated warnings
The switching on of certain warning
lights may be accompanied by an audi-
ble signal and a message on the multi-
function display.
Operation indicator lights
If one of the following indicator lights comes
o n , t h i s c o n fi r m s t h a t t h e c o r r e s p o n d i n g
system has come into operation.
Left-hand direction indicator.
Handbrake applied.
Right-hand direction
indicator.
Main beam headlamps.
Dipped headlamps.
Diesel engine pre-heating.
Wait until this is switched off
before operating the starter.
Front fog lamps.
Rear fog lamp.
When the ignition is switched on
The warning lights come on for a few
seconds when the vehicle’s ignition is
switched on.
When the engine is started, these warning
lights should switch off.
If they remain on, before moving off,
consult the warning light concerned.
Common operation indicator lights
Page 78 of 260
90

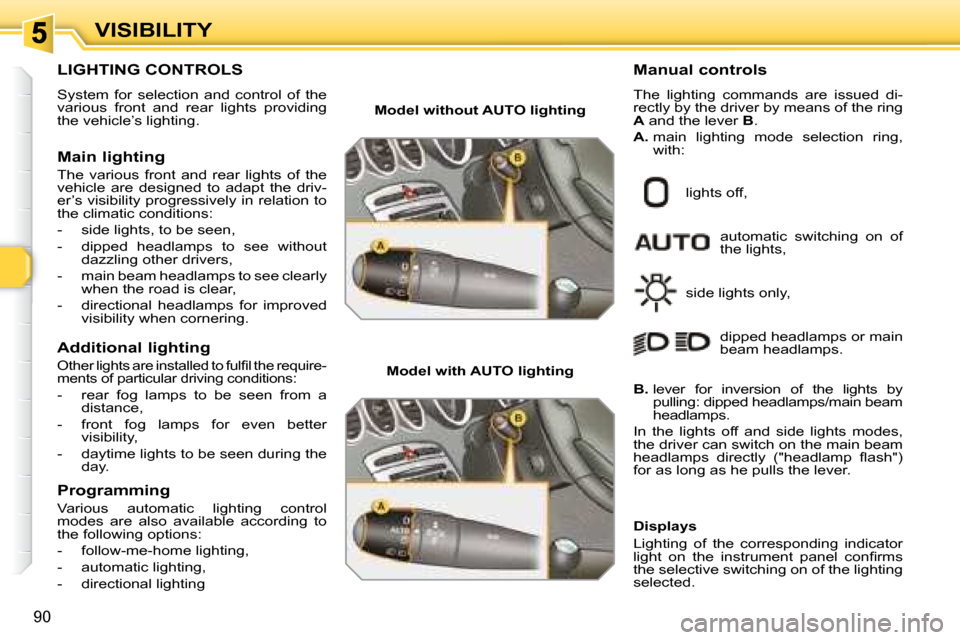

VISIBILITY
LIGHTING CONTROLS
System for selection and control of the
various front and rear lights providing
the vehicle’s lighting.
Main lighting
The various front and rear lights of the
vehicle are designed to adapt the driv-
er’s visibility progressively in relation to
the climatic conditions:
- side lights, to be seen,
- dipped headlamps to see without dazzling other drivers,
- main beam headlamps to see clearly when the road is clear,
- directional headlamps for improved visibility when cornering.
Additional lighting
O t h e r l i g h t s a r e i n s t a l l e d t o f u l fi l t h e r e q u i r e -
ments of particular driving conditions:
- rear fog lamps to be seen from a distance,
- front fog lamps for even better visibility,
- daytime lights to be seen during the day.
Programming
Various automatic lighting control
modes are also available according to
the following options:
- follow-me-home lighting,
- automatic lighting,
- directional lighting Model without AUTO lighting
Model with AUTO lighting automatic switching on of
the lights,
Manual controls
The lighting commands are issued di-
rectly by the driver by means of the ring
A and the lever B .
A. main lighting mode selection ring,
with:
lights off,
side lights only,
B. lever for inversion of the lights by
pulling: dipped headlamps/main beam
headlamps.
In the lights off and side lights modes,
the driver can switch on the main beam
h e a d l a m p s d i r e c t l y ( " h e a d l a m p fl a s h " )
for as long as he pulls the lever. dipped headlamps or main
beam headlamps.
Displays
Lighting of the corresponding indicator
l i g h t o n t h e i n s t r u m e n t p a n e l c o n fi r m s
the selective switching on of the lighting
selected.
Page 79 of 260
!
i
91
VISIBILITY
Model with rear fog lamp only rear fog lamp
To switch on the fog lamp, turn the
ring C forwards.
When the lights are switched off auto-
matically (with AUTO model), the fog
lamp and the dipped headlamps will re-
main on.
To switch off all of the lights, turn the
ring C rearwards. In good or rainy weather, both day
and night, the front fog lamps and
the rear fog lamp are prohibited. In
these situations, the power of their
beams may dazzle other drivers.
Do not forget to switch off the front
fog lamps and the rear fog lamp
when they are no longer neces-
sary.
Lights on buzzer
The triggering of an audible signal
when a front door is opened warns
the driver that he has forgotten to
switch off his vehicle’s lights, with
the ignition off and in manual lights
mode.
In this case, switching off the lights
stops the audible signal.
With the ignition off, if the dipped
headlamps remain on, they will
switch off automatically after thirty
minutes to prevent discharging of
the battery.
Model with front and rear fog lamps
front and rear fog lamps
To switch on the fog lamps, turn the
ring C forwards.
To switch off the rear fog lamp,
turn the ring C rearwards twice in
succession.
When the lights are switched off auto-
matically (with AUTO model) or when
the dipped headlamps are switched off
manually, the fog lamps and the side
lights will remain on.
Turn the ring rearwards to switch
off the fog lamps, the side lights will
then switch off.
C. fog lamps selection ring.
The fog lamps operate with the dipped
and main beam headlamps.
Page 81 of 260
!
i
93
VISIBILITY
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior mir-
ror; the associated functions would
no longer be controlled.
Coupling with the
"Follow-me-home" lighting
Association with the automatic lighting
provides the "follow-me-home" lighting
with the following additional options:
- selection of the duration of
maintaining of the lighting for 15,
30 or 60 seconds in the vehicle
parameters on the multifunction
d i s p l a y c o n fi g u r a t i o n m e n u ,
- automatic activation of "follow-me- home" lighting when automatic
lighting is in operation.
Automatic lighting
The side lights and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
w h e n a l o w l e v e l o f e x t e r n a l l i g h t i s d e -
tected or in certain cases of activation
of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lights are
switched off automatically.
Activation
Turn ring A to the "AUTO"
position. The automatic lighting is
accompanied by a message on the
multifunction display.
Deactivation
Turn ring A to a position other
than "AUTO" . Deactivation is
accompanied by a message on the
multifunction display. Operating fault
In the event of a malfunction of
the brightness sensor, the lights
come on, this warning light is
displayed on the instrument
panel and/or a message appears on
the multifunction display, accompanied
by an audible signal.
Consult a PEUGEOT dealer.
MANUAL HEADLAMP ADJUSTMENT
The initial setting is position "0" .
To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted in rela-
tion to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
2. 5 p e o p l e + m a x i m u m a u t h o r i s e d l o a d .
3. D r i v e r + m a x i m u m a u t h o r i s e d l o a d .
Page 83 of 260
!
i
93
VISIBILITY
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior mir-
ror; the associated functions would
no longer be controlled.
Coupling with the
"Follow-me-home" lighting
Association with the automatic lighting
provides the "follow-me-home" lighting
with the following additional options:
- selection of the duration of
maintaining of the lighting for 15,
30 or 60 seconds in the vehicle
parameters on the multifunction
d i s p l a y c o n fi g u r a t i o n m e n u ,
- automatic activation of "follow-me- home" lighting when automatic
lighting is in operation.
Automatic lighting
The side lights and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
w h e n a l o w l e v e l o f e x t e r n a l l i g h t i s d e -
tected or in certain cases of activation
of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lights are
switched off automatically.
Activation
Turn ring A to the "AUTO"
position. The automatic lighting is
accompanied by a message on the
multifunction display.
Deactivation
Turn ring A to a position other
than "AUTO" . Deactivation is
accompanied by a message on the
multifunction display. Operating fault
In the event of a malfunction of
the brightness sensor, the lights
come on, this warning light is
displayed on the instrument
panel and/or a message appears on
the multifunction display, accompanied
by an audible signal.
Consult a PEUGEOT dealer.
MANUAL HEADLAMP ADJUSTMENT
The initial setting is position "0" .
To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted in rela-
tion to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
2. 5 p e o p l e + m a x i m u m a u t h o r i s e d l o a d .
3. D r i v e r + m a x i m u m a u t h o r i s e d l o a d .
Page 84 of 260
!
i
93
VISIBILITY
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior mir-
ror; the associated functions would
no longer be controlled.
Coupling with the
"Follow-me-home" lighting
Association with the automatic lighting
provides the "follow-me-home" lighting
with the following additional options:
- selection of the duration of
maintaining of the lighting for 15,
30 or 60 seconds in the vehicle
parameters on the multifunction
d i s p l a y c o n fi g u r a t i o n m e n u ,
- automatic activation of "follow-me- home" lighting when automatic
lighting is in operation.
Automatic lighting
The side lights and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
w h e n a l o w l e v e l o f e x t e r n a l l i g h t i s d e -
tected or in certain cases of activation
of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lights are
switched off automatically.
Activation
Turn ring A to the "AUTO"
position. The automatic lighting is
accompanied by a message on the
multifunction display.
Deactivation
Turn ring A to a position other
than "AUTO" . Deactivation is
accompanied by a message on the
multifunction display. Operating fault
In the event of a malfunction of
the brightness sensor, the lights
come on, this warning light is
displayed on the instrument
panel and/or a message appears on
the multifunction display, accompanied
by an audible signal.
Consult a PEUGEOT dealer.
MANUAL HEADLAMP ADJUSTMENT
The initial setting is position "0" .
To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted in rela-
tion to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
2. 5 p e o p l e + m a x i m u m a u t h o r i s e d l o a d .
3. D r i v e r + m a x i m u m a u t h o r i s e d l o a d .
Page 163 of 260
11
i
!
!
168
PRACTICAL INFORMATION
* According to country. Risk of electrocution
Xenon bulbs (D1S - 35 W) must be
replaced by a PEUGEOT dealer.

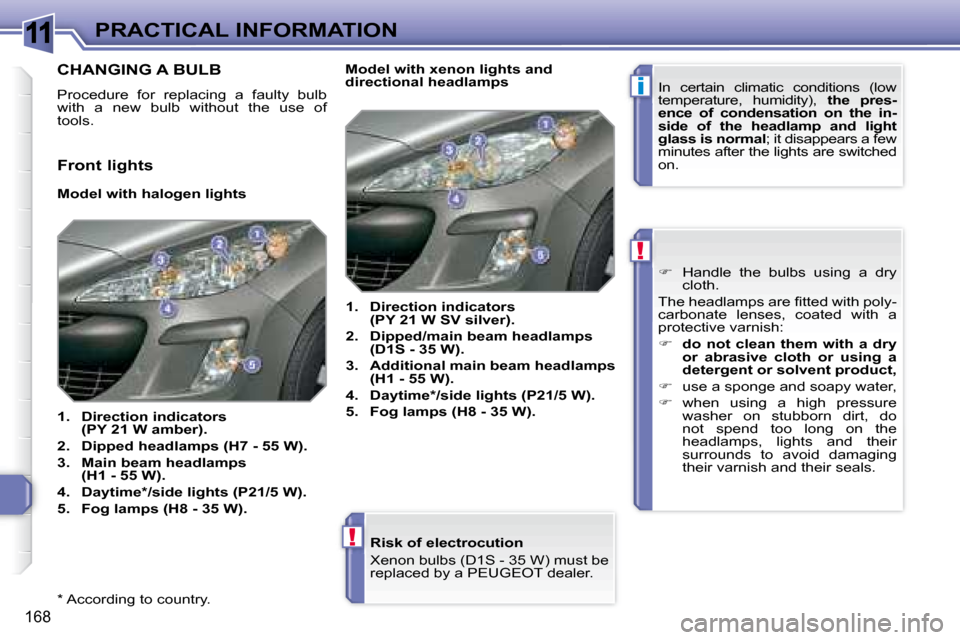

CHANGING A BULB
Procedure for replacing a faulty bulb
with a new bulb without the use of
tools.
Front lights
Model with halogen lights
1. Direction indicators
(PY 21 W amber).
2. Dipped headlamps (H7 - 55 W).
3. Main beam headlamps
(H1 - 55 W).
4. Daytime * /side lights (P21/5 W).
5. Fog lamps (H8 - 35 W).
1. Direction indicators
(PY 21 W SV silver).
2. Dipped/main beam headlamps
(D1S - 35 W).
3. Additional main beam headlamps
(H1 - 55 W).
4. Daytime*/side lights (P21/5 W).
5. Fog lamps (H8 - 35 W).
Model with xenon lights and
directional headlamps
In certain climatic conditions (low
temperature, humidity), the pres-
ence of condensation on the in-
side of the headlamp and light
glass is normal ; it disappears a few
minutes after the lights are switched
on.
Handle the bulbs using a dry
cloth.
T h e h e a d l a m p s a r e fi t t e d w i t h p o l y -
carbonate lenses, coated with a
protective varnish:
do not clean them with a dry
or abrasive cloth or using a
detergent or solvent product,
use a sponge and soapy water,
when using a high pressure
washer on stubborn dirt, do
not spend too long on the
headlamps, lights and their
surrounds to avoid damaging
their varnish and their seals.
Page 166 of 260
11
i
171
PRACTICAL INFORMATION

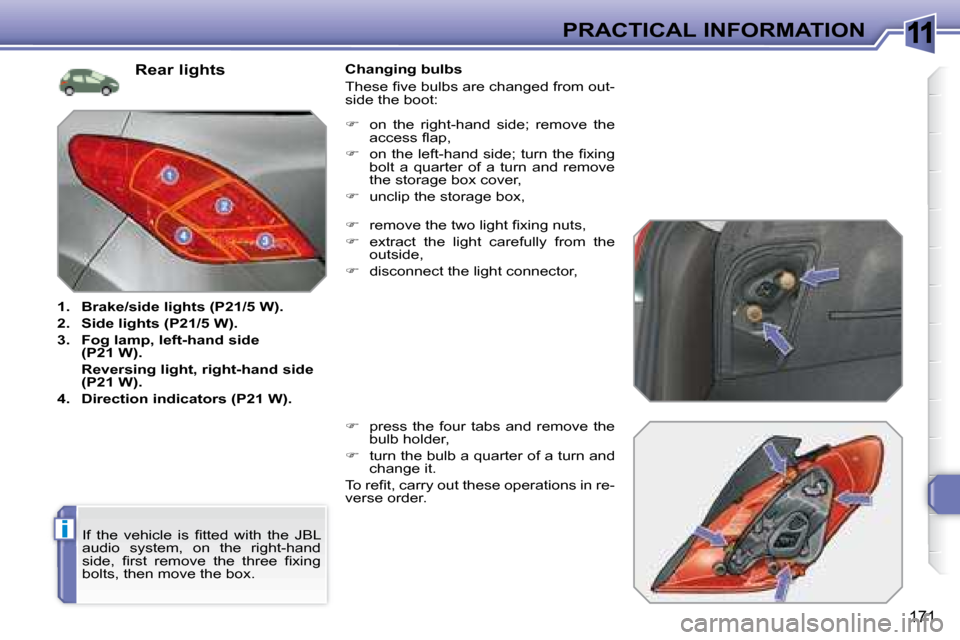

Rear lights
1. Brake/side lights (P21/5 W).
2. Side lights (P21/5 W).
3. Fog lamp, left-hand side
(P21 W).
Reversing light, right-hand side
(P21 W).
4. Direction indicators (P21 W). Changing bulbs
T h e s e fi v e b u l b s a r e c h a n g e d f r o m o u t -
side the boot:
r e m o v e t h e t w o l i g h t fi x i n g n u t s ,
e x t r a c t t h e l i g h t c a r e f u l l y f r o m t h e
outside,
disconnect the light connector,
press the four tabs and remove the
bulb holder,
turn the bulb a quarter of a turn and
change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
I f t h e v e h i c l e i s fi t t e d w i t h t h e J B L
audio system, on the right-hand
s i d e , fi r s t r e m o v e t h e t h r e e fi x i n g
b o l t s , t h e n m o v e t h e b o x .
on the right-hand side; remove the
a c c e s s fl a p ,
o n t h e l e f t - h a n d s i d e ; t u r n t h e fi x i n g
bolt a quarter of a turn and remove
t h e s t o r a g e b o x c o v e r ,
u n c l i p t h e s t o r a g e b o x ,
Page 168 of 260
11
173
PRACTICAL INFORMATION

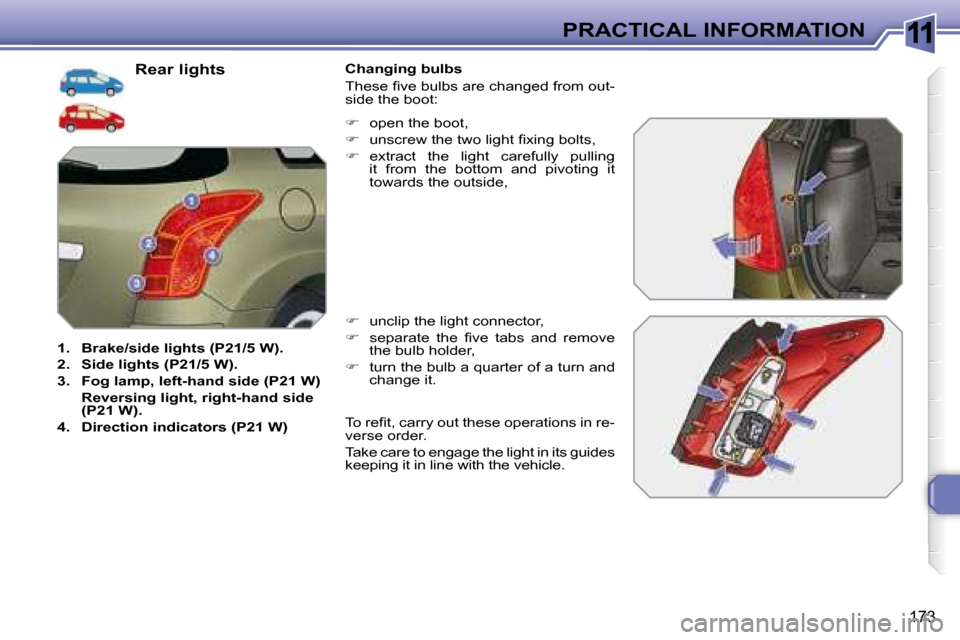

Rear lights
1. Brake/side lights (P21/5 W).
2. Side lights (P21/5 W).
3. Fog lamp, left-hand side (P21 W)
Reversing light, right-hand side
(P21 W).
4. Direction indicators (P21 W) Changing bulbs
T h e s e fi v e b u l b s a r e c h a n g e d f r o m o u t -
side the boot:
unclip the light connector,
s e p a r a t e t h e fi v e t a b s a n d r e m o v e
the bulb holder,
turn the bulb a quarter of a turn and
change it.
open the boot,
u n s c r e w t h e t w o l i g h t fi x i n g b o l t s ,
e x t r a c t t h e l i g h t c a r e f u l l y p u l l i n g
it from the bottom and pivoting it
towards the outside,
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Take care to engage the light in its guides
keeping it in line with the vehicle.
