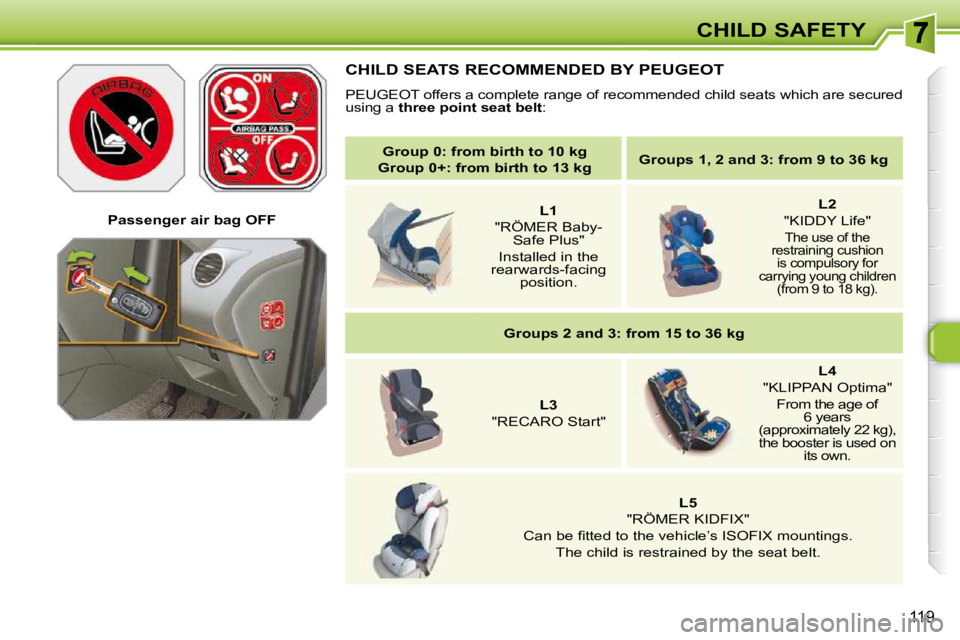

CHILD SAFETY
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg
L1
" R Ö M E R B a b y - Safe Plus"
Installed in the
rearwards-facing position.
L2
"KIDDY Life"
The use of the
restraining cushion is compulsory for
carrying young children (from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L3
" R E C A R O S t a r t "
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg), the booster is used on its own.
L5
" R Ö M E R K I D F I X "
C a n b e fi t t e d t o t h e v e h i c l e ’ s I S O F I X m o u n t i n g s .
The child is restrained by the seat belt.
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended chi
ld seats which are secured
using a three point seat belt :
Page 132 of 329
119
CHILD SAFETY
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg
L1
" R Ö M E R B a b y - Safe Plus"
Installed in the
rearwards-facing position.
L2
"KIDDY Life"
The use of the
restraining cushion is compulsory for
carrying young children (from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L3
" R E C A R O S t a r t "
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg), the booster is used on its own.
L5
" R Ö M E R K I D F I X "
C a n b e fi t t e d t o t h e v e h i c l e ’ s I S O F I X m o u n t i n g s .
The child is restrained by the seat belt.
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended chi
ld seats which are secured
using a three point seat belt :
Page 133 of 329

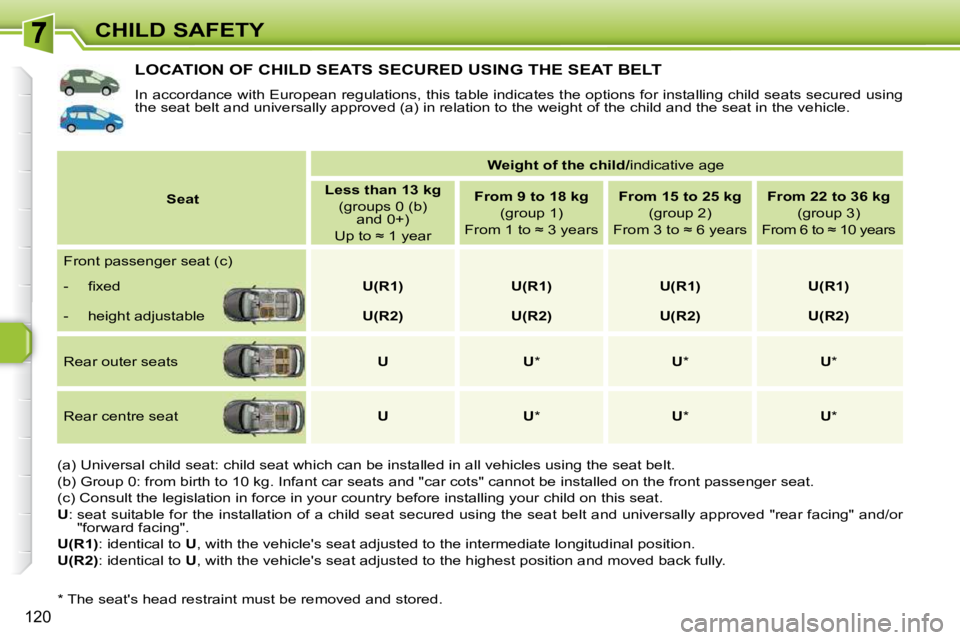

120
CHILD SAFETY
LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using
the seat belt and universally approved (a) in relation to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" ca nnot be installed on the front passenger seat.
( c ) C o n s u l t t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y b e f o r e i n s t a l l i n g y o u r c h i l d o n t h i s s e a t .
U : seat suitable for the installation of a child seat secu red using the seat belt and universally approved "rear facing" an d/or
"forward facing".
U(R1) : identical to U , with the vehicle's seat adjusted to the intermediate lo ngitudinal position.
U(R2) : identical to U , with the vehicle's seat adjusted to the highest positio n and moved back fully.
* The seat's head restraint must be removed and stored.
Seat
Weight of the child/ indicative age
Less than 13 kg
(groups 0 (b) and 0+)
U p t o ≈ 1 y e a r
From 9 to 18 kg
(group 1)
F r o m 1 t o ≈ 3 y e a r s
From 15 to 25 kg
(group 2)
F r o m 3 t o ≈ 6 y e a r s
From 22 to 36 kg
( g r o u p 3 )
F r o m 6 t o ≈ 1 0 y e a r s
Front passenger seat (c)
- fi x e d
U(R1) U(R1) U(R1) U(R1)
- height adjustable U(R2) U(R2) U(R2) U(R2)
R e a r o u t e r s e a t s
U U * U * U *
R e a r c e n t r e s e a t
U U * U * U *
Page 134 of 329

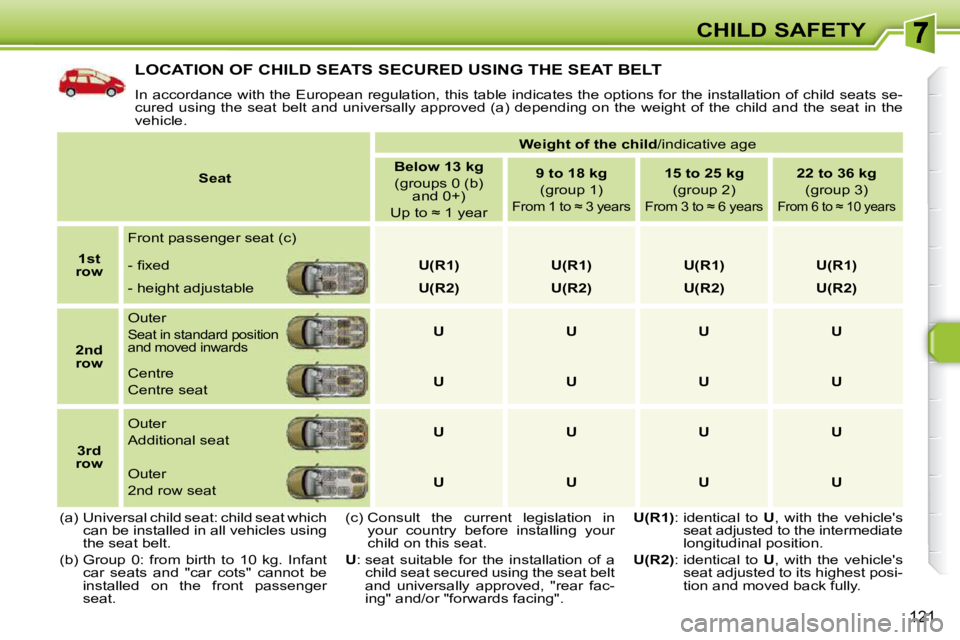

121
CHILD SAFETY
LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT
In accordance with the European regulation, this table indicates the options for the installation of child seats se-
cured using the seat belt and universally approved (a) dependin g on the weight of the child and the seat in the
vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using
the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be
installed on the front passenger
seat.
Seat
Weight of the child /indicative age
Below 13 kg
(groups 0 (b) and 0+)
U p t o ≈ 1 y e a r
9 to 18 kg
(group 1)
F r o m 1 t o ≈ 3 y e a r s
15 to 25 kg
(group 2) F r o m 3 t o ≈ 6 y e a r s
22 to 36 kg
( g r o u p 3 )
F r o m 6 t o ≈ 1 0 y e a r s
1st
row Front passenger seat (c)
- fi x e d
U(R1) U(R1) U(R1) U(R1)
- height adjustable U(R2) U(R2) U(R2) U(R2)
2nd
row Outer
Seat in standard position
and moved inwards
U U U U
C e n t r e
C e n t r e s e a t
U U U U
3rd
row Outer
Additional seat
U U U U
Outer
2nd row seat
U U U U
( c ) C o n s u l t t h e c u r r e n t l e g i s l a t i o n i n your country before installing your
child on this seat.
U : seat suitable for the installation of a
child seat secured using the seat belt
and universally approved, "rear fac-
ing" and/or "forwards facing".
U(R1) : identical to U , with the vehicle's
seat adjusted to the intermediate
longitudinal position.
U(R2) : identical to U , with the vehicle's
seat adjusted to its highest posi-
tion and moved back fully.
Page 135 of 329
!

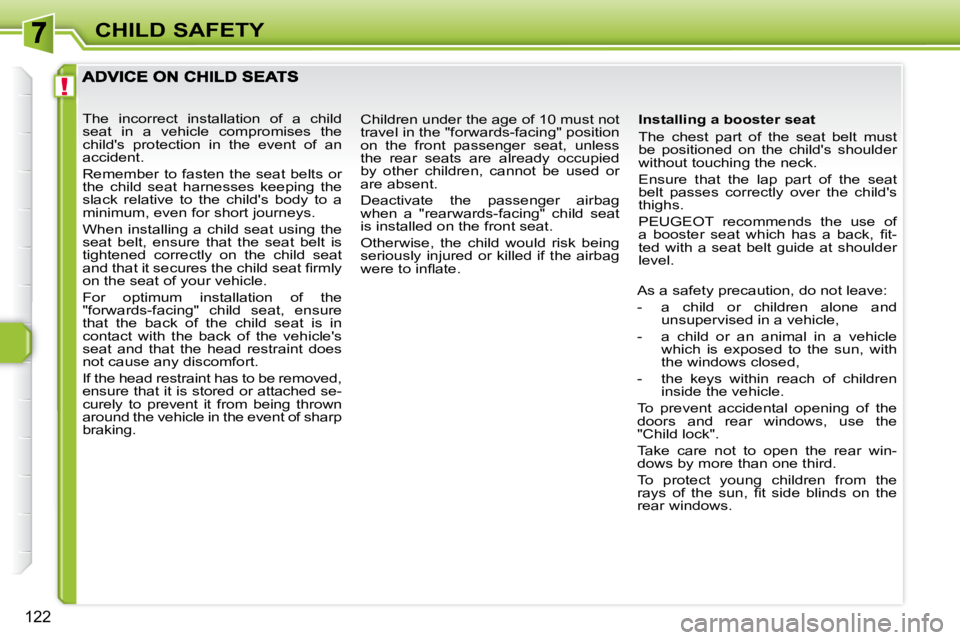

122
CHILD SAFETY
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of
a b o o s t e r s e a t w h i c h h a s a b a c k , fi t -
ted with a seat belt guide at shoulder
level.
As a safety precaution, do not leave:
- a child or children alone and unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors and rear windows, use the
" C h i l d l o c k " .
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
rear windows.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
R e m e m b e r t o f a s t e n t h e s e a t b e l t s o r
the child seat harnesses keeping the
slack relative to the child's body to a
minimum, even for short journeys.
When installing a child seat using the
seat belt, ensure that the seat belt is
tightened correctly on the child seat
a n d t h a t i t s e c u r e s t h e c h i l d s e a t fi r m l y
on the seat of your vehicle.
For optimum installation of the
"forwards-facing" child seat, ensure
that the back of the child seat is in
contact with the back of the vehicle's
seat and that the head restraint does
not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached se-
curely to prevent it from being thrown
around the vehicle in the event of sharp
braking.
C h i l d r e n u n d e r t h e a g e o f 1 0 m u s t n o t
travel in the "forwards-facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Deactivate the passenger airbag
when a "rearwards-facing" child seat
is installed on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
w e r e t o i n fl a t e .
Page 136 of 329

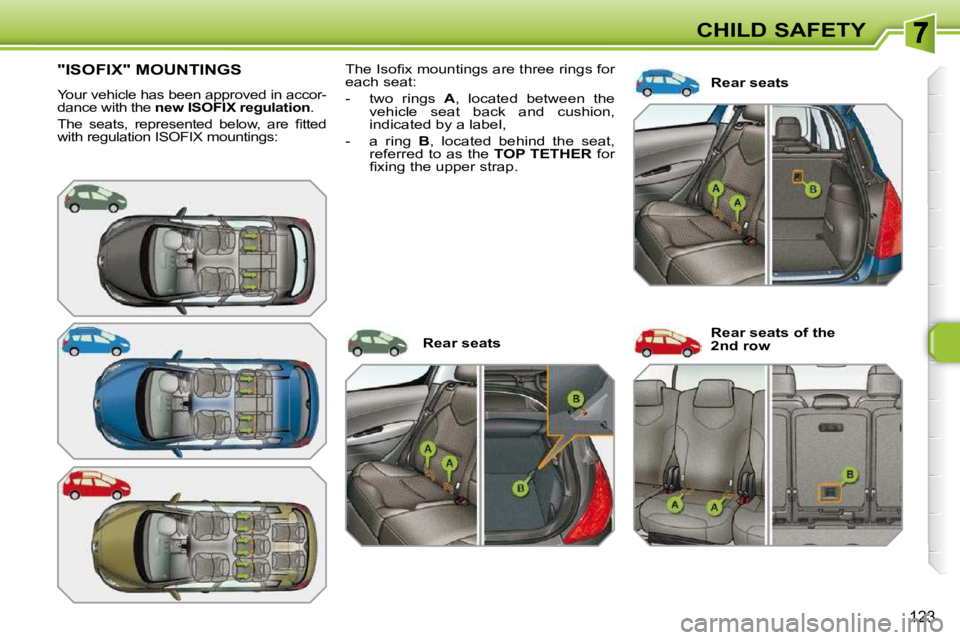

1 2 3
CHILD SAFETY
"ISOFIX" MOUNTINGS
Your vehicle has been approved in accor-
dance with the new ISOFIX regulation .
T h e s e a t s , r e p r e s e n t e d b e l o w , a r e fi t t e d
with regulation ISOFIX mountings: Rear seats
T h e I s o fi x m o u n t i n g s a r e t h r e e r i n g s f o r
each seat:
- two rings
A , located between the
vehicle seat back and cushion,
indicated by a label,
- a ring B , located behind the seat,
referred to as the TOP TETHER for
fi x i n g t h e u p p e r s t r a p .
Rear seats Rear seats of the
2nd row
Page 137 of 329
i
!
i

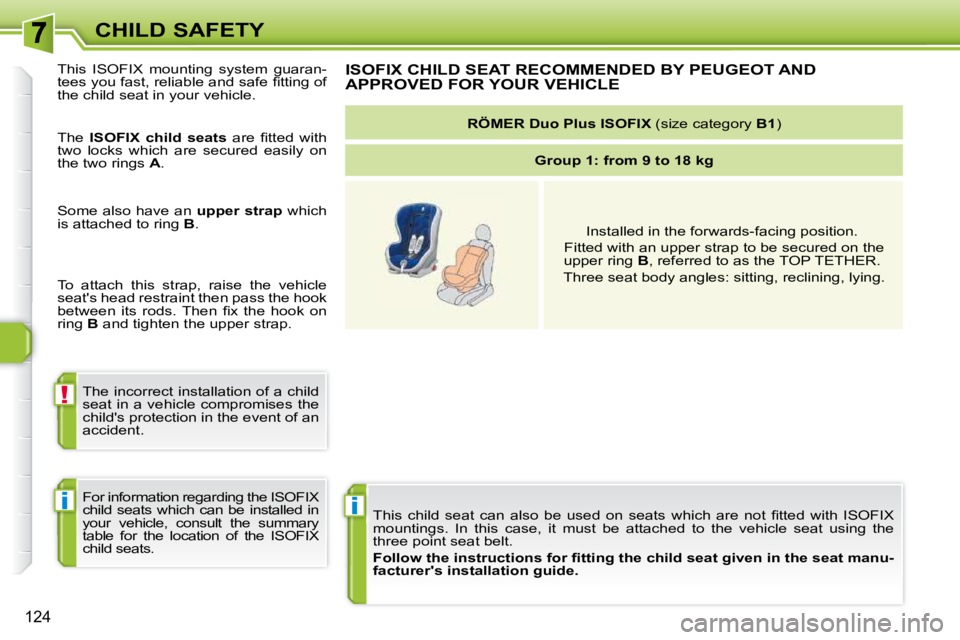

124
CHILD SAFETY T h i s c h i l d s e a t c a n a l s o b e u s e d o n s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X
mountings. In this case, it must be attached to the vehicle se at using the
three point seat belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g t h e c h i l d s e a t g i v e n i n t h e s e a t m a n u -
facturer's installation guide.
ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
RÖMER Duo Plus ISOFIX (size category B1 )
Group 1: from 9 to 18 kg
Installed in the forwards-facing position.
Fitted with an upper strap to be secured on the upper ring B , r e f e r r e d t o a s t h e T O P T E T H E R .
Three seat body angles: sitting, reclining, lying.
This ISOFIX mounting system guaran-
t e e s y o u f a s t , r e l i a b l e a n d s a f e fi t t i n g o f
the child seat in your vehicle.
The
ISOFIX child seats a r e fi t t e d w i t h
two locks which are secured easily on
the two rings A .
Some also have an upper strap which
is attached to ring B .
To attach this strap, raise the vehicle
seat's head restraint then pass the hook
b e t w e e n i t s r o d s . T h e n fi x t h e h o o k o n
ring B and tighten the upper strap.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, consult the summary
table for the location of the ISOFIX
child seats.
Page 138 of 329
i
!
i
124
CHILD SAFETY T h i s c h i l d s e a t c a n a l s o b e u s e d o n s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X
mountings. In this case, it must be attached to the vehicle se at using the
three point seat belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g t h e c h i l d s e a t g i v e n i n t h e s e a t m a n u -
facturer's installation guide.
ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
RÖMER Duo Plus ISOFIX (size category B1 )
Group 1: from 9 to 18 kg
Installed in the forwards-facing position.
Fitted with an upper strap to be secured on the upper ring B , r e f e r r e d t o a s t h e T O P T E T H E R .
Three seat body angles: sitting, reclining, lying.
This ISOFIX mounting system guaran-
t e e s y o u f a s t , r e l i a b l e a n d s a f e fi t t i n g o f
the child seat in your vehicle.
The
ISOFIX child seats a r e fi t t e d w i t h
two locks which are secured easily on
the two rings A .
Some also have an upper strap which
is attached to ring B .
To attach this strap, raise the vehicle
seat's head restraint then pass the hook
b e t w e e n i t s r o d s . T h e n fi x t h e h o o k o n
ring B and tighten the upper strap.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, consult the summary
table for the location of the ISOFIX
child seats.
Page 139 of 329
125
CHILD SAFETY
LOCATIONS FOR ISOFIX CHILD SEATS
I n a c c o r d a n c e w i t h E u r o p e a n R e g u l a t i o n s , t h i s t a b l e i n d i c a t e s t h e o p t i o n s f o r i n s t a l l i n g I S O F I X c h i l d s e a t s o n
s e a t s i n t h e v e h i c l e fi t t e d w i t h I S O F I X m o u n t i n g s .
In the case of universal and semi-universal ISOFIX child seats, th e ISOFIX size category, determined by a letter
from A to G , is indicated on the child seat next to the ISOFIX logo.
IUF: seat suitable for the installation of an I s o fi x U niversal seat, " F orward facing" secured using the upper strap.
IL-SU: seat suitable for the installation of an I s o fi x S emi- U niversal seat either:
- " r e a r f a c i n g " fi t t e d w i t h a n u p p e r s t r a p o r a s t a y ,
- " f o r w a r d f a c i n g " fi t t e d w i t h a s t a y ,
- a n i n f a n t c a r s e a t fi t t e d w i t h a n u p p e r s t r a p o r a s t a y .
For advice on securing of the upper strap, refer to the paragra ph "ISOFIX mountings".
* Infant car seats and "car cots" cannot be installed on th e front passenger seat.
** The ISOFIX infant car seat, secured on the lower rings of a vehicle ISOFIX seat, occupies two rear seats.
Weight of the child /indicative age
Less than 10 kg
(group 0)
Up to approx. 6 months
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to approx. 1 year
From 9 to 18 kg (group 1)
F r o m a p p r o x . 1 t o 3 y e a r s
Type of ISOFIX child seat Infant car seat * "rear facing" "rear facing" "forward facing"
ISOFIX size category F G C D E C D A B B1
ISOFIX child seats universal
and semi-universal which
can be installed on the rear
outer
seats
IL-SU ** IL-SU IL-SU
IUF
IL-SU
Page 140 of 329
126
CHILD SAFETY

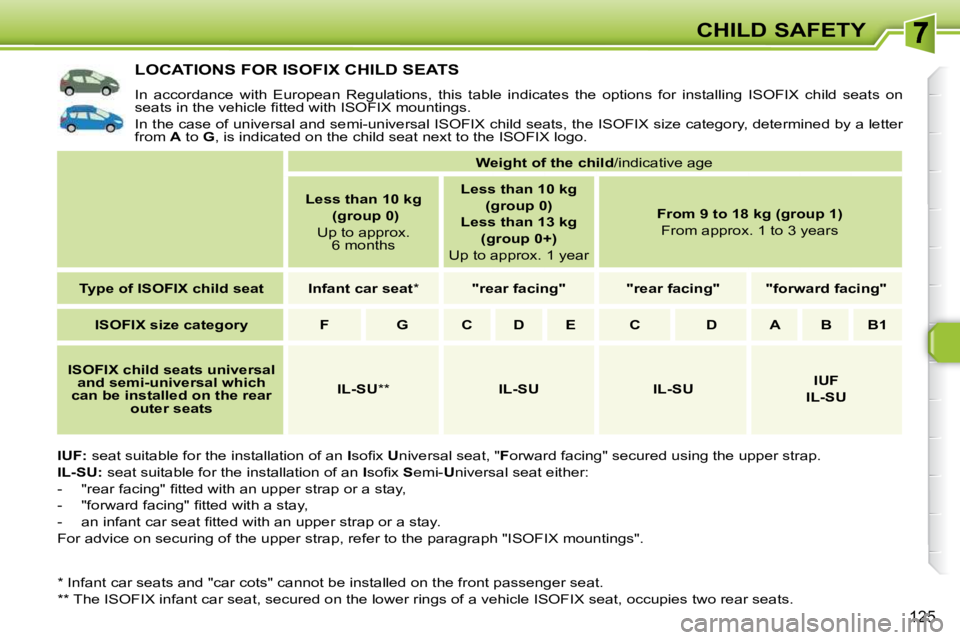

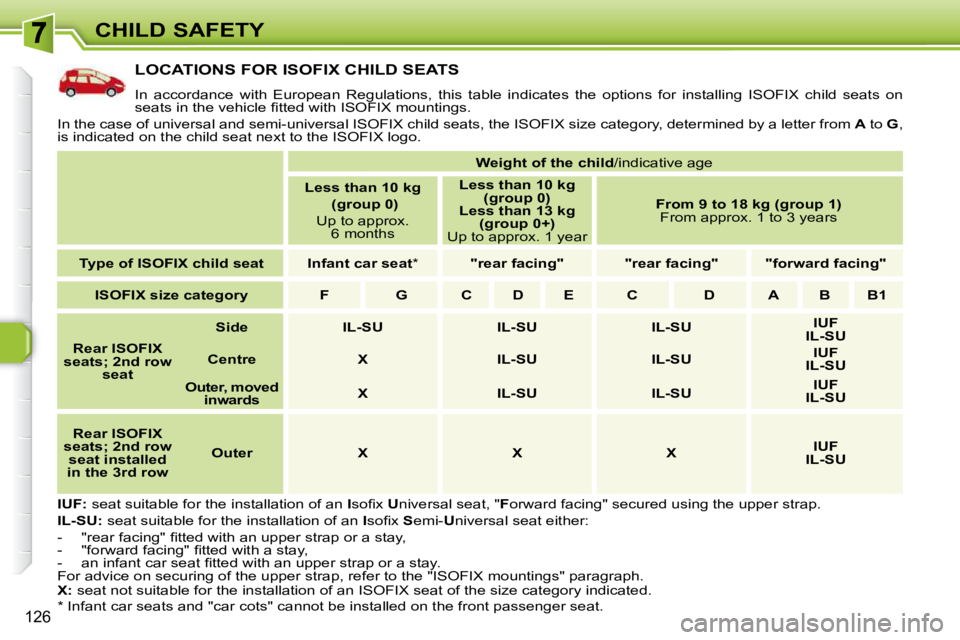

LOCATIONS FOR ISOFIX CHILD SEATS
I n a c c o r d a n c e w i t h E u r o p e a n R e g u l a t i o n s , t h i s t a b l e i n d i c a t e s t h e o p t i o n s f o r i n s t a l l i n g I S O F I X c h i l d s e a t s o n
s e a t s i n t h e v e h i c l e fi t t e d w i t h I S O F I X m o u n t i n g s .
In the case of universal and semi-universal ISOFIX child seats, th e ISOFIX size category, determined by a letter from A to G ,
is indicated on the child seat next to the ISOFIX logo.
IUF: seat suitable for the installation of an I s o fi x U niversal seat, " F orward facing" secured using the upper strap.
IL-SU: seat suitable for the installation of an I s o fi x S emi- U niversal seat either:
- " r e a r f a c i n g " fi t t e d w i t h a n u p p e r s t r a p o r a s t a y ,
- " f o r w a r d f a c i n g " fi t t e d w i t h a s t a y ,
- a n i n f a n t c a r s e a t fi t t e d w i t h a n u p p e r s t r a p o r a s t a y .
For advice on securing of the upper strap, refer to the "ISOFIX mountings" paragraph.
X: seat not suitable for the installation of an ISOFIX seat of the size category indicated.
Weight of the child /indicative age
Less than 10 kg
(group 0)
Up to approx. 6 months
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to approx. 1 year
From 9 to 18 kg (group 1)
F r o m a p p r o x . 1 t o 3 y e a r s
Type of ISOFIX child seat Infant car seat * "rear facing" "rear facing" "forward facing"
ISOFIX size category F G C D E C D A B B1
Rear ISOFIX
seats; 2nd row seat
Side IL-SU IL-SU IL-SU
IUF
IL-SU
Centre X IL-SU IL-SU
IUF
IL-SU
Outer, moved
inwards
X IL-SU IL-SU
IUF
IL-SU
Rear ISOFIX
seats; 2nd row seat installed
in the 3rd row
Outer X X X
IUF
IL-SU
* Infant car seats and "car cots" cannot be installed on th e front passenger seat.
