PEUGEOT 308 SW BL 2009 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2009, Model line: 308 SW BL, Model: PEUGEOT 308 SW BL 2009Pages: 329, PDF Size: 25.38 MB
Page 171 of 329
10
i
!
158
CHECKS

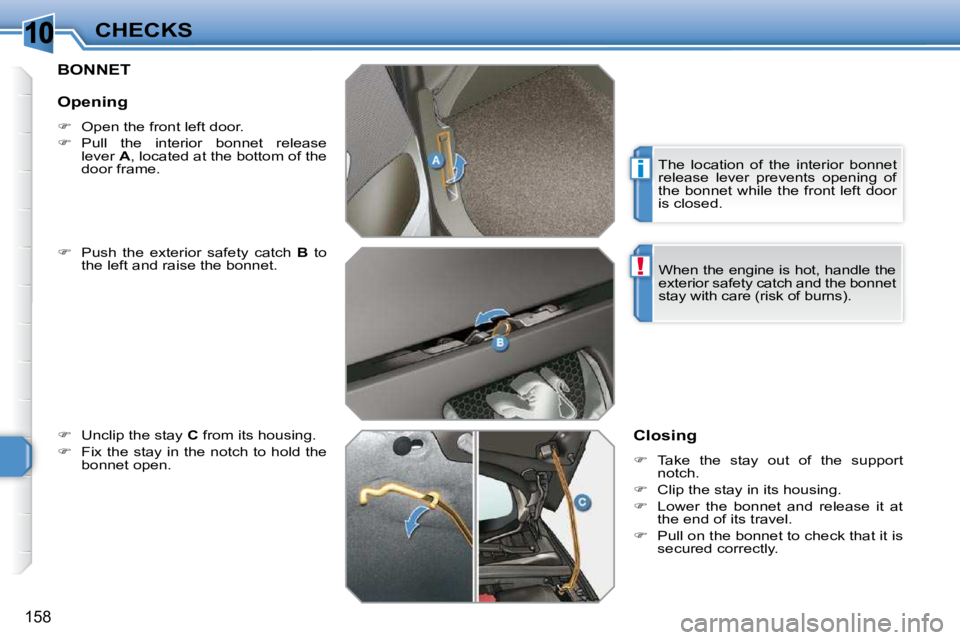

BONNET
Push the exterior safety catch B to
the left and raise the bonnet.
Unclip the stay C from its housing.
Fix the stay in the notch to hold the
bonnet open. Closing
Take the stay out of the support
notch.
Clip the stay in its housing.
Lower the bonnet and release it at
the end of its travel.
Pull on the bonnet to check that it is
secured correctly.
Opening
Open the front left door.
Pull the interior bonnet release
lever A , located at the bottom of the
door frame. The location of the interior bonnet
release lever prevents opening of
the bonnet while the front left door
is closed.
When the engine is hot, handle the
exterior safety catch and the bonnet
stay with care (risk of burns).
Page 172 of 329
10
ii
159
CHECKS

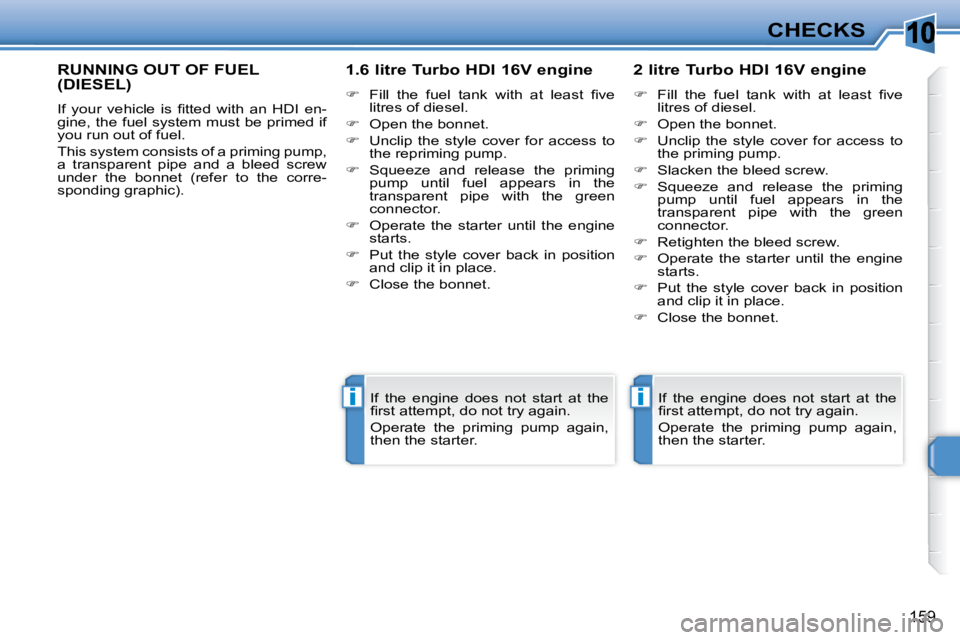

RUNNING OUT OF FUEL (DIESEL)
I f y o u r v e h i c l e i s fi t t e d w i t h a n H D I e n -
gine, the fuel system must be primed if
you run out of fuel.
This system consists of a priming pump,
a transparent pipe and a bleed screw
under the bonnet (refer to the corre-
sponding graphic). 1.6 litre Turbo HDI 16V engine
F i l l t h e f u e l t a n k w i t h a t l e a s t fi v e
litres of diesel.
Open the bonnet.
Unclip the style cover for access to
the repriming pump.
Squeeze and release the priming
pump until fuel appears in the
transparent pipe with the green
connector.
Operate the starter until the engine
starts.
Put the style cover back in position
and clip it in place.
Close the bonnet. 2 litre Turbo HDI 16V engine
F i l l t h e f u e l t a n k w i t h a t l e a s t fi v e
litres of diesel.
Open the bonnet.
Unclip the style cover for access to
the priming pump.
Slacken the bleed screw.
Squeeze and release the priming
pump until fuel appears in the
transparent pipe with the green
connector.
Retighten the bleed screw.
Operate the starter until the engine
starts.
Put the style cover back in position
and clip it in place.
Close the bonnet.
If the engine does not start at the
fi r s t a t t e m p t , d o n o t t r y a g a i n .
Operate the priming pump again,
then the starter. If the engine does not start at the
fi r s t a t t e m p t , d o n o t t r y a g a i n .
Operate the priming pump again,
then the starter.
Page 173 of 329
10
160
CHECKS

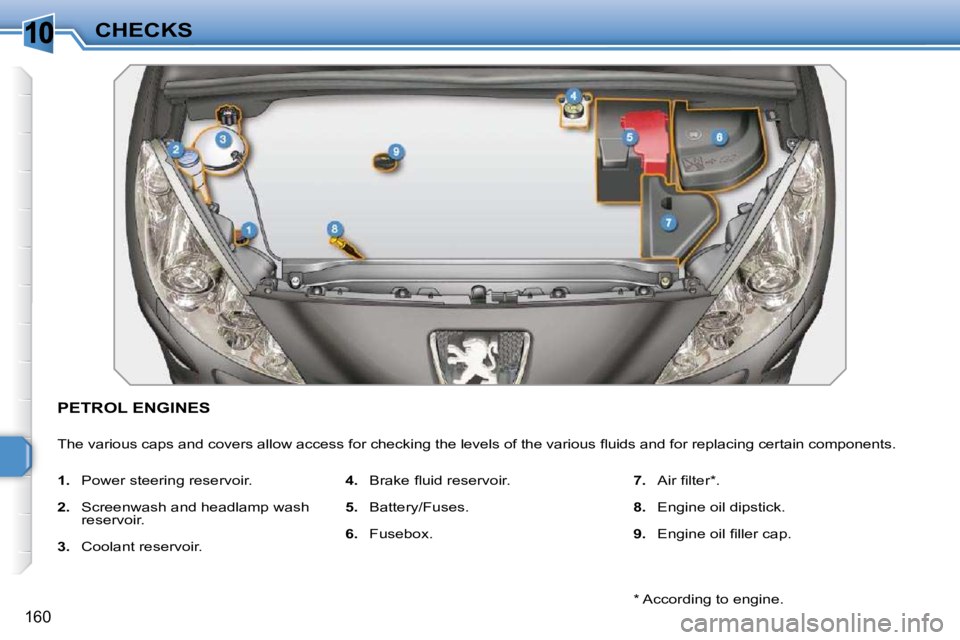

PETROL ENGINES
T h e v a r i o u s c a p s a n d c o v e r s a l l o w a c c e s s f o r c h e c k i n g t h e l e v e l s o f t h e v a r i o u s fl u i d s a n d f o r r e p l a c i n g c e r t a i n c o m p o n e n t s .
1. Power steering reservoir.
2. Screenwash and headlamp wash
reservoir.
3. Coolant reservoir.
4. B r a k e fl u i d r e s e r v o i r .
5. Battery/Fuses.
6. Fusebox.
7. A i r fi l t e r * .
8. Engine oil dipstick.
9. E n g i n e o i l fi l l e r c a p .
* A c c o r d i n g t o e n g i n e .
Page 174 of 329
10
161
CHECKS

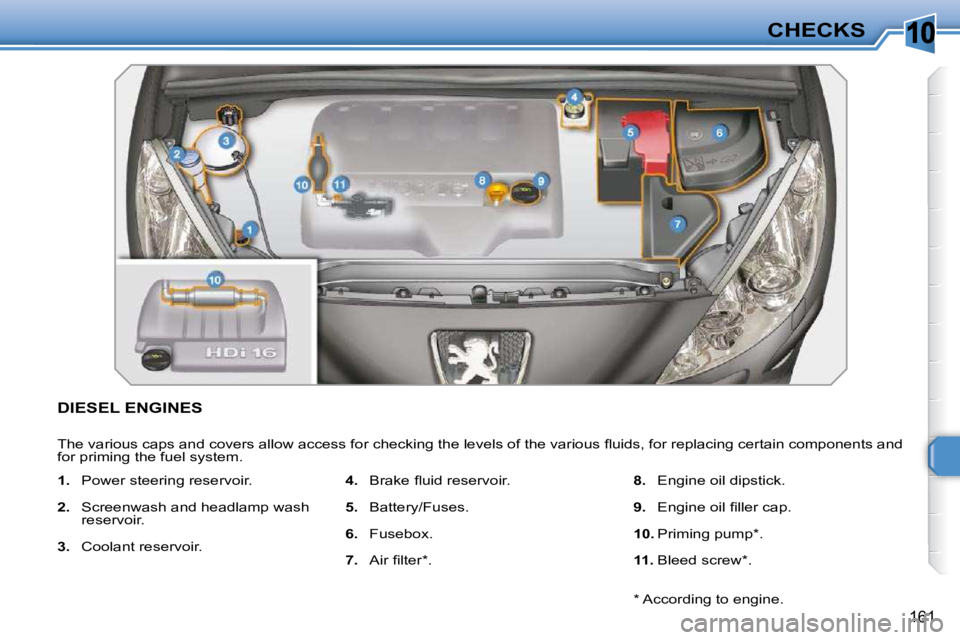

DIESEL ENGINES
T h e v a r i o u s c a p s a n d c o v e r s a l l o w a c c e s s f o r c h e c k i n g t h e l e v e l s o f t h e v a r i o u s fl u i d s , f o r r e p l a c i n g c e r t a i n c o m p o n e n t s a n d
for priming the fuel system.
1. Power steering reservoir.
2. Screenwash and headlamp wash
reservoir.
3. Coolant reservoir.
4. B r a k e fl u i d r e s e r v o i r .
5. Battery/Fuses.
6. Fusebox.
7. A i r fi l t e r * .
8. Engine oil dipstick.
9. E n g i n e o i l fi l l e r c a p .
10. P r i m i n g p u m p * .
11. B l e e d s c r e w * .
* A c c o r d i n g t o e n g i n e .
Page 175 of 329
10
!
162
CHECKS

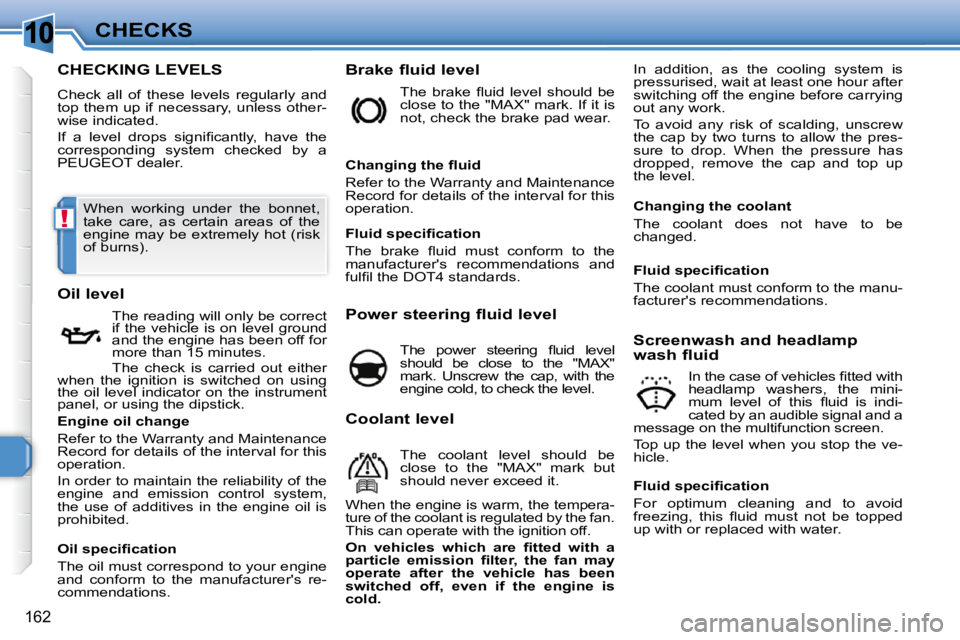

CHECKING LEVELS
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
I f a l e v e l d r o p s s i g n i fi c a n t l y , h a v e t h e
corresponding system checked by a
PEUGEOT dealer. Brake fluid level
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.
Oil level The reading will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes.
The check is carried out either
when the ignition is switched on using
the oil level indicator on the instrument
panel, or using the dipstick. T h e b r a k e fl u i d l e v e l s h o u l d b e
close to the "MAX" mark. If it is
not, check the brake pad wear.
C h a n g i n g t h e fl u i d
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation.
Power steering fluid level T h e p o w e r s t e e r i n g fl u i d l e v e l
should be close to the "MAX"
mark. Unscrew the cap, with the
engine cold, to check the level. Screenwash and headlamp
wash fluid
I n t h e c a s e o f v e h i c l e s fi t t e d w i t h
headlamp washers, the mini-
m u m l e v e l o f t h i s fl u i d i s i n d i -
cated by an audible signal and a
message on the multifunction screen.
Top up the level when you stop the ve-
hicle.
Engine oil change
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.
O i l s p e c i fi c a t i o n
The oil must correspond to your engine
and conform to the manufacturer's re-
commendations. F l u i d s p e c i fi c a t i o n
T h e b r a k e fl u i d m u s t c o n f o r m t o t h e
manufacturer's recommendations and
f u l fi l t h e D O T 4 s t a n d a r d s .
Changing the coolant
The coolant does not have to be
changed.
F l u i d s p e c i fi c a t i o n
For optimum cleaning and to avoid
f r e e z i n g , t h i s fl u i d m u s t n o t b e t o p p e d
up with or replaced with water.
Coolant level
The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the tempera-
ture of the coolant is regulated by the fan.
This can operate with the ignition off.
O n v e h i c l e s w h i c h a r e fi t t e d w i t h a
p a r t i c l e e m i s s i o n fi l t e r , t h e f a n m a y
operate after the vehicle has been
s w i t c h e d o f f , e v e n i f t h e e n g i n e i s
cold. F l u i d s p e c i fi c a t i o n
The coolant must conform to the manu-
facturer's recommendations.
When working under the bonnet,
take care, as certain areas of the
engine may be extremely hot (risk
of burns).
Page 176 of 329
10
!
i
163
CHECKS

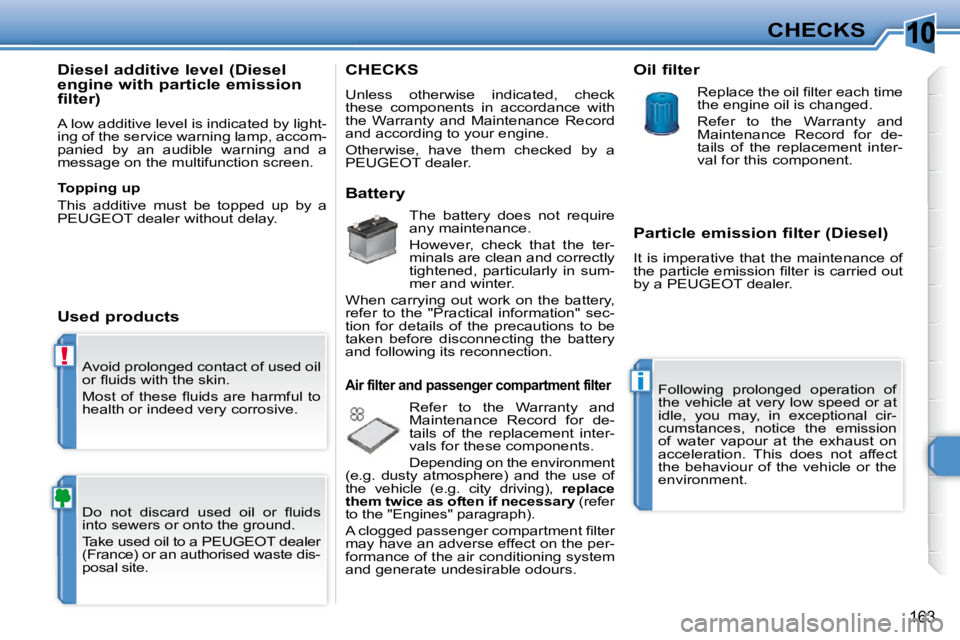

Avoid prolonged contact of used oil
o r fl u i d s w i t h t h e s k i n .
M o s t o f t h e s e fl u i d s a r e h a r m f u l t o
health or indeed very corrosive.
D o n o t d i s c a r d u s e d o i l o r fl u i d s
into sewers or onto the ground.
Take used oil to a PEUGEOT dealer
(France) or an authorised waste dis-
posal site.
Diesel additive level (Diesel
engine with particle emission
filter)
A low additive level is indicated by light-
ing of the service warning lamp, accom-
panied by an audible warning and a
message on the multifunction screen.
Used products
CHECKS
Unless otherwise indicated, check
these components in accordance with
the Warranty and Maintenance Record
and according to your engine.
Otherwise, have them checked by a
PEUGEOT dealer.
Battery
The battery does not require
any maintenance.
H o w e v e r , c h e c k t h a t t h e t e r -
minals are clean and correctly
tightened, particularly in sum-
mer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger compartment filter
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
vals for these components.
Depending on the environment
(e.g. dusty atmosphere) and the use of
the vehicle (e.g. city driving), replace
them twice as often if necessary (refer
to the "Engines" paragraph).
A c l o g g e d p a s s e n g e r c o m p a r t m e n t fi l t e r
may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours. Particle emission filter (Diesel)
It is imperative that the maintenance of
t h e p a r t i c l e e m i s s i o n fi l t e r i s c a r r i e d o u t
by a PEUGEOT dealer.
Oil filter
R e p l a c e t h e o i l fi l t e r e a c h t i m e
the engine oil is changed.
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
val for this component.
Following prolonged operation of
the vehicle at very low speed or at
idle, you may, in exceptional cir-
cumstances, notice the emission
of water vapour at the exhaust on
acceleration. This does not affect
the behaviour of the vehicle or the
environment.
Topping up
This additive must be topped up by a
PEUGEOT dealer without delay.
Page 177 of 329
10
!
i
163
CHECKS
Avoid prolonged contact of used oil
o r fl u i d s w i t h t h e s k i n .
M o s t o f t h e s e fl u i d s a r e h a r m f u l t o
health or indeed very corrosive.
D o n o t d i s c a r d u s e d o i l o r fl u i d s
into sewers or onto the ground.
Take used oil to a PEUGEOT dealer
(France) or an authorised waste dis-
posal site.
Diesel additive level (Diesel
engine with particle emission
filter)
A low additive level is indicated by light-
ing of the service warning lamp, accom-
panied by an audible warning and a
message on the multifunction screen.
Used products
CHECKS
Unless otherwise indicated, check
these components in accordance with
the Warranty and Maintenance Record
and according to your engine.
Otherwise, have them checked by a
PEUGEOT dealer.
Battery
The battery does not require
any maintenance.
H o w e v e r , c h e c k t h a t t h e t e r -
minals are clean and correctly
tightened, particularly in sum-
mer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger compartment filter
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
vals for these components.
Depending on the environment
(e.g. dusty atmosphere) and the use of
the vehicle (e.g. city driving), replace
them twice as often if necessary (refer
to the "Engines" paragraph).
A c l o g g e d p a s s e n g e r c o m p a r t m e n t fi l t e r
may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours. Particle emission filter (Diesel)
It is imperative that the maintenance of
t h e p a r t i c l e e m i s s i o n fi l t e r i s c a r r i e d o u t
by a PEUGEOT dealer.
Oil filter
R e p l a c e t h e o i l fi l t e r e a c h t i m e
the engine oil is changed.
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
val for this component.
Following prolonged operation of
the vehicle at very low speed or at
idle, you may, in exceptional cir-
cumstances, notice the emission
of water vapour at the exhaust on
acceleration. This does not affect
the behaviour of the vehicle or the
environment.
Topping up
This additive must be topped up by a
PEUGEOT dealer without delay.
Page 178 of 329
10
!
1 6 4

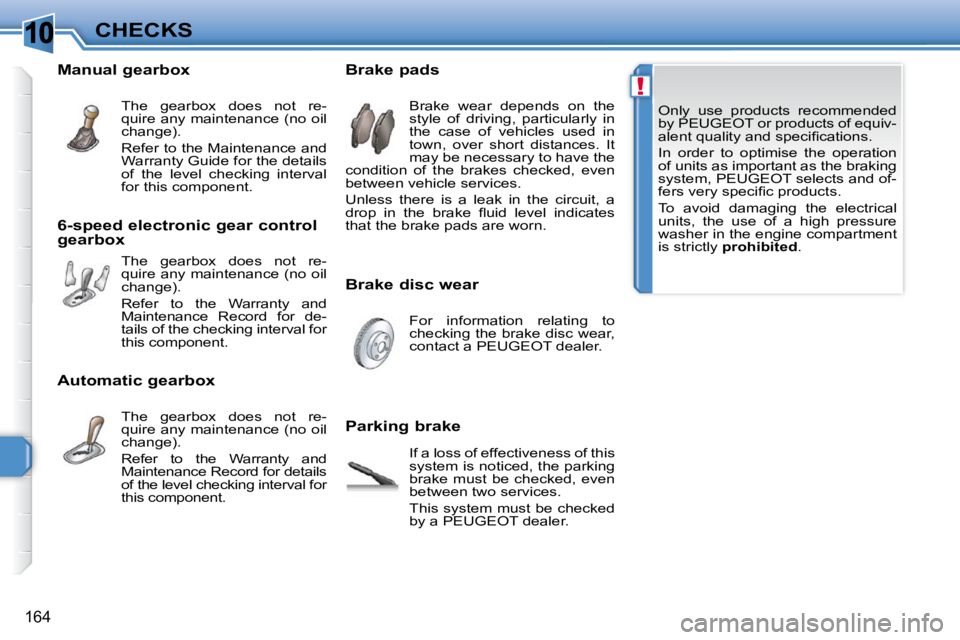

CHECKS Only use products recommended
by PEUGEOT or products of equiv-
a l e n t q u a l i t y a n d s p e c i fi c a t i o n s .
In order to optimise the operation
of units as important as the braking
system, PEUGEOT selects and of-
f e r s v e r y s p e c i fi c p r o d u c t s .
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment
is strictly prohibited .
Brake disc wear
Brake pads
Parking brake Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak in the circuit, a
d r o p i n t h e b r a k e fl u i d l e v e l i n d i c a t e s
that the brake pads are worn.
For information relating to
checking the brake disc wear,
contact a PEUGEOT dealer.
If a loss of effectiveness of this
system is noticed, the parking
brake must be checked, even
between two services.
This system must be checked
by a PEUGEOT dealer.
Manual gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the Maintenance and
Warranty Guide for the details
of the level checking interval
for this component.
6-speed electronic gear control
gearbox The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the Warranty and
Maintenance Record for de-
tails of the checking interval for
this component.
Automatic gearbox The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the Warranty and
Maintenance Record for details
of the level checking interval for
this component.
Page 179 of 329
11
i
165
PRACTICAL INFORMATION

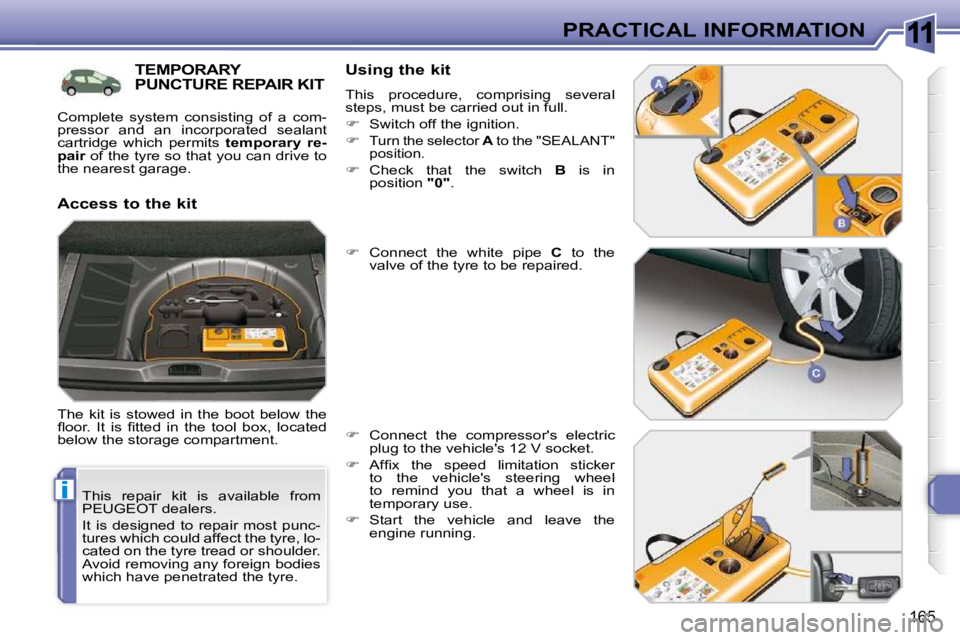

This repair kit is available from
PEUGEOT dealers.
It is designed to repair most punc-
tures which could affect the tyre, lo-
cated on the tyre tread or shoulder.
Avoid removing any foreign bodies
which have penetrated the tyre.
TEMPORARY PUNCTURE REPAIR KIT
The kit is stowed in the boot below the
fl o o r . I t i s fi t t e d i n t h e t o o l b o x , l o c a t e d
below the storage compartment. Using the kit
This procedure, comprising several
steps, must be carried out in full.
Switch off the ignition.
Turn the selector A to the "SEALANT"
position.
Check that the switch B is in
position "0" .
Connect the white pipe C to the
valve of the tyre to be repaired.
Connect the compressor's electric
plug to the vehicle's 12 V socket.
A f fi x t h e s p e e d l i m i t a t i o n s t i c k e r
to the vehicle's steering wheel
to remind you that a wheel is in
temporary use.
Start the vehicle and leave the
engine running.
Access to the kit
Complete system consisting of a com-
pressor and an incorporated sealant
cartridge which permits
temporary re-
pair of the tyre so that you can drive to
the nearest garage.
Page 180 of 329
11
i
i
166

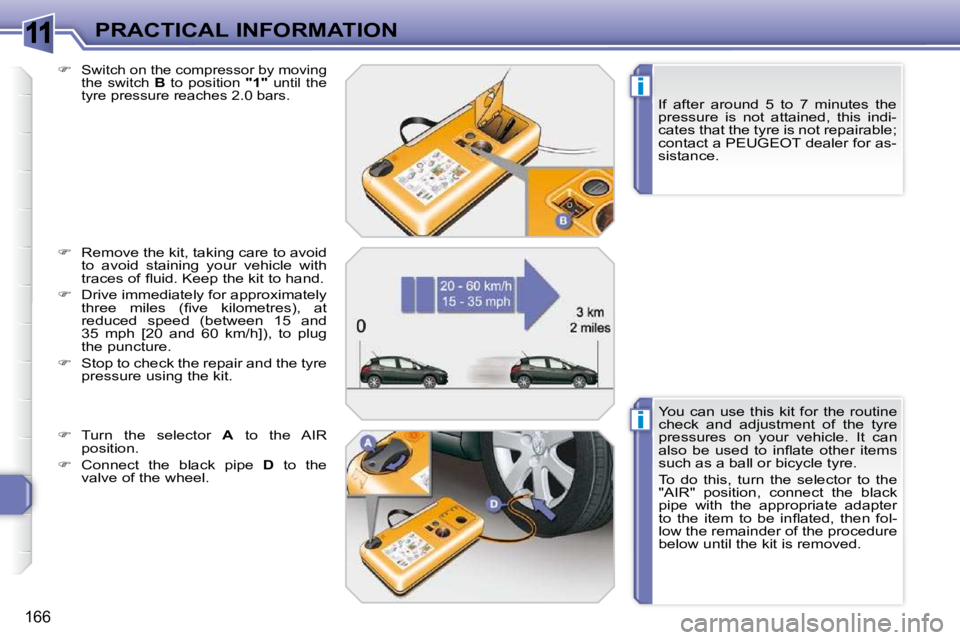

PRACTICAL INFORMATION If after around 5 to 7 minutes the
pressure is not attained, this indi-
cates that the tyre is not repairable;
contact a PEUGEOT dealer for as-
sistance.
Switch on the compressor by moving
the switch B to position "1" until the
tyre pressure reaches 2.0 bars.
Remove the kit, taking care to avoid
to avoid staining your vehicle with
t r a c e s o f fl u i d . K e e p t h e k i t t o h a n d .
D r i v e i m m e d i a t e l y f o r a p p r o x i m a t e l y
t h r e e m i l e s ( fi v e k i l o m e t r e s ) , a t
reduced speed (between 15 and
3 5 m p h [ 2 0 a n d 6 0 k m / h ] ) , t o p l u g
the puncture.
Stop to check the repair and the tyre
pressure using the kit.
Turn the selector A to the AIR
position.
Connect the black pipe D to the
valve of the wheel. You can use this kit for the routine
check and adjustment of the tyre
pressures on your vehicle. It can
a l s o b e u s e d t o i n fl a t e o t h e r i t e m s
such as a ball or bicycle tyre.
To do this, turn the selector to the
"AIR" position, connect the black
pipe with the appropriate adapter
t o t h e i t e m t o b e i n fl a t e d , t h e n f o l -
low the remainder of the procedure
below until the kit is removed.
