Peugeot 308 SW BL 2012.5 Owner's Manual - RHD (UK, Australia)

6
119
FITTINGS

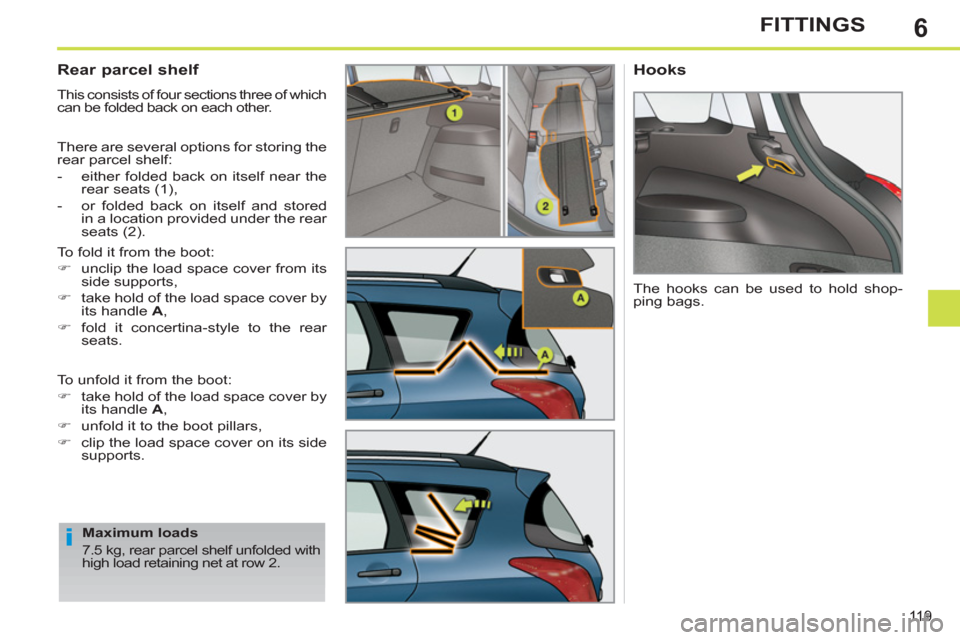

Rear parcel shelf

This consists of four sections three of which
can be folded back on each other.
There are several options for storing the
rear parcel shelf:


- either folded back on itself near the
rear seats (1),

- or folded back on itself and stored
in a location provided under the rear
seats (2).
To fold it from the boot:


)
unclip the load space cover from its
side supports,

)
take hold of the load space cover by
its handle A
,

)
fold it concertina-style to the rear
seats.
To unfold it from the boot:


)
take hold of the load space cover by
its handle A
,

)
unfold it to the boot pillars,

)
clip the load space cover on its side
supports.







Hooks


Maximum loads
7.5 kg, rear parcel shelf unfolded with
high load retaining net at row 2.
The hooks can be used to hold shop-
ping bags.

6
120
FITTINGS

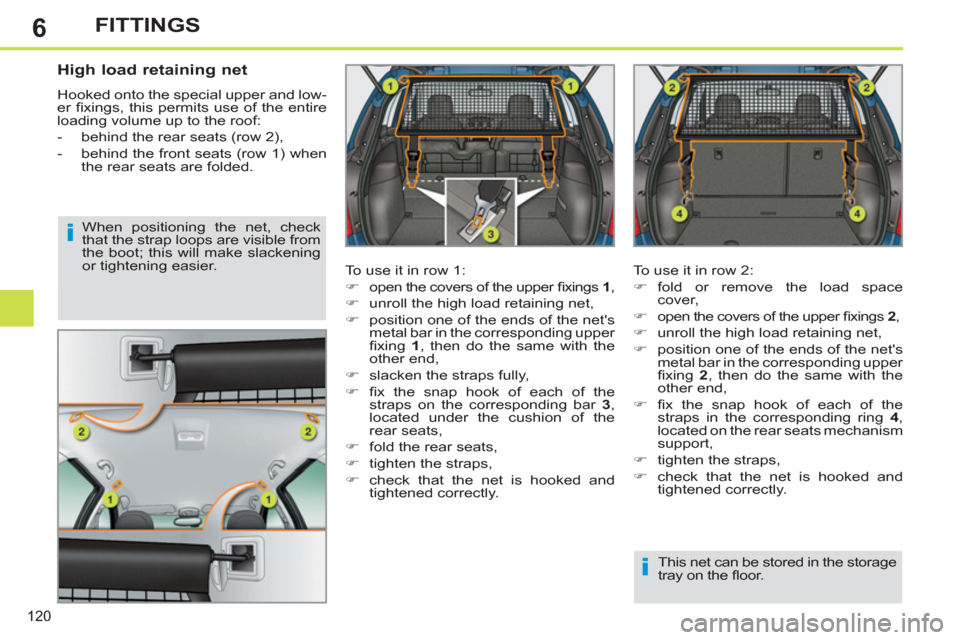

High load retaining net

Hooked onto the special upper and low-
er fi xings, this permits use of the entire
loading volume up to the roof:


- behind the rear seats (row 2),

- behind the front seats (row 1) when
the rear seats are folded.
To use it in row 1:


)
open the covers of the upper fi xings 1
,

)
unroll the high load retaining net,

)
position one of the ends of the net's
metal bar in the corresponding upper
fi xing 1
, then do the same with the
other end,

)
slacken the straps fully,

)
fi x the snap hook of each of the
straps on the corresponding bar 3
,
located under the cushion of the
rear seats,

)
fold the rear seats,

)
tighten the straps,

)
check that the net is hooked and
tightened correctly. To use it in row 2:


)
fold or remove the load space
cover,

)
open the covers of the upper fi xings 2
,

)
unroll the high load retaining net,

)
position one of the ends of the net's
metal bar in the corresponding upper
fi xing 2
, then do the same with the
other end,

)
fi x the snap hook of each of the
straps in the corresponding ring 4
,
located on the rear seats mechanism
support,

)
tighten the straps,

)
check that the net is hooked and
tightened correctly. When positioning the net, check
that the strap loops are visible from
the boot; this will make slackening
or tightening easier.

This net can be stored in the storage
tray on the fl oor.

6
121
FITTINGS

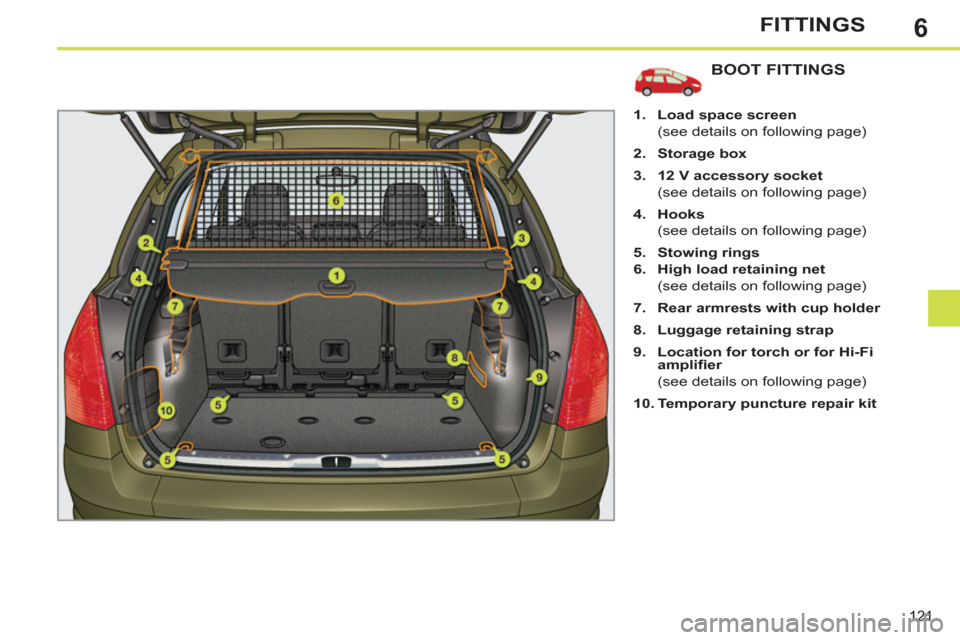

BOOT FITTINGS


1.
Load space screen

(see details on following page)

2.
Storage box


3.
12 V accessory socket

(see details on following page)

4.
Hooks

(see details on following page)

5.
Stowing rings


6.
High load retaining net

(see details on following page)

7.
Rear armrests with cup holder


8.
Luggage retaining strap


9.
Location for torch or for Hi-Fi
amplifi er

(see details on following page)

10.
Temporary puncture repair kit

6FITTINGS

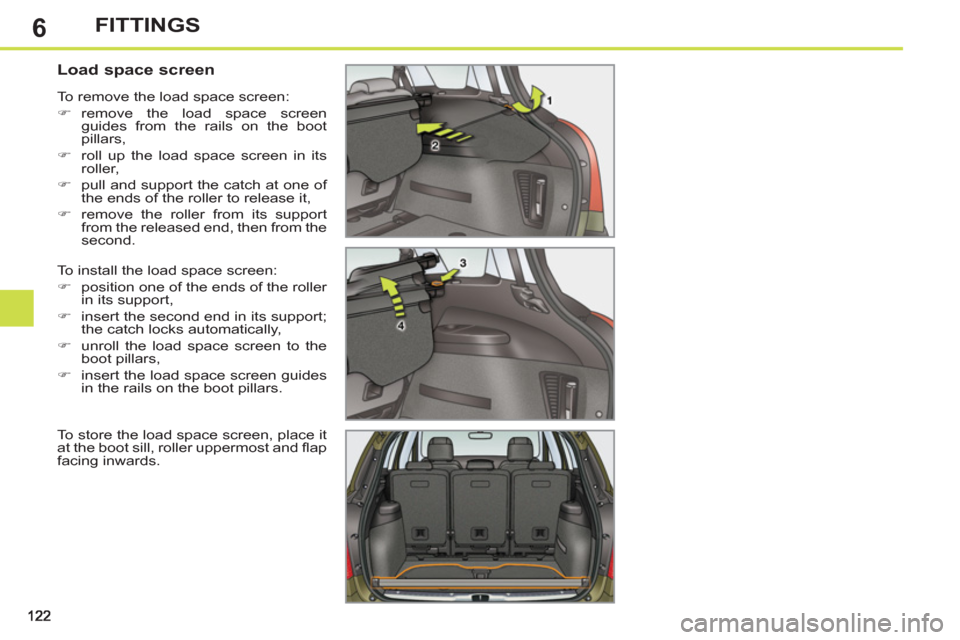

Load space screen

To install the load space screen:


)
position one of the ends of the roller
in its support,

)
insert the second end in its support;
the catch locks automatically,

)
unroll the load space screen to the
boot pillars,

)
insert the load space screen guides
in the rails on the boot pillars. To remove the load space screen:


)
remove the load space screen
guides from the rails on the boot
pillars,

)
roll up the load space screen in its
roller,

)
pull and support the catch at one of
the ends of the roller to release it,

)
remove the roller from its support
from the released end, then from the
second.
To store the load space screen, place it
at the boot sill, roller uppermost and fl ap
facing inwards.

6
123
FITTINGS

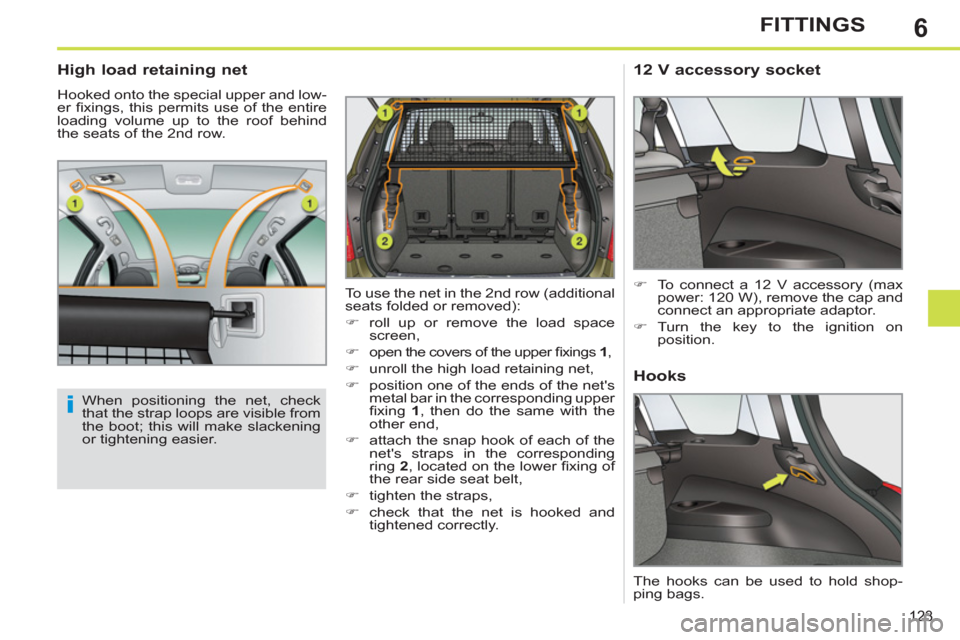

High load retaining net

Hooked onto the special upper and low-
er fi xings, this permits use of the entire
loading volume up to the roof behind
the seats of the 2nd row.






12 V accessory socket



)
To connect a 12 V accessory (max
power: 120 W), remove the cap and
connect an appropriate adaptor.

)
Turn the key to the ignition on
position.
To use the net in the 2nd row (additional
seats folded or removed):


)
roll up or remove the load space
screen,

)
open the covers of the upper fi xings 1
,

)
unroll the high load retaining net,

)
position one of the ends of the net's
metal bar in the corresponding upper
fi xing 1
, then do the same with the
other end,

)
attach the snap hook of each of the
net's straps in the corresponding
ring 2
, located on the lower fi xing of
the rear side seat belt,

)
tighten the straps,

)
check that the net is hooked and
tightened correctly.
When positioning the net, check
that the strap loops are visible from
the boot; this will make slackening
or tightening easier.






Hooks

The hooks can be used to hold shop-
ping bags.

6
124
FITTINGS

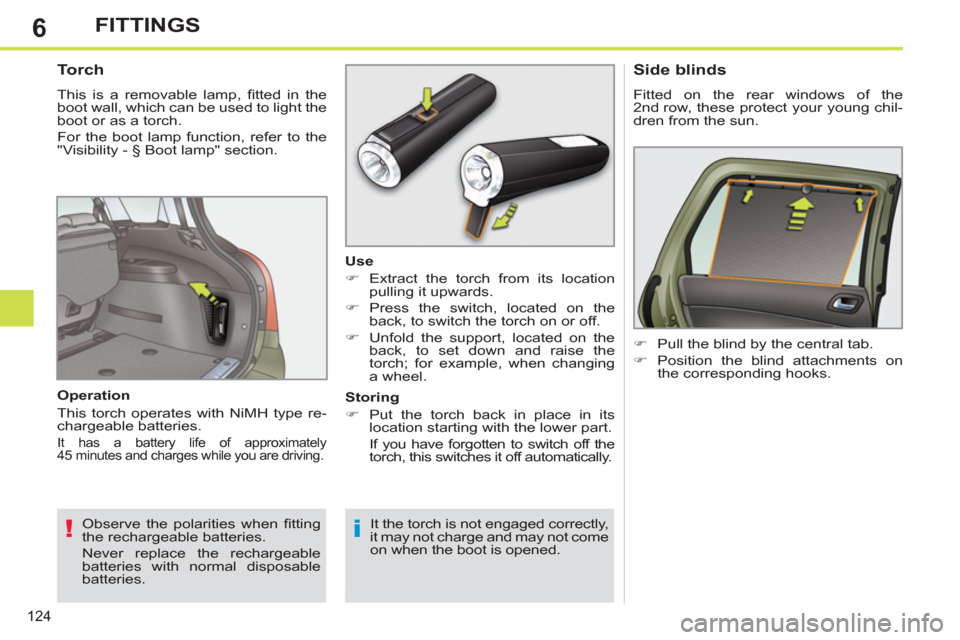

Torch

This is a removable lamp, fi tted in the
boot wall, which can be used to light the
boot or as a torch.
For the boot lamp function, refer to the
"Visibility - § Boot lamp" section.

Operation
This torch operates with NiMH type re-
chargeable batteries.
It has a battery life of approximately
45 minutes and charges while you are driving.

Use


)
Extract the torch from its location
pulling it upwards.

)
Press the switch, located on the
back, to switch the torch on or off.

)
Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.


Storing


)
Put the torch back in place in its
location starting with the lower part.
If you have forgotten to switch off the
torch, this switches it off automatically.










Side blinds

Fitted on the rear windows of the
2nd row, these protect your young chil-
dren from the sun.


)
Pull the blind by the central tab.

)
Position the blind attachments on
the corresponding hooks.

Observe the polarities when fi tting
the rechargeable batteries.
Never replace the rechargeable
batteries with normal disposable
batteries. It the torch is not engaged correctly,
it may not charge and may not come
on when the boot is opened.

7
125
CHILD SAFETY

PEUGEOT recommends
that chil-
dren should travel in the rear seats

of your vehicle:


- "rearwards-facing"
up to the
age of 2,

- "forwards-facing"
over the
age of 2.
GENERAL POINTS RELATINGTO CHILD SEATSCHILD SEAT IN THE FRONT


"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat
,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the front passenger seat
,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate
.

*
The rules for carrying children are
specifi c to each country. Refer to the
current legislation in your country. Although one of PEUGEOT's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please observe
the following recommendations:


- in accordance with European
regulations, all children under the
age of 12 or less than one and
a half metres tall must travel in
approved child seats suited to
their weight
, on seats fi tted with a
seat belt or ISOFIX mountings * ,

- statistically, the safest seats in
your vehicle for carrying children
are the rear seats,


- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.



Intermediate longitudinal position

7
126
CHILD SAFETY


Passenger airbag OFF

Refer to the advice given on the label
present on both sides of the passen-
ger's sun visor.

To assure the safety of your child, you must deactivate the passenger's front
airbag when you install a child seat in the rearwards facing position on the
front passenger's seat.
Otherwise, there is a risk that the child could be seriously injured or killed if
the airbag were deployed.

7CHILD SAFETY


Group 0+: from birth to 13 kg



Groups 1, 2 and 3: from 9 to 36 kg






L1


"RÖMER Baby-Safe
Plus"
Installed in the
rearwards-facing
position.



L2


"KIDDY Comfort Pro"

The impact shield
must be used for
carrying young
children (from 9 to
18 kg).


Groups 2 and 3: from 15 to 36 kg






L3


"RECARO Start''



L4


"KLIPPAN Optima"
From the age
of 6 years
(approximately
22 kg), the booster is
used on its own.




L5


"RÖMER KIDFIX"
Can be fi tted to the vehicle's ISOFIX
mountings.
The child is restrained by the seat belt.
CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are se-
cured using a three point seat belt
:

7
128
CHILD SAFETY
LOCATIONS FOR CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using
the seat belt and universally approved (a) in relation to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before installing your child on this seat.

U
: seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/or
"forward facing".

U(R1)
: identical to U
, with the vehicle's seat adjusted to the intermediate longitudinal position.

U(R2)
: identical to U
, with the vehicle's seat adjusted to the highest position and moved back fully.

*
The seat's head restraint must be removed and stored.

Seat



Weight of the child /
indicative age


Less than 13 kg

(groups 0 (b)
and 0+)
Up to ≈ 1 year

From 9 to 18 kg

(group 1)
From 1 to ≈ 3 years

From 15 to 25 kg

(group 2)
From 3 to ≈ 6 years

From 22 to 36 kg

(group 3)
From 6 to ≈ 10 years

Front passenger seat (c)











- fi xed


U(R1)



U(R1)



U(R1)



U(R1)





- height adjustable


U(R2)



U(R2)



U(R2)



U(R2)



Outer rear seats

U



U

*


U

*


U

*


Centre rear seat

U



U

*


U

*


U

*
