child seat Peugeot 308 SW BL 2012.5 Owner's Manual - RHD (UK, Australia)

2
CONTENTS
Instrument panels 25
Warning and indicator lamps 29
Indicators 39
Instrument panel buttons 43Ventilation 61
Heating 63
Manual air conditioning 63
Rear screen demist - defrost 65
Dual-zone digital air conditioning 66
Front seats 68
Rear seats 72
Seat modularity 78
Mirrors 80
Steering wheel adjustment 82
COMFORT 61 Î 82
Remote control key 83
Alarm 87
Electric windows 89
Doors 91
Boot 94
Panoramic sunroof 95
Fuel tank 96
Misfuel prevention (Diesel) 97
ACCESS 83 Î 98
Lighting controls 99
LED lamps 101
Daytime running lamps 101
Headlamp adjustment 103
Directional lighting 104
Wiper controls 105
Automatic rain sensitive wipers 107
Courtesy lamps 108
Interior mood lighting 109
Boot lamp 109
VISIBILITY 99 Î 109
Child seats 125
ISOFIX child seats 131
Child lock 136
CHILD
SAFETY 125 Î 136 FAMILIARISATION 4 Î 22
INSTRUMENTS and
CONTROLS 25 Î 44
Screens without audio equipment 45
Screens with audio equipment 47
Retractable colour screen (Peugeot
Connect Navigation (RT6)) 52
Retractable colour screen (Peugeot
Connect Media Navigation
(NG4 3D)) 54
Trip computer 57
MULTIFUNCTION
SCREENS 45 Î 60
Interior fi ttings 110
Front armrest 113
Boot fi ttings 116
FITTINGS 110 Î 124
7
5
4
3
26
ECO-DRIVING 23 Î 24

17
FAMILIARISATION
PASSENGER SAFETY

Passenger's front airbag
Electric child lock



1.
Insert the key.

2.
Select the position:
"OFF"
(deactivation), with "rear
facing" child seat,
"ON"
(activation), with front
passenger or "forwards facing"
child seat.

3.
Remove the key keeping the switch
in the new position. Illumination of the indicator lamp
indicates the status of the corresponding
function.

A.
Activation of the electric child lock.

A.
Front and/or rear seat belts not
fastened / unfastened warning
lamp.

B.
Front left seat belt warning lamp.

C.
Front right seat belt warning lamp.

D.
Rear right seat belt warning lamp * .

E.
Rear centre seat belt warning
lamp * .

F.
Rear left seat belt warning lamp * .

G.
Passenger's front airbag
deactivated warning lamp.

H.
Passenger's front airbag activated
warning lamp.


Seat belts and passenger's
front airbag



142, 147




146




136

*
Only with individual rear seats on SW.

1
37
INSTRUMENTS and CONTROLS


Stop & Start


fi xed. When the vehicle stops (red
lights, traffi c jams, ...) the
Stop & Start system has
put the engine into STOP
mode. The warning lamp goes off and the engine
restarts automatically in START mode, as soon
as you want to move off.

fl ashes for a
few seconds,
then goes off. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically. Refer to "Driving - § Stop & Start" for special
cases with STOP mode and START mode.

Warning lamp



is on



Cause



Action / Observations





Passenger's
front airbag
fi xed on the
seat belt and
passenger's
front airbag
warning lamps
display. The control switch, located
on the passenger's side of
the dashboard, has been
placed in the "ON"
position.
The passenger's front
airbag is activated.
In this case, do not install a
"rear facing" child seat. While you do not have a rear-facing child
seat fi tted to the front passenger seat, it is
recommended that the passenger's front airbag
be activated.
On the other hand, before fi tting a rear-facing
child seat, you must turn the control switch to the
"OFF"
position.

1
38
INSTRUMENTS and CONTROLS


Warning lamp



is on



Cause



Action / Observations











Deactivation warning lamps
If one of the following warning lamps comes on, this confi rms that the corresponding system has been switched off intentionally.
This may be accompanied by an audible signal.
Depending on your version of instrument panel, illumination of the warning lamp is also accompanied by:




Passenger's
front airbag


fi xed in the
instrument
panel and/or
in the seat
belt and front
passenger's
airbag warning
lamps display. The control switch, located on the
passenger's end of the dashboard, is
set to the "OFF"
position.
The passenger's front airbag is
deactivated.
You can install a rear-facing child seat
on the front passenger seat. To activate the front passenger's
airbag, set the switch to the "ON"

position; in this case, it is not possible
to fi t a child seat in the rear-facing
position on this seat.




ESP/ASR


fi xed. The button, located in the middle of
the dashboard, is pressed. Its indicator
lamp is on.
The ESP/ASR is deactivated. The
following functions are deactivated:


- ESP (dynamic stability control),

- ASR (wheel anti-slip regulation).

Press the button again to manually reactivate
these functions. Its indicator lamp goes off.
From approximately 30 mph (50 km/h), these
systems are reactivated automatically (except
for the 1.6 litre THP 200 hp petrol engine).
These function are activated automatically
when the vehicle is started.


- a message in the multifunction
screen, or

- a pictogram in the central instrument
panel screen and a message in the
multifunction screen, or

- a pictogram and a message in the
central instrument panel screen.

7
125
CHILD SAFETY

PEUGEOT recommends
that chil-
dren should travel in the rear seats

of your vehicle:


- "rearwards-facing"
up to the
age of 2,

- "forwards-facing"
over the
age of 2.
GENERAL POINTS RELATINGTO CHILD SEATSCHILD SEAT IN THE FRONT


"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat
,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the front passenger seat
,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate
.

*
The rules for carrying children are
specifi c to each country. Refer to the
current legislation in your country. Although one of PEUGEOT's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please observe
the following recommendations:


- in accordance with European
regulations, all children under the
age of 12 or less than one and
a half metres tall must travel in
approved child seats suited to
their weight
, on seats fi tted with a
seat belt or ISOFIX mountings * ,

- statistically, the safest seats in
your vehicle for carrying children
are the rear seats,


- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.



Intermediate longitudinal position

7

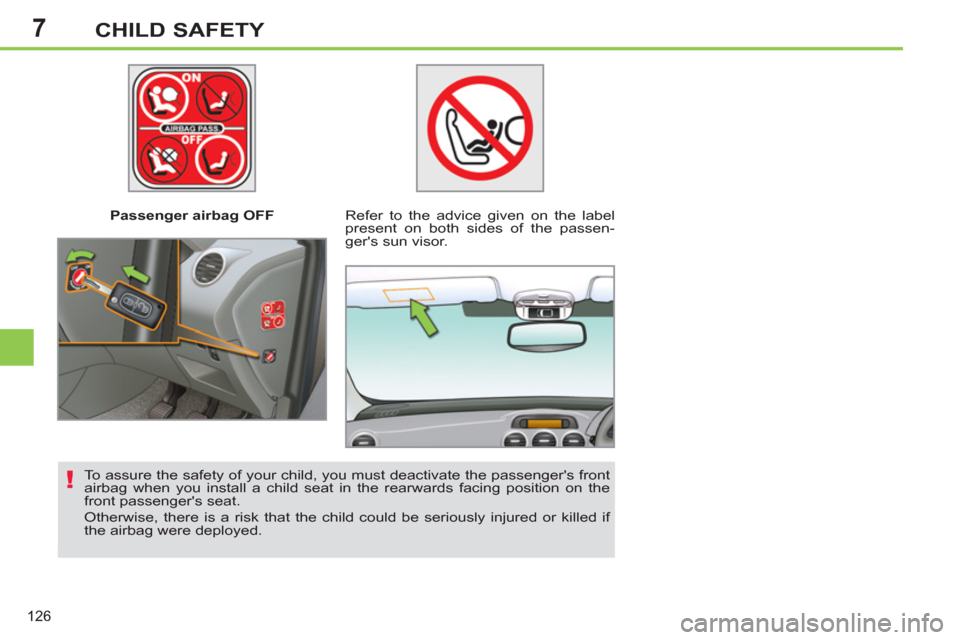

126
CHILD SAFETY


Passenger airbag OFF

Refer to the advice given on the label
present on both sides of the passen-
ger's sun visor.

To assure the safety of your child, you must deactivate the passenger's front
airbag when you install a child seat in the rearwards facing position on the
front passenger's seat.
Otherwise, there is a risk that the child could be seriously injured or killed if
the airbag were deployed.

7CHILD SAFETY


Group 0+: from birth to 13 kg



Groups 1, 2 and 3: from 9 to 36 kg






L1


"RÖMER Baby-Safe
Plus"
Installed in the
rearwards-facing
position.



L2


"KIDDY Comfort Pro"

The impact shield
must be used for
carrying young
children (from 9 to
18 kg).


Groups 2 and 3: from 15 to 36 kg






L3


"RECARO Start''



L4


"KLIPPAN Optima"
From the age
of 6 years
(approximately
22 kg), the booster is
used on its own.




L5


"RÖMER KIDFIX"
Can be fi tted to the vehicle's ISOFIX
mountings.
The child is restrained by the seat belt.
CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are se-
cured using a three point seat belt
:

7
128
CHILD SAFETY
LOCATIONS FOR CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using
the seat belt and universally approved (a) in relation to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before installing your child on this seat.

U
: seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/or
"forward facing".

U(R1)
: identical to U
, with the vehicle's seat adjusted to the intermediate longitudinal position.

U(R2)
: identical to U
, with the vehicle's seat adjusted to the highest position and moved back fully.

*
The seat's head restraint must be removed and stored.

Seat



Weight of the child /
indicative age


Less than 13 kg

(groups 0 (b)
and 0+)
Up to ≈ 1 year

From 9 to 18 kg

(group 1)
From 1 to ≈ 3 years

From 15 to 25 kg

(group 2)
From 3 to ≈ 6 years

From 22 to 36 kg

(group 3)
From 6 to ≈ 10 years

Front passenger seat (c)











- fi xed


U(R1)



U(R1)



U(R1)



U(R1)





- height adjustable


U(R2)



U(R2)



U(R2)



U(R2)



Outer rear seats

U



U

*


U

*


U

*


Centre rear seat

U



U

*


U

*


U

*

7
129
CHILD SAFETY
LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT
In accordance with the European regulation, this table indicates the options for the installation of child seats se-
cured using the seat belt and universally approved (a) depending on the weight of the child and the seat in the
vehicle.
(a) Universal child seat: child seat which
can be installed in all vehicles using
the seat belt.
(b) Group 0: from birth to 10 kg. Infant
car seats and "car cots" cannot be
installed on the front passenger
seat.

Seat



Weight of the child
/indicative age


Below 13 kg

(groups 0 (b)
and 0+)
Up to ≈ 1 year

9 to 18 kg

(group 1)
From 1 to ≈ 3 years



15 to 25 kg

(group 2)
From 3 to ≈ 6 years



22 to 36 kg

(group 3)
From 6 to ≈ 10 years



1st
row

Front passenger seat (c)








- fi xed

U(R1)



U(R1)



U(R1)



U(R1)


- height adjustable

U(R2)



U(R2)



U(R2)



U(R2)




2nd
row

Outer
Seat in standard position
and moved inwards

U



U



U



U


Centre
Centre seat

U



U



U



U




3rd
row

Outer
Additional seat

U



U



U



U


Outer
2nd row seat

U



U



U



U


(c) Consult the current legislation in
your country before installing your
child on this seat.

U
: seat suitable for the installation of a
child seat secured using the seat belt
and universally approved, "rear fac-
ing" and/or "forwards facing".
U(R1)
: identical to U
, with the vehicle's
seat adjusted to the intermedi-
ate longitudinal position.

U(R2)
: identical to U
, with the vehicle's
seat adjusted to its highest posi-
tion and moved back fully.

7
130
CHILD SAFETY
ADVICE ON CHILD SEATS

Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level.
As a safety precaution, do not leave:


- a child or children alone and
unsupervised in a vehicle,

- a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,

- the keys within reach of children
inside the vehicle.
To prevent accidental opening of the
doors and rear windows, use the
"Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an ac-
cident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack relative to the child's body to a
minimum, even for short journeys.
When installing a child seat using the
seat belt, ensure that the seat belt is
tightened correctly on the child seat
and that it secures the child seat fi rm-
ly on the seat of your vehicle. If your
passenger seat is adjustable, move it
forwards if necessary.
For optimum installation of the "for-
wards-facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat and
that the head restraint does not cause
any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached se-
curely to prevent it from being thrown
around the vehicle in the event of sharp
braking. Children under the age of 10 must not
travel in the "forwards-facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Deactivate the passenger airbag
when a "rearwards-facing" child seat
is installed on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were to infl ate.
