3
69
COMFORT
FRONT SEATS
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
Forwards-backwards
)
Push the control forwards or
rearwards to slide the seat.

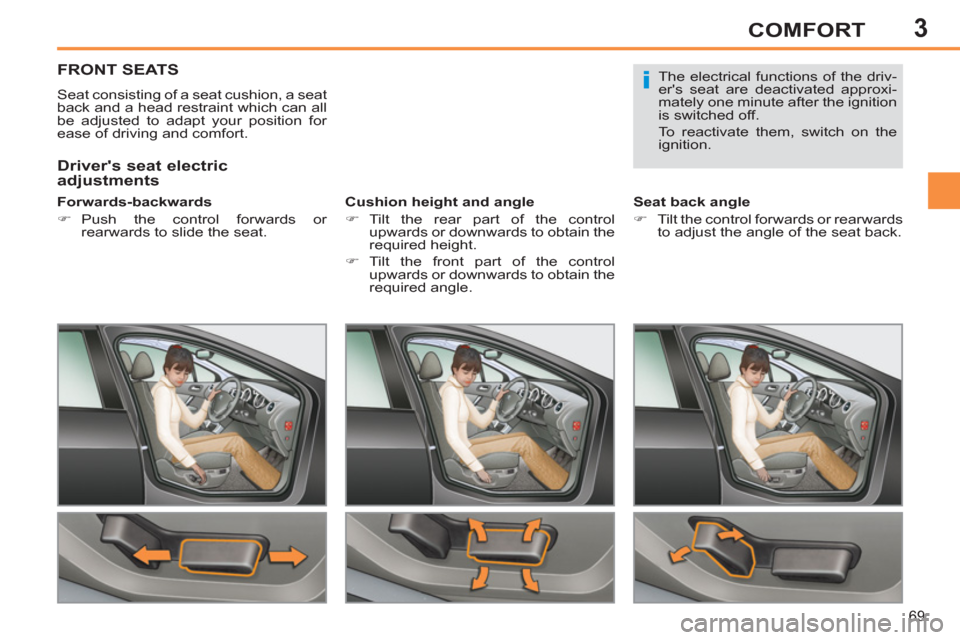

Cushion height and angle
)
Tilt the rear part of the control
upwards or downwards to obtain the
required height.
)
Tilt the front part of the control
upwards or downwards to obtain the
required angle.
Seat back angle
)
Tilt the control forwards or rearwards
to adjust the angle of the seat back.
Driver's seat electric
adjustments
The electrical functions of the driv-
er's seat are deactivated approxi-
mately one minute after the ignition
is switched off.
To reactivate them, switch on the
ignition.
Page 72 of 382
3
70
COMFORT
Table position for front
passenger seat

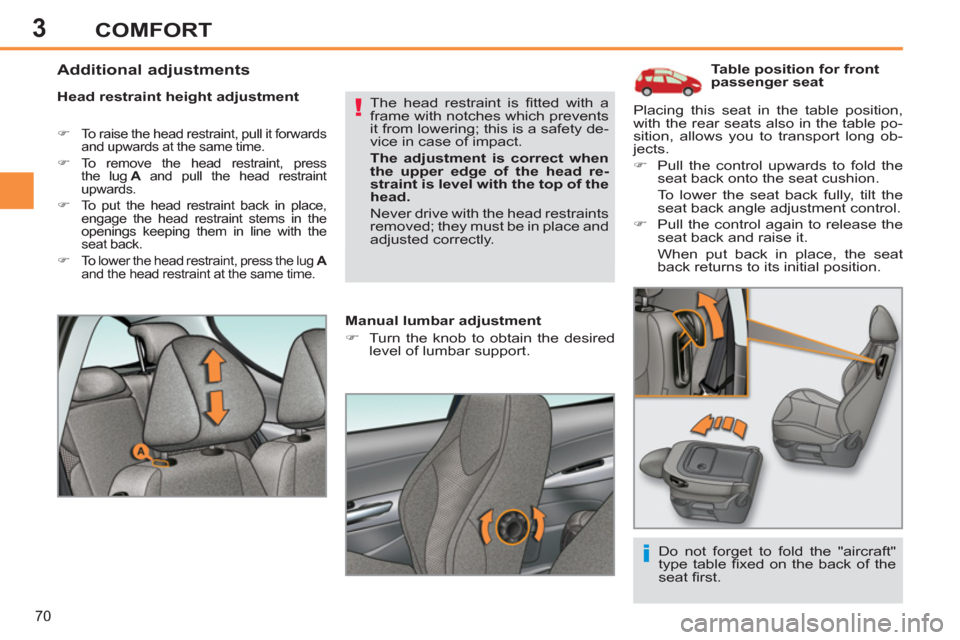

Head restraint height adjustment
)
To raise the head restraint, pull it forwards
and upwards at the same time.
)
To remove the head restraint, press
the lug A
and pull the head restraint
upwards.
)
To put the head restraint back in place,
engage the head restraint stems in the
openings keeping them in line with the
seat back.
)
To lower the head restraint, press the lug A
and the head restraint at the same time.
The head restraint is fi tted with a
frame with notches which prevents
it from lowering; this is a safety de-
vice in case of impact.
The adjustment is correct when
the upper edge of the head re-
straint is level with the top of the
head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
Manual lumbar adjustment
)
Turn the knob to obtain the desired
level of lumbar support.
Additional adjustments
Placing this seat in the table position,
with the rear seats also in the table po-
sition, allows you to transport long ob-
jects.
)
Pull the control upwards to fold the
seat back onto the seat cushion.
To lower the seat back fully, tilt the
seat back angle adjustment control.
)
Pull the control again to release the
seat back and raise it.
When put back in place, the seat
back returns to its initial position.
Do not forget to fold the "aircraft"
type table fi xed on the back of the
seat fi rst.
Page 73 of 382
3
71
COMFORT

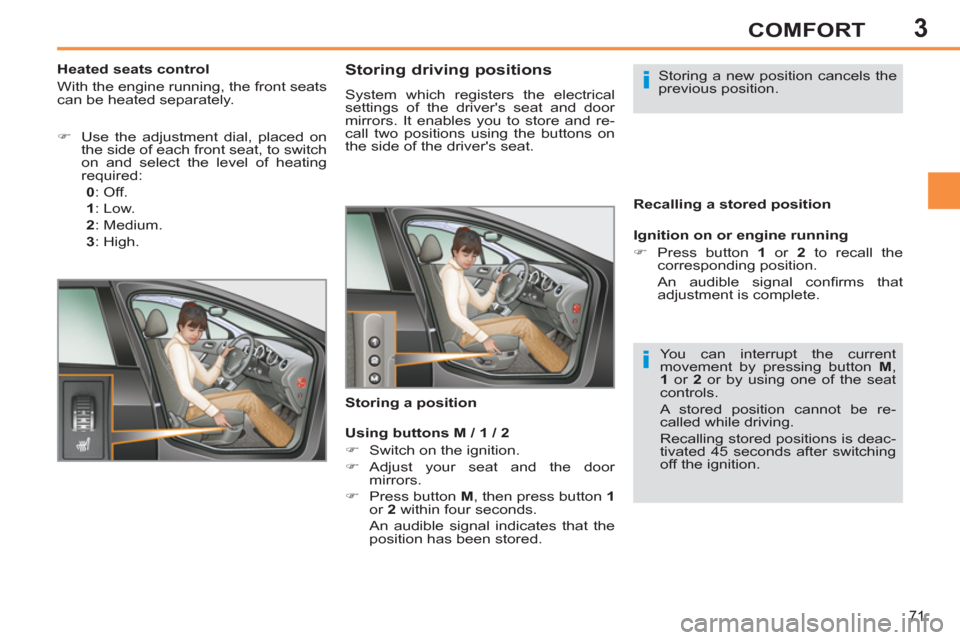

Storing driving positions
System which registers the electrical
settings of the driver's seat and door
mirrors. It enables you to store and re-
call two positions using the buttons on
the side of the driver's seat.
Ignition on or engine running
)
Press button 1
or 2
to recall the
corresponding position.
An audible signal confi rms that
adjustment is complete.
Storing a position Storing a new position cancels the
previous position.
Recalling a stored position
Using buttons M / 1 / 2
)
Switch on the ignition.
)
Adjust your seat and the door
mirrors.
)
Press button M
, then press button 1
or 2
within four seconds.
An audible signal indicates that the
position has been stored. You can interrupt the current
movement by pressing button M
,
1
or 2
or by using one of the seat
controls.
A stored position cannot be re-
called while driving.
Recalling stored positions is deac-
tivated 45 seconds after switching
off the ignition.
)
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating
required:
0
:
Off.
1
:
Low.
2
:
Medium.
3
:
High.
Heated seats control
With the engine running, the front seats
can be heated separately.
Page 74 of 382
3
72
COMFORT
REAR SEATS
Never drive with the head restraints
removed; they must be in place
and in the high position when pas-
sengers are seated in the rear.
Rear head restraints
These have a high position (comfort and
safety) and a low position (rear visibility).
They can also be removed.
To remove a head restraint:
)
pull the head restraint fully forwards
and upwards at the same time,
)
then, press the lug A
.
Removing the seat cushion
)
Move the corresponding front seat
forwards if necessary.
)
Raise the seat cushion 1
lifting it
with a hand from the rear.
)
Tilt the seat cushion 1
fully against
the front seat.
)
Remove the seat cushion 1
from its
fi xings by pulling upwards.
Refitting the seat cushion
)
Position the seat cushion 1
vertically
in its fi xings.
)
Fold down the seat cushion 1
.
)
Press on the seat cushion to secure it.
Bench seat, the left-hand (2/3) or right-
hand (1/3) section of which can be fold-
ed to adapt the boot load space.
Page 75 of 382
3
73
COMFORT
Folding the seat
In order to fold a rear seat without any
risk of damage, always start with the
seat cushion,
never with the seat
back:
)
move the corresponding front seat
forwards if necessary,
)
raise the seat cushion 1
lifting it with
a hand from the rear,
)
tilt the seat cushion 1
fully against
the front seat,
Returning the seat back to its
original position
When returning the rear seat back to its
original position:
)
put the seat back 3
in the upright
position and secure it,
)
fold the seat cushion 1
,
)
refi t the head restraints or put them
back in place.
)
check that the seat belt is positioned
correctly on the side of the seat back,
)
lower or remove the head restraints if
necessary,
)
pull the control 2
forwards to release
the seat back 3
,
)
tilt the seat back 3
.
When returning the rear seat back
to its original position, take care not
to trap the seat belts and ensure
that their buckles are positioned
correctly. The seat cushion 1
can be removed
to increase the loading volume.
Page 76 of 382
3
74
COMFORT
REAR SEATS

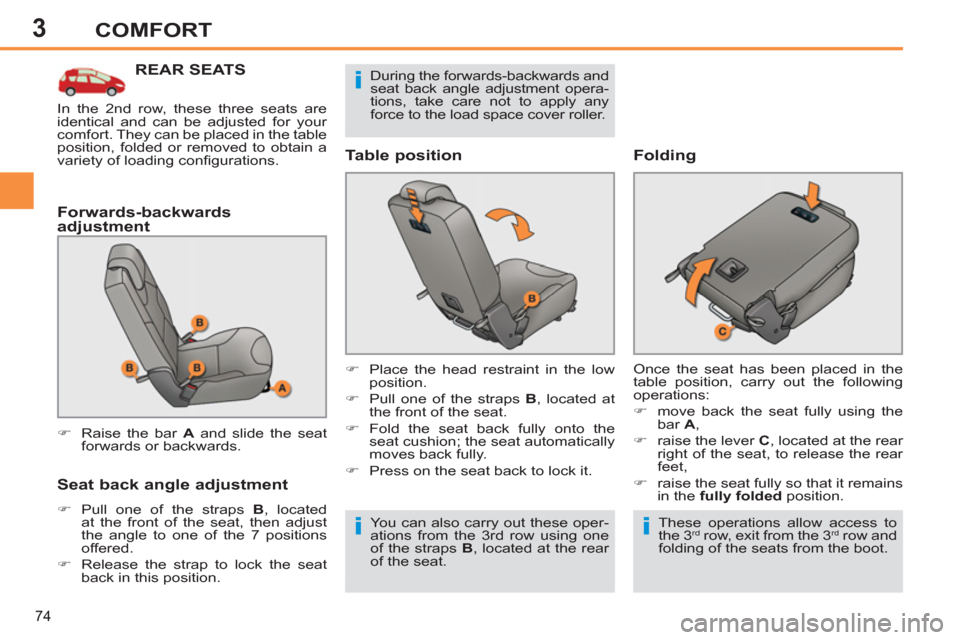

Forwards-backwards
adjustment
Seat back angle adjustment
)
Pull one of the straps B
, located
at the front of the seat, then adjust
the angle to one of the 7 positions
offered.
)
Release the strap to lock the seat
back in this position.
Table position
)
Raise the bar A
and slide the seat
forwards or backwards.
)
Place the head restraint in the low
position.
)
Pull one of the straps B
, located at
the front of the seat.
)
Fold the seat back fully onto the
seat cushion; the seat automatically
moves back fully.
)
Press on the seat back to lock it.
Folding
Once the seat has been placed in the
table position, carry out the following
operations:
)
move back the seat fully using the
bar A
,
)
raise the lever C
, located at the rear
right of the seat, to release the rear
feet,
)
raise the seat fully so that it remains
in the fully folded
position.
You can also carry out these oper-
ations from the 3rd row using one
of the straps B
, located at the rear
of the seat. These operations allow access to
the 3
rd row, exit from the 3 rd
row and
folding of the seats from the boot. In the 2nd row, these three seats are
identical and can be adjusted for your
comfort. They can be placed in the table
position, folded or removed to obtain a
variety of loading confi gurations. During the forwards-backwards and
seat back angle adjustment opera-
tions, take care not to apply any
force to the load space cover roller.
Page 77 of 382
3
75
COMFORT

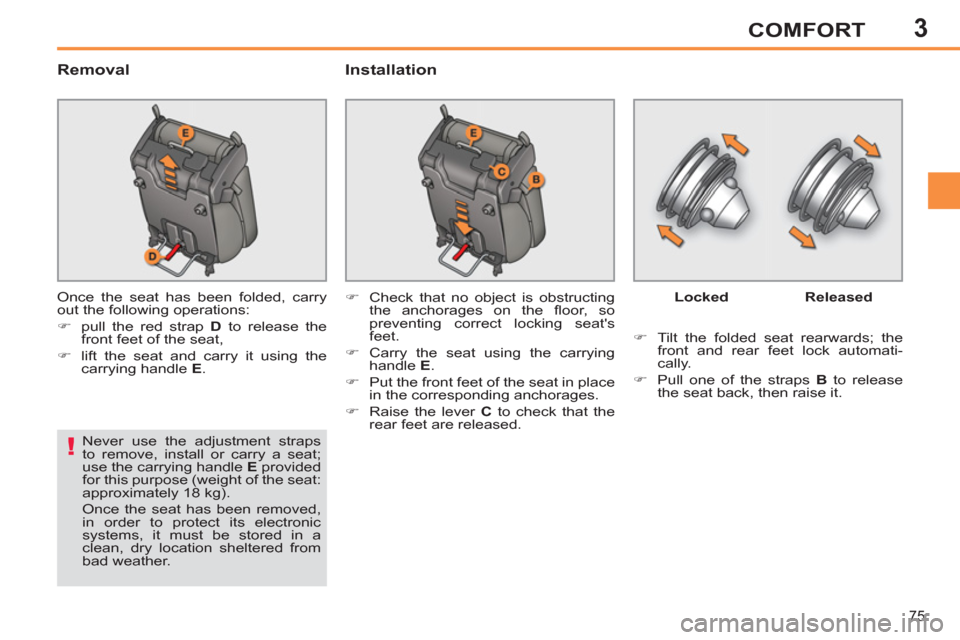

Removal
Installation
Once the seat has been folded, carry
out the following operations:
)
pull the red strap D
to release the
front feet of the seat,
)
lift the seat and carry it using the
carrying handle E
.
Never use the adjustment straps
to remove, install or carry a seat;
use the carrying handle E
provided
for this purpose (weight of the seat:
approximately 18 kg).
Once the seat has been removed,
in order to protect its electronic
systems, it must be stored in a
clean, dry location sheltered from
bad weather. Locked
Released
)
Tilt the folded seat rearwards; the
front and rear feet lock automati-
cally.
)
Pull one of the straps B
to release
the seat back, then raise it.
)
Check that no object is obstructing
the anchorages on the fl oor, so
preventing correct locking seat's
feet.
)
Carry the seat using the carrying
handle E
.
)
Put the front feet of the seat in place
in the corresponding anchorages.
)
Raise the lever C
to check that the
rear feet are released.
Page 78 of 382
3
76
COMFORT
ADDITIONAL SEATS
Table position
)
Place the head restraint in the low
position.
)
Pull the strap A
, located at the rear
left of the seat.
)
Fold the seat back onto the seat
cushion.
Folding
Once the seat has been placed in the
table position, carry out the following
operations:
)
remove the load space cover roller,
)
raise the bar B
, located at the rear of
the seat, to release the rear feet,
)
raise the seat and secure it to the
head restraint rod of the 2nd row
seat, using the integrated retaining
strap C
.
Removal
Once the seat has been folded, carry
out the following operations:
)
pull the red strap D
to release the
front feet of the seat,
)
lift the seat and carry it using the
carrying handle E
,
)
put the anchorage covers back in
place to obtain a fl at boot fl oor.
Never use the adjustment and re-
taining straps to remove, install
or carry a seat; use the carrying
handle E
provided for this purpose
(weight of the seat: approximately
15 kg). In the 3rd row, these two seats are iden-
tical and are used for the occasional
carrying of additional passengers. They
can be placed in the table position,
folded or removed to obtain a variety of
loading confi gurations.
Page 79 of 382
3
77
COMFORT

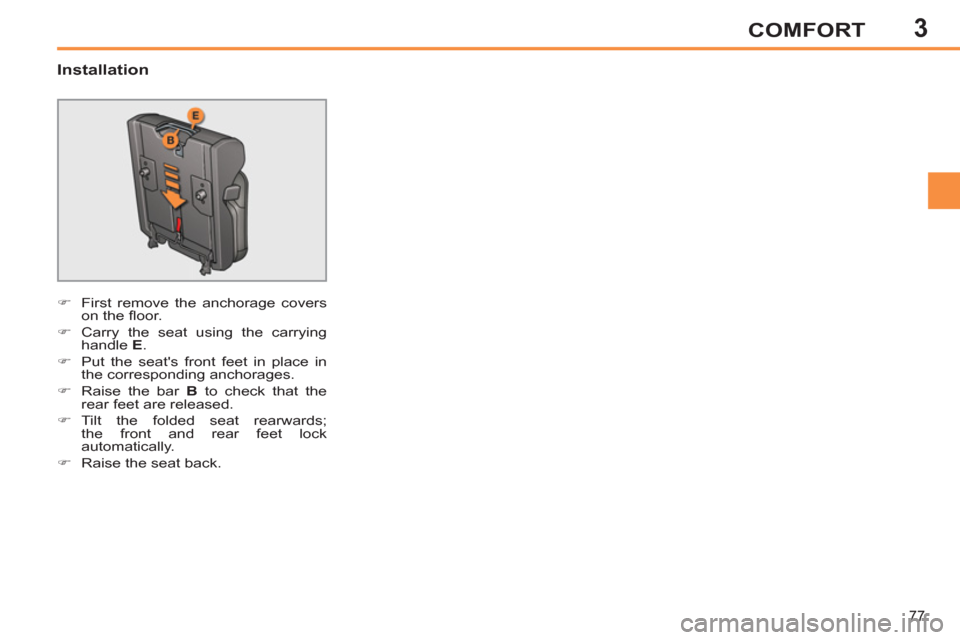

Installation
)
First remove the anchorage covers
on the fl oor.
)
Carry the seat using the carrying
handle E
.
)
Put the seat's front feet in place in
the corresponding anchorages.
)
Raise the bar B
to check that the
rear feet are released.
)
Tilt the folded seat rearwards;
the front and rear feet lock
automatically.
)
Raise the seat back.
Page 80 of 382
3
78
COMFORT
SEAT MODULARITY AND VARIOUSCONFIGURATIONS

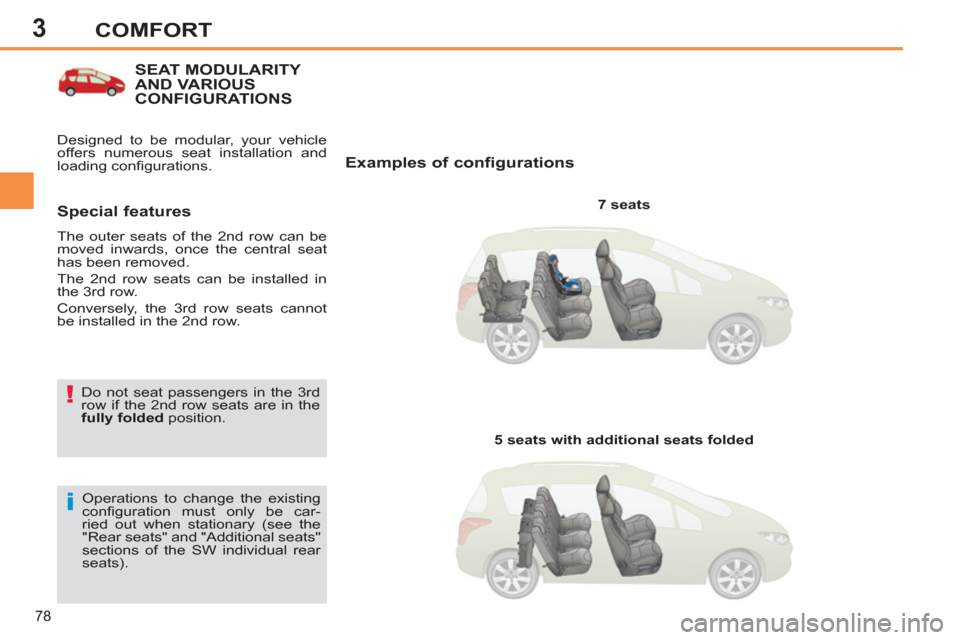

Examples of configurations
7 seats
Operations to change the existing
confi guration must only be car-
ried out when stationary (see the
"Rear seats" and "Additional seats"
sections of the SW individual rear
seats).
Special features
The outer seats of the 2nd row can be
moved inwards, once the central seat
has been removed.
The 2nd row seats can be installed in
the 3rd row.
Conversely, the 3rd row seats cannot
be installed in the 2nd row.
5 seats with additional seats folded Do not seat passengers in the 3rd
row if the 2nd row seats are in the
fully folded
position. Designed to be modular, your vehicle
offers numerous seat installation and
loading confi gurations.
