TECHNICAL DATA

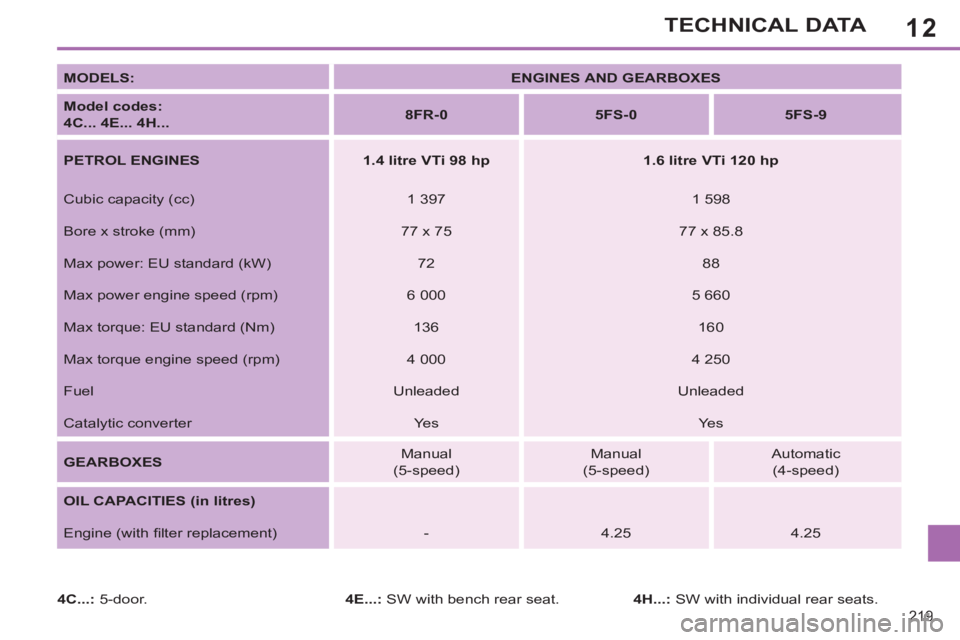

MODELS:


ENGINES AND GEARBOXES



Model codes:


4C... 4E... 4H...


8FR-0



5FS-0



5FS-9



PETROL ENGINES


1.4 litre VTi 98 hp



1.6 litre VTi 120 hp


Cubic capacity (cc)
1 397
1 598
Bore x stroke (mm)
77 x 75
77 x 85.8
Max power: EU standard (kW)
72
88
Max power engine speed (rpm)
6 000
5 660
Max torque: EU standard (Nm)
136
160
Max torque engine speed (rpm)
4 000
4 250
Fuel
Unleaded
Unleaded
Catalytic converter
Yes
Yes

GEARBOXES

Manual
(5-speed)
Manual
(5-speed)
Automatic
(4-speed)

OIL CAPACITIES (in litres)

Engine (with fi lter replacement)

-
4.25
4.25

4C...:
5-door.
4E...:
SW with bench rear seat.
4H...:
SW with individual rear seats.

12
220
TECHNICAL DATA

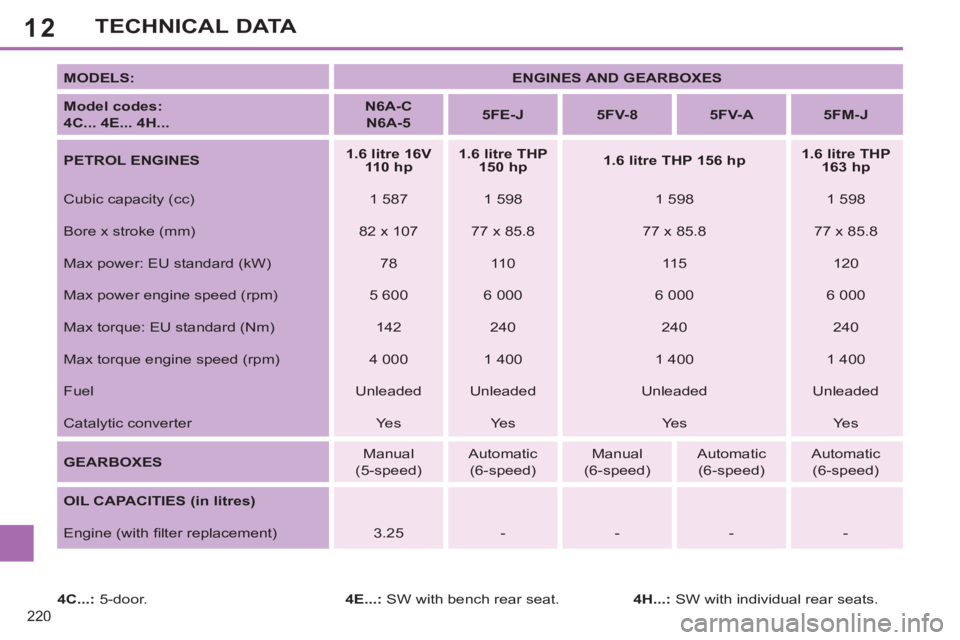

MODELS:


ENGINES AND GEARBOXES



Model codes:
4C... 4E... 4H...


N6A-C
N6A-5



5FE-J



5FV-8



5FV-A



5FM-J



PETROL ENGINES


1.6 litre 16V
110 hp



1.6 litre THP
150 hp



1.6 litre THP 156 hp



1.6 litre THP
163 hp


Cubic capacity (cc)
1 587
1 598
1 598
1 598
Bore x stroke (mm)
82 x 107
77 x 85.8
77 x 85.8
77 x 85.8
Max power: EU standard (kW)
78
11 0
115
120
Max power engine speed (rpm)
5 600
6 000
6 000
6 000
Max torque: EU standard (Nm)
142
240
240
240
Max torque engine speed (rpm)
4 000
1 400
1 400
1 400
Fuel
Unleaded
Unleaded
Unleaded
Unleaded
Catalytic converter
Yes
Yes
Yes
Yes

GEARBOXES

Manual
(5-speed)
Automatic
(6-speed)
Manual
(6-speed)
Automatic
(6-speed)
Automatic
(6-speed)

OIL CAPACITIES (in litres)

Engine (with fi lter replacement)
3.25
-
-
-
-

4C...:
5-door.
4E...:
SW with bench rear seat.
4H...:
SW with individual rear seats.

12
221
TECHNICAL DATA

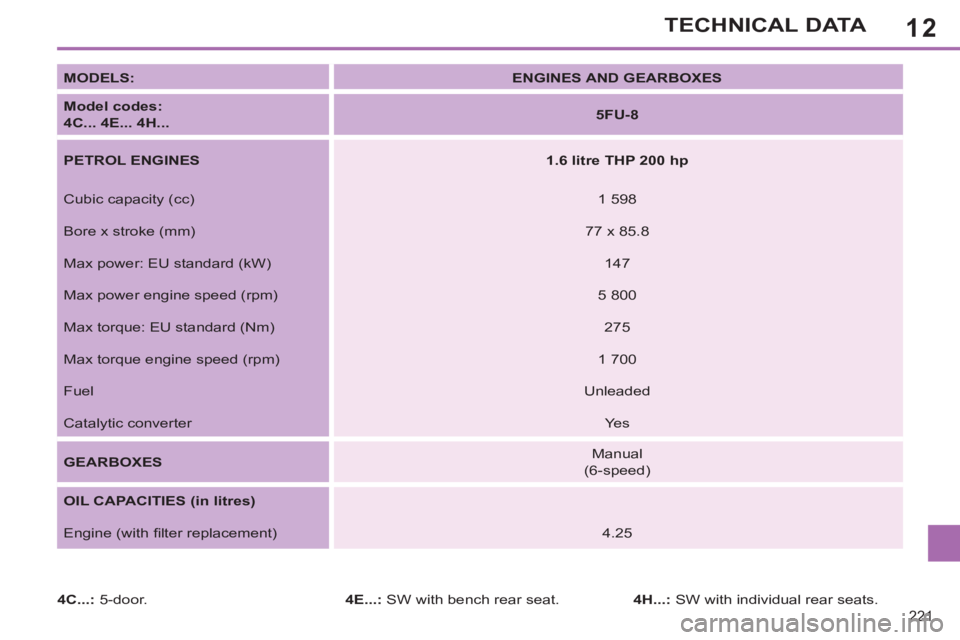

MODELS:


ENGINES AND GEARBOXES



Model codes:
4C... 4E... 4H...


5FU-8



PETROL ENGINES


1.6 litre THP 200 hp


Cubic capacity (cc)
1 598
Bore x stroke (mm)
77 x 85.8
Max power: EU standard (kW)
147
Max power engine speed (rpm)
5 800
Max torque: EU standard (Nm)
275
Max torque engine speed (rpm)
1 700
Fuel
Unleaded
Catalytic converter
Yes

GEARBOXES

Manual
(6-speed)

OIL CAPACITIES (in litres)

Engine (with fi lter replacement)
4.25

4C...:
5-door.
4E...:
SW with bench rear seat.
4H...:
SW with individual rear seats.

12
222
TECHNICAL DATA

*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

WEIGHTS AND TOWED LOADS (in kg)



Petrol engines


1.4 litre VTi 98 hp




1.6 litre 16V 110 hp




1.6 litre VTi 120 hp



Gearboxes


Manual



Manual



Manual



Automatic



Model codes:


4C...


8FR-0



N6A-C
N6A-5



5FS-0



5FS-9




- Unladen weight
1 271
1 302
1 287
1 312


- Kerb weight
1 346
1 377
1 362
1 387


- Payload
509
518
528
523


- Gross vehicle weight (GVW)
1 780
1 820
1 815
1 835


- Gross train weight (GTW)
on a 12% gradient
2 980
3 020
3 315
3 085


- Braked trailer (within GTW limit)

on a 10% or 12% gradient
1 200
1 200
1 500
1 250


- Braked trailer * (with load transfer
within the GTW limit)
1 450
1 450
1 500
1 500


- Unbraked trailer
670
685
680
690


- Recommended nose weight
60
60
76
60

12
223
TECHNICAL DATA

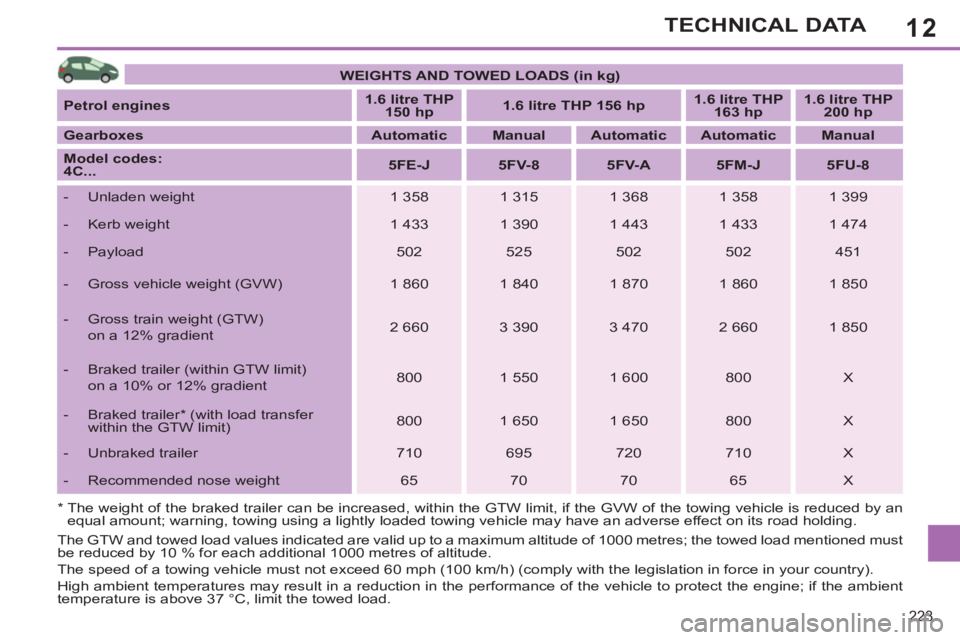

WEIGHTS AND TOWED LOADS (in kg)



Petrol engines


1.6 litre THP
150 hp



1.6 litre THP 156 hp



1.6 litre THP
163 hp



1.6 litre THP
200 hp



Gearboxes


Automatic



Manual



Automatic



Automatic



Manual



Model codes:
4C...


5FE-J



5FV-8



5FV-A



5FM-J



5FU-8




- Unladen weight
1 358
1 315
1 368
1 358
1 399


- Kerb weight
1 433
1 390
1 443
1 433
1 474


- Payload
502
525
502
502
451


- Gross vehicle weight (GVW)
1 860
1 840
1 870
1 860
1 850


- Gross train weight (GTW)
on a 12% gradient
2 660
3 390
3 470
2 660
1 850


- Braked trailer (within GTW limit)
on a 10% or 12% gradient
800
1 550
1 600
800
X


- Braked trailer * (with load transfer
within the GTW limit)
800
1 650
1 650
800
X


- Unbraked trailer
710
695
720
710
X


- Recommended nose weight
65
70
70
65
X
The GTW and towed load values indicated are valid up to a maximum altitude of 1000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

12
224
TECHNICAL DATA

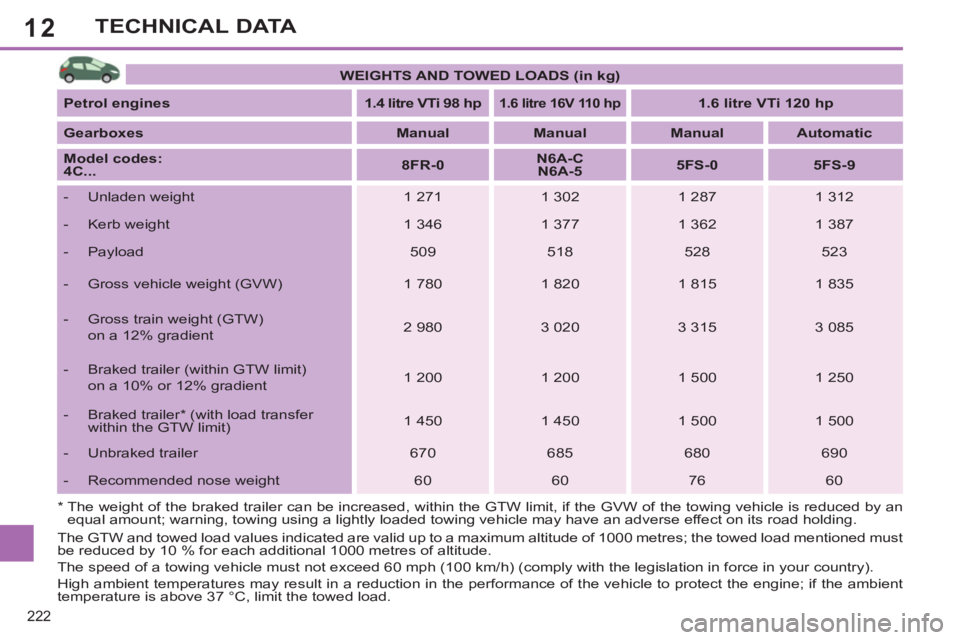

WEIGHTS AND TOWED LOADS (in kg)



Petrol engines


1.4 litre VTi 98 hp


1.6 litre 16V
110 hp


1.6 litre VTi 120 hp



Gearboxes


Manual



Manual



Manual



Automatic



Model codes: 4E...


8FR-0



N6A-C
N6A-5



5FS-0



5FS-9




- Unladen weight
1 320
1 374
1 320
1 356


- Kerb weight
1 395
1 449
1 395
1 431


- Payload
600
576
602
592


- Gross vehicle weight (GVW)
1 920
1 950
1 922
1 948


- Gross train weight (GTW)
on a 12% gradient
3 020

3 150
3 272
3 298


- Braked trailer (within GTW limit)
on a 10% or 12% gradient
1 100
1 200
1 350
1 350


- Braked trailer * (with load transfer
within the GTW limit)
1 100
1 400
1 500
1 500


- Unbraked trailer
695
720
695
715


- Recommended nose weight
60
75
65
60
The GTW and towed load values indicated are valid up to a maximum altitude of 1000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load. *

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

12
225
TECHNICAL DATA

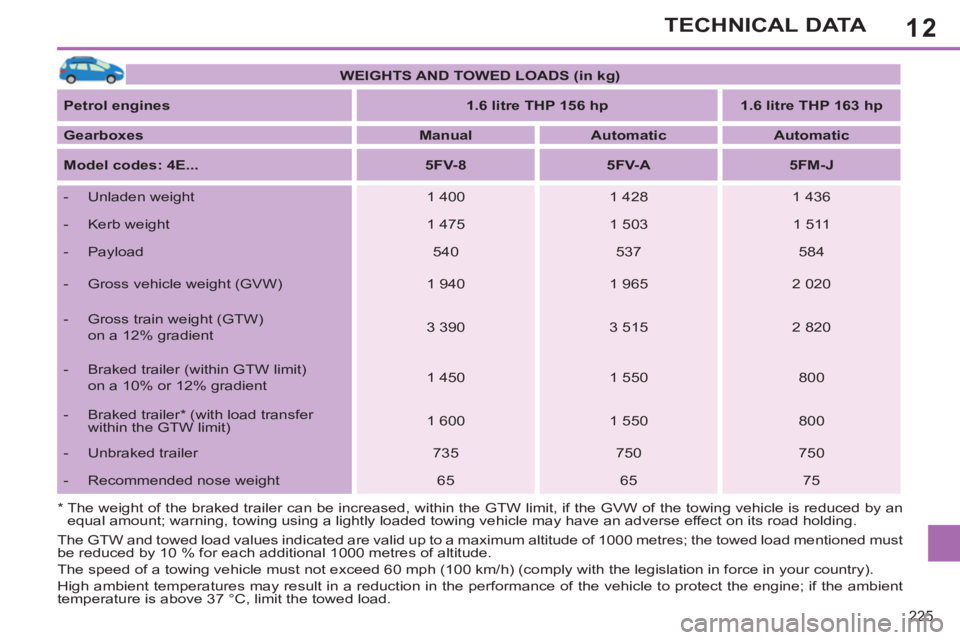

WEIGHTS AND TOWED LOADS (in kg)



Petrol engines


1.6 litre THP 156 hp



1.6 litre THP 163 hp



Gearboxes


Manual



Automatic



Automatic



Model codes: 4E...


5FV-8



5FV-A



5FM-J




- Unladen weight
1 400
1 428
1 436


- Kerb weight
1 475
1 503
1 511


- Payload
540
537
584


- Gross vehicle weight (GVW)
1 940
1 965
2 020


- Gross train weight (GTW)
on a 12% gradient
3 390
3 515
2 820


- Braked trailer (within GTW limit)
on a 10% or 12% gradient
1 450
1 550
800


- Braked trailer * (with load transfer
within the GTW limit)
1 600
1 550
800


- Unbraked trailer
735
750
750


- Recommended nose weight
65
65
75
The GTW and towed load values indicated are valid up to a maximum altitude of 1000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load. *

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

12
226
TECHNICAL DATA

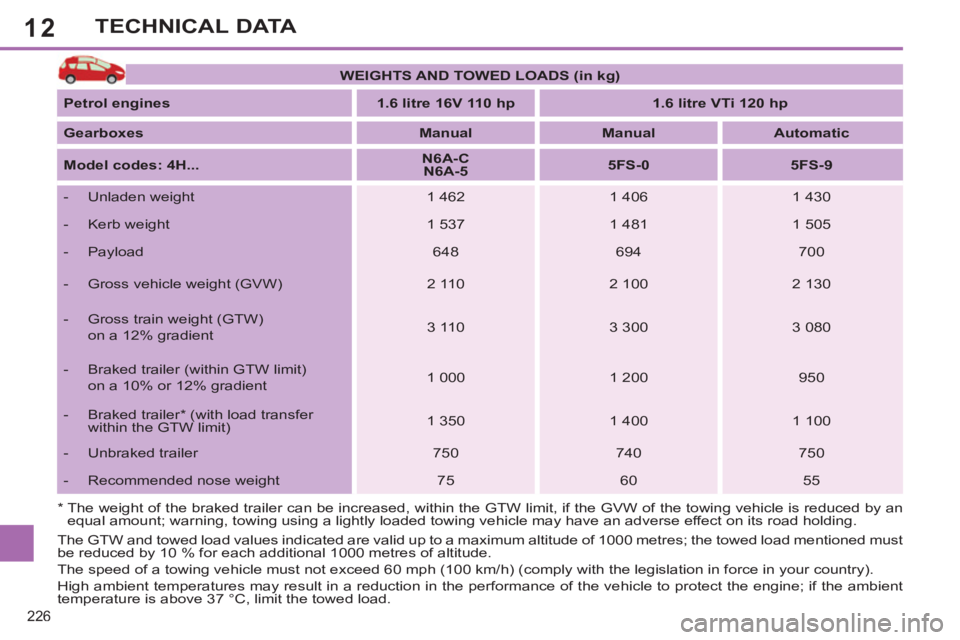

WEIGHTS AND TOWED LOADS (in kg)



Petrol engines


1.6 litre 16V 110 hp



1.6 litre VTi 120 hp



Gearboxes


Manual



Manual



Automatic



Model codes: 4H...


N6A-C
N6A-5



5FS-0



5FS-9




- Unladen weight
1 462
1 406
1 430


- Kerb weight
1 537
1 481
1 505


- Payload
648
694
700


- Gross vehicle weight (GVW)
2 110
2 100
2 130


- Gross train weight (GTW)
on a 12% gradient
3 110
3 300
3 080


- Braked trailer (within GTW limit)
on a 10% or 12% gradient
1 000
1 200
950


- Braked trailer * (with load transfer
within the GTW limit)
1 350
1 400
1 100


- Unbraked trailer
750
740
750


- Recommended nose weight
75
60
55
The GTW and towed load values indicated are valid up to a maximum altitude of 1000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load. *

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

12
227

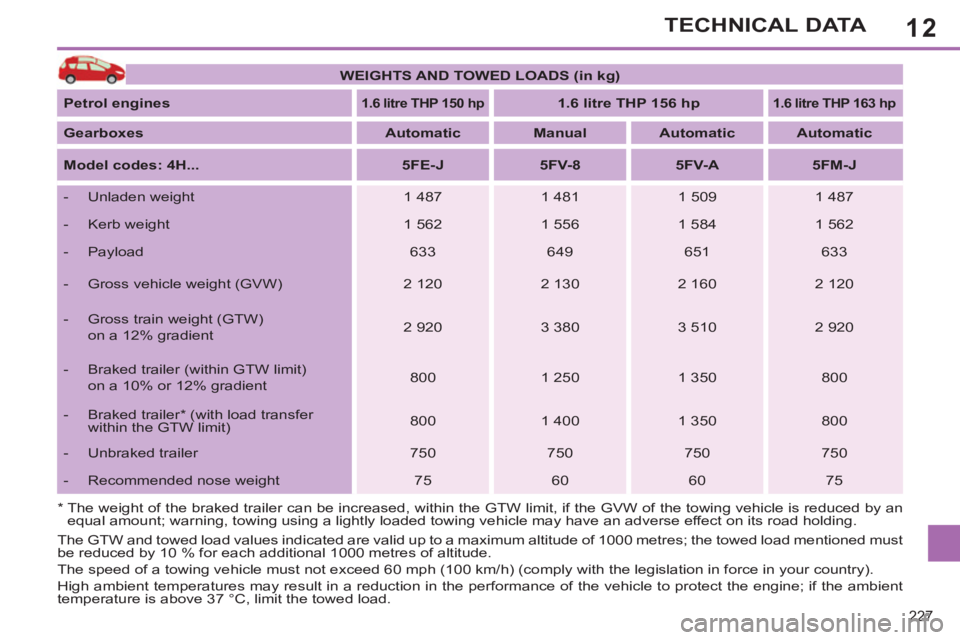

TECHNICAL DATA


WEIGHTS AND TOWED LOADS (in kg)



Petrol engines




1.6 litre THP 150 hp




1.6 litre THP 156 hp




1.6 litre THP 163 hp




Gearboxes


Automatic



Manual



Automatic



Automatic



Model codes: 4H...


5FE-J



5FV-8



5FV-A



5FM-J




- Unladen weight
1 487
1 481
1 509
1 487


- Kerb weight
1 562
1 556
1 584
1 562


- Payload
633
649
651
633


- Gross vehicle weight (GVW)
2 120
2 130
2 160
2 120


- Gross train weight (GTW)
on a 12% gradient
2 920
3 380
3 510
2 920


- Braked trailer (within GTW limit)
on a 10% or 12% gradient
800
1 250
1 350
800



- Braked trailer * (with load transfer
within the GTW limit)
800
1 400
1 350
800


- Unbraked trailer
750
750
750
750


- Recommended nose weight
75
60
60
75

* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

12
228
TECHNICAL DATA

4C...:
5-door.

4R...:
5-door "Van".
4E...:
SW with bench rear seat.

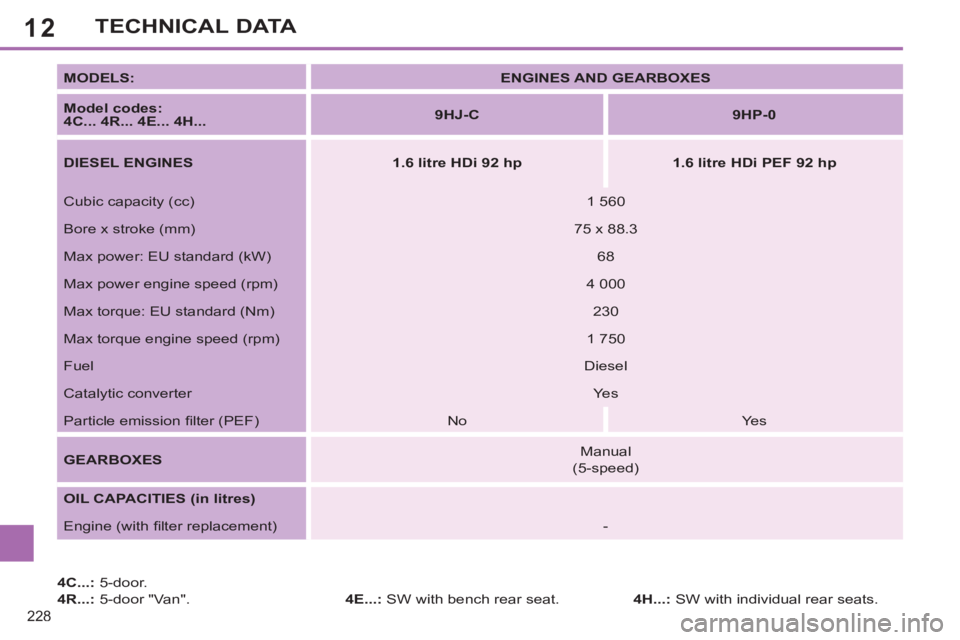

MODELS:


ENGINES AND GEARBOXES



Model codes:
4C... 4R... 4E... 4H...


9HJ-C



9HP-0



DIESEL ENGINES


1.6 litre HDi 92 hp



1.6 litre HDi PEF 92 hp


Cubic capacity (cc)
1 560
Bore x stroke (mm)
75 x 88.3
Max power: EU standard (kW)
68
Max power engine speed (rpm)
4 000
Max torque: EU standard (Nm)
230
Max torque engine speed (rpm)
1 750
Fuel
Diesel
Catalytic converter
Yes
Particle emission fi lter (PEF)
No
Yes

GEARBOXES

Manual
(5-speed)

OIL CAPACITIES (in litres)



Engine (with fi lter replacement)
-

4H...:
SW with individual rear seats.
