Peugeot 308 SW BL Dag 2008 Owner's Manual

i
22
PETROL - DIESEL MANUAL GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lights.
5. Display.

6. Display zero reset button.
Resets the selected function to zero (trip distance recorder or
service indicator).

7. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and
controls.
Dials

1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).

2. Coolant temperature.
Indicates the temperature of the engine coolant (°Celsius).

3. Fuel level.
Indicates the quantity of fuel remaining in the tank.

4. Vehicle speed.
Indicates the current speed of the moving vehicle (km/h or mph).
A. Speed limiter
or
Cruise control.
(km/h or mph)

B. Trip distance recorder.
(km or miles)
Display
For further information, refer to the
paragraph relating to the button or
function and its associated display. The following three functions are dis-
played in succession when the ignition
is switched on.

C. Service indicator.
(km or miles) then,
Engine oil level indicator.
then
distance recorder.
(km or miles)
INSTRUMENTS and CONTROLS

i
23

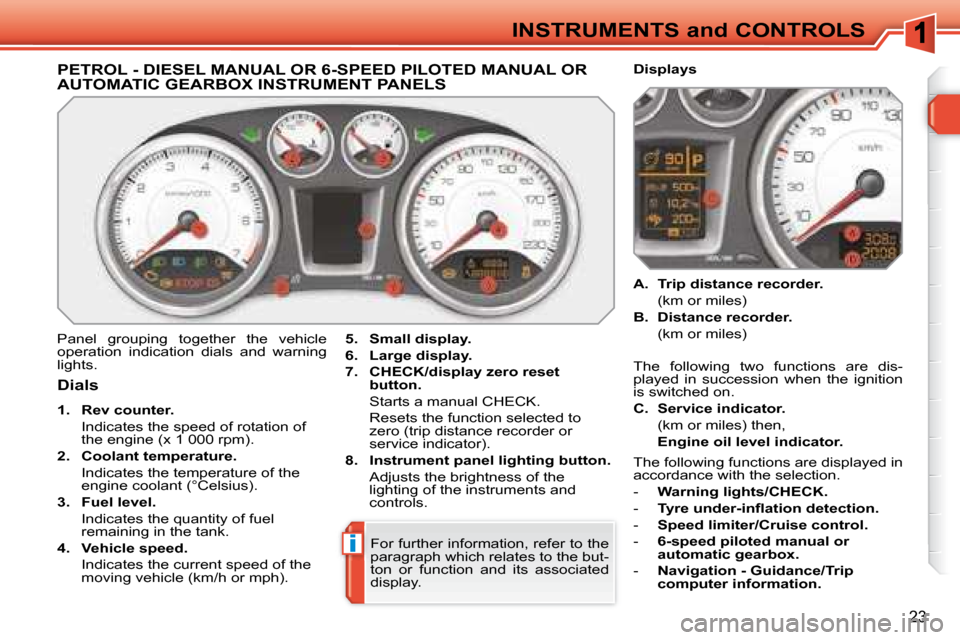

PETROL - DIESEL MANUAL OR 6-SPEED PILOTED MANUAL OR AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lights.
5. Small display.

6. Large display.

7. CHECK/display zero reset
button.
Starts a manual CHECK.
Resets the function selected to zero (trip distance recorder or
service indicator).

8. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and
controls.
Dials

1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).

2. Coolant temperature.
Indicates the temperature of the engine coolant (°Celsius).

3. Fuel level.
Indicates the quantity of fuel remaining in the tank.

4. Vehicle speed.
Indicates the current speed of the moving vehicle (km/h or mph).
A. Trip distance recorder.
(km or miles)

B. Distance recorder.
(km or miles)
Displays
The following two functions are dis-
played in succession when the ignition
is switched on.

C. Service indicator.
(km or miles) then,
Engine oil level indicator.
For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.
-
Warning lights/CHECK.
- Tyre under-infl ation detection.
- Speed limiter/Cruise control.
- 6-speed piloted manual or
automatic gearbox.
- Navigation - Guidance/Trip
computer information.
INSTRUMENTS and CONTROLS

! The warning lights may come on
continuously or fl ash.
Certain warning lights may come
on in two different modes. Only by
relating the type of lighting to the
operating status of the vehicle can
it be ascertained whether the situa-
tion is normal or whether a fault
has occurred.

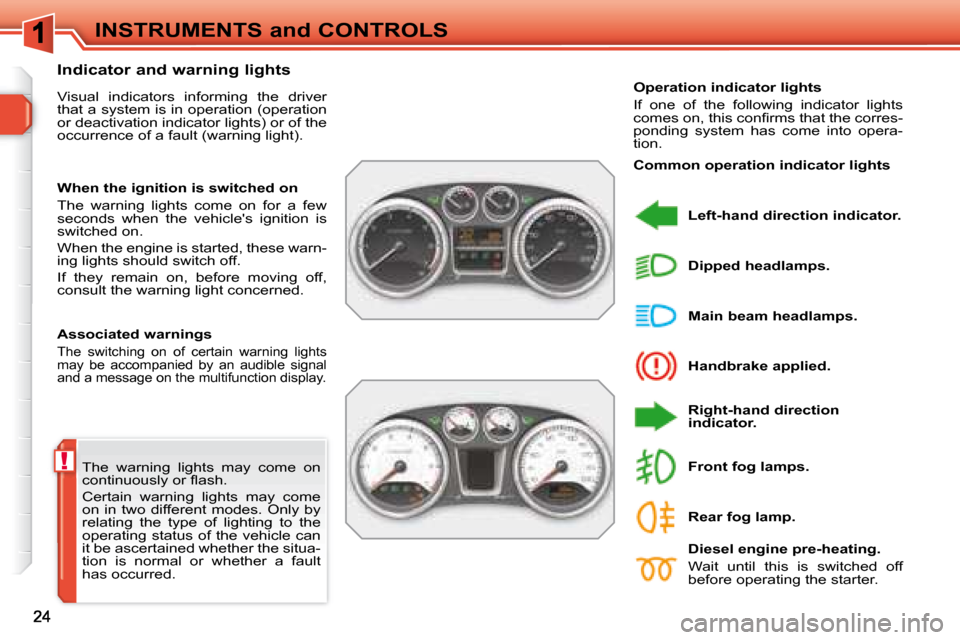

Indicator and warning lights
Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lights) or of the
occurrence of a fault (warning light).
Associated warnings
The switching on of certain warning lights
may be accompanied by an audible signal
and a message on the multifunction display.
Operation indicator lights
If one of the following indicator lights
comes on, this confi rms that the corres-
ponding system has come into opera-
tion.
Left-hand direction indicator.
Handbrake applied.
Right-hand direction
indicator.
Main beam headlamps.
Dipped headlamps.
Diesel engine pre-heating.
Wait until this is switched off
before operating the starter.
Front fog lamps.
Rear fog lamp.
When the ignition is switched on
The warning lights come on for a few
seconds when the vehicle's ignition is
switched on.
When the engine is started, these warn-
ing lights should switch off.
If they remain on, before moving off,
consult the warning light concerned.
Common operation indicator lights
INSTRUMENTS and CONTROLS

25

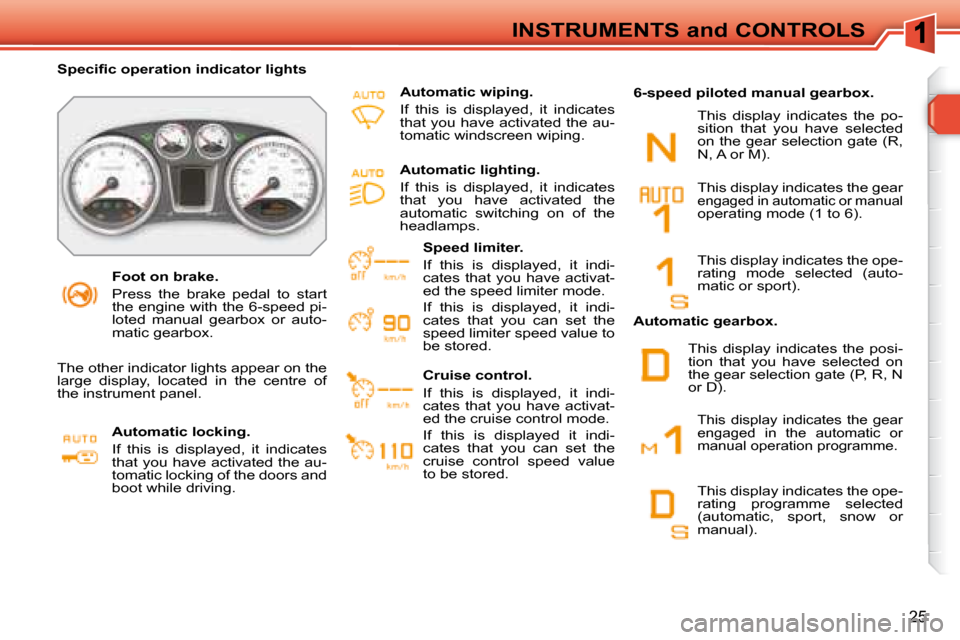

Foot on brake.
Press the brake pedal to start
the engine with the 6-speed pi-
loted manual gearbox or auto-
matic gearbox.
Specifi c operation indicator lights
The other indicator lights appear on the
large display, located in the centre of
the instrument panel.
Automatic locking.
If this is displayed, it indicates
that you have activated the au-
tomatic locking of the doors and
boot while driving. Speed limiter.
If this is displayed, it indi-
cates that you have activat-
ed the speed limiter mode.
If this is displayed, it indi-
cates that you can set the
speed limiter speed value to
be stored.
Cruise control.
If this is displayed, it indi-
cates that you have activat-
ed the cruise control mode.
If this is displayed it indi-
cates that you can set the
cruise control speed value
to be stored.
Automatic gearbox. This display indicates the po-
sition that you have selected
on the gear selection gate (R,
N, A or M).
Automatic wiping.
If this is displayed, it indicates
that you have activated the au-
tomatic windscreen wiping.
Automatic lighting.
If this is displayed, it indicates
that you have activated the
automatic switching on of the
headlamps.
This display indicates the gear
engaged in automatic or manual
operating mode (1 to 6).
This display indicates the ope-
rating mode selected (auto-
matic or sport).
This display indicates the gear
engaged in the automatic or
manual operation programme.
This display indicates the ope-
rating programme selected
(automatic, sport, snow or
manual).
6-speed piloted manual gearbox.
This display indicates the posi-
tion that you have selected on
the gear selection gate (P, R, N
or D).
INSTRUMENTS and CONTROLS

26

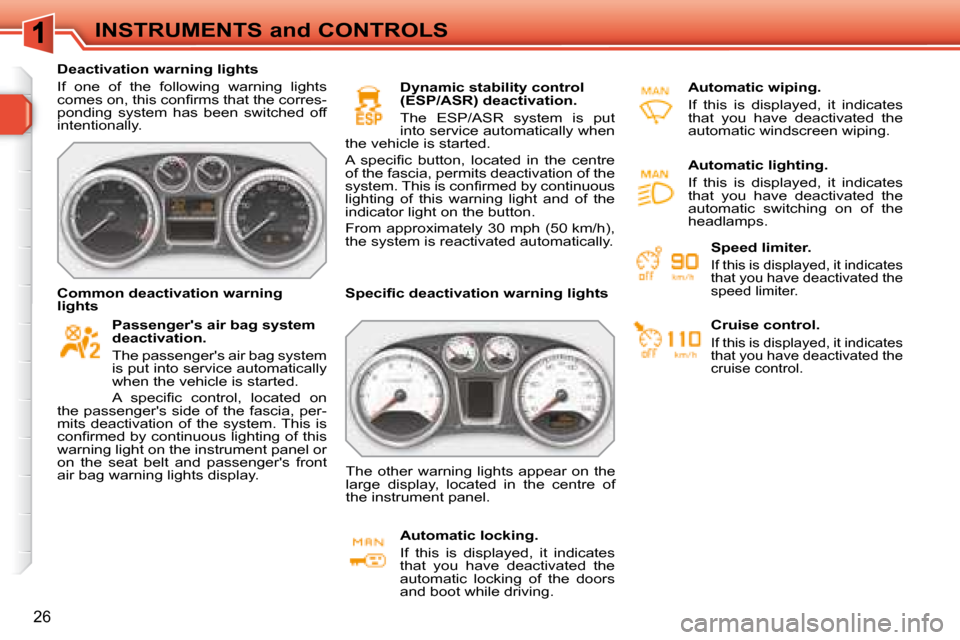

Deactivation warning lights
If one of the following warning lights
comes on, this confi rms that the corres-
ponding system has been switched off
intentionally. Passenger's air bag system
deactivation.
The passenger's air bag system
is put into service automatically
when the vehicle is started.
A specifi c control, located on
the passenger's side of the fascia, per-
mits deactivation of the system. This is
confi rmed by continuous lighting of this
warning light on the instrument panel or
on the seat belt and passenger's front
air bag warning lights display. Dynamic stability control
(ESP/ASR) deactivation.
The ESP/ASR system is put
into service automatically when
the vehicle is started.
A specifi c button, located in the centre
of the fascia, permits deactivation of the
system. This is confi rmed by continuous
lighting of this warning light and of the
indicator light on the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically.
Common deactivation warning
lights Specifi c deactivation warning lights
Automatic locking.
If this is displayed, it indicates
that you have deactivated the
automatic locking of the doors
and boot while driving. Automatic wiping.
If this is displayed, it indicates
that you have deactivated the
automatic windscreen wiping.
The other warning lights appear on the
large display, located in the centre of
the instrument panel. Speed limiter.
If this is displayed, it indicates
that you have deactivated the
speed limiter.
Cruise control.
If this is displayed, it indicates
that you have deactivated the
cruise control.
Automatic lighting.
If this is displayed, it indicates
that you have deactivated the
automatic switching on of the
headlamps.
INSTRUMENTS and CONTROLS

!
27
When the engine is running or the vehi-
cle is moving, the lighting of one of the
following warning lights indicates the
occurrence of a fault requiring interven-
tion on the part of the driver. Central alert.
Lighting is associated with
the displaying of another
warning light:
- punctured wheel,
- braking,
- power steering,
- engine oil pressure,
- coolant temperature,
stop the vehicle immediately and as
safely as possible.
Service.
If this comes on, it indicates the
occurrence of a problem in one
of the systems which does not
have a specifi c warning light.
In order to identify it, consult the mes-
sage on the multifunction display.
After checking:
- that the doors, boot, the rear screen and bonnet are closed,
- the engine oil level,
- the screenwash fl uid level,
- the remote control battery,
- the pressure of the tyres,
- the end of saturation of the particle emission fi lter (Diesel),
for any other situations, contact a
PEUGEOT dealer. Braking.
If this comes on, it indicates the
occurrence of a fault in one of
the braking systems:
- signifi cant drop in the level in the circuit,
- electronic brake force distribution (EBFD) faulty (simultaneous
lighting of the ABS warning light),
stop the vehicle immediately and as
safely as possible.
When the vehicle is moving, check that
the handbrake is fully released.
Any fault resulting in the displaying
of a warning light must be the sub-
ject of further diagnostics by read-
ing the associated message on the
multifunction display.
Should you encounter any prob-
lems, do not hesitate to contact a
PEUGEOT dealer.
Warning lights
Anti-lock braking system
(ABS).
If this comes on, it indicates the
occurrence of a fault in the anti-
lock braking system.
However, this does not prevent opera-
tion of the vehicle's assisted braking.
Common warning lights
Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deactivat-
ed, if this warning light and the indicator
light on the button come on continu-
ously, this indicates the occurrence of
a fault in the ESP/ASR system or in the
hill start assistance.
INSTRUMENTS and CONTROLS

28

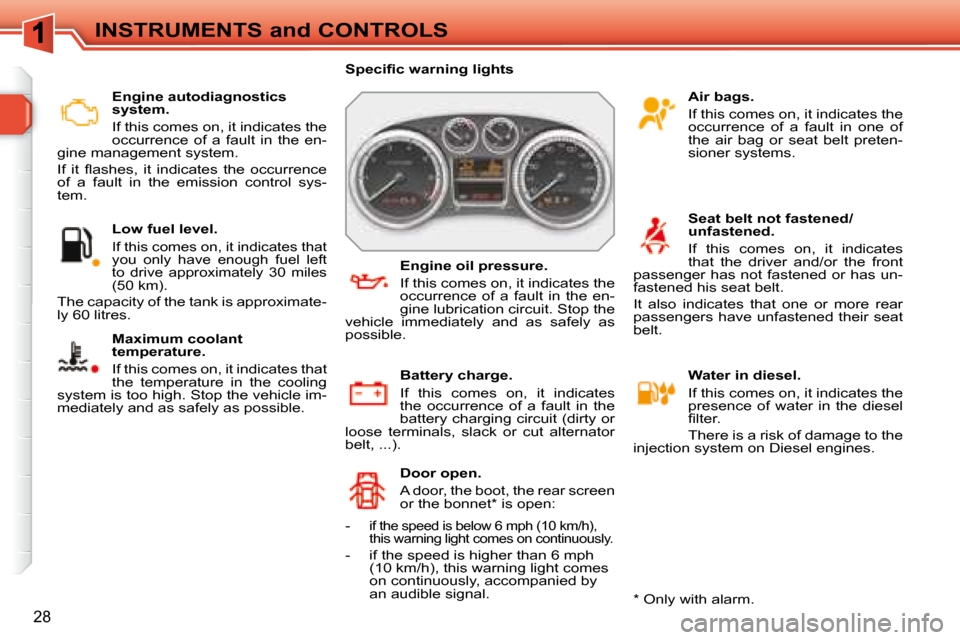

Engine autodiagnostics
system.
If this comes on, it indicates the
occurrence of a fault in the en-
gine management system.
If it fl ashes, it indicates the occurrence
of a fault in the emission control sys-
tem.
Low fuel level.
If this comes on, it indicates that
you only have enough fuel left
to drive approximately 30 miles
(50 km).
The capacity of the tank is approximate-
ly 60 litres. Maximum coolant
temperature.
If this comes on, it indicates that
the temperature in the cooling
system is too high. Stop the vehicle im-
mediately and as safely as possible. Air bags.
If this comes on, it indicates the
occurrence of a fault in one of
the air bag or seat belt preten-
sioner systems.
Seat belt not fastened/
unfastened.
If this comes on, it indicates
that the driver and/or the front
passenger has not fastened or has un-
fastened his seat belt.
It also indicates that one or more rear
passengers have unfastened their seat
belt.
Water in diesel.
If this comes on, it indicates the
presence of water in the diesel
fi lter.
There is a risk of damage to the
injection system on Diesel engines.
Door open.
A door, the boot, the rear screen
or the bonnet * is open:
-
if the speed is below 6 mph (10 km/h),
this warning light comes on continuously.
- if the speed is higher than 6 mph (10 km/h), this warning light comes
on continuously, accompanied by
an audible signal. Battery charge.
If this comes on, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or
loose terminals, slack or cut alternator
belt, ...). Engine oil pressure.
If this comes on, it indicates the
occurrence of a fault in the en-
gine lubrication circuit. Stop the
vehicle immediately and as safely as
possible.
Specifi c warning lights
* Only with alarm.
INSTRUMENTS and CONTROLS

i
!

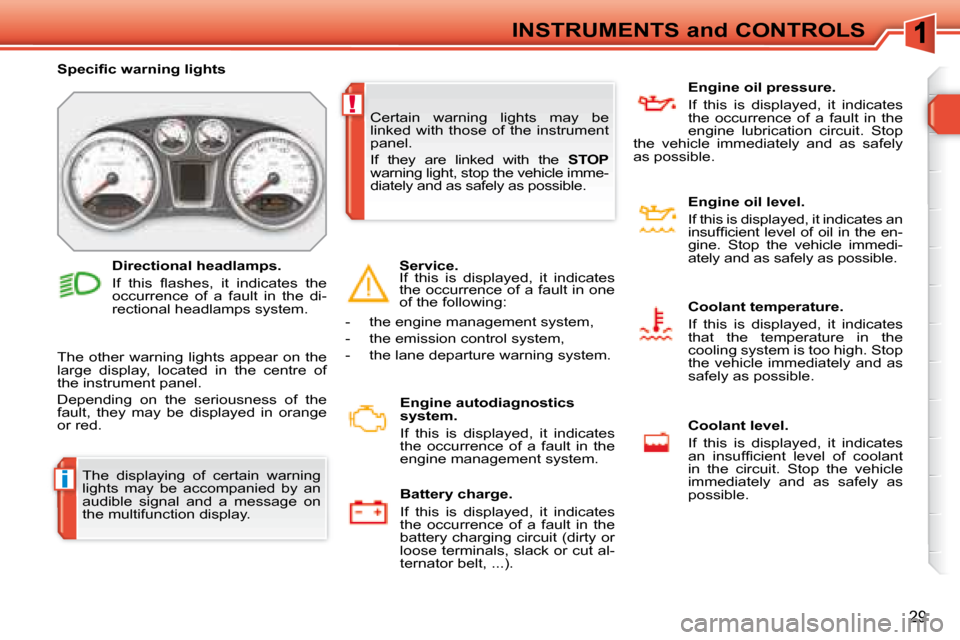

29
INSTRUMENTS and CONTROLS
The displaying of certain warning
lights may be accompanied by an
audible signal and a message on
the multifunction display.
Specifi c warning lights
The other warning lights appear on the
large display, located in the centre of
the instrument panel.
Depending on the seriousness of the
fault, they may be displayed in orange
or red.
Certain warning lights may be
linked with those of the instrument
panel.
If they are linked with the
STOP
warning light, stop the vehicle imme-
diately and as safely as possible.
Directional headlamps.
If this fl ashes, it indicates the
occurrence of a fault in the di-
rectional headlamps system. Engine oil pressure.
If this is displayed, it indicates
the occurrence of a fault in the
engine lubrication circuit. Stop
the vehicle immediately and as safely
as possible.
Service.
If this is displayed, it indicates
the occurrence of a fault in one
of the following: Engine autodiagnostics
system.
If this is displayed, it indicates
the occurrence of a fault in the
engine management system. Engine oil level.
If this is displayed, it indicates an
insuffi cient level of oil in the en-
gine. Stop the vehicle immedi-
ately and as safely as possible.
Coolant temperature.
If this is displayed, it indicates
that the temperature in the
cooling system is too high. Stop
the vehicle immediately and as
safely as possible.
Coolant level.
If this is displayed, it indicates
an insuffi cient level of coolant
in the circuit. Stop the vehicle
immediately and as safely as
possible.
Battery charge.
If this is displayed, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or
loose terminals, slack or cut al-
ternator belt, ...).
- the engine management system,
- the emission control system,
- the lane departure warning system.

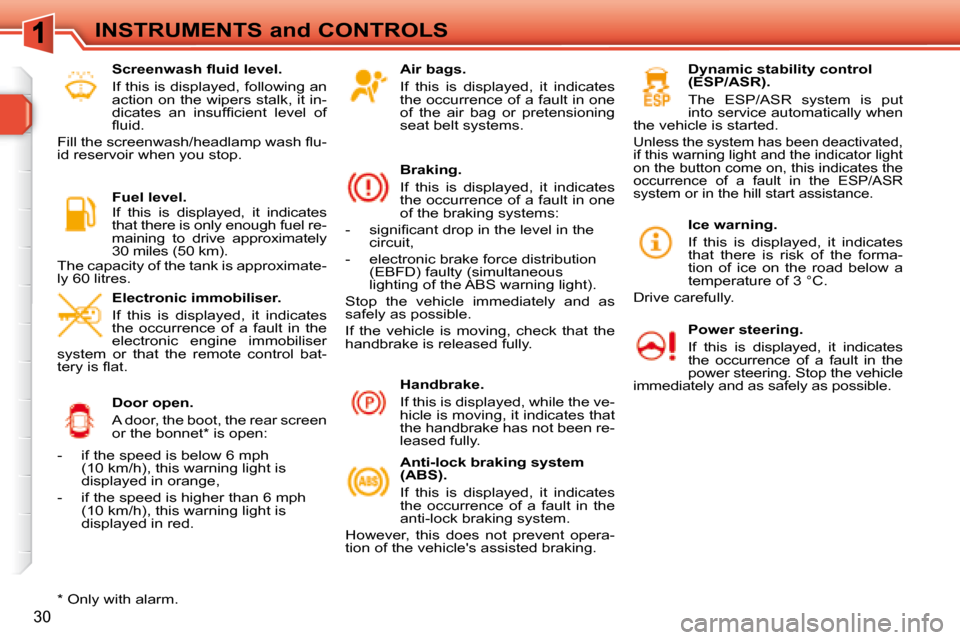

30
Air bags.
If this is displayed, it indicates
the occurrence of a fault in one
of the air bag or pretensioning
seat belt systems.
Braking.
If this is displayed, it indicates
the occurrence of a fault in one
of the braking systems:
- signifi cant drop in the level in the circuit,
- electronic brake force distribution (EBFD) faulty (simultaneous
lighting of the ABS warning light).
Stop the vehicle immediately and as
safely as possible.
If the vehicle is moving, check that the
handbrake is released fully.
Anti-lock braking system
(ABS).
If this is displayed, it indicates
the occurrence of a fault in the
anti-lock braking system.
However, this does not prevent opera-
tion of the vehicle's assisted braking. Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deactivated,
if this warning light and the indicator light
on the button come on, this indicates the
occurrence of a fault in the ESP/ASR
system or in the hill start assistance.
Power steering.
If this is displayed, it indicates
the occurrence of a fault in the
power steering. Stop the vehicle
immediately and as safely as possible.
Door open.
A door, the boot, the rear screen
or the bonnet * is open:
- if the speed is below 6 mph (10 km/h), this warning light is
displayed in orange,
- if the speed is higher than 6 mph (10 km/h), this warning light is
displayed in red. Ice warning.
If this is displayed, it indicates
that there is risk of the forma-
tion of ice on the road below a
temperature of 3 °C.
Drive carefully.
Handbrake.
If this is displayed, while the ve-
hicle is moving, it indicates that
the handbrake has not been re-
leased fully.
Electronic immobiliser.
If this is displayed, it indicates
the occurrence of a fault in the
electronic engine immobiliser
system or that the remote control bat-
tery is fl at.

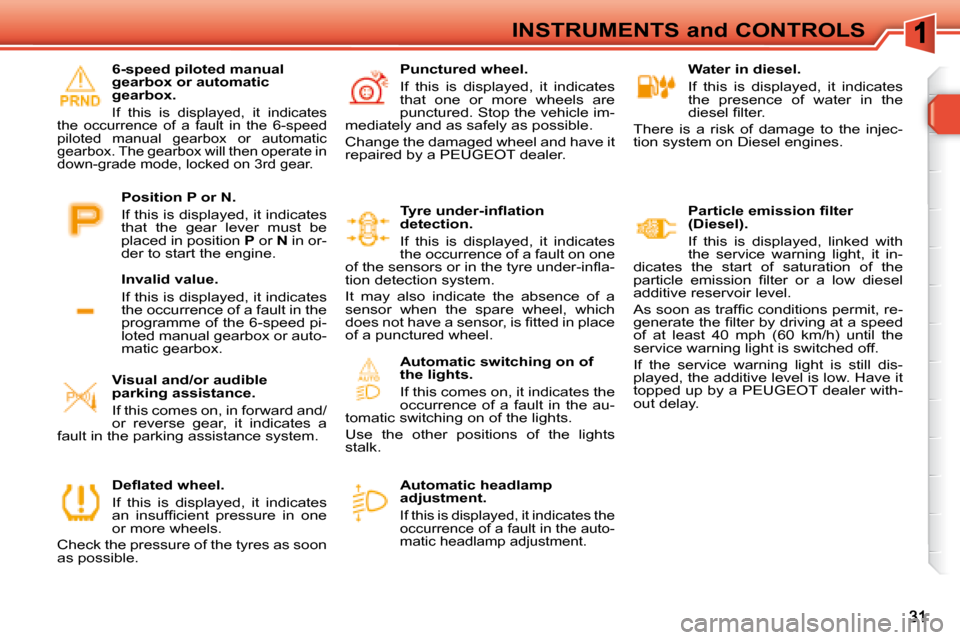

* Only with alarm. Fuel level.
If this is displayed, it indicates
that there is only enough fuel re-
maining to drive approximately
30 miles (50 km).
The capacity of the tank is approximate-
ly 60 litres. Screenwash fl uid level.
If this is displayed, following an
action on the wipers stalk, it in-
dicates an insuffi cient level of
fl uid.
Fill the screenwash/headlamp wash fl u-
id reservoir when you stop. INSTRUMENTS and CONTROLS

Water in diesel.
If this is displayed, it indicates
the presence of water in the
diesel fi lter.
There is a risk of damage to the injec-
tion system on Diesel engines.
Automatic headlamp
adjustment.
If this is displayed, it indicates the
occurrence of a fault in the auto-
matic headlamp adjustment.
Particle emission fi lter
(Diesel).
If this is displayed, linked with
the service warning light, it in-
dicates the start of saturation of the
particle emission fi lter or a low diesel
additive reservoir level.
As soon as traffi c conditions permit, re-
generate the fi lter by driving at a speed
of at least 40 mph (60 km/h) until the
service warning light is switched off.
If the service warning light is still dis-
played, the additive level is low. Have it
topped up by a PEUGEOT dealer with-
out delay.
Defl ated wheel.
If this is displayed, it indicates
an insuffi cient pressure in one
or more wheels.
Check the pressure of the tyres as soon
as possible. Punctured wheel.
If this is displayed, it indicates
that one or more wheels are
punctured. Stop the vehicle im-
mediately and as safely as possible.
Change the damaged wheel and have it
repaired by a PEUGEOT dealer.
Tyre under-infl ation
detection.
If this is displayed, it indicates
the occurrence of a fault on one
of the sensors or in the tyre under-infl a-
tion detection system.
It may also indicate the absence of a
sensor when the spare wheel, which
does not have a sensor, is fi tted in place
of a punctured wheel.
Automatic switching on of
the lights.
If this comes on, it indicates the
occurrence of a fault in the au-
tomatic switching on of the lights.
Use the other positions of the lights
stalk.
Visual and/or audible
parking assistance.
If this comes on, in forward and/
or reverse gear, it indicates a
fault in the parking assistance system. 6-speed piloted manual
gearbox or automatic
gearbox.
If this is displayed, it indicates
the occurrence of a fault in the 6-speed
piloted manual gearbox or automatic
gearbox. The gearbox will then operate in
down-grade mode, locked on 3rd gear.
Invalid value.
If this is displayed, it indicates
the occurrence of a fault in the
programme of the 6-speed pi-
loted manual gearbox or auto-
matic gearbox.
Position P or N.
If this is displayed, it indicates
that the gear lever must be
placed in position
P or N in or-
der to start the engine. INSTRUMENTS and CONTROLS
