MULTIFUNCTION DISPLAYS

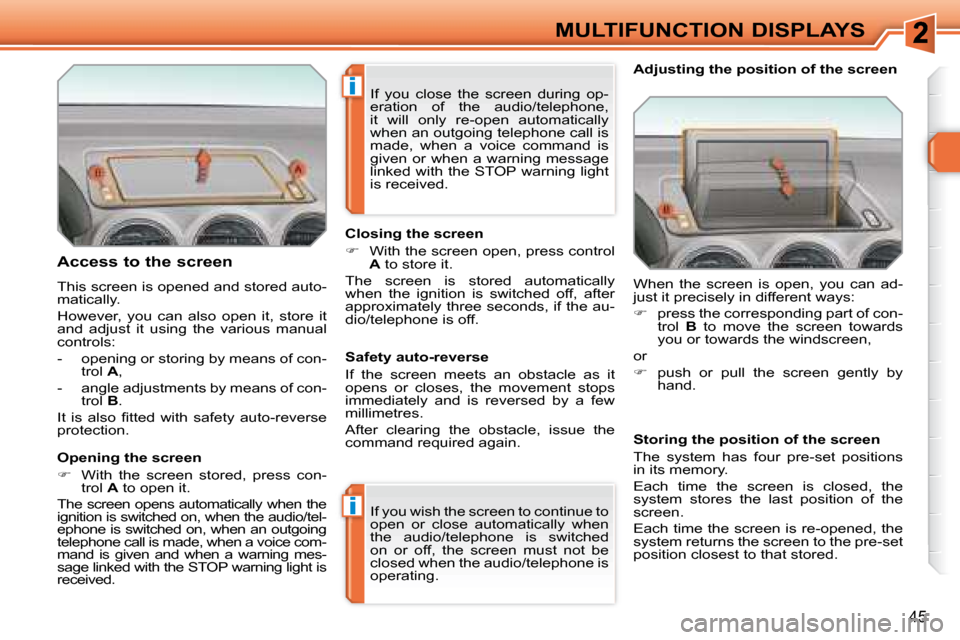

Access to the screen
This screen is opened and stored auto-
matically.
However, you can also open it, store it
and adjust it using the various manual
controls:
- opening or storing by means of con- trol A ,
- angle adjustments by means of con- trol B .
I t i s a l s o fi t t e d w i t h s a f e t y a u t o - r e v e r s e
protection.
Opening the screen
With the screen stored, press con-
trol A to open it.
The screen opens automatically when the
ignition is switched on, when the audio/tel-
ephone is switched on, when an outgoing
telephone call is made, when a voice com-
mand is given and when a warning mes-
sage linked with the STOP warning light is
received. Closing the screen
With the screen open, press control
A to store it.
The screen is stored automatically
when the ignition is switched off, after
a p p r o x i m a t e l y t h r e e s e c o n d s , i f t h e a u -
dio/telephone is off.
If you wish the screen to continue to
open or close automatically when
the audio/telephone is switched
on or off, the screen must not be
closed when the audio/telephone is
operating. When the screen is open, you can ad-
just it precisely in different ways:
press the corresponding part of con-
trol B to move the screen towards
you or towards the windscreen,
or
push or pull the screen gently by
hand.
Adjusting the position of the screen
Safety auto-reverse
If the screen meets an obstacle as it
opens or closes, the movement stops
immediately and is reversed by a few
millimetres.
After clearing the obstacle, issue the
command required again. Storing the position of the screen
The system has four pre-set positions
in its memory.
Each time the screen is closed, the
system stores the last position of the
screen.
Each time the screen is re-opened, the
system returns the screen to the pre-set
position closest to that stored.
If you close the screen during op-
eration of the audio/telephone,
it will only re-open automatically
when an outgoing telephone call is
made, when a voice command is
given or when a warning message
linked with the STOP warning light
is received.
Page 33 of 260
i
53
COMFORT
The air conditioning system does
not contain chlorine and does not
present any danger to the ozone
layer.

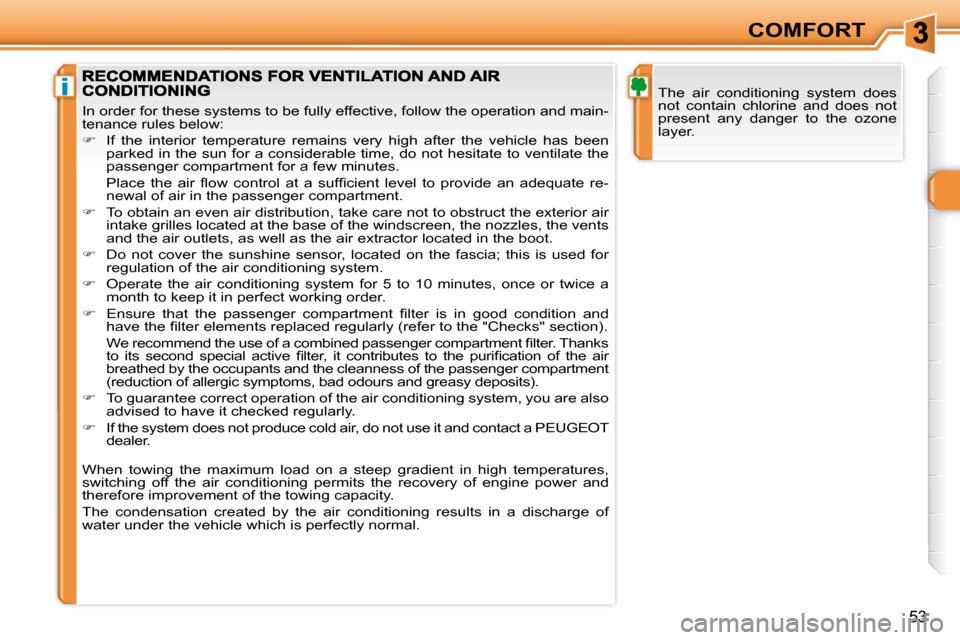

In order for these systems to be fully effective, follow the o peration and main-
tenance rules below:
If the interior temperature remains very high after the vehicle has been
parked in the sun for a considerable time, do not hesitate t o ventilate the
passenger compartment for a few minutes.
P l a c e t h e a i r fl o w c o n t r o l a t a s u f fi c i e n t l e v e l t o p r o v i d e a n a d e q u a t e r e -
newal of air in the passenger compartment.
T o o b t a i n a n e v e n a i r d i s t r i b u t i o n , t a k e c a r e n o t t o o b s t r u c t t h e e x t e r i o r a i r
intake grilles located at the base of the windscreen, the n ozzles, the vents
a n d t h e a i r o u t l e t s , a s w e l l a s t h e a i r e x t r a c t o r l o c a t e d i n t h e b o o t .
Do not cover the sunshine sensor, located on the fascia; th is is used for
regulation of the air conditioning system.
Operate the air conditioning system for 5 to 10 minutes, on ce or twice a
month to keep it in perfect working order.
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t m e n t fi l t e r i s i n g o o d c o n d i t i o n a n d
h a v e t h e fi l t e r e l e m e n t s r e p l a c e d r e g u l a r l y ( r e f e r t o t h e " C h e c k s " s e c t i o n ) .
W e r e c o m m e n d t h e u s e o f a c o m b i n e d p a s s e n g e r c o m p a r t m e n t fi l t e r . T h a n k s
t o i t s s e c o n d s p e c i a l a c t i v e fi l t e r , i t c o n t r i b u t e s t o t h e p u r i fi c a t i o n o f t h e a i r
breathed by the occupants and the cleanness of the passenger compartment
(reduction of allergic symptoms, bad odours and gre asy deposits).
To guarantee correct operation of the air conditioning syste m, you are also
advised to have it checked regularly.
If the system does not produce cold air, do not use it and contact a PEUGEOT
dealer.
W h e n t o w i n g t h e m a x i m u m l o a d o n a s t e e p g r a d i e n t i n h i g h t e m p e r a t u r e s ,
switching off the air conditioning permits the recovery of engi ne power and
therefore improvement of the towing capacity.
The condensation created by the air conditioning results in a discharge of
water under the vehicle which is perfectly normal.
Page 38 of 260
!
!
i
57
COMFORT

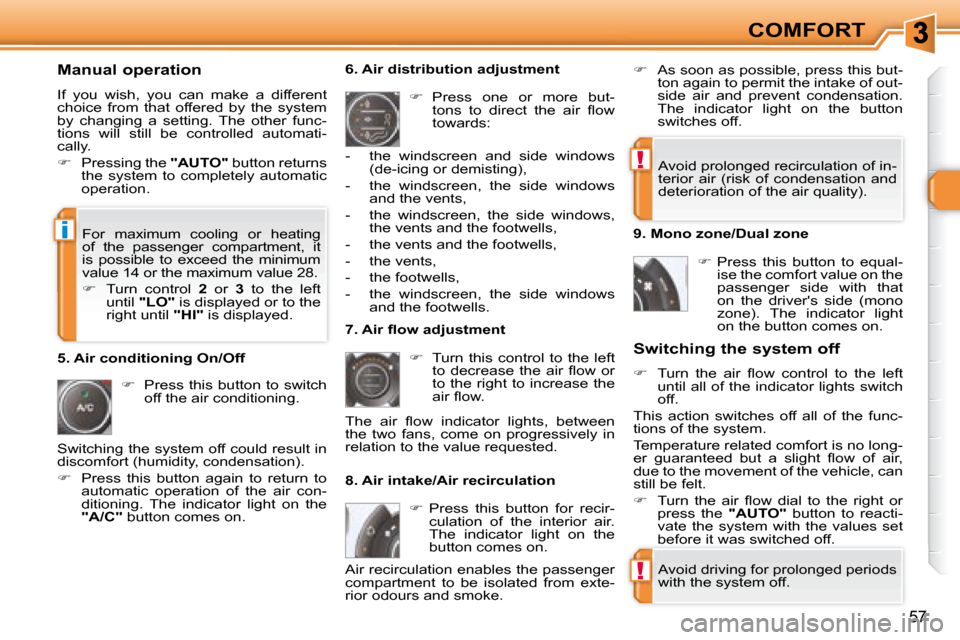

Manual operation
If you wish, you can make a different
choice from that offered by the system
by changing a setting. The other func-
tions will still be controlled automati-
cally.
Pressing the "AUTO" button returns
the system to completely automatic
operation.
Press this button to switch
off the air conditioning. 6. Air distribution adjustment
Press one or more but-
t o n s t o d i r e c t t h e a i r fl o w
towards:
7 . A i r fl o w a d j u s t m e n t
Turn this control to the left
t o d e c r e a s e t h e a i r fl o w o r
to the right to increase the
a i r fl o w .
8. Air intake/Air recirculation Switching the system off
T u r n t h e a i r fl o w c o n t r o l t o t h e l e f t
until all of the indicator lights switch
off.
This action switches off all of the func-
tions of the system.
Temperature related comfort is no long-
e r g u a r a n t e e d b u t a s l i g h t fl o w o f a i r ,
due to the movement of the vehicle, can
still be felt.
T u r n t h e a i r fl o w d i a l t o t h e r i g h t o r
press the "AUTO" button to reacti-
vate the system with the values set
before it was switched off.
Press this button for recir-
culation of the interior air.
The indicator light on the
button comes on.
5. Air conditioning On/Off
Avoid driving for prolonged periods
with the system off.
Avoid prolonged recirculation of in-
terior air (risk of condensation and
deterioration of the air quality).
- the windscreen and side windows
(de-icing or demisting),
- the windscreen, the side windows and the vents,
- the windscreen, the side windows, the vents and the footwells,
- the vents and the footwells,
- the vents,
- the footwells,
- the windscreen, the side windows and the footwells.
T h e a i r fl o w i n d i c a t o r l i g h t s , b e t w e e n
the two fans, come on progressively in
relation to the value requested.
As soon as possible, press this but-
ton again to permit the intake of out-
side air and prevent condensation.
The indicator light on the button
switches off.
F o r m a x i m u m c o o l i n g o r h e a t i n g
of the passenger compartment, it
i s p o s s i b l e t o e x c e e d t h e m i n i m u m
v a l u e 1 4 o r t h e m a x i m u m v a l u e 2 8 .
Turn control 2 or 3 to the left
until "LO" is displayed or to the
right until "HI" is displayed. 9. Mono zone/Dual zone
Press this button to equal-
ise the comfort value on the
passenger side with that
on the driver's side (mono
zone). The indicator light
on the button comes on.
Air recirculation enables the passenger
c o m p a r t m e n t t o b e i s o l a t e d f r o m e x t e -
rior odours and smoke.
Switching the system off could result in
discomfort (humidity, condensation).
Press this button again to return to
automatic operation of the air con-
ditioning. The indicator light on the
"A/C" button comes on.
Page 61 of 260
i
ACCESS
Key reminder
If the key is left in the ignition switch,
an audible signal sounds when the
driver's door is opened.

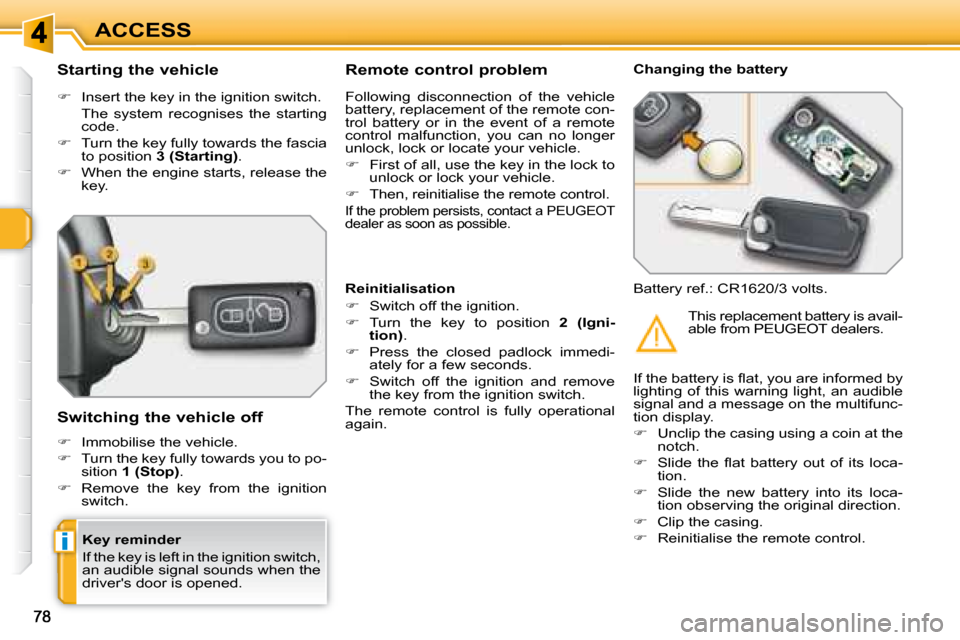

Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the fascia
to position 3 (Starting) .
When the engine starts, release the
key.
Switching the vehicle off
Immobilise the vehicle.
Turn the key fully towards you to po-
sition 1 (Stop) .
Remove the key from the ignition
switch. Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
First of all, use the key in the lock to
unlock or lock your vehicle.
Then, reinitialise the remote control.
If the problem persists, contact a PEUGEOT
dealer as soon as possible.
Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
Switch off the ignition.
Turn the key to position 2 (Igni-
tion) .
Press the closed padlock immedi-
ately for a few seconds.
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. I f t h e b a t t e r y i s fl a t , y o u a r e i n f o r m e d b y
lighting of this warning light, an audible
signal and a message on the multifunc-
tion display.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s l o c a -
tion.
Slide the new battery into its loca-
tion observing the original direction.
Clip the casing.
Reinitialise the remote control. This replacement battery is avail-
able from PEUGEOT dealers.
Page 65 of 260
i
ACCESS
Key reminder
If the key is left in the ignition switch,
an audible signal sounds when the
driver's door is opened.
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the fascia
to position 3 (Starting) .
When the engine starts, release the
key.
Switching the vehicle off
Immobilise the vehicle.
Turn the key fully towards you to po-
sition 1 (Stop) .
Remove the key from the ignition
switch. Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
First of all, use the key in the lock to
unlock or lock your vehicle.
Then, reinitialise the remote control.
If the problem persists, contact a PEUGEOT
dealer as soon as possible.
Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
Switch off the ignition.
Turn the key to position 2 (Igni-
tion) .
Press the closed padlock immedi-
ately for a few seconds.
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. I f t h e b a t t e r y i s fl a t , y o u a r e i n f o r m e d b y
lighting of this warning light, an audible
signal and a message on the multifunc-
tion display.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s l o c a -
tion.
Slide the new battery into its loca-
tion observing the original direction.
Clip the casing.
Reinitialise the remote control. This replacement battery is avail-
able from PEUGEOT dealers.
Page 88 of 260
!
96

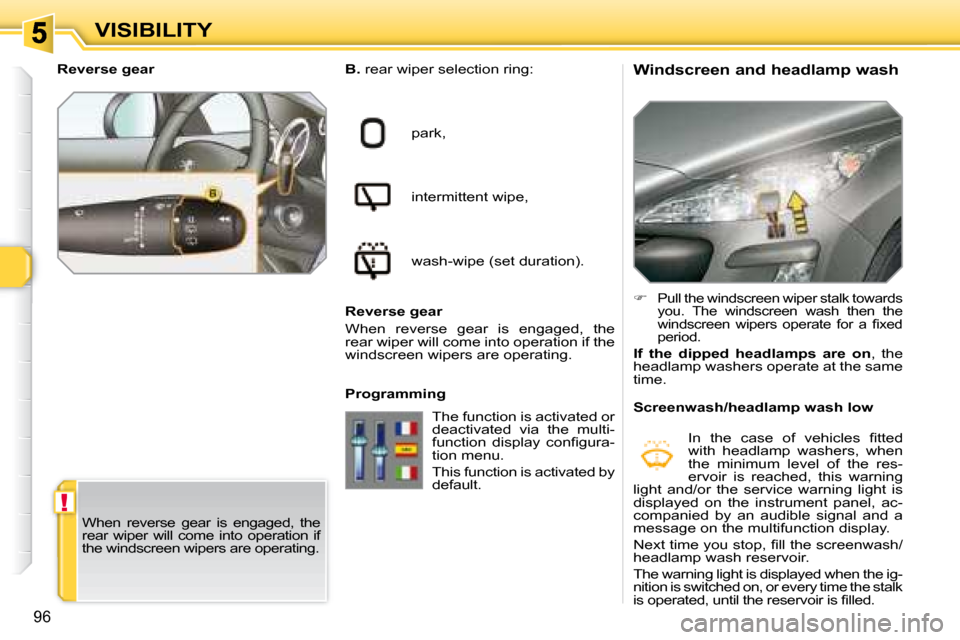

VISIBILITY Windscreen and headlamp wash
B.
rear wiper selection ring:
park,
intermittent wipe,
wash-wipe (set duration).
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if the
windscreen wipers are operating.
Programming
Pull the windscreen wiper stalk towards
you. The windscreen wash then the
w i n d s c r e e n w i p e r s o p e r a t e f o r a fi x e d
period.
If the dipped headlamps are on , the
headlamp washers operate at the same
time.
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if
the windscreen wipers are operating.
The function is activated or
deactivated via the multi-
f u n c t i o n d i s p l a y c o n fi g u r a -
tion menu.
This function is activated by
default.
Screenwash/headlamp wash low
I n t h e c a s e o f v e h i c l e s fi t t e d
with headlamp washers, when
the minimum level of the res-
ervoir is reached, this warning
light and/or the service warning light is
displayed on the instrument panel, ac-
companied by an audible signal and a
message on the multifunction display.
N e x t t i m e y o u s t o p , fi l l t h e s c r e e n w a s h /
headlamp wash reservoir.
The warning light is displayed when the ig-
nition is switched on, or every time the stalk
i s o p e r a t e d , u n t i l t h e r e s e r v o i r i s fi l l e d .
Page 99 of 260

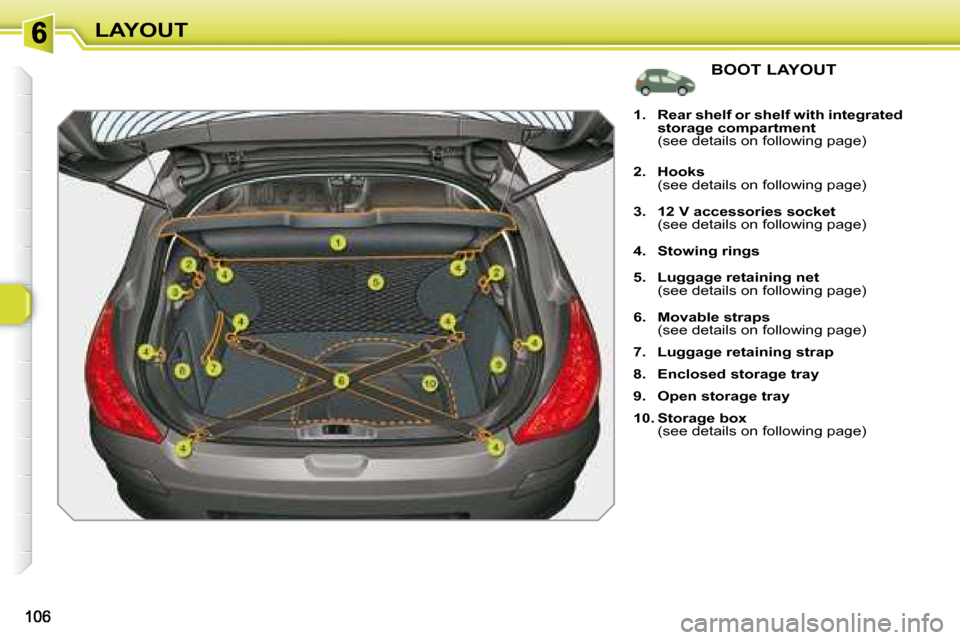

LAYOUT BOOT LAYOUT
1. Rear shelf or shelf with integrated
storage compartment
(see details on following page)
2. Hooks
(see details on following page)
3. 12 V accessories socket
(see details on following page)
4. Stowing rings
5. Luggage retaining net
(see details on following page)
6. Movable straps
(see details on following page)
7. Luggage retaining strap
8. Enclosed storage tray
9. Open storage tray
10. Storage box
(see details on following page)
Page 101 of 260
108

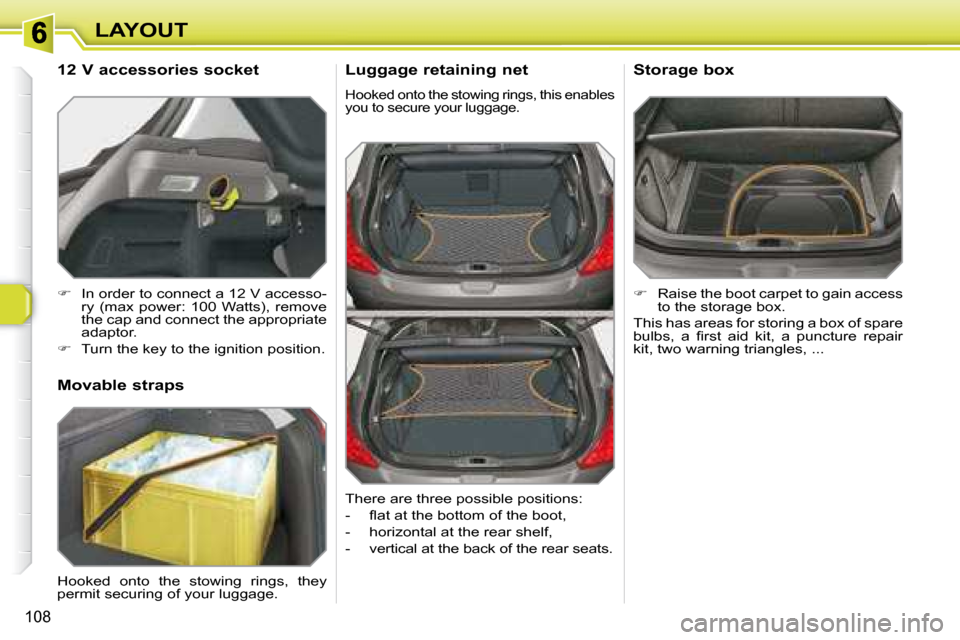

LAYOUT Luggage retaining net
Hooked onto the stowing rings, this enables
you to secure your luggage.
Raise the boot carpet to gain access
t o t h e s t o r a g e b o x .
T h i s h a s a r e a s f o r s t o r i n g a b o x o f s p a r e
b u l b s , a fi r s t a i d k i t , a p u n c t u r e r e p a i r
kit, two warning triangles, ...
Storage box In order to connect a 12 V accesso-
r y ( m a x p o w e r : 1 0 0 W a t t s ) , r e m o v e
the cap and connect the appropriate
adaptor.
Turn the key to the ignition position.
12 V accessories socket
There are three possible positions:
- fl a t a t t h e b o t t o m o f t h e b o o t ,
- horizontal at the rear shelf,
- vertical at the back of the rear seats.
Movable straps
Hooked onto the stowing rings, they
permit securing of your luggage.
Page 102 of 260
109
LAYOUT

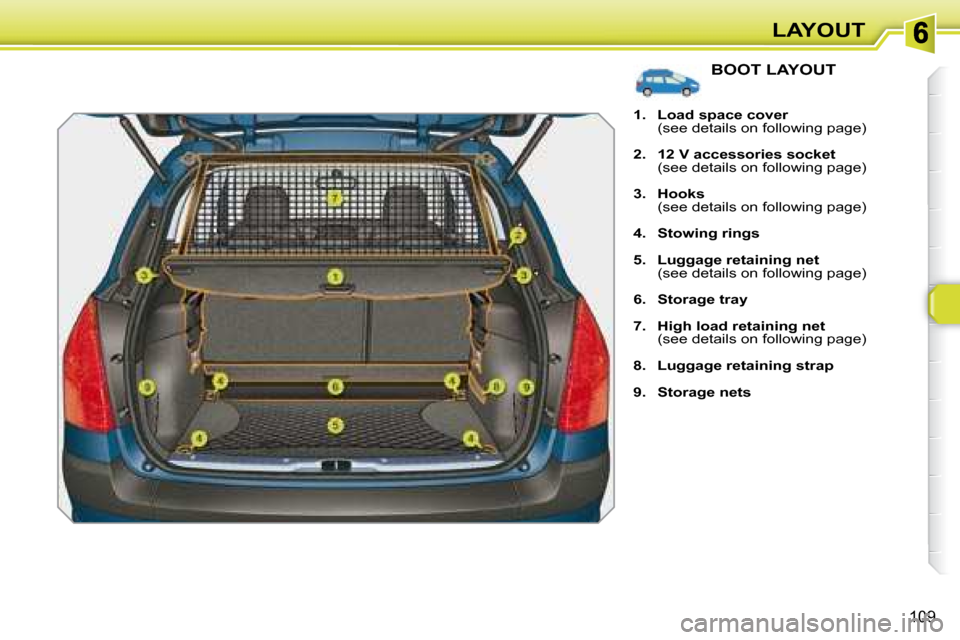

BOOT LAYOUT
1. Load space cover
(see details on following page)
2. 12 V accessories socket
(see details on following page)
3. Hooks
(see details on following page)
4. Stowing rings
5. Luggage retaining net
(see details on following page)
6. Storage tray
7. High load retaining net
(see details on following page)
8. Luggage retaining strap
9. Storage nets
Page 103 of 260
i
110
LAYOUT

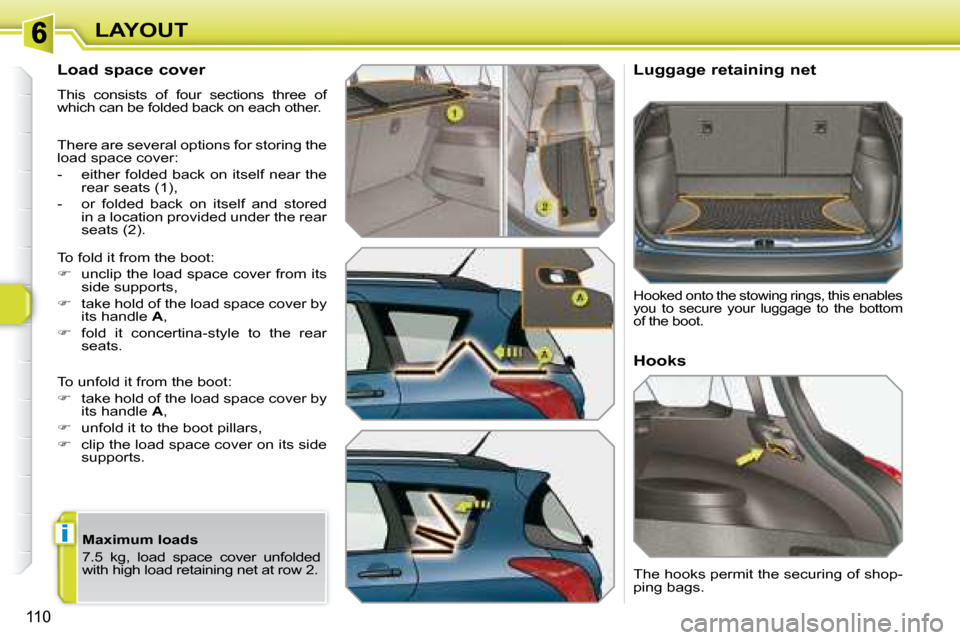

Load space cover
This consists of four sections three of
which can be folded back on each other.
There are several options for storing the
load space cover:
- either folded back on itself near the rear seats (1),
- or folded back on itself and stored in a location provided under the rear
seats (2).
To fold it from the boot:
unclip the load space cover from its
side supports,
take hold of the load space cover by
its handle A ,
fold it concertina-style to the rear
seats.
To unfold it from the boot:
take hold of the load space cover by
its handle A ,
unfold it to the boot pillars,
clip the load space cover on its side
supports. Luggage retaining net
Hooked onto the stowing rings, this enables
you to secure your luggage to the bottom
of the boot.
Hooks
The hooks permit the securing of shop-
ping bags.
Maximum loads
7.5 kg, load space cover unfolded
with high load retaining net at row 2.
