FAMILIARISATION
4
Sunroof
This roof improves the ventilation and
light in the passenger compartment.
82
81
124
Audible rear parking
assistance
This equipment warns you if an ob-
stacle is detected behind the vehicle
when reversing. Reversing camera
This equipment is activated automati-
cally when reverse gear is engaged
providing a visual return on the colour
display.
Lower tailgate
This lower tailgate provides remark-
able accessibility and makes the load-
ing of bulky objects easier.
125
Page 2 of 230
FAMILIARISATION
5
Fuel tank
A. O p e n i n g o f t h e f u e l fi l l e r fl a p .
B. Opening of the fuel tank cap.
84
1. Locking of the vehicle.
2. Unlocking of the vehicle.
Remote control key
A. Unfolding/folding of the key.
B. Unlocking of the vehicle.
C. Locking of the vehicle.
73 Manual centralised control
79

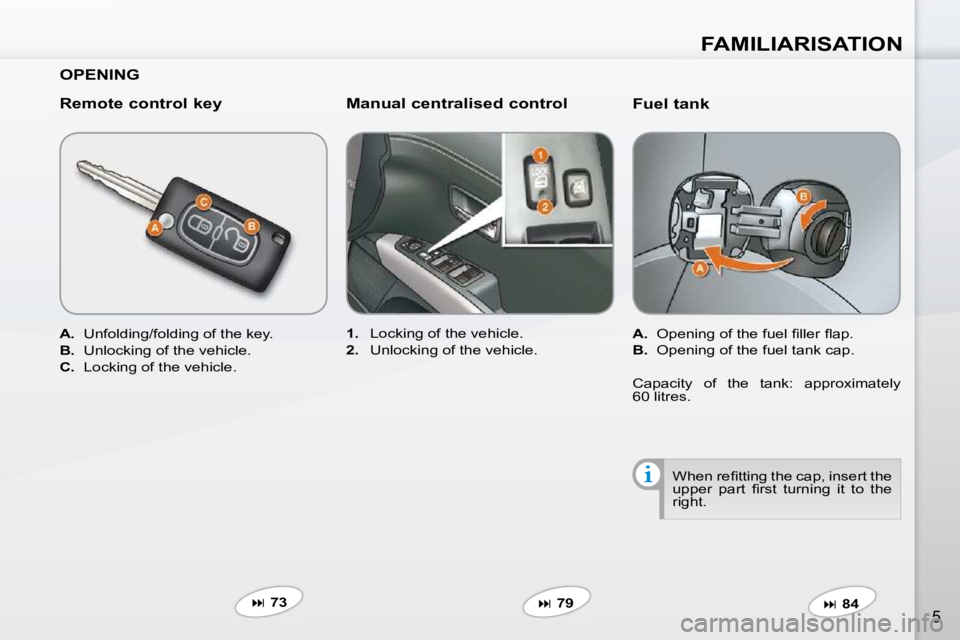

OPENING
W h e n r e fi t t i n g t h e c a p , i n s e r t t h e
u p p e r p a r t fi r s t t u r n i n g i t t o t h e
right.
Capacity of the tank: approximately
60 litres.
Page 3 of 230
FAMILIARISATION
6

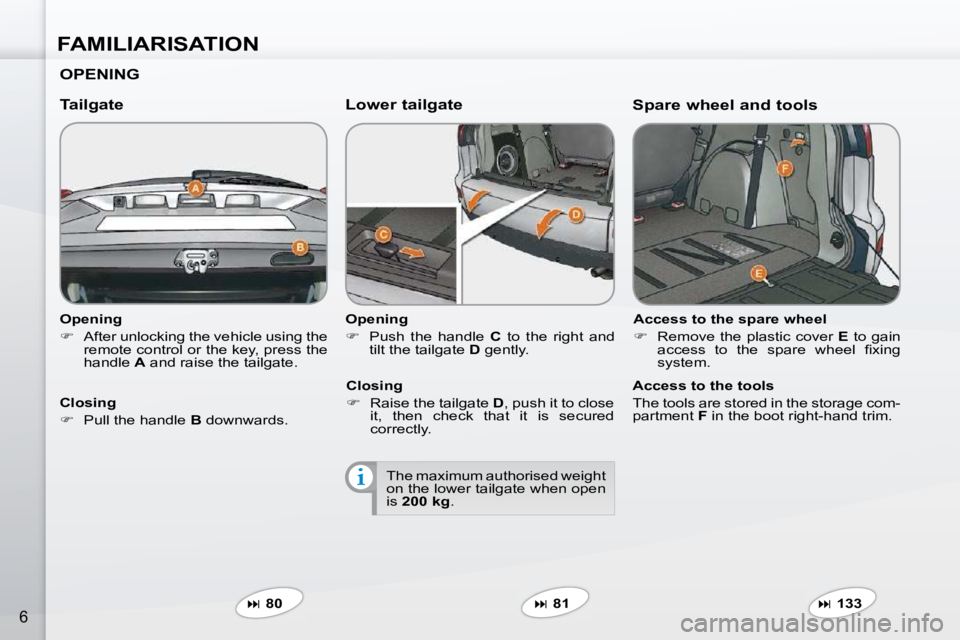

Opening
After unlocking the vehicle using the
r e m o t e c o n t r o l o r t h e k e y , p r e s s t h e
handle A and raise the tailgate.
Tailgate Lower tailgate
Opening
Push the handle C to the right and
tilt the tailgate D gently.
The maximum authorised weight
on the lower tailgate when open
is 200 kg . Spare wheel and tools
Access to the spare wheel
Remove the plastic cover E to gain
a c c e s s t o t h e s p a r e w h e e l fi x i n g
system.
80
OPENING
81 133
Closing
Pull the handle B downwards. Closing
Raise the tailgate D , p u s h i t t o c l o s e
i t , t h e n c h e c k t h a t i t i s s e c u r e d
correctly. Access to the tools
The tools are stored in the storage com-
partment
F in the boot right-hand trim.
Page 4 of 230
FAMILIARISATION
7

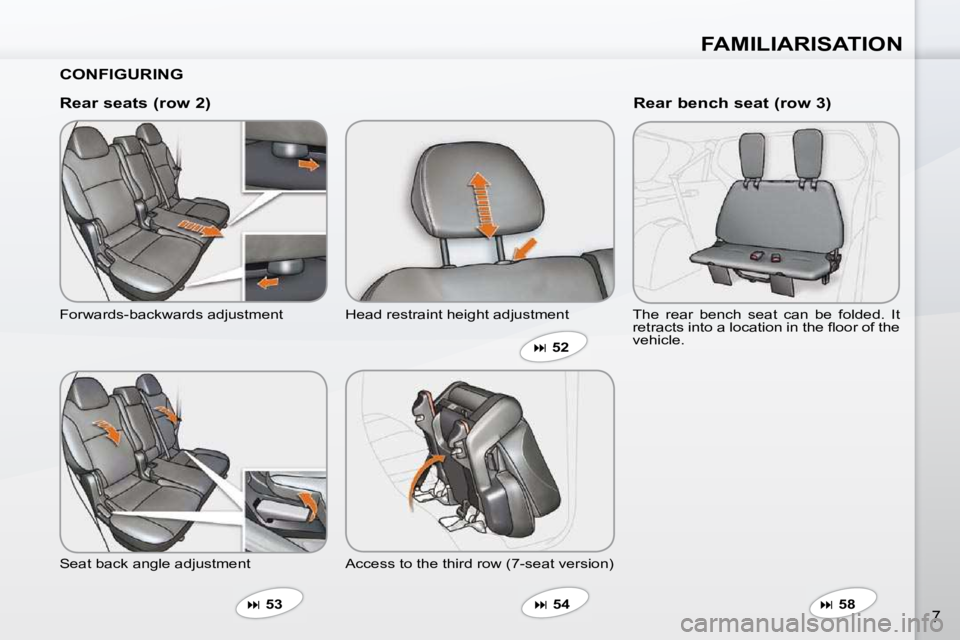

CONFIGURING
Rear seats (row 2)
Forwards-backwards adjustment
Seat back angle adjustment
53 Head restraint height adjustment
Access to the third row (7-seat version)
54 Rear bench seat (row 3)
The rear bench seat can be folded. It
r e t r a c t s i n t o a l o c a t i o n i n t h e fl o o r o f t h e
vehicle.
58
52
Page 5 of 230
FAMILIARISATION
8

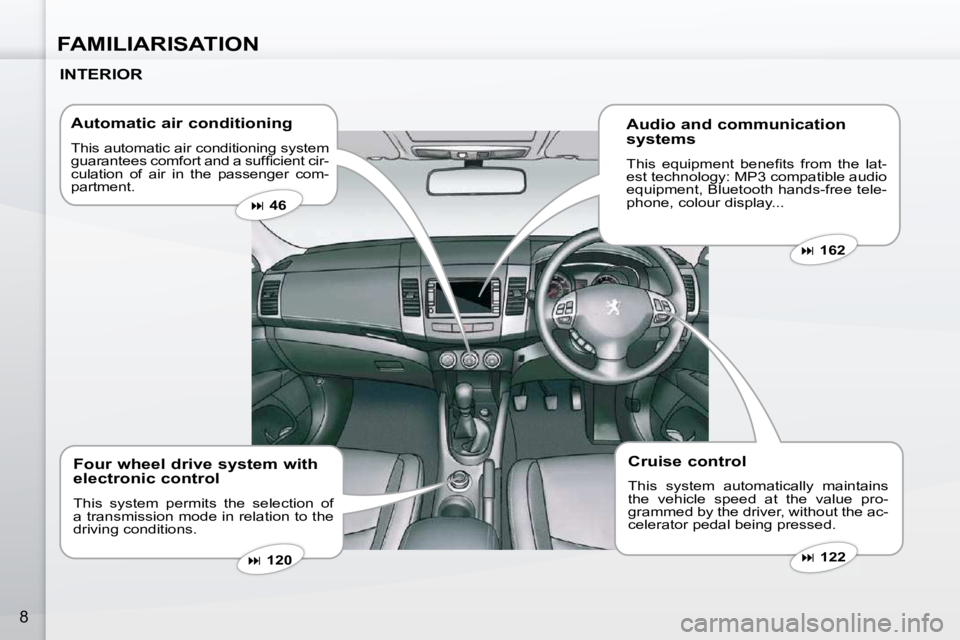

INTERIOR Automatic air conditioning
This automatic air conditioning system
g u a r a n t e e s c o m f o r t a n d a s u f fi c i e n t c i r -
culation of air in the passenger com-
partment.
Cruise control
This system automatically maintains
the vehicle speed at the value pro-
g r a m m e d b y t h e d r i v e r , w i t h o u t t h e a c -
celerator pedal being pressed.
Audio and communication
systems
T h i s e q u i p m e n t b e n e fi t s f r o m t h e l a t -
est technology: MP3 compatible audio
e q u i p m e n t , B l u e t o o t h h a n d s - f r e e t e l e -
p h o n e , c o l o u r d i s p l a y . . .
Four wheel drive system with
electronic control
This system permits the selection of
a transmission mode in relation to the
driving conditions.
46
122
162
120
Page 6 of 230
FAMILIARISATION
9

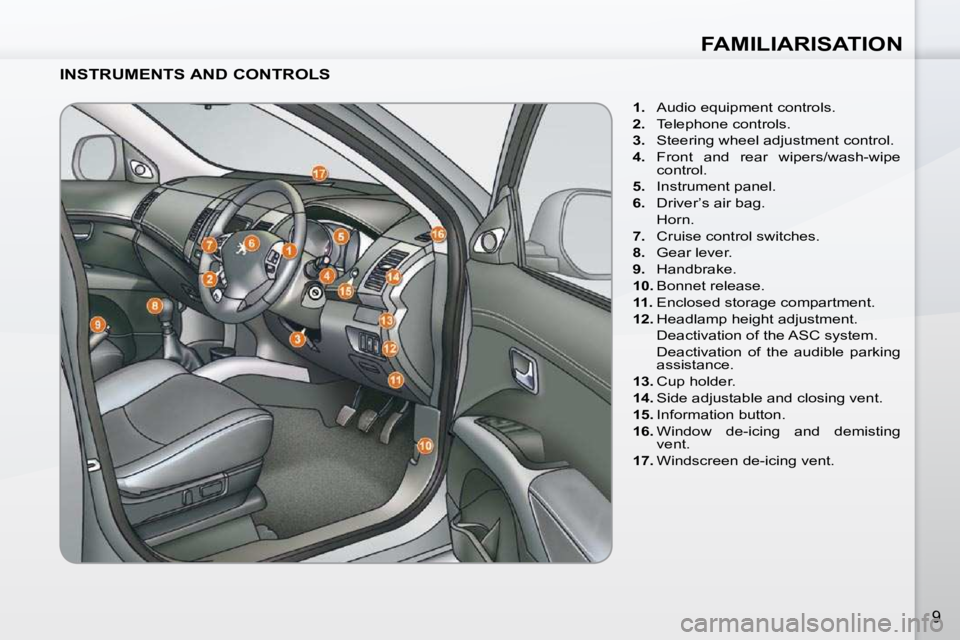

INSTRUMENTS AND CONTROLS
1. Audio equipment controls.
2. Telephone controls.
3. Steering wheel adjustment control.
4. Front and rear wipers/wash-wipe
control.
5. Instrument panel.
6. Driver’s air bag.
Horn.
7. Cruise control switches.
8. Gear lever.
9. Handbrake.
10. B o n n e t r e l e a s e .
11. Enclosed storage compartment.
12. Headlamp height adjustment.
Deactivation of the ASC system.
Deactivation of the audible parking assistance.
13. Cup holder.
14. Side adjustable and closing vent.
15. Information button.
16. Window de-icing and demisting
vent.
17. Windscreen de-icing vent.
Page 7 of 230
FAMILIARISATION
10

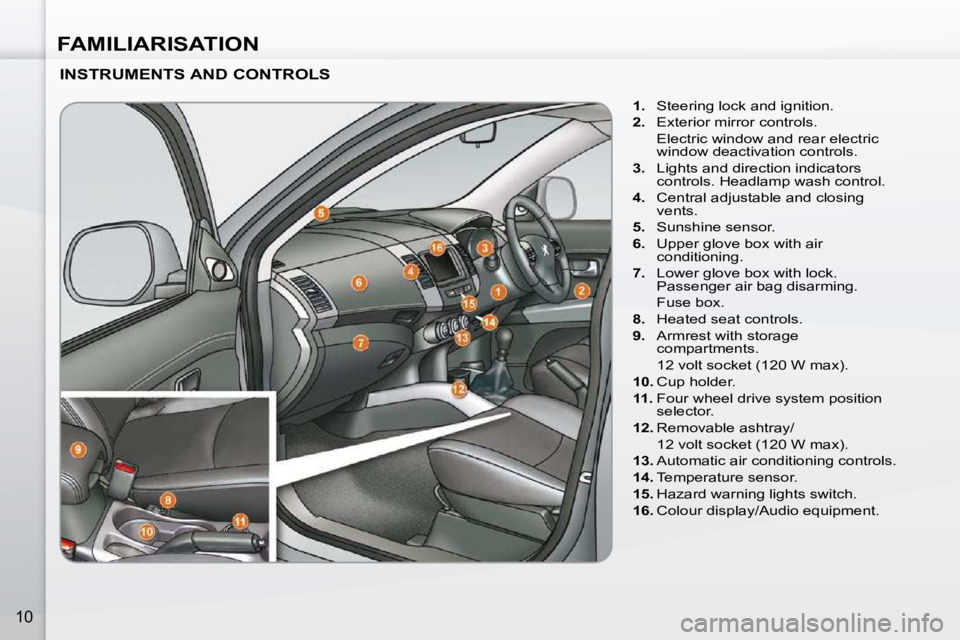

INSTRUMENTS AND CONTROLS
1. Steering lock and ignition.
2. Exterior mirror controls.
Electric window and rear electric window deactivation controls.
3. Lights and direction indicators
controls. Headlamp wash control.
4. Central adjustable and closing
vents.
5. Sunshine sensor.
6. Upper glove box with air
conditioning.
7. Lower glove box with lock.
Passenger air bag disarming.
Fuse box.
8. Heated seat controls.
9. Armrest with storage
compartments.
12 volt socket (120 W max).
10. Cup holder.
11. Four wheel drive system position
selector.
12. Removable ashtray/
12 volt socket (120 W max).
13. Automatic air conditioning controls.
14. Temperature sensor.
15. Hazard warning lights switch.
16. Colour display/Audio equipment.
Page 8 of 230
FAMILIARISATION
11

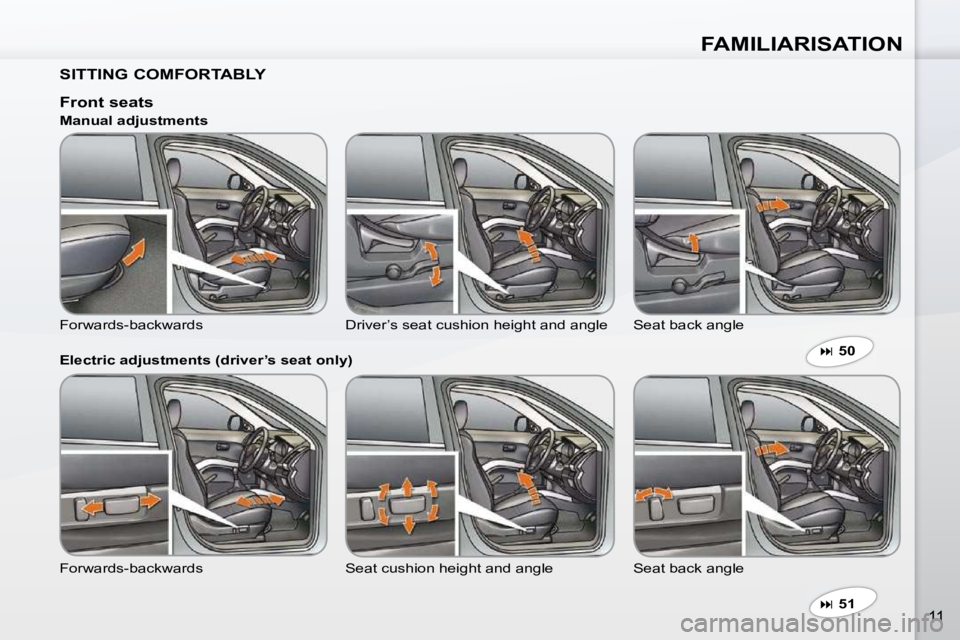

SITTING COMFORTABLY
51
Front seats
Forwards-backwards Driver’s seat cushion height and angle Seat
back angle
Manual adjustments
Electric adjustments (driver’s seat only)
Forwards-backwards Seat cushion height and angle Seat back ang
le
50
Page 9 of 230
FAMILIARISATION
12

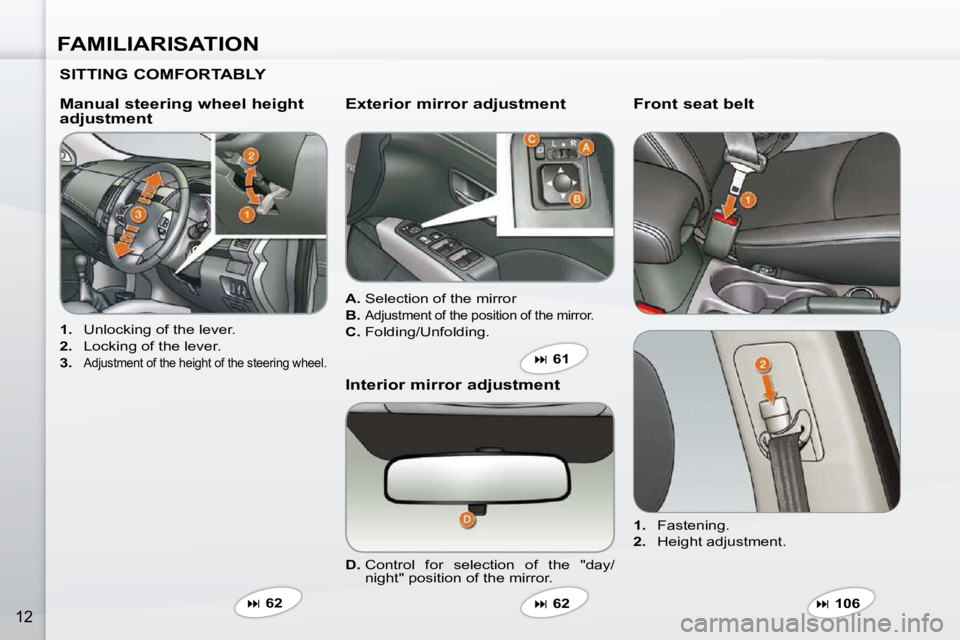

SITTING COMFORTABLY
1. Unlocking of the lever.
2. Locking of the lever.
3.
Adjustment of the height of the steering wheel.
Manual steering wheel height
adjustment Exterior mirror adjustment
A. Selection of the mirror
B.
Adjustment of the position of the mirror.
C. Folding/Unfolding.
62 Interior mirror adjustment
D. Control for selection of the "day/
night" position of the mirror.
61
62 Front seat belt
1. Fastening.
2. Height adjustment.
106
Page 10 of 230
FAMILIARISATION
13
SITTING COMFORTABLY

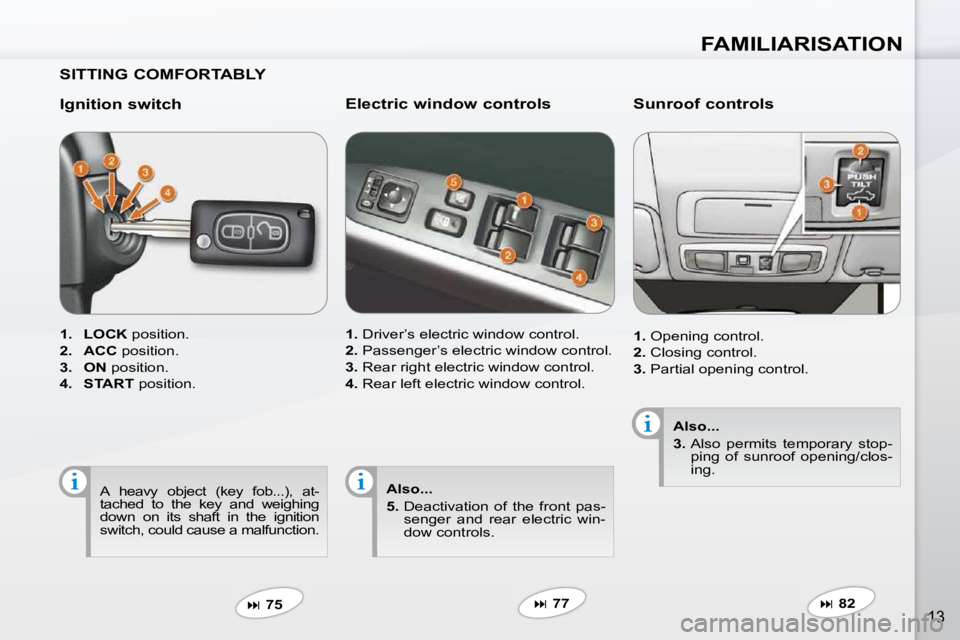

Ignition switch
1. LOCK position.
2. ACC position.
3. ON position.
4. START position.
75 Electric window controls
1. Driver’s electric window control.
2. Passenger’s electric window control.
3. Rear right electric window control.
4. Rear left electric window control.
Also...
5. Deactivation of the front pas-
senger and rear electric win-
dow controls.
77 Sunroof controls
1. Opening control.
2. Closing control.
3. Partial opening control.
Also...
3. Also permits temporary stop-
ping of sunroof opening/clos-
ing.
82
A h e a v y o b j e c t ( k e y f o b . . . ) , a t -
tached to the key and weighing
down on its shaft in the ignition
s w i t c h , c o u l d c a u s e a m a l f u n c t i o n .
