2
COMFORT

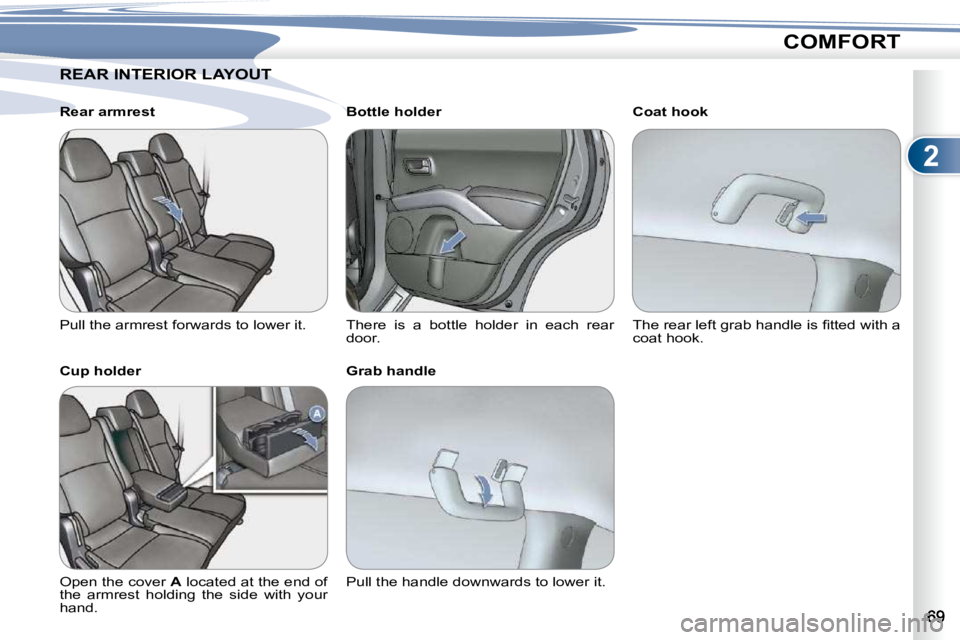

REAR INTERIOR LAYOUT REAR INTERIOR LAYOUT
Rear armrest
P u l l t h e a r m r e s t f o r w a r d s t o l o w e r i t .
Cup holder
O p e n t h e c o v e r A located at the end of
the armrest holding the side with your
h a n d . Bottle holder
There is a bottle holder in each rear
d o o r .
Grab handle
P u l l t h e h a n d l e d o w n w a r d s t o l o w e r i t .
Coat hook
T h e r e a r l e f t g r a b h a n d l e i s fi t t e d w i t h a
c o a t h o o k .
Page 72 of 230
2
COMFORT

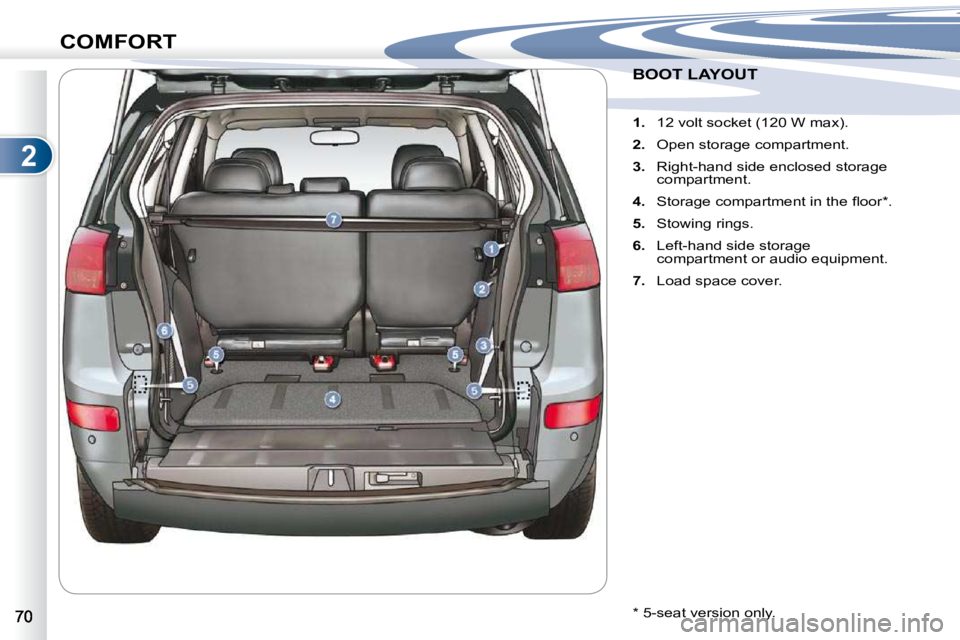

BOOT LABOOT LAYOUT
1. 1 2 v o l t s o c k e t ( 1 2 0 W m a x ) .
2. O p e n s t o r a g e c o m p a r t m e n t .
3. Right-hand side enclosed storage
c o m p a r t m e n t .
4. S t o r a g e c o m p a r t m e n t i n t h e fl o o r * .
5. S t o w i n g r i n g s .
6. Left-hand side storage
c o m p a r t m e n t o r a u d i o e q u i p m e n t .
7. L o a d s p a c e c o v e r .
* 5 - s e a t v e r s i o n o n l y .
Page 73 of 230
2
COMFORT
S t o w i n g r i n g s
There are four stowing rings in the boot
for securing luggage:
- two rings are located on the boot
fl o o r ,
- two rings are located on the rear s i d e p i l l a r s .
* O n 5 - s e a t v e r s i o n o n l y .
R a i s e t h e b o o t fl o o r t o g a i n a c c e s s t o
t h i s c o m p a r t m e n t .
Right-hand side enclosed storage
compartment
T h i s s t o r a g e c o m p a r t m e n t c o n t a i n s t h e
t o o l s f o r c h a n g i n g a w h e e l . S t o r a g e c o m p a r t m e n t i n t h e fl o o r *
12 volt socket (120 W max)
T h i s o p e r a t e s w h e n t h e i g n i t i o n s w i t c h
i s i n t h e " O N " o r " A C C " p o s i t i o n .
Lift the cover to gain access to the
s o c k e t .
C h e c k t h a t t h e e l e c t r i c a l e q u i p -
m e n t o p e r a t e s w i t h 1 2 v o l t s a n d
t h a t i t s m a x i m u m e l e c t r i c a l p o w e r
i s 1 2 0 W .
T h e p r o l o n g e d u s e o f e l e c t r i c a l
e q u i p m e n t w i t h o u t r u n n i n g t h e
e n g i n e m a y d i s c h a r g e t h e b a t t e r y .
Page 74 of 230
2
COMFORT

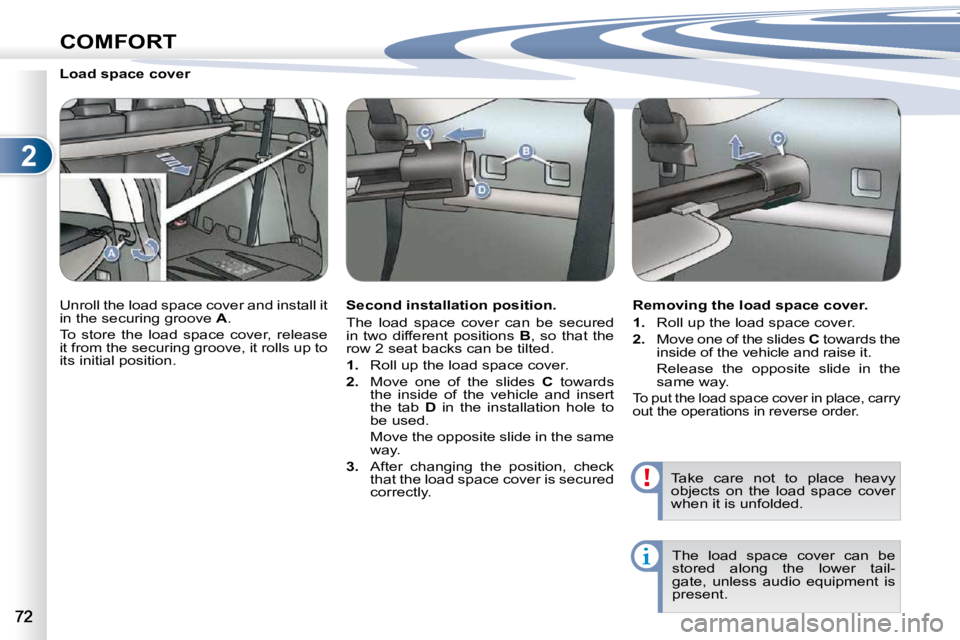

Load space cover
U n r o l l t h e l o a d s p a c e c o v e r a n d i n s t a l l i t
in the securing groove A .
T o s t o r e t h e l o a d s p a c e c o v e r , r e l e a s e
i t f r o m t h e s e c u r i n g g r o o v e , i t r o l l s u p t o
i t s i n i t i a l p o s i t i o n . Second installation position.
T h e l o a d s p a c e c o v e r c a n b e s e c u r e d
i n t w o d i f f e r e n t p o s i t i o n s
B , so that the
r o w 2 s e a t b a c k s c a n b e t i l t e d .
1. R o l l u p t h e l o a d s p a c e c o v e r .
2. Move one of the slides C towards
the inside of the vehicle and insert
the tab D in the installation hole to
b e u s e d .
M o v e t h e o p p o s i t e s l i d e i n t h e s a m e w a y .
3. A f t e r c h a n g i n g t h e p o s i t i o n , c h e c k
t h a t t h e l o a d s p a c e c o v e r i s s e c u r e d
c o r r e c t l y . Removing the load space cover.
1. R o l l u p t h e l o a d s p a c e c o v e r .
2. Move one of the slides C towards the
i n s i d e o f t h e v e h i c l e a n d r a i s e i t .
R e l e a s e t h e o p p o s i t e s l i d e i n t h e s a m e w a y .
T o p u t t h e l o a d s p a c e c o v e r i n p l a c e , c a r r y
o u t t h e o p e r a t i o n s i n r e v e r s e o r d e r .
T a k e c a r e n o t t o p l a c e h e a v y
o b j e c t s o n t h e l o a d s p a c e c o v e r
w h e n i t i s u n f o l d e d .
T h e l o a d s p a c e c o v e r c a n b e
stored along the lower tail-
g a t e , u n l e s s a u d i o e q u i p m e n t i s
p r e s e n t .
Page 75 of 230
3
ACCESS
Unfolding the key
First press button A to unfold the
key.
Unlocking the vehicle
Press the open padlock to
unlock the vehicle.
Unlocking using the remote control

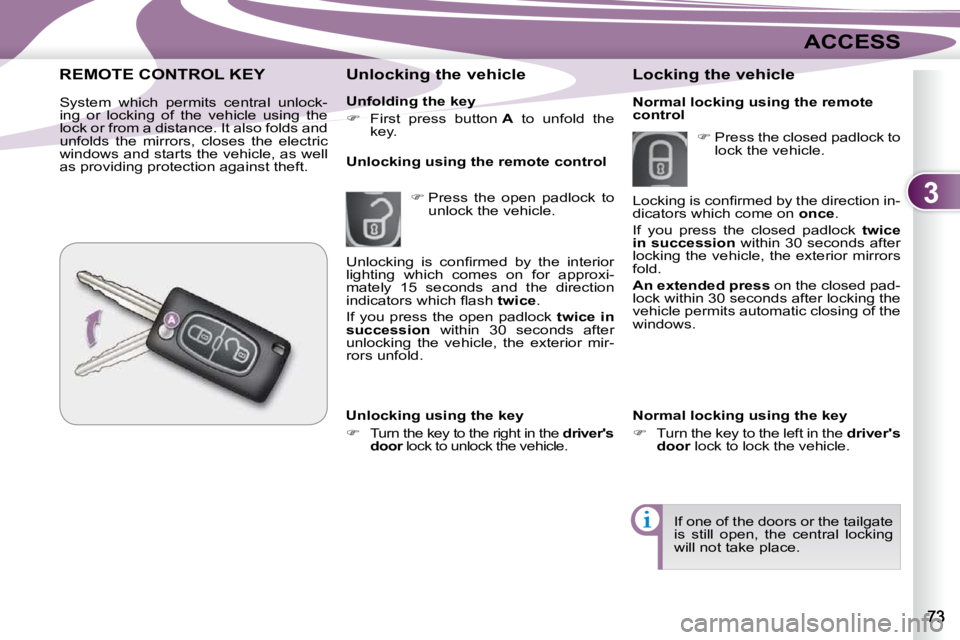

REMOTE CONTROLREMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It also folds and
unfolds the mirrors, closes the electric
windows and starts the vehicle, as well
as providing protection against theft. Locking the vehicle
Unlocking using the key
Turn the key to the right in the driver's
door lock to unlock the vehicle.
Press the closed padlock to
lock the vehicle.
If one of the doors or the tailgate
is still open, the central locking
will not take place.
U n l o c k i n g i s c o n fi r m e d b y t h e i n t e r i o r
lighting which comes on for approxi-
mately 15 seconds and the direction
i n d i c a t o r s w h i c h fl a s h
twice .
If you press the open padlock twice in
succession within 30 seconds after
unlocking the vehicle, the exterior mir-
rors unfold.
Normal locking using the key
Turn the key to the left in the driver's
door lock to lock the vehicle.
L o c k i n g i s c o n fi r m e d b y t h e d i r e c t i o n i n -
dicators which come on
once .
If you press the closed padlock twice
in succession within 30 seconds after
locking the vehicle, the exterior mirrors
fold.
An extended press on the closed pad-
lock within 30 seconds after locking the
vehicle permits automatic closing of the
windows.
Normal locking using the remote
control
Page 76 of 230
3
ACCESS
The vehicle will relock automati-
cally after thirty seconds unless
a door or the tailgate is opened.
This function prevents inadvert-
ent unlocking.
The duration which precedes
the automatic relocking of the
v e h i c l e c a n b e c o n fi g u r e d v i a
the colour display "Equipment"
menu.
Folding the key
First press button A to fold the key. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the igni-
tion is switched on, this code must be
recognised to permit starting.
This electronic engine immobiliser locks
the engine management system a few
moments after the ignition is switched
off and prevents starting of the engine
by anyone who does not have the key.

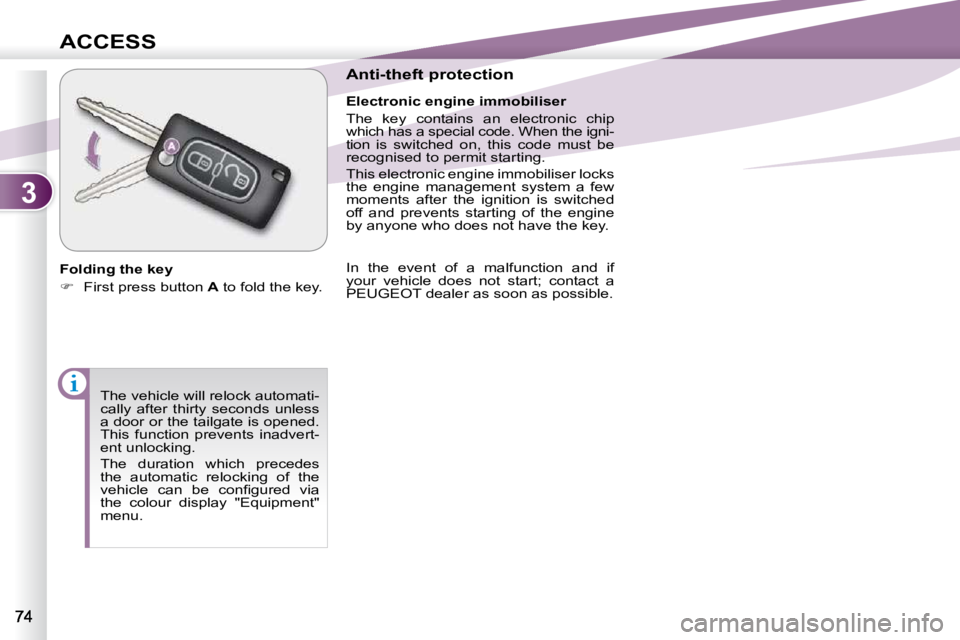

Anti-theft protection
In the event of a malfunction and if
your vehicle does not start; contact a
PEUGEOT dealer as soon as possible.
Page 77 of 230
3
ACCESS

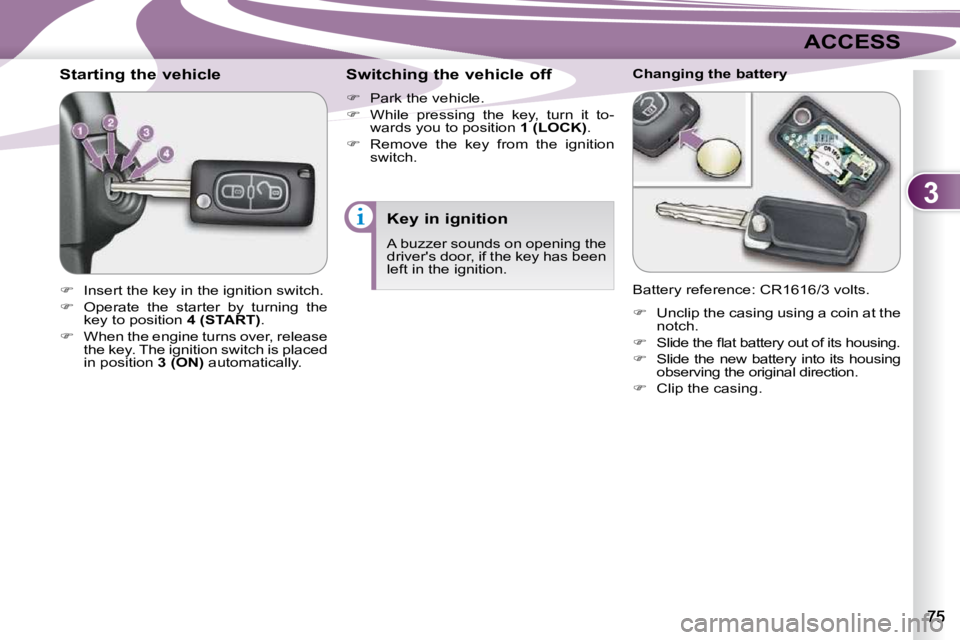

Starting the vehicle
Insert the key in the ignition switch.
Operate the starter by turning the
key to position 4 (START) .
When the engine turns over, release
the key. The ignition switch is placed
in position 3 (ON) automatically. Switching the vehicle off
Park the vehicle.
While pressing the key, turn it to-
wards you to position 1 (LOCK) .
Remove the key from the ignition
switch. Changing the battery
Battery reference: CR1616/3 volts.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s h o u s i n g .
Slide the new battery into its housing
observing the original direction.
Clip the casing.
Key in ignition
A buzzer sounds on opening the
driver's door, if the key has been
left in the ignition.
Page 78 of 230
3
ACCESS

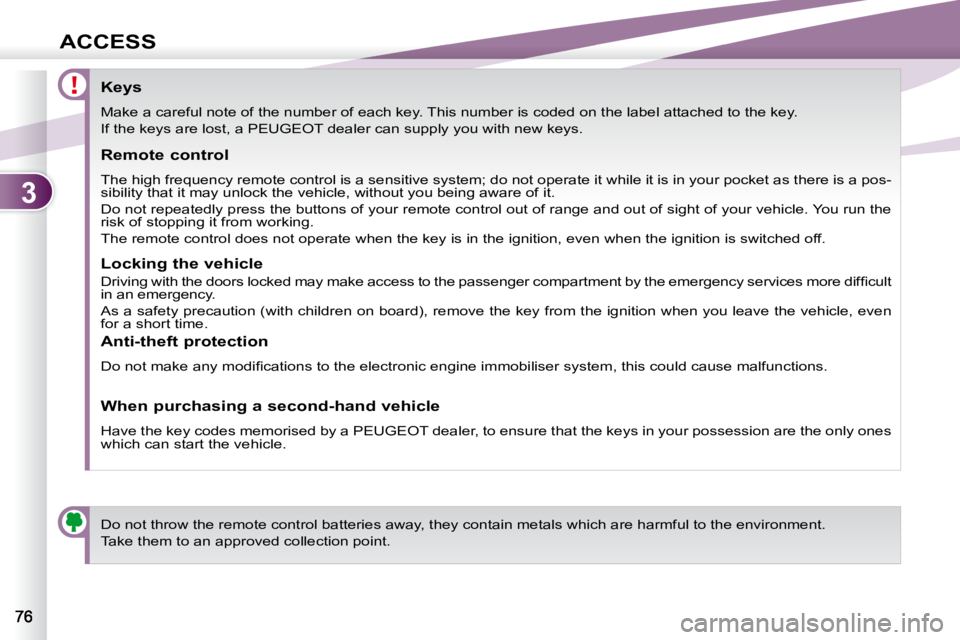

Keys
Make a careful note of the number of each key. This number is coded on the label attached to the key.
If the keys are lost, a PEUGEOT dealer can supply you with new keys.
Do not throw the remote control batteries away, t hey contain metals which are harmful to the environment.
Take them to an approved collection point.
Remote control
The high frequency remote control is a sensitive system; do not o
perate it while it is in your pocket as there is a pos-
sibility that it may unlock the vehicle, without you being a ware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the
risk of stopping it from working.
The remote control does not operate when the key is in the i gnition, even when the ignition is switched off.
Locking the vehicle
D r i v i n g w i t h t h e d o o r s l o c k e d m a y m a k e a c c e s s t o t h e p a s s e n g e r c o m p a r t m e n t b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t
in an emergency.
As a safety precaution (with children on board), remove the key fro m the ignition when you leave the vehicle, even
for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m , t h i s c o u l d c a u s e m a l f u n c t i o n s .
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones
which can start the vehicle.
Page 79 of 230
3
ACCESS
The vehicle will relock automati-
cally after thirty seconds unless
a door or the tailgate is opened.
This function prevents inadvert-
ent unlocking.
The duration which precedes
the automatic relocking of the
v e h i c l e c a n b e c o n fi g u r e d v i a
the colour display "Equipment"
menu.
Folding the key
First press button A to fold the key. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the igni-
tion is switched on, this code must be
recognised to permit starting.
This electronic engine immobiliser locks
the engine management system a few
moments after the ignition is switched
off and prevents starting of the engine
by anyone who does not have the key.
Anti-theft protection
In the event of a malfunction and if
your vehicle does not start; contact a
PEUGEOT dealer as soon as possible.
Page 80 of 230
3
ACCESS
Keys
Make a careful note of the number of each key. This number is coded on the label attached to the key.
If the keys are lost, a PEUGEOT dealer can supply you with new keys.
Do not throw the remote control batteries away, t hey contain metals which are harmful to the environment.
Take them to an approved collection point.
Remote control
The high frequency remote control is a sensitive system; do not o
perate it while it is in your pocket as there is a pos-
sibility that it may unlock the vehicle, without you being a ware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the
risk of stopping it from working.
The remote control does not operate when the key is in the i gnition, even when the ignition is switched off.
Locking the vehicle
D r i v i n g w i t h t h e d o o r s l o c k e d m a y m a k e a c c e s s t o t h e p a s s e n g e r c o m p a r t m e n t b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t
in an emergency.
As a safety precaution (with children on board), remove the key fro m the ignition when you leave the vehicle, even
for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m , t h i s c o u l d c a u s e m a l f u n c t i o n s .
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones
which can start the vehicle.
