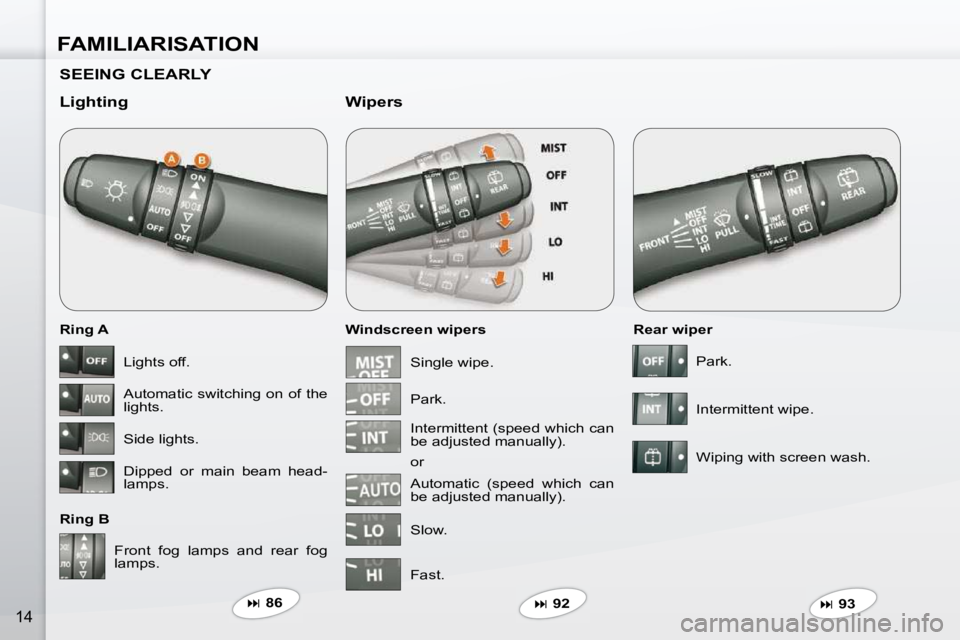

Page 11 of 230
FAMILIARISATION
14
SEEING CLEARLY
Lighting
Ring A
Ring B Windscreen wipers
Wipers
Rear wiper
Front fog lamps and rear fog
lamps.
86
92
93
Lights off.
Automatic switching on of the
lights.
Side lights.
Dipped or main beam head-
lamps.
Single wipe.
Park.
Intermittent (speed which can
be adjusted manually).
Fast. Park.
Intermittent wipe.
Wiping with screen wash.
Slow.
or
Automatic (speed which can
be adjusted manually).

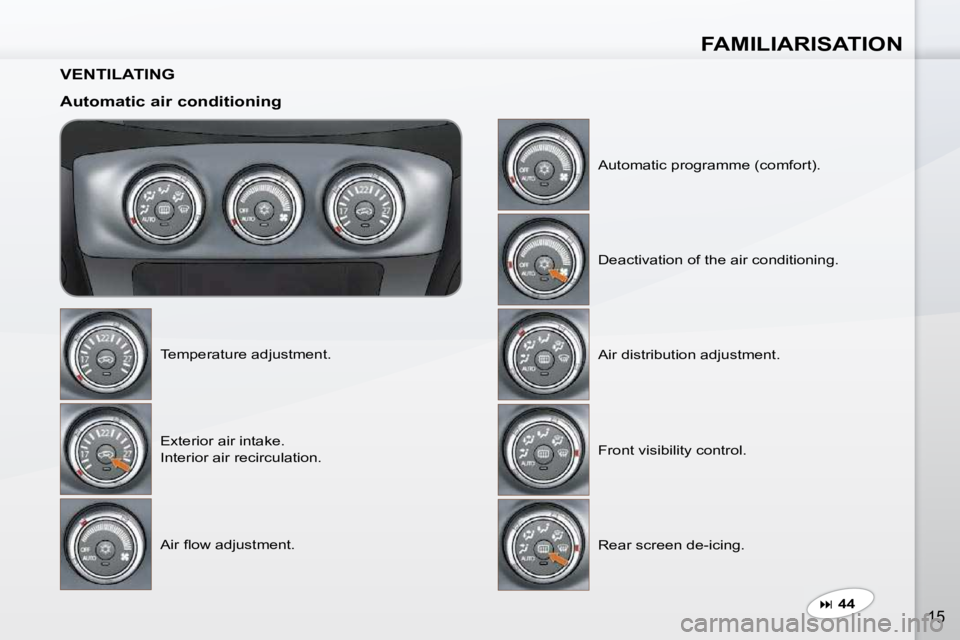

Page 12 of 230
FAMILIARISATION
15
VENTILATING
Automatic air conditioning Temperature adjustment. Exterior air intake.
Interior air recirculation.
A i r fl o w a d j u s t m e n t . Automatic programme (comfort).
Deactivation of the air conditioning.
Air distribution adjustment.
Front visibility control.
Rear screen de-icing.
44

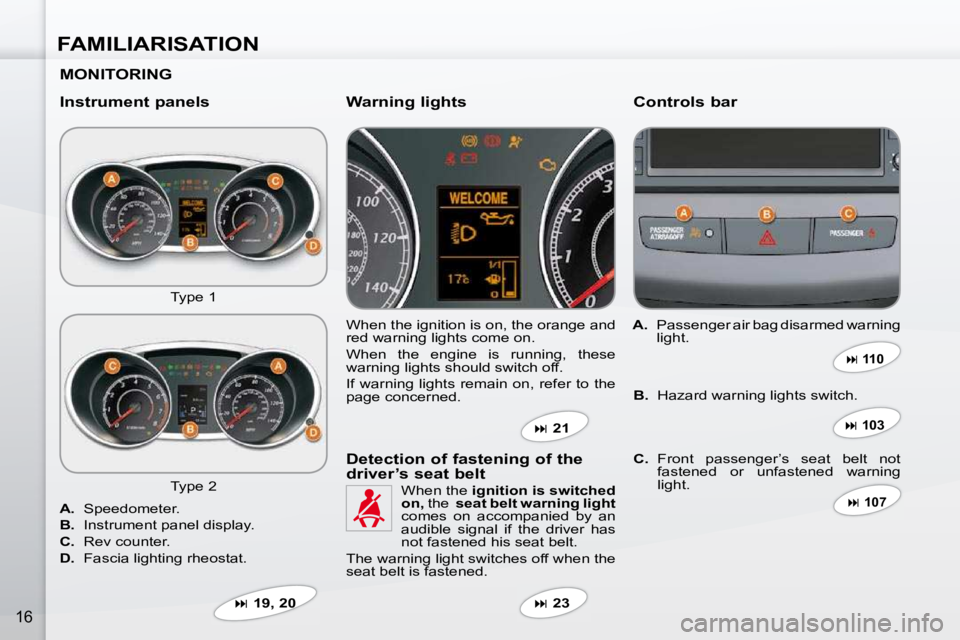

Page 13 of 230
FAMILIARISATION
16
MONITORING
Instrument panels Controls bar
Type 1 W h e n t h e i g n i t i o n i s o n , t h e o r a n g e a n d
red warning lights come on.
W h e n t h e e n g i n e i s r u n n i n g , t h e s e
warning lights should switch off.
I f w a r n i n g l i g h t s r e m a i n o n , r e f e r t o t h e
page concerned.
Warning lights
19, 20
A. Passenger air bag disarmed warning
light.
110
B. Hazard warning lights switch.
103
C. Front passenger’s seat belt not
fastened or unfastened warning
light.
107
21
Detection of fastening of the
driver’s seat belt When the ignition is switched
on, the seat belt warning light
comes on accompanied by an
audible signal if the driver has
not fastened his seat belt.
The warning light switches off when the
seat belt is fastened.
23
Type 2
A. Speedometer.
B. Instrument panel display.
C. Rev counter.
D. Fascia lighting rheostat.

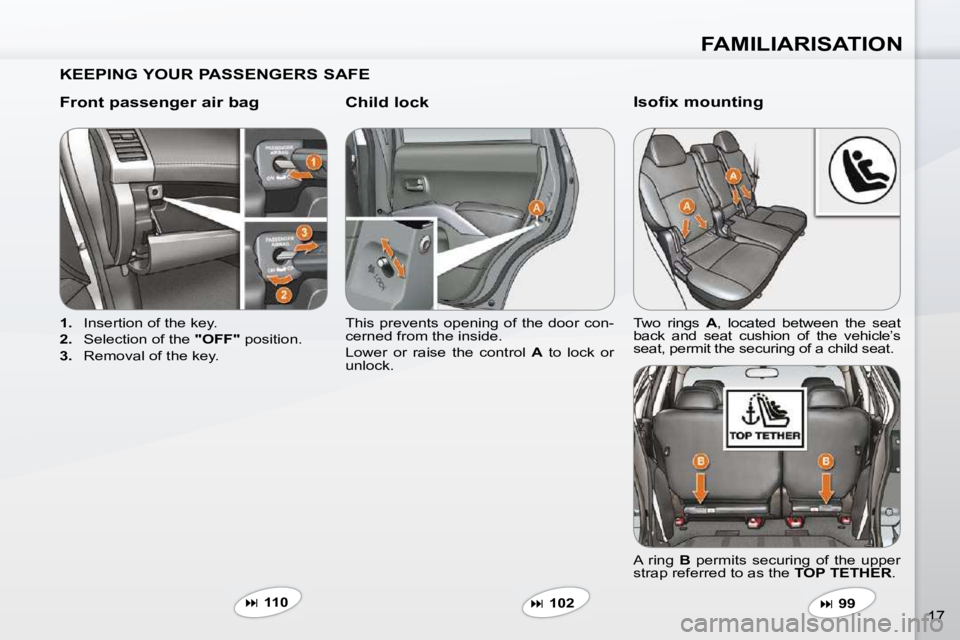

Page 14 of 230
FAMILIARISATION
17
KEEPING YOUR PASSENGERS SAFE
Front passenger air bag Child lock
1. Insertion of the key.
2. Selection of the "OFF" position.
3. Removal of the key. This prevents opening of the door con-
cerned from the inside.
Lower or raise the control
A to lock or
unlock.
110
102 Isofix mounting
Two rings
A , l o c a t e d b e t w e e n t h e s e a t
back and seat cushion of the vehicle’s
s e a t , p e r m i t t h e s e c u r i n g o f a c h i l d s e a t .
A ring B permits securing of the upper
strap referred to as the TOP TETHER .
99

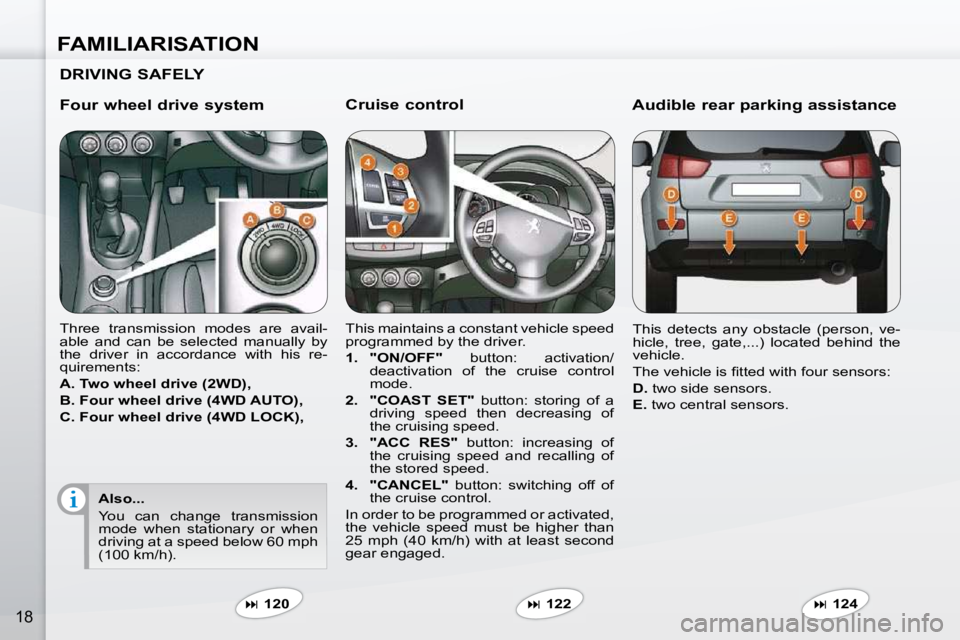

Page 15 of 230
FAMILIARISATION
18
Cruise control
This maintains a constant vehicle speed
programmed by the driver.
1. "ON/OFF" button: activation/
deactivation of the cruise control
mode.
2. "COAST SET" button: storing of a
driving speed then decreasing of
the cruising speed.
3. "ACC RES" button: increasing of
the cruising speed and recalling of
the stored speed.
4. "CANCEL" button: switching off of
the cruise control.
I n o r d e r t o b e p r o g r a m m e d o r a c t i v a t e d ,
the vehicle speed must be higher than
25 mph (40 km/h) with at least second
gear engaged. T h i s d e t e c t s a n y o b s t a c l e ( p e r s o n , v e -
h i c l e , t r e e , g a t e , . . . ) l o c a t e d b e h i n d t h e
vehicle.
T h e v e h i c l e i s fi t t e d w i t h f o u r s e n s o r s :
D. two side sensors.
E. two central sensors.
Audible rear parking assistance
122 124
DRIVING SAFELY
Four wheel drive system
Three transmission modes are avail-
able and can be selected manually by
the driver in accordance with his re-
quirements:
A. Two wheel drive (2WD),
B. Four wheel drive (4WD AUTO),
C. Four wheel drive (4WD LOCK),
120
Also...
You can change transmission
mode when stationary or when
driving at a speed below 60 mph
(100 km/h).

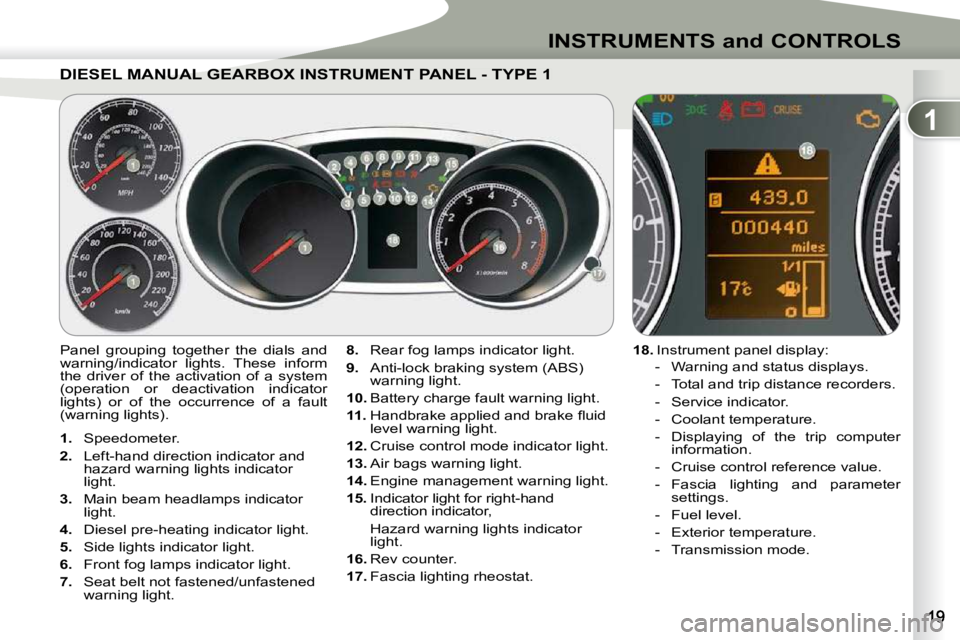

Page 16 of 230
1
INSTRUMENTS and CONTROLS
DIESEL MANUAL GEARBOX INSTRUMENT PDIESEL MANUAL GEARBOX INSTRUMENT PANEL - TYPE 1
Panel grouping together the dials and
warning/indicator lights. These inform
the driver of the activation of a system
(operation or deactivation indicator
lights) or of the occurrence of a fault
(warning lights).
1. Speedometer.
2. Left-hand direction indicator and
hazard warning lights indicator
light.
3. Main beam headlamps indicator
light.
4. Diesel pre-heating indicator light.
5. Side lights indicator light.
6. Front fog lamps indicator light.
7. Seat belt not fastened/unfastened
warning light.
8. Rear fog lamps indicator light.
9. Anti-lock braking system (ABS)
warning light.
10. Battery charge fault warning light.
11. H a n d b r a k e a p p l i e d a n d b r a k e fl u i d
level warning light.
12. Cruise control mode indicator light.
13. Air bags warning light.
14. Engine management warning light.
15. Indicator light for right-hand
direction indicator,
Hazard warning lights indicator light.
16. Rev counter.
17. Fascia lighting rheostat.
18. Instrument panel display:
- Warning and status displays.
- Total and trip distance recorders.
- Service indicator.
- Coolant temperature.
- Displaying of the trip computer information.
- Cruise control reference value.
- Fascia lighting and parameter settings.
- Fuel level.
- Exterior temperature.
- Transmission mode.

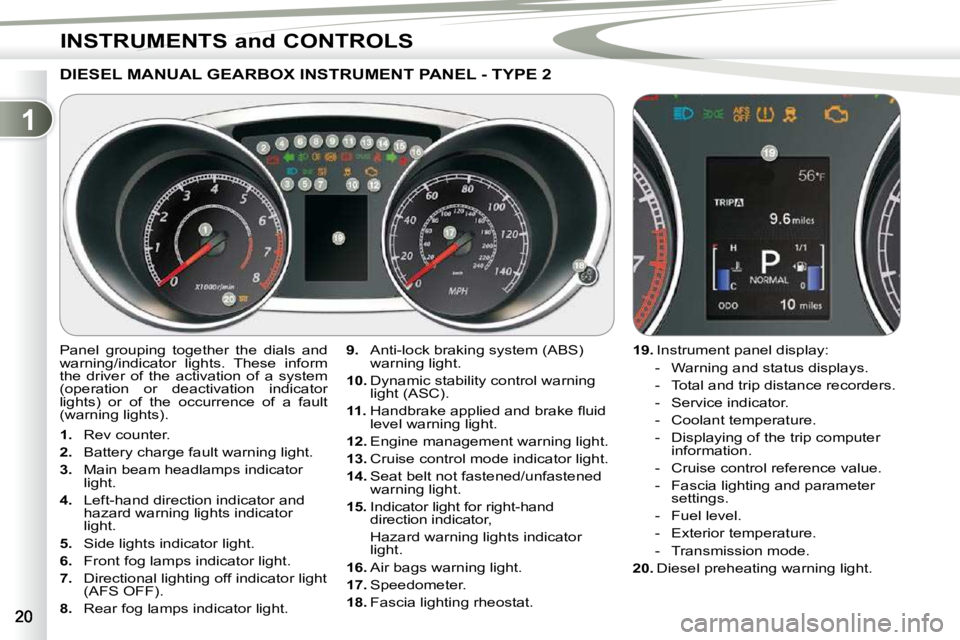

Page 17 of 230
1
INSTRUMENTS and CONTROLS
DIESEL MANUAL GEARBOX INSTRUMENT PANEL - TYPE 2
9. Anti-lock braking system (ABS)
warning light.
10. Dynamic stability control warning
light (ASC).
11. H a n d b r a k e a p p l i e d a n d b r a k e fl u i d
level warning light.
12. Engine management warning light.
13. Cruise control mode indicator light.
14. Seat belt not fastened/unfastened
warning light.
15. Indicator light for right-hand
direction indicator,
Hazard warning lights indicator light.
16. Air bags warning light.
17. Speedometer.
18. Fascia lighting rheostat.
Panel grouping together the dials and
warning/indicator lights. These inform
the driver of the activation of a system
(operation or deactivation indicator
lights) or of the occurrence of a fault
(warning lights).
1. Rev counter.
2. Battery charge fault warning light.
3. Main beam headlamps indicator
light.
4. Left-hand direction indicator and
hazard warning lights indicator
light.
5. Side lights indicator light.
6. Front fog lamps indicator light.
7. Directional lighting off indicator light
(AFS OFF).
8. Rear fog lamps indicator light.
19. Instrument panel display:
- Warning and status displays.
- Total and trip distance recorders.
- Service indicator.
- Coolant temperature.
- Displaying of the trip computer information.
- Cruise control reference value.
- Fascia lighting and parameter settings.
- Fuel level.
- Exterior temperature.
- Transmission mode.
20. Diesel preheating warning light.

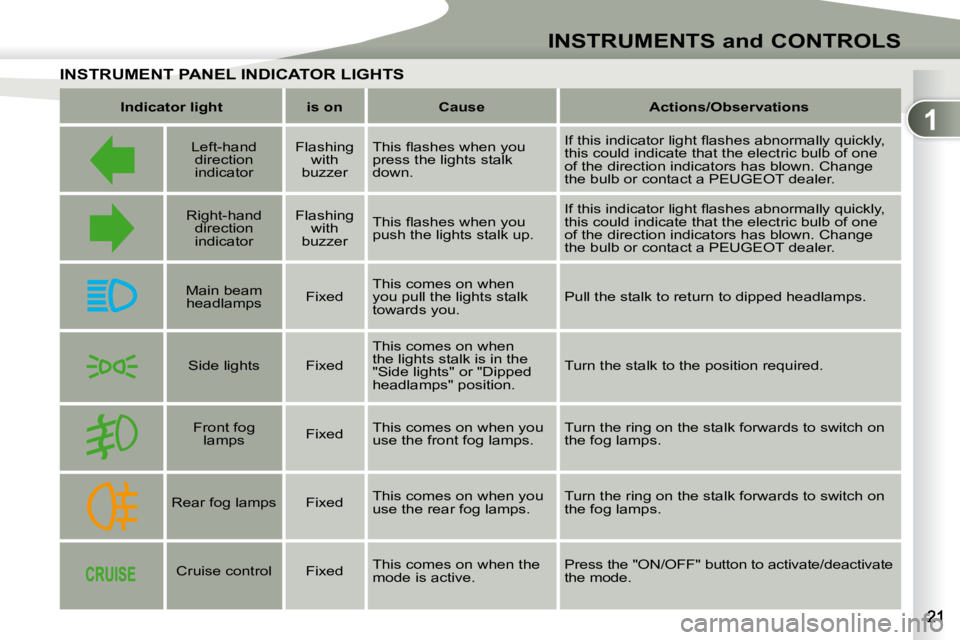

Page 18 of 230
1
INSTRUMENTS and CONTROLS
INSTRUMENT PANELINSTRUMENT PANEL INDICATOR LIGHTS
Indicator light is on Cause Actions/
Observations
Left-hand
direction
indicator Flashing
with
buzzer T h i s fl a s h e s w h e n y o u
press the lights stalk
down. I f t h i s i n d i c a t o r l i g h t fl a s h e s a b n o r m a l l y q u i c k l y ,
this could indicate that the electric bulb of one
of the direction indicators has blown. Change
the bulb or contact a PEUGEOT dealer.
Right-hand
direction
indicator Flashing
with
buzzer T h i s fl a s h e s w h e n y o u
push the lights stalk up. I f t h i s i n d i c a t o r l i g h t fl a s h e s a b n o r m a l l y q u i c k l y ,
this could indicate that the electric bulb of one
of the direction indicators has blown. Change
the bulb or contact a PEUGEOT dealer.
Main beam
headlamps Fixed This comes on when
you pull the lights stalk
towards you. Pull the stalk to return to dipped headlamps.
Side lights Fixed This comes on when
the lights stalk is in the
"Side lights" or "Dipped
headlamps" position. T u r n t h e s t a l k t o t h e p o s i t i o n r e q u i r e d .
Front fog
lamps Fixed This comes on when you
use the front fog lamps. Turn the ring on the stalk forwards to switch on
the fog lamps.
Rear fog lamps Fixed This comes on when you
use the rear fog lamps. Turn the ring on the stalk forwards to switch on
the fog lamps.
Cruise control Fixed This comes on when the
mode is active. Press the "ON/OFF" button to activate/deactivate
the mode.

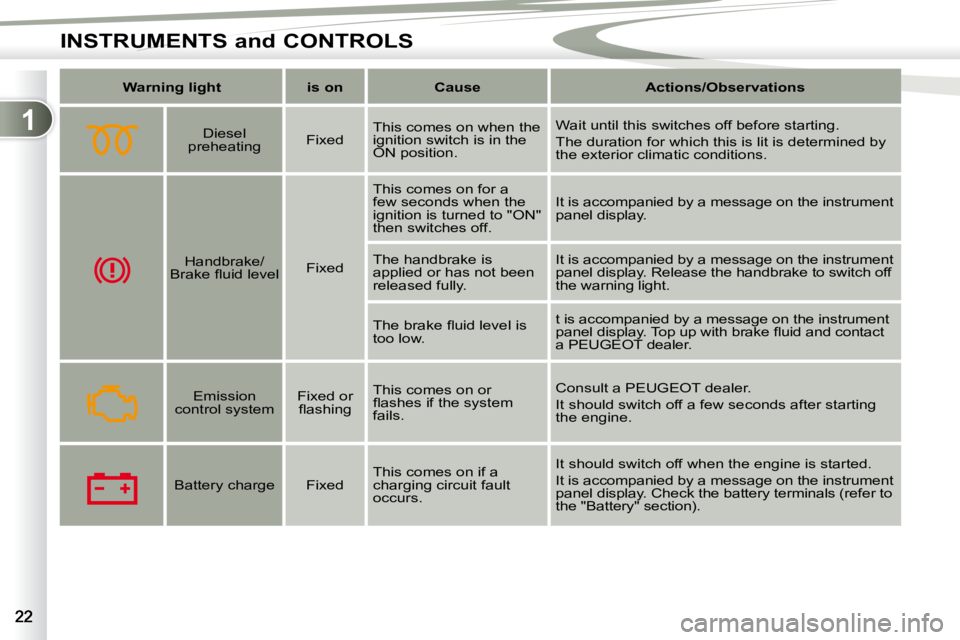

Page 19 of 230
1
INSTRUMENTS and CONTROLS
Warning light is on Cause Actions/Observations
Diesel
preheating Fixed This comes on when the
ignition switch is in the
ON position. Wait until this switches off before starting.
The duration for which this is lit is determined by
the exterior climatic conditions.
Handbrake/
B r a k e fl u i d l e v e l Fixed This comes on for a
few seconds when the
ignition is turned to "ON"
then switches off.
It is accompanied by a message on the instrument
panel display.
The handbrake is
applied or has not been
released fully. It is accompanied by a message on the instrument
panel display. Release the handbrake to switch off
the warning light.
T h e b r a k e fl u i d l e v e l i s
too low. t is accompanied by a message on the instrument
p a n e l d i s p l a y . T o p u p w i t h b r a k e fl u i d a n d c o n t a c t
a PEUGEOT dealer.
Emission
control system Fixed or
fl a s h i n g This comes on or
fl a s h e s i f t h e s y s t e m
fails. Consult a PEUGEOT dealer.
It should switch off a few seconds after starting
the engine.
Battery charge Fixed
This comes on if a
charging circuit fault
occurs. It should switch off when the engine is started.
It is accompanied by a message on the instrument
panel display. Check the battery terminals (refer t
o
the "Battery" section).

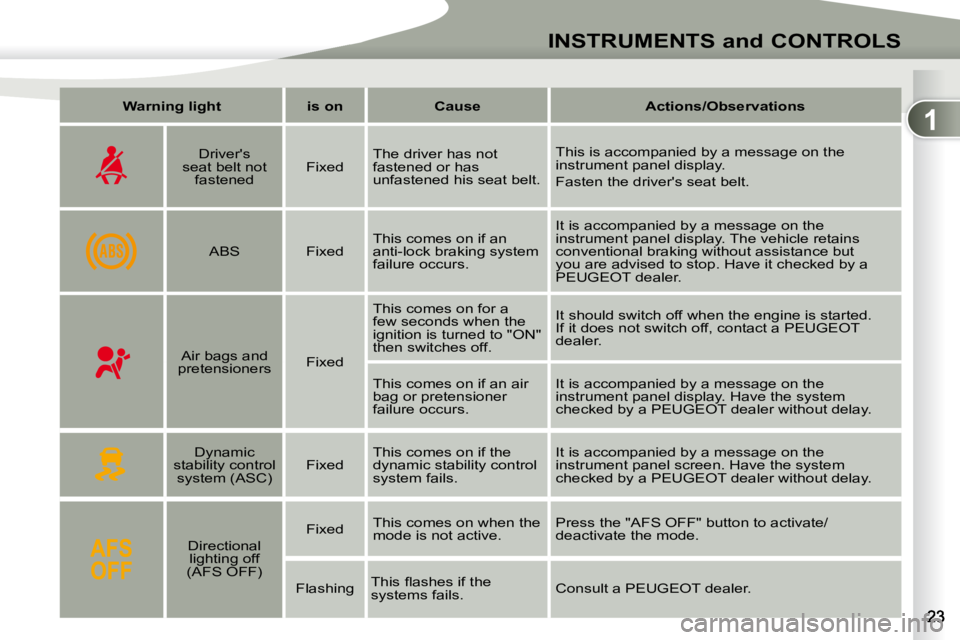

Page 20 of 230
1
INSTRUMENTS and CONTROLS
Warning light is on Cause Actions/Observations
Driver's
seat belt not fastened Fixed The driver has not
fastened or has
unfastened his seat belt. This is accompanied by a message on the
instrument panel display.
Fasten the driver's seat belt.
ABS Fixed
This comes on if an
anti-lock braking system
failure occurs. It is accompanied by a message on the
instrument panel display. The vehicle retains
conventional braking without assistance but
you are advised to stop. Have it checked by a
PEUGEOT dealer.
Air bags and
pretensioners Fixed This comes on for a
few seconds when the
ignition is turned to "ON"
then switches off.
It should switch off when the engine is started.
If it does not switch off, contact a PEUGEOT
dealer.
This comes on if an air
bag or pretensioner
failure occurs. It is accompanied by a message on the
instrument panel display. Have the system
checked by a PEUGEOT dealer without delay.
Dynamic
stability control system (ASC) Fixed This comes on if the
dynamic stability control
system fails. It is accompanied by a message on the
instrument panel screen. Have the system
checked by a PEUGEOT dealer without delay.
Directional
lighting off
(AFS OFF) Fixed
This comes on when the
mode is not active. Press the "AFS OFF" button to activate/
deactivate the mode.
Flashing T h i s fl a s h e s i f t h e
systems fails. Consult a PEUGEOT dealer.
