1
INSTRUMENTS and CONTROLS
Each time the engine is started: a series of warning lights and/or messages come on applying a checking self test. They
switch off after a few seconds. Engine running: the warning light or the message becomes a warning if it remains on
c o n t i n u o u s l y o r fl a s h e s . T h i s i n i t i a l w a r n i n g m a y b e a c c o m p a n i e d b y a n a u d i b l e s i g n a l a n d a m e s s a g e o n t h e d i s p l a y . D o n o t
ignore these warnings.
The messages displayed may vary between the type 1 instrument pan el and the type 2 instrument panel.
W h e n t h e c a u s e o f t h e a p p e a r a n c e o f t h e w a r n i n g l i g h t o r w a r n i n g m e s s a g e h a s b e e n r e c t i fi e d , t h e w a r n i n g d i s a p p e a r s f r o m
t h e d i s p l a y a u t o m a t i c a l l y . I f t h e c a u s e o f t h e w a r n i n g i s n o t r e c t i fi e d , y o u c a n r e t u r n t o t h e p r e v i o u s s c r e e n a t a n y t i m e b y
pressing the INFO button on the fascia.
The symbol "!" is displayed.
To return to the previous screen (with the "!" symbol), you must press the INFO button several times.

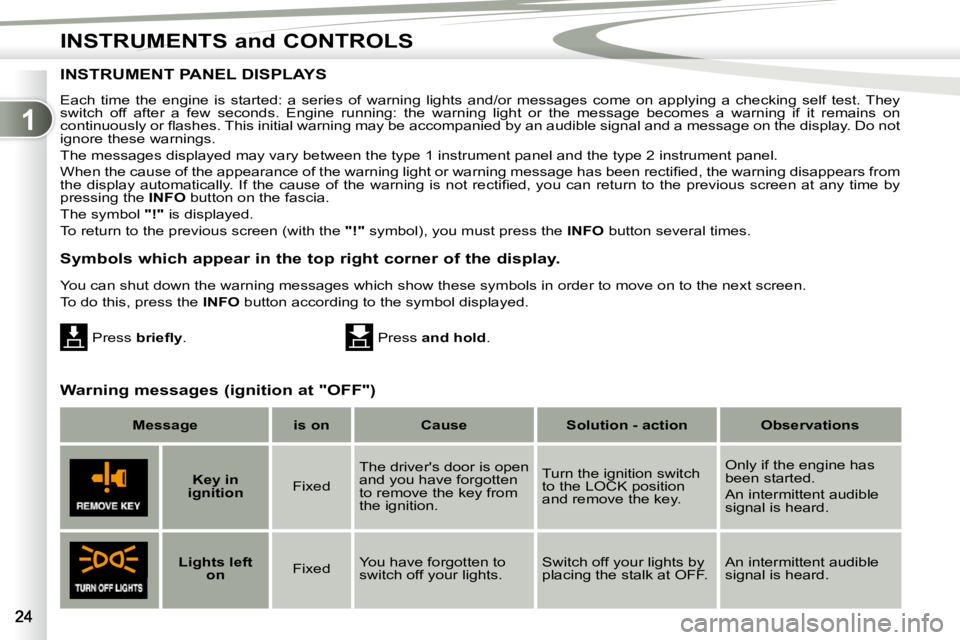

INSTRUMENT PANEL DISPLAYS
Warning messages (ignition at "OFF")
You can shut down the warning messages which show these symbol
s in order to move on to the next screen.
To do this, press the INFO button according to the symbol displayed.
Press b r i e fl y . Press and hold .
S y m b o l s w h i c h a p p e a r i n t h e t o p r i g h t c o r n e r o f t h e d i s
p l a y .
Message is on Cause Solution - action Observations
K e y i n
ignition Fixed The driver's door is open
and you have forgotten
to remove the key from
the ignition. Turn the ignition switch
to the LOCK position
and remove the key. Only if the engine has
been started.
An intermittent audible
signal is heard.
L i g h t s l e f t
on Fixed You have forgotten to
switch off your lights. Switch off your lights by
placing the stalk at OFF. An intermittent audible
signal is heard.
Page 22 of 230
1
INSTRUMENTS and CONTROLS

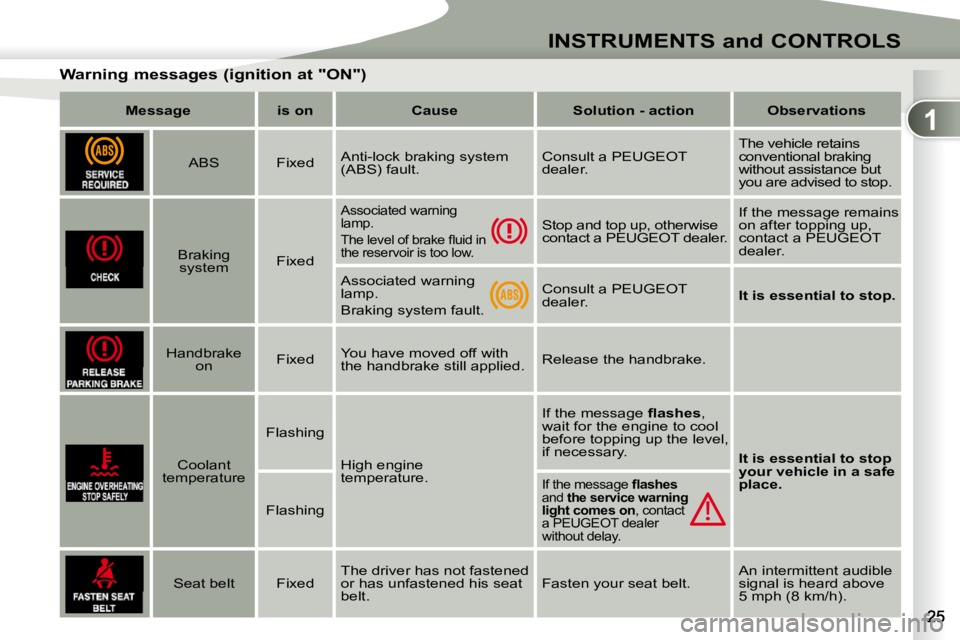

Warning messages (ignition at "ON")
Message is on Cause Solution - action Observations
ABS Fixed Anti-lock braking system
(ABS) fault. Consult a PEUGEOT
dealer. The vehicle retains
conventional braking
without assistance but
you are advised to stop.
Braking
system Fixed
Associated warning
lamp.
T h e l e v e l o f b r a k e fl u i d i n
the reservoir is too low. Stop and top up, otherwise
contact a PEUGEOT dealer. If the message remains
on after topping up,
contact a PEUGEOT
dealer.
Associated warning
lamp.
Braking system fault. Consult a PEUGEOT
dealer.
I t i s e s s e n t i a l t o s t o p .
Handbrake
on Fixed You have moved off with
the handbrake still applied. Release the handbrake.
Coolant
temperature Flashing
High engine
temperature. If the message
fl a s h e s ,
wait for the engine to cool
before topping up the level,
if necessary.
I t i s e s s e n t i a l t o s t o p
y o u r v e h i c l e i n a s a f e
p l a c e .
Flashing
If the message fl a s h e s and t h e s e r v i c e w a r n i n g light comes on , contact
a PEUGEOT dealer
without delay.
Seat belt Fixed The driver has not fastened
or has unfastened his seat
belt. Fasten your seat belt. An intermittent audible
signal is heard above
5 mph (8 km/h).
Page 23 of 230
1
!
INSTRUMENTS and CONTROLS

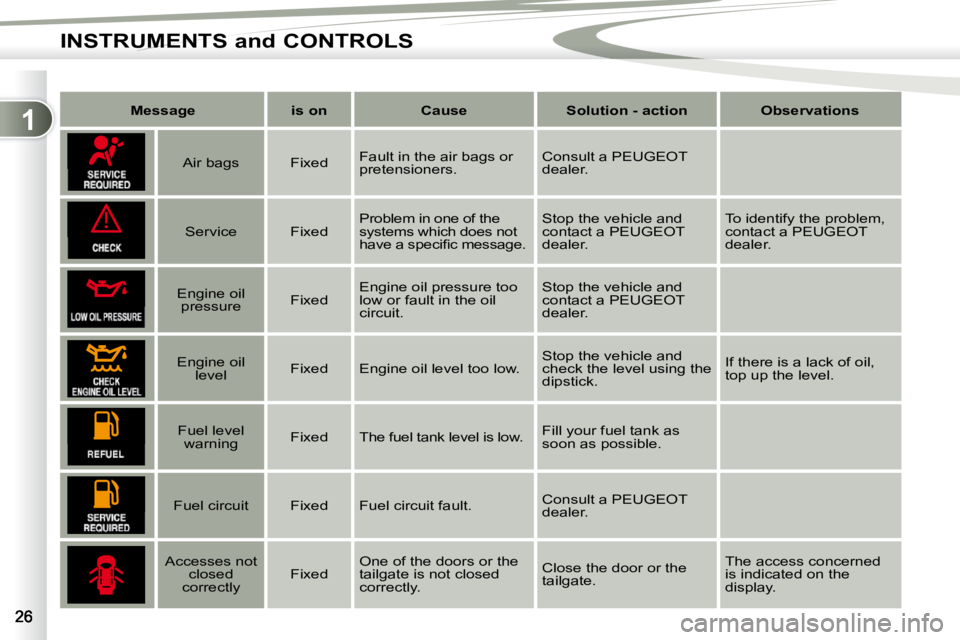

Message is on Cause Solution - action Observations
Air bags Fixed Fault in the air bags or
pretensioners. Consult a PEUGEOT
dealer.
Service Fixed Problem in one of the
systems which does not
h a v e a s p e c i fi c m e s s a g e . Stop the vehicle and
contact a PEUGEOT
dealer. To identify the problem,
contact a PEUGEOT
dealer.
Engine oil
pressure Fixed Engine oil pressure too
low or fault in the oil
circuit. Stop the vehicle and
contact a PEUGEOT
dealer.
Engine oil level Fixed Engine oil level too low. Stop the vehicle and
check the level using the
dipstick. If there is a lack of oil,
top up the level.
Fuel level
warning Fixed The fuel tank level is low. Fill your fuel tank as
soon as possible.
Fuel circuit Fixed Fuel circuit fault. Consult a PEUGEOT
dealer.
Accesses not closed
correctly Fixed One of the doors or the
tailgate is not closed
correctly. Close the door or the
tailgate. The access concerned
is indicated on the
display.
Page 24 of 230
1
INSTRUMENTS and CONTROLS

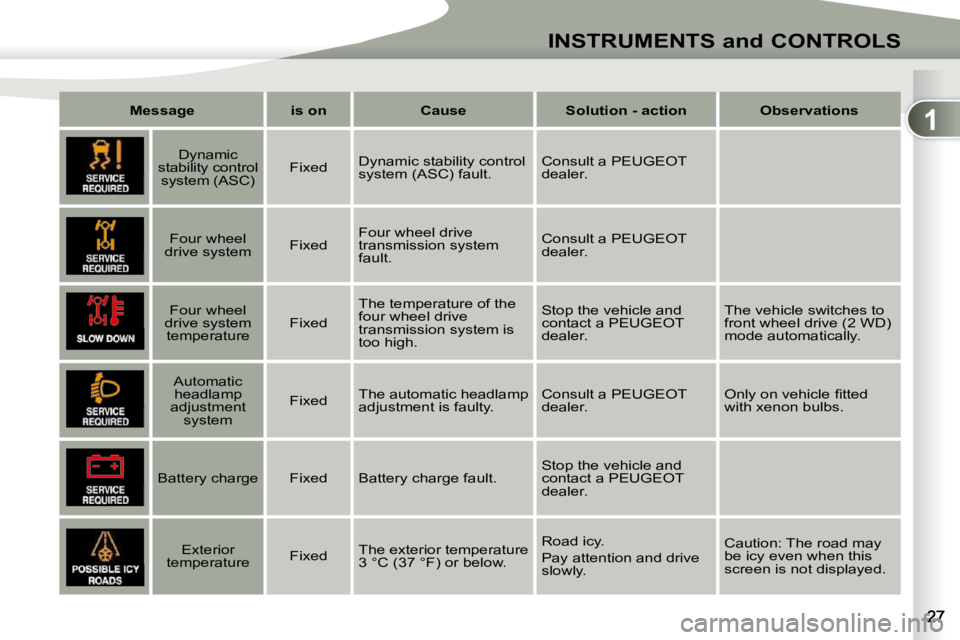

Message is on Cause Solution - action Observations
Dynamic
stability control system (ASC) Fixed
Dynamic stability control
system (ASC) fault. Consult a PEUGEOT
dealer.
Four wheel
drive system Fixed Four wheel drive
transmission system
fault. Consult a PEUGEOT
dealer.
Four wheel
drive system temperature Fixed The temperature of the
four wheel drive
transmission system is
too high. Stop the vehicle and
contact a PEUGEOT
dealer.
The vehicle switches to
front wheel drive (2 WD)
mode automatically.
Automatic
headlamp
adjustment system Fixed
The automatic headlamp
adjustment is faulty. Consult a PEUGEOT
dealer. O n l y o n v e h i c l e fi t t e d
with xenon bulbs.
Battery charge Fixed Battery charge fault. Stop the vehicle and
contact a PEUGEOT
dealer.
Exterior
temperature Fixed The exterior temperature
3 °C (37 °F) or below. Road icy.
Pay attention and drive
slowly. Caution: The road may
be icy even when this
screen is not displayed.
Page 25 of 230
1
INSTRUMENTS and CONTROLS

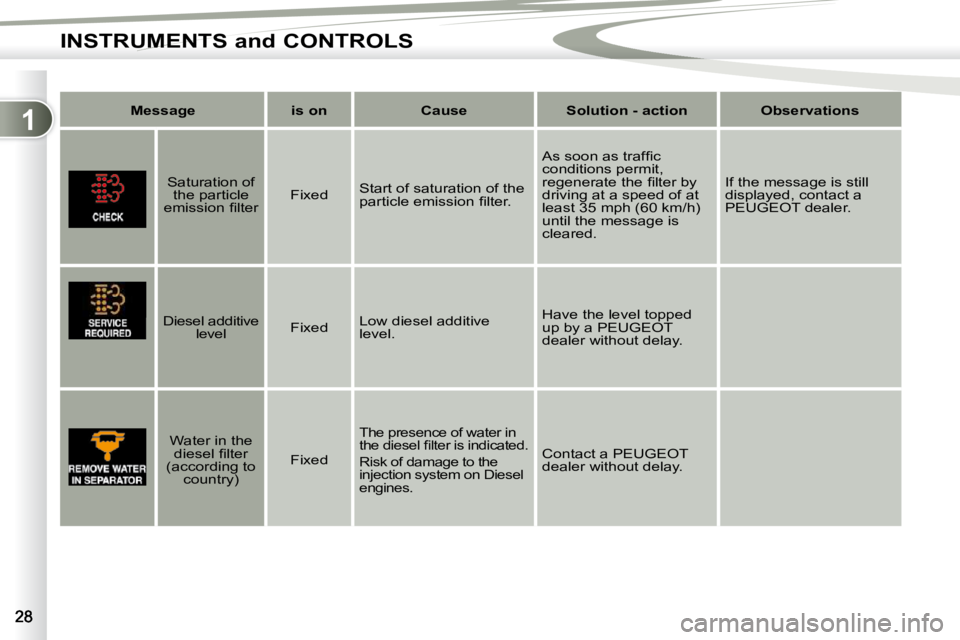

Message is on Cause Solution - action Observations
Saturation of
the particle
e m i s s i o n fi l t e r Fixed
Start of saturation of the
p a r t i c l e e m i s s i o n fi l t e r . A s s o o n a s t r a f fi c
conditions permit,
r e g e n e r a t e t h e fi l t e r b y
driving at a speed of at
least 35 mph (60 km/h)
until the message is
cleared. If the message is still
displayed, contact a
PEUGEOT dealer.
Diesel additive
level Fixed Low diesel additive
level. Have the level topped
up by a PEUGEOT
dealer without delay.
Water in the d i e s e l fi l t e r
(according to country) Fixed The presence of water in
t h e d i e s e l fi l t e r i s i n d i c a t e d .
Risk of damage to the
injection system on Diesel
engines.
Contact a PEUGEOT
dealer without delay.
Page 26 of 230
1
INSTRUMENTS and CONTROLS

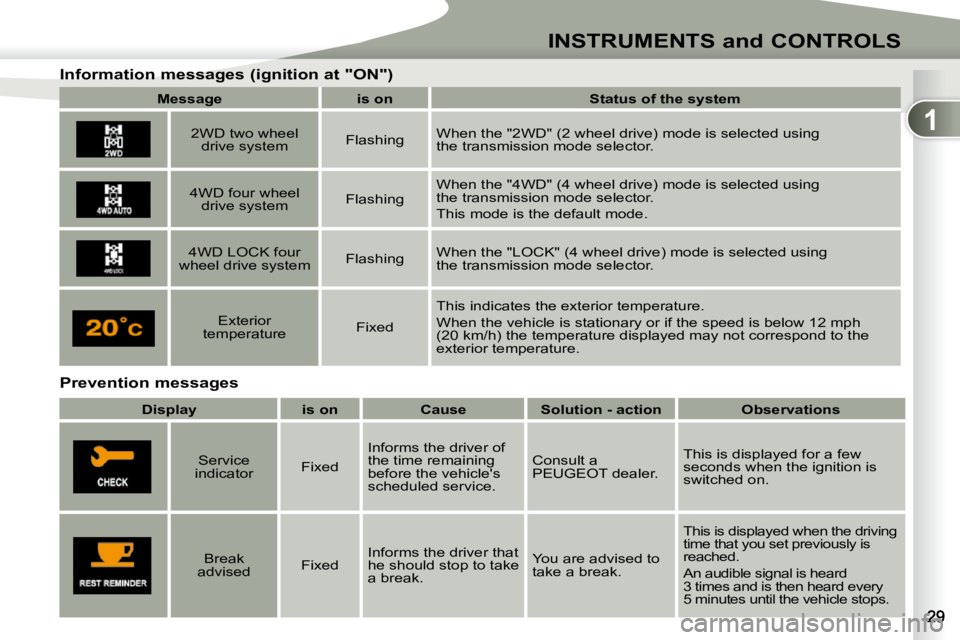

Prevention messages
I n f o r m a t i o n m e s s a g e s ( i g n i t i o n a t " O N " )
Message is on S t a t u s o f t h e s y s t e m
2WD two wheel
drive system Flashing When the "2WD" (2 wheel drive) mode is selected using
the transmission mode selector.
4WD four wheel
drive system Flashing When the "4WD" (4 wheel drive) mode is selected using
the transmission mode selector.
This mode is the default mode.
4WD LOCK four
wheel drive system Flashing When the "LOCK" (4 wheel drive) mode is selected using
the transmission mode selector.
Exterior
temperature Fixed This indicates the exterior temperature.
When the vehicle is stationary or if the speed is below 12 mp
h
(20 km/h) the temperature displayed may not correspond to the
exterior temperature.
D i s p l a y is on Cause Solution - action Observations
Service
indicator Fixed Informs the driver of
the time remaining
before the vehicle's
scheduled service. Consult a
PEUGEOT dealer.
This is displayed for a few
seconds when the ignition is
switched on.
Break
advised Fixed Informs the driver that
he should stop to take
a break. You are advised to
take a break.
This is displayed when the driving
time that you set previously is
reached.
An audible signal is heard
3 times and is then heard every
5 minutes until the vehicle stops.
Page 27 of 230
1
INSTRUMENTS and CONTROLS
The total distance is
displayed in zone 1
of the display and the
trip distance in zone 2
(refer to the "Distance
recorders" section).
Distance recorder (A and B)

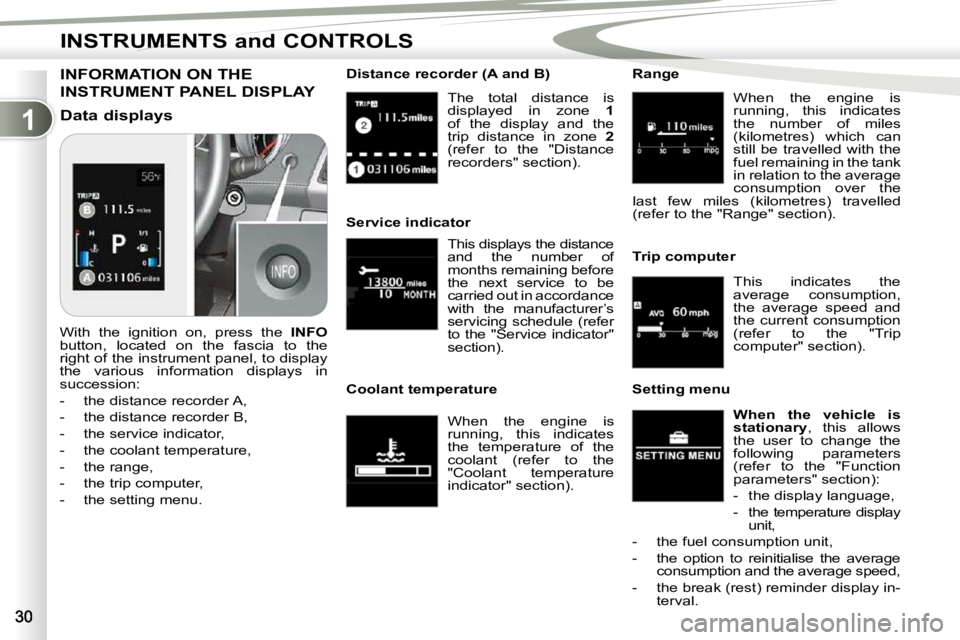

INFORMATION ON THE
INSTRUMENT PANEL DISPLAY
D a t a d i s p l a y s
With the ignition on, press the INFO
button, located on the fascia to the
right of the instrument panel, to display
the various information displays in
succession:
- the distance recorder A,
- the distance recorder B,
- the service indicator,
- the coolant temperature,
- the range,
- the trip computer,
- the setting menu. This displays the distance
and the number of
months remaining before
the next service to be
carried out in accordance
with the manufacturer’s
servicing schedule (refer
to the "Service indicator"
section).
Service indicator
When the engine is
running, this indicates
the temperature of the
coolant (refer to the
"Coolant temperature
indicator" section).
C o o l a n t t e m p e r a t u r e When the engine is
running, this indicates
the number of miles
(kilometres) which can
still be travelled with the
fuel remaining in the tank
in relation to the average
consumption over the
last few miles (kilometres) travelled
(refer to the "Range" section).
Range
This indicates the
average consumption,
the average speed and
the current consumption
(refer to the "Trip
computer" section).
T r i p c o m p u t e r
When the vehicle is
s t a t i o n a r y , this allows
the user to change the
following parameters
(refer to the "Function
parameters" section):
- the display language,
- the temperature display unit,
- the fuel consumption unit,
- the option to reinitialise the average consumption and the average speed,
- the break (rest) reminder display in- terval.
Setting menu
Page 28 of 230
1
INSTRUMENTS and CONTROLS
The total distance is
displayed in zone 1 of
the display and the trip
distance in zone 2 .

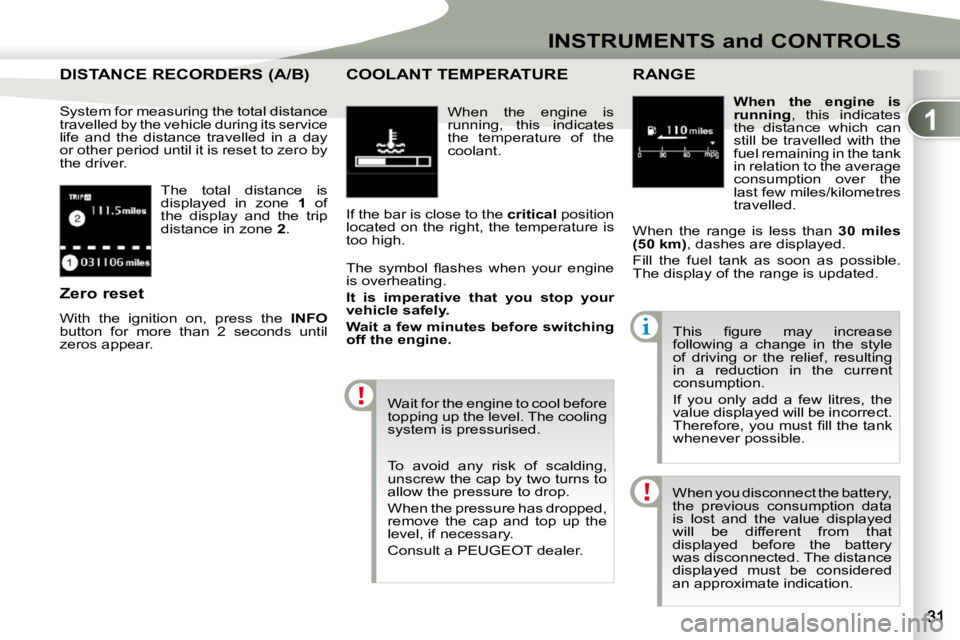

DISTANCE RECORDERS (A/B) DISTANCE RECORDERS (A/B)
System for measuring the total distance
travelled by the vehicle during its service
life and the distance travelled in a day
or other period until it is reset to zero by
the driver.
Zero reset
With the ignition on, press the INFO
button for more than 2 seconds until
zeros appear. When the engine is
running, this indicates
the temperature of the
coolant.
COOLANT TEMPERATURE
If the bar is close to the
critical position
located on the right, the temperature is
too high.
T h e s y m b o l fl a s h e s w h e n y o u r e n g i n e
is overheating.
I t i s i m p e r a t i v e t h a t y o u s t o p y o u r
v e h i c l e s a f e l y .
W a i t a f e w m i n u t e s b e f o r e s w i t c h i n g
o f f t h e e n g i n e .
Wait for the engine to cool before
topping up the level. The cooling
system is pressurised.
When the engine is
running , this indicates
the distance which can
still be travelled with the
fuel remaining in the tank
in relation to the average
consumption over the
last few miles/kilometres
travelled.
RANGE
When the range is less than 30 miles
(50 km) , dashes are displayed.
Fill the fuel tank as soon as possible.
The display of the range is updated.
To avoid any risk of scalding,
unscrew the cap by two turns to
allow the pressure to drop.
When the pressure has dropped,
remove the cap and top up the
level, if necessary.
Consult a PEUGEOT dealer. T h i s fi g u r e m a y i n c r e a s e
following a change in the style
of driving or the relief, resulting
in a reduction in the current
consumption.
If you only add a few litres, the
value displayed will be incorrect.
T h e r e f o r e , y o u m u s t fi l l t h e t a n k
whenever possible.
When you disconnect the battery,
the previous consumption data
is lost and the value displayed
will be different from that
displayed before the battery
was disconnected. The distance
displayed must be considered
an approximate indication.
Page 29 of 230
1
INSTRUMENTS and CONTROLS
SERVICE INDICATOR Resetting the service indicator
to zero
Your PEUGEOT dealer carries out this
operation after each service.
If you have carried out your vehicle's
service yourself, the zero reset
procedure is the following:
switch off the ignition.
press the INFO button several times
in succession until the service indi-
cator is displayed.
press and hold the INFO button for
a few seconds until the s p a n n e r
fl a s h e s .
press the INFO button while the
s p a n n e r i s fl a s h i n g t o c h a n g e t h e
display "---" to "CLEAR" then the
time remaining before the next ser-
vice is due is displayed.
Service overdue
O p e r a t i o n
When the ignition is switched on, you
must press the INFO button several
times in succession until the service
indicator is displayed. The distance
recorder display line indicates the
number of miles (kilometres) remaining
and the time elapsed line indicates the
number of months remaining before the
next service is due.
After a certain distance and a
certain time, the displaying of
"---" is reinitialised and the display
indicates the time remaining
before the next service is due.
System which informs the driver when
the next service is due in accordance
with the manufacturer's servicing
schedule.
The point at which the next service is
due is calculated from the last service
indicator zero reset.
It is determined by two parameters:
- the distance travelled (in miles (km),
- the time elapsed since the last ser- vice (in months).
The distance remaining to be travelled
may be weighted by the time factor,
depending on the user's driving habits.
E x a m p l e : the display indicates that
7 300 miles (kilometres) remain before
the next service is due.
The symbol "--" remains
d i s p l a y e d u n t i l t h e fi r s t s e r v i c e o f
a new vehicle has been carried
out.
E x a m p l e : the display indicates that the
service is overdue. This service must
be carried out by a PEUGEOT dealer.
Each time the ignition is switched on,
the display
"SCHEDULED SERVICE"
is displayed for a few seconds to
indicate that the service must be carried
out without delay.
Page 30 of 230
1
INSTRUMENTS and CONTROLS
The total distance is
displayed in zone 1 of
the display and the trip
distance in zone 2 .
DISTANCE RECORDERS (A/B) DISTANCE RECORDERS (A/B)
System for measuring the total distance
travelled by the vehicle during its service
life and the distance travelled in a day
or other period until it is reset to zero by
the driver.
Zero reset
With the ignition on, press the INFO
button for more than 2 seconds until
zeros appear. When the engine is
running, this indicates
the temperature of the
coolant.
COOLANT TEMPERATURE
If the bar is close to the
critical position
located on the right, the temperature is
too high.
T h e s y m b o l fl a s h e s w h e n y o u r e n g i n e
is overheating.
I t i s i m p e r a t i v e t h a t y o u s t o p y o u r
v e h i c l e s a f e l y .
W a i t a f e w m i n u t e s b e f o r e s w i t c h i n g
o f f t h e e n g i n e .
Wait for the engine to cool before
topping up the level. The cooling
system is pressurised.
When the engine is
running , this indicates
the distance which can
still be travelled with the
fuel remaining in the tank
in relation to the average
consumption over the
last few miles/kilometres
travelled.
RANGE
When the range is less than 30 miles
(50 km) , dashes are displayed.
Fill the fuel tank as soon as possible.
The display of the range is updated.
To avoid any risk of scalding,
unscrew the cap by two turns to
allow the pressure to drop.
When the pressure has dropped,
remove the cap and top up the
level, if necessary.
Consult a PEUGEOT dealer. T h i s fi g u r e m a y i n c r e a s e
following a change in the style
of driving or the relief, resulting
in a reduction in the current
consumption.
If you only add a few litres, the
value displayed will be incorrect.
T h e r e f o r e , y o u m u s t fi l l t h e t a n k
whenever possible.
When you disconnect the battery,
the previous consumption data
is lost and the value displayed
will be different from that
displayed before the battery
was disconnected. The distance
displayed must be considered
an approximate indication.
