PEUGEOT 4007 2011.5 Owner's Guide
Manufacturer: PEUGEOT, Model Year: 2011.5, Model line: 4007, Model: PEUGEOT 4007 2011.5Pages: 236, PDF Size: 17.56 MB

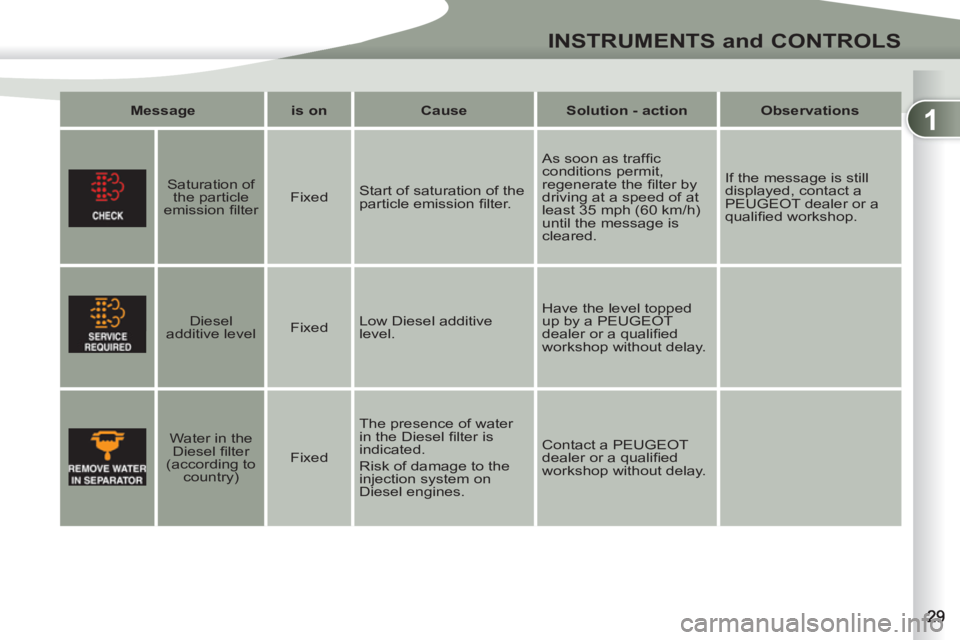

Page 31 of 236
1
INSTRUMENTS and CONTROLS
Message
is on
Cause
Solution - action
Observations
Saturation of
the particle
emission fi lter
Fixed Start of saturation of the
particle emission fi lter. As soon as traffi c
conditions permit,
regenerate the fi lter by
driving at a speed of at
least 35 mph (60 km/h)
until the message is
cleared. If the message is still
displayed, contact a
PEUGEOT dealer or a
qualifi ed workshop.
Diesel
additive level
Fixed Low Diesel additive
level. Have the level topped
up by a PEUGEOT
dealer or a qualifi ed
workshop without delay.
Water in the
Diesel fi lter
(according to
country)
Fixed The presence of water
in the Diesel fi lter is
indicated.
Risk of damage to the
injection system on
Diesel engines. Contact a PEUGEOT
dealer or a qualifi ed
workshop without delay.

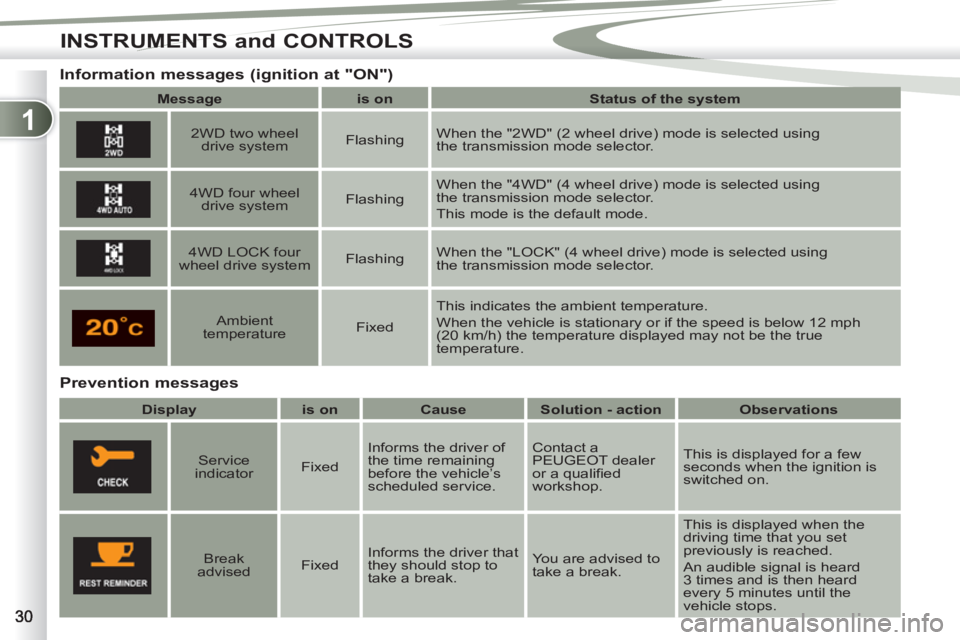

Page 32 of 236
1
INSTRUMENTS and CONTROLS
Prevention messages
Information messages (ignition at "ON")
Message
is on
Status of the system
2WD two wheel
drive system
Flashing When the "2WD" (2 wheel drive) mode is selected using
the transmission mode selector.
4WD four wheel
drive system
Flashing When the "4WD" (4 wheel drive) mode is selected using
the transmission mode selector.
This mode is the default mode.
4WD LOCK four
wheel drive system
Flashing When the "LOCK" (4 wheel drive) mode is selected using
the transmission mode selector.
Ambient
temperature
Fixed This indicates the ambient temperature.
When the vehicle is stationary or if the speed is below 12 mph
(20 km/h) the temperature displayed may not be the true
temperature.
Display
is on
Cause
Solution - action
Observations
Service
indicator
Fixed Informs the driver of
the time remaining
before the vehicle’s
scheduled service. Contact a
PEUGEOT dealer
or a qualifi ed
workshop. This is displayed for a few
seconds when the ignition is
switched on.
Break
advised
Fixed Informs the driver that
they should stop to
take a break. You are advised to
take a break. This is displayed when the
driving time that you set
previously is reached.
An audible signal is heard
3 times and is then heard
every 5 minutes until the
vehicle stops.

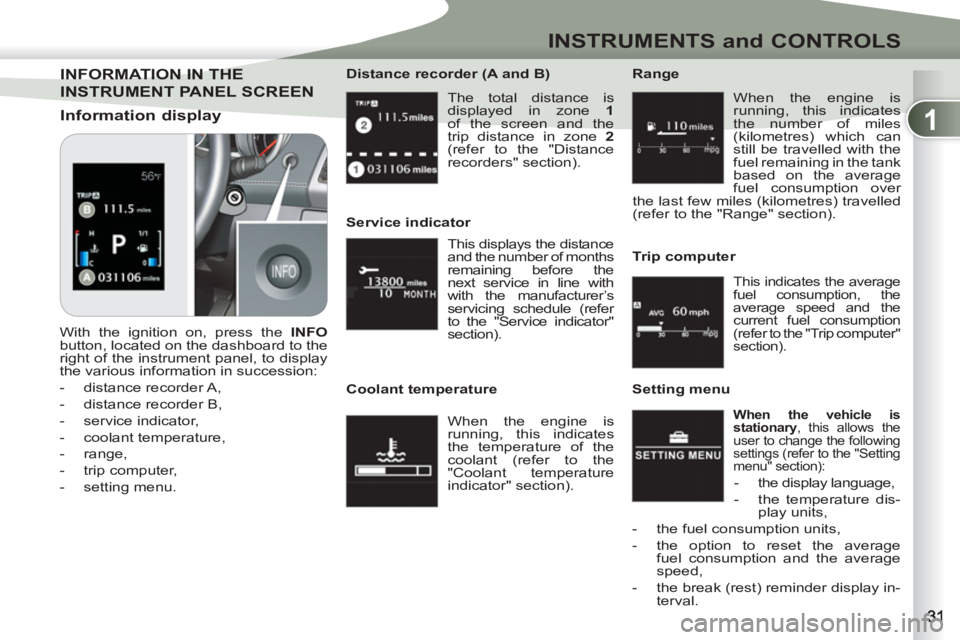

Page 33 of 236
1
INSTRUMENTS and CONTROLS
The total distance is
displayed in zone 1
of the screen and the
trip distance in zone 2
(refer to the "Distance
recorders" section).
Distance recorder (A and B)
INFORMATION IN THINFORMATION IN THE
INSTRUMENT PANEL SCREEN
Information display
With the ignition on, press the INFO
button, located on the dashboard to the
right of the instrument panel, to display
the various information in succession:
- distance recorder A,
- distance recorder B,
- service indicator,
- coolant temperature,
- range,
- trip computer,
- setting menu. This displays the distance
and the number of months
remaining before the
next service in line with
with the manufacturer’s
servicing schedule (refer
to the "Service indicator"
section).
Service indicator
When the engine is
running, this indicates
the temperature of the
coolant (refer to the
"Coolant temperature
indicator" section).
Coolant temperature When the engine is
running, this indicates
the number of miles
(kilometres) which can
still be travelled with the
fuel remaining in the tank
based on the average
fuel consumption over
the last few miles (kilometres) travelled
(refer to the "Range" section).
Range
This indicates the average
fuel consumption, the
average speed and the
current fuel consumption
(refer to the "Trip computer"
section).
Trip computer
When the vehicle is
stationary
, this allows the
user to change the following
settings (refer to the "Setting
menu" section):
- the display language,
- the temperature dis-
play units,
- the fuel consumption units,
- the option to reset the average
fuel consumption and the average
speed,
- the break (rest) reminder display in-
terval.
Setting menu

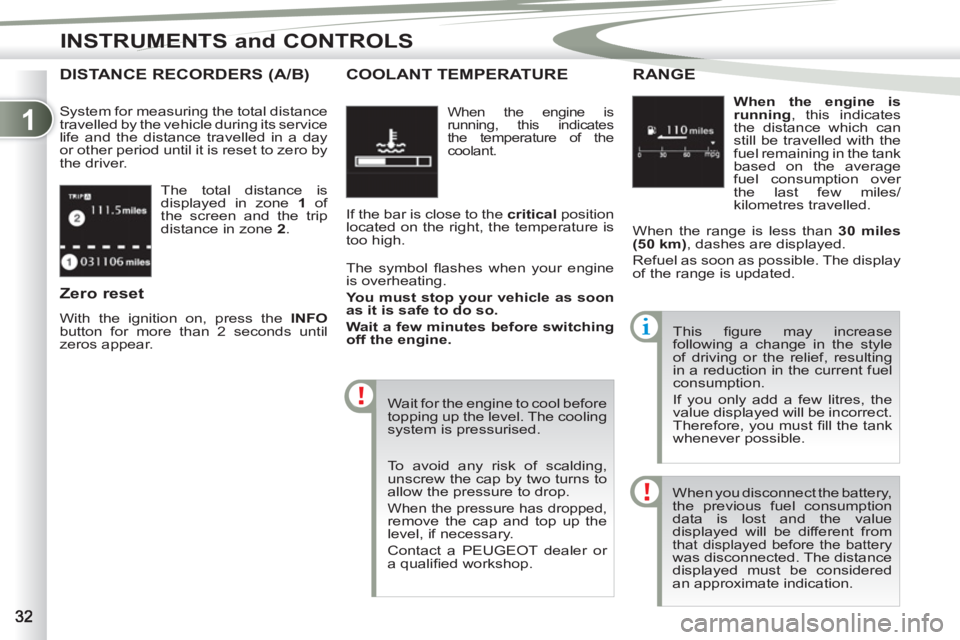

Page 34 of 236
1
INSTRUMENTS and CONTROLS
The total distance is
displayed in zone 1
of
the screen and the trip
distance in zone 2
.
DISTANCE RECORDERS (A/B)
System for measuring the total distance
travelled by the vehicle during its service
life and the distance travelled in a day
or other period until it is reset to zero by
the driver.
Zero reset
With the ignition on, press the INFO
button for more than 2 seconds until
zeros appear.
When the engine is
running, this indicates
the temperature of the
coolant.
COOLANT TEMPERATURE
If the bar is close to the critical
position
located on the right, the temperature is
too high.
The symbol fl ashes when your engine
is overheating.
You must stop your vehicle as soon
as it is safe to do so.
Wait a few minutes before switching
off the engine.
Wait for the engine to cool before
topping up the level. The cooling
system is pressurised.
When the engine is
running
, this indicates
the distance which can
still be travelled with the
fuel remaining in the tank
based on the average
fuel consumption over
the last few miles/
kilometres travelled.
RANGEGE
When the range is less than 30 miles
(50 km)
, dashes are displayed.
Refuel as soon as possible. The display
of the range is updated.
To avoid any risk of scalding,
unscrew the cap by two turns to
allow the pressure to drop.
When the pressure has dropped, remove the cap and top up the
level, if necessary.
Contact a PEUGEOT dealer or
a qualifi ed workshop. This fi gure may increase
following a change in the style
of driving or the relief, resulting
in a reduction in the current fuel
consumption.
If you only add a few litres, the
value displayed will be incorrect.
Therefore, you must fi ll the tank
whenever possible.
When you disconnect the battery,
the previous fuel consumption
data is lost and the value
displayed will be different from
that displayed before the battery was disconnected. The distance
displayed must be considered
an approximate indication.

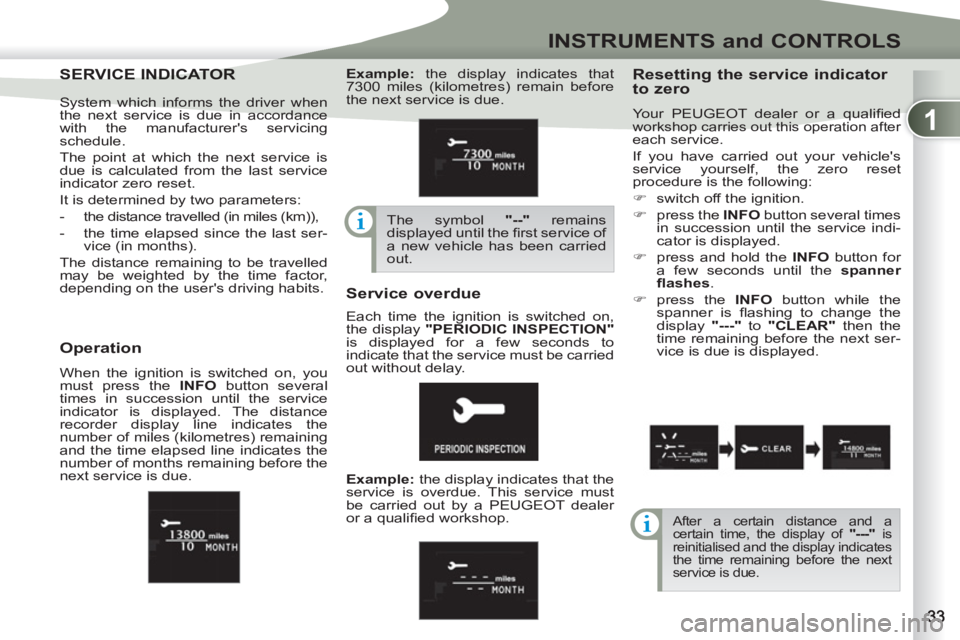

Page 35 of 236
1
INSTRUMENTS and CONTROLS
SERVICE INDICATOSERVICE INDICATOR
Resetting the service indicator
to zero
Your PEUGEOT dealer or a qualifi ed workshop carries out this operation after
each service.
If you have carried out your vehicle's
service yourself, the zero reset
procedure is the following:
)
switch off the ignition.
)
press the INFO
button several times
in succession until the service indi-
cator is displayed.
)
press and hold the INFO
button for
a few seconds until the spanner
fl ashes
.
)
press the INFO
button while the
spanner is fl ashing to change the
display "---"
to "CLEAR"
then the
time remaining before the next ser-
vice is due is displayed.
Service overdue
Operation
When the ignition is switched on, you
must press the INFO
button several
times in succession until the service
indicator is displayed. The distance
recorder display line indicates the
number of miles (kilometres) remaining
and the time elapsed line indicates the
number of months remaining before the
next service is due.
After a certain distance and a
certain time, the display of "---"
is
reinitialised and the display indicates
the time remaining before the next
service is due.
System which informs the driver when
the next service is due in accordance
with the manufacturer's servicing
schedule.
The point at which the next service is
due is calculated from the last service
indicator zero reset.
It is determined by two parameters:
- the distance travelled (in miles (km)),
- the time elapsed since the last ser-
vice (in months).
The distance remaining to be travelled
may be weighted by the time factor,
depending on the user's driving habits.
Example:
the display indicates that
7300 miles (kilometres) remain before
the next service is due.
The symbol "--"
remains
displayed until the fi rst service of
a new vehicle has been carried
out.
Example:
the display indicates that the
service is overdue. This service must
be carried out by a PEUGEOT dealer
or a qualifi ed workshop. Each time the ignition is switched on,
the display "PERIODIC INSPECTION"
is displayed for a few seconds to
indicate that the service must be carried
out without delay.

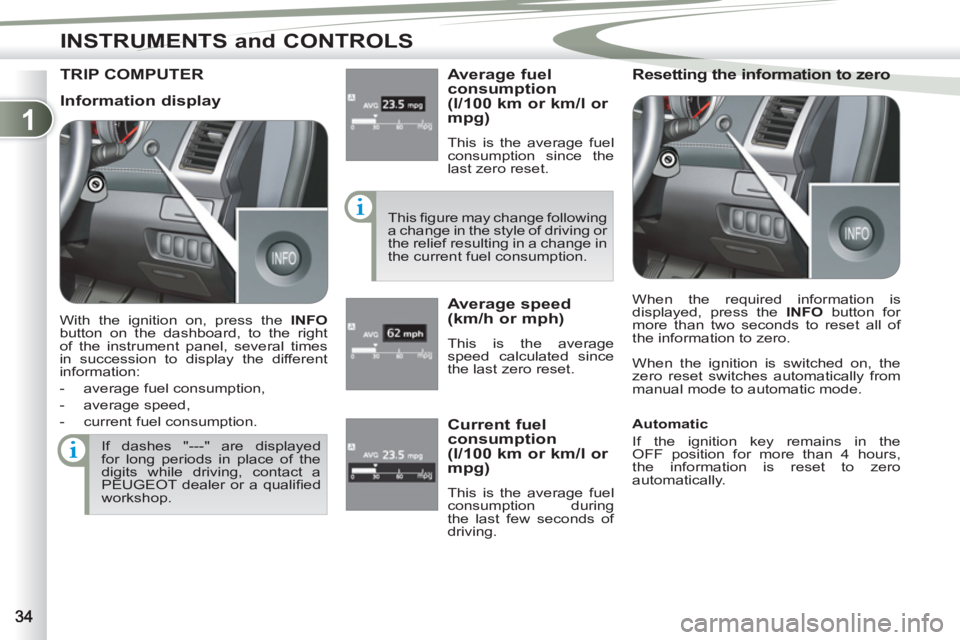

Page 36 of 236
1
INSTRUMENTS and CONTROLS

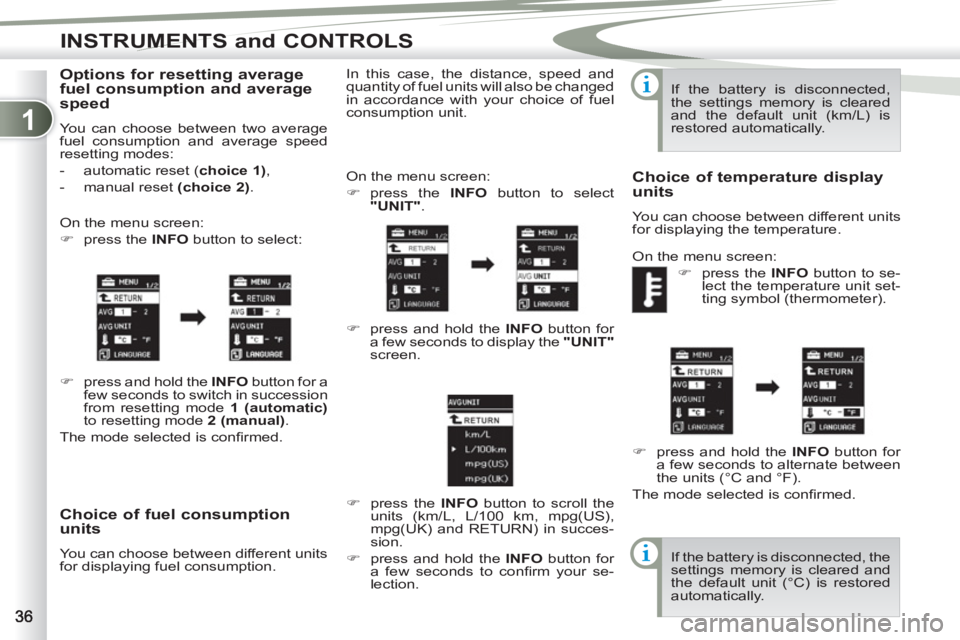

TRIP COMPUTER
Average fuel
consumption
(l/100 km or km/l or
mpg)
This is the average fuel
consumption since the
last zero reset.
This fi gure may change following
a change in the style of driving or
the relief resulting in a change in
the current fuel consumption.
Average speed
(km/h or mph)
This is the average
speed calculated since
the last zero reset.
Resetting the information to zero
When the ignition is switched on, the
zero reset switches automatically from
manual mode to automatic mode.
If dashes "---" are displayed
for long periods in place of the
digits while driving, contact a
PEUGEOT dealer or a qualifi ed
workshop.
Current fuel
consumption
(l/100 km or km/l or
mpg)
This is the average fuel
consumption during
the last few seconds of
driving.
Information display
With the ignition on, press the INFO
button on the dashboard, to the right
of the instrument panel, several times
in succession to display the different
information:
- average fuel consumption,
- average speed,
- current fuel consumption. When the required information is
displayed, press the INFO
button for
more than two seconds to reset all of
the information to zero.
Automatic
If the ignition key remains in the
OFF position for more than 4 hours,
the information is reset to zero
automatically.

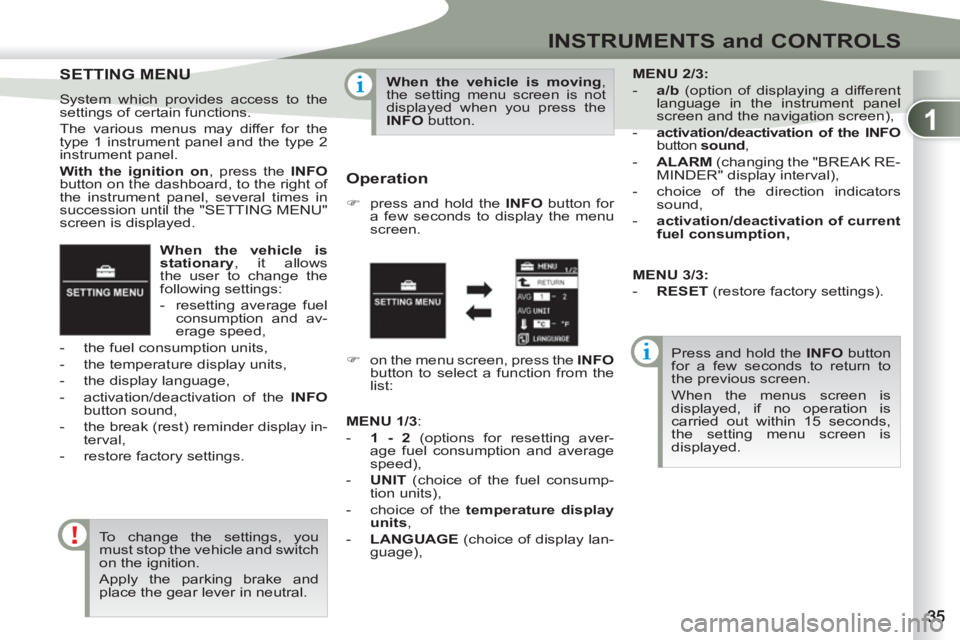

Page 37 of 236
1
INSTRUMENTS and CONTROLS
When the vehicle is
stationary
, it allows
the user to change the
following settings:
- resetting average fuel
consumption and av-
erage speed,
- the fuel consumption units,
- the temperature display units,
- the display language,
- activation/deactivation of the INFO
button sound,
- the break (rest) reminder display in-
terval,
- restore factory settings.

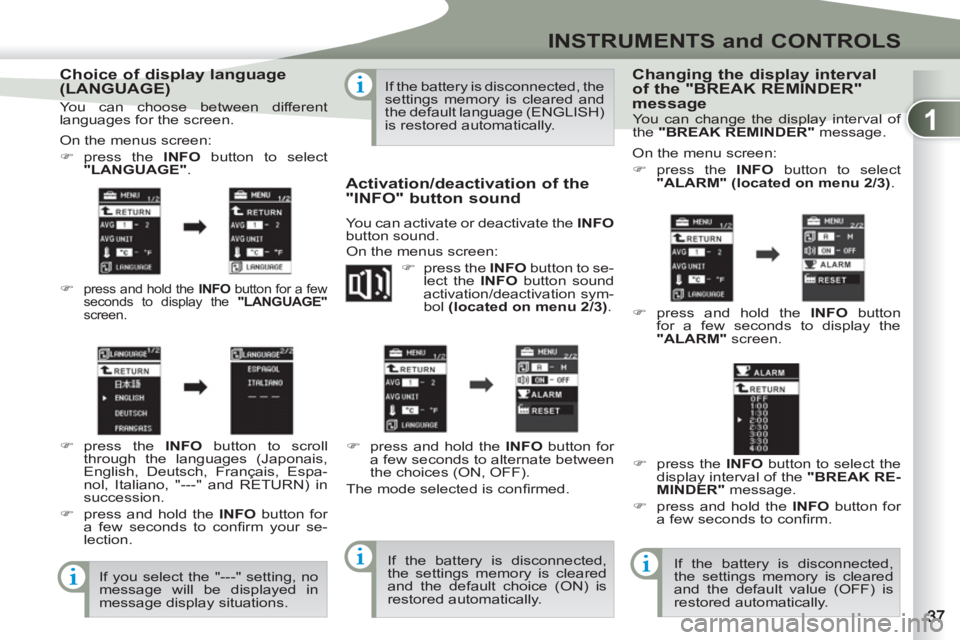

SETTING MENU
SETTING MENU
System which provides access to the
settings of certain functions.
The various menus may differ for the
type 1 instrument panel and the type 2
instrument panel.
With the ignition on
, press the INFO
button on the dashboard, to the right of
the instrument panel, several times in
succession until the "SETTING MENU"
screen is displayed.
To change the settings, you
must stop the vehicle and switch
on the ignition.
Apply the parking brake and
place the gear lever in neutral.
When the vehicle is moving
,
the setting menu screen is not
displayed when you press the
INFO
button.
Operation
)
press and hold the INFO
button for
a few seconds to display the menu
screen.
Press and hold the INFO
button
for a few seconds to return to
the previous screen.
When the menus screen is
displayed, if no operation is
carried out within 15 seconds,
the setting menu screen is
displayed.
)
on the menu screen, press the INFO
button to select a function from the
list:
MENU
2/3:
- a/b
(option of displaying a different
language in the instrument panel
screen and the navigation screen),
- activation/deactivation of the INFO
button sound
,
- ALARM
(changing the "BREAK RE-
MINDER" display interval),
- choice of the direction indicators
sound,
- activation/deactivation of current
fuel consumption,
MENU
1/3
:
- 1 - 2
(options for resetting aver-
age fuel consumption and average
speed),
- UNIT
(choice of the fuel consump-
tion units),
- choice of the temperature display
unit
s
,
- LANGUAGE
(choice of display lan-
guage),
MENU 3/3:
- RESET
(restore factory settings).
Page 38 of 236
1
INSTRUMENTS and CONTROLS
Choice of fuel consumption
units
You can choose between different units
for displaying fuel consumption. On the menu screen:
)
press the INFO
button to select
"UNIT"
.
)
press and hold the INFO
button for
a few seconds to display the "UNIT"
screen.
)
press the INFO
button to scroll the
units (km/L, L/100 km, mpg(US),
mpg(UK) and RETURN) in succes-
sion.
)
press and hold the INFO
button for
a few seconds to confi rm your se-
lection. In this case, the distance, speed and
quantity of fuel units will also be changed
in accordance with your choice of fuel
consumption unit. If the battery is disconnected,
the settings memory is cleared
and the default unit (km/L) is
restored automatically.
Choice of temperature display
units
You can choose between different units
for displaying the temperature.
On the menu screen:
)
press the INFO
button to se-
lect the temperature unit set-
ting symbol (thermometer).
)
press and hold the INFO
button for
a few seconds to alternate between
the units (°C and °F).
The mode selected is confi rmed.
If the battery is disconnected, the
settings memory is cleared and
the default unit (°C) is restored
automatically.
Options for resetting average
fuel consumption and average
speed
You can choose between two average
fuel consumption and average speed
resetting modes:
- automatic reset ( choice 1)
,
- manual reset (choice 2)
.
On the menu screen:
)
press the INFO
button to select:
)
press and hold the INFO
button for a
few seconds to switch in succession
from resetting mode 1
(automatic)
to resetting mode 2 (manual)
.
The mode selected is confi rmed.
Page 39 of 236
1
INSTRUMENTS and CONTROLS
Choice of display language
(LANGUAGE)
On the menus screen:
)
press the INFO
button to select
"LANGUAGE"
.
)
press and hold the INFO
button for a few
seconds to display the "LANGUAGE"
screen.
)
press the INFO
button to scroll
through the languages (Japonais,
English, Deutsch, Français, Espa-
nol, Italiano, "---" and RETURN) in
succession.
)
press and hold the INFO
button for
a few seconds to confi rm your se-
lection.
If you select the "---" setting, no
message will be displayed in
message display situations. If the battery is disconnected, the
settings memory is cleared and
the default language (ENGLISH)
is restored automatically.
Activation/deactivation of the
"INFO" button sound
You can activate or deactivate the INFO
button sound.
On the menus screen:
)
press the INFO
button to se-
lect the INFO
button sound
activation/deactivation sym-
bol (located on menu 2/3)
.
)
press and hold the INFO
button for
a few seconds to alternate between
the choices (ON, OFF).
The mode selected is confi rmed.
If the battery is disconnected,
the settings memory is cleared
and the default choice (ON) is
restored automatically.
Changing the display interval
of the "BREAK REMINDER"
message
On the menu screen:
)
press the INFO
button to select
"ALARM" (located on menu 2/3)
.
)
press and hold the INFO
button
for a few seconds to display the
"ALARM"
screen.
)
press the INFO
button to select the
display interval of the "BREAK RE-
MINDER"
message.
)
press and hold the INFO
button for
a few seconds to confi rm.
If the battery is disconnected,
the settings memory is cleared
and the default value (OFF) is
restored automatically.
You can choose between different
languages for the screen. You can change the display interval of
the "BREAK REMINDER"
message.
Page 40 of 236
1
INSTRUMENTS and CONTROLS

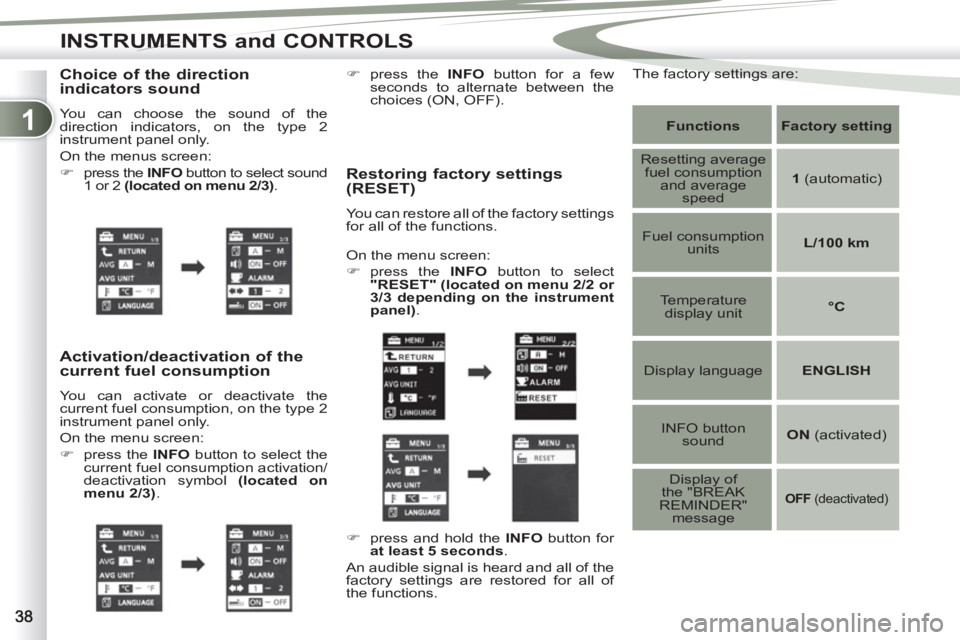

Choice of the direction
indicators sound
You can choose the sound of the
direction indicators, on the type 2
instrument panel only.
On the menus screen:
)
press the INFO
button to select sound
1 or 2 (located on menu 2/3)
.
Activation/deactivation of the
current fuel consumption
You can activate or deactivate the
current fuel consumption, on the type 2
instrument panel only.
On the menu screen:
)
press the INFO
button to select the
current fuel consumption activation/
deactivation symbol (located on
menu 2/3)
.
Restoring factory settings
(RESET)
You can restore all of the factory settings
for all of the functions.
Functions
Factory setting
Resetting average
fuel consumption
and average
speed
1
(automatic)
Fuel consumption
units
L/100 km
Temperature
display unit
°C
Display language
ENGLISH
INFO button
sound
ON
(activated)
Display of
the "BREAK
REMINDER"
message
OFF
(deactivated)
On the menu screen:
)
press the INFO
button to select
"RESET"
(located on menu 2/2 or
3/3 depending on the instrument
panel)
.
)
press and hold the INFO
button for
at least 5 seconds
.
An audible signal is heard and all of the
factory settings are restored for all of
the functions.
)
press the INFO
button for a few
seconds to alternate between the
choices (ON, OFF).
The factory settings are:
