PEUGEOT 4007 2011.5 Service Manual
Manufacturer: PEUGEOT, Model Year: 2011.5, Model line: 4007, Model: PEUGEOT 4007 2011.5Pages: 236, PDF Size: 17.56 MB
Page 41 of 236
1

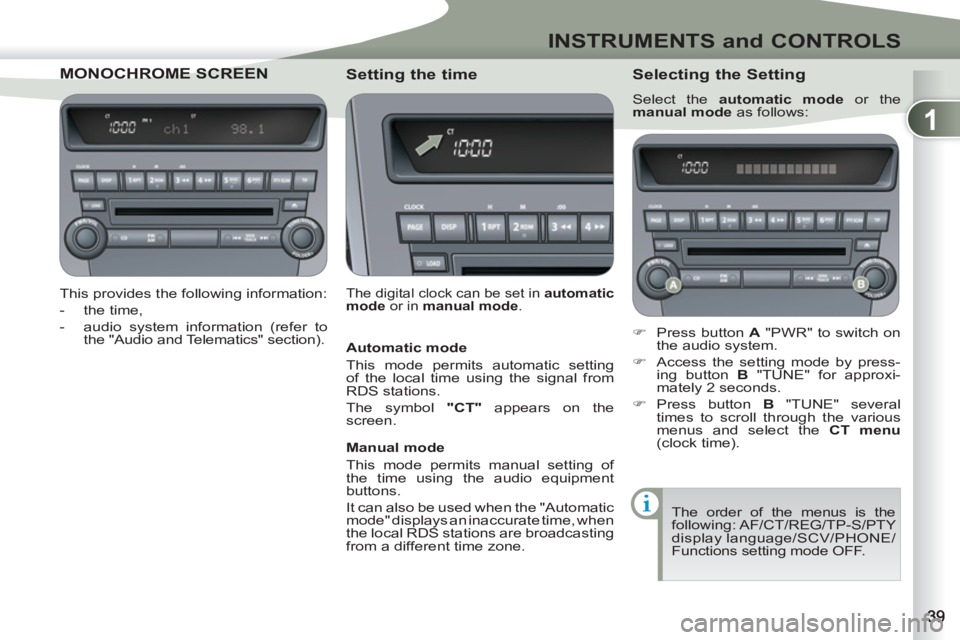

INSTRUMENTS and CONTROLS
MONOCHROME SCRCHROME SCREEN
This provides the following information:
- the time,
- audio system information (refer to
the "Audio and Telematics" section).
Setting the time
The digital clock can be set in automatic
mode
or in manual mode
.
Selecting the Setting
Select the automatic mode
or the
manual mode
as follows:
)
Press button A
"PWR" to switch on
the audio system.
)
Access the setting mode by press-
ing button B
"TUNE" for approxi-
mately 2 seconds.
)
Press button B
"TUNE" several
times to scroll through the various
menus and select the CT menu
(clock time).
The order of the menus is the
following: AF/CT/REG/TP-S/PTY
display language/SCV/PHONE/
Functions setting mode OFF.
Automatic mode
This mode permits automatic setting
of the local time using the signal from
RDS stations.
The symbol "CT"
appears on the
screen.
Manual mode
This mode permits manual setting of
the time using the audio equipment
buttons.
It can also be used when the "Automatic
mode" displays an inaccurate time, when
the local RDS stations are broadcasting
from a different time zone.
Page 42 of 236
1
INSTRUMENTS and CONTROLS

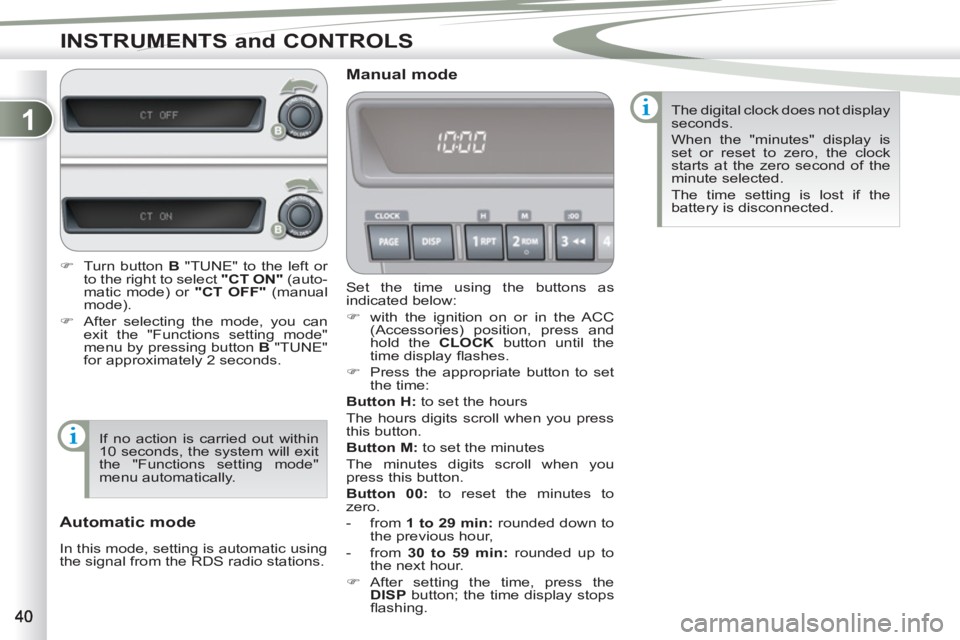

Set the time using the buttons as
indicated below:
)
with the ignition on or in the ACC
(Accessories) position, press and
hold the CLOCK
button until the
time display fl ashes.
)
Press the appropriate button to set
the time:
Button
H:
to set the hours
The hours digits scroll when you press
this button.
Button M:
to set the minutes
The minutes digits scroll when you
press this button.
Button 00:
to reset the minutes to
zero.
- from 1 to 29 min
:
rounded down to
the previous hour,
- from 30 to 59 min:
rounded up to
the next hour.
)
After setting the time, press the
DISP
button; the time display stops
fl ashing.
Manual mode
Automatic mode
In this mode, setting is automatic using
the signal from the RDS radio stations. The digital clock does not display
seconds.
When the "minutes" display is
set or reset to zero, the clock
starts at the zero second of the
minute selected.
The time setting is lost if the
battery is disconnected.
)
Turn button B
"TUNE" to the left or
to the right to select "CT ON"
(auto-
matic mode) or "CT OFF"
(manual
mode).
)
After selecting the mode, you can
exit the "Functions setting mode"
menu by pressing button B
"TUNE"
for approximately 2 seconds.
If no action is carried out within
10 seconds, the system will exit
the "Functions setting mode"
menu automatically.
Page 43 of 236
1
INSTRUMENTS and CONTROLS

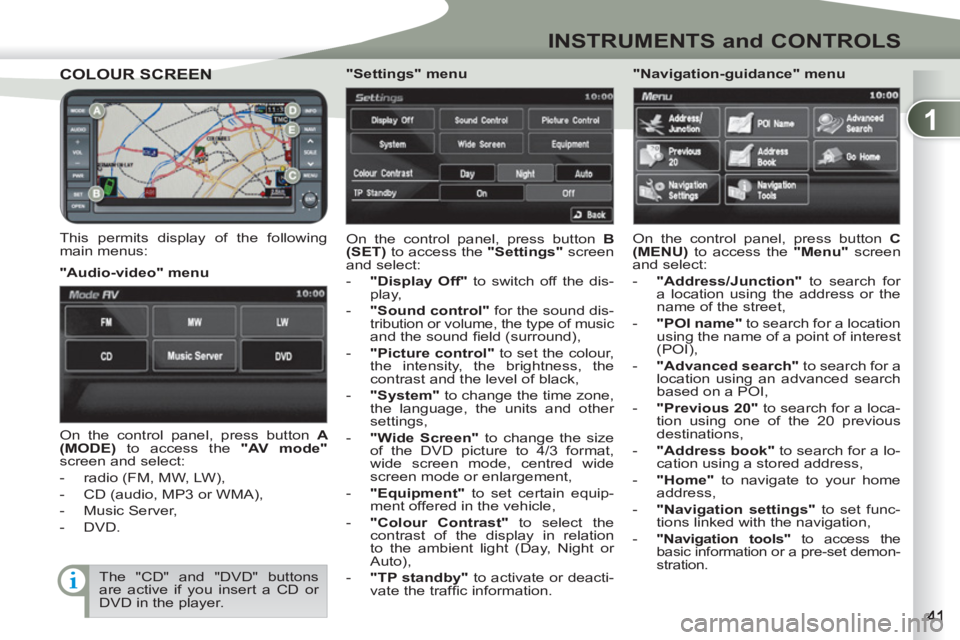

COLOUR SCREENCOLOUR SCREEN
This permits display of the following
main menus: On the control panel, press button B
(SET)
to access the "Settings"
screen
and select:
- "Display Off"
to switch off the dis-
play,
- "Sound control"
for the sound dis-
tribution or volume, the type of music and the sound fi eld (surround),
- "Picture control"
to set the colour,
the intensity, the brightness, the
contrast and the level of black,
- "System"
to change the time zone,
the language, the units and other
settings,
- "Wide Screen"
to change the size
of the DVD picture to 4/3 format,
wide screen mode, centred wide
screen mode or enlargement,
- "Equipment"
to set certain equip-
ment offered in the vehicle,
- "Colour Contrast"
to select the
contrast of the display in relation
to the ambient light (Day, Night or
Auto),
- "TP standby"
to activate or deacti-
vate the traffi c information.
"Audio-video" menu
"Navigation-guidance" menu
On the control panel, press button A
(MODE)
to access the "AV mode"
screen and select:
- radio (FM, MW, LW),
- CD (audio, MP3 or WMA),
- Music Server,
- DVD.
"Settings" menu
On the control panel, press button C
(MENU)
to access the "Menu"
screen
and select:
- "Address/Junction"
to search for
a location using the address or the
name of the street,
- "POI name"
to search for a location
using the name of a point of interest
(POI),
- "Advanced search"
to search for a
location using an advanced search
based on a POI,
- "Previous 20"
to search for a loca-
tion using one of the 20 previous
destinations,
- "Address book"
to search for a lo-
cation using a stored address,
- "Home"
to navigate to your home
address,
- "Navigation settings"
to set func-
tions linked with the navigation,
-
"Navigation tools"
to access the
basic information or a pre-set demon-
stration.
The "CD" and "DVD" buttons
are active if you insert a CD or
DVD in the player.
Page 44 of 236
1
INSTRUMENTS and CONTROLS

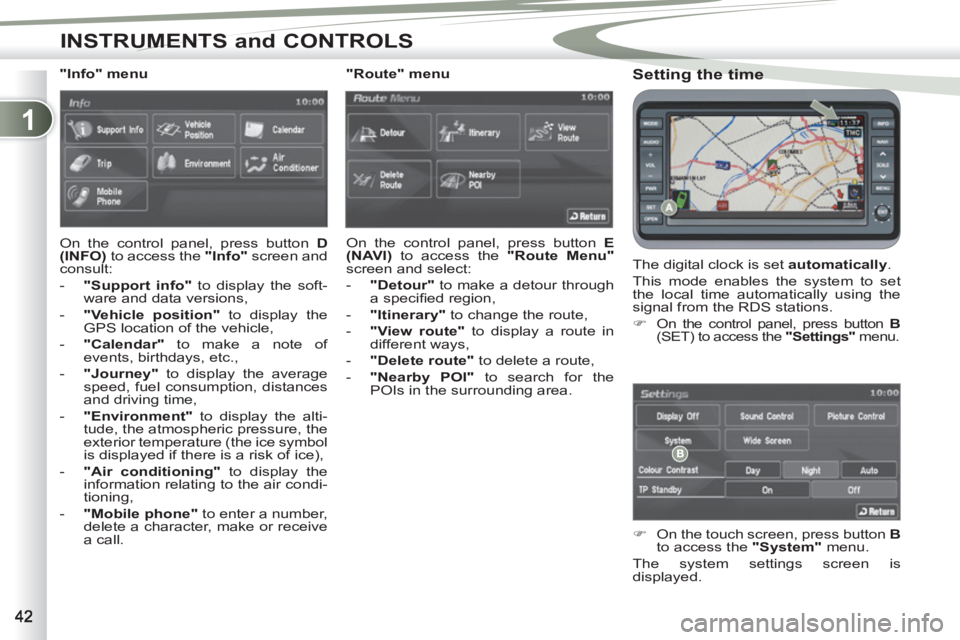

Setting the time
The digital clock is set automatically
.
This mode enables the system to set
the local time automatically using the
signal from the RDS stations.
)
On the control panel, press button B
(SET) to access the "Settings"
menu.
)
On the touch screen, press button B
to access the "System"
menu.
The system settings screen is
displayed.
"Info" menu
On the control panel, press button D
(INFO)
to access the "Info"
screen and
consult:
- "Support info"
to display the soft-
ware and data versions,
- "Vehicle position"
to display the
GPS location of the vehicle,
- "Calendar"
to make a note of
events, birthdays, etc.,
- "Journey"
to display the average
speed, fuel consumption, distances
and driving time,
- "Environment"
to display the alti-
tude, the atmospheric pressure, the
exterior temperature (the ice symbol
is displayed if there is a risk of ice),
- "Air conditioning"
to display the
information relating to the air condi-
tioning,
- "Mobile phone"
to enter a number,
delete a character, make or receive
a call.
"Route" menu
On the control panel, press button E
(NAVI)
to access the "Route Menu"
screen and select:
- "Detour"
to make a detour through
a specifi ed region,
- "Itinerary"
to change the route,
- "View route"
to display a route in
different ways,
- "Delete route"
to delete a route,
-
"Nearby POI"
to search for the
POIs in the surrounding area.
Page 45 of 236
1
INSTRUMENTS and CONTROLS

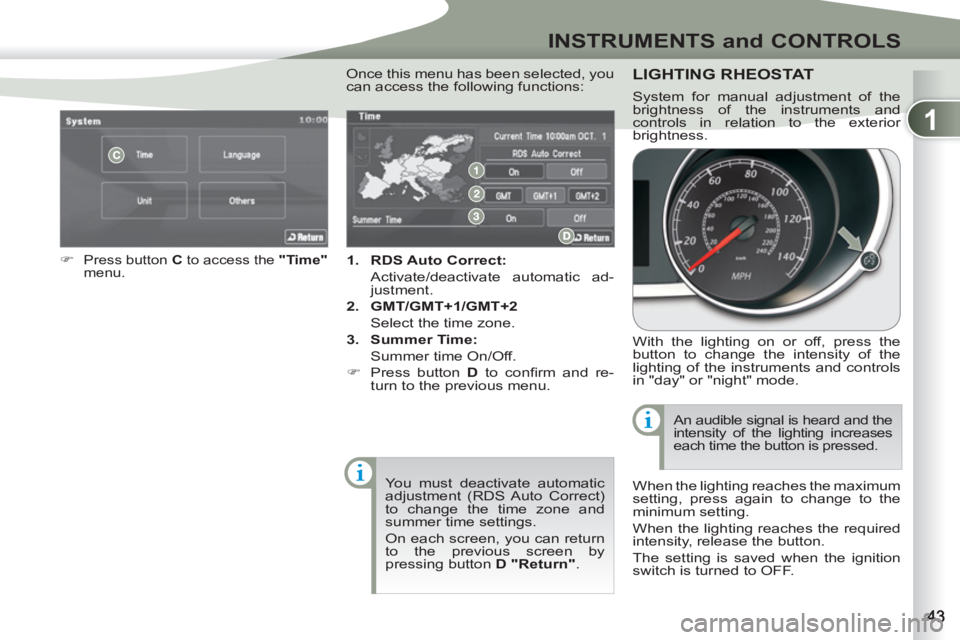

1.
RDS Auto Correct:
Activate/deactivate automatic ad-
justment.
2.
GMT/GMT+1/GMT+2
Select the time zone.
3.
Summer Time:
Summer time On/Off.
)
Press button D
to confi rm and re-
turn to the previous menu.
)
Press button C
to access the "Time"
menu .
You must deactivate automatic
adjustment (RDS Auto Correct)
to change the time zone and
summer time settings.
On each screen, you can return
to the previous screen by
pressing button D "Return"
.
Once this menu has been selected, you
can access the following functions: LIGHTING RHEOSTAT
With the lighting on or off, press the
button to change the intensity of the
lighting of the instruments and controls
in "day" or "night" mode.
When the lighting reaches the maximum
setting, press again to change to the
minimum setting.
When the lighting reaches the required
intensity, release the button.
The setting is saved when the ignition
switch is turned to OFF. An audible signal is heard and the
intensity of the lighting increases
each time the button is pressed.
System for manual adjustment of the
brightness of the instruments and
controls in relation to the exterior
brightness.
Page 46 of 236
2
COMFORT

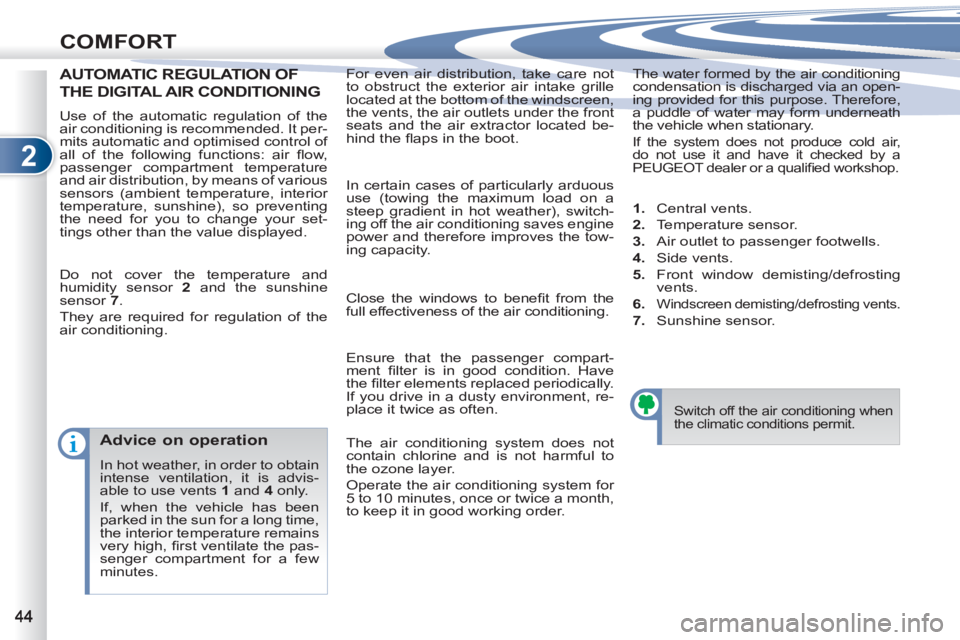

For even air distribution, take care not
to obstruct the exterior air intake grille
located at the bottom of the windscreen,
the vents, the air outlets under the front
seats and the air extractor located be-
hind the fl aps in the boot. The water formed by the air conditioning
condensation is discharged via an open-
ing provided for this purpose. Therefore,
a puddle of water may form underneath
the vehicle when stationary.
If the system does not produce cold air,
do not use it and have it checked by a
PEUGEOT dealer or a qualifi ed workshop.
AUTOMATIC REGULATION OF ON OF
THE DIGITAL AIR CONDITIONING
Do not cover the temperature and
humidity sensor 2
and the sunshine
sensor 7
.
They are required for regulation of the
air conditioning.
Advice on operation
In hot weather, in order to obtain
intense ventilation, it is advis-
able to use vents 1
and 4
only.
If, when the vehicle has been
parked in the sun for a long time,
the interior temperature remains
very high, fi rst ventilate the pas-
senger compartment for a few
minutes.
Switch off the air conditioning when
the climatic conditions permit.
Use of the automatic regulation of the
air conditioning is recommended. It per-
mits automatic and optimised control of
all of the following functions: air fl ow,
passenger compartment temperature
and air distribution, by means of various
sensors (ambient temperature, interior
temperature, sunshine), so preventing
the need for you to change your set-
tings other than the value displayed. In certain cases of particularly arduous
use (towing the maximum load on a
steep gradient in hot weather), switch-
ing off the air conditioning saves engine
power and therefore improves the tow-
ing capacity.
Close the windows to benefi t from the
full effectiveness of the air conditioning.
Ensure that the passenger compart-
ment fi lter is in good condition. Have
the fi lter elements replaced periodically.
If you drive in a dusty environment, re-
place it twice as often.
The air conditioning system does not
contain chlorine and is not harmful to
the ozone layer.
Operate the air conditioning system for
5 to 10 minutes, once or twice a month,
to keep it in good working order.
1.
Central vents.
2.
Temperature sensor.
3.
Air outlet to passenger footwells.
4.
Side vents.
5.
Front window demisting/defrosting
vents.
6.
Windscreen demisting/defrosting vents.
7.
Sunshine sensor.
Page 47 of 236
2
COMFORT

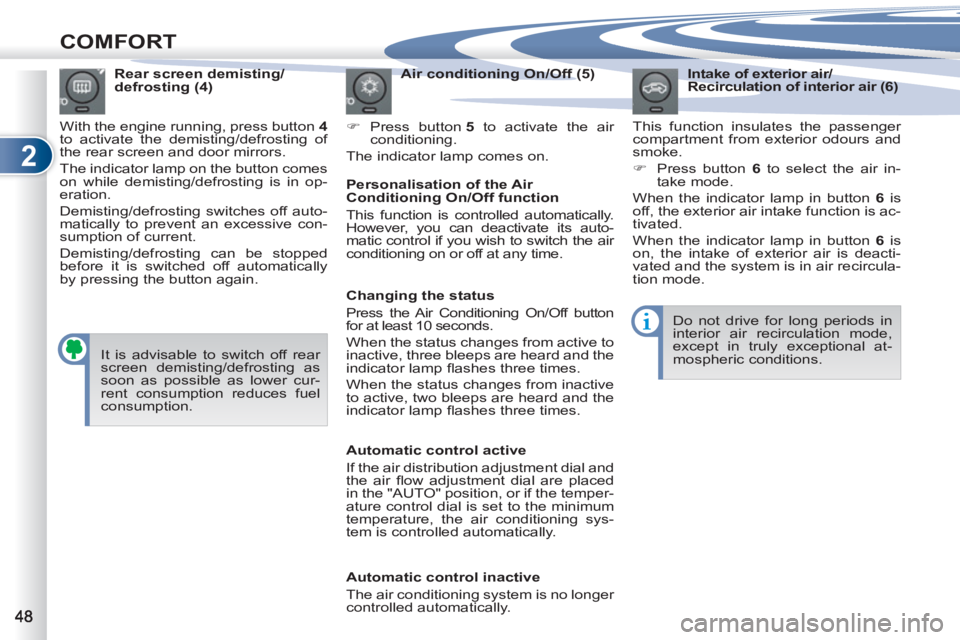

Page 48 of 236
2
COMFORT

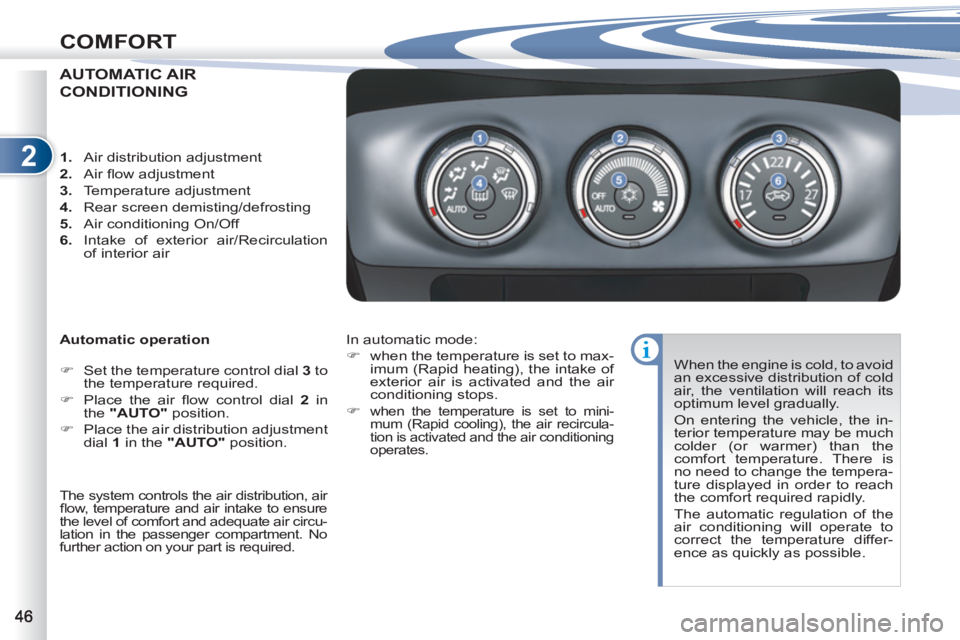

AUTOMATIC AIR
CONDITIONING
Automatic operation
)
Set the temperature control dial 3
to
the temperature required.
)
Place the air fl ow control dial 2
in
the "AUTO"
position.
)
Place the air distribution adjustment
dial 1
in the "AUTO"
position. When the engine is cold, to avoid
an excessive distribution of cold
air, the ventilation will reach its
optimum level gradually.
On entering the vehicle, the in-
terior temperature may be much
colder (or warmer) than the
comfort temperature. There is
no need to change the tempera-
ture displayed in order to reach
the comfort required rapidly.
The automatic regulation of the
air conditioning will operate to
correct the temperature differ-
ence as quickly as possible.
1.
Air distribution adjustment
2.
Air fl ow adjustment
3.
Temperature adjustment
4.
Rear screen demisting/defrosting
5.
Air conditioning On/Off
6.
Intake of exterior air/Recirculation
of interior air
In automatic mode:
)
when the temperature is set to max-
imum (Rapid heating), the intake of
exterior air is activated and the air
conditioning stops.
)
when the temperature is set to mini-
mum (Rapid cooling), the air recircula-
tion is activated and the air conditioning
operates.
The system controls the air distribution, air
fl ow, temperature and air intake to ensure
the level of comfort and adequate air circu-
lation in the passenger compartment. No
further action on your part is required.
Page 49 of 236
2
COMFORT

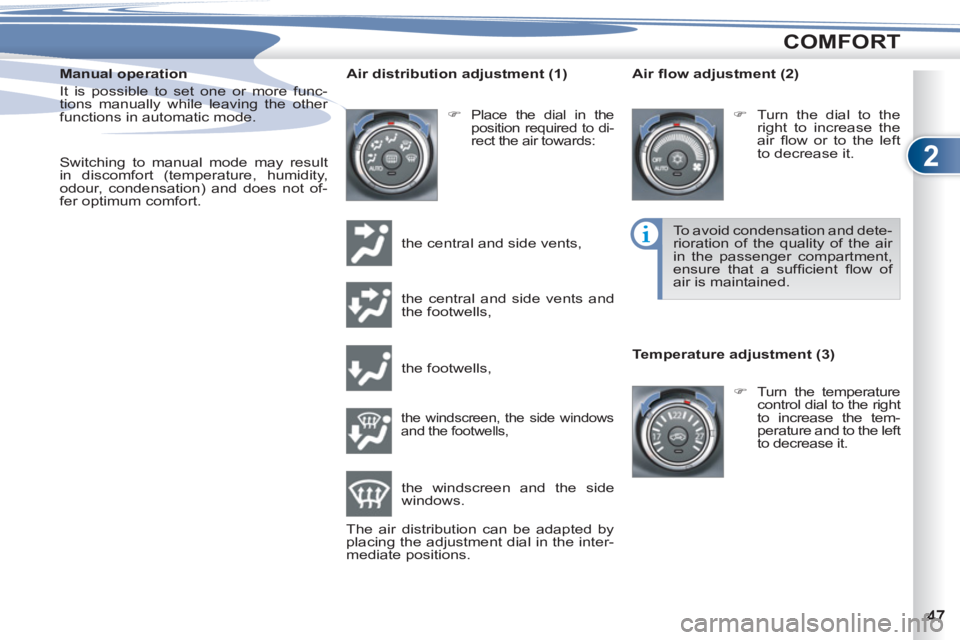

Manual operation
It is possible to set one or more func-
tions manually while leaving the other
functions in automatic mode.
Switching to manual mode may result
in discomfort (temperature, humidity,
odour, condensation) and does not of-
fer optimum comfort.
Temperature adjustment (3)
Air fl ow adjustment (2)
)
Turn the dial to the
right to increase the
air fl ow or to the left
to decrease it.
)
Turn the temperature
control dial to the right
to increase the tem-
perature and to the left
to decrease it.
)
Place the dial in the
position required to di-
rect the air towards:
To avoid condensation and dete-
rioration of the quality of the air
in the passenger compartment,
ensure that a suffi cient fl ow of
air is maintained. the central and side vents,
the central and side vents and
the footwells,
the footwells,
the windscreen, the side windows
and the footwells,
the windscreen and the side
windows.
The air distribution can be adapted by
placing the adjustment dial in the inter-
mediate positions.
Air distribution adjustment (1)
Page 50 of 236
2
COMFORT
Intake of exterior air/
Recirculation of interior air (6)
This function insulates the passenger
compartment from exterior odours and
smoke.
)
Press button 6
to select the air in-
take mode.
When the indicator lamp in button 6
is
off, the exterior air intake function is ac-
tivated.
When the indicator lamp in button 6
is
on, the intake of exterior air is deacti-
vated and the system is in air recircula-
tion mode.
Rear screen demisting/
defrosting (4)
With the engine running, press button 4
to activate the demisting/defrosting of
the rear screen and door mirrors.
The indicator lamp on the button comes
on while demisting/defrosting is in op-
eration.
Demisting/defrosting switches off auto-
matically to prevent an excessive con-
sumption of current.
Demisting/defrosting can be stopped
before it is switched off automatically
by pressing the button again.
It is advisable to switch off rear
screen demisting/defrosting as
soon as possible as lower cur-
rent consumption reduces fuel
consumption.
Air conditioning On/Off (5)
Do not drive for long periods in
interior air recirculation mode,
except in truly exceptional at-
mospheric conditions.
Personalisation of the Air
Conditioning On/Off function
This function is controlled automatically.
However, you can deactivate its auto-
matic control if you wish to switch the air
conditioning on or off at any time.
Changing the status
Press the Air Conditioning On/Off button
for at least 10 seconds.
When the status changes from active to
inactive, three bleeps are heard and the
indicator lamp fl ashes three times.
When the status changes from inactive
to active, two bleeps are heard and the
indicator lamp fl ashes three times.
Automatic control active
If the air distribution adjustment dial and
the air fl ow adjustment dial are placed
in the "AUTO" position, or if the temper-
ature control dial is set to the minimum
temperature, the air conditioning sys-
tem is controlled automatically.
)
Press button 5
to activate the air
conditioning.
The indicator lamp comes on.
Automatic control inactive
The air conditioning system is no longer
controlled automatically.
