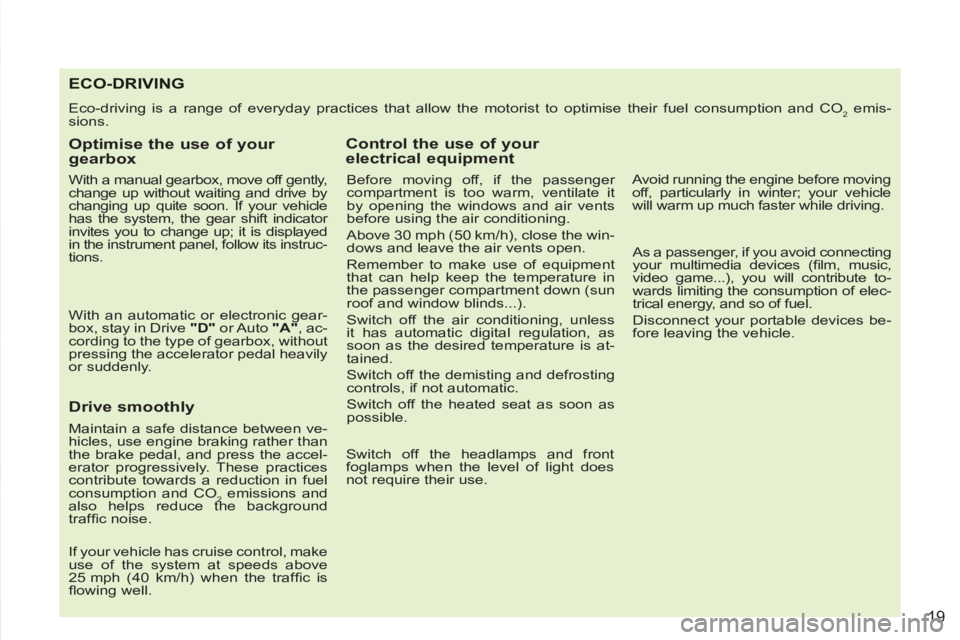

ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emis-
sions.

Optimise the use of your
gearbox

With a manual gearbox, move off gently,
change up without waiting and drive by
changing up quite soon. If your vehicle
has the system, the gear shift indicator
invites you to change up; it is displayed
in the instrument panel, follow its instruc-
tions.

With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
, ac-
cording to the type of gearbox, without
pressing the accelerator pedal heavily
or suddenly.



Drive smoothly


Maintain a safe distance between ve-
hicles, use engine braking rather than
the brake pedal, and press the accel-
erator progressively. These practices
contribute towards a reduction in fuel
consumption and CO
2 emissions and
also helps reduce the background
traffi c noise.

If your vehicle has cruise control, make
use of the system at speeds above
25 mph (40 km/h) when the traffi c is
fl owing well.



Control the use of your
electrical equipment

Before moving off, if the passenger
compartment is too warm, ventilate it
by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the win-
dows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature in
the passenger compartment down (sun
roof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is at-
tained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.

Switch off the headlamps and front
foglamps when the level of light does
not require their use.
Avoid running the engine before moving
off, particularly in winter; your vehicle
will warm up much faster while driving.

As a passenger, if you avoid connecting
your multimedia devices (fi lm, music,
video game...), you will contribute to-
wards limiting the consumption of elec-
trical energy, and so of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.

1
INSTRUMENTS and CONTROLS

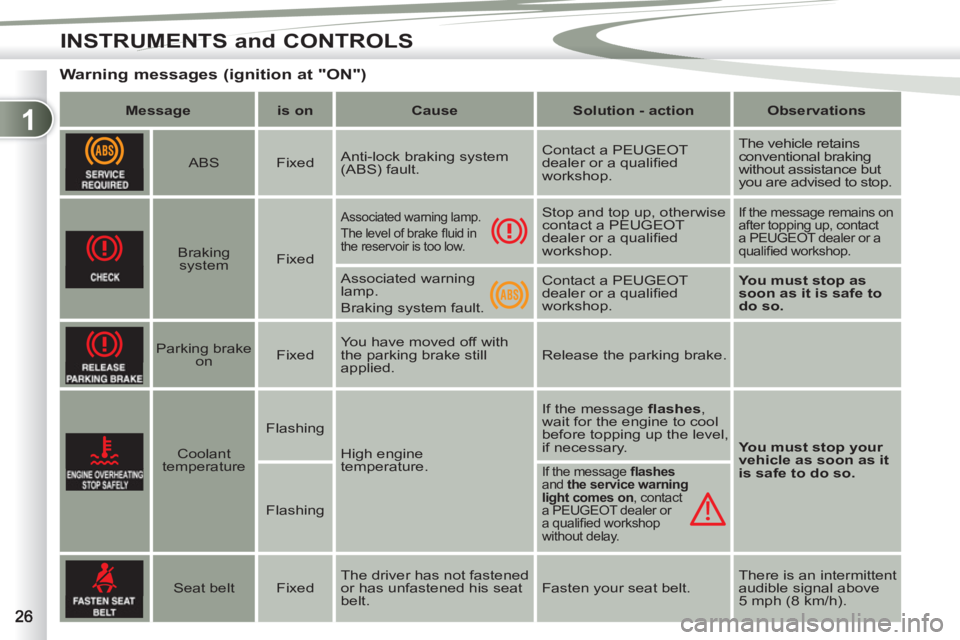

Warning messages (ignition at "ON")



Message



is on



Cause



Solution - action



Observations






ABS
Fixed Anti-lock braking system
(ABS) fault. Contact a PEUGEOT
dealer or a qualifi ed
workshop. The vehicle retains
conventional braking
without assistance but
you are advised to stop.



Braking
system
Fixed

Associated warning lamp.
The level of brake fl uid in
the reservoir is too low. Stop and top up, otherwise
contact a PEUGEOT
dealer or a qualifi ed
workshop. If the message remains on
after topping up, contact
a PEUGEOT dealer or a
qualifi ed workshop.

Associated warning
lamp.
Braking system fault. Contact a PEUGEOT
dealer or a qualifi ed
workshop.
You must stop as
soon as it is safe to
do so.




Parking brake
on
Fixed You have moved off with
the parking brake still
applied. Release the parking brake.




Coolant
temperature
Flashing
High engine
temperature. If the message fl ashes
,
wait for the engine to cool
before topping up the level,
if necessary.
You must stop your
vehicle as soon as it
is safe to do so.


Flashing

If the message fl ashes
and the service warning
light comes on
, contact
a PEUGEOT dealer or
a qualifi ed workshop
without delay.




Seat belt
Fixed The driver has not fastened
or has unfastened his seat
belt. Fasten your seat belt. There is an intermittent
audible signal above
5 mph (8 km/h).

6
SAFETY
BRAKING ASSISTANCE
SYSTEMS
Group of supplementary systems which
help you to obtain optimum braking in
complete safety in emergency situations:


- anti-lock braking system (ABS),

- electronic brake force distribution
(EBFD).
When braking in an emergency,
press very fi rmly without releasing
the pressure. The two warning lamps comes
on at the same time and the two
warnings are displayed alter-
nately in the instrument panel
screen.
When replacing wheels (tyres and
rims), ensure that they conform to
the manufacturer's recommenda-
tions.



Operating fault
If this warning lamp comes on, accompa-
nied by the indication on the instrument
panel screen, it indicates a malfunction of
the anti-lock braking system which could
result in a loss of control of the vehicle
when braking.
Contact a PEUGEOT dealer or a qualifi ed
workshop. If these two warning lamps come on,
linked with the warnings on the instrument
panel screen, they indicate a malfunction
of the electronic brake force distribution
which could result in a loss of control of
the vehicle on braking.

You MUST stop as soon as it is safe
to do so.

Contact a PEUGEOT dealer or a qualifi ed
workshop.

Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the sta-
bility and manoeuvrability of your vehicle
when braking, in particular on poor or
slippery surfaces. The warning lamp comes on for
a few seconds when the ignition
is switched on (ON position). If it
does not switch off or does not
come on, contact a PEUGEOT
dealer or a qualifi ed workshop.
When the vehicle is stationary

When the vehicle is moving
If this warning lamp comes on
continuously it indicates a mal-
function of the anti-lock braking
system which could result in a
loss of control of the vehicle on braking.

You MUST stop as soon as it is safe
to do so.

Contact a PEUGEOT dealer or a qualifi ed
workshop.

Activation
The anti-lock braking system is active if
the vehicle speed is higher than 6 mph
(10 km/h). It is deactivated when the ve-
hicle speed falls below 3 mph (5 km/h).
The anti-lock braking system comes
into operation automatically when there
is a risk of wheel lock.
Normal operation of the ABS may make
itself felt by slight vibration of the brake
pedal.

7

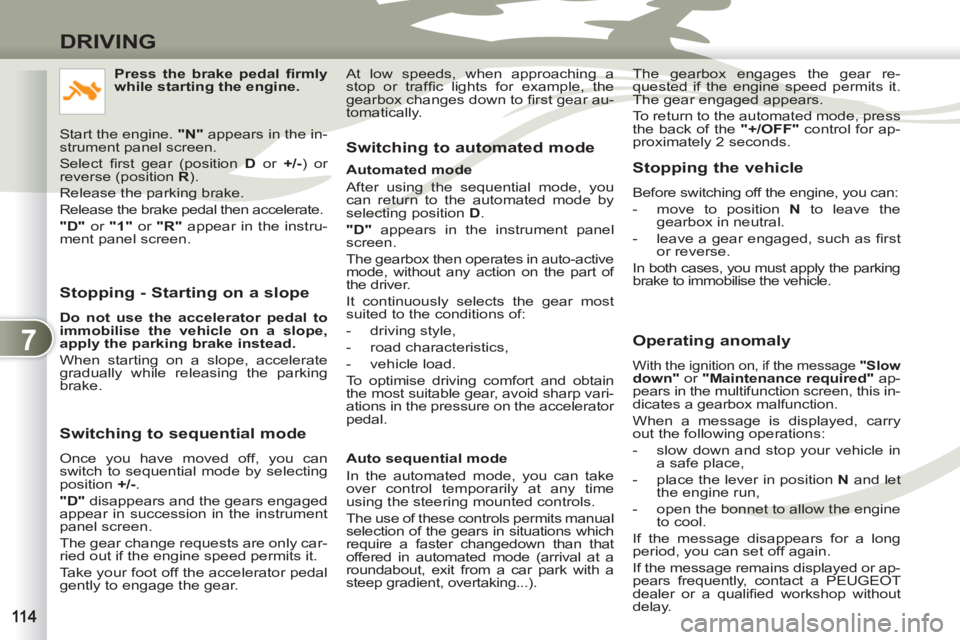

DRIVING

Stopping - Starting on a slope


Do not use the accelerator pedal to
immobilise the vehicle on a slope,
apply the parking brake instead.

When starting on a slope, accelerate
gradually while releasing the parking
brake.


Switching to sequential mode

Once you have moved off, you can
switch to sequential mode by selecting
position +/-
.

"D"
disappears and the gears engaged
appear in succession in the instrument
panel screen.
The gear change requests are only car-
ried out if the engine speed permits it.
Take your foot off the accelerator pedal
gently to engage the gear.

Switching to automated mode


Automated mode
After using the sequential mode, you
can return to the automated mode by
selecting position D
.

"D"
appears in the instrument panel
screen.
The gearbox then operates in auto-active
mode, without any action on the part of
the driver.
It continuously selects the gear most
suited to the conditions of:


- driving style,

- road characteristics,

- vehicle load.
To optimise driving comfort and obtain
the most suitable gear, avoid sharp vari-
ations in the pressure on the accelerator
pedal.

Auto sequential mode
In the automated mode, you can take
over control temporarily at any time
using the steering mounted controls.
The use of these controls permits manual
selection of the gears in situations which
require a faster changedown than that
offered in automated mode (arrival at a
roundabout, exit from a car park with a
steep gradient, overtaking...).
Stopping the vehicle

Before switching off the engine, you can:


- move to position N
to leave the
gearbox in neutral.

- leave a gear engaged, such as fi rst
or reverse.
In both cases, you must apply the parking
brake to immobilise the vehicle.


Operating anomaly

With the ignition on, if the message "Slow down"
or "Maintenance required"
ap-
pears in the multifunction screen, this in-
dicates a gearbox malfunction.
When a message is displayed, carry
out the following operations:


- slow down and stop your vehicle in
a safe place,

- place the lever in position N
and let
the engine run,

- open the bonnet to allow the engine
to cool.
If the message disappears for a long
period, you can set off again.
If the message remains displayed or ap-
pears frequently, contact a PEUGEOT
dealer or a qualifi ed workshop without
delay.
Press the brake pedal fi rmly
while starting the engine.

Start the engine. "N"
appears in the in-
strument panel screen.
Select fi rst gear (position D
or +/-
) or
reverse (position R
).
Release the parking brake.
Release the brake pedal then accelerate.

"D"
or "1"
or "R"
appear in the instru-
ment panel screen. The gearbox engages the gear re-
quested if the engine speed permits it.
The gear engaged appears.
To return to the automated mode, press
the back of the "+/OFF"
control for ap-
proximately 2 seconds.
At low speeds, when approaching a
stop or traffi c lights for example, the
gearbox changes down to fi rst gear au-
tomatically.

7
DRIVING

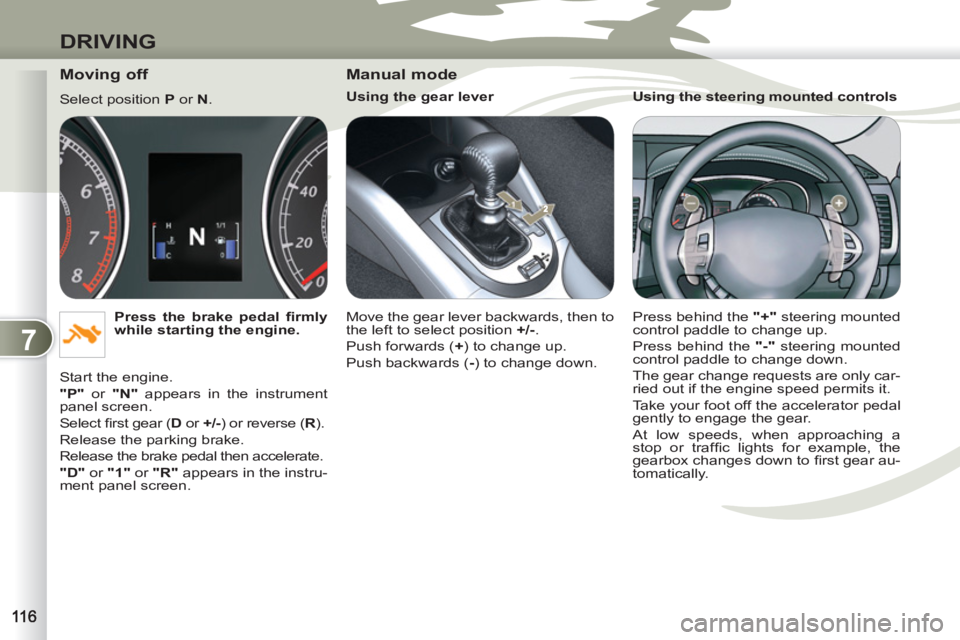

Moving off

Select position P
or N
.

Press the brake pedal fi rmly
while starting the engine.

Start the engine.

"P"
or "N"
appears in the instrument
panel screen.
Select fi rst gear ( D
or +/-
) or reverse ( R
).
Release the parking brake.
Release the brake pedal then accelerate.

"D"
or "1"
or "R"
appears in the instru-
ment panel screen.


Manual mode


Using the gear lever
Move the gear lever backwards, then to
the left to select position +/-
.
Push forwards ( +
) to change up.
Push backwards ( -
) to change down.
Using the steering mounted controls
Press behind the "+"
steering mounted
control paddle to change up.
Press behind the "-"
steering mounted
control paddle to change down.
The gear change requests are only car-
ried out if the engine speed permits it.
Take your foot off the accelerator pedal
gently to engage the gear.
At low speeds, when approaching a
stop or traffi c lights for example, the
gearbox changes down to fi rst gear au-
tomatically.

7
DRIVING

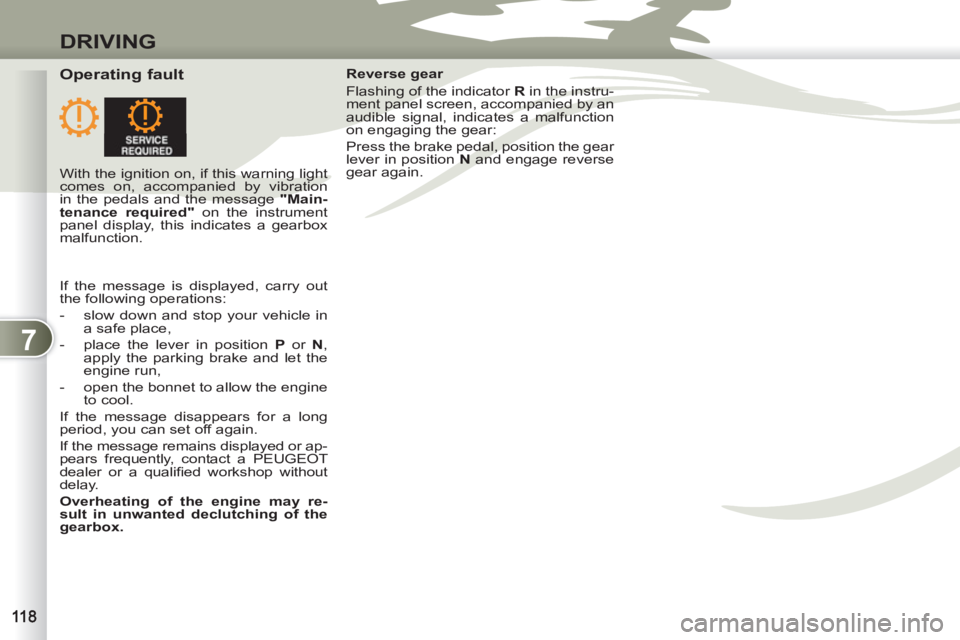

Operating fault

Reverse gear
Flashing of the indicator R
in the instru-
ment panel screen, accompanied by an
audible signal, indicates a malfunction
on engaging the gear:
Press the brake pedal, position the gear
lever in position N
and engage reverse
gear again.

With the ignition on, if this warning light
comes on, accompanied by vibration
in the pedals and the message "Main-
tenance required"
on the instrument
panel display, this indicates a gearbox
malfunction.
If the message is displayed, carry out
the following operations:


- slow down and stop your vehicle in
a safe place,

- place the lever in position P
or N
,
apply the parking brake and let the
engine run,

- open the bonnet to allow the engine
to cool.
If the message disappears for a long
period, you can set off again.
If the message remains displayed or ap-
pears frequently, contact a PEUGEOT
dealer or a qualifi ed workshop without
delay.

Overheating of the engine may re-
sult in unwanted declutching of the
gearbox.

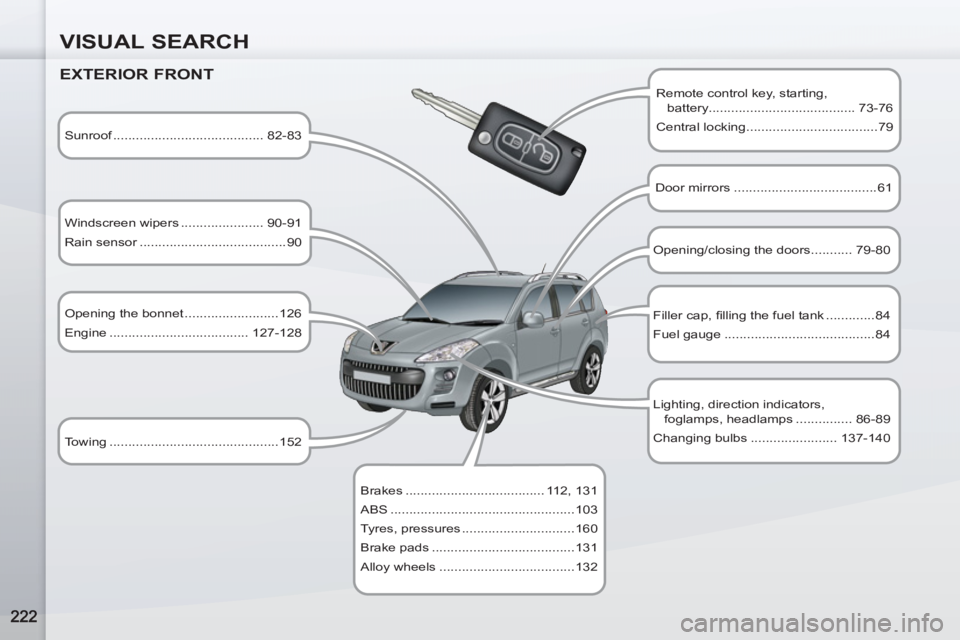

VISUAL SEARCH

EXTERIOR FRONT

Sunroof ........................................ 82-83
Windscreen wipers ...................... 90-91
Rain sensor .......................................90
Opening the bonnet .........................126
Engine ..................................... 127-128
Towing .............................................152
Brakes ..................................... 112, 131
ABS .................................................103
Tyres, pressures ..............................160
Brake pads ......................................131
Alloy wheels ....................................132 Remote control key, starting,
battery....................................... 73-76
Central locking ...................................79
Door mirrors ......................................61
Opening/closing the doors ........... 79-80
Filler cap, fi lling the fuel tank .............84
Fuel gauge ........................................84
Lighting, direction indicators,
foglamps, headlamps ............... 86-89
Changing bulbs ....................... 137-140

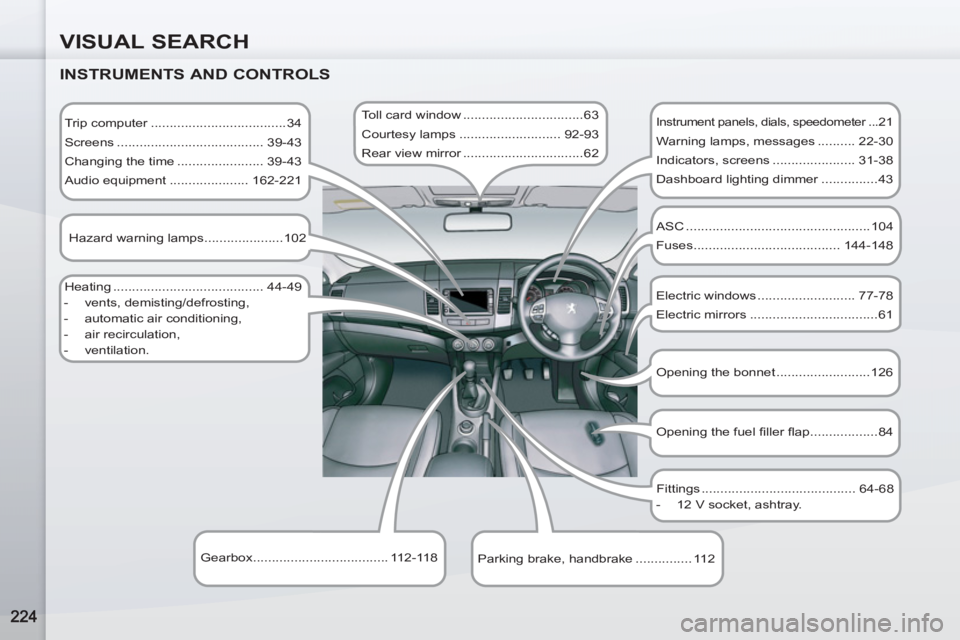

VISUAL SEARCH

INSTRUMENTS AND CONTROLS

Trip computer ....................................34
Screens ....................................... 39-43
Changing the time ....................... 39-43
Audio equipment ..................... 162-221
Hazard warning lamps .....................102
Heating ........................................ 44-49


- vents, demisting/defrosting,

- automatic air conditioning,

- air recirculation,

- ventilation. Toll card window ................................63
Courtesy lamps ........................... 92-93
Rear view mirror ................................62
Gearbox .................................... 112-118
Parking brake, handbrake ............... 112
Instrument panels, dials, speedometer ...21
Warning lamps, messages .......... 22-30
Indicators, screens ...................... 31-38
Dashboard lighting dimmer ...............43
ASC .................................................104
Fuses ....................................... 144-148
Electric windows .......................... 77-78
Electric mirrors ..................................61
Opening the bonnet .........................126
Fittings ......................................... 64-68


- 12 V socket, ashtray.
Opening the fuel fi ller fl ap ..................84

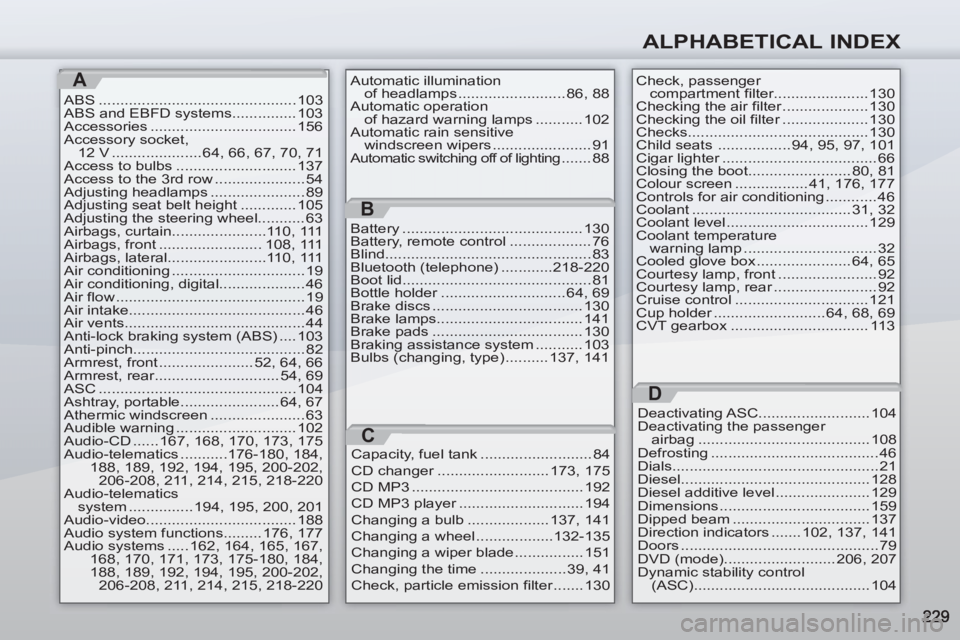

ALPHABETICAL INDEX
A
ABS .............................................. 103
ABS and EBFD systems............... 103
Accessories .................................. 156
Accessory socket,
12 V ..................... 64, 66, 67, 70, 71
Access to bulbs ............................ 137
Access to the 3rd row ..................... 54
Adjusting headlamps ...................... 89
Adjusting seat belt height ............. 105
Adjusting the steering wheel........... 63
Airbags, curtain......................110, 111
Airbags, front ........................ 108, 111
Airbags, lateral.......................110, 111
Air conditioning ............................... 19
Air conditioning, digital.................... 46
Air flow ............................................ 19
Air intake......................................... 46
Air vents.......................................... 44
Anti-lock braking system (ABS) .... 103
Anti-pinch........................................ 82
Armrest, front ...................... 52, 64, 66
Armrest, rear ............................. 54, 69
ASC .............................................. 104
Ashtray, portable ....................... 64, 67
Athermic windscreen ...................... 63
Audible warning ............................ 102
Audio-CD ...... 167, 168, 170, 173, 175
Audio-telematics ...........176-180, 184,
188, 189, 192, 194, 195, 200-202,
206-208, 211, 214, 215, 218-220
Audio-telematics
system ............... 194, 195, 200, 201
Audio-video................................... 188
Audio system functions......... 176, 177
Audio systems ..... 162, 164, 165, 167,
168, 170, 171, 173, 175-180, 184,
188, 189, 192, 194, 195, 200-202,
206-208, 211, 214, 215, 218-220Automatic illumination
of headlamps ......................... 86, 88
Automatic operation
of hazard warning lamps ........... 102
Automatic rain sensitive
windscreen wipers ....................... 91
Automatic switching off of lighting ....... 88
Battery .......................................... 130
Battery, remote control ................... 76
Blind................................................ 83
Bluetooth (telephone) ............218-220
Boot lid............................................ 81
Bottle holder ............................. 64, 69
Brake discs ................................... 130
Brake lamps.................................. 141
Brake pads ................................... 130
Braking assistance system ........... 103
Bulbs (changing, type) .......... 137, 141Check, passenger
compartment filter ...................... 130
Checking the air filter .................... 130
Checking the oil filter .................... 130
Checks.......................................... 130
Child seats ................. 94, 95, 97, 101
Cigar lighter .................................... 66
Closing the boot........................ 80, 81
Colour screen ................. 41, 176, 177
Controls for air conditioning ............ 46
Coolant ..................................... 31, 32
Coolant level ................................. 129
Coolant temperature
warning lamp ............................... 32
Cooled glove box ...................... 64, 65
Courtesy lamp, front ....................... 92
Courtesy lamp, rear ........................ 92
Cruise control ............................... 121
Cup holder .......................... 64, 68, 69
CVT gearbox ................................ 113
B
Capacity, fuel tank .......................... 84
CD changer .......................... 173, 175
CD MP3 ........................................ 192
CD MP3 player ............................. 194
Changing a bulb ................... 137, 141
Changing a wheel ..................132-135
Changing a wiper blade ................ 151
Changing the time .................... 39, 41
Check, particle emission filter ....... 130
C
Deactivating ASC.......................... 104
Deactivating the passenger
airbag ........................................ 108
Defrosting ....................................... 46
Dials................................................ 21
Diesel............................................ 128
Diesel additive level ...................... 129
Dimensions ................................... 159
Dipped beam ................................ 137
Direction indicators ....... 102, 137, 141
Doors .............................................. 79
DVD (mode).......................... 206, 207
Dynamic stability control
(ASC) ......................................... 104
D

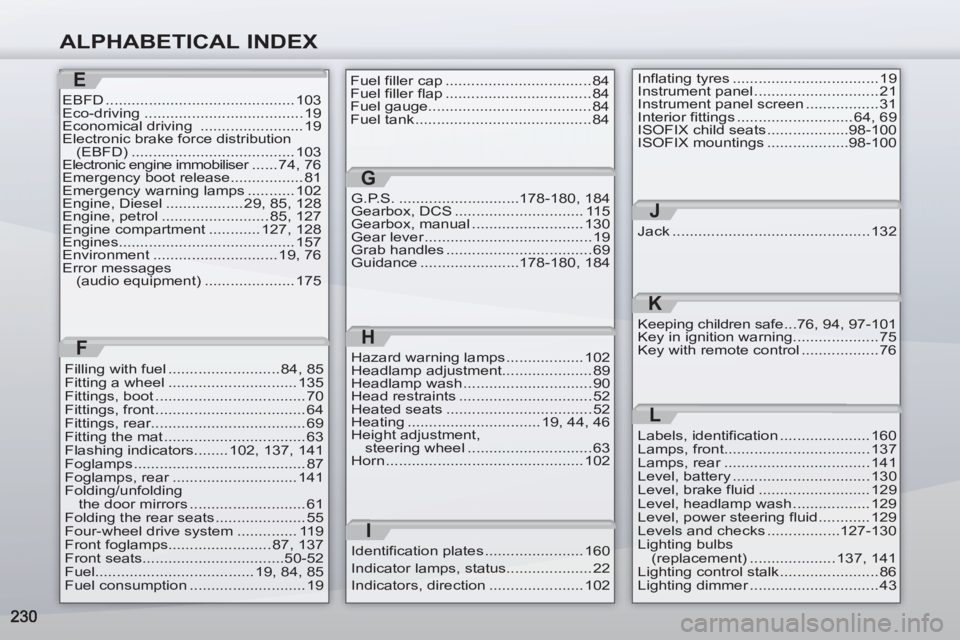

ALPHABETICAL INDEX
E
EBFD ............................................ 103
Eco-driving ..................................... 19
Economical driving ........................ 19
Electronic brake force distribution
(EBFD) ...................................... 103
Electronic engine immobiliser ...... 74, 76
Emergency boot release................. 81
Emergency warning lamps ........... 102
Engine, Diesel .................. 29, 85, 128
Engine, petrol ......................... 85, 127
Engine compartment ............ 127, 128
Engines......................................... 157
Environment ............................. 19, 76
Error messages
(audio equipment) ..................... 175Fuel filler cap .................................. 84
Fuel filler flap .................................. 84
Fuel gauge...................................... 84
Fuel tank ......................................... 84Inflating tyres .................................. 19
Instrument panel ............................. 21
Instrument panel screen ................. 31
Interior fittings ........................... 64, 69
ISOFIX child seats ...................98-100
ISOFIX mountings ...................98-100
K
Keeping children safe ...76, 94, 97-101
Key in ignition warning.................... 75
Key with remote control .................. 76
Filling with fuel .......................... 84, 85
Fitting a wheel .............................. 135
Fittings, boot ................................... 70
Fittings, front ................................... 64
Fittings, rear.................................... 69
Fitting the mat ................................. 63
Flashing indicators........ 102, 137, 141
Foglamps ........................................ 87
Foglamps, rear ............................. 141
Folding/unfolding
the door mirrors ........................... 61
Folding the rear seats ..................... 55
Four-wheel drive system .............. 119
Front foglamps........................ 87, 137
Front seats.................................50-52
Fuel..................................... 19, 84, 85
Fuel consumption ........................... 19
F
G.P.S. ............................178-180, 184
Gearbox, DCS .............................. 115
Gearbox, manual .......................... 130
Gear lever ....................................... 19
Grab handles .................................. 69
Guidance .......................178-180, 184
G
H
Hazard warning lamps .................. 102
Headlamp adjustment..................... 89
Headlamp wash .............................. 90
Head restraints ............................... 52
Heated seats .................................. 52
Heating ............................... 19, 44, 46
Height adjustment,
steering wheel ............................. 63
Horn .............................................. 102
L
Labels, identification ..................... 160
Lamps, front.................................. 137
Lamps, rear .................................. 141
Level, battery ................................ 130
Level, brake fluid .......................... 129
Level, headlamp wash .................. 129
Level, power steering fluid ............ 129
Levels and checks .................127-130
Lighting bulbs
(replacement) .................... 137, 141
Lighting control stalk ....................... 86
Lighting dimmer .............................. 43
J
Jack .............................................. 132
I
Identification plates ....................... 160
Indicator lamps, status.................... 22
Indicators, direction ...................... 102
