instrument panel PEUGEOT 4007 2012 Owners Manual

2
3
4
6
1
5

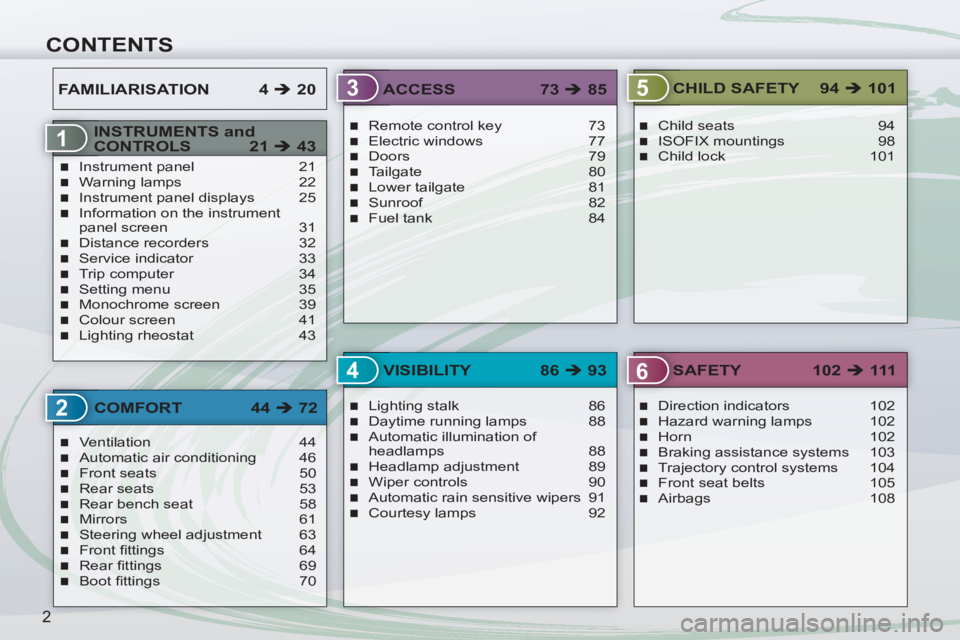

CONTENTS
2
INSTRUMENTS and
CONTROLS 21 Î 43
Ventilation 44
Automatic air conditioning 46
Front seats 50
Rear seats 53
Rear bench seat 58
Mirrors 61
Steering wheel adjustment 63
Front fi ttings 64
Rear fi ttings 69
Boot fi ttings 70









COMFORT 44 Î 72
Remote control key 73
Electric windows 77
Doors 79
Tailgate 80
Lower tailgate 81
Sunroof 82
Fuel tank 84






ACCESS 73 Î 85
Lighting stalk 86
Daytime running lamps 88
Automatic illumination of
headlamps 88
Headlamp adjustment 89
Wiper controls 90
Automatic rain sensitive wipers 91
Courtesy lamps 92






VISIBILITY 86 Î 93
Child seats 94
ISOFIX mountings 98
Child lock 101


CHILD SAFETY 94 Î 101
Direction indicators 102
Hazard warning lamps 102
Horn 102
Braking assistance systems 103
Trajectory control systems 104
Front seat belts 105
Airbags 108






SAFETY 102 Î 111
Instrument panel 21
Warning lamps 22
Instrument panel displays 25
Information on the instrument
panel screen 31
Distance recorders 32
Service indicator 33
Trip computer 34
Setting menu 35
Monochrome screen 39
Colour screen 41
Lighting rheostat 43










FAMILIARISATION 4 Î 20

FAMILIARISATION
9

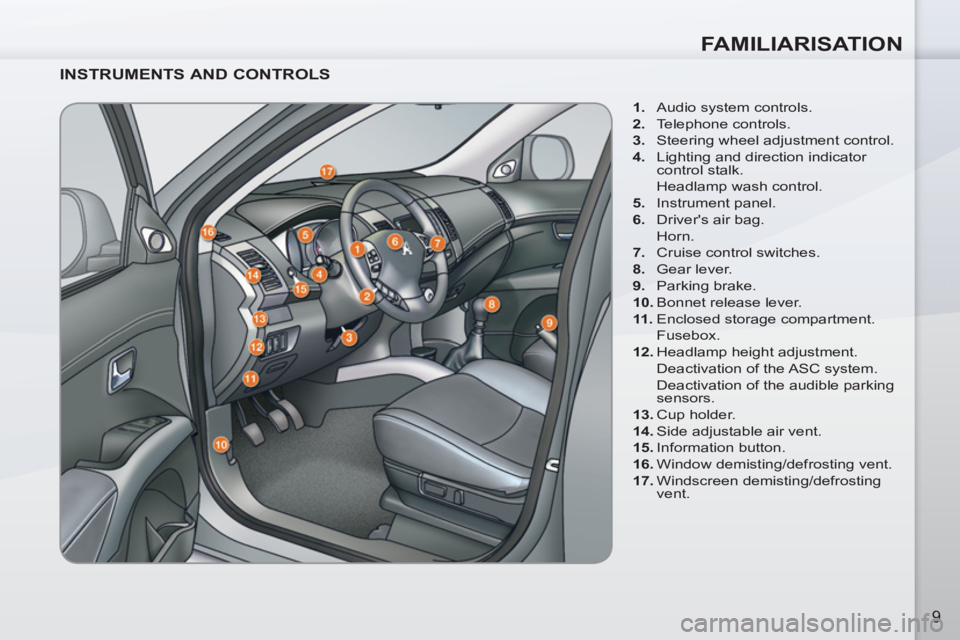

INSTRUMENTS AND CONTROLS



1.
Audio system controls.

2.
Telephone controls.

3.
Steering wheel adjustment control.

4.
Lighting and direction indicator
control stalk.
Headlamp wash control.

5.
Instrument panel.

6.
Driver's air bag.
Horn.

7.
Cruise control switches.

8.
Gear lever.

9.
Parking brake.

10.
Bonnet release lever.

11 .
Enclosed storage compartment.
Fusebox.

12.
Headlamp height adjustment.
Deactivation of the ASC system.
Deactivation of the audible parking
sensors.

13.
Cup holder.

14.
Side adjustable air vent.

15.
Information button.

16.
Window demisting/defrosting vent.

17.
Windscreen demisting/defrosting
vent.

FAMILIARISATION
16

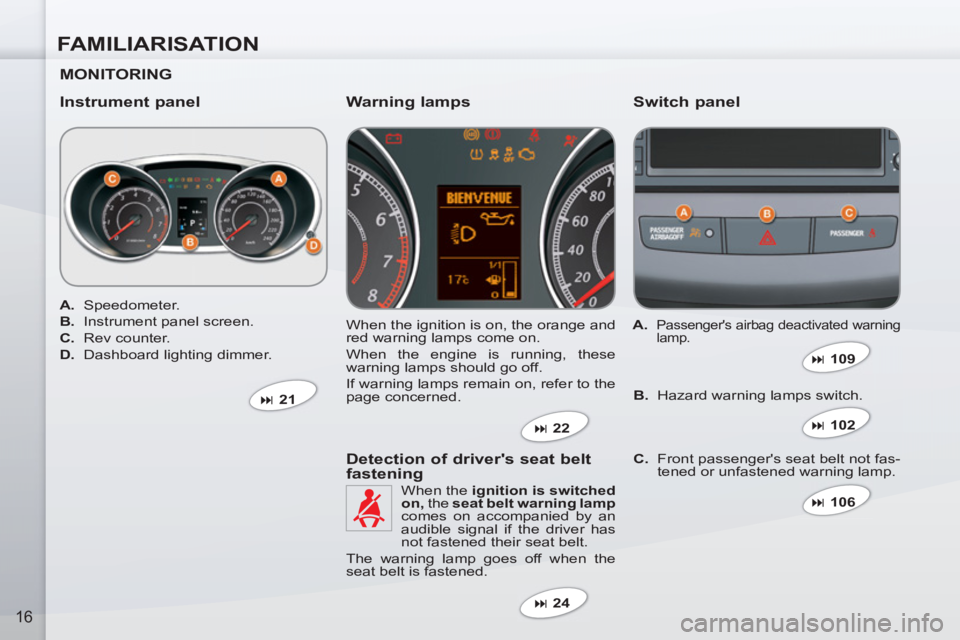

MONITORING

Instrument panel
Switch panel

When the ignition is on, the orange and
red warning lamps come on.
When the engine is running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.

Warning lamps




21


A.

Passenger's airbag deactivated warning
lamp.


109

B.
Hazard warning lamps switch.

102

C.
Front passenger's seat belt not fas-
tened or unfastened warning lamp.



106




22



Detection of driver's seat belt
fastening
When the ignition is switched
on,
the seat belt warning lamp

comes on accompanied by an
audible signal if the driver has
not fastened their seat belt.
The warning lamp goes off when the
seat belt is fastened.



24


A.
Speedometer.

B.
Instrument panel screen.

C.
Rev counter.

D.
Dashboard lighting dimmer.

19

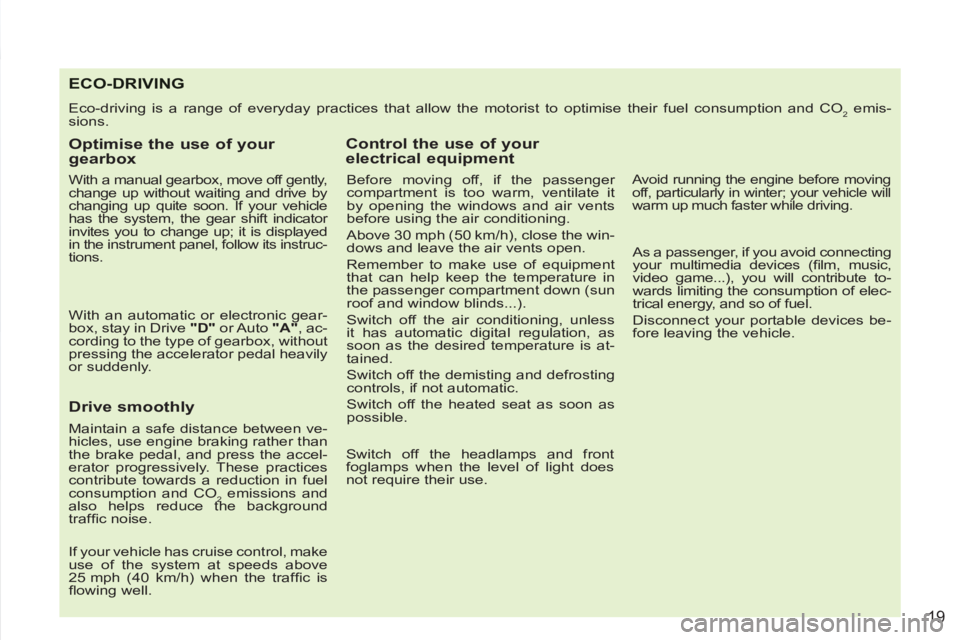

ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emis-
sions.

Optimise the use of your
gearbox

With a manual gearbox, move off gently,
change up without waiting and drive by
changing up quite soon. If your vehicle
has the system, the gear shift indicator
invites you to change up; it is displayed
in the instrument panel, follow its instruc-
tions.

With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
, ac-
cording to the type of gearbox, without
pressing the accelerator pedal heavily
or suddenly.



Drive smoothly


Maintain a safe distance between ve-
hicles, use engine braking rather than
the brake pedal, and press the accel-
erator progressively. These practices
contribute towards a reduction in fuel
consumption and CO
2 emissions and
also helps reduce the background
traffi c noise.

If your vehicle has cruise control, make
use of the system at speeds above
25 mph (40 km/h) when the traffi c is
fl owing well.



Control the use of your
electrical equipment

Before moving off, if the passenger
compartment is too warm, ventilate it
by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the win-
dows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature in
the passenger compartment down (sun
roof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is at-
tained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.

Switch off the headlamps and front
foglamps when the level of light does
not require their use.

Avoid running the engine before moving
off, particularly in winter; your vehicle will
warm up much faster while driving.


As a passenger, if you avoid connecting
your multimedia devices (fi lm, music,
video game...), you will contribute to-
wards limiting the consumption of elec-
trical energy, and so of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.

1
INSTRUMENTS and CONTROLS

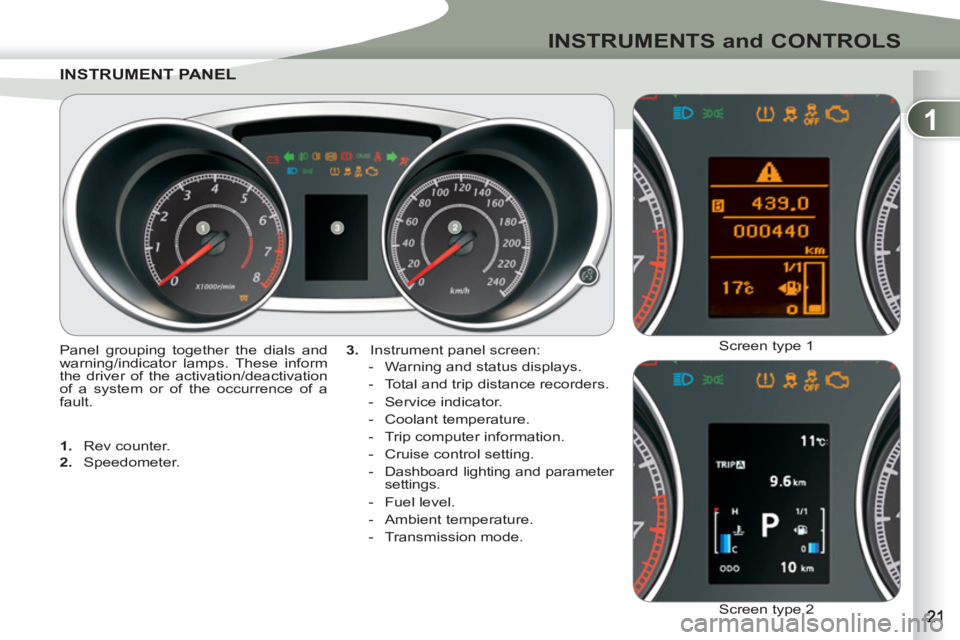

INSTRUMENT PANEINSTRUMENT PANEL

3.
Instrument panel screen:


- Warning and status displays.

- Total and trip distance recorders.

- Service indicator.

- Coolant temperature.

- Trip computer information.

- Cruise control setting.

-
Dashboard lighting and parameter
settings.

- Fuel level.

- Ambient temperature.

- Transmission mode.

Panel grouping together the dials and
warning/indicator lamps. These inform
the driver of the activation/deactivation
of a system or of the occurrence of a
fault.
Screen type 1
Screen type 2


1.
Rev counter.

2.
Speedometer.

1
INSTRUMENTS and CONTROLS

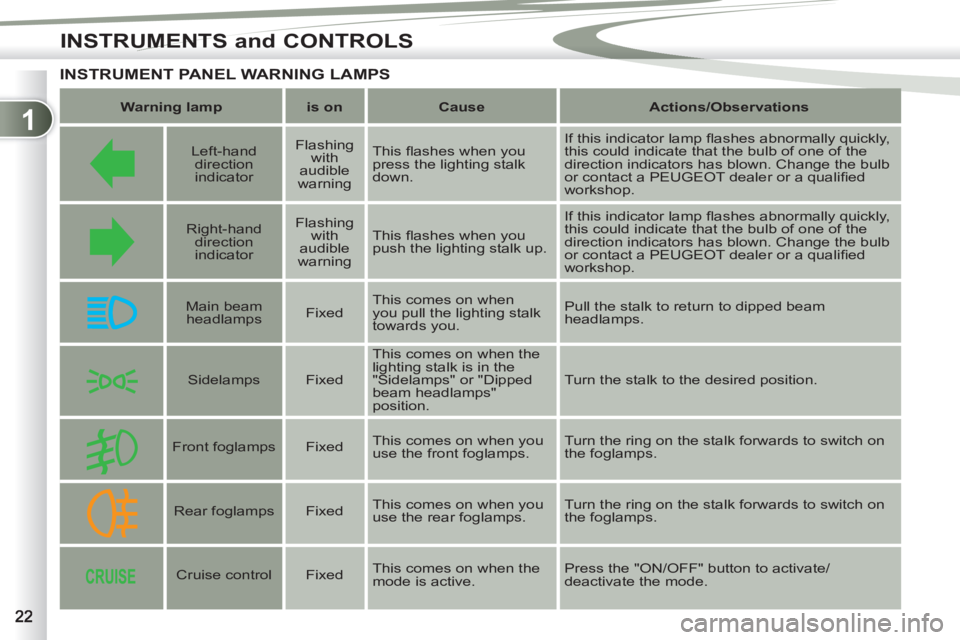

INSTRUMENT PANEL WARNING LAMPS


Warning lamp



is on



Cause



Actions/

Observations







Left-hand
direction
indicator
Flashing
with
audible
warning This fl ashes when you
press the lighting stalk
down. If this indicator lamp fl ashes abnormally quickly,
this could indicate that the bulb of one of the
direction indicators has blown. Change the bulb
or contact a PEUGEOT dealer or a qualifi ed
workshop.




Right-hand
direction
indicator
Flashing
with
audible
warning This fl ashes when you
push the lighting stalk up. If this indicator lamp fl ashes abnormally quickly,
this could indicate that the bulb of one of the
direction indicators has blown. Change the bulb
or contact a PEUGEOT dealer or a qualifi ed
workshop.




Main beam
headlamps
Fixed This comes on when
you pull the lighting stalk
towards you. Pull the stalk to return to dipped beam
headlamps.




Sidelamps
Fixed This comes on when the
lighting stalk is in the
"Sidelamps" or "Dipped
beam headlamps"
position. Turn the stalk to the desired position.





Front foglamps
Fixed This comes on when you
use the front foglamps. Turn the ring on the stalk forwards to switch on
the foglamps.




Rear foglamps
Fixed This comes on when you
use the rear foglamps. Turn the ring on the stalk forwards to switch on
the foglamps.




Cruise control
Fixed This comes on when the
mode is active. Press the "ON/OFF" button to activate/
deactivate the mode.

1
INSTRUMENTS and CONTROLS

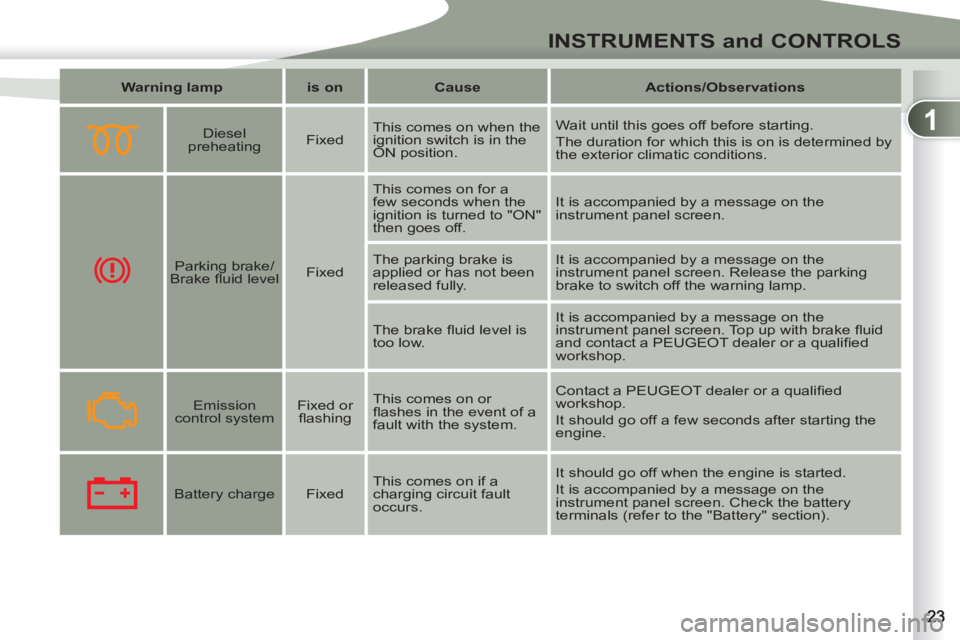

Warning lamp



is on



Cause



Actions/Observations







Diesel
preheating
Fixed This comes on when the
ignition switch is in the
ON position. Wait until this goes off before starting.
The duration for which this is on is determined by
the exterior climatic conditions.




Parking brake/
Brake fl uid level
Fixed This comes on for a
few seconds when the
ignition is turned to "ON"
then goes off. It is accompanied by a message on the
instrument panel screen.
The parking brake is
applied or has not been
released fully. It is accompanied by a message on the
instrument panel screen. Release the parking
brake to switch off the warning lamp.
The brake fl uid level is
too low. It is accompanied by a message on the
instrument panel screen. Top up with brake fl uid
and contact a PEUGEOT dealer or a qualifi ed
workshop.




Emission
control system
Fixed or
fl ashing This comes on or
fl ashes in the event of a
fault with the system. Contact a PEUGEOT dealer or a qualifi ed
workshop.
It should go off a few seconds after starting the
engine.




Battery charge
Fixed This comes on if a
charging circuit fault
occurs. It should go off when the engine is started.
It is accompanied by a message on the
instrument panel screen. Check the battery
terminals (refer to the "Battery" section).

1
INSTRUMENTS and CONTROLS


Warning lamp



is on



Cause



Actions/Observations







Driver's
seat belt not
fastened
Fixed The driver has not
fastened or has
unfastened their seat
belt. This is accompanied by a message on the
instrument panel screen.
Fasten the driver's seat belt.





ABS
Fixed This comes on if an anti-
lock braking system fault
occurs. It is accompanied by a message in the instrument
panel screen. The vehicle retains conventional
braking without assistance but you are advised to
stop. Have it checked by a PEUGEOT dealer or
a qualifi ed workshop.





Airbags and
pretensioners
Fixed This comes on for a
few seconds when the
ignition is turned to "ON"
then goes off. It should go off when the engine is started. If it
does not go off, contact a PEUGEOT dealer or a
qualifi ed workshop.
This comes on if an
airbag or pretensioner
fault occurs. It is accompanied by a message on the
instrument panel screen. Have the system
checked by a PEUGEOT dealer or a qualifi ed
workshop without delay.




Dynamic
stability control
system (ASC)
Fixed This comes on if a
dynamic stability control
system fault occurs. It is accompanied by a message on the
instrument panel screen. Have the system
checked by a PEUGEOT dealer or a qualifi ed
workshop without delay.

1
INSTRUMENTS and CONTROLS
Each time the engine is started: a series of warning lamps and/or messages come on, applying a checking self test. They go
off after a few seconds. Engine running: the warning lamp or the message becomes a warning if it remains on continuously
or fl ashes. This initial warning may be accompanied by an audible signal and a message on the screen. Do not ignore these
warnings.
The messages displayed may differ between the type 1 instrument panel and the type 2 instrument panel.
When the cause of the appearance of the warning lamp or warning message has been rectifi ed, the warning disappears
from the screen automatically. If the cause of the warning is not rectifi ed, you can return to the previous screen at any time
by pressing the INFO
button on the dashboard.
The symbol "!"
is displayed.
To return to the previous screen (with the "!"
symbol), you must press the INFO
button several times.

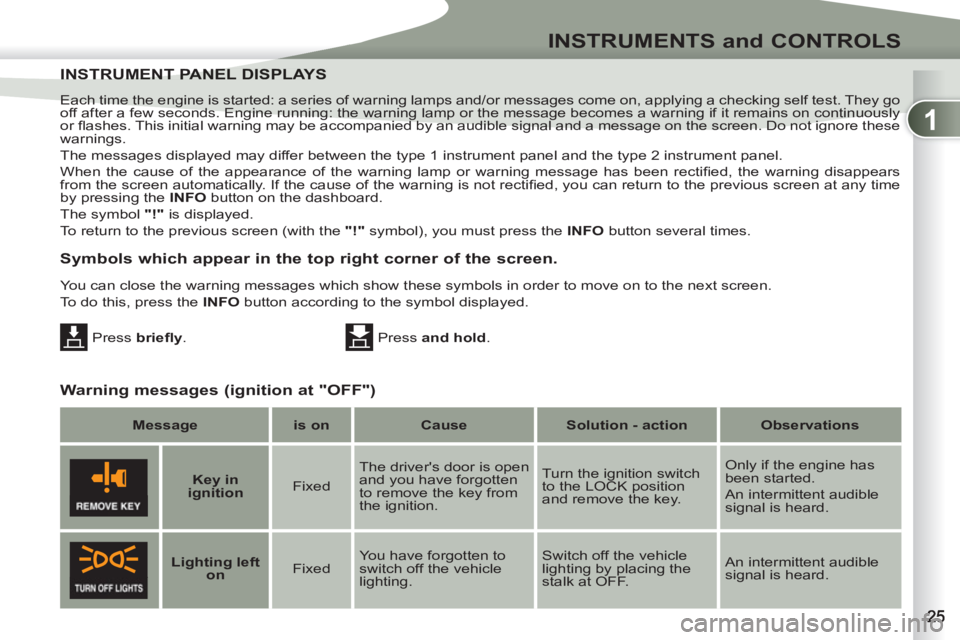

INSTRUMENT PANEINSTRUMENT PANEL DISPLAYS


Warning messages (ignition at "OFF")

You can close the warning messages which show these symbols in order to move on to the next screen.
To do this, press the INFO
button according to the symbol displayed.
Press briefl y
. Press and hold
.


Symbols which appear in the top right corner of the screen.



Message



is on



Cause



Solution - action



Observations








Key in
ignition


Fixed The driver's door is open
and you have forgotten
to remove the key from
the ignition. Turn the ignition switch
to the LOCK position
and remove the key. Only if the engine has
been started.
An intermittent audible
signal is heard.





Lighting

left
on


Fixed You have forgotten to
switch off the vehicle
lighting. Switch off the vehicle
lighting by placing the
stalk at OFF. An intermittent audible
signal is heard.

1
INSTRUMENTS and CONTROLS
The total distance is dis-
played in zone 1
of the
screen and the trip dis-
tance in zone 2
(refer to
the "Distance recorders"
section).
Distance recorder (A and B)
INFORMATION ON TINFORMATION ON THE
INSTRUMENT PANEL SCREEN

Information display

With the ignition on, press the INFO
but-
ton, located on the fascia to the left of the
instrument panel, to display the various
types of information in succession:


- distance recorder A,

- distance recorder B,

- service indicator,

- coolant temperature,

- range,

- trip computer,

- setting menu.
This displays the dis-
tance and the number
of months remaining be-
fore the next service, in
line with the manufactur-
er's servicing schedule
(refer to the "Service in-
dicator" section).
Service indicator
When the engine is run-
ning, this indicates the
temperature of the cool-
ant (refer to the "Coolant
temperature indicator"
section).
Coolant temperature When the engine is run-
ning, this indicates the
number of miles (kilo-
metres) which can still
be travelled with the fuel
remaining in the tank,
based on the average
fuel consumption over
the last few miles (kilometres) travelled
(refer to the "Range" section).
Range
This indicates the aver-
age fuel consumption,
the average speed and
the current fuel con-
sumption (refer to the
"Trip computer" section).
Trip computer

When the vehicle is
stationary
, this allows
the user to change the
following settings (refer
to the "Setting menu"
section):


- the display language,


- the temperature dis-
play units,

- the fuel consumption units,

- the option to reinitialise the average
fuel consumption and the average
speed,

- the break (rest) reminder display
interval.


Setting menu
