PEUGEOT 4008 2014.5 Owners Manual

226
Technical data
4008-add_en_Chap09_caracteristiques-techniques_ed01-2015
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
DIESEL ENGINESe-HDi 1151.8 HDi 140
Model codes : BU...9HD5/S 9HD5/1S9HDK/S 9HDK /1S6HYG
Transmission mode2WD4WD4WD
Cubic capacity (cc) 1 560 1 798
Bore x stroke (mm) 77 x 88.3 83 x 83.1
Max power * : EU standard (kW) 84 103
Max power engine speed (rpm) 3 600 4 000
Max torque: EU standard (Nm) 270 290
Max torque engine speed (rpm) 1 750 2 000 to 3 000
Fuel Diesel Diesel
Catalytic converter Ye s Ye s
Particle filter (FAP) Ye s Ye s
GEARBOXES Manual
(6-speed)
Manual
(6-speed)
OIL CAPACITY (in litres)
Engine (with filter replacement) 3.75 5.3
Engines and gearboxes
.../S and ... /1S : model fitted with the Stop & Start (AS&G) function.

9
227
Technical data
4008-add_en_Chap09_caracteristiques-techniques_ed01-2015

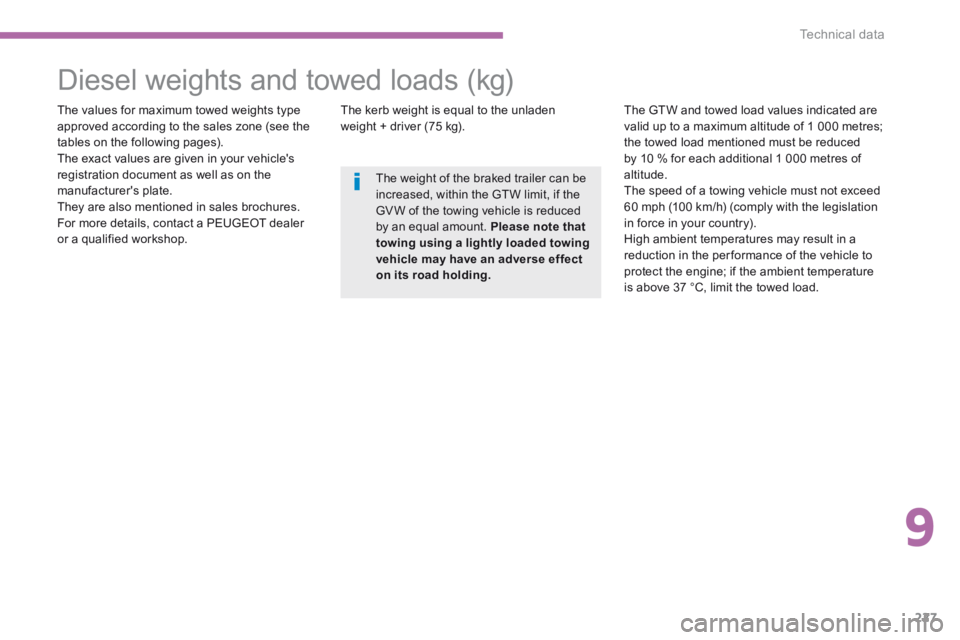

Diesel weights and towed loads (kg)
The values for maximum towed weights type approved according to the sales zone (see the tables on the following pages). The exact values are given in your vehicle's registration document as well as on the manufacturer's plate. They are also mentioned in sales brochures. For more details, contact a PEUGEOT dealer
or a qualified workshop.
The kerb weight is equal to the unladen weight + driver (75 kg). The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude. The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C, limit the towed load.
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount. Please note that towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

228
Technical data
4008-add_en_Chap09_caracteristiques-techniques_ed01-2015

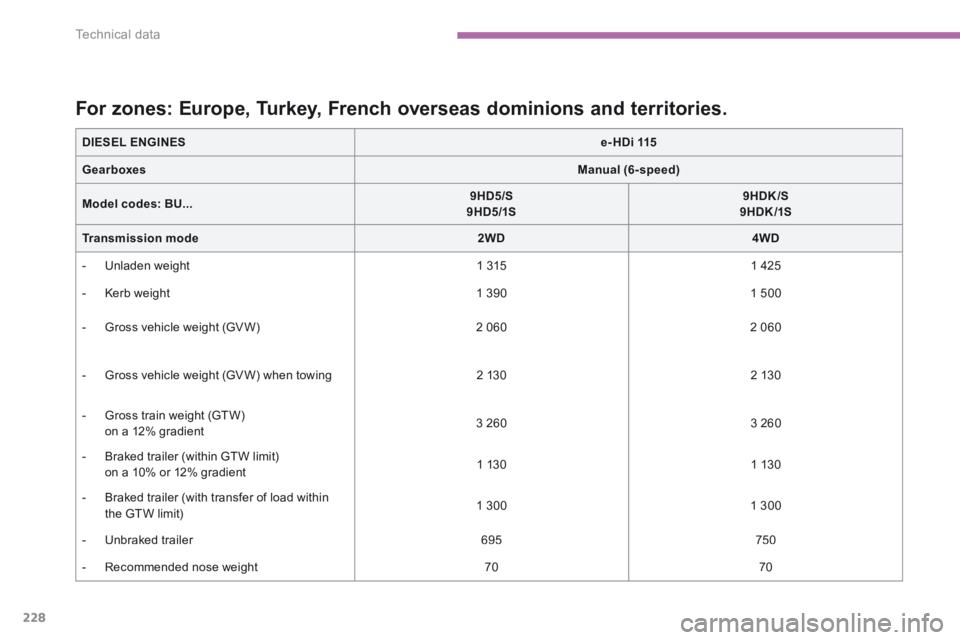

DIESEL ENGINESe-HDi 115
GearboxesManual (6-speed)
Model codes: BU...9HD5/S 9HD5/1S9HDK/S 9HDK /1S
Transmission mode2WD4WD
- Unladen weight 1 315 1 425
- Kerb weight 1 390 1 500
- Gross vehicle weight (GV W) 2 060 2 060
- Gross vehicle weight (GV W) when towing 2 130 2 130
- Gross train weight (GTW)
on a 12% gradient 3 260 3 260
- Braked trailer (within GTW limit) on a 10% or 12% gradient 1 130 1 130
- Braked trailer (with transfer of load within the GTW limit) 1 300 1 300
- Unbraked trailer 695 750
- Recommended nose weight 70 70
For zones: Europe, Turkey, French overseas dominions and territories.

9
229
Technical data
4008-add_en_Chap09_caracteristiques-techniques_ed01-2015
DIESEL ENGINESe-HDi 115
GearboxesManual (6-speed)
Model codes: BU...9HD5/S 9HD5/1S9HDK/S 9HDK /1S
Transmission mode2WD4WD
- Unladen weight 1 410 1 475
- Kerb weight 1 485 1 550
- Gross vehicle weight (GV W) 2 060 2 060
- Gross vehicle weight (GV W) when towing 2 130 2 130
- Gross train weight (GTW)
on a 12% gradient 3 260 3 260
- Braked trailer (within GTW limit) on a 10% or 12% gradient 1 130 1 130
- Braked trailer (with transfer of load within the GTW limit) 1 300 1 300
- Unbraked trailer 695 750
- Recommended nose weight 70 70
For: Russia, Ukraine, Morocco, Argentina, Chile.

230
Technical data
4008-add_en_Chap09_caracteristiques-techniques_ed01-2015
For: Australia, New Zealand.
DIESEL ENGINES-
Gearboxes-
Model codes: BU...-
Transmission mode -
- Unladen weight -
- Kerb weight -
- Gross vehicle weight (GV W) -
- Gross vehicle weight (GV W) when towing -
- Gross train weight (GTW) on a 12% gradient -
- Braked trailer (within GTW limit) on a 10% or 12% gradient -
- Unbraked trailer -
- Recommended nose weight -

9
231
Technical data
4008-add_en_Chap09_caracteristiques-techniques_ed01-2015
DIESEL ENGINESe-HDi 115
GearboxesManual (6-speed)
Model codes: BU...9HD5/S 9HD5/1S9HDK/S 9HDK /1S
Transmission mode2WD4WD
- Unladen weight 1 420 1 485
- Kerb weight 1 495 1 560
- Gross vehicle weight (GV W) 2 060 2 060
- Gross vehicle weight (GV W) when towing 2 130 2 130
- Gross train weight (GTW)
on a 12% gradient 3 321 3 321
- Braked trailer (within GTW limit) on a 10% or 12% gradient 1 200 1 200
- Unbraked trailer 750 750
- Recommended nose weight 70 70
For: South Africa.

232
Technical data
4008-add_en_Chap09_caracteristiques-techniques_ed01-2015
DIESEL ENGINESe-HDi 1151.8 HDi 140
GearboxesManual (6-speed)Manual (6-speed)
Model codes: BU...9HD5/S 9HD5/1S9HDK/S 9HDK /1S6HYG
Transmission mode2WD4WD4WD
- Unladen weight 1 420 1 485 1 520
- Kerb weight 1 495 1 560 1 595
- Gross vehicle weight (GV W) 2 060 2 060 2 060
- Gross vehicle weight (GV W) when towing 2 130 2 130 2 130
- Gross train weight (GTW)
on a 12% gradient 2 745 2 745 2 745
- Braked trailer (within GTW limit) on a 10% or 12% gradient 650 650 650
- Unbraked trailer 650 650 650
- Recommended nose weight 70 70 70
For other countries of sale.
