Fitting a wheel
After changing a wheel
When using the "space-saver" spare
wheel, do not exceed a speed of
50 mph (80 km/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a P
e
uge
Ot
dealer or a qualified
workshop without delay.
Have the punctured wheel repaired and
replace it on the vehicle as soon as
possible.

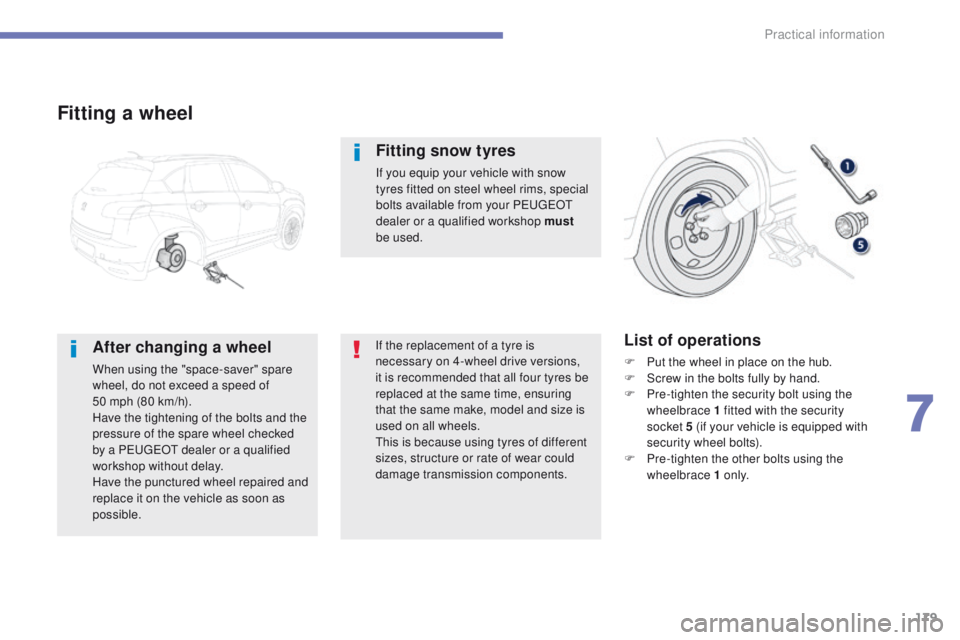

List of operations
F Put the wheel in place on the hub.
F S crew in the bolts fully by hand.
F
P
re-tighten the security bolt using the
wheelbrace 1 fitted with the security
socket
5 (if your vehicle is equipped with
security wheel bolts).
F
P
re-tighten the other bolts using the
wheelbrace 1 o n l y.
Fitting snow tyres
If you equip your vehicle with snow
tyres fitted on steel wheel rims, special
bolts available from your P
e
uge
Ot
dealer or a qualified workshop must
be
used.
If the replacement of a tyre is
necessary on 4-wheel drive versions,
it is recommended that all four tyres be
replaced at the same time, ensuring
that the same make, model and size is
used on all wheels.
th
is is because using tyres of different
sizes, structure or rate of wear could
damage transmission components.
7
Practical information
Page 182 of 389

180
4008_en_Chap07_info-pratiques_ed01-2014

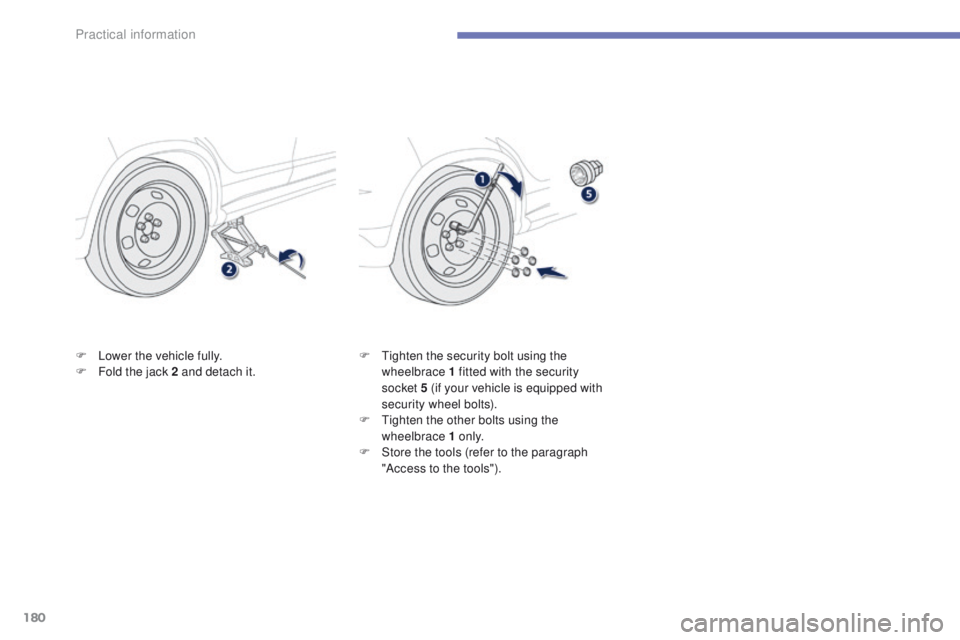

F Lower the vehicle fully.
F F old the jack 2 and detach it. F
ti ghten the security bolt using the
wheelbrace 1 fitted with the security
socket
5 (if your vehicle is equipped with
security wheel bolts).
F
t
i
ghten the other bolts using the
wheelbrace 1 o n l y.
F
S
tore the tools (refer to the paragraph
"Access to the tools").
Practical information
Page 183 of 389

181
4008_en_Chap07_info-pratiques_ed01-2014
For more information on snow chains,
contact a PeugeOt dealer or a
qualified workshop.

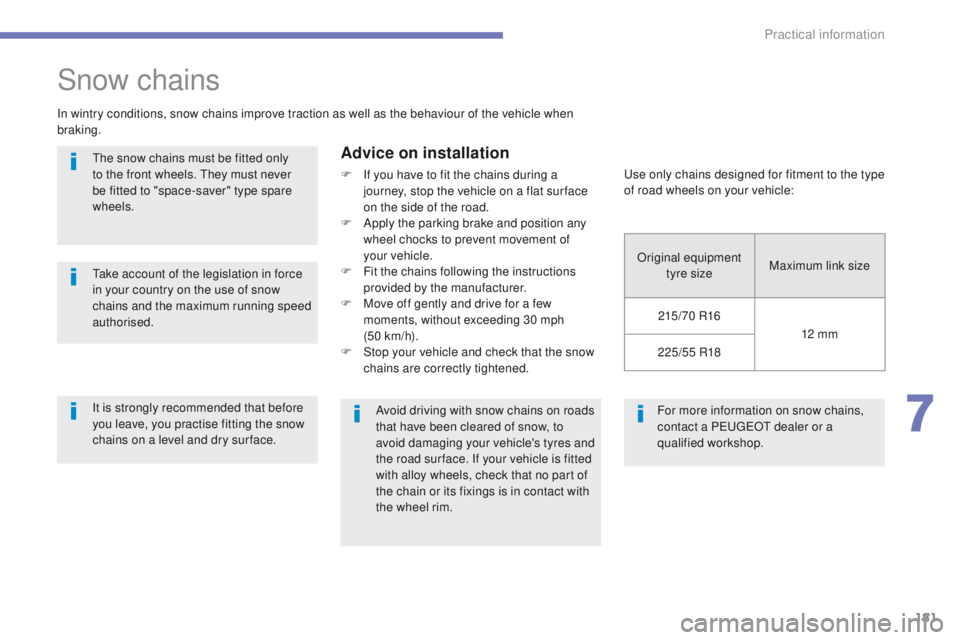

Snow chains
In wintry conditions, snow chains improve traction as well as the behaviour of the vehicle when
braking.
Advice on installation
F If you have to fit the chains during a journey, stop the vehicle on a flat sur face
on the side of the road.
F
A
pply the parking brake and position any
wheel chocks to prevent movement of
your vehicle.
F
F
it the chains following the instructions
provided by the manufacturer.
F
M
ove off gently and drive for a few
moments, without exceeding 30 mph
(50 km/h).
F
S
top your vehicle and check that the snow
chains are correctly tightened.
th
e snow chains must be fitted only
to the front wheels.
th
ey must never
be fitted to "space-saver" type spare
wheels.
ta
ke account of the legislation in force
in your country on the use of snow
chains and the maximum running speed
authorised.
Avoid driving with snow chains on roads
that have been cleared of snow, to
avoid damaging your vehicle's tyres and
the road sur face. If your vehicle is fitted
with alloy wheels, check that no part of
the chain or its fixings is in contact with
the wheel rim.us e only chains designed for fitment to the type
of road wheels on your vehicle:
Original equipment tyre size Maximum link size
215/ 70 R16 12 mm
225/55 R18
It is strongly recommended that before
you leave, you practise fitting the snow
chains on a level and dry sur face.
7
Practical information
Page 184 of 389

182
4008_en_Chap07_info-pratiques_ed01-2014
Changing a bulb
For bulbs that have alignment lugs
(H1, H7...) ensure that they are
fitted correctly for the best lighting
performance.
th
e headlamps have polycarbonate
lenses with a protective coating:
F
d
o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F
u
se a sponge and soapy water,
F
w
hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
F
D
o not touch the bulb directly with
your fingers, use lint-free cloths.
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
It is imperative to use only anti-
ultraviolet (
uV
) type bulbs in order not
to damage the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
Risk of electrocution
Replacement of the xenon bulbs
(D1S-35W) must be carried out by
a P
e
uge
Ot
dealer or a qualified
workshop.

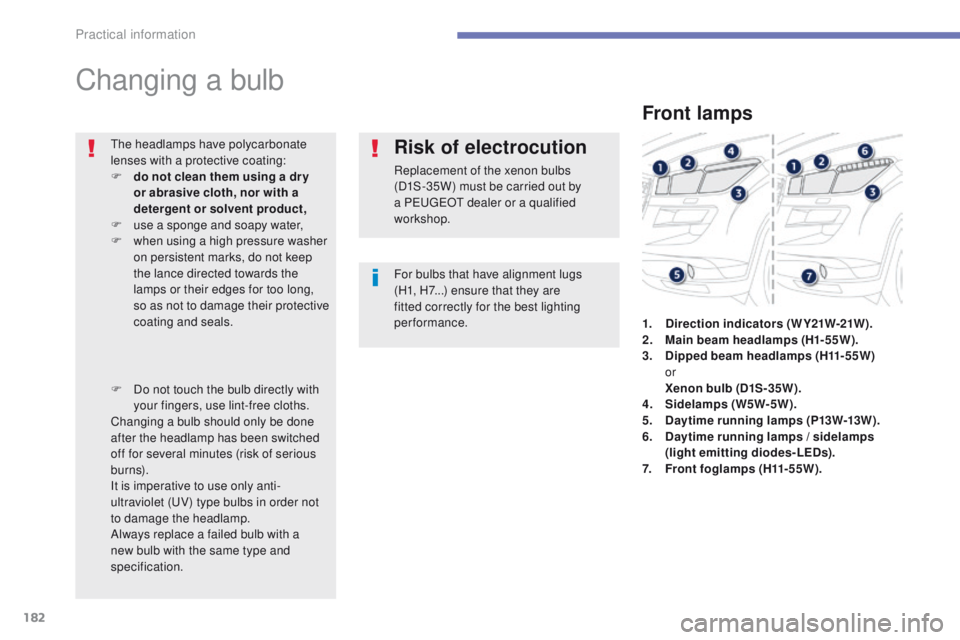

Front lamps
1. Direction indicators ( W Y21W-21W ).
2. M ain beam headlamps (H1-55W).
3.
D
ipped beam headlamps (H11-55W)
or
X
enon bulb (D1S-35W).
4.
S
idelamps (W5W-5W).
5.
D
aytime running lamps (P13W-13W).
6.
D
aytime running lamps / sidelamps
(light emitting diodes-LEDs).
7.
F
ront foglamps (H11-55W).
Practical information
Page 185 of 389

183
4008_en_Chap07_info-pratiques_ed01-2014

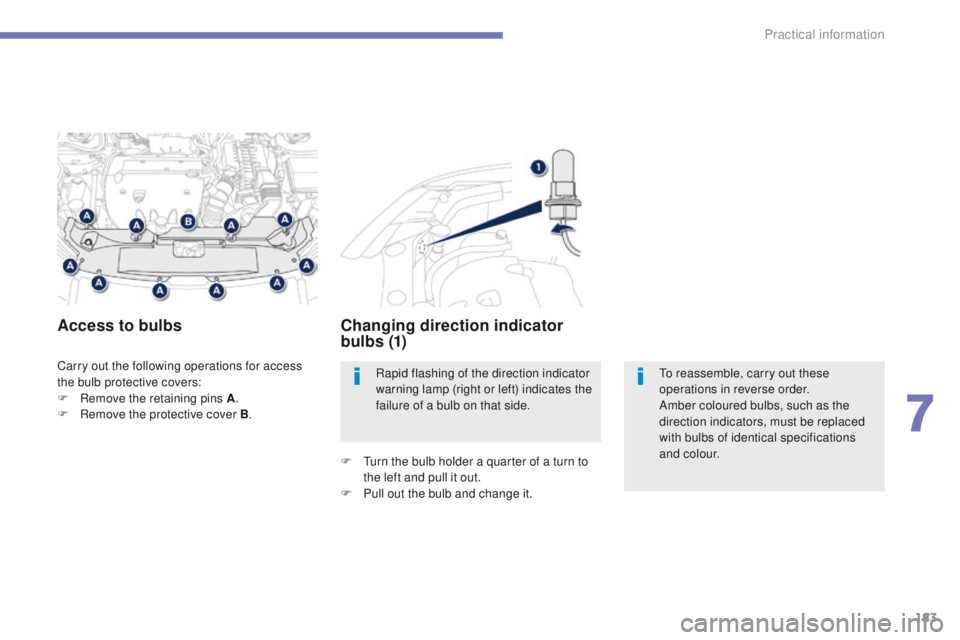

Carry out the following operations for access
the bulb protective covers:
F
R
emove the retaining pins A .
F
R
emove the protective cover B .
Access to bulbs Changing direction indicator
b u l b s (1)
F turn the bulb holder a quarter of a turn to
the left and pull it out.
F
P
ull out the bulb and change it.Rapid flashing of the direction indicator
warning lamp (right or left) indicates the
failure of a bulb on that side.
to
reassemble, carry out these
operations in reverse order.
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specifications
and colour.
7
Practical information
Page 186 of 389

184
4008_en_Chap07_info-pratiques_ed01-2014

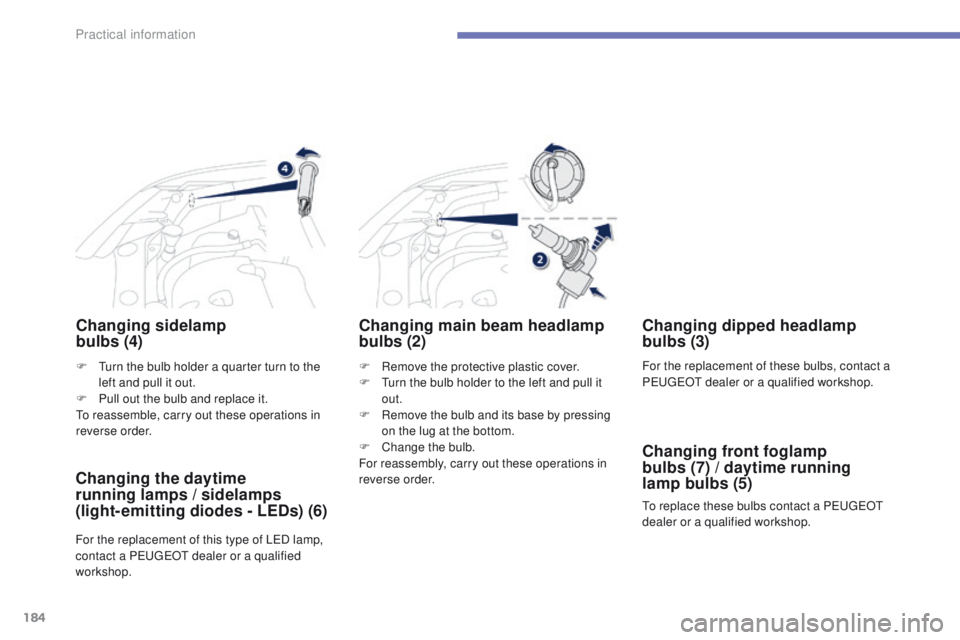

Changing sidelamp
bulbs (4)
F Remove the protective plastic cover.
F
tu rn the bulb holder to the left and pull it
out.
F
R
emove the bulb and its base by pressing
on the lug at the bottom.
F
C
hange the bulb.
For reassembly, carry out these operations in
reverse order.
Changing main beam headlamp
bulbs (2)
F turn the bulb holder a quarter turn to the left and pull it out.
F
P
ull out the bulb and replace it.
to r
eassemble, carry out these operations in
reverse order.
Changing the daytime
running lamps / sidelamps
(light- emitting diodes - LEDs) (6)
For the replacement of this type of LeD l amp,
contact a Pe ugeOt dealer or a qualified
workshop.
Changing dipped headlamp
bulbs (3)
For the replacement of these bulbs, contact a
Pe ugeOt dealer or a qualified workshop.
to r
eplace these bulbs contact a P
e
uge
Ot
dealer or a qualified workshop.
Changing front foglamp
bulbs (7) / daytime running
lamp bulbs (5)
Practical information
Page 187 of 389

185
4008_en_Chap07_info-pratiques_ed01-2014
F Push the repeater towards the rear to disengage it.
F D isconnect the repeater connector.
F
C
hange the repeater unit.
to
reassemble, carry out these operations in reverse order.
Contact a P
e
uge
Ot
dealer or a qualified workshop to obtain replacement repeaters.

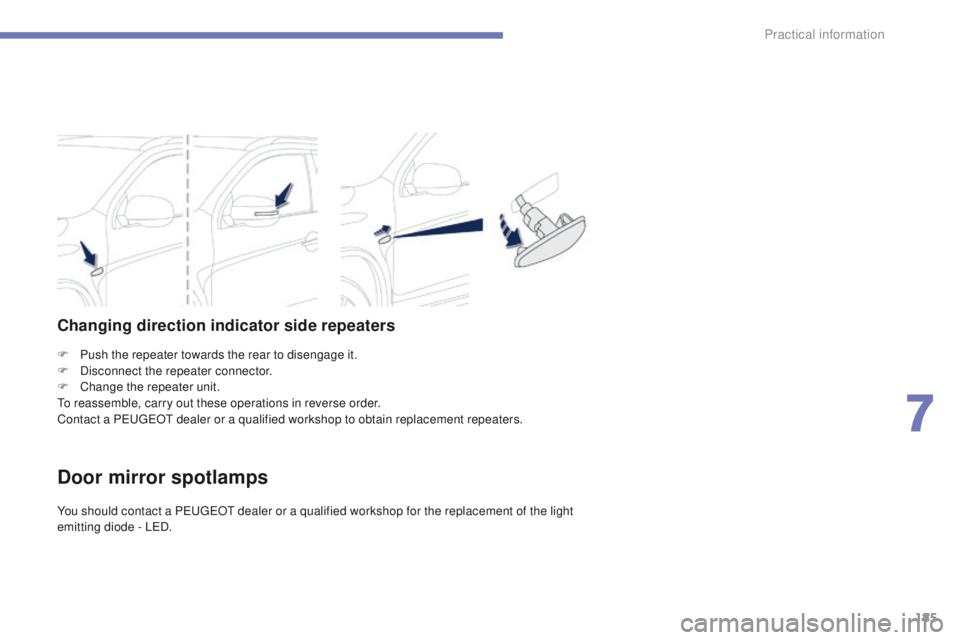

Changing direction indicator side repeaters
Door mirror spotlamps
You should contact a Pe ugeOt dealer or a qualified workshop for the replacement of the light
emitting diode - LeD .
7
Practical information
Page 188 of 389

186
4008_en_Chap07_info-pratiques_ed01-2014
1. Third brake lamp (LEDs).
2. Number plate lamps (W5W-5W).
3.
R
ear foglamp (W21W-21W) or reversing
lamp ( W16W- 16W )*.
4.
R
eversing lamp (W16W-16W).
5.
D
irection indicators (WY21W-21W).
6.
S
idelamps (P21-5W).
7.
S
idelamps / brake lamps (W21-5W).

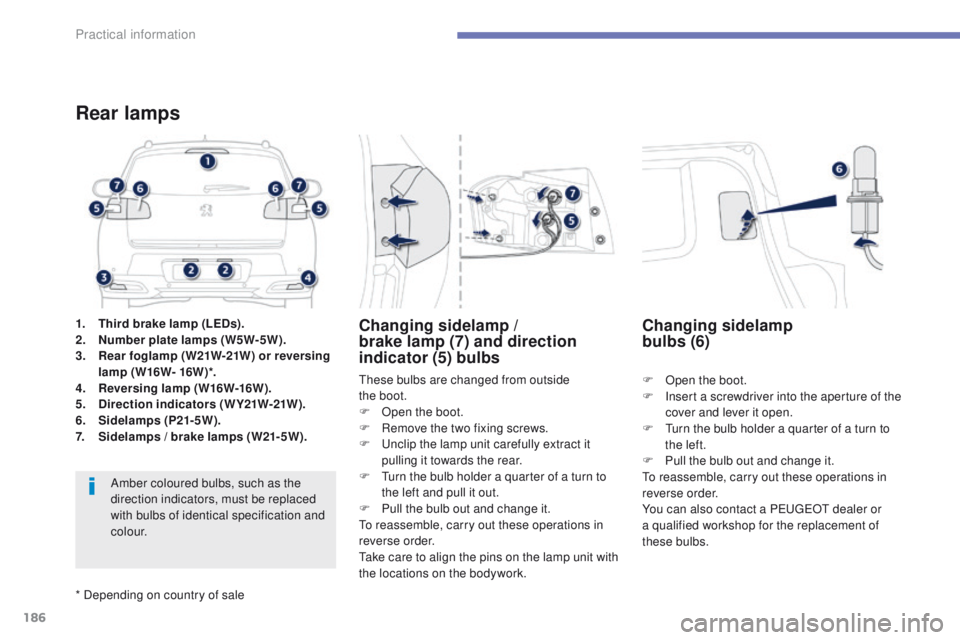

Rear lamps
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specification and
c o l o u r.
th
ese bulbs are changed from outside
the
boot.
F
O
pen the boot.
F
R
emove the two fixing screws.
F u
n
clip the lamp unit carefully extract it
pulling it towards the rear.
F tu rn the bulb holder a quarter of a turn to
the left and pull it out.
F
P
ull the bulb out and change it.
to r
eassemble, carry out these operations in
reverse order.
ta
ke care to align the pins on the lamp unit with
the locations on the bodywork.
Changing sidelamp /
brake lamp (7) and direction
indicator (5) bulbs
F Open the boot.
F
I nsert a screwdriver into the aperture of the
cover and lever it open.
F
t
u
rn the bulb holder a quarter of a turn to
the left.
F
P
ull the bulb out and change it.
to r
eassemble, carry out these operations in
reverse order.
You can also contact a P
e
uge
Ot
dealer or
a qualified workshop for the replacement of
these
bulbs.
Changing sidelamp
bulbs (6)
* Depending on country of sale
Practical information
Page 189 of 389

187
4008_en_Chap07_info-pratiques_ed01-2014

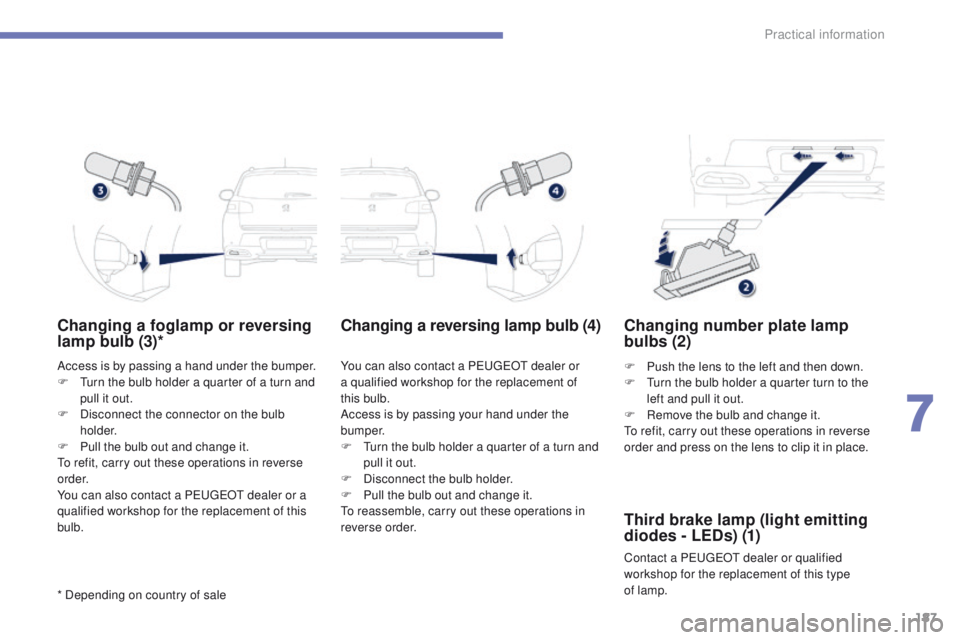

Changing a foglamp or reversing
lamp bulb (3)*
Access is by passing a hand under the bumper.
F tu rn the bulb holder a quarter of a turn and
pull it out.
F
D
isconnect the connector on the bulb
h o l d e r.
F
P
ull the bulb out and change it.
to r
efit, carry out these operations in reverse
o r d e r.
You can also contact a P
e
uge
Ot
dealer or a
qualified workshop for the replacement of this
bulb.
Changing a reversing lamp bulb (4)
You can also contact a Pe ugeOt dealer or
a qualified workshop for the replacement of
this
bulb.
Access is by passing your hand under the
b u m p e r.
F
t
u
rn the bulb holder a quarter of a turn and
pull it out.
F
D
isconnect the bulb holder.
F
P
ull the bulb out and change it.
to r
eassemble, carry out these operations in
reverse order.
Changing number plate lamp
bulbs (2)
F Push the lens to the left and then down.
F tu rn the bulb holder a quarter turn to the
left and pull it out.
F
R
emove the bulb and change it.
to r
efit, carry out these operations in reverse
order and press on the lens to clip it in place.
Third brake lamp (light emitting
diodes - LEDs) (1)
Contact a Pe ugeOt dealer or qualified
workshop for the replacement of this type
of
lamp.
* Depending on country of sale
7
Practical information
Page 190 of 389

188
4008_en_Chap07_info-pratiques_ed01-2014

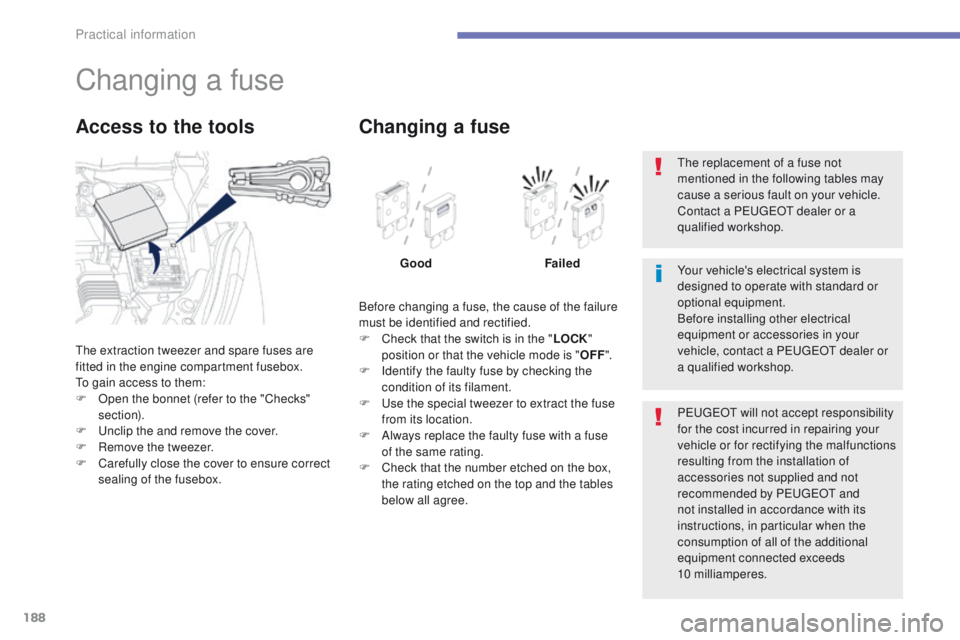

Changing a fuse
the extraction tweezer and spare fuses are
fitted in the engine compartment fusebox.
to g
ain access to them:
F
O
pen the bonnet (refer to the "Checks"
section).
F
u
n
clip the and remove the cover.
F
R
emove the tweezer.
F
C
arefully close the cover to ensure correct
sealing of the fusebox.
Access to the tools
Before changing a fuse, the cause of the failure
must be identified and rectified.
F
C
heck that the switch is in the " LOCK"
position or that the vehicle mode is " OFF".
F
I
dentify the faulty fuse by checking the
condition of its filament.
F
u
s
e the special tweezer to extract the fuse
from its location.
F
A
lways replace the faulty fuse with a fuse
of the same rating.
F
C
heck that the number etched on the box,
the rating etched on the top and the tables
below all agree.
Changing a fuse
Good Failed
P
e
uge
Ot
will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of
accessories not supplied and not
recommended by P
e
uge
Ot
and
not installed in accordance with its
instructions, in particular when the
consumption of all of the additional
equipment connected exceeds
10 milliamperes. Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a P
e
uge
Ot
dealer or
a qualified workshop.
th
e replacement of a fuse not
mentioned in the following tables may
cause a serious fault on your vehicle.
Contact a P
e
uge
Ot
dealer or a
qualified workshop.
Practical information
