PEUGEOT 4008 2017 Owners Manual

129
4008_en_Chap05_Eclairage-et-visibilite_ed01-2016

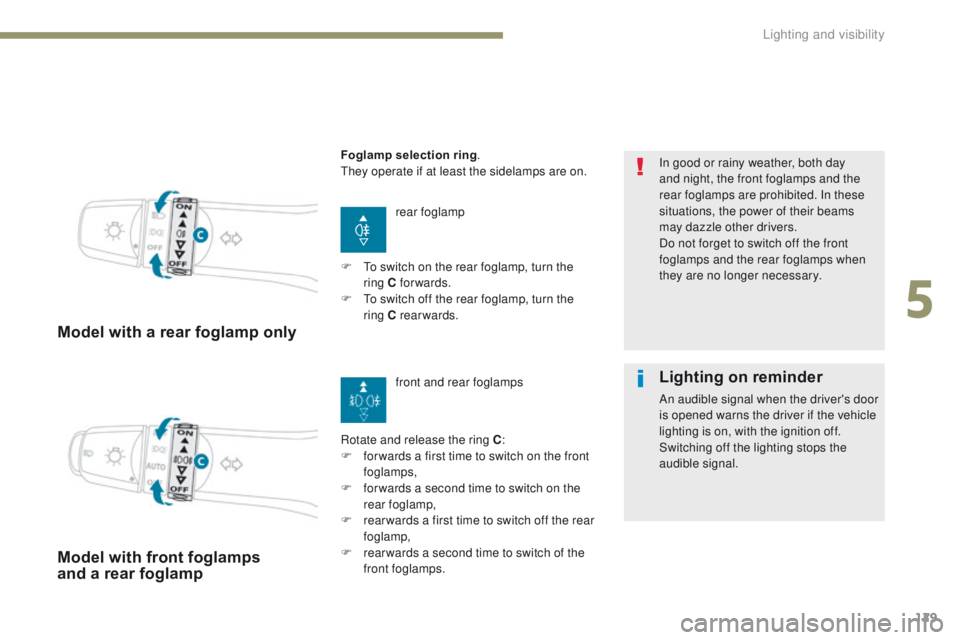

Model with a rear foglamp only
rear foglamp
Rotate and release the ring C :
F

f

or wards a first time to switch on the front
foglamps,
F

f

or wards a second time to switch on the
rear foglamp,
F

r

ear wards a first time to switch off the rear
foglamp,
F

r

ear wards a second time to switch of the
front foglamps. In good or rainy weather, both day
and night, the front foglamps and the
rear foglamps are prohibited. In these
situations, the power of their beams
may dazzle other drivers.
Do not forget to switch off the front
foglamps and the rear foglamps when
they are no longer necessary.
Model with front foglamps
and a rear foglamp
Foglamp selection ring
.th
ey operate if at least the sidelamps are on.
F
t
o s
witch on the rear foglamp, turn the
ring C forwards.
F
t
o s
witch off the rear foglamp, turn the
ring C rearwards.
front and rear foglamps
Lighting on reminder
An audible signal when the driver's door
is opened warns the driver if the vehicle
lighting is on, with the ignition off.
Switching off the lighting stops the
audible signal.
5
Lighting and visibility

130
4008_en_Chap05_Eclairage-et-visibilite_ed01-2016

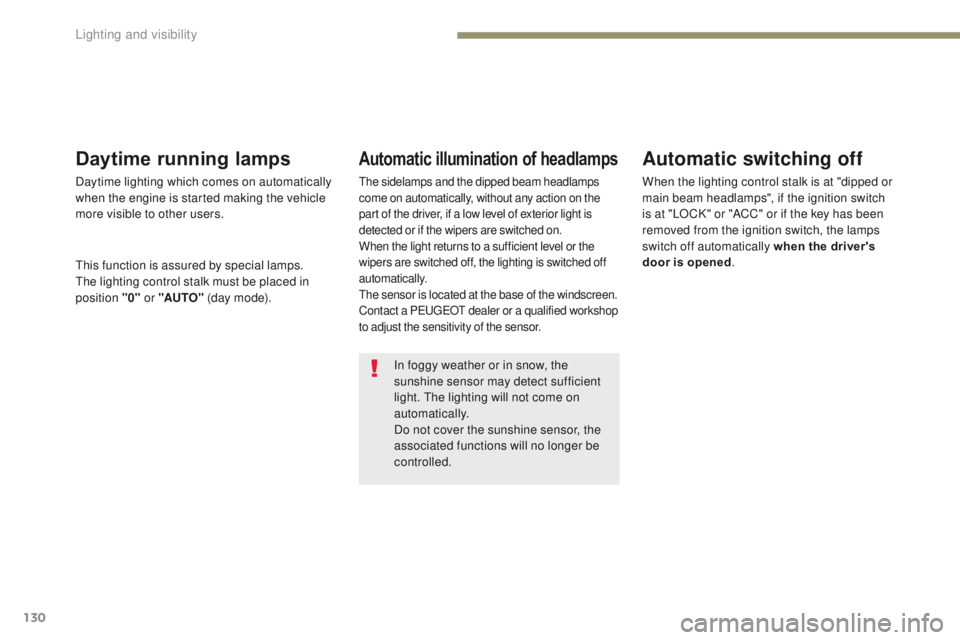

In foggy weather or in snow, the
sunshine sensor may detect sufficient
light. t
h
e lighting will not come on
automatically.
Do not cover the sunshine sensor, the
associated functions will no longer be
controlled.
Automatic switching off
When the lighting control stalk is at "dipped or
main beam headlamps", if the ignition switch
is at "LOCK" or "ACC" or if the key has been
removed from the ignition switch, the lamps
switch off automatically when the driver's
door is opened .
Daytime running lamps
Daytime lighting which comes on automatically
when the engine is started making the vehicle
more visible to other users.
th

is function is assured by special lamps.
th

e lighting control stalk must be placed in
position "0" or "AUTO" (d ay m o d e).
Automatic illumination of headlamps
the sidelamps and the dipped beam headlamps
come on automatically, without any action on the
part of the driver, if a low level of exterior light is
detected or if the wipers are switched on.
When the light returns to a sufficient level or the
wipers are switched off, the lighting is switched off
automatically.
th

e sensor is located at the base of the windscreen.
Contact a P
e

uge
Ot
dealer or a qualified workshop
to adjust the sensitivity of the sensor.
Lighting and visibility

131
4008_en_Chap05_Eclairage-et-visibilite_ed01-2016

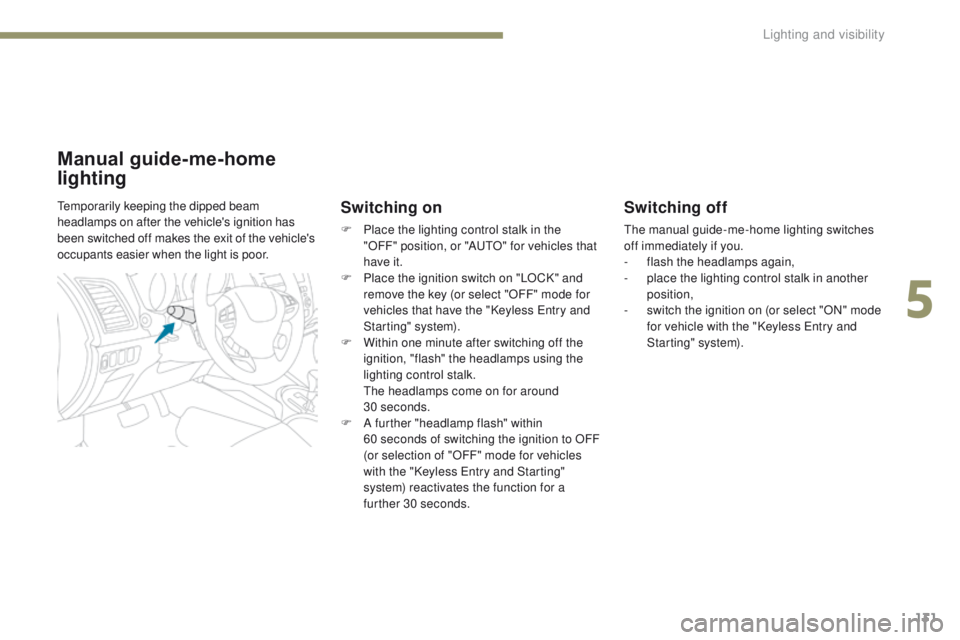

Switching off
the manual guide-me-home lighting switches
off immediately if you.
-
f
lash the headlamps again,
-

p
lace the lighting control stalk in another
position,
-

s
witch the ignition on (or select "ON" mode
for vehicle with the "Keyless
e
n
try and
Starting" system).
Manual guide-me-home
lighting
Switching on
F Place the lighting control stalk in the "OFF" position, or "Au tO " for vehicles that
have


it.
F

P
lace the ignition switch on "LOCK" and
remove the key (or select "OFF" mode for
vehicles that have the "Keyless
e
n
try and
Starting" system).
F

W
ithin one minute after switching off the
ignition, "flash" the headlamps using the
lighting control stalk.


t
h
e headlamps come on for around
30


seconds.
F

A
further "headlamp flash" within
60
seconds of switching the ignition to OFF
(or selection of "OFF" mode for vehicles
with the "Keyless
e
n
try and Starting"
system) reactivates the function for a
further 30 seconds.
tem

porarily keeping the dipped beam
headlamps on after the vehicle's ignition has
been switched off makes the exit of the vehicle's
occupants easier when the light is poor.
5
Lighting and visibility

132
4008_en_Chap05_Eclairage-et-visibilite_ed01-2016

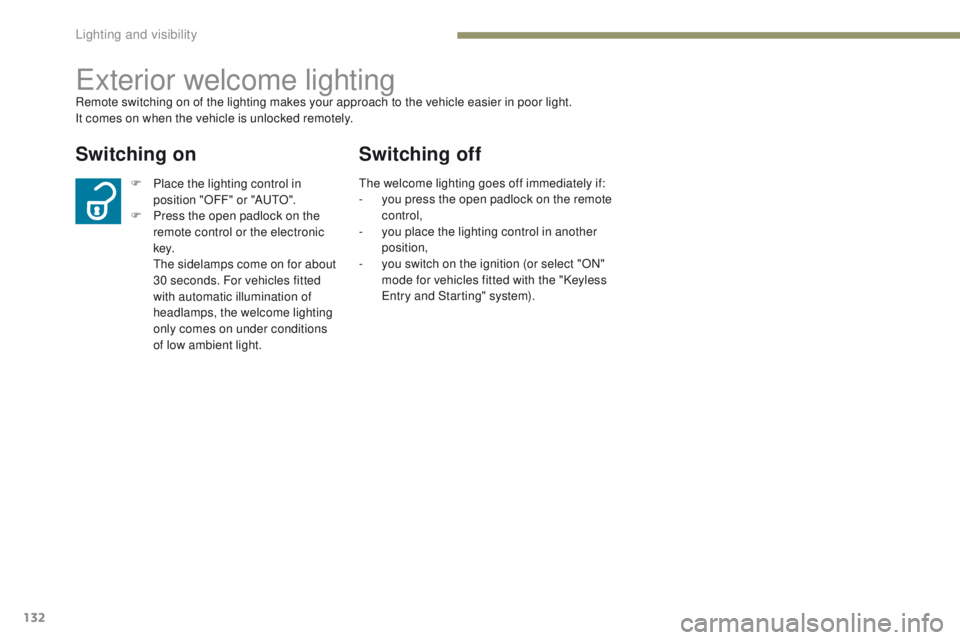

exterior welcome lightingRemote switching on of the lighting makes your approach to the vehicle easier in poor light.
It comes on when the vehicle is unlocked remotely.
Switching on
F Place the lighting control in position "OFF" or "Au tO ".
F

P
ress the open padlock on the
remote control or the electronic
key.


t
h
e sidelamps come on for about
30 seconds. For vehicles fitted
with automatic illumination of
headlamps, the welcome lighting
only comes on under conditions
of low ambient light.
Switching off
the welcome lighting goes off immediately if:
- y ou press the open padlock on the remote
control,
-

y
ou place the lighting control in another
position,
-

y
ou switch on the ignition (or select "ON"
mode for vehicles fitted with the "Keyless
en

try and Starting" system).
Lighting and visibility

133
4008_en_Chap05_Eclairage-et-visibilite_ed01-2016

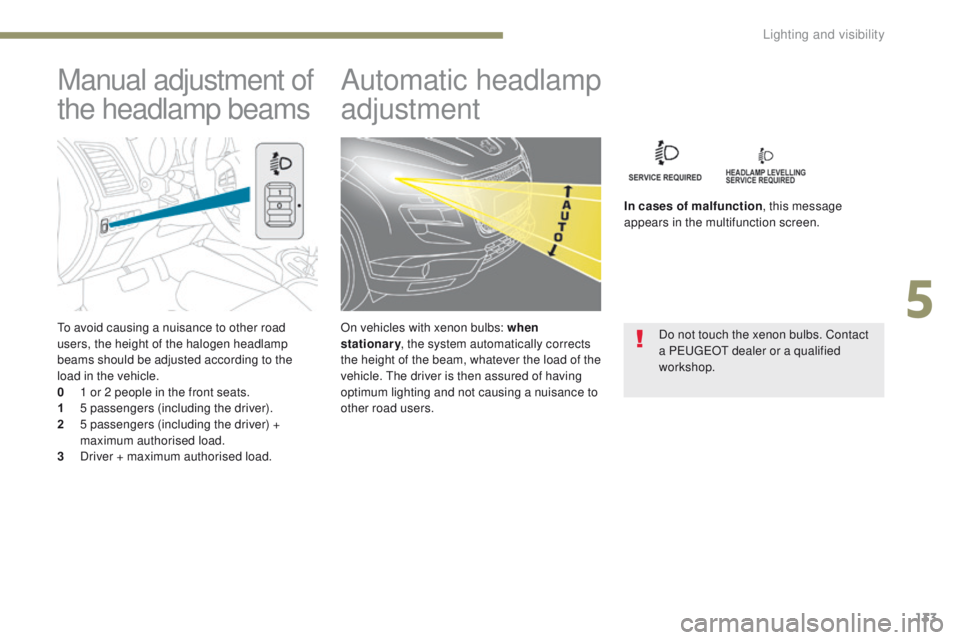

to avoid causing a nuisance to other road
users, the height of the halogen headlamp
beams should be adjusted according to the
load in the vehicle.
0
1 o
r 2 people in the front seats.
1

5
passengers (including the driver).
2

5
passengers (including the driver) +
maximum authorised load.
3

D
river + maximum authorised load.
Manual adjustment of
the headlamp beams Automatic headlamp
adjustment
In cases of malfunction
, this message
appears in the multifunction screen.
Do not touch the xenon bulbs. Contact
a P
e

uge
Ot
dealer or a qualified
workshop.
On vehicles with xenon bulbs: when
stationary
, the system automatically corrects
the height of the beam, whatever the load of the
vehicle.
t
h

e driver is then assured of having
optimum lighting and not causing a nuisance to
other road users.
5
Lighting and visibility

134
4008_en_Chap05_Eclairage-et-visibilite_ed01-2016

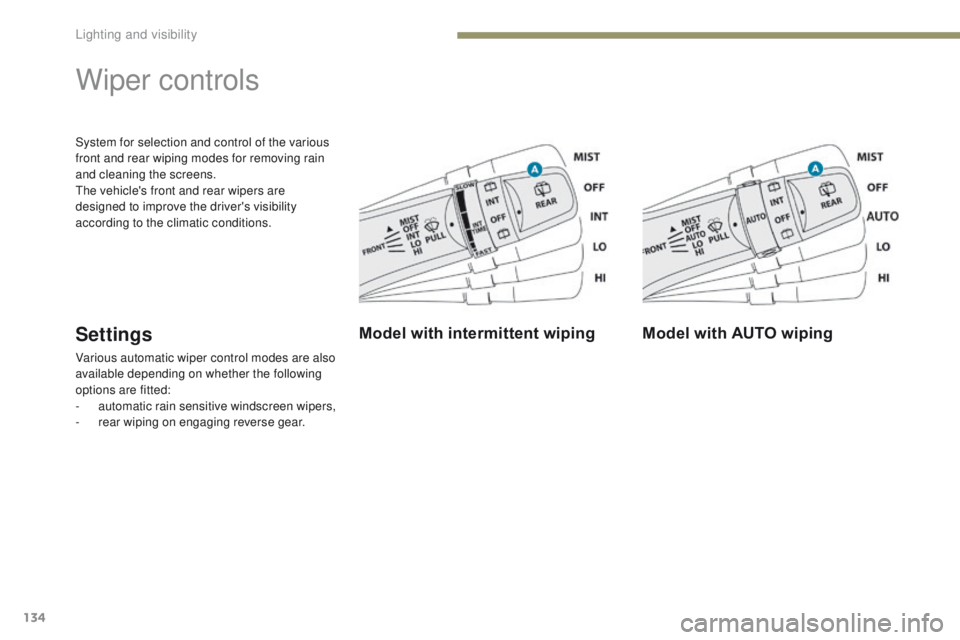

System for selection and control of the various
front and rear wiping modes for removing rain
and cleaning the screens.
th
e vehicle's front and rear wipers are
designed to improve the driver's visibility
according to the climatic conditions.
Wiper controls
Settings
Various automatic wiper control modes are also
available depending on whether the following
options are fitted:
-
a

utomatic rain sensitive windscreen wipers,
-
r

ear wiping on engaging reverse gear.
Model with intermittent wiping Model with AUTO wiping
Lighting and visibility

135
4008_en_Chap05_Eclairage-et-visibilite_ed01-2016
Manual controls
Windscreen wipers
B. intermittent operation or rain sensor
sensitivity adjustment ring.
Windscreen wash
Pull the wiper stalk towards you. th e
windscreen wash then the wipers operate for a
set time.
th

e headlamp wash is also activated if the
dipped beam headlamps are on .
Headlamp wash
Press the end of the lighting stalk to activate
the headlamp wash, when the dipped beam
headlamps are on.
single wipe.
park.
intermittent (the speed can be set
manually).
or
automatic rain sensitive wipers
(the speed can be set manually).
slow.
fast.
A.


w

iping speed selection stalk:
You can increase or decrease:
-
t

he wiping frequency when the intermittent
mode is active,
- t
he sensitivity of the rain sensor when the
automatic mode is active.
-

"

+": high sensitivity.
-
"

-": low sensitivity.
to r

educe the consumption of
screenwash fluid, the headlamp
washers only operate with the first
operation of the screenwash.
5
Lighting and visibility

136
4008_en_Chap05_Eclairage-et-visibilite_ed01-2016

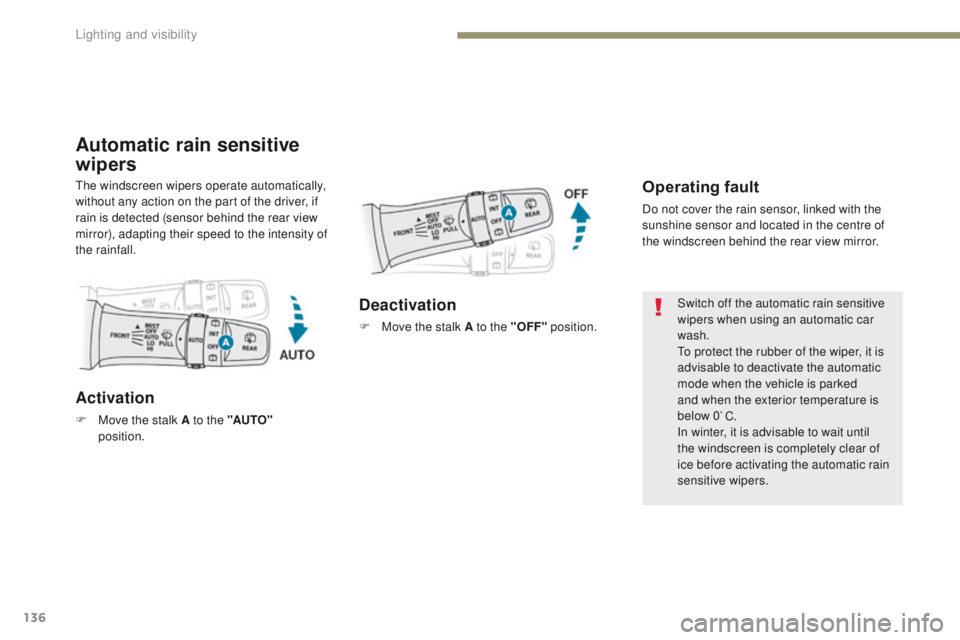

Automatic rain sensitive
wipers
Operating fault
Do not cover the rain sensor, linked with the
sunshine sensor and located in the centre of
the windscreen behind the rear view mirror.
Activation
F Move the stalk A to the "AUTO"
position. Switch off the automatic rain sensitive
wipers when using an automatic car
wash.
to p

rotect the rubber of the wiper, it is
advisable to deactivate the automatic
mode when the vehicle is parked
and when the exterior temperature is
below 0° C.
In winter, it is advisable to wait until
the windscreen is completely clear of
ice before activating the automatic rain
sensitive wipers.
Deactivation
F Move the stalk A to the "OFF" position.
the

windscreen wipers operate automatically,
without any action on the part of the driver, if
rain is detected (sensor behind the rear view
mirror), adapting their speed to the intensity of
the rainfall.
Lighting and visibility

137
4008_en_Chap05_Eclairage-et-visibilite_ed01-2016

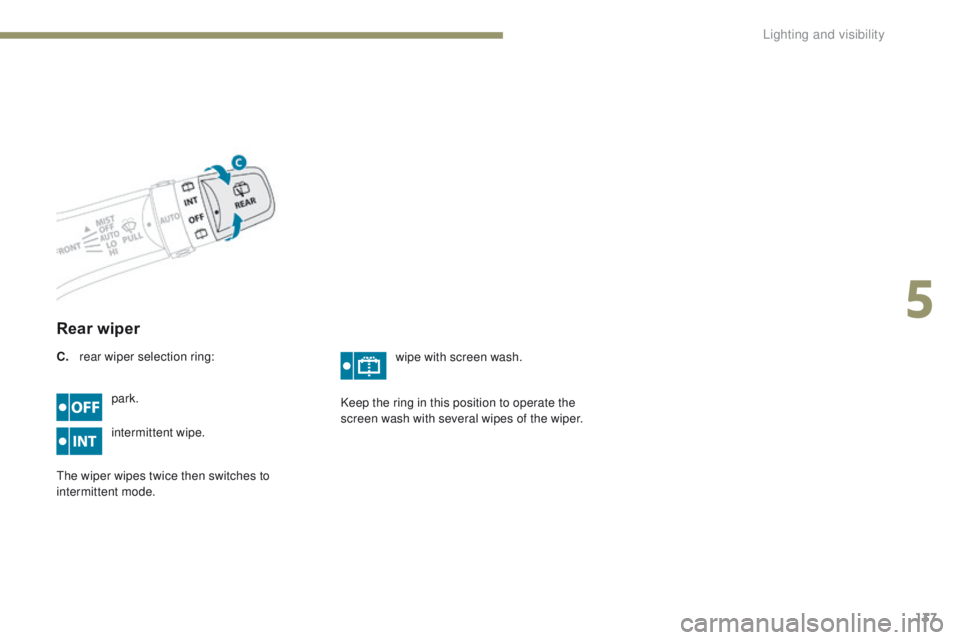

Rear wiper
park.
intermittent wipe.
th

e wiper wipes twice then switches to
intermittent mode. wipe with screen wash.
Keep the ring in this position to operate the
screen wash with several wipes of the wiper.
C.


r

ear wiper selection ring:
5
Lighting and visibility

138
4008_en_Chap05_Eclairage-et-visibilite_ed01-2016

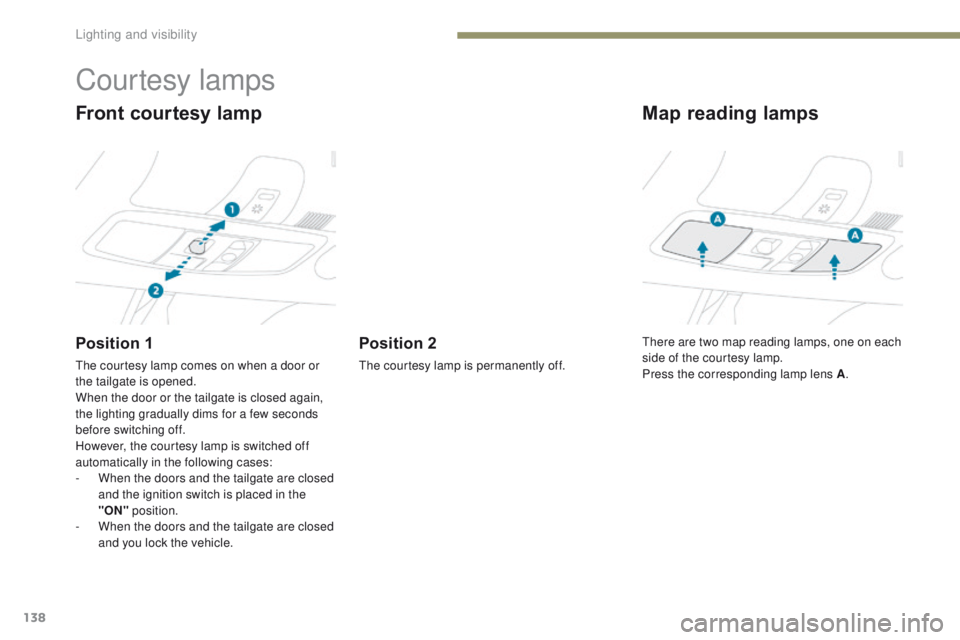

Courtesy lamps
Front courtesy lamp
Position 1
the courtesy lamp comes on when a door or
the tailgate is opened.
When the door or the tailgate is closed again,
the lighting gradually dims for a few seconds
before switching off.
However, the courtesy lamp is switched off
automatically in the following cases:
-
W
hen the doors and the tailgate are closed
and the ignition switch is placed in the
"ON" position.
-

W
hen the doors and the tailgate are closed
and you lock the vehicle.
Position 2
the courtesy lamp is permanently off.
th
ere are two map reading lamps, one on each
side of the courtesy lamp.
Press the corresponding lamp lens A .
Map reading lamps
Lighting and visibility
