ECO mode Peugeot 406 C 2003 Owner's Manual

24-03-2003
This enables the following information to be displayed: -the time,
-t he date,
- the outside temperature (the ¡C symbol flashes when there is a risk of ice),
- the radio displays,
- the status of the doors. The display shows you whether a door, the boot or the bonnet is open and if the fuel filler cap is missing.
- the warning messages (e.g. ''battery low'') or information messages (e.g. "top
up fuel tank''), displayed temporarily, can be cleared by pressing button 1or
2 ,
- the trip computer.
Setting the parameters Press button 1for two seconds to access the settings. The information flashes
to show it is ready to be modified.Then, individual presses on button 1 allow you to scroll through the various data
in the following sequence: - language in which the information is displayed,
- unit of distance (kms or miles),
- unit of temperature (Celsius or Fahrenheit),
- time format (12 then 24 hour mode)
- hour,
- minutes,
- year,
- month,
- day,
Pressing button 2allows you to change the information selected. Maintain the
pressure for rapid scrolling. After ten seconds without action, the display returns to the main screen and the modified data are recorded.Display B
YOUR 406 COUPE IN DETAIL
114

24-03-2003
YOUR 406 COUPE IN DETAIL53

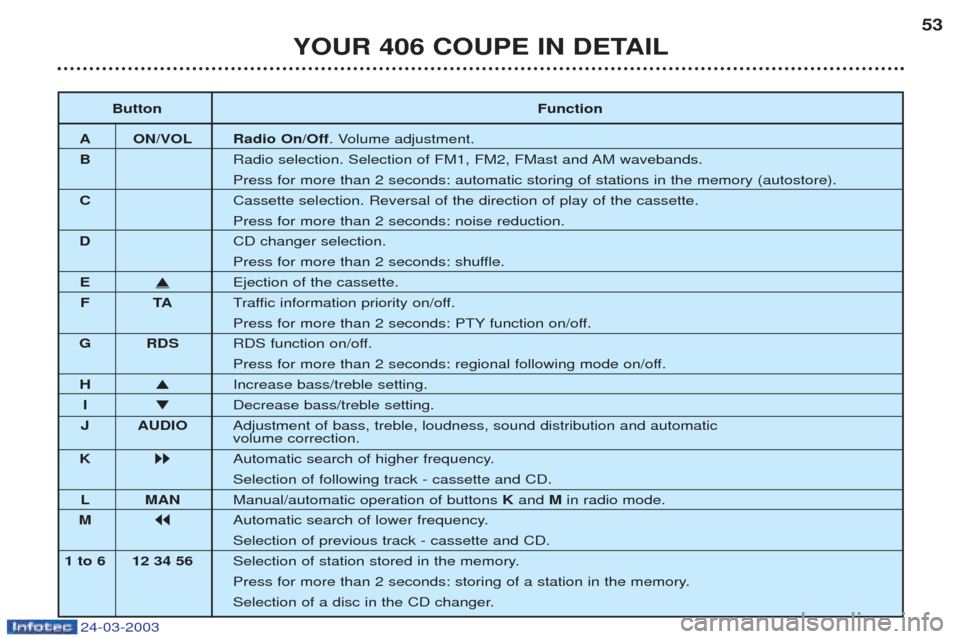

Button Function
A ON/VOL Radio On/Off . Volume adjustment.
B Radio selection. Selection of FM1, FM2, FMast and AM wavebands. Press for more than 2 seconds: automatic storing of stations in the memory (autostore).
C Cassette selection. Reversal of the direction of play of the cassette.Press for more than 2 seconds: noise reduction.
D CD changer selection.
Press for more than 2 seconds: shuffle.
E ▲
Ejection of the cassette.
FT ATraffic information priority on/off.
Press for more than 2 seconds: PTY function on/off.
G RDS RDS function on/off.
Press for more than 2 seconds: regional following mode on/off.
H ▲ Increase bass/treble setting.
I ▼ Decrease bass/treble setting.
J AUDIO Adjustment of bass, treble, loudness, sound distribution and automatic volume correction.
K Automatic search of higher frequency. Selection of following track - cassette and CD.
L MAN Manual/automatic operation of buttons Kand Min radio mode.
M Automatic search of lower frequency.Selection of previous track - cassette and CD.
1 to 6 12 34 56 Selection of station stored in the memory.
Press for more than 2 seconds: storing of a station in the memory.
Selection of a disc in the CD changer.

24-03-2003
GENERAL FUNCTIONS On/offWith the ignition key in the ACCESSORIES or IGNITION position, press button Ato switch the set on or off.
The set can operate for 30 minutes without the vehicle ignition being switched on.
Anti-theft systemThe audio system is coded in such a way that it can operate only on your vehicle. It would not function if fitted to another vehicle. The anti-theft system is automatic and requires no action on your part. ADJUSTING THE VOLUME Turn button Ato increase or decrease the volume.
AUDIO SETTINGS Press the "AUDIO"button several times in succession to access the bass (BASS), treble(TREB), loudness
(LOUD), fader(FAD) , balance (BAL)and the automatic volume correction.
Exit from audio mode is automatic after a few seconds without pressing any button, or by pressing the " AUDIO " button after configuration of the automatic volume correction.
Note: bass and treble settings are specific to each source. It is possible to set them differently for radio, cas-
sette and CD changer.
YOUR 406 COUPE IN DETAIL
54

24-03-2003
Regional following modeWhen they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regional following mode you can keep listening to the same programme. Press the "RDS"button for more than two seconds to switch the function on or off.
PTY function This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock etc.). With FM selected, press the "TA"button for two seconds to switch this function on or off.
To search for a PTYprogramme:
- select the PTYfunction,
- briefly press button Kor Mto scroll down the list of the various types of pro-
grammes offered.
- when the programme of your choice is displayed, keep one of the buttons Kor Mpressed for two seconds to carry out an
automatic search (after an automatic search the PTYfunction is switched off).
In PTY mode, the different types of programmes can be stored in the
memory. To do this, press the preselection buttons 1to 6for more
than two seconds. To recall the type of programme stored in the
memory, briefly press the corresponding button.
EON system
This connects stations which are part of the same network. It allows the broadcast of traffic information, by a station that is part of the same network as the station to which you are listening.
This service is available when you have selected the TA traffic information programme or the PTYfunction.
YOUR 406 COUPE IN DETAIL 59

24-03-2003
CASSETTE Selecting cassette modeWhen a cassette is inserted, the cassette player will start automatically. If a cassette is already inserted, press button C.
Ejecting the cassette Press button Eto eject the cassette from the player.
Direction of play
The player will play sides 1 and 2 of the cassette alternately, by automatically reversing the direction of play at the end of a
side. To manually reverse the direction of play, press button C.
Selecting a track on a cassette (blank search) Press button Kto select the following track.
Press button Mto return to the start of the current track or to select the previous
track.
Fast forward/rewindPress and hold button Kor Mto fast forward or rewind the cassette. At the end of the fast forward/rewind, the set plays the
current side. Noise reduction (Dolby B NR system) Press button Cfor more than two seconds to switch the function on or off.
Dolby noise reduction manufactured under licence from Dolby Laboratories Licensing Corporation "Dolby" and the double D symbol are trade marks of Dolby Laboratories Licensing Corporation. Recommendations for the use of cassettes - Use good quality cassettes.
-A void using cassettes of a duration of more than 90 minutes.
- Never expose the cassettes to heat or direct sunlight.
- If necessary, tighten the tape before inserting the cassette into the player.
- Clean the play heads regularly using a damp-type cleaning cassette.
YOUR 406 COUPE IN DETAIL
60

24-03-2003
CD CHANGER Selecting CD changer modePress button D.
Selecting a disc Press one of the buttons 1to 6to select the corresponding disc.
Selecting a track Press button Kto select the following track.
Press button Mto return to the start of the current track or to select the previous
track.
Accelerated playPress and hold button Kor Mfor forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released. Shuffle
When the CD changer is selected, keep button Dpressed for two seconds. The tracks will be played in ran-
dom sequence. Pressing button D again for two seconds returns you to normal play.
YOUR 406 COUPE IN DETAIL 61

24-03-2003
YOUR 406 COUPE IN DETAIL63
Button Function
A ON/VOL Radio On/Off . Volume adjustment.
B Radio selection. Selection of FM1, FM2, FMast and AM wavebands. Press for more than 2 seconds: automatic storing of stations in the memory (autostore).
C CD selection.
Press for more than 2 seconds: shuffle.
D CD changer selection.
Press for more than 2 seconds: shuffle.
E ▲ Ejection of the CD.
FT ATraffic information priority on/off.
Press for more than 2 seconds: PTY function on/off.
G RDS RDS function on/off.
Press for more than 2 seconds: regional following mode on/off.
H ▲ Increase bass/treble setting.
I ▼ Decrease bass/treble setting.
J AUDIO Selection of bass, treble, loudness, sound distribution and automatic volume correction.
K Automatic search of higher frequency. Selection of following CD track.
L MAN Manual/automatic operation of buttons K and M in radio mode.
M Automatic search of lower frequency.Selection of previous CD track.
1 to 6 12 34 56 Selection of station stored in the memory.
Press for more than 2 seconds: storing of a station in the memory.
Selection of a disc in the CD changer.

24-03-2003
YOUR 406 COUPE IN DETAIL
64
GENERAL FUNCTIONS On/off With the ignition key in the ACCESSORIES or IGNITION position, press button Ato switch the set on or
off.The set can operate for 30 minutes without the vehicle ignition being switched on.
ANTI-THEFT SYSTEMThe audio system is coded in such a way that it can operate only on your vehicle. It would not function if fitted to another vehicle. The anti-theft system is automatic and requires no action on your part. ADJUSTING THE VOLUME Turn button Ato increase or decrease the volume of the set.
Note: If you have a telephone fitted with a "mute"signal output connected to the set, the set will automatically
change to "mute"when the telephone is used.
AUDIO SETTINGS Press the "AUDIO"button several times in succession to access the bass (BASS), treble(TREB), loudness
(LOUD), fader(FAD) , balance (BAL)and the automatic volume correction.
Exit from audio mode is automatic after a few seconds without pressing any button, or by pressing the "AUDIO" button after configuration of the automatic volume correction.
Note: the bass and treble settings are specific to each source. It is possible to set them differently for radio,
CD, or CD changer.

24-03-2003
YOUR 406 COUPE IN DETAIL
68
RDS Using the RDS (Radio Data System) function on FM Radio Data System allows you to continue listening to the same station, whatever frequency it is using for the region you are going through. Briefly press the "RDS"button to switch the function on or off.
The display will show: - "RDS" if the function is selected.
- "(RDS)" if the function is selected but not available.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best reception and which is transmitting the same programme. Tr affic information programme
Press the "TA"button to switch the function on or off.
The display will show: - "TA" if the function is selected,
- "(TA)" if the function is selected but not available.
Any traffic information flash will be given priority, whatever source is in use (radio, CD or CD changer). If you wish to interrupt a message, press the "TA"button; this switches the function off.
Note: the volume of traffic information announcements is independent of the volume of normal radio listening. You can adjust it using the volume button. The setting will be stored and will be used when the next messages are broadcast. Regional following mode When they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regional following mode you can keep listening to the same programme.
Press the "RDS" button for more than two seconds to switch the function on or off.

24-03-2003
YOUR 406 COUPE IN DETAIL69
PTY function This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock etc.). With FM selected, press the "TA"button for two seconds to switch this function on or off.
To search for a PTYprogramme:
- select the PTYfunction,
- briefly press button Kor Mto scroll down the list of the various types of pro-
grammes offered.
- when the programme of your choice is displayed, keep button Kor Mpressed for two seconds to carry out an automatic
search (after an automatic search the PTYfunction is switched off).
In PTY mode the different types of programmes can be stored in the
memory. To do this, press the preselection buttons 1to 6for more
than two seconds. To recall the type of programme stored in the
memory, briefly press the corresponding button.
EON system
This connects stations which are part of the same network. It allows the broadcast of traffic information, by a station that is part of the same network as the station to which you are listening.
This service is available when you have selected the TA traffic information programme or the PTYfunction.
