oil filter Peugeot 406 C 2003 Owner's Manual

24-03-2003
80,000 (120 000) 100,000 (150 000) 120,000 (180 000) 140,000 (210 000) 160,000 (240 000)MILES (KM) 20,000 (30 000) 40,000 (60 000) 60,000 (90 000)
These fixed operations are carried out with
synthetic based oil; Fuel Economy oil
or synthetic oil may also be used.
* Whichever comes first. Intermediate visit.
THE MAINTENANCE CYCLE FOR YOUR 406 COUPE PETROL ENGINE
V6 24V Petrol injection Engine : Service every 20,000 miles (30 000 km) or 2 years
1st service at 6,000 miles
(10 000 km) or 6 months*. This is necessary
in order to benefit
from the warranty.
+ replacement of air filter
+ replacement of fuel filter
+ replacement of air filter
+ replacement of fuel filter
MAINTENANCE OF YOUR 406 COUPE 21

24-03-2003
These fixed operations are carried out with synthetic oil.
W arning : only use 5W 40 oil.
* Whichever comes first. Intermediate visit.
MILES (KM) 12,000 (20 000) 24,000 (40 000) 36,000 (60 000) 48,000 (80 000)
60,000 (100 000) 72,000 (120 000) 84,000 (140 000) 96,000 (160 000) 108,000 (180 000)
THE MAINTENANCE CYCLE FOR YOUR 406 COUPE TURBO DIESEL HDI ENGINE
2.2 litre 16V Turbo Diesel HDI engine: service every 12,000 miles (20 000 km) or 2 years
1st service at 6,000 miles
(10,000 km) or 6 months*. This is necessary
in order to benefit from the warranty
+ maintenance of particulate
emission filter
MAINTENANCE OF YOUR 406 COUPE
22

24-03-2003
MAINTENANCE OF YOUR 406 COUPE23

All driving conditions. oArduous conditions. * According to destination.
A
AND C SERVICE LEVELS AND THE INTERMEDIATE VISIT
- Oil filter- Fuel filter* (Petrol)- Fuel filter element (diesel).- Air filter element- Spark plugs (petrol)
- Engine oil- Bleed fuel filter (diesel)
- Engine oil (check + top-up)- Manual gearbox oil (check + top-up)- Battery (check + top-up) if cap is removable- Screen wash front/rear (check + top-up)- Coolant (check + top-up)- Brake fluid (check + top-up)- Power steering fluid (check + top up according to specification)- Operation of lights and indicators- Condition of glass, headlamp and light lenses and mirrors- Horn- Windscreen washer jets-Condition of wiper blades- Condition and tension of the ancillary drive belts- Handbrake- Condition of hydraulic circuits (hoses and covers)- Condition of rubber boots and gaiters- Brake pads o- Play in hubs, link rods, ball joints, flexible mountings- Shock absorbers-Rear drum brake lining wear- Condition and pressure of tyres (including spare wheel)- Emission control check as per current legislation (petrol)- Smoke opacity (diesel)- Passenger compartment filter (according to specification) o-Visual check of the whole vehicle
DRAIN/REFILL
REPLACE
LEVEL
CHECK

ROAD TEST
- Courtesy vehicle
SERVICE*
LevelOperations Description of operation 1st Service
ACIntermediate

24-03-2003
DIESEL
DIESEL
PETROL PETROL
(1) Minimum quality standard: Petrol engines ACEA A3 and API SH/SJ; Diesel engines ACEA B3 and API CF/CD -
ACEA = Association des Constructeurs EuropŽens Automobiles (Association of European Automobile Manufacturers).
API = American Petroleum Institute - If oil is used which does not conform to the ACEA A3-B3 standards,
this requires the "Arduous Conditions" servicing schedule to be followed, which involves shorter intervals between services.
Use only 5W40 synthetic oil for the HDI Turbo Diesel engines with particulate emissions filter. Fuel economy oil cannot be used for the 2.2 litre 16V petrol engine.
TRADE NAMES OF RECOMMENDED LUBRICANTS IN EUROPE
(1)
24

24-03-2003
1 -Fuel filler cap warning light.
2 - Door open warning light.
3 - Dipped beam headlamps indicator light.
4 - Main beam headlamps indicator light.
5 - Rev. counter.
6 - Left-hand direction indicator.
7 - Central (STOP) warning light.
8 - Low fuel level warning light.
9 - Fuel gauge. 10 -
Service indicator, oil level indica-
tor and total distance recorder.
11 - Right-hand direction indicator.
12 - Speedometer.
13 - Clogging of the particulateemission filter warning light(Diesel).
14 - Front fog lamps indicator light.
15 - Rear fog lamp indicator light.
16 - Dynamic stability control(ASR/ESP) warning light (petrolversions only). 17 -
Low coolant level warning light.
18 - Coolant temperature indicator.
19 - Trip recorder zero reset button.
20 - Handbrake and low brake fluid level warning light.
21 - Seat belt not fastened warninglight.
22 - Air bags warning light.
23 - ABS system warning light.
24 - Engine diagnostics warninglight*.
25 - Battery charge warning light.
26 - Diesel engine preheating indicator light.
27 - Passenger air bag disarmingwarning light.
28 - Water in diesel filter warning
light.
29 - Front brake pad wear warninglight.
30 - Engine oil pressure warninglight.
31 - Electronic immobiliser warninglight.
32 - Lighting rheostat.
33 - Engine oil temperature indicator.
* According to engine.
YOUR 406 COUPE IN DETAIL 105
INSTRUMENT PANEL DIALS: PETROL / DIESEL

24-03-2003
MAINTENANCE OF YOUR 406 COUPE
26
2 litre 16 valve petrol engine 1 -
Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp*
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.
* According to destination.

24-03-2003
MAINTENANCE OF YOUR 406 COUPE27
2.2 litre 16 valve petrol engine 1 -
Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp*
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.
* According to destination.

24-03-2003
MAINTENANCE OF YOUR 406 COUPE
28
3 litre 24 valve V6 petrol injection engine 1 -
Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp*
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.
* According to destination.

24-03-2003
MAINTENANCE OF YOUR 406 COUPE29
2.2 litre 16V turbo diesel HDI engine 1 -
Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp*
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.
* According to destination.

24-03-2003

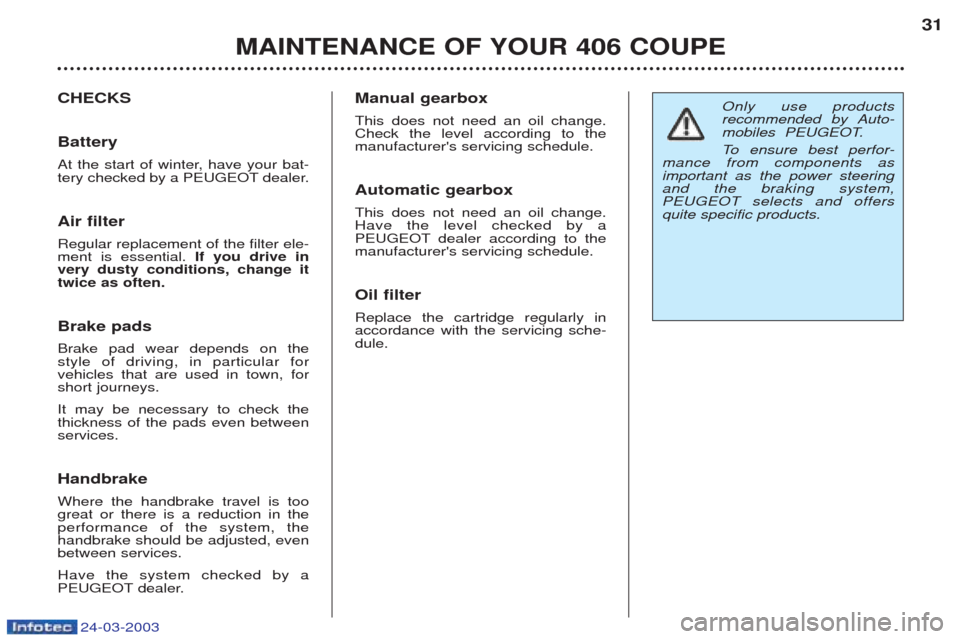

Only use products
recommended by Auto-
mobiles PEUGEOT.
To ensure best perfor-
mance from components as important as the power steeringand the braking system, PEUGEOT selects and offersquite specific products.
MAINTENANCE OF YOUR 406 COUPE 31
CHECKS Battery
At the start of winter, have your bat-
tery checked by a PEUGEOT dealer. Air filter Regular replacement of the filter ele- ment is essential. If you drive in
very dusty conditions, change ittwice as often. Brake pads Brake pad wear depends on the style of driving, in particular forvehicles that are used in town, forshort journeys. It may be necessary to check the thickness of the pads even betweenservices. Handbrake Where the handbrake travel is too great or there is a reduction in theperformance of the system, thehandbrake should be adjusted, evenbetween services. Have the system checked by a
PEUGEOT dealer. Manual gearbox This does not need an oil change. Check the level according to themanufacturer's servicing schedule. Automatic gearbox This does not need an oil change. Have the level checked by a
PEUGEOT dealer according to themanufacturer's servicing schedule. Oil filter Replace the cartridge regularly in accordance with the servicing sche-dule.
