MAINTENANCE OF YOUR 406 COUPE23

: All driving conditions. o: Arduous conditions. * According to destination.
A AND C SERVICE LEVELS AND THE INTERMEDIATE VISIT
- Oil filter- Petrol filter (according to engine)- Diesel filter or element (according to engine)- Air filter element- Spark plugs (petrol)
- Engine oil- Bleed fuel filter (diesel)
- Operation of lights and indicators.- Condition of glass, headlamp and light lenses and mirrors.- Horn- Windscreen washer jets- Condition of wiper blades- Condition and tension of the ancillary drive belts- Handbrake- Condition of hydraulic circuits (hoses and covers)- Condition of rubber boots and gaiters- Brake pads o- Play in hubs, link rods, ball joints, flexible mountings- Shock absorbers- Rear drum brake lining wear- Condition and pressure of tyres (including spare wheel)- Emission control check as per current legislation (petrol)- Smoke opacity (diesel)- Passenger compartment filter (according to specification)o- Visual check of the whole vehicle
DRAIN/REFILL
REPLACE
LEVEL
CHECK

ROAD TEST- Courtesy vehicle
SERVICE*
Level
Operations Description of operation1st serviceA C Intermediate
- Engine oil (check + top-up) - Manual gearbox oil (check + top-up) - Battery (check + top-up) if cap is removable- Screen wash (check + top-up)- Coolant (check + top-up)- Brake fluid (check + top-up)- Power steering fluid (check + top up according to specification)

1 -Fuel filler cap warning light.
2 - Door open warning light.
3 - Dipped beam headlamps indicator light.
4 - Main beam headlamps indicator light.
5 - Rev. counter.
6 - Left-hand direction indicator.
7 - Central STOP warning light.
8 - Low fuel level warning light.
9 - Fuel gauge. 10 -
Service indicator, oil level indica-
tor and total distance recorder.
11 - Right-hand direction indicator.
12 - Speedometer.
13 - Clogging of the particulateemission filter warning light(Diesel).
14 - Front fog lamps indicator light.
15 - Rear fog lamp indicator light.
16 - Dynamic stability control(ASR/ESP) warning light(according to version). 17 -
Low coolant level warning light.
18 - Coolant temperature indicator.
19 - Trip recorder zero reset button.
20 - Handbrake and low brake fluid level warning light.
21 - Seat belt not fastened warninglight (according to version).
22 - Air bags warning light.
23 - ABS warning light.
24 - Engine diagnostics warninglight*.
25 - Battery charge warning light.
26 - Diesel engine preheating indica-tor light.
27 - Passenger air bag disarmingwarning light.
28 - Water in diesel filter warninglight.
29 - Front brake pad wear warninglight.
30 - Engine oil pressure warninglight.
31 - Electronic immobiliser warninglight.
32 - Lighting rheostat.
33 - Engine oil temperature indicator.
* According to engine.
YOUR 406 COUPE IN DETAIL 105
INSTRUMENT PANEL DIALS: PETROL / DIESEL
02-02-2004

YOUR 406 COUPE IN DETAIL
106
1 -
Fuel filler cap warning light.
2 - Door open warning light.
3 - Dipped beam headlamps indi- cator light.
4 - Main beam headlamps indicatorlight.
5 - Rev. counter.
6 - Left-hand direction indicator.
7 - Central STOP warning light.
8 - Low fuel level warning light.
9 - Fuel gauge. 10 -
Service indicator, oil level indi- cator and total distance
recorder.
11 - Right-hand direction indicator.
12 - Speedometer.
13 - Front fog lamps indicator light.
14 - Rear fog lamp indicator light.
15 - Dynamic Stability Control(ASR/ESP) warning light.
16 - Low coolant level warning light. 17 -
Coolant temperature indicator.
18 - Trip recorder zero reset button.
19 - Handbrake and low brake fluid level warning light.
20 - Seat belt not fastened warninglight (according to version).
21 - Air bags warning light.
22 - ABS warning light.
23 - Engine diagnostics warninglight*.
24 - Battery charge warning light.
25 - Passenger air bag disarmingwarning light.
26 - Front brake pad wear warning light.
27 - Engine oil pressure warninglight.
28 - Operating programmes.
29 - Gear lever position indicator.
30 - Electronic immobiliser warninglight.
31 - Lighting rheostat.
32 - Engine oil temperature indicator.
* According to engine.
INSTRUMENT PANEL DIALS: AUTOMATIC GEARBOX
02-02-2004

* According to engine.
YOUR 406 COUPE IN DETAIL109
Passenger air bag disarming warninglight Illumination of this warning
light is accompanied by an audible signal and a message on the multi-
function display. If the passenger air bag is disarmed, the indicator light comes on whenthe ignition is switched on andremains on. In all cases, if the warning light flash-
es, contact a PEUGEOT dealer.
Air bag warning light The warning light comes on for 6 seconds when the igni-tion is switched on.
Illumination of this warning light, withthe engine running, is accompaniedby an audible signal and a messageon the multi-function display indicat-ing the cause of the front, side or cur-tain air bag fault.
Contact a PEUGEOT dealer.
Water in diesel filter warning light (according to destination)
Contact a PEUGEOT dealer as soon as possible.
There is a risk of damage to the injection system. Pre-heating indicator light (Diesel engine)If the engine is warm enough, the light will not come on and you can start the engine without waiting.
If the light comes on, wait until it goes out before trying the starter. Engine diagnostics warning light* This comes on each time the ignition is switched on.If it is lit continuously with the engine runnning, this indicates a fault in the emission control system.
If it flashes with the engine running, this indicates a malfunction in the injection
or ignition system. There is a risk of damage to the catalytic converter (petrolengine only).
Contact a PEUGEOT dealer as soon as possible. Battery charge warning light This comes on each time the ignition is switched on.If it comes on with the engine running it can indicate:
Ð faulty operation of the charging circuit,
Ð loose battery or starter terminals,
Ð a cut or slack alternator belt,
Ð an alternator fault.
Contact a PEUGEOT dealer.
02-02-2004

02-02-2004
This enables the following information to be displayed:
Ð the time,
Ð the date,
Ð the outside temperature (the ¡C symbol flashes when there is a risk of ice),
Ð the radio displays,
Ð the status of the doors. The display shows you whether a door, the boot or thebonnet is open and if the fuel filler cap is missing.
Ð the warning messages (e.g. ''battery low'') or information messages (e.g. "top up fuel tank''), displayed temporarily, can be cleared by pressing button 1
or 2,
Ð the trip computer. Setting the parameters Press button 1for two seconds to access the settings. The information flashes
to show it is ready to be modified.Then, individual presses on button 1allow you to scroll through the various data
in the following sequence:
Ð language in which the information is displayed,
Ð unit of distance (kms or miles),
Ð unit of temperature (Celsius or Fahrenheit),
Ð time format (12 then 24 hour mode)
Ð hour,
Ð minutes,
Ð year,
Ð month,
Ð day. Pressing button 2allows you to change the information selected. Maintain the
pressure for rapid scrolling.After ten seconds without action, the display returns to the main screen and the modified data are recorded.Display B
YOUR 406 COUPE IN DETAIL
114

02-02-2004
YOUR 406 COUPE IN DETAIL85
Changing the battery of the remote control The information
"battery flat"is
given by an audible signal accompa- nied by a message on the multi-func-
tion display.
To replace the battery, unclip the
casing using a coin at the ring(CR 2016/3 volt battery).If the remote control does not work after the battery has been changed,reprogramme the remote control.
Confidential card The confidential card contains the identification code necessary for anywork carried out by a PEUGEOTdealer on the electronic immobiliser
system. This code is hidden by afilm, which should be removed only if
necessary. Keep your card in a safe place, never inside the vehicle.
Programming the remote con- trol
 Switch off the ignition.
 Switch the ignition on again.
 Press button Aimmediately for a
few seconds.
 Switch off the ignition and remove the remote control key from the
ignition lock. The remote controlis now working again.
ELECTRONIC ENGINE IMMOBILISER This locks the engine management system as soon as the ignition has
been switched off and therefore pre-vents starting of the vehicle by any-
one who does not have the key. The ignition key has an electronic chip which has a special code. Whenthe ignition is switched on, the code is recognised and starting ispossible. If the system does not function correctly
, contact a PEUGEOT
dealer as soon as possible.

02-02-2004
YOUR 406 COUPE IN DETAIL85
Changing the battery of the remote control The information
"battery flat"is
given by an audible signal accompa- nied by a message on the multi-func-
tion display.
To replace the battery, unclip the
casing using a coin at the ring(CR 2016/3 volt battery).If the remote control does not work after the battery has been changed,reprogramme the remote control.
Confidential card The confidential card contains the identification code necessary for anywork carried out by a PEUGEOTdealer on the electronic immobiliser
system. This code is hidden by afilm, which should be removed only if
necessary. Keep your card in a safe place, never inside the vehicle.
Programming the remote con- trol
 Switch off the ignition.
 Switch the ignition on again.
 Press button Aimmediately for a
few seconds.
 Switch off the ignition and remove the remote control key from the
ignition lock. The remote controlis now working again.
ELECTRONIC ENGINE IMMOBILISER This locks the engine management system as soon as the ignition has
been switched off and therefore pre-vents starting of the vehicle by any-
one who does not have the key. The ignition key has an electronic chip which has a special code. Whenthe ignition is switched on, the code is recognised and starting ispossible. If the system does not function correctly
, contact a PEUGEOT
dealer as soon as possible.

02-02-2004
YOUR 406 COUPE IN DETAIL87
THE ALARM SYSTEM*
This offers two types of protection: ¥
external , it sounds if a door, the
bonnet or the boot is opened.
¥ internal , it sounds if there is air
movement in the passenger com- partment (a broken window ormovement inside the vehicle).
Note: it also has an anti-tamper
function; if there is an attempt to tam-per with the wires to the siren, the
control unit or the battery, the sirensounds and the direction indicatorslight. Setting
Switch the ignition off and get out of the vehicle. Set the alarm within five minutes fol- lowing your exit from the vehicle bylocking using the remote control (thered light on the switch, visible fromthe outside, flashes every secondand the direction indicators come onpermanently for two seconds).
5 seconds later, internal protection is set.
45 seconds later, external protection is set. When the alarm is triggered, the siren sounds for thirty seconds. After it has been triggered, the alarm is operational again. Note:
if you wish to lock your vehicle
without setting the alarm, lock it using the lock.
Warning
When the alarm is triggered, if a door, the boot or the bonnet are not closed
correctly, the siren sounds for amoment. Close the vehicle correctlyto set the alarm. Disarming Unlock the vehicle using the remote control key (the direction indicatorsflash for two seconds and the redlight on the switch goes out). Note:
if the red warning light flashes,
it is a sign that the alarm has been triggered during your absence.
To stop it, switch on the ignition.Note: when the alarm is set, but the
remote control no longer works:
 unlock the doors using the key and open the door; the alarm istriggered;
 switch the ignition on within tenseconds;
 press the internal protection button 1
immediately. The alarm is disarmed.
* According to destination.

02-02-2004
YOUR 406 COUPE IN DETAIL
88
Do not make any modifi- cations to the alarm sys-tem, this could causefaults.
To disarm external type protection only
 see "Disarming" section.
Note: if you wish to charge or
replace the battery:
¥ Turn on the ignition.
¥ You have 10 seconds after turning on the ignition to press the internal protection switch 1and hold it
down for two seconds.
¥ The warning light flashes rapidly for three seconds.
¥ Disconnect the battery.
¥ After reconnecting the battery, lock, then unlock the vehicle using the remote control.
To set the alarm to external
protection only. If you want to leave a window partially open, or a pet inside the vehicle, youneed to select external protection only:
¥ Switch off the ignition.
¥ Within the next ten seconds, press
the internal protection button 1
until the light comes on.
¥ Get out of the vehicle.
¥ Press the locking button on the remote control.
¥ The doors lock.
¥ The direction indicators light for two seconds.
¥ The red light on the switch flashes once a second.

02-02-2004
THE DOORS Opening the doors from outsideOpening the doors from insideLocking from the inside
To lock, press button
A.
Locking the front doors locks both the front doors and the boot. Automatic central locking
To activate this function, contact a
PEUGEOT dealer. The doors and the boot of your vehi- cle lock automatically while driving(speed greater than 6 mph(10km/h)). The door opening controls permit complete unlocking of the vehicle.
YOUR 406 COUPE IN DETAIL 89

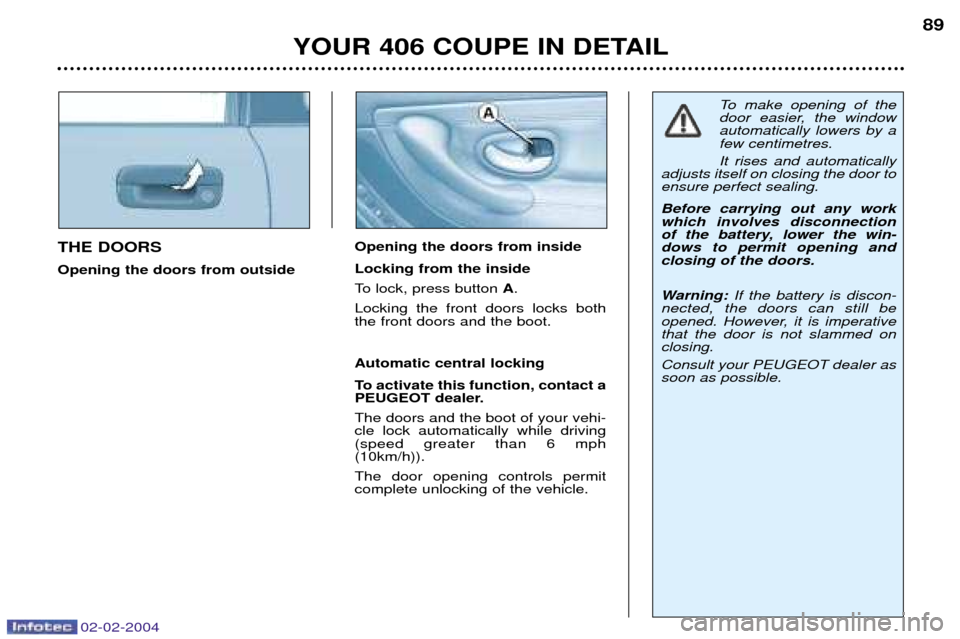

To make opening of the
door easier, the windowautomatically lowers by afew centimetres. It rises and automatically
adjusts itself on closing the door to ensure perfect sealing. Before carrying out any work which involves disconnection
of the battery, lower the win-dows to permit opening andclosing of the doors.
Warning: If the battery is discon-
nected, the doors can still be
opened. However, it is imperativethat the door is not slammed onclosing. Consult your PEUGEOT dealer as soon as possible.
