Display CThis enables the following information to be displayed:
- the time,
- the date,
- the outside temperature (the ¡C symbol flashes when there is a risk of ice),
- the radio displays,
- the status of the doors. The display shows you whether a door, the boot or the
bonnet is open,
- the warning messages are displayed temporarily (e.g. "top up fuel tank'') and can be cleared using the remote control,
- the trip computer (see following page),
the satellite navigation system (see corresponding section).
Setting the parameters
The remote control allows you to access the settings. Accessing the different menus is described in the section on the Satellite Navigation System.
YOUR 406 COUPE IN DETAIL
112
01-07-2002

THE SATELLITE NAVIGATION SYSTEM IntroductionThe satellite navigation system guides you to the destination of yourchoice by means of vocal and visual
instructions. The heart of the systemlies in the use of a map databaseand GPS (Global Positioning Sys-
tem). This enables your position tobe located by means of severalsatellites. The satellite navigation system con- sists of the following components:
- the remote control,
- the display,
- the control unit,
- the last voice message recall con-trol,
- the CD ROM.
Some functions or services
described in this guide may vary
depending on the CD ROM version or the country.The remote control
There is a storage compartment for the remote control in front of the ashtray. Pointing the remote control at the screen enables the information contained in the various menus to be selected.
Direction arrows: These enable you to move around the screen and thus select a function.
On the welcome screen only, the Up and Down buttons enable the brightness of the screen to beadjusted.
menu : this button allows access to the main menu. It can
be used at any time.
esc : escape button
"Short press": cancels the current operation andreturns to the previous screen. "Press for more than 2 seconds": returns to the welcome screen. This button can be used in any menu. It is inactive during guidance.
mod : mode button
"Short press": changes between date, navigationand radio.
val : Validation button
Confirms the function selected.
YOUR 406 COUPE IN DETAIL
74
01-07-2002

The control unit This is located in the boot on the right hand side. 1.CD ROM eject button.
2. CD ROM compartment.
3. The ON indicator light indicates that the control unit is
supplied with power.
4. The CD indicator light indicates that there is a CDROM in the control unit.The last voice message recall control
Pressing the button briefly on the end of the wiper stalkrepeats the last voice mes-sage.
The CD ROM This contains all the mappingdata. It must be inserted withthe printed face upwards.
Only use CD ROMs approved by PEUGEOT. The satellite navigation system is active once the globe appears in bold.
YOUR 406 COUPE IN DETAIL
76
The use of copied CDs can cause malfunctions.
01-07-2002

Main menu Switch on the ignition. Press the "Menu"button to access the main menu.
Select a function using the direction arrows, then confirm ( "VAL" button). The
"Navigation/guidance" menu offers various options
for selecting guidance:
- By entering the address of a new destination,
- By selecting a service (Hotel, station, airport...) available in a town,
- By selecting an address stored in one of the two directo- ries,
- By resuming previously interrupted guidance or by stop- ping current guidance. Two messages may be displayed depending on the previous actions: "Resume guid-
ance" or "Stop guidance" ,
- Radio functions are suspended when the system is in guidance mode.
YOUR 406 COUPE IN DETAIL 77
Navigation / Guidance Following selection of the "Navigation/guidance"menu,
a screen warns you about the use of the navigation sys- tem. Follow the regulations in force and do not use theremote control while driving. Press the "VAL"button to access the next screen.
01-07-2002

MAINTENANCE OF YOUR 406 COUPE37
CHANGING A FUSE The fuse boxes are under the fascia and in the engine compartment. Fascia fuse box
Turn the three screws a quarter turn with a coin.Pull at
Aand tilt the cover to access
the fuses. Removing and changing a fuse Before changing a fuse you must find out the cause of the fault and have it put
right. The fuse numbers are indicated on the fuse box. Use the special pliers
Aattached to the box.
Always change a faulty fuse for one of the same rating.
Correct Incorrect Pliers AFuse no. Rating FunctionsA 20 A Locking/Unlocking.
B 10 A Rear fog lamps.
C 40 A Demisting the mirrors.
D Ñ Not used. E 30 A Electric windows.
F 15 A Supply to instrument panel -
Display - Audio equipment -Satellite navigation system - Air conditioning.
01-07-2002
Remove the fascia lower trim to access the built-in systems interface.

MAINTENANCE OF YOUR 406 COUPE37
CHANGING A FUSE The fuse boxes are under the fascia and in the engine compartment. Fascia fuse box
Turn the three screws a quarter turn with a coin.Pull at
Aand tilt the cover to access
the fuses. Removing and changing a fuse Before changing a fuse you must find out the cause of the fault and have it put
right. The fuse numbers are indicated on the fuse box. Use the special pliers
Aattached to the box.
Always change a faulty fuse for one of the same rating.
Correct Incorrect Pliers AFuse no. Rating FunctionsA 20 A Locking/Unlocking.
B 10 A Rear fog lamps.
C 40 A Demisting the mirrors.
D Ñ Not used. E 30 A Electric windows.
F 15 A Supply to instrument panel -
Display - Audio equipment -Satellite navigation system - Air conditioning.
01-07-2002
Remove the fascia lower trim to access the built-in systems interface.

MAINTENANCE OF YOUR 406 COUPE
38

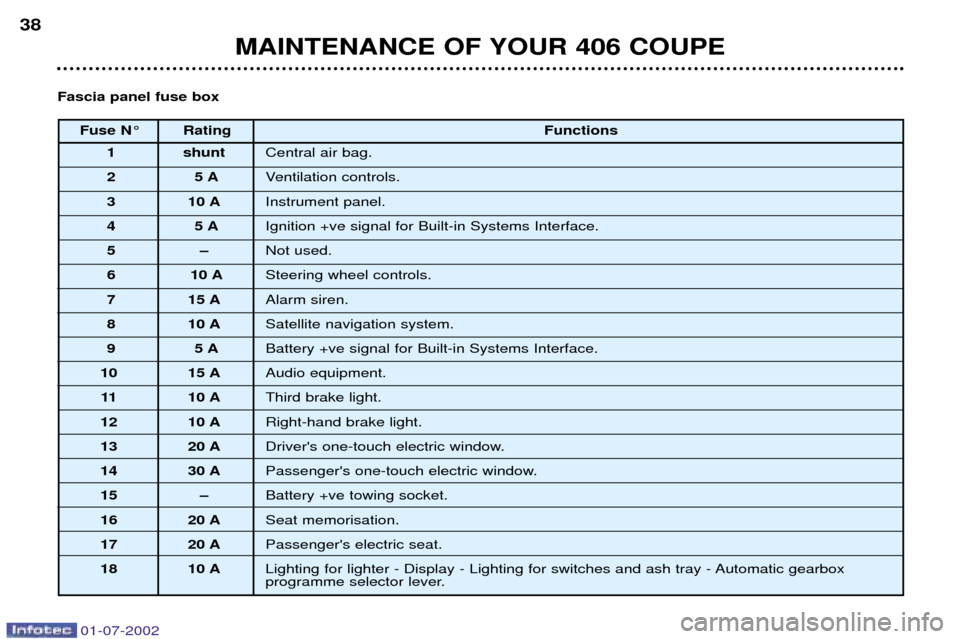

Fuse N¡ Rating
Functions
1 shunt Central air bag.
25 AVentilation controls.
3 10 A Instrument panel.
45 AIgnition +ve signal for Built-in Systems Interface.
5Ð Not used.
6 10 A Steering wheel controls.
7 15 A Alarm siren.
8 10 A Satellite navigation system.
95 ABattery +ve signal for Built-in Systems Interface.
10 15 A Audio equipment.
11 10 A Third brake light.
12 10 A Right-hand brake light.
13 20 A Driver's one-touch electric window.
14 30 A Passenger's one-touch electric window.
15 Ð Battery +ve towing socket.
16 20 A Seat memorisation.
17 20 A Passenger's electric seat.
18 10 A Lighting for lighter - Display - Lighting for switches and ash tray - Automatic gearbox
programme selector lever.
Fascia panel fuse box
