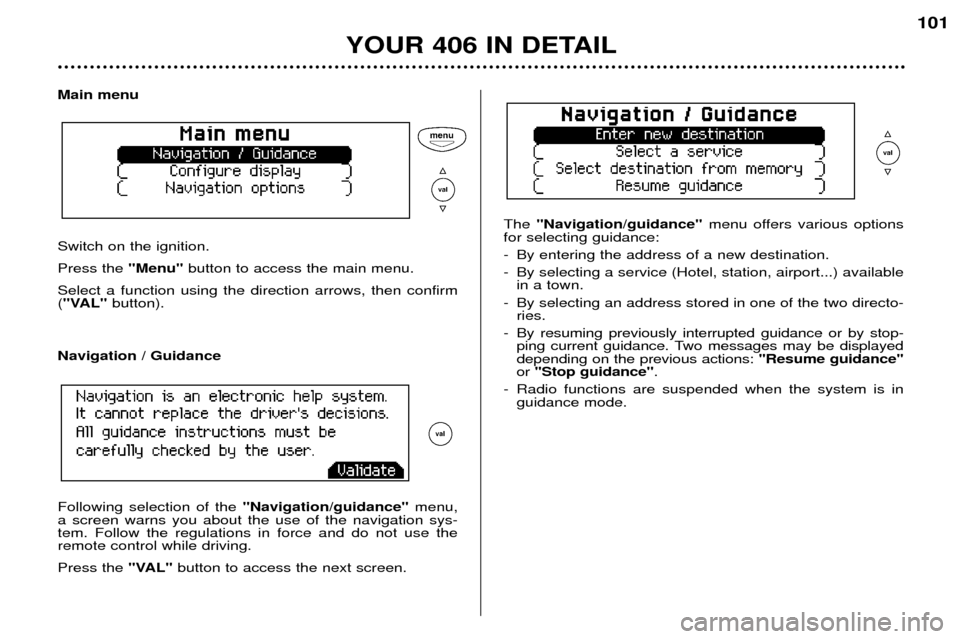

Main menu Switch on the ignition. Press the "Menu"button to access the main menu.
Select a function using the direction arrows, then confirm ( "VAL" button). The
"Navigation/guidance" menu offers various options
for selecting guidance:
- By entering the address of a new destination.
- By selecting a service (Hotel, station, airport...) available in a town.
- By selecting an address stored in one of the two directo- ries.
- By resuming previously interrupted guidance or by stop- ping current guidance. Two messages may be displayed depending on the previous actions: "Resume guidance"
or "Stop guidance" .
- Radio functions are suspended when the system is in guidance mode.
YOUR 406 IN DETAIL
101
Navigation / Guidance Following selection of the "Navigation/guidance"menu,
a screen warns you about the use of the navigation sys- tem. Follow the regulations in force and do not use theremote control while driving. Press the "VAL"button to access the next screen.

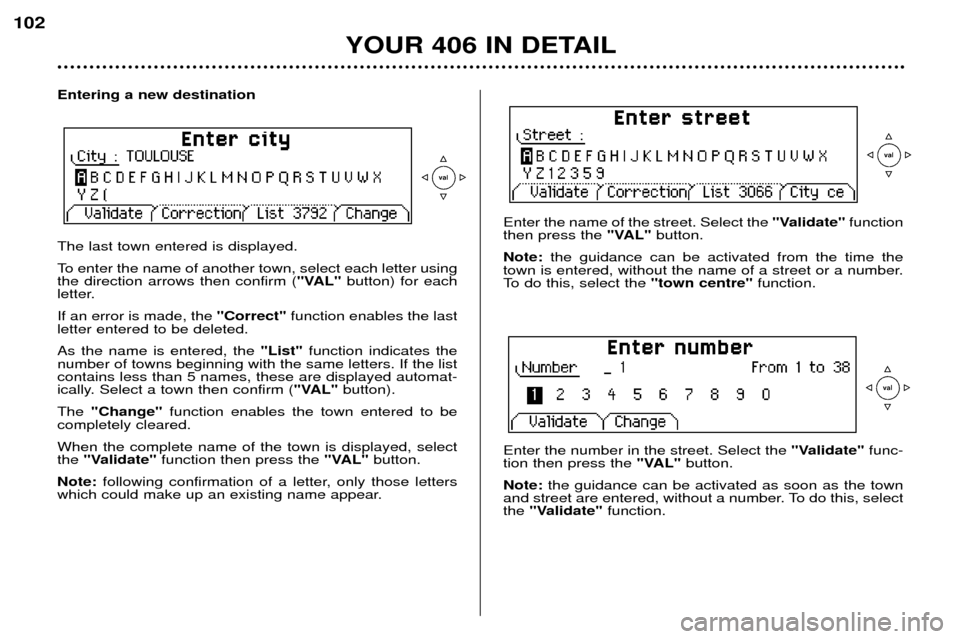

Entering a new destination The last town entered is displayed.
To enter the name of another town, select each letter using the direction arrows then confirm ("VAL"button) for each
letter. If an error is made, the "Correct" function enables the last
letter entered to be deleted.As the name is entered, the "List"function indicates the
number of towns beginning with the same letters. If the list contains less than 5 names, these are displayed automat-
ically. Select a town then confirm ( "VAL"button).
The "Change" function enables the town entered to be
completely cleared. When the complete name of the town is displayed, select the "Validate" function then press the "VAL"button.
Note: following confirmation of a letter, only those letters
which could make up an existing name appear. Enter the name of the street. Select the
"Validate"function
then press the "VAL"button.
Note: the guidance can be activated from the time the
town is entered, without the name of a street or a number.
To do this, select the "town centre"function.
YOUR 406 IN DETAIL
102
Enter the number in the street. Select the "Validate"func-
tion then press the "VAL"button.
Note: the guidance can be activated as soon as the town
and street are entered, without a number. To do this, select the "Validate" function.

YOUR 406 IN DETAIL
103

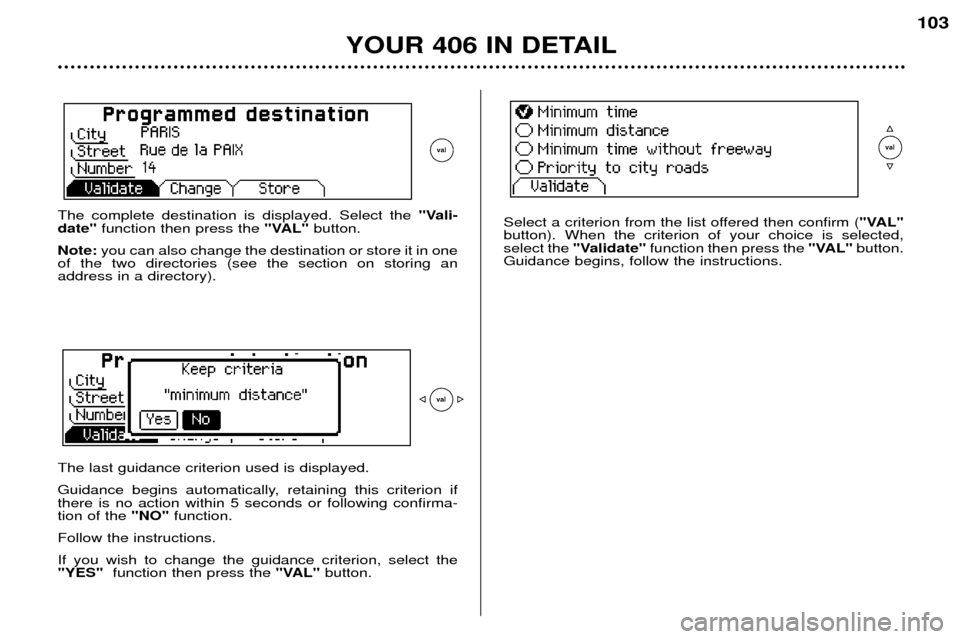

The complete destination is displayed. Select the "Vali-
date" function then press the "VAL"button.
Note: you can also change the destination or store it in one
of the two directories (see the section on storing an address in a directory).
The last guidance criterion used is displayed.
Guidance begins automatically, retaining this criterion if there is no action within 5 seconds or following confirma-tion of the "NO"function.
Follow the instructions. If you wish to change the guidance criterion, select the "YES" function then press the "VAL"button.
Select a criterion from the list offered then confirm ( "VAL"
button). When the criterion of your choice is selected, select the "Validate" function then press the "VAL"button.
Guidance begins, follow the instructions.

YOUR 406 IN DETAIL
104

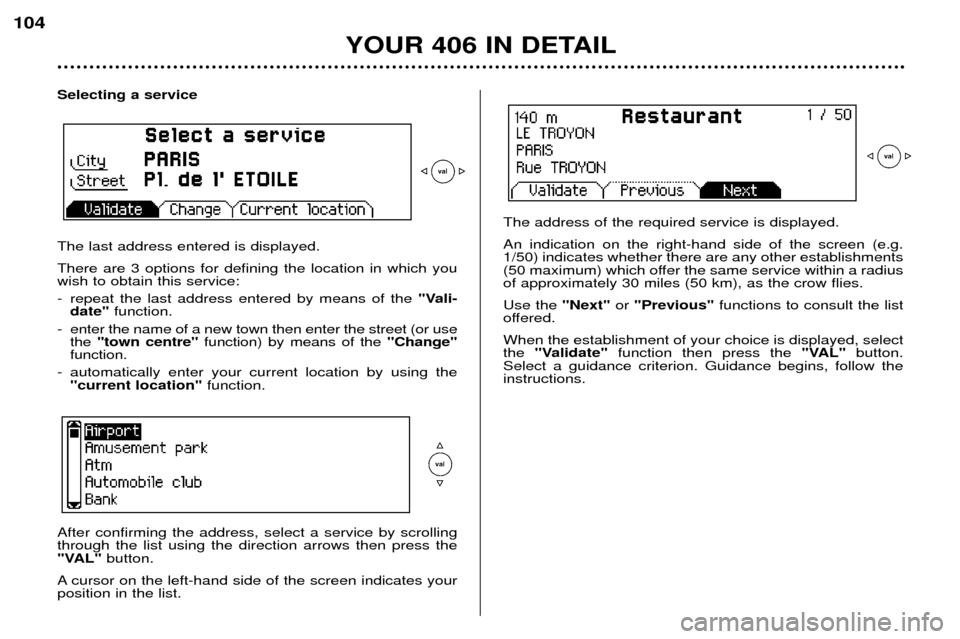

Selecting a service The last address entered is displayed. There are 3 options for defining the location in which you wish to obtain this service:
- repeat the last address entered by means of the "Vali-
date" function.
- enter the name of a new town then enter the street (or use the "town centre" function) by means of the "Change"
function.
- automatically enter your current location by using the "current location" function.
After confirming the address, select a service by scrolling through the list using the direction arrows then press the
"VAL"button.
A cursor on the left-hand side of the screen indicates yourposition in the list.
The address of the required service is displayed. An indication on the right-hand side of the screen (e.g. 1/50) indicates whether there are any other establishments
(50 maximum) which offer the same service within a radiusof approximately 30 miles (50 km), as the crow flies. Use the "Next"or "Previous" functions to consult the list
offered.When the establishment of your choice is displayed, select the "Validate" function then press the "VAL"button.
Select a guidance criterion. Guidance begins, follow theinstructions.

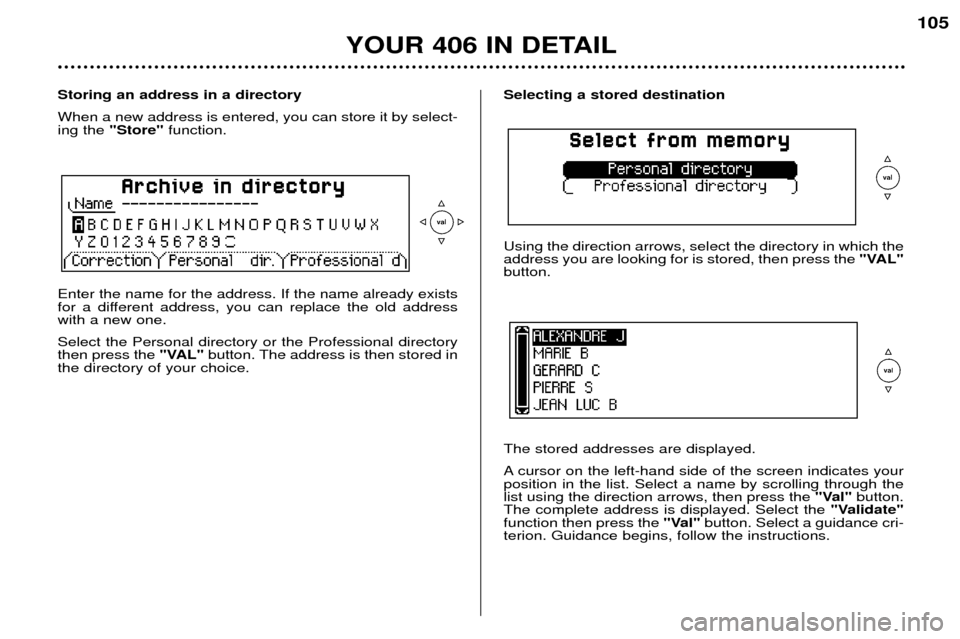

Selecting a stored destination Using the direction arrows, select the directory in which the address you are looking for is stored, then press the "VAL"
button. The stored addresses are displayed.
A cursor on the left-hand side of the screen indicates your position in the list. Select a name by scrolling through thelist using the direction arrows, then press the "Val"button.
The complete address is displayed. Select the "Validate"
function then press the "Val"button. Select a guidance cri-
terion. Guidance begins, follow the instructions.
YOUR 406 IN DETAIL
105
Storing an address in a directory When a new address is entered, you can store it by select- ing the "Store" function.
Enter the name for the address. If the name already exists
for a different address, you can replace the old addresswith a new one. Select the Personal directory or the Professional directory then press the "VAL"button. The address is then stored in
the directory of your choice.

YOUR 406 IN DETAIL
106

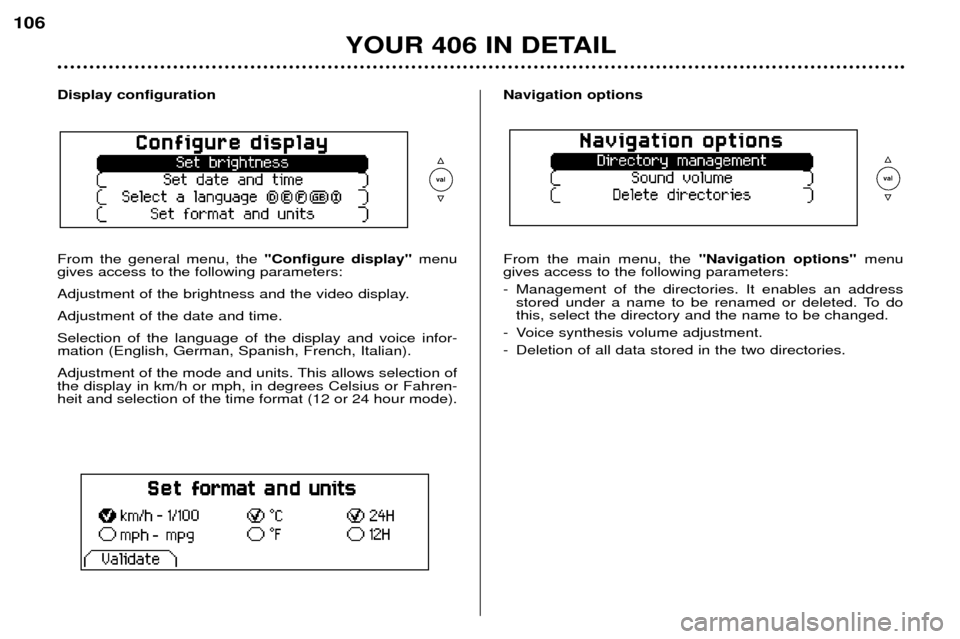

Display configuration From the general menu, the "Configure display"menu
gives access to the following parameters:
Adjustment of the brightness and the video display.Adjustment of the date and time.Selection of the language of the display and voice infor- mation (English, German, Spanish, French, Italian).
Adjustment of the mode and units. This allows selection of the display in km/h or mph, in degrees Celsius or Fahren-heit and selection of the time format (12 or 24 hour mode).Navigation options From the main menu, the "Navigation options"menu
gives access to the following parameters:
- Management of the directories. It enables an address stored under a name to be renamed or deleted. To do this, select the directory and the name to be changed.
- Voice synthesis volume adjustment.
- Deletion of all data stored in the two directories.

YOUR 406 IN DETAIL
107

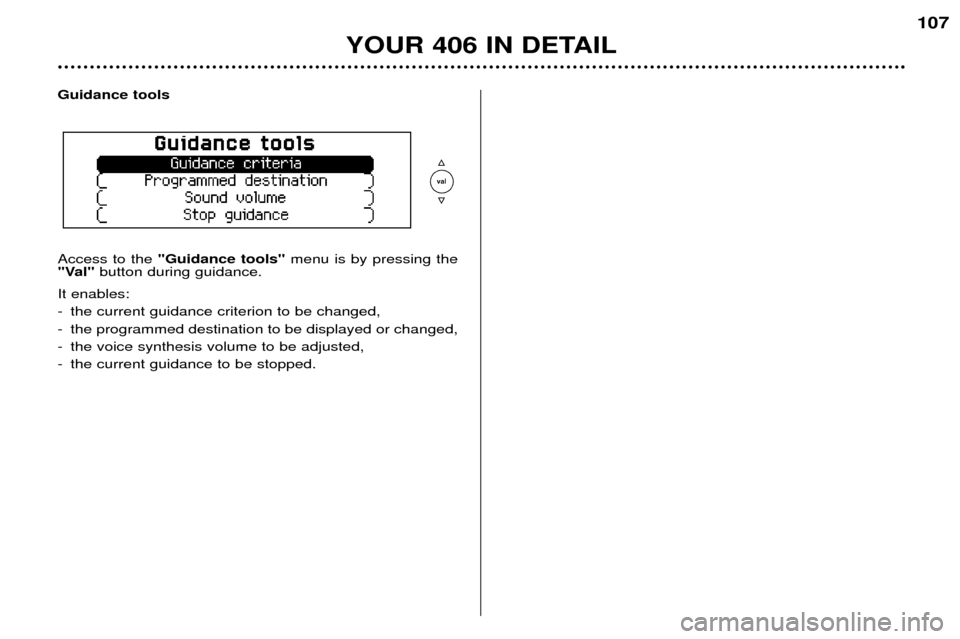

Guidance tools Access to the "Guidance tools" menu is by pressing the
"Val" button during guidance.
It enables:
- the current guidance criterion to be changed,
- the programmed destination to be displayed or changed,
- the voice synthesis volume to be adjusted,
- the current guidance to be stopped.

YOUR 406 IN DETAIL
56

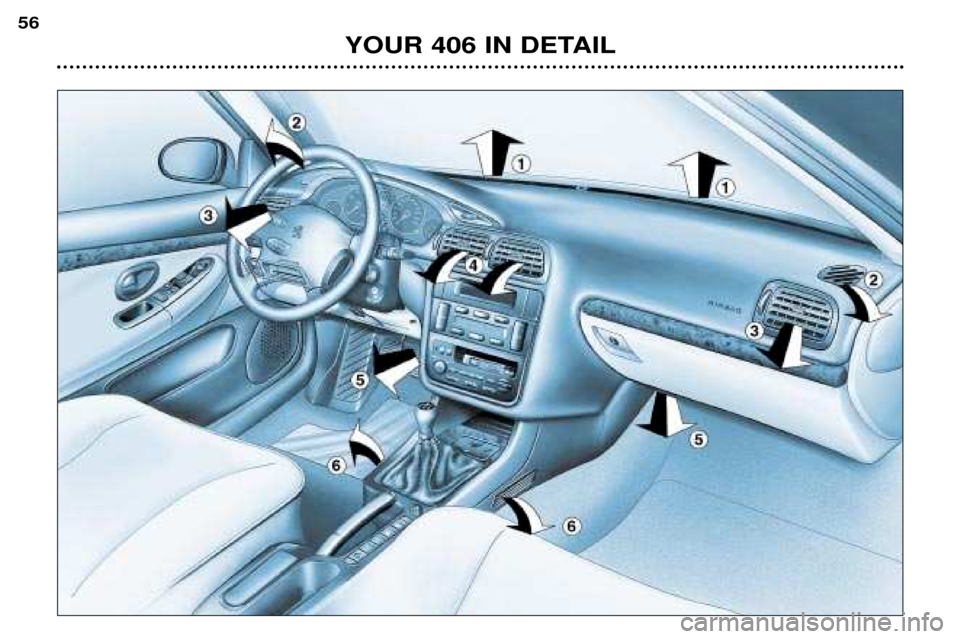

VENTILATION 1 - Windscreen de-icing or demisting vents.
2 - Front window de-icing or demisting vents.
3 - Side vents.
4 - Central vents.
5 - Air outlet to the front passengers' feet.
6 - Air outlet to the rear passengers' feet.
Recommendations for use
Position the air flow control at a level which allows adequate air circulation inside your vehicle.
Select the air distribution which best suits your requirements and the climatic conditions.
Select a temperature setting and only alter it gradually for your comfort.
For an even air distribution, make sure that you do not block the air inlet grille at the base of the windscreen, the vents, th e
air passages under the front seats and the air extractor in the boot.
YOUR 406 IN DETAIL
57

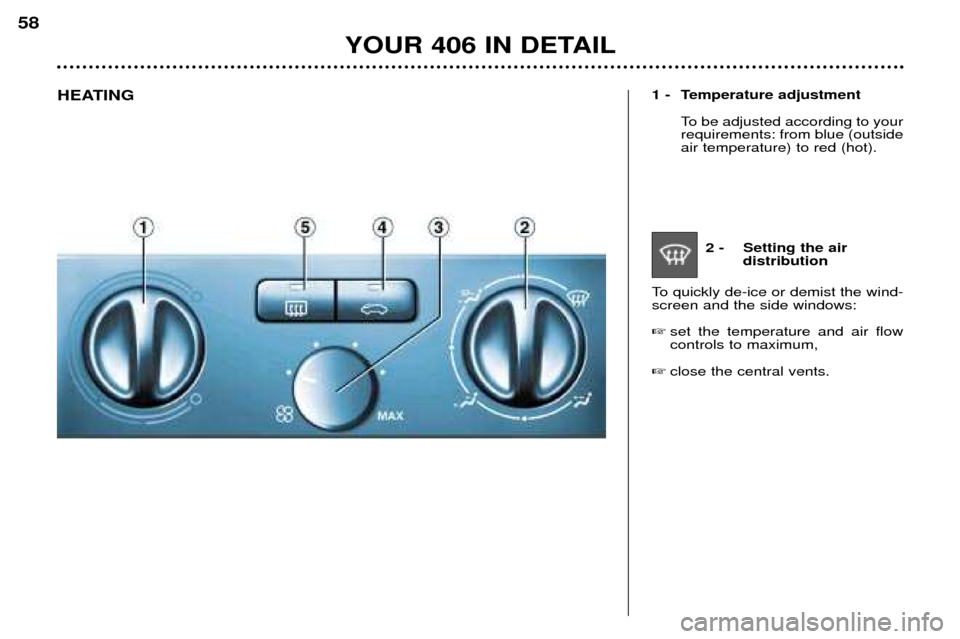

2 - Setting the air distribution
To quickly de-ice or demist the wind- screen and the side windows:
set the temperature and air flow controls to maximum,
close the central vents.
1 - Temperature adjustment To be adjusted according to your requirements: from blue (outsideair temperature) to red (hot).
YOUR 406 IN DETAIL
58
HEATING
