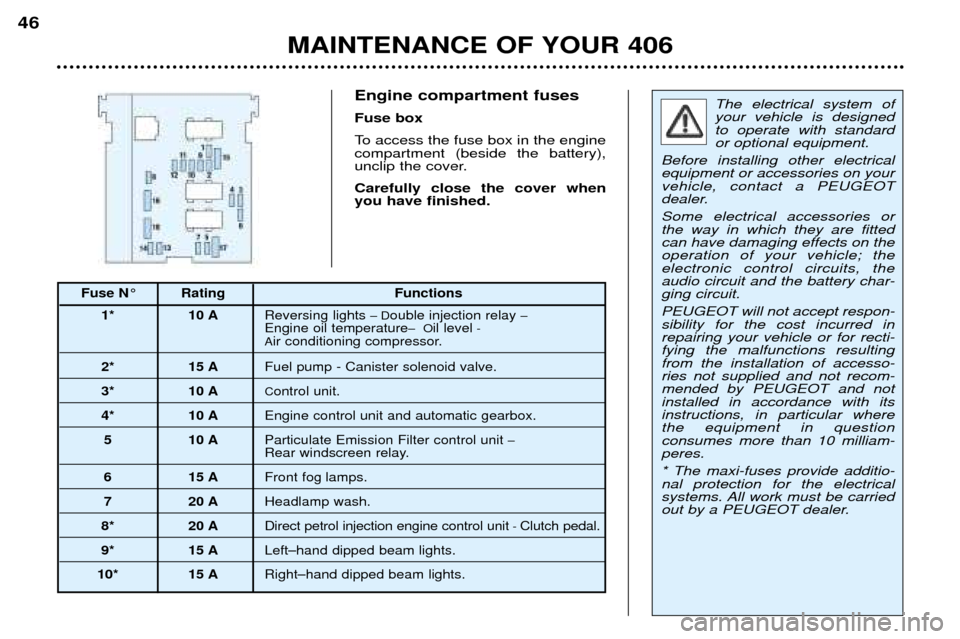

Engine compartment fuses Fuse box
To access the fuse box in the engine compartment (beside the battery),
unclip the cover. Carefully close the cover when you have finished.The electrical system of your vehicle is designedto operate with standardor optional equipment.
Before installing other electricalequipment or accessories on yourvehicle, contact a PEUGEOT
dealer. Some electrical accessories or the way in which they are fittedcan have damaging effects on theoperation of your vehicle; theelectronic control circuits, theaudio circuit and the battery char-ging circuit. PEUGEOT will not accept respon- sibility for the cost incurred inrepairing your vehicle or for recti-fying the malfunctions resultingfrom the installation of accesso-ries not supplied and not recom-mended by PEUGEOT and notinstalled in accordance with itsinstructions, in particular wherethe equipment in questionconsumes more than 10 milliam-peres. * The maxi-fuses provide additio- nal protection for the electrical
systems. All work must be carried
out by a PEUGEOT dealer.
Fuse N° Rating Functions
1* 10 A Reversing lights – Double injection relay –
Engine oil temperature – Oil level -
Air conditioning compressor.
2* 15 A Fuel pump - Canister solenoid valve.
3* 10 AControl unit.
4* 10 A Engine control unit and automatic gearbox.
5 10 A Particulate Emission Filter control unit –
Rear windscreen relay.
6 15 AFront fog lamps.
7 20 AHeadlamp wash.
8* 20 A Direct petrol injection engine control unit - Clutch pedal.
9* 15 A Left–hand dipped beam lights.
10* 15 A Right–hand dipped beam lights.
MAINTENANCE OF YOUR 406
46

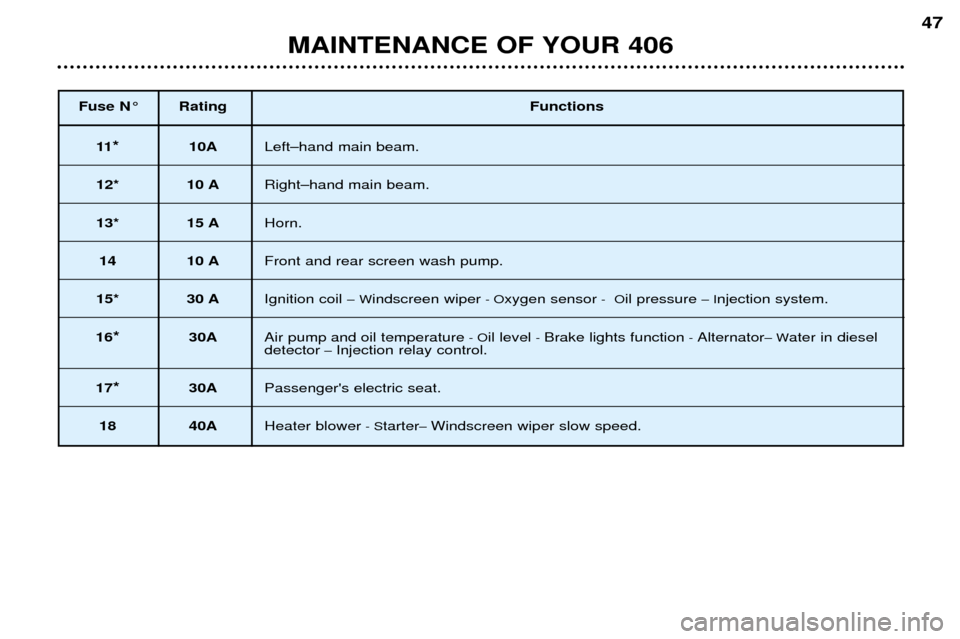

Fuse N° RatingFunctions
11* 10ALeft–hand main beam.
12* 10 A Right–hand main beam.
13* 15 AHorn.
14 10 AFront and rear screen wash pump.
15* 30 A Ignition coil –Windscreen wiper - Oxygen sensor - Oil pressure – Injection system.
16 * 30AAir pump and oil temperature - Oil level - Brake lights function - Alternator – Water in diesel
detector – Injection relay control.
17 * 30APassenger's electric seat.
18 40A Heater blower- Starter – Windscreen wiper slow speed.
MAINTENANCE OF YOUR 406
47

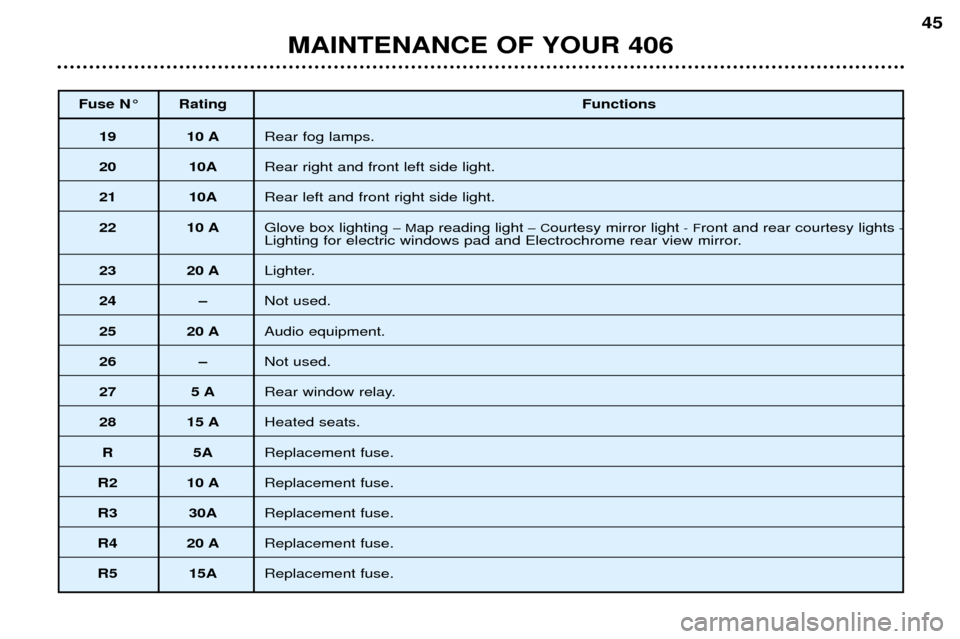

Fuse N° RatingFunctions
19 10 ARear fog lamps.
20 10ARear right and front left side light.
21 10ARear left and front right side light.
22 10 A Glove box lighting –Map reading light –Courtesy mirror light -Front and rear courtesy lights -
Lighting for electric windows pad and Electrochrome rear view mirror.
23 20 ALighter.
24 –Not used.
25 20 AAudio equipment.
26 –Not used.
27 5 ARear window relay.
28 15 AHeated seats.
R5AReplacement fuse.
R2 10 A Replacement fuse.
R3 30AReplacement fuse.
R4 20 AReplacement fuse.
R5 15A Replacement fuse.
MAINTENANCE OF YOUR 406
45
