Page 137 of 250
1010PRACTICAL INFORMATION
118

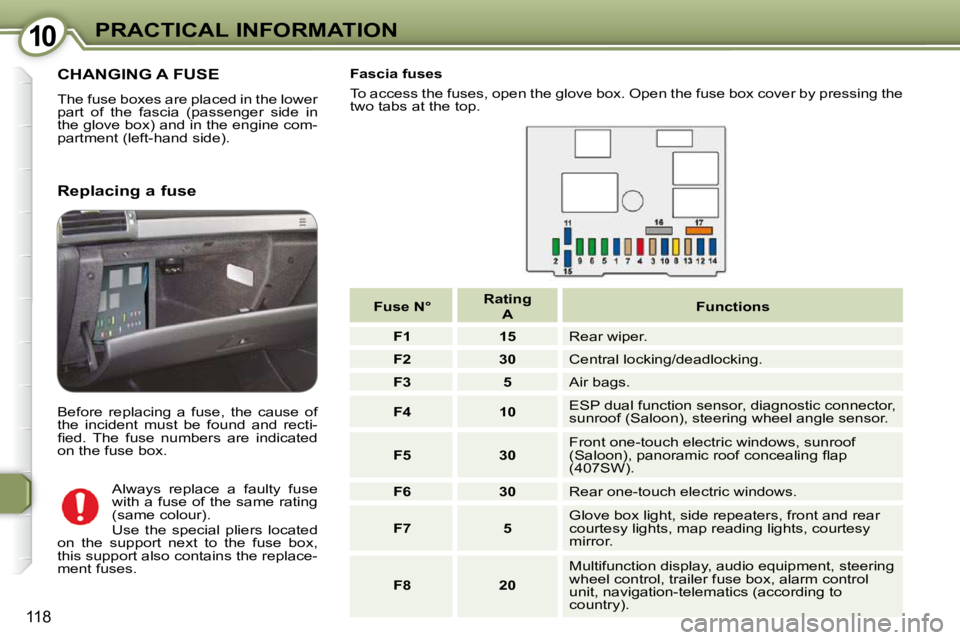

CHANGING A FUSE
The fuse boxes are placed in the lower
part of the fascia (passenger side in
the glove box) and in the engine com-
partment (left-hand side). Fascia fuses
To access the fuses, open the glove box. Open the fuse box co
ver by pressing the
two tabs at the top.
Replacing a fuse
Before replacing a fuse, the cause of
the incident must be found and recti-
fi e d . T h e f u s e n u m b e r s a r e i n d i c a t e d
on the fuse box. Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Use the special pliers located
on the support next to the fuse box,
this support also contains the replace-
ment fuses.
Fuse N°
Rating
A
Functions
F1 15 Rear wiper.
F2 30 Central locking/deadlocking.
F3 5 Air bags.
F4 10 ESP dual function sensor, diagnostic connector,
sunroof (Saloon), steering wheel angle sensor.
F5 30 Front one-touch electric windows, sunroof
( S a l o o n ) , p a n o r a m i c r o o f c o n c e a l i n g fl a p
(407SW).
F6 30 Rear one-touch electric windows.
F7 5 Glove box light, side repeaters, front and rear
courtesy lights, map reading lights, courtesy
mirror.
F8 20 Multifunction display, audio equipment, steering
wheel control, trailer fuse box, alarm control
unit, navigation-telematics (according to
country).
Page 138 of 250
1010PRACTICAL INFORMATION
118
CHANGING A FUSE
The fuse boxes are placed in the lower
part of the fascia (passenger side in
the glove box) and in the engine com-
partment (left-hand side). Fascia fuses
To access the fuses, open the glove box. Open the fuse box co
ver by pressing the
two tabs at the top.
Replacing a fuse
Before replacing a fuse, the cause of
the incident must be found and recti-
fi e d . T h e f u s e n u m b e r s a r e i n d i c a t e d
on the fuse box. Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Use the special pliers located
on the support next to the fuse box,
this support also contains the replace-
ment fuses.
Fuse N°
Rating
A
Functions
F1 15 Rear wiper.
F2 30 Central locking/deadlocking.
F3 5 Air bags.
F4 10 ESP dual function sensor, diagnostic connector,
sunroof (Saloon), steering wheel angle sensor.
F5 30 Front one-touch electric windows, sunroof
( S a l o o n ) , p a n o r a m i c r o o f c o n c e a l i n g fl a p
(407SW).
F6 30 Rear one-touch electric windows.
F7 5 Glove box light, side repeaters, front and rear
courtesy lights, map reading lights, courtesy
mirror.
F8 20 Multifunction display, audio equipment, steering
wheel control, trailer fuse box, alarm control
unit, navigation-telematics (according to
country).
Page 139 of 250
1010PRACTICAL INFORMATION
119

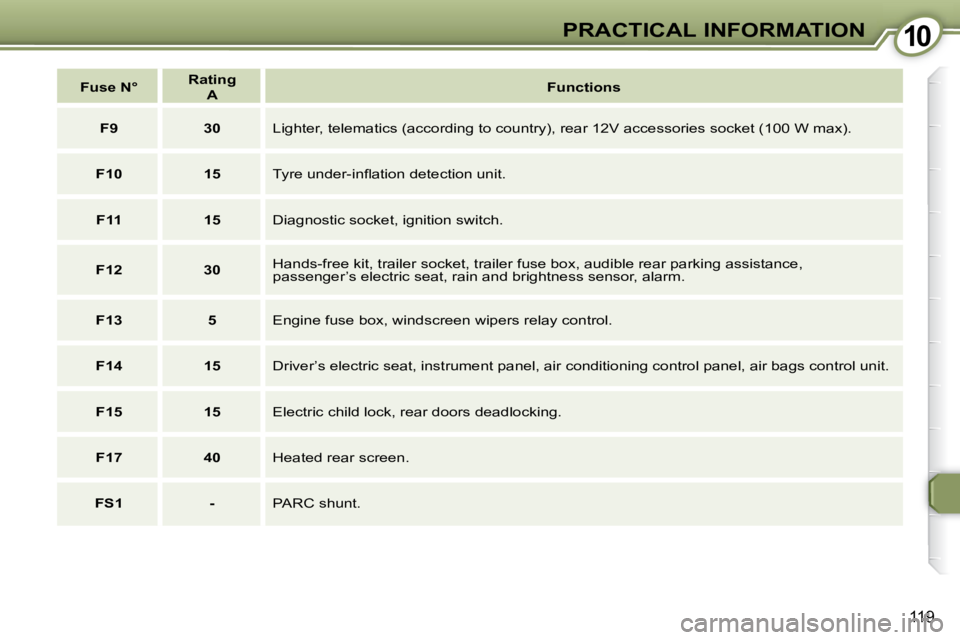

Fuse N°
Rating
A
Functions
F9 30 Lighter, telematics (according to country), rear 12V accessories so cket (100 W max).
F10 15 T y r e u n d e r - i n fl a t i o n d e t e c t i o n u n i t .
F11 15 Diagnostic socket, ignition switch.
F12 30 Hands-free kit, trailer socket, trailer fuse box, audible rear pa
rking assistance,
passenger’s electric seat, rain and brightness sensor, alarm.
F13 5 Engine fuse box, windscreen wipers relay control.
F14 15 Driver’s electric seat, instrument panel, air conditioning control panel, air bags control unit.
F15 15 Electric child lock, rear doors deadlocking.
F17 40 Heated rear screen.
FS1 - PARC shunt.
Page 142 of 250
1010PRACTICAL INFORMATION

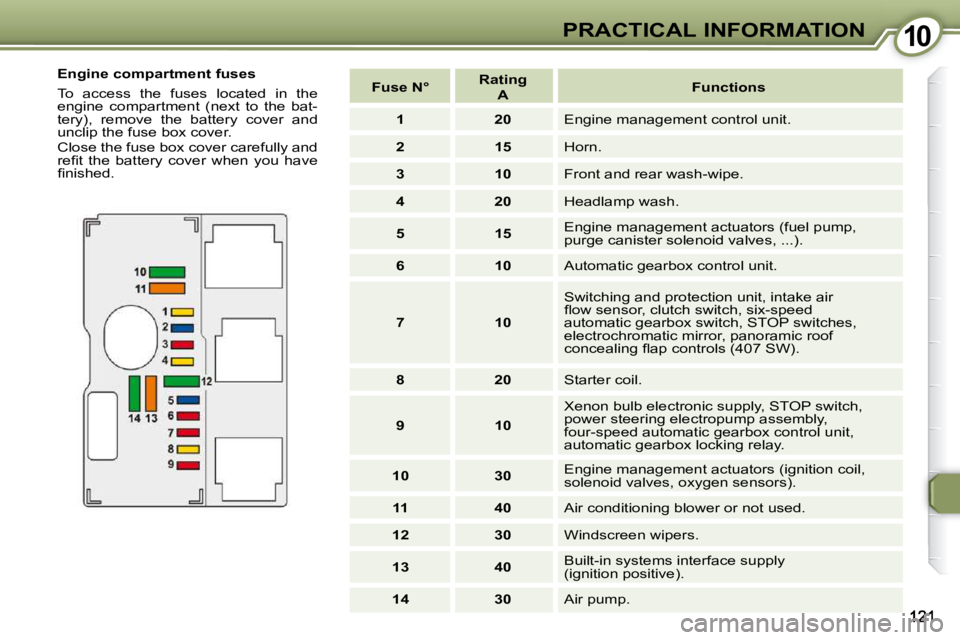

Engine compartment fuses
To access the fuses located in the
engine compartment (next to the bat-
tery), remove the battery cover and
unclip the fuse box cover.
Close the fuse box cover carefully and
r e fi t t h e b a t t e r y c o v e r w h e n y o u h a v e
fi n i s h e d .
Fuse N°
Rating
A
Functions
1 20 Engine management control unit.
2 15 Horn.
3 10 Front and rear wash-wipe.
4 20 Headlamp wash.
5 15 Engine management actuators (fuel pump,
purge canister solenoid valves, ...).
6 10 Automatic gearbox control unit.
7 10 Switching and protection unit, intake air
fl o w s e n s o r , c l u t c h s w i t c h , s i x - s p e e d
automatic gearbox switch, STOP switches,
electrochromatic mirror, panoramic roof
c o n c e a l i n g fl a p c o n t r o l s ( 4 0 7 S W ) .
8 20 Starter coil.
9 10 Xenon bulb electronic supply, STOP switch,
power steering electropump assembly,
four-speed automatic gearbox control unit,
automatic gearbox locking relay.
10 30 Engine management actuators (ignition coil,
solenoid valves, oxygen sensors).
11 40 Air conditioning blower or not used.
12 30 Windscreen wipers.
13 40 Built-in systems interface supply
(ignition positive).
14 30 Air pump.
