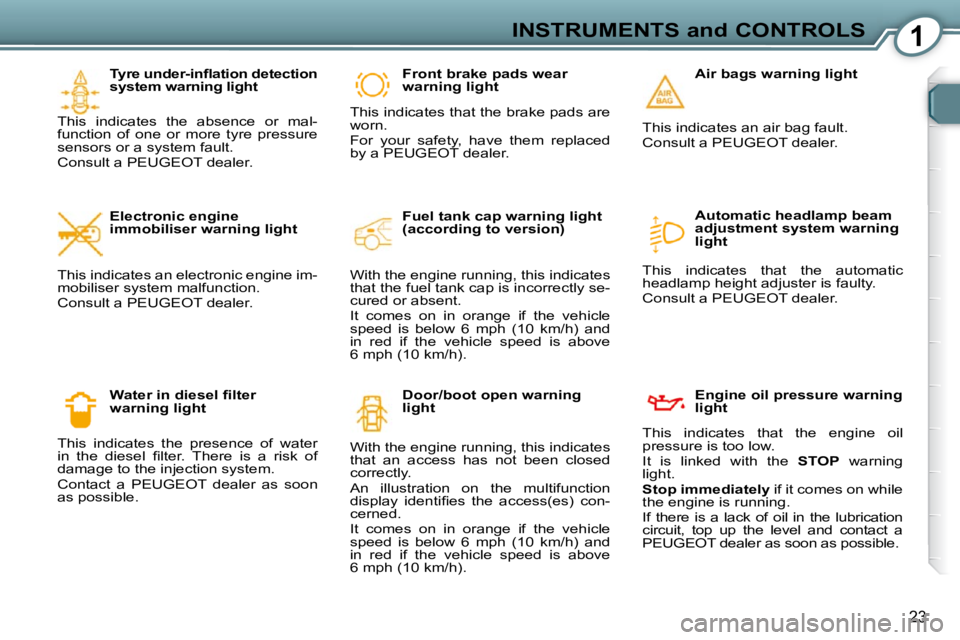

Page 22 of 250
1INSTRUMENTS and CONTROLS
23
T y r e u n d e r - i n fl a t i o n d e t e c t i o n
system warning light
This indicates the absence or mal-
function of one or more tyre pressure
sensors or a system fault.
Consult a PEUGEOT dealer.
Electronic engine
immobiliser warning light
This indicates an electronic engine im-
mobiliser system malfunction.
Consult a PEUGEOT dealer. Front brake pads wear
warning light
This indicates that the brake pads are
worn.
For your safety, have them replaced
by a PEUGEOT dealer.
Fuel tank cap warning light
(according to version)
With the engine running, this indicates
that the fuel tank cap is incorrectly se-
cured or absent.
It comes on in orange if the vehicle
speed is below 6 mph (10 km/h) and
in red if the vehicle speed is above
6 mph (10 km/h).
W a t e r i n d i e s e l fi l t e r
warning light
This indicates the presence of water
i n t h e d i e s e l fi l t e r . T h e r e i s a r i s k o f
damage to the injection system.
Contact a PEUGEOT dealer as soon
as possible. Door/boot open warning
light
With the engine running, this indicates
that an access has not been closed
correctly.
An illustration on the multifunction
d i s p l a y i d e n t i fi e s t h e a c c e s s ( e s ) c o n -
cerned.
It comes on in orange if the vehicle
speed is below 6 mph (10 km/h) and
in red if the vehicle speed is above
6 mph (10 km/h). Air bags warning light
This indicates an air bag fault.
Consult a PEUGEOT dealer.
Automatic headlamp beam
adjustment system warning
light
This indicates that the automatic
headlamp height adjuster is faulty.
Consult a PEUGEOT dealer.
Engine oil pressure warning
light
This indicates that the engine oil
pressure is too low.
It is linked with the STOP warning
light.
Stop immediately if it comes on while
the engine is running.
If there is a lack of oil in the lubrication
circuit, top up the level and contact a
PEUGEOT dealer as soon as possible.

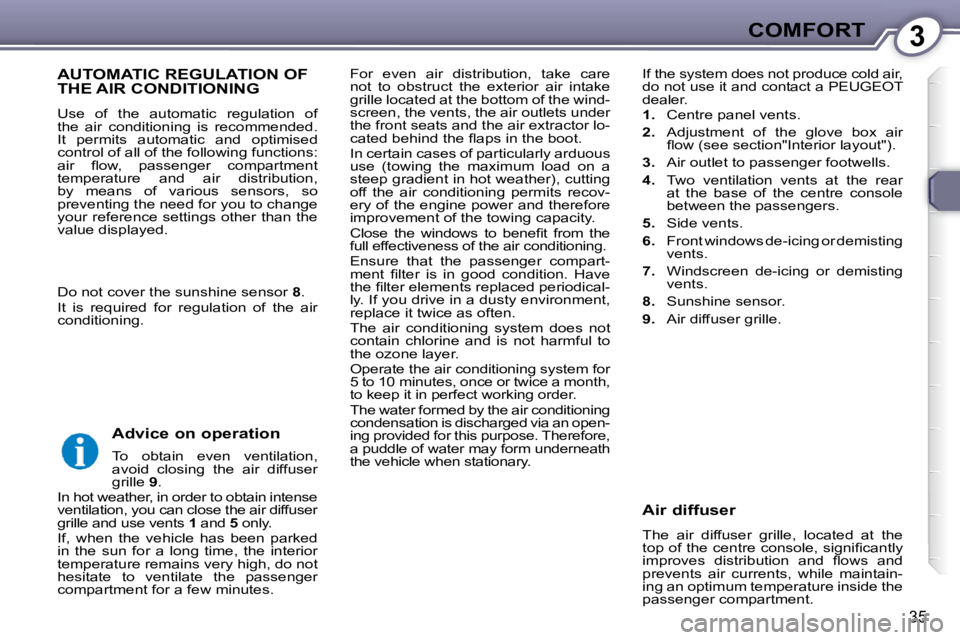

Page 35 of 250
3COMFORT
35
For even air distribution, take care
not to obstruct the exterior air intake
grille located at the bottom of the wind-
screen, the vents, the air outlets under
the front seats and the air extractor lo-
c a t e d b e h i n d t h e fl a p s i n t h e b o o t .
I n c e r t a i n c a s e s o f p a r t i c u l a r l y a r d u o u s
use (towing the maximum load on a
s t e e p g r a d i e n t i n h o t w e a t h e r ) , c u t t i n g
o f f t h e a i r c o n d i t i o n i n g p e r m i t s r e c o v -
e r y o f t h e e n g i n e p o w e r a n d t h e r e f o r e
i m p r o v e m e n t o f t h e t o w i n g c a p a c i t y .
C l o s e t h e w i n d o w s t o b e n e fi t f r o m t h e
f u l l e f f e c t i v e n e s s o f t h e a i r c o n d i t i o n i n g .
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t -
m e n t fi l t e r i s i n g o o d c o n d i t i o n . H a v e
t h e fi l t e r e l e m e n t s r e p l a c e d p e r i o d i c a l -
l y . I f y o u d r i v e i n a d u s t y e n v i r o n m e n t ,
r e p l a c e i t t w i c e a s o f t e n .
T h e a i r c o n d i t i o n i n g s y s t e m d o e s n o t
contain chlorine and is not harmful to
t h e o z o n e l a y e r .
O p e r a t e t h e a i r c o n d i t i o n i n g s y s t e m f o r
5 to 10 minutes, once or twice a month,
t o k e e p i t i n p e r f e c t w o r k i n g o r d e r .
T h e w a t e r f o r m e d b y t h e a i r c o n d i t i o n i n g
c o n d e n s a t i o n i s d i s c h a r g e d v i a a n o p e n -
i n g p r o v i d e d f o r t h i s p u r p o s e . T h e r e f o r e ,
a p u d d l e o f w a t e r m a y f o r m u n d e r n e a t h
t h e v e h i c l e w h e n s t a t i o n a r y . I f t h e s y s t e m d o e s n o t p r o d u c e c o l d a i r ,
do not use it and contact a PEUGEOT
d e a l e r .
1. C e n t r e p a n e l v e n t s .
2. Adjustment of the glove box air
fl o w ( s e e s e c t i o n " I n t e r i o r l a y o u t " ) .
3. A i r o u t l e t t o p a s s e n g e r f o o t w e l l s .
4. Two ventilation vents at the rear
at the base of the centre console
b e t w e e n t h e p a s s e n g e r s .
5. S i d e v e n t s .
6. Front windows de-icing or demisting
v e n t s .
7. Windscreen de-icing or demisting
v e n t s .
8. S u n s h i n e s e n s o r .
9. A i r d i f f u s e r g r i l l e . AUTOMATIC REGULATION OF THE AIR CONDITIONING
Use of the automatic regulation of
t h e a i r c o n d i t i o n i n g i s r e c o m m e n d e d .
I t p e r m i t s a u t o m a t i c a n d o p t i m i s e d
control of all of the following functions:
a i r fl o w , p a s s e n g e r c o m p a r t m e n t
t e m p e r a t u r e a n d a i r d i s t r i b u t i o n ,
b y m e a n s o f v a r i o u s s e n s o r s , s o
p r e v e n t i n g t h e n e e d f o r y o u t o c h a n g e
y o u r r e f e r e n c e s e t t i n g s o t h e r t h a n t h e
v a l u e d i s p l a y e d .
Air diffuser
The air diffuser grille, located at the
t o p o f t h e c e n t r e c o n s o l e , s i g n i fi c a n t l y
i m p r o v e s d i s t r i b u t i o n a n d fl o w s a n d
p r e v e n t s a i r c u r r e n t s , w h i l e m a i n t a i n -
i n g a n o p t i m u m t e m p e r a t u r e i n s i d e t h e
p a s s e n g e r c o m p a r t m e n t .
Do not cover the sunshine sensor
8 .
It is required for regulation of the air
c o n d i t i o n i n g .
Advice on operation
To obtain even ventilation,
avoid closing the air diffuser
grille 9 .
In hot weather, in order to obtain intense
v e n t i l a t i o n , y o u c a n c l o s e t h e a i r d i f f u s e r
grille and use vents 1 and 5 o n l y .
I f , w h e n t h e v e h i c l e h a s b e e n p a r k e d
in the sun for a long time, the interior
t e m p e r a t u r e r e m a i n s v e r y h i g h , d o n o t
h e s i t a t e t o v e n t i l a t e t h e p a s s e n g e r
c o m p a r t m e n t f o r a f e w m i n u t e s .

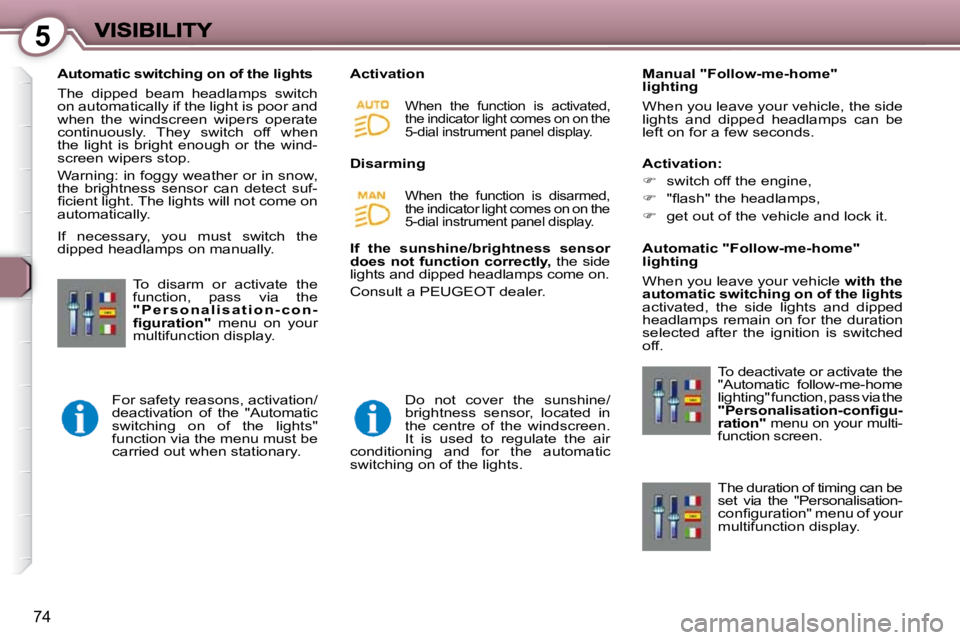

Page 83 of 250
5
74
Automatic switching on of the lights
T h e d i p p e d b e a m h e a d l a m p s s w i t c h
o n a u t o m a t i c a l l y i f t h e l i g h t i s p o o r a n d
when the windscreen wipers operate
continuously. They switch off when
the light is bright enough or the wind-
screen wipers stop.
Warning: in foggy weather or in snow,
the brightness sensor can detect suf-
fi c i e n t l i g h t . T h e l i g h t s w i l l n o t c o m e o n
a u t o m a t i c a l l y .
I f n e c e s s a r y , y o u m u s t s w i t c h t h e
d i p p e d h e a d l a m p s o n m a n u a l l y . Activation Manual "Follow-me-home"
lighting
When you leave your vehicle, the side
l i g h t s a n d d i p p e d h e a d l a m p s c a n b e
left on for a few seconds.
When the function is activated,
t h e i n d i c a t o r l i g h t c o m e s o n o n t h e
5 - d i a l i n s t r u m e n t p a n e l d i s p l a y .
T o d i s a r m o r a c t i v a t e t h e
function, pass via the
" P e r s o n a l i s a t i o n - c o n -
fi g u r a t i o n " m e n u o n y o u r
m u l t i f u n c t i o n d i s p l a y .
F o r s a f e t y r e a s o n s , a c t i v a t i o n /
d e a c t i v a t i o n o f t h e " A u t o m a t i c
switching on of the lights"
f u n c t i o n v i a t h e m e n u m u s t b e
carried out when stationary. To deactivate or activate the
" A u t o m a t i c f o l l o w - m e - h o m e
lighting" function, pass via the
" P e r s o n a l i s a t i o n - c o n fi g u -
ration" m e n u o n y o u r m u l t i -
function screen.
T h e d u r a t i o n o f t i m i n g c a n b e
set via the "Personalisation-
c o n fi g u r a t i o n " m e n u o f y o u r
m u l t i f u n c t i o n d i s p l a y .
Automatic "Follow-me-home"
lighting
When you leave your vehicle
with the
automatic switching on of the lights
activated, the side lights and dipped
h e a d l a m p s r e m a i n o n f o r t h e d u r a t i o n
selected after the ignition is switched
off.
Disarming
W h e n t h e f u n c t i o n i s d i s a r m e d ,
t h e i n d i c a t o r l i g h t c o m e s o n o n t h e
5 - d i a l i n s t r u m e n t p a n e l d i s p l a y .
D o n o t c o v e r t h e s u n s h i n e /
brightness sensor, located in
the centre of the windscreen.
It is used to regulate the air
c o n d i t i o n i n g a n d f o r t h e a u t o m a t i c
switching on of the lights.
If the sunshine/brightness sensor
does not function correctly, the side
l i g h t s a n d d i p p e d h e a d l a m p s c o m e o n .
Consult a PEUGEOT dealer. Activation:
switch off the engine,
" fl a s h " t h e h e a d l a m p s ,
get out of the vehicle and lock it.
Page 84 of 250
5
74
Automatic switching on of the lights
T h e d i p p e d b e a m h e a d l a m p s s w i t c h
o n a u t o m a t i c a l l y i f t h e l i g h t i s p o o r a n d
when the windscreen wipers operate
continuously. They switch off when
the light is bright enough or the wind-
screen wipers stop.
Warning: in foggy weather or in snow,
the brightness sensor can detect suf-
fi c i e n t l i g h t . T h e l i g h t s w i l l n o t c o m e o n
a u t o m a t i c a l l y .
I f n e c e s s a r y , y o u m u s t s w i t c h t h e
d i p p e d h e a d l a m p s o n m a n u a l l y . Activation Manual "Follow-me-home"
lighting
When you leave your vehicle, the side
l i g h t s a n d d i p p e d h e a d l a m p s c a n b e
left on for a few seconds.
When the function is activated,
t h e i n d i c a t o r l i g h t c o m e s o n o n t h e
5 - d i a l i n s t r u m e n t p a n e l d i s p l a y .
T o d i s a r m o r a c t i v a t e t h e
function, pass via the
" P e r s o n a l i s a t i o n - c o n -
fi g u r a t i o n " m e n u o n y o u r
m u l t i f u n c t i o n d i s p l a y .
F o r s a f e t y r e a s o n s , a c t i v a t i o n /
d e a c t i v a t i o n o f t h e " A u t o m a t i c
switching on of the lights"
f u n c t i o n v i a t h e m e n u m u s t b e
carried out when stationary. To deactivate or activate the
" A u t o m a t i c f o l l o w - m e - h o m e
lighting" function, pass via the
" P e r s o n a l i s a t i o n - c o n fi g u -
ration" m e n u o n y o u r m u l t i -
function screen.
T h e d u r a t i o n o f t i m i n g c a n b e
set via the "Personalisation-
c o n fi g u r a t i o n " m e n u o f y o u r
m u l t i f u n c t i o n d i s p l a y .
Automatic "Follow-me-home"
lighting
When you leave your vehicle
with the
automatic switching on of the lights
activated, the side lights and dipped
h e a d l a m p s r e m a i n o n f o r t h e d u r a t i o n
selected after the ignition is switched
off.
Disarming
W h e n t h e f u n c t i o n i s d i s a r m e d ,
t h e i n d i c a t o r l i g h t c o m e s o n o n t h e
5 - d i a l i n s t r u m e n t p a n e l d i s p l a y .
D o n o t c o v e r t h e s u n s h i n e /
brightness sensor, located in
the centre of the windscreen.
It is used to regulate the air
c o n d i t i o n i n g a n d f o r t h e a u t o m a t i c
switching on of the lights.
If the sunshine/brightness sensor
does not function correctly, the side
l i g h t s a n d d i p p e d h e a d l a m p s c o m e o n .
Consult a PEUGEOT dealer. Activation:
switch off the engine,
" fl a s h " t h e h e a d l a m p s ,
get out of the vehicle and lock it.
Page 87 of 250
5
77

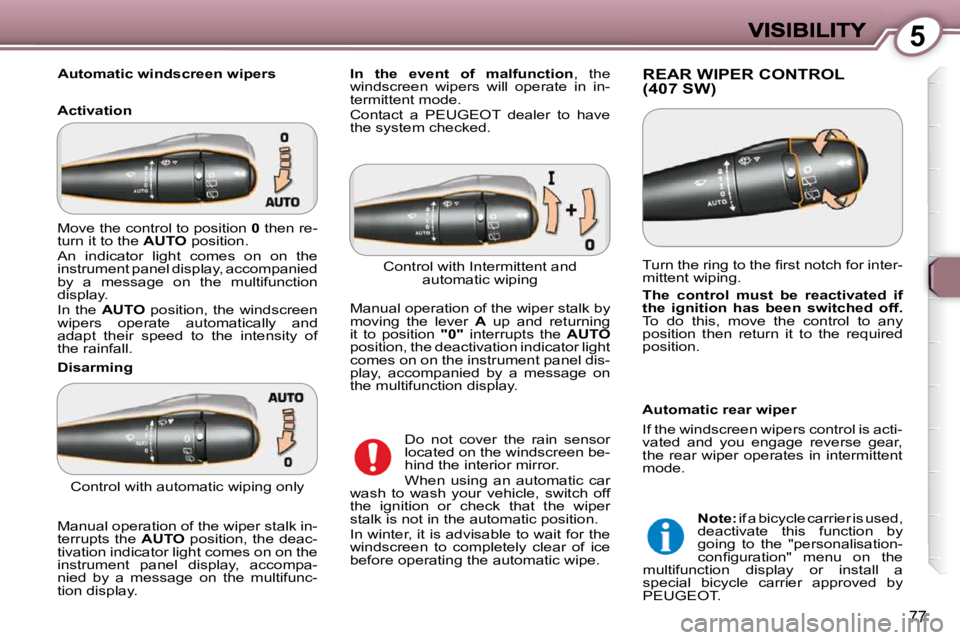

Automatic windscreen wipers
Activation REAR WIPER CONTROL ( 4 0 7 S W )
Disarming
Do not cover the rain sensor
located on the windscreen be-
h i n d t h e i n t e r i o r m i r r o r .
W h e n u s i n g a n a u t o m a t i c c a r
wash to wash your vehicle, switch off
the ignition or check that the wiper
s t a l k i s n o t i n t h e a u t o m a t i c p o s i t i o n .
In winter, it is advisable to wait for the
w i n d s c r e e n t o c o m p l e t e l y c l e a r o f i c e
b e f o r e o p e r a t i n g t h e a u t o m a t i c w i p e . Automatic rear wiper
If the windscreen wipers control is acti-
vated and you engage reverse gear,
t h e r e a r w i p e r o p e r a t e s i n i n t e r m i t t e n t
m o d e .
Note: if a bicycle carrier is used,
deactivate this function by
going to the "personalisation-
c o n fi g u r a t i o n " m e n u o n t h e
m u l t i f u n c t i o n d i s p l a y o r i n s t a l l a
special bicycle carrier approved by
PEUGEOT .
T u r n t h e r i n g t o t h e fi r s t n o t c h f o r i n t e r -
m i t t e n t w i p i n g .
The control must be reactivated if
the ignition has been switched off.
T o d o t h i s , m o v e t h e c o n t r o l t o a n y
position then return it to the required
position.
Move the control to position
0 then re-
turn it to the AUTO position.
A n i n d i c a t o r l i g h t c o m e s o n o n t h e
i n s t r u m e n t p a n e l d i s p l a y , a c c o m p a n i e d
b y a m e s s a g e o n t h e m u l t i f u n c t i o n
display.
In the AUTO position, the windscreen
w i p e r s o p e r a t e a u t o m a t i c a l l y a n d
adapt their speed to the intensity of
the rainfall.
C o n t r o l w i t h a u t o m a t i c w i p i n g o n l y
In the event of malfunction , the
windscreen wipers will operate in in-
t e r m i t t e n t m o d e .
Contact a PEUGEOT dealer to have
t h e s y s t e m c h e c k e d .
C o n t r o l w i t h I n t e r m i t t e n t a n d a u t o m a t i c w i p i n g
Manual operation of the wiper stalk in-
terrupts the AUTO position, the deac-
t i v a t i o n i n d i c a t o r l i g h t c o m e s o n o n t h e
i n s t r u m e n t p a n e l d i s p l a y , a c c o m p a -
n i e d b y a m e s s a g e o n t h e m u l t i f u n c -
tion display. Manual operation of the wiper stalk by
m o v i n g t h e l e v e r
A up and returning
it to position "0" interrupts the AUTO
position, the deactivation indicator light
c o m e s o n o n t h e i n s t r u m e n t p a n e l d i s -
p l a y , a c c o m p a n i e d b y a m e s s a g e o n
t h e m u l t i f u n c t i o n d i s p l a y .
Page 89 of 250
5
77
Automatic windscreen wipers
Activation REAR WIPER CONTROL ( 4 0 7 S W )
Disarming
Do not cover the rain sensor
located on the windscreen be-
h i n d t h e i n t e r i o r m i r r o r .
W h e n u s i n g a n a u t o m a t i c c a r
wash to wash your vehicle, switch off
the ignition or check that the wiper
s t a l k i s n o t i n t h e a u t o m a t i c p o s i t i o n .
In winter, it is advisable to wait for the
w i n d s c r e e n t o c o m p l e t e l y c l e a r o f i c e
b e f o r e o p e r a t i n g t h e a u t o m a t i c w i p e . Automatic rear wiper
If the windscreen wipers control is acti-
vated and you engage reverse gear,
t h e r e a r w i p e r o p e r a t e s i n i n t e r m i t t e n t
m o d e .
Note: if a bicycle carrier is used,
deactivate this function by
going to the "personalisation-
c o n fi g u r a t i o n " m e n u o n t h e
m u l t i f u n c t i o n d i s p l a y o r i n s t a l l a
special bicycle carrier approved by
PEUGEOT .
T u r n t h e r i n g t o t h e fi r s t n o t c h f o r i n t e r -
m i t t e n t w i p i n g .
The control must be reactivated if
the ignition has been switched off.
T o d o t h i s , m o v e t h e c o n t r o l t o a n y
position then return it to the required
position.
Move the control to position
0 then re-
turn it to the AUTO position.
A n i n d i c a t o r l i g h t c o m e s o n o n t h e
i n s t r u m e n t p a n e l d i s p l a y , a c c o m p a n i e d
b y a m e s s a g e o n t h e m u l t i f u n c t i o n
display.
In the AUTO position, the windscreen
w i p e r s o p e r a t e a u t o m a t i c a l l y a n d
adapt their speed to the intensity of
the rainfall.
C o n t r o l w i t h a u t o m a t i c w i p i n g o n l y
In the event of malfunction , the
windscreen wipers will operate in in-
t e r m i t t e n t m o d e .
Contact a PEUGEOT dealer to have
t h e s y s t e m c h e c k e d .
C o n t r o l w i t h I n t e r m i t t e n t a n d a u t o m a t i c w i p i n g
Manual operation of the wiper stalk in-
terrupts the AUTO position, the deac-
t i v a t i o n i n d i c a t o r l i g h t c o m e s o n o n t h e
i n s t r u m e n t p a n e l d i s p l a y , a c c o m p a -
n i e d b y a m e s s a g e o n t h e m u l t i f u n c -
tion display. Manual operation of the wiper stalk by
m o v i n g t h e l e v e r
A up and returning
it to position "0" interrupts the AUTO
position, the deactivation indicator light
c o m e s o n o n t h e i n s t r u m e n t p a n e l d i s -
p l a y , a c c o m p a n i e d b y a m e s s a g e o n
t h e m u l t i f u n c t i o n d i s p l a y .
Page 90 of 250
5
77
Automatic windscreen wipers
Activation REAR WIPER CONTROL ( 4 0 7 S W )
Disarming
Do not cover the rain sensor
located on the windscreen be-
h i n d t h e i n t e r i o r m i r r o r .
W h e n u s i n g a n a u t o m a t i c c a r
wash to wash your vehicle, switch off
the ignition or check that the wiper
s t a l k i s n o t i n t h e a u t o m a t i c p o s i t i o n .
In winter, it is advisable to wait for the
w i n d s c r e e n t o c o m p l e t e l y c l e a r o f i c e
b e f o r e o p e r a t i n g t h e a u t o m a t i c w i p e . Automatic rear wiper
If the windscreen wipers control is acti-
vated and you engage reverse gear,
t h e r e a r w i p e r o p e r a t e s i n i n t e r m i t t e n t
m o d e .
Note: if a bicycle carrier is used,
deactivate this function by
going to the "personalisation-
c o n fi g u r a t i o n " m e n u o n t h e
m u l t i f u n c t i o n d i s p l a y o r i n s t a l l a
special bicycle carrier approved by
PEUGEOT .
T u r n t h e r i n g t o t h e fi r s t n o t c h f o r i n t e r -
m i t t e n t w i p i n g .
The control must be reactivated if
the ignition has been switched off.
T o d o t h i s , m o v e t h e c o n t r o l t o a n y
position then return it to the required
position.
Move the control to position
0 then re-
turn it to the AUTO position.
A n i n d i c a t o r l i g h t c o m e s o n o n t h e
i n s t r u m e n t p a n e l d i s p l a y , a c c o m p a n i e d
b y a m e s s a g e o n t h e m u l t i f u n c t i o n
display.
In the AUTO position, the windscreen
w i p e r s o p e r a t e a u t o m a t i c a l l y a n d
adapt their speed to the intensity of
the rainfall.
C o n t r o l w i t h a u t o m a t i c w i p i n g o n l y
In the event of malfunction , the
windscreen wipers will operate in in-
t e r m i t t e n t m o d e .
Contact a PEUGEOT dealer to have
t h e s y s t e m c h e c k e d .
C o n t r o l w i t h I n t e r m i t t e n t a n d a u t o m a t i c w i p i n g
Manual operation of the wiper stalk in-
terrupts the AUTO position, the deac-
t i v a t i o n i n d i c a t o r l i g h t c o m e s o n o n t h e
i n s t r u m e n t p a n e l d i s p l a y , a c c o m p a -
n i e d b y a m e s s a g e o n t h e m u l t i f u n c -
tion display. Manual operation of the wiper stalk by
m o v i n g t h e l e v e r
A up and returning
it to position "0" interrupts the AUTO
position, the deactivation indicator light
c o m e s o n o n t h e i n s t r u m e n t p a n e l d i s -
p l a y , a c c o m p a n i e d b y a m e s s a g e o n
t h e m u l t i f u n c t i o n d i s p l a y .
Page 119 of 250
8DRIVING
101

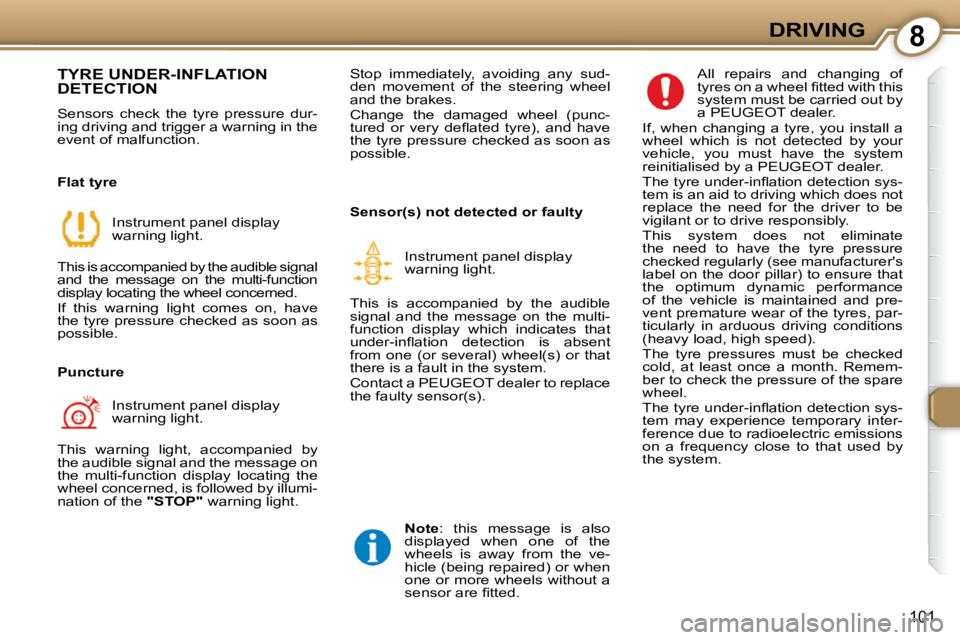

TYRE UNDER-INFLATION DETECTION
Sensors check the tyre pressure dur-
ing driving and trigger a warning in the
event of malfunction.
Flat tyre Instrument panel display
warning light.
This is accompanied by the audible signal
and the message on the multi-function
display locating the wheel concerned.
If this warning light comes on, have
the tyre pressure checked as soon as
possible.
Puncture
This warning light, accompanied by
the audible signal and the message on
the multi-function display locating the
wheel concerned, is followed by illumi-
nation of the "STOP" warning light. Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punc-
t u r e d o r v e r y d e fl a t e d t y r e ) , a n d h a v e
the tyre pressure checked as soon as
possible.
Sensor(s) not detected or faulty
Instrument panel display
warning light. All repairs and changing of
t y r e s o n a w h e e l fi t t e d w i t h t h i s
system must be carried out by
a PEUGEOT dealer.
If, when changing a tyre, you install a
wheel which is not detected by your
vehicle, you must have the system
reinitialised by a PEUGEOT dealer.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n s y s -
tem is an aid to driving which does not
replace the need for the driver to be
vigilant or to drive responsibly.
This system does not eliminate
the need to have the tyre pressure
checked regularly (see manufacturer's
label on the door pillar) to ensure that
the optimum dynamic performance
of the vehicle is maintained and pre-
vent premature wear of the tyres, par-
ticularly in arduous driving conditions
(heavy load, high speed).
The tyre pressures must be checked
cold, at least once a month. Remem-
ber to check the pressure of the spare
wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n s y s -
tem may experience temporary inter-
ference due to radioelectric emissions
on a frequency close to that used by
the system.
Note : this message is also
displayed when one of the
wheels is away from the ve-
hicle (being repaired) or when
one or more wheels without a
s e n s o r a r e fi t t e d .
Instrument panel display
warning light.
This is accompanied by the audible
signal and the message on the multi-
function display which indicates that
u n d e r - i n fl a t i o n d e t e c t i o n i s a b s e n t
from one (or several) wheel(s) or that
there is a fault in the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).
Page 120 of 250
8DRIVING

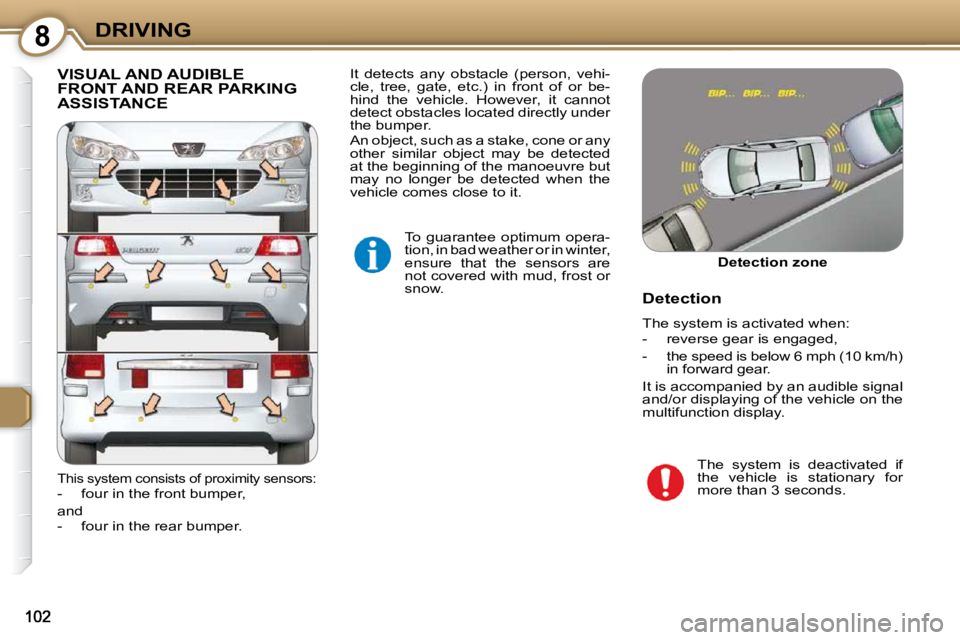

VISUAL AND AUDIBLE FRONT AND REAR PARKING ASSISTANCE
To guarantee optimum opera-
tion, in bad weather or in winter,
ensure that the sensors are
not covered with mud, frost or
snow.
This system consists of proximity sensors: - four in the front bumper,
and
- four in the rear bumper. Detection zone
The system is deactivated if
the vehicle is stationary for
more than 3 seconds.
Detection
The system is activated when:
- reverse gear is engaged,
- the speed is below 6 mph (10 km/h)
in forward gear.
It is accompanied by an audible signal
and/or displaying of the vehicle on the
multifunction display.
It detects any obstacle (person, vehi-
cle, tree, gate, etc.) in front of or be-
hind the vehicle. However, it cannot
detect obstacles located directly under
the bumper.
An object, such as a stake, cone or any
other similar object may be detected
at the beginning of the manoeuvre but
may no longer be detected when the
vehicle comes close to it.
Page 130 of 250
1010PRACTICAL INFORMATION
113

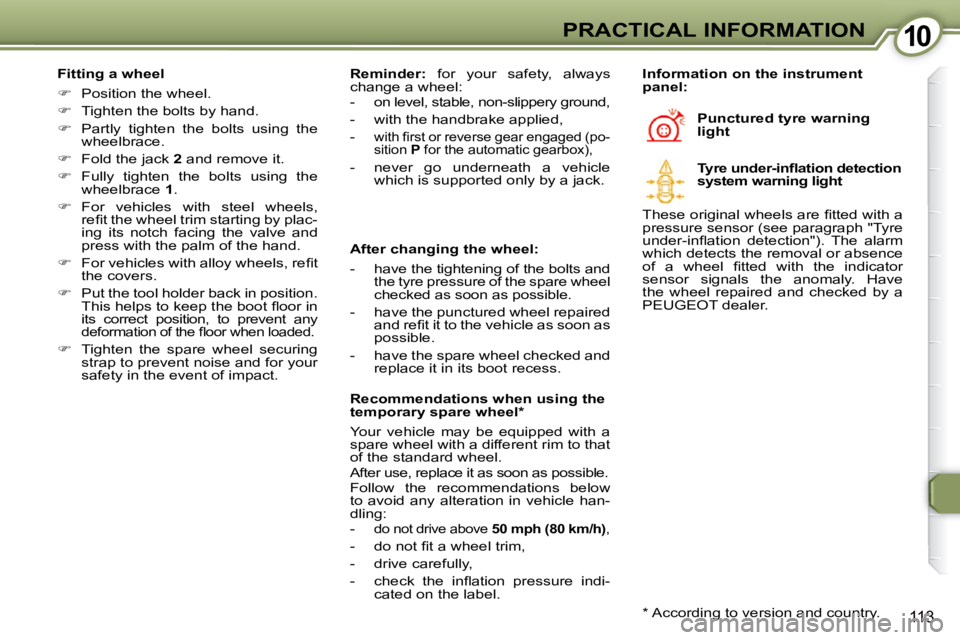

Fitting a wheel
Position the wheel.
Tighten the bolts by hand.
Partly tighten the bolts using the
wheelbrace.
Fold the jack 2 and remove it.
Fully tighten the bolts using the
wheelbrace 1 .
For vehicles with steel wheels,
r e fi t t h e w h e e l t r i m s t a r t i n g b y p l a c -
ing its notch facing the valve and
press with the palm of the hand.
F o r v e h i c l e s w i t h a l l o y w h e e l s , r e fi t
the covers.
Put the tool holder back in position.
T h i s h e l p s t o k e e p t h e b o o t fl o o r i n
its correct position, to prevent any
d e f o r m a t i o n o f t h e fl o o r w h e n l o a d e d .
Tighten the spare wheel securing
strap to prevent noise and for your
safety in the event of impact. Punctured tyre warning
light
Information on the instrument
panel:
Reminder: for your safety, always
change a wheel:
- on level, stable, non-slippery ground,
- with the handbrake applied,
-
w i t h fi r s t o r r e v e r s e g e a r e n g a g e d ( p o -
sition P for the automatic gearbox),
- never go underneath a vehicle
which is supported only by a jack. T y r e u n d e r - i n fl a t i o n d e t e c t i o n
system warning light
T h e s e o r i g i n a l w h e e l s a r e fi t t e d w i t h a
pressure sensor (see paragraph "Tyre
u n d e r - i n fl a t i o n d e t e c t i o n " ) . T h e a l a r m
which detects the removal or absence
o f a w h e e l fi t t e d w i t h t h e i n d i c a t o r
sensor signals the anomaly. Have
the wheel repaired and checked by a
PEUGEOT dealer.
After changing the wheel:
- have the tightening of the bolts and
the tyre pressure of the spare wheel
checked as soon as possible.
- have the punctured wheel repaired a n d r e fi t i t t o t h e v e h i c l e a s s o o n a s
possible.
- have the spare wheel checked and replace it in its boot recess.
Recommendations when using the
temporary spare wheel *
Your vehicle may be equipped with a
spare wheel with a different rim to that
of the standard wheel.
After use, replace it as soon as possible.
Follow the recommendations below
to avoid any alteration in vehicle han-
dling:
-
do not drive above 50 mph (80 km/h) ,
- d o n o t fi t a w h e e l t r i m ,
- drive carefully,
- c h e c k t h e i n fl a t i o n p r e s s u r e i n d i - cated on the label.
* According to version and country.
