1

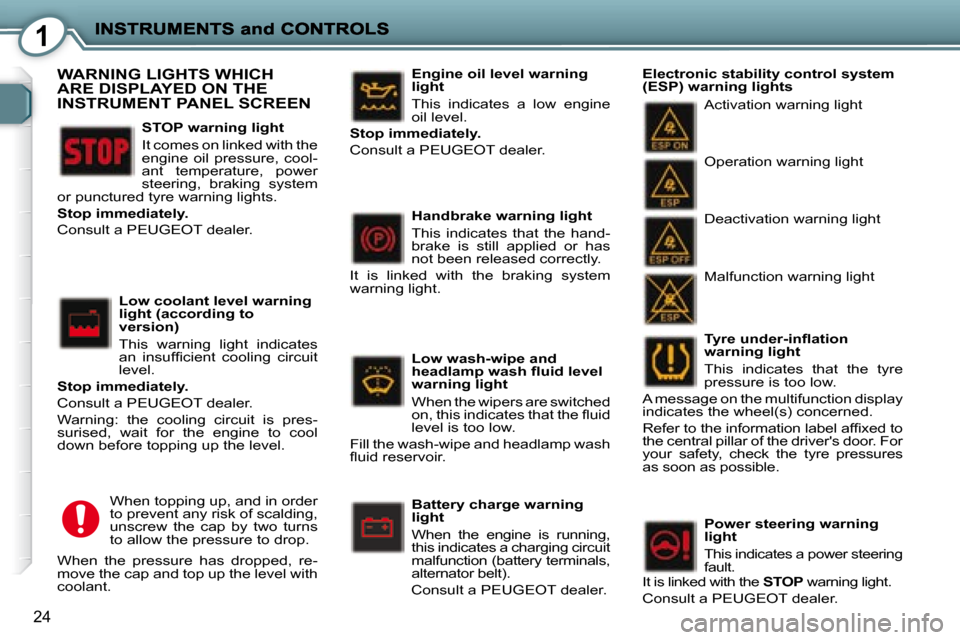

24
T y r e u n d e r - i n fl a t i o n
warning light
This indicates that the tyre
pressure is too low.
A message on the multifunction display
indicates the wheel(s) concerned.
R e f e r t o t h e i n f o r m a t i o n l a b e l a f fi x e d t o
the central pillar of the driver's door. For
your safety, check the tyre pressures
as soon as possible.
Electronic stability control system
(ESP) warning lights
Activation warning light
Operation warning light
Deactivation warning light
Malfunction warning light
Handbrake warning light
This indicates that the hand-
brake is still applied or has
not been released correctly.
It is linked with the braking system
warning light.
Low wash-wipe and
h e a d l a m p w a s h fl u i d l e v e l
warning light
When the wipers are switched
o n , t h i s i n d i c a t e s t h a t t h e fl u i d
level is too low.
Fill the wash-wipe and headlamp wash
fl u i d r e s e r v o i r .
Battery charge warning
light
When the engine is running,
this indicates a charging circuit
malfunction (battery terminals,
alternator belt).
Consult a PEUGEOT dealer. Engine oil level warning
light
This indicates a low engine
oil level.
Stop immediately.
Consult a PEUGEOT dealer.
WARNING LIGHTS WHICH ARE DISPLAYED ON THE INSTRUMENT PANEL SCREEN
STOP warning light
It comes on linked with the
engine oil pressure, cool-
ant temperature, power
steering, braking system
or punctured tyre warning lights.
Stop immediately.
Consult a PEUGEOT dealer.
Low coolant level warning
light (according to
version)
This warning light indicates
a n i n s u f fi c i e n t c o o l i n g c i r c u i t
level.
Stop immediately.
Consult a PEUGEOT dealer.
Warning: the cooling circuit is pres-
surised, wait for the engine to cool
down before topping up the level.
When topping up, and in order
to prevent any risk of scalding,
unscrew the cap by two turns
to allow the pressure to drop.
When the pressure has dropped, re-
move the cap and top up the level with
coolant. Power steering warning
light
This indicates a power steering
fault.
It is linked with the STOP warning light.
Consult a PEUGEOT dealer.
Page 22 of 211
1

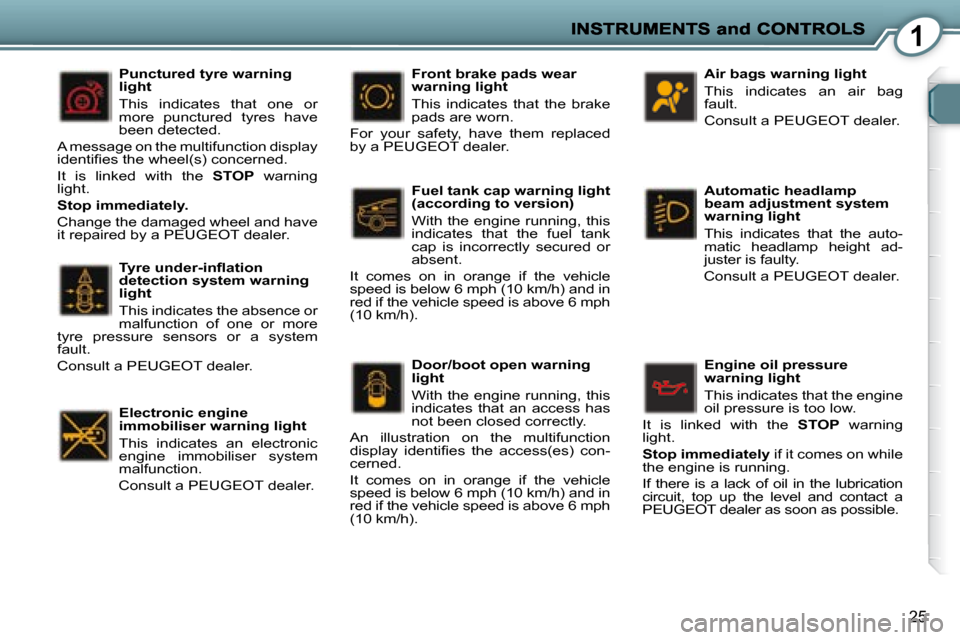

25
T y r e u n d e r - i n fl a t i o n
detection system warning
light
This indicates the absence or
malfunction of one or more
tyre pressure sensors or a system
fault.
Consult a PEUGEOT dealer.
Electronic engine
immobiliser warning light
This indicates an electronic
engine immobiliser system
malfunction.
Consult a PEUGEOT dealer. Front brake pads wear
warning light
This indicates that the brake
pads are worn.
For your safety, have them replaced
by a PEUGEOT dealer.
Fuel tank cap warning light
(according to version)
With the engine running, this
indicates that the fuel tank
cap is incorrectly secured or
absent.
It comes on in orange if the vehicle
speed is below 6 mph (10 km/h) and in
red if the vehicle speed is above 6 mph
(10 km/h).
Door/boot open warning
light
With the engine running, this
indicates that an access has
not been closed correctly.
An illustration on the multifunction
d i s p l a y i d e n t i fi e s t h e a c c e s s ( e s ) c o n -
cerned.
It comes on in orange if the vehicle
speed is below 6 mph (10 km/h) and in
red if the vehicle speed is above 6 mph
(10 km/h). Air bags warning light
This indicates an air bag
fault.
Consult a PEUGEOT dealer.
Automatic headlamp
beam adjustment system
warning light
This indicates that the auto-
matic headlamp height ad-
juster is faulty.
Consult a PEUGEOT dealer.
Punctured tyre warning
light
This indicates that one or
more punctured tyres have
been detected.
A message on the multifunction display
i d e n t i fi e s t h e w h e e l ( s ) c o n c e r n e d .
It is linked with the STOP warning
light.
Stop immediately.
Change the damaged wheel and have
it repaired by a PEUGEOT dealer.
Engine oil pressure
warning light
This indicates that the engine
oil pressure is too low.
It is linked with the STOP warning
light.
Stop immediately if it comes on while
the engine is running.
If there is a lack of oil in the lubrication
circuit, top up the level and contact a
PEUGEOT dealer as soon as possible.
Page 23 of 211
1

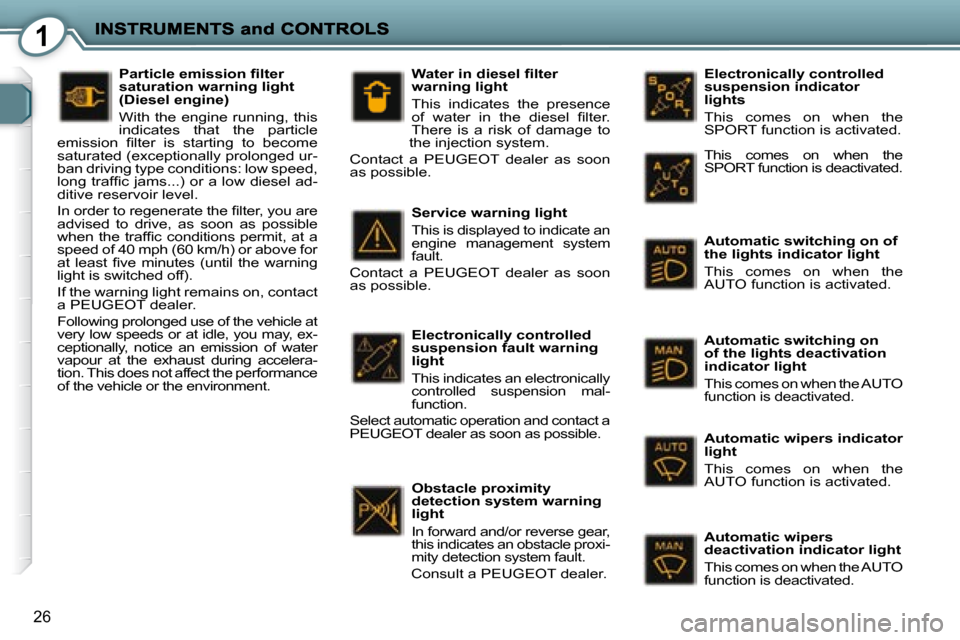

26
Electronically controlled
suspension indicator
lights
This comes on when the
SPORT function is activated.
Automatic switching on of
the lights indicator light
This comes on when the
AUTO function is activated.
Automatic switching on
of the lights deactivation
indicator light
This comes on when the AUTO
function is deactivated.
Automatic wipers indicator
light
This comes on when the
AUTO function is activated.
Automatic wipers
deactivation indicator light
This comes on when the AUTO
function is deactivated.
Service warning light
This is displayed to indicate an
engine management system
fault.
Contact a PEUGEOT dealer as soon
as possible.
Electronically controlled
suspension fault warning
light
This indicates an electronically
controlled suspension mal-
function.
Select automatic operation and contact a
PEUGEOT dealer as soon as possible.
Obstacle proximity
detection system warning
light
In forward and/or reverse gear,
this indicates an obstacle proxi-
mity detection system fault.
Consult a PEUGEOT dealer. This comes on when the
SPORT function is deactivated.
P a r t i c l e e m i s s i o n fi l t e r
saturation warning light
(Diesel engine)
With the engine running, this
indicates that the particle
e m i s s i o n fi l t e r i s s t a r t i n g t o b e c o m e
saturated (exceptionally prolonged ur-
ban driving type conditions: low speed,
l o n g t r a f fi c j a m s . . . ) o r a l o w d i e s e l a d -
ditive reservoir level.
I n o r d e r t o r e g e n e r a t e t h e fi l t e r , y o u a r e
advised to drive, as soon as possible
w h e n t h e t r a f fi c c o n d i t i o n s p e r m i t , a t a
speed of 40 mph (60 km/h) or above for
a t l e a s t fi v e m i n u t e s ( u n t i l t h e w a r n i n g
light is switched off).
If the warning light remains on, contact
a PEUGEOT dealer.
Following prolonged use of the vehicle at
very low speeds or at idle, you may, ex-
ceptionally, notice an emission of water
vapour at the exhaust during accelera-
tion. This does not affect the performance
of the vehicle or the environment. W a t e r i n d i e s e l fi l t e r
warning light
This indicates the presence
o f w a t e r i n t h e d i e s e l fi l t e r .
There is a risk of damage to
the injection system.
Contact a PEUGEOT dealer as soon
as possible.
Page 24 of 211
1

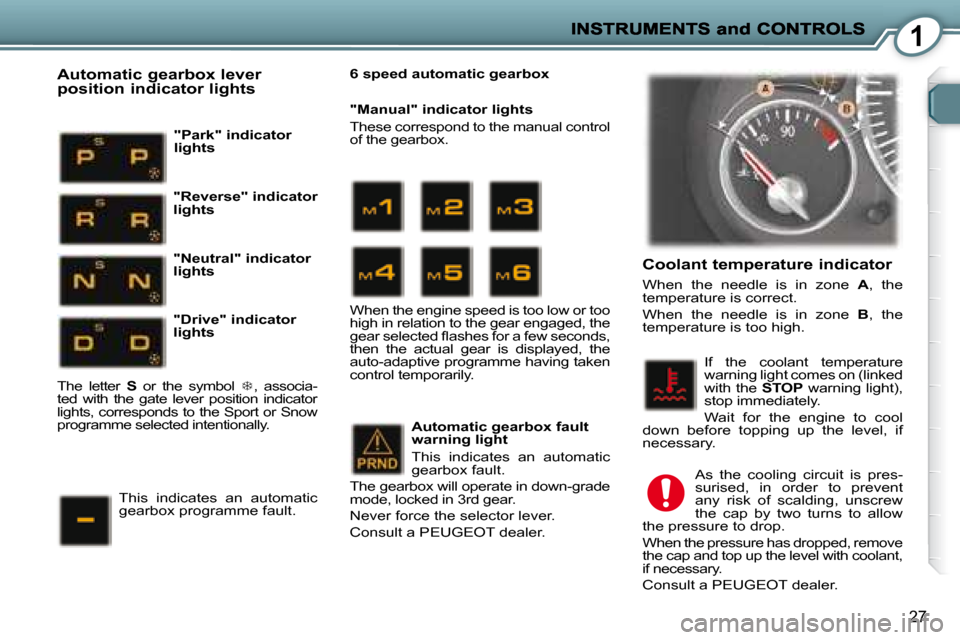

27
Coolant temperature indicator
When the needle is in zone A , the
temperature is correct.
When the needle is in zone B , the
temperature is too high.
If the coolant temperature
warning light comes on (linked
with the STOP warning light),
stop immediately.
Wait for the engine to cool
down before topping up the level, if
necessary.
As the cooling circuit is pres-
surised, in order to prevent
any risk of scalding, unscrew
the cap by two turns to allow
the pressure to drop.
When the pressure has dropped, remove
the cap and top up the level with coolant,
if necessary.
Consult a PEUGEOT dealer.
This indicates an automatic
gearbox programme fault.
Automatic gearbox lever position indicator lights
Automatic gearbox fault
warning light
This indicates an automatic
gearbox fault.
The gearbox will operate in down-grade
mode, locked in 3rd gear.
Never force the selector lever.
Consult a PEUGEOT dealer.
6 speed automatic gearbox
"Park" indicator
lights
"Reverse" indicator
lights
"Neutral" indicator
lights
"Drive" indicator
lights
The letter S or the symbol
, associa-
ted with the gate lever position indicator
lights, corresponds to the Sport or Snow
programme selected intentionally. "Manual" indicator lights
These correspond to the manual control
of the gearbox.
When the engine speed is too low or too
high in relation to the gear engaged, the
g e a r s e l e c t e d fl a s h e s f o r a f e w s e c o n d s ,
then the actual gear is displayed, the
auto-adaptive programme having taken
control temporarily.
Page 25 of 211
1
28
SERVICE INDICATOR
This is a visual reminder of when the next
service is due. This service is to be car-
ried out according to the manufacturer's
servicing schedule.
Once an engine oil level indication has
been displayed, the display indicates
the total and trip distances.
If the service is overdue, each time the
ignition is switched on and for 5 seconds,
t h e d i s t a n c e a n d t h e s p a n n e r fl a s h .
Example: when the ignition is switched
on and for 5 seconds, the display in-
dicates that the service is overdue by
300 miles/km. The service should be
carried out very shortly.
Once the servicing and oil level informa-
tion has been displayed, the total distance
recorder resumes normal operation and
the spanner remains lit.
The point at which a service is due is
calculated using two parameters:
- the total distance travelled,
- the time elapsed since the last ser- vice.
The distance remaining may be weight-
ed by the time factor, depending on the
user's driving habits.
Engine oil temperature indicator
When the ignition is switched on or while
the vehicle is moving, this indicates the
engine oil temperature.
When the needle is in zone C , the
temperature is correct.
When the needle is in zone D , the
temperature is too high.
Reduce your speed to lower the tem-
perature. Operation
As soon as the ignition is switched on
and for 5 seconds, the spanner sym-
bolising the service operations is lit.
The trip recorder display shows the
d i s t a n c e r e m a i n i n g ( i n r o u n d fi g u r e s )
before the next service.
Example: when switching on the igni-
tion and for 5 seconds, the display
shows that 900 miles/km remain before
the next service is due.
Page 26 of 211
1
28
SERVICE INDICATOR
This is a visual reminder of when the next
service is due. This service is to be car-
ried out according to the manufacturer's
servicing schedule.
Once an engine oil level indication has
been displayed, the display indicates
the total and trip distances.
If the service is overdue, each time the
ignition is switched on and for 5 seconds,
t h e d i s t a n c e a n d t h e s p a n n e r fl a s h .
Example: when the ignition is switched
on and for 5 seconds, the display in-
dicates that the service is overdue by
300 miles/km. The service should be
carried out very shortly.
Once the servicing and oil level informa-
tion has been displayed, the total distance
recorder resumes normal operation and
the spanner remains lit.
The point at which a service is due is
calculated using two parameters:
- the total distance travelled,
- the time elapsed since the last ser- vice.
The distance remaining may be weight-
ed by the time factor, depending on the
user's driving habits.

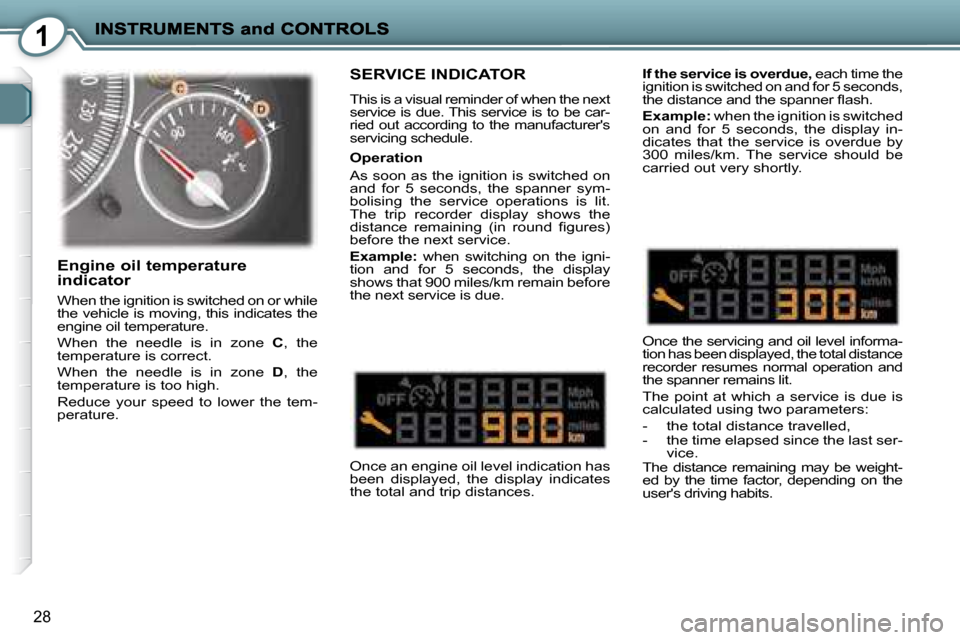

Engine oil temperature indicator
When the ignition is switched on or while
the vehicle is moving, this indicates the
engine oil temperature.
When the needle is in zone C , the
temperature is correct.
When the needle is in zone D , the
temperature is too high.
Reduce your speed to lower the tem-
perature. Operation
As soon as the ignition is switched on
and for 5 seconds, the spanner sym-
bolising the service operations is lit.
The trip recorder display shows the
d i s t a n c e r e m a i n i n g ( i n r o u n d fi g u r e s )
before the next service.
Example: when switching on the igni-
tion and for 5 seconds, the display
shows that 900 miles/km remain before
the next service is due.
Page 27 of 211
1

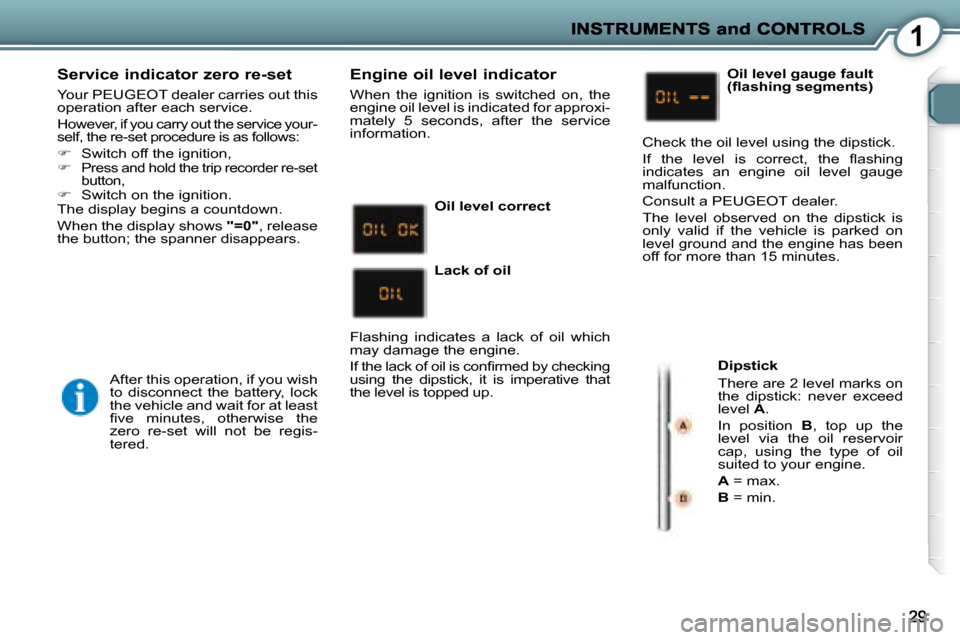

Service indicator zero re-set
Your PEUGEOT dealer carries out this
operation after each service.
However, if you carry out the service your-
self, the re-set procedure is as follows:
Switch off the ignition,
Press and hold the trip recorder re-set
button,
Switch on the ignition.
The display begins a countdown.
When the display shows "=0" , release
the button; the spanner disappears.
Engine oil level indicator
When the ignition is switched on, the
engine oil level is indicated for approxi-
mately 5 seconds, after the service
information.
Dipstick
There are 2 level marks on
the dipstick: never exceed
level A .
In position B , top up the
level via the oil reservoir
cap, using the type of oil
suited to your engine.
A = max.
B = min.
Oil level correct
Lack of oil
Flashing indicates a lack of oil which
may damage the engine.
I f t h e l a c k o f o i l i s c o n fi r m e d b y c h e c k i n g
using the dipstick, it is imperative that
the level is topped up. Oil level gauge fault
( fl a s h i n g s e g m e n t s )
Check the oil level using the dipstick.
I f t h e l e v e l i s c o r r e c t , t h e fl a s h i n g
indicates an engine oil level gauge
malfunction.
Consult a PEUGEOT dealer.
The level observed on the dipstick is
only valid if the vehicle is parked on
level ground and the engine has been
off for more than 15 minutes.
After this operation, if you wish
to disconnect the battery, lock
the vehicle and wait for at least
fi v e m i n u t e s , o t h e r w i s e t h e
zero re-set will not be regis-
tered.
Page 28 of 211
1
Service indicator zero re-set
Your PEUGEOT dealer carries out this
operation after each service.
However, if you carry out the service your-
self, the re-set procedure is as follows:
Switch off the ignition,
Press and hold the trip recorder re-set
button,
Switch on the ignition.
The display begins a countdown.
When the display shows "=0" , release
the button; the spanner disappears.
Engine oil level indicator
When the ignition is switched on, the
engine oil level is indicated for approxi-
mately 5 seconds, after the service
information.
Dipstick
There are 2 level marks on
the dipstick: never exceed
level A .
In position B , top up the
level via the oil reservoir
cap, using the type of oil
suited to your engine.
A = max.
B = min.
Oil level correct
Lack of oil
Flashing indicates a lack of oil which
may damage the engine.
I f t h e l a c k o f o i l i s c o n fi r m e d b y c h e c k i n g
using the dipstick, it is imperative that
the level is topped up. Oil level gauge fault
( fl a s h i n g s e g m e n t s )
Check the oil level using the dipstick.
I f t h e l e v e l i s c o r r e c t , t h e fl a s h i n g
indicates an engine oil level gauge
malfunction.
Consult a PEUGEOT dealer.
The level observed on the dipstick is
only valid if the vehicle is parked on
level ground and the engine has been
off for more than 15 minutes.
After this operation, if you wish
to disconnect the battery, lock
the vehicle and wait for at least
fi v e m i n u t e s , o t h e r w i s e t h e
zero re-set will not be regis-
tered.
Page 29 of 211
1
30
Trip recorder zero reset
With the trip distance displayed, press
the button for a few seconds.

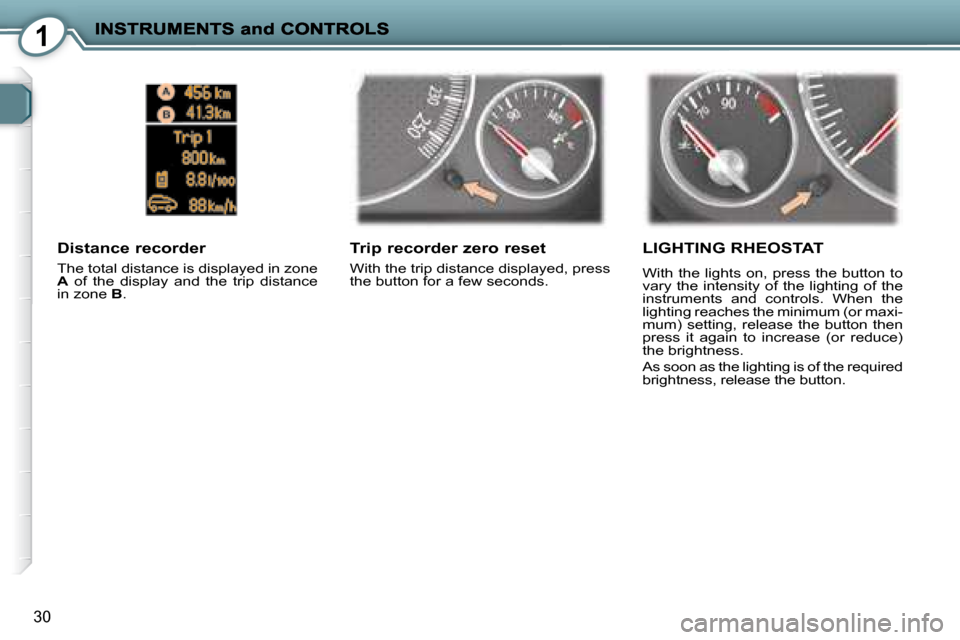

Distance recorder
The total distance is displayed in zone
A of the display and the trip distance
in zone B .
LIGHTING RHEOSTAT
With the lights on, press the button to
vary the intensity of the lighting of the
instruments and controls. When the
lighting reaches the minimum (or maxi-
mum) setting, release the button then
press it again to increase (or reduce)
the brightness.
As soon as the lighting is of the required
brightness, release the button.
Page 30 of 211
1
31

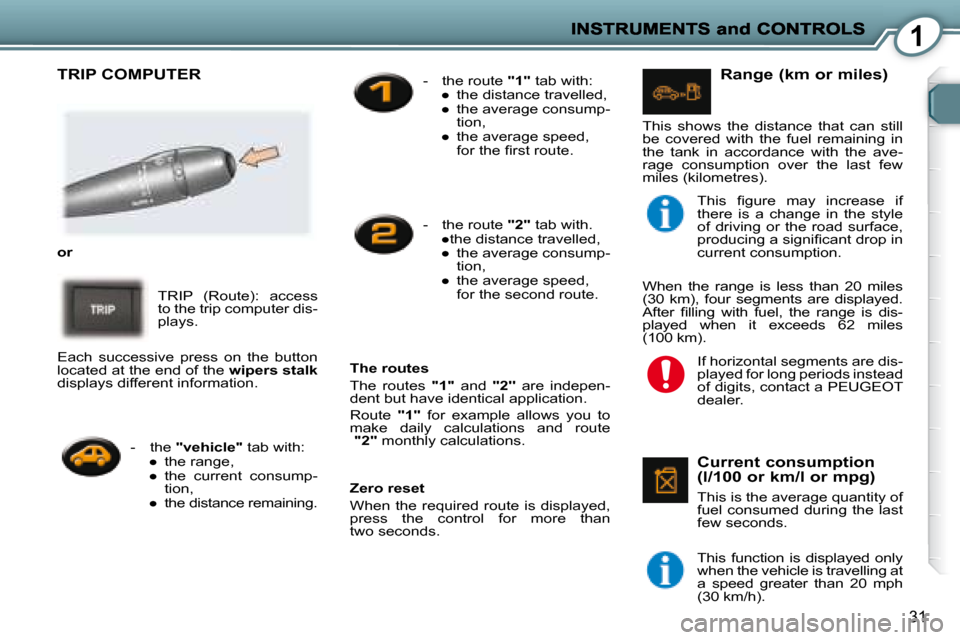

TRIP COMPUTER
or
TRIP (Route): access
to the trip computer dis-
plays.
Zero reset
When the required route is displayed,
press the control for more than
two seconds. - the route
"1" tab with:
