Page 6 of 211
1. Steering lock and ignition.
2. Audio equipment steering wheel
control.
3. Wipers/wash-wipe and trip computer
controls.
4. Adjustable and closing central vents.
5. Air diffuser vent grille.
6. Sunshine sensor.
7. Windscreen deicing and demisting
vent.
8. Speakers (tweeters).
9. Adjustable and closing side vent.
10. Disarming of the passenger air bag * .
11. Passenger air bag.
12. Glove box/Video sockets.
13. Passenger footwell air outlet.
14. Passenger heated seat control.
15. Passenger seat electric controls.
* According to country.
Page 22 of 211
1
25
T y r e u n d e r - i n fl a t i o n
detection system warning
light
This indicates the absence or
malfunction of one or more
tyre pressure sensors or a system
fault.
Consult a PEUGEOT dealer.
Electronic engine
immobiliser warning light
This indicates an electronic
engine immobiliser system
malfunction.
Consult a PEUGEOT dealer. Front brake pads wear
warning light
This indicates that the brake
pads are worn.
For your safety, have them replaced
by a PEUGEOT dealer.
Fuel tank cap warning light
(according to version)
With the engine running, this
indicates that the fuel tank
cap is incorrectly secured or
absent.
It comes on in orange if the vehicle
speed is below 6 mph (10 km/h) and in
red if the vehicle speed is above 6 mph
(10 km/h).
Door/boot open warning
light
With the engine running, this
indicates that an access has
not been closed correctly.
An illustration on the multifunction
d i s p l a y i d e n t i fi e s t h e a c c e s s ( e s ) c o n -
cerned.
It comes on in orange if the vehicle
speed is below 6 mph (10 km/h) and in
red if the vehicle speed is above 6 mph
(10 km/h). Air bags warning light
This indicates an air bag
fault.
Consult a PEUGEOT dealer.
Automatic headlamp
beam adjustment system
warning light
This indicates that the auto-
matic headlamp height ad-
juster is faulty.
Consult a PEUGEOT dealer.
Punctured tyre warning
light
This indicates that one or
more punctured tyres have
been detected.
A message on the multifunction display
i d e n t i fi e s t h e w h e e l ( s ) c o n c e r n e d .
It is linked with the STOP warning
light.
Stop immediately.
Change the damaged wheel and have
it repaired by a PEUGEOT dealer.
Engine oil pressure
warning light
This indicates that the engine
oil pressure is too low.
It is linked with the STOP warning
light.
Stop immediately if it comes on while
the engine is running.
If there is a lack of oil in the lubrication
circuit, top up the level and contact a
PEUGEOT dealer as soon as possible.
Page 37 of 211
3
38
screen, the vents, the air outlets under
the front seats and the air extractor
l o c a t e d b e h i n d t h e fl a p s i n t h e b o o t .
I n c e r t a i n c a s e s o f p a r t i c u l a r l y a r d u o u s
use (towing the maximum load on a
s t e e p g r a d i e n t i n h o t w e a t h e r ) , c u t t i n g
o f f t h e a i r c o n d i t i o n i n g p e r m i t s r e c o v -
e r y o f t h e e n g i n e p o w e r a n d t h e r e f o r e
i m p r o v e m e n t o f t h e t o w i n g c a p a c i t y .
C l o s e t h e w i n d o w s t o b e n e fi t f r o m t h e
f u l l e f f e c t i v e n e s s o f t h e a i r c o n d i t i o n i n g .
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t -
m e n t fi l t e r i s i n g o o d c o n d i t i o n . H a v e
t h e fi l t e r e l e m e n t s r e p l a c e d p e r i o d i c a l l y .
I f y o u d r i v e i n a d u s t y e n v i r o n m e n t ,
r e p l a c e i t t w i c e a s o f t e n .
T h e a i r c o n d i t i o n i n g s y s t e m d o e s n o t
contain chlorine and is not harmful to
t h e o z o n e l a y e r .
O p e r a t e t h e a i r c o n d i t i o n i n g s y s t e m
for 5 to 10 minutes, once or twice a
m o n t h , t o k e e p i t i n p e r f e c t w o r k i n g
o r d e r .
T h e w a t e r f o r m e d b y t h e a i r c o n d i t i o n i n g
c o n d e n s a t i o n i s d i s c h a r g e d v i a a n o p e n -
i n g p r o v i d e d f o r t h i s p u r p o s e . T h e r e f o r e ,
a p u d d l e o f w a t e r m a y f o r m u n d e r n e a t h
t h e v e h i c l e w h e n s t a t i o n a r y .
I f t h e s y s t e m d o e s n o t p r o d u c e c o l d a i r ,
do not use it and contact a PEUGEOT
d e a l e r .
1. C e n t r e p a n e l v e n t s .
2. Adjustment of the glove box air
fl o w ( s e e s e c t i o n " I n t e r i o r l a y o u t " ) .
3. A i r o u t l e t t o p a s s e n g e r f o o t w e l l s .
4. Two ventilation vents at the rear at
t h e b a s e o f t h e c e n t r e c o n s o l e b e -
t w e e n t h e p a s s e n g e r s .
5. S i d e v e n t s .
6. F r o n t w i n d o w s d e - i c i n g o r d e m i s t -
i n g v e n t s .
7. W i n d s c r e e n d e - i c i n g o r d e m i s t i n g
v e n t s .
8. S u n s h i n e s e n s o r .
9. A i r d i f f u s e r g r i l l e . AUTOMATIC REGULATION OF THE AIR CONDITIONING
Air diffuser
The air diffuser grille, located at the
t o p o f t h e c e n t r e c o n s o l e , s i g n i fi c a n t l y
i m p r o v e s d i s t r i b u t i o n a n d fl o w s a n d
p r e v e n t s a i r c u r r e n t s , w h i l e m a i n t a i n -
i n g a n o p t i m u m t e m p e r a t u r e i n s i d e t h e
p a s s e n g e r c o m p a r t m e n t .
Advice on operation
To obtain even ventilation,
avoid closing the air diffuser
grille 9 .
I n h o t w e a t h e r , i n o r d e r t o o b t a i n i n -
t e n s e v e n t i l a t i o n , y o u c a n c l o s e t h e a i r
diffuser grille 10 and use vents 1 and
5 o n l y .
I f , w h e n t h e v e h i c l e h a s b e e n p a r k e d
in the sun for a long time, the interior
t e m p e r a t u r e r e m a i n s v e r y h i g h , d o n o t
h e s i t a t e t o v e n t i l a t e t h e p a s s e n g e r
c o m p a r t m e n t f o r a f e w m i n u t e s .
For even air distribution, take care
not to obstruct the exterior air intake
g r i l l e l o c a t e d a t t h e b o t t o m o f t h e w i n d -
Use of the automatic regulation of the
a i r c o n d i t i o n i n g i s r e c o m m e n d e d . I t
p e r m i t s a u t o m a t i c a n d o p t i m i s e d c o n -
trol of all of the following functions: air
fl o w , p a s s e n g e r c o m p a r t m e n t t e m p e r -
a t u r e a n d a i r d i s t r i b u t i o n , b y m e a n s
o f v a r i o u s s e n s o r s , s o p r e v e n t i n g t h e
n e e d f o r y o u t o c h a n g e y o u r r e f e r -
e n c e s e t t i n g s o t h e r t h a n t h e v a l u e d i s -
p l a y e d .
Do not cover the sunshine sensor
8 .
It is required for regulation of the air
c o n d i t i o n i n g .
Page 83 of 211
5
75

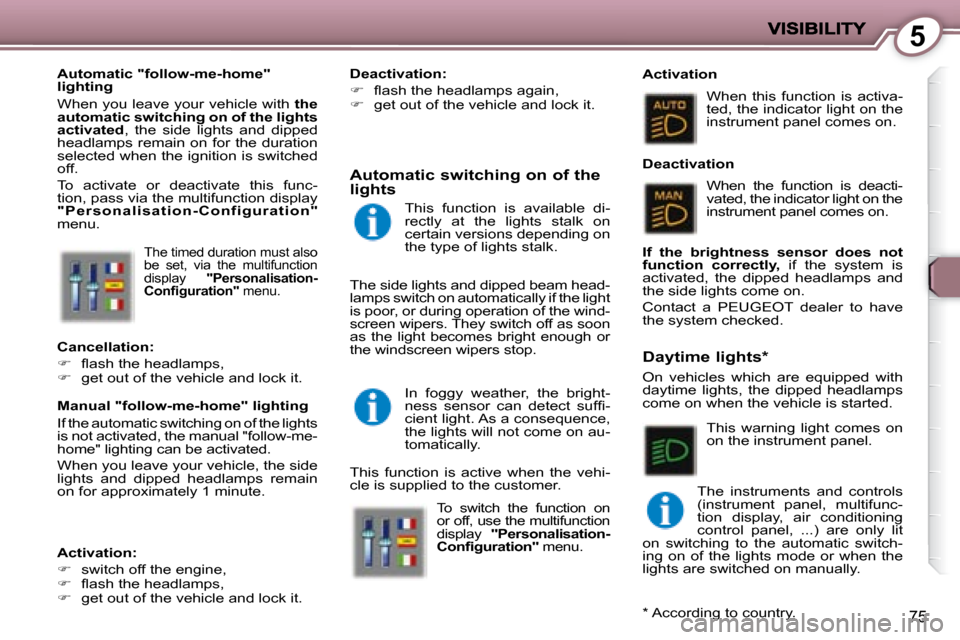

The timed duration must also
be set, via the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
A u t o m a t i c s w i t c h i n g o n o f t h e lights
To switch the function on
or off, use the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
Activation
Deactivation When this function is activa-
ted, the indicator light on the
instrument panel comes on.
When the function is deacti-
vated, the indicator light on the
instrument panel comes on.
Cancellation:
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
M a n u a l " f o l l o w - m e - h o m e " l i g h t i n g
If the automatic switching on of the lights
is not activated, the manual "follow-me-
home" lighting can be activated.
When you leave your vehicle, the side
lights and dipped headlamps remain
on for approximately 1 minute.
Activation:
switch off the engine,
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
Deactivation:
fl a s h t h e h e a d l a m p s a g a i n ,
get out of the vehicle and lock it.
A u t o m a t i c " f o l l o w - m e - h o m e "
lighting
When you leave your vehicle with
the
a u t o m a t i c s w i t c h i n g o n o f t h e l i g h t s
activated , the side lights and dipped
headlamps remain on for the duration
selected when the ignition is switched
off.
To activate or deactivate this func-
tion, pass via the multifunction display
" P e r s o n a l i s a t i o n - C o n f i g u r a t i o n "
menu.
In foggy weather, the bright-
n e s s s e n s o r c a n d e t e c t s u f fi -
cient light. As a consequence,
the lights will not come on au-
tomatically.
This function is active when the vehi-
cle is supplied to the customer.
If the brightness sensor does not
f u n c t i o n c o r r e c t l y , if the system is
activated, the dipped headlamps and
the side lights come on.
Contact a PEUGEOT dealer to have
the system checked.
D a y t i m e l i g h t s *
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
The instruments and controls
(instrument panel, multifunc-
tion display, air conditioning
control panel, ...) are only lit
on switching to the automatic switch-
ing on of the lights mode or when the
lights are switched on manually. This warning light comes on
on the instrument panel.
* According to country.
This function is available di-
rectly at the lights stalk on
certain versions depending on
the type of lights stalk.
The side lights and dipped beam head-
lamps switch on automatically if the light
is poor, or during operation of the wind-
screen wipers. They switch off as soon
as the light becomes bright enough or
the windscreen wipers stop.
Page 84 of 211
5
75
The timed duration must also
be set, via the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
A u t o m a t i c s w i t c h i n g o n o f t h e lights
To switch the function on
or off, use the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
Activation
Deactivation When this function is activa-
ted, the indicator light on the
instrument panel comes on.
When the function is deacti-
vated, the indicator light on the
instrument panel comes on.
Cancellation:
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
M a n u a l " f o l l o w - m e - h o m e " l i g h t i n g
If the automatic switching on of the lights
is not activated, the manual "follow-me-
home" lighting can be activated.
When you leave your vehicle, the side
lights and dipped headlamps remain
on for approximately 1 minute.
Activation:
switch off the engine,
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
Deactivation:
fl a s h t h e h e a d l a m p s a g a i n ,
get out of the vehicle and lock it.
A u t o m a t i c " f o l l o w - m e - h o m e "
lighting
When you leave your vehicle with
the
a u t o m a t i c s w i t c h i n g o n o f t h e l i g h t s
activated , the side lights and dipped
headlamps remain on for the duration
selected when the ignition is switched
off.
To activate or deactivate this func-
tion, pass via the multifunction display
" P e r s o n a l i s a t i o n - C o n f i g u r a t i o n "
menu.
In foggy weather, the bright-
n e s s s e n s o r c a n d e t e c t s u f fi -
cient light. As a consequence,
the lights will not come on au-
tomatically.
This function is active when the vehi-
cle is supplied to the customer.
If the brightness sensor does not
f u n c t i o n c o r r e c t l y , if the system is
activated, the dipped headlamps and
the side lights come on.
Contact a PEUGEOT dealer to have
the system checked.
D a y t i m e l i g h t s *
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
The instruments and controls
(instrument panel, multifunc-
tion display, air conditioning
control panel, ...) are only lit
on switching to the automatic switch-
ing on of the lights mode or when the
lights are switched on manually. This warning light comes on
on the instrument panel.
* According to country.
This function is available di-
rectly at the lights stalk on
certain versions depending on
the type of lights stalk.
The side lights and dipped beam head-
lamps switch on automatically if the light
is poor, or during operation of the wind-
screen wipers. They switch off as soon
as the light becomes bright enough or
the windscreen wipers stop.
Page 86 of 211
5
77

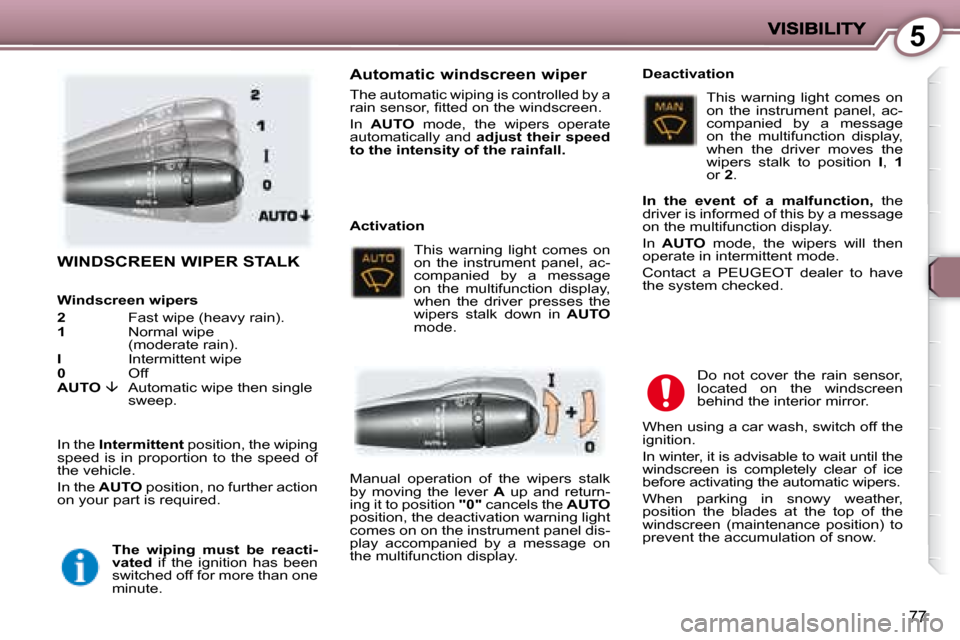

WINDSCREEN WIPER STALK
In the Intermittent position, the wiping
speed is in proportion to the speed of
the vehicle.
In the AUTO position, no further action
on your part is required.
A u t o m a t i c w i n d s c r e e n w i p e r
The automatic wiping is controlled by a
r a i n s e n s o r , fi t t e d o n t h e w i n d s c r e e n .
In AUTO mode, the wipers operate
automatically and a d j u s t t h e i r s p e e d
t o t h e i n t e n s i t y o f t h e r a i n f a l l .
Activation Deactivation
This warning light comes on
on the instrument panel, ac-
companied by a message
on the multifunction display,
when the driver presses the
wipers stalk down in AUTO
mode. This warning light comes on
on the instrument panel, ac-
companied by a message
on the multifunction display,
when the driver moves the
wipers stalk to position
I , 1
or 2 .
I n t h e e v e n t o f a m a l f u n c t i o n , the
driver is informed of this by a message
on the multifunction display.
In AUTO mode, the wipers will then
operate in intermittent mode.
Contact a PEUGEOT dealer to have
the system checked.
Do not cover the rain sensor,
located on the windscreen
behind the interior mirror.
When using a car wash, switch off the
ignition.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic wipers.
When parking in snowy weather,
position the blades at the top of the
windscreen (maintenance position) to
prevent the accumulation of snow.
T h e w i p i n g m u s t b e r e a c t i -
vated if the ignition has been
switched off for more than one
minute . Manual operation of the wipers stalk
by moving the lever
A up and return-
ing it to position "0" cancels the AUTO
position, the deactivation warning light
comes on on the instrument panel dis-
play accompanied by a message on
the multifunction display.
W i n d s c r e e n w i p e r s
2 Fast wipe (heavy rain).
1 Normal wipe
(moderate rain).
I Intermittent wipe
0 Off
AUTO
Automatic wipe then single
sweep.
Page 88 of 211
5
77
WINDSCREEN WIPER STALK
In the Intermittent position, the wiping
speed is in proportion to the speed of
the vehicle.
In the AUTO position, no further action
on your part is required.
A u t o m a t i c w i n d s c r e e n w i p e r
The automatic wiping is controlled by a
r a i n s e n s o r , fi t t e d o n t h e w i n d s c r e e n .
In AUTO mode, the wipers operate
automatically and a d j u s t t h e i r s p e e d
t o t h e i n t e n s i t y o f t h e r a i n f a l l .
Activation Deactivation
This warning light comes on
on the instrument panel, ac-
companied by a message
on the multifunction display,
when the driver presses the
wipers stalk down in AUTO
mode. This warning light comes on
on the instrument panel, ac-
companied by a message
on the multifunction display,
when the driver moves the
wipers stalk to position
I , 1
or 2 .
I n t h e e v e n t o f a m a l f u n c t i o n , the
driver is informed of this by a message
on the multifunction display.
In AUTO mode, the wipers will then
operate in intermittent mode.
Contact a PEUGEOT dealer to have
the system checked.
Do not cover the rain sensor,
located on the windscreen
behind the interior mirror.
When using a car wash, switch off the
ignition.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic wipers.
When parking in snowy weather,
position the blades at the top of the
windscreen (maintenance position) to
prevent the accumulation of snow.
T h e w i p i n g m u s t b e r e a c t i -
vated if the ignition has been
switched off for more than one
minute . Manual operation of the wipers stalk
by moving the lever
A up and return-
ing it to position "0" cancels the AUTO
position, the deactivation warning light
comes on on the instrument panel dis-
play accompanied by a message on
the multifunction display.
W i n d s c r e e n w i p e r s
2 Fast wipe (heavy rain).
1 Normal wipe
(moderate rain).
I Intermittent wipe
0 Off
AUTO
Automatic wipe then single
sweep.
Page 111 of 211
8
100

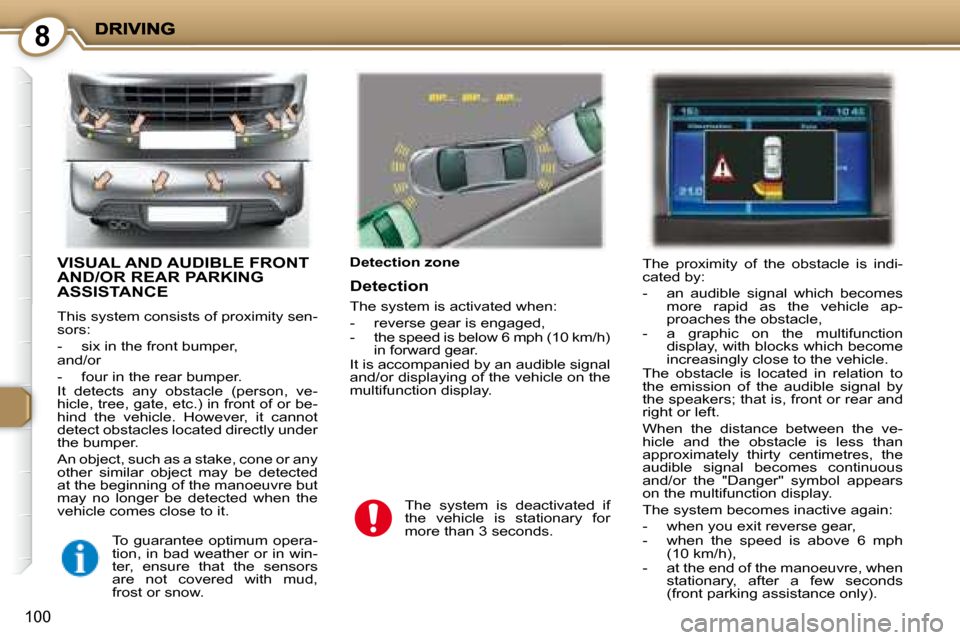

VISUAL AND AUDIBLE FRONT AND/OR REAR PARKING ASSISTANCE
This system consists of proximity sen-
sors:
- six in the front bumper,
and/or
- four in the rear bumper.
It detects any obstacle (person, ve-
hicle, tree, gate, etc.) in front of or be-
hind the vehicle. However, it cannot
detect obstacles located directly under
the bumper.
An object, such as a stake, cone or any
other similar object may be detected
at the beginning of the manoeuvre but
may no longer be detected when the
vehicle comes close to it. The proximity of the obstacle is indi-
cated by:
- an audible signal which becomes
more rapid as the vehicle ap-
proaches the obstacle,
- a graphic on the multifunction display, with blocks which become
increasingly close to the vehicle.
The obstacle is located in relation to
the emission of the audible signal by
the speakers; that is, front or rear and
right or left.
When the distance between the ve-
hicle and the obstacle is less than
approximately thirty centimetres, the
audible signal becomes continuous
and/or the "Danger" symbol appears
on the multifunction display.
The system becomes inactive again:
- when you exit reverse gear,
- when the speed is above 6 mph (10 km/h),
- at the end of the manoeuvre, when stationary, after a few seconds
(front parking assistance only).
Detection zone
To guarantee optimum opera-
tion, in bad weather or in win-
ter, ensure that the sensors
are not covered with mud,
frost or snow. The system is deactivated if
the vehicle is stationary for
more than 3 seconds.
Detection
The system is activated when:
- reverse gear is engaged,
- the speed is below 6 mph (10 km/h)
in forward gear.
It is accompanied by an audible signal
and/or displaying of the vehicle on the
multifunction display.
Page 113 of 211
8
102
TYRE UNDER-INFLATION DETECTION
Sensors check the tyre pressure dur-
ing driving and trigger a warning in the
event of malfunction.
Pressure Check With the ignition on and the
vehicle having been stationary
for approximately 15 minutes,
and after the engine oil level,
this indicator light comes on
on the instrument panel screen to indi-
cate that the system is measuring the
tyre pressures.
Pressure OK
This indicator light comes
on on the instrument panel
screen if all of the tyre pres-
sure values measured are
correct.
If this indicator light does not appear,
contact a PEUGEOT dealer to have
the system checked. Puncture
This warning light, accom-
panied by the audible signal
and the message on the
multi-function display loca-
ting the wheel concerned, is
followed by illumination of the STOP
warning light.
Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punc-
t u r e d o r v e r y d e fl a t e d t y r e ) , a n d h a v e
the tyre pressure checked as soon as
possible.
Note: this message is also dis-
played when one of the wheels
is away from the vehicle (be-
ing repaired) or when one or
more wheels without a sensor
a r e fi t t e d . All repairs and changing of
t y r e s o n a w h e e l fi t t e d w i t h t h i s
system must be carried out by
a PEUGEOT dealer.
If, when changing a tyre, you install a
wheel which is not detected by your
vehicle, you must have the system
reinitialised by a PEUGEOT dealer.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n s y s -
tem is an aid to driving which does not
replace the need for the driver to be
vigilant or to drive responsibly.
This system does not eliminate the
need to have the tyre pressure checked
regularly (see manufacturer's label) to
ensure that the optimum dynamic per-
formance of the vehicle is maintained
and prevent premature wear of the
tyres, particularly in arduous driving
conditions (heavy load, high speed).
The tyre pressures must be checked
cold, at least once a month. Remember
to check the pressure of the spare
wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n s y s -
tem may experience temporary inter-
ference due to radioelectric emissions
on a frequency close to that used by
the system.
Flat tyre
This warning light is accom-
panied by the audible si gnal
and the message on the
multi-function display loca-
ting the wheel concerned.
If this warning light comes on, have
the tyre pressure checked as soon as
possible. Sensor(s) not detected or faulty
This warning light is accom-
panied by the audible si gnal
and the message on the
multi-function display which
i n d i c a t e s t h a t u n d e r - i n fl a t i o n
detection is absent from one (or seve-
ral) wheel(s) or that there is a fault in
the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).
Page 122 of 211
1010
111

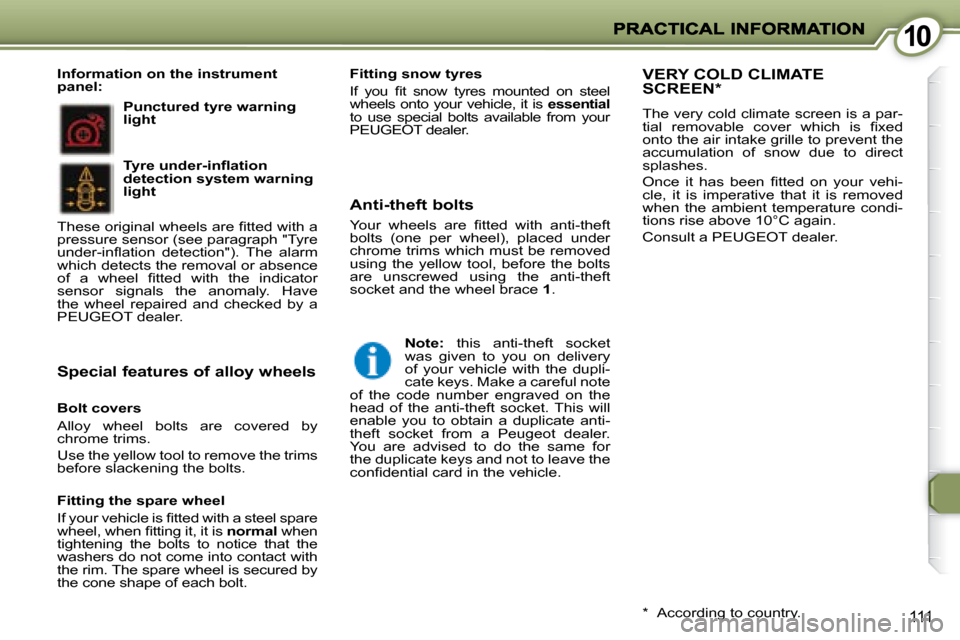

Bolt covers
Alloy wheel bolts are covered by
chrome trims.
Use the yellow tool to remove the trims
before slackening the bolts.
Fitting the spare wheel
I f y o u r v e h i c l e i s fi t t e d w i t h a s t e e l s p a r e
w h e e l , w h e n fi t t i n g i t , i t i s normal when
tightening the bolts to notice that the
washers do not come into contact with
the rim. The spare wheel is secured by
the cone shape of each bolt.
VERY COLD CLIMATE SCREEN *
The very cold climate screen is a par-
t i a l r e m o v a b l e c o v e r w h i c h i s fi x e d
onto the air intake grille to prevent the
accumulation of snow due to direct
splashes.
O n c e i t h a s b e e n fi t t e d o n y o u r v e h i -
cle, it is imperative that it is removed
when the ambient temperature condi-
tions rise above 10°C again.
Consult a PEUGEOT dealer.
* According to country.
Special features of alloy wheels
Anti-theft bolts
Y o u r w h e e l s a r e fi t t e d w i t h a n t i - t h e f t
bolts (one per wheel), placed under
chrome trims which must be removed
using the yellow tool, before the bolts
are unscrewed using the anti-theft
socket and the wheel brace 1 .
Fitting snow tyres
I f y o u fi t s n o w t y r e s m o u n t e d o n s t e e l
wheels onto your vehicle, it is
essential
to use special bolts available from your
PEUGEOT dealer.
Note: this anti-theft socket
was given to you on delivery
of your vehicle with the dupli-
cate keys. Make a careful note
of the code number engraved on the
head of the anti-theft socket. This will
enable you to obtain a duplicate anti-
theft socket from a Peugeot dealer.
You are advised to do the same for
the duplicate keys and not to leave the
c o n fi d e n t i a l c a r d i n t h e v e h i c l e .
Punctured tyre warning
light
Information on the instrument
panel:
T y r e u n d e r - i n fl a t i o n
detection system warning
light
T h e s e o r i g i n a l w h e e l s a r e fi t t e d w i t h a
pressure sensor (see paragraph "Tyre
u n d e r - i n fl a t i o n d e t e c t i o n " ) . T h e a l a r m
which detects the removal or absence
o f a w h e e l fi t t e d w i t h t h e i n d i c a t o r
sensor signals the anomaly. Have
the wheel repaired and checked by a
PEUGEOT dealer.
