Peugeot 407 C Dag 2008 Manual PDF
Manufacturer: PEUGEOT, Model Year: 2008, Model line: 407 C Dag, Model: Peugeot 407 C Dag 2008Pages: 211, PDF Size: 11.75 MB
Page 71 of 211
4
When the windows are closed
automatically using the remote
control, ensure that no one is
preventing them from closing
correctly.
The folding and unfolding of the ex-
terior mirrors can be deactivated by a
PEUGEOT dealer.
The complete or selective
u n l o c k i n g c a n b e c o n fi g u -
red by means of a para-
meter, via the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.

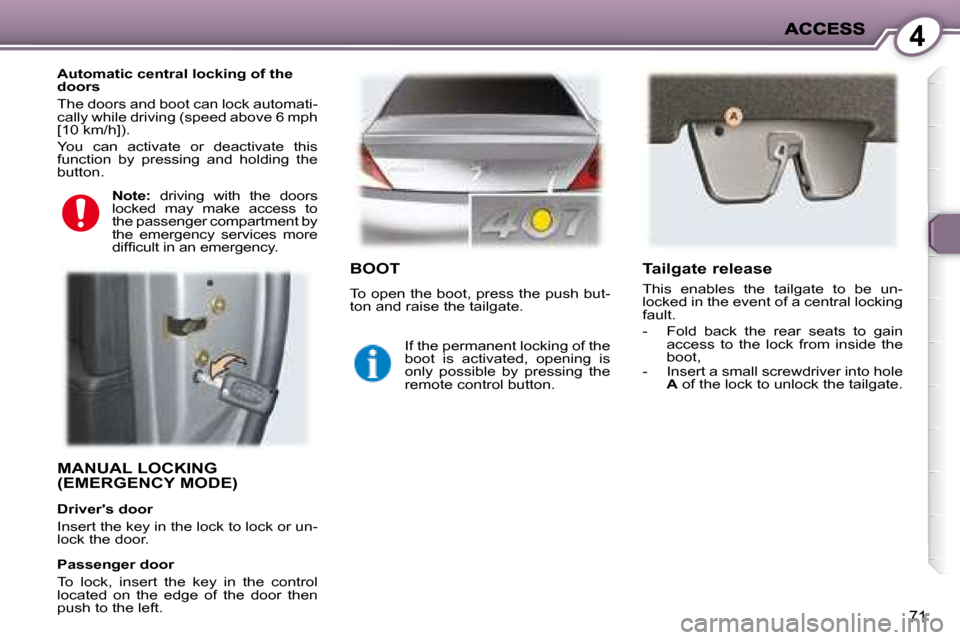

boot
Press button D to unlock and open
the boot.
This action also unlocks the doors.
If the permanent locking of the boot is
activated, opening is only possible via
button D on the remote control.
When the vehicle is locked,
if unlocking is activated inad-
vertently, without a door being
opened within 30 seconds, the
vehicle will lock automatically.
T h i s f u n c t i o n c a n b e c o n fi g u -
red by means of a parame-
ter, via the multifunction
display
"Personalisation-
C o n fi g u r a t i o n " menu.
Key in ignition
A buzzer sounds on opening the driver's
door, if the key has been left in the ignition.
LOCATING YOUR VEHICLE
To locate your vehicle, if you have
locked or deadlocked it, in a car park:
press button B on the remote con-
trol, the courtesy lights come on
a n d t h e d i r e c t i o n i n d i c a t o r s fl a s h
for a few seconds.
Unlocking
Selective (if activated)
Press button C to unlock the driver's
door only.
P r e s s t h e b u t t o n a g a i n to unlock
the passenger door and the boot.
E a c h a c t i o n i s c o n fi r m e d b y r a p i d
fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s f o r
approximately two seconds.
The exterior mirrors unfold at the same
time.
Complete
Press button C for complete un-
locking of the vehicle.
T h i s i s c o n fi r m e d b y r a p i d fl a s h i n g o f
the direction indicators for approxi-
mately two seconds.
The exterior mirrors unfold at the same
time.
Page 72 of 211
4
66
CHANGING THE REMOTE CONTROL BATTERY
Battery ref.: CR1620/3 volts.
To change the battery, unclip the casing
using a coin at the notch.
REPROGRAMMING THE REMOTE CONTROL
Switch off the ignition.
Switch the ignition on again.
Press the remote control locking
button immediately for a few seconds.
Switch off the ignition and remove
the remote control key from the
ignition lock. The remote control is
now working again.
ELECTRONIC ENGINE IMMOBILISER
This locks the engine control system
a few moments after the ignition has
been switched off and therefore pre-
vents starting of the vehicle by anyone
who does not have the key.
The ignition key has an electronic chip
which has a special code. When the igni-
tion is switched on, the code is recognised
and starting is possible.
Do not discard the batteries,
they contain metals which are
harmful to the environment.
Take them to an approved col-
lection point.
I f t h e s y s t e m d o e s n o t f u n c -
tion correctly, the warning
light comes on on the instru-
ment panel display, accom-
panied by an audible signal
and a message on the multi-
function display.
In this case, your vehicle will not start.
Contact a PEUGEOT dealer as soon
as possible.
If the remote control does not work
after the battery has been changed,
re-programme the remote control.
Page 73 of 211
4
66
CHANGING THE REMOTE CONTROL BATTERY
Battery ref.: CR1620/3 volts.
To change the battery, unclip the casing
using a coin at the notch.
REPROGRAMMING THE REMOTE CONTROL
Switch off the ignition.
Switch the ignition on again.
Press the remote control locking
button immediately for a few seconds.
Switch off the ignition and remove
the remote control key from the
ignition lock. The remote control is
now working again.
ELECTRONIC ENGINE IMMOBILISER
This locks the engine control system
a few moments after the ignition has
been switched off and therefore pre-
vents starting of the vehicle by anyone
who does not have the key.
The ignition key has an electronic chip
which has a special code. When the igni-
tion is switched on, the code is recognised
and starting is possible.
Do not discard the batteries,
they contain metals which are
harmful to the environment.
Take them to an approved col-
lection point.
I f t h e s y s t e m d o e s n o t f u n c -
tion correctly, the warning
light comes on on the instru-
ment panel display, accom-
panied by an audible signal
and a message on the multi-
function display.
In this case, your vehicle will not start.
Contact a PEUGEOT dealer as soon
as possible.
If the remote control does not work
after the battery has been changed,
re-programme the remote control.
Page 74 of 211
4
67

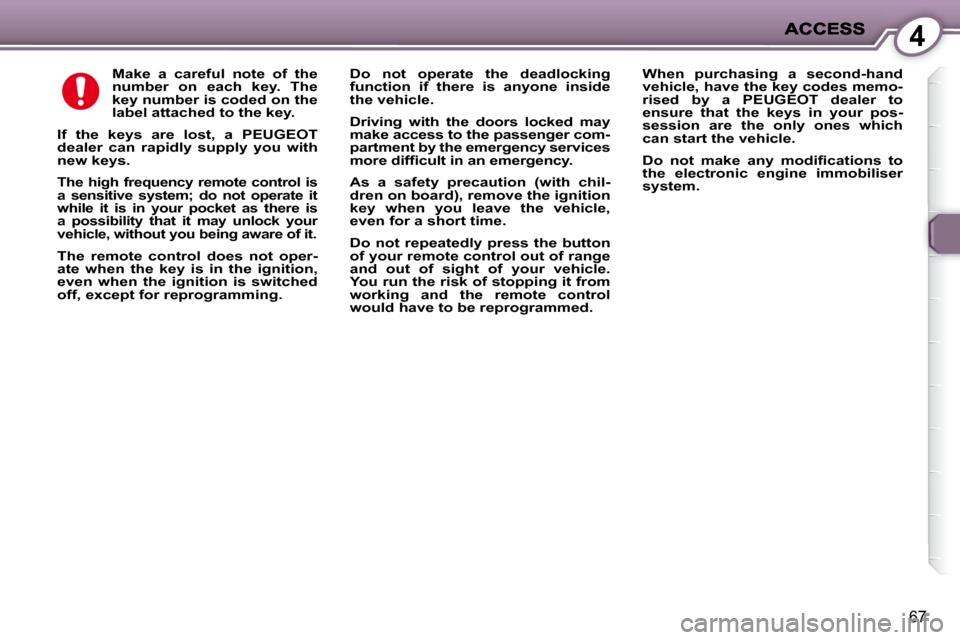

M a k e a c a r e f u l n o t e o f t h e
n u m b e r o n e a c h k e y . T h e
k e y n u m b e r i s c o d e d o n t h e
l a b e l a t t a c h e d t o t h e k e y .
If the keys are lost, a PEUGEOT
d e a l e r c a n r a p i d l y s u p p l y y o u w i t h
n e w k e y s .
T h e h i g h f r e q u e n c y r e m o t e c o n t r o l i s
a sensitive system; do not operate it
w h i l e i t i s i n y o u r p o c k e t a s t h e r e i s
a p o s s i b i l i t y t h a t i t m a y u n l o c k y o u r
v e h i c l e , w i t h o u t y o u b e i n g a w a r e o f i t .
The remote control does not oper-
a t e w h e n t h e k e y i s i n t h e i g n i t i o n ,
e v e n w h e n t h e i g n i t i o n i s s w i t c h e d
o f f , e x c e p t f o r r e p r o g r a m m i n g .
Do not operate the deadlocking
f u n c t i o n i f t h e r e i s a n y o n e i n s i d e
t h e v e h i c l e .
D r i v i n g w i t h t h e d o o r s l o c k e d m a y
make access to the passenger com-
partment by the emergency services
m o r e d i f fi c u l t i n a n e m e r g e n c y .
A s a s a f e t y p r e c a u t i o n ( w i t h c h i l -
dren on board), remove the ignition
k e y w h e n y o u l e a v e t h e v e h i c l e ,
e v e n f o r a s h o r t t i m e .
D o n o t r e p e a t e d l y p r e s s t h e b u t t o n
o f y o u r r e m o t e c o n t r o l o u t o f r a n g e
a n d o u t o f s i g h t o f y o u r v e h i c l e .
Y o u r u n t h e r i s k o f s t o p p i n g i t f r o m
w o r k i n g a n d t h e r e m o t e c o n t r o l
w o u l d h a v e t o b e r e p r o g r a m m e d .
W h e n p u r c h a s i n g a s e c o n d - h a n d
vehicle, have the key codes memo-
rised by a PEUGEOT dealer to
e n s u r e t h a t t h e k e y s i n y o u r p o s -
s e s s i o n a r e t h e o n l y o n e s w h i c h
c a n s t a r t t h e v e h i c l e .
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the electronic engine immobiliser
s y s t e m .
Page 75 of 211
4
68

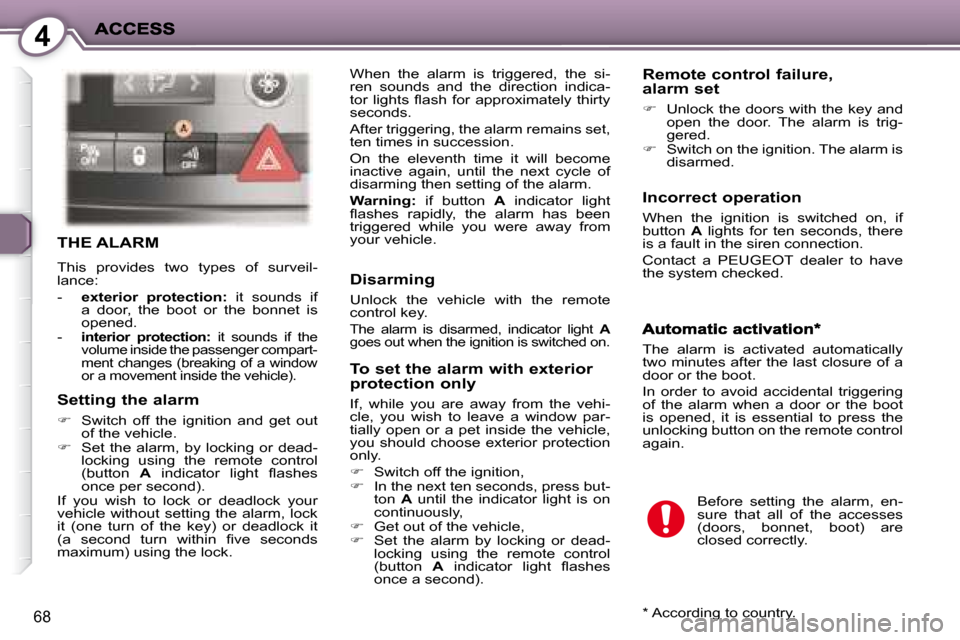

THE ALARM
This provides two types of surveil-
lance:
- exterior protection: it sounds if
a door, the boot or the bonnet is
opened.
-
interior protection: it sounds if the
volume inside the passenger compart-
ment changes (breaking of a window
or a movement inside the vehicle).
When the alarm is triggered, the si-
ren sounds and the direction indica-
t o r l i g h t s fl a s h f o r a p p r o x i m a t e l y t h i r t y
seconds.
After triggering, the alarm remains set,
ten times in succession.
On the eleventh time it will become
inactive again, until the next cycle of
disarming then setting of the alarm.
Warning: if button A indicator light
fl a s h e s r a p i d l y , t h e a l a r m h a s b e e n
triggered while you were away from
your vehicle.
Incorrect operation
When the ignition is switched on, if
button A lights for ten seconds, there
is a fault in the siren connection.
Contact a PEUGEOT dealer to have
the system checked.
R e m o t e c o n t r o l f a i l u r e , alarm set
Unlock the doors with the key and
open the door. The alarm is trig-
gered.
Switch on the ignition. The alarm is
disarmed.
* According to country.
Setting the alarm
Switch off the ignition and get out
of the vehicle.
Set the alarm, by locking or dead-
locking using the remote control
(button A i n d i c a t o r l i g h t fl a s h e s
once per second).
If you wish to lock or deadlock your
vehicle without setting the alarm, lock
it (one turn of the key) or deadlock it
( a s e c o n d t u r n w i t h i n fi v e s e c o n d s
maximum) using the lock.
The alarm is activated automatically
two minutes after the last closure of a
door or the boot.
In order to avoid accidental triggering
of the alarm when a door or the boot
is opened, it is essential to press the
unlocking button on the remote control
again.
Before setting the alarm, en-
sure that all of the accesses
(doors, bonnet, boot) are
closed correctly.
Disarming
Unlock the vehicle with the remote
control key.
The alarm is disarmed, indicator light A
goes out when the ignition is switched on.
T o s e t t h e a l a r m w i t h e x t e r i o r protection only
If, while you are away from the vehi-
cle, you wish to leave a window par-
tially open or a pet inside the vehicle,
you should choose exterior protection
only.
Switch off the ignition,
In the next ten seconds, press but-
ton A until the indicator light is on
continuously,
Get out of the vehicle,
Set the alarm by locking or dead-
locking using the remote control
(button A i n d i c a t o r l i g h t fl a s h e s
once a second).
Page 76 of 211
4
69

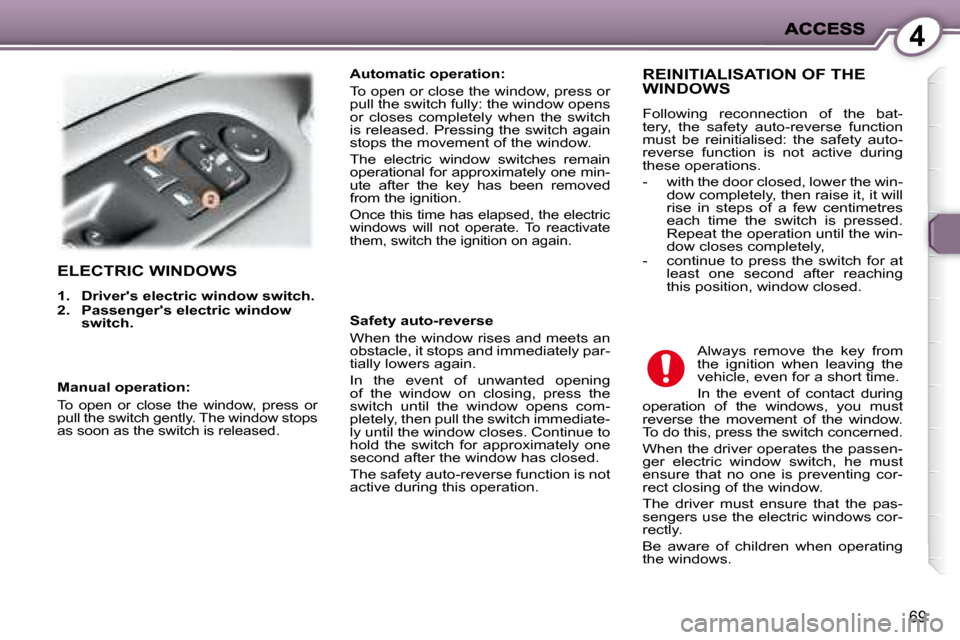

ELECTRIC WINDOWS
1 . D r i v e r ' s e l e c t r i c w i n d o w s w i t c h .
2 . P a s s e n g e r ' s e l e c t r i c w i n d o w
s w i t c h . A u t o m a t i c o p e r a t i o n :
To open or close the window, press or
pull the switch fully: the window opens
or closes completely when the switch
is released. Pressing the switch again
stops the movement of the window.
The electric window switches remain
operational for approximately one min-
ute after the key has been removed
from the ignition.
Once this time has elapsed, the electric
windows will not operate. To reactivate
them, switch the ignition on again.
S a f e t y a u t o - r e v e r s e
When the window rises and meets an
obstacle, it stops and immediately par-
tially lowers again.
In the event of unwanted opening
of the window on closing, press the
switch until the window opens com-
pletely, then pull the switch immediate-
ly until the window closes. Continue to
hold the switch for approximately one
second after the window has closed.
The safety auto-reverse function is not
active during this operation.
REINITIALISATION OF THE WINDOWS
Following reconnection of the bat-
tery, the safety auto-reverse function
must be reinitialised: the safety auto-
reverse function is not active during
these operations.
- with the door closed, lower the win-
dow completely, then raise it, it will
rise in steps of a few centimetres
each time the switch is pressed.
Repeat the operation until the win-
dow closes completely,
- continue to press the switch for at least one second after reaching
this position, window closed.
Always remove the key from
the ignition when leaving the
vehicle, even for a short time.
In the event of contact during
operation of the windows, you must
reverse the movement of the window.
To do this, press the switch concerned.
When the driver operates the passen-
ger electric window switch, he must
ensure that no one is preventing cor-
rect closing of the window.
The driver must ensure that the pas-
sengers use the electric windows cor-
rectly.
Be aware of children when operating
the windows.
M a n u a l o p e r a t i o n :
To open or close the window, press or
pull the switch gently. The window stops
as soon as the switch is released
.
Page 77 of 211
4
70

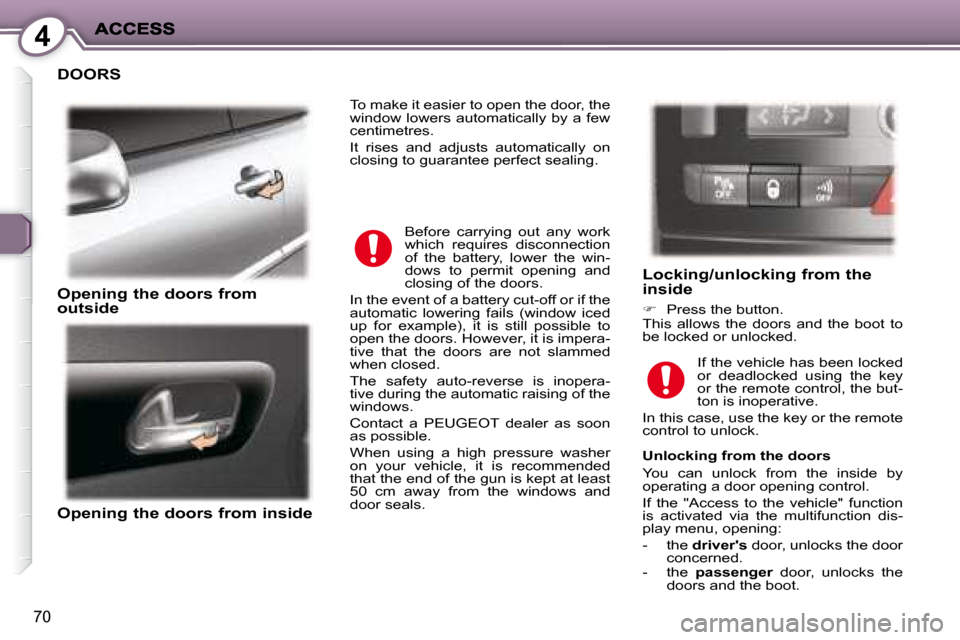

DOORS
Opening the doors from o u t s i d e
Opening the doors from inside
L o c k i n g / u n l o c k i n g f r o m t h e inside
Press the button.
This allows the doors and the boot to
be locked or unlocked.
To make it easier to open the door, the
window lowers automatically by a few
centimetres.
It rises and adjusts automatically on
closing to guarantee perfect sealing.
Before carrying out any work
which requires disconnection
of the battery, lower the win-
dows to permit opening and
closing of the doors.
In the event of a battery cut-off or if the
automatic lowering fails (window iced
up for example), it is still possible to
open the doors. However, it is impera-
tive that the doors are not slammed
when closed.
The safety auto-reverse is inopera-
tive during the automatic raising of the
windows.
Contact a PEUGEOT dealer as soon
as possible.
When using a high pressure washer
on your vehicle, it is recommended
that the end of the gun is kept at least
50 cm away from the windows and
door seals. If the vehicle has been locked
or deadlocked using the key
or the remote control, the but-
ton is inoperative.
In this case, use the key or the remote
control to unlock.
Unlocking from the doors
You can unlock from the inside by
operating a door opening control.
If the "Access to the vehicle" function
is activated via the multifunction dis-
play menu, opening:
- the driver's door, unlocks the door
concerned.
- the passenger door, unlocks the
doors and the boot.
Page 78 of 211
4
71
MANUAL LOCKING (EMERGENCY MODE)
A u t o m a t i c c e n t r a l l o c k i n g o f t h e
doors
The doors and boot can lock automati-
cally while driving (speed above 6 mph
[10 km/h]).
You can activate or deactivate this
function by pressing and holding the
button.
BOOT
To open the boot, press the push but-
ton and raise the tailgate.
Tailgate release
This enables the tailgate to be un-
locked in the event of a central locking
fault.
- Fold back the rear seats to gain access to the lock from inside the
boot,
- Insert a small screwdriver into hole
A of the lock to unlock the tailgate.
Note: driving with the doors
locked may make access to
the passenger compartment by
the emergency services more
d i f fi c u l t i n a n e m e r g e n c y .
If the permanent locking of the
boot is activated, opening is
only possible by pressing the
remote control button.
Passenger door
To lock, insert the key in the control
located on the edge of the door then
push to the left.
Driver's door
Insert the key in the lock to lock or un-
lock the door.
Page 79 of 211
4
71
MANUAL LOCKING (EMERGENCY MODE)
A u t o m a t i c c e n t r a l l o c k i n g o f t h e
doors
The doors and boot can lock automati-
cally while driving (speed above 6 mph
[10 km/h]).
You can activate or deactivate this
function by pressing and holding the
button.
BOOT
To open the boot, press the push but-
ton and raise the tailgate.
Tailgate release
This enables the tailgate to be un-
locked in the event of a central locking
fault.
- Fold back the rear seats to gain access to the lock from inside the
boot,
- Insert a small screwdriver into hole
A of the lock to unlock the tailgate.
Note: driving with the doors
locked may make access to
the passenger compartment by
the emergency services more
d i f fi c u l t i n a n e m e r g e n c y .
If the permanent locking of the
boot is activated, opening is
only possible by pressing the
remote control button.
Passenger door
To lock, insert the key in the control
located on the edge of the door then
push to the left.
Driver's door
Insert the key in the lock to lock or un-
lock the door.
Page 80 of 211
4
72
SUNROOF
To tilt the roof: press and hold part A
of the switch.
To open the roof in sliding mode: tilt
the sunroof, then press part A of the
s w i t c h b r i e fl y .
To close it in sliding mode: press
part B o f t h e s w i t c h b r i e fl y .
To close it in tilt mode: press and
hold part B of the switch.
S a f e t y a u t o - r e v e r s e
When the sunroof is sliding closed and
meets an obstacle, it stops then par-
tially opens again. Pressing the locking button
on the remote control key for
more than 2 seconds closes
the sunroof in sliding mode.
The sunroof remains tilted.
To close the sunroof completely, press
and hold part B of the switch before
getting out of the vehicle.
Always remove the key from
the ignition when leaving the
vehicle, even for a short time.
Always ensure that the sunroof
is closed correctly before leaving the
vehicle.
In the event of contact during closing in
tilt mode, you must reverse the move-
ment of the roof. To do this, press the
switch concerned.
When the driver closes the roof in tilt
mode, he must ensure that no one is
preventing correct closing of the roof.
The driver must ensure that the pas-
sengers use the sunroof correctly.
Be aware of children when operating
the roof.
Notes:
In the event of unwanted opening of
the roof on closing (for example, in the
presence of ice), press and hold part
B
of the switch, w i t h i n t h e t w o s e c o n d s
which follow the triggering of the safety
auto-reverse, until the sunroof closes
completely.
Following reconnection of the bat-
tery or in the event of a malfunction,
press and hold part B of the switch,
the sunroof slides "step by step" until
it closes. Continue to press the switch
for approximately one second after
closing.
T h e s a f e t y a u t o - r e v e r s e f u n c t i o n i s
n o t a c t i v e d u r i n g t h e s e o p e r a t i o n s . S h u t t e r
The sunroof shutter is manual.
To open it, slide it rearwards using the
handle.
To close it, slide it forwards using the
handle.
D o n o t o p e n t h e s u n r o o f i m m e d i a -
t e l y a f t e r a s h o w e r o r i m m e d i a t e l y
a f t e r w a s h i n g t h e c a r .
